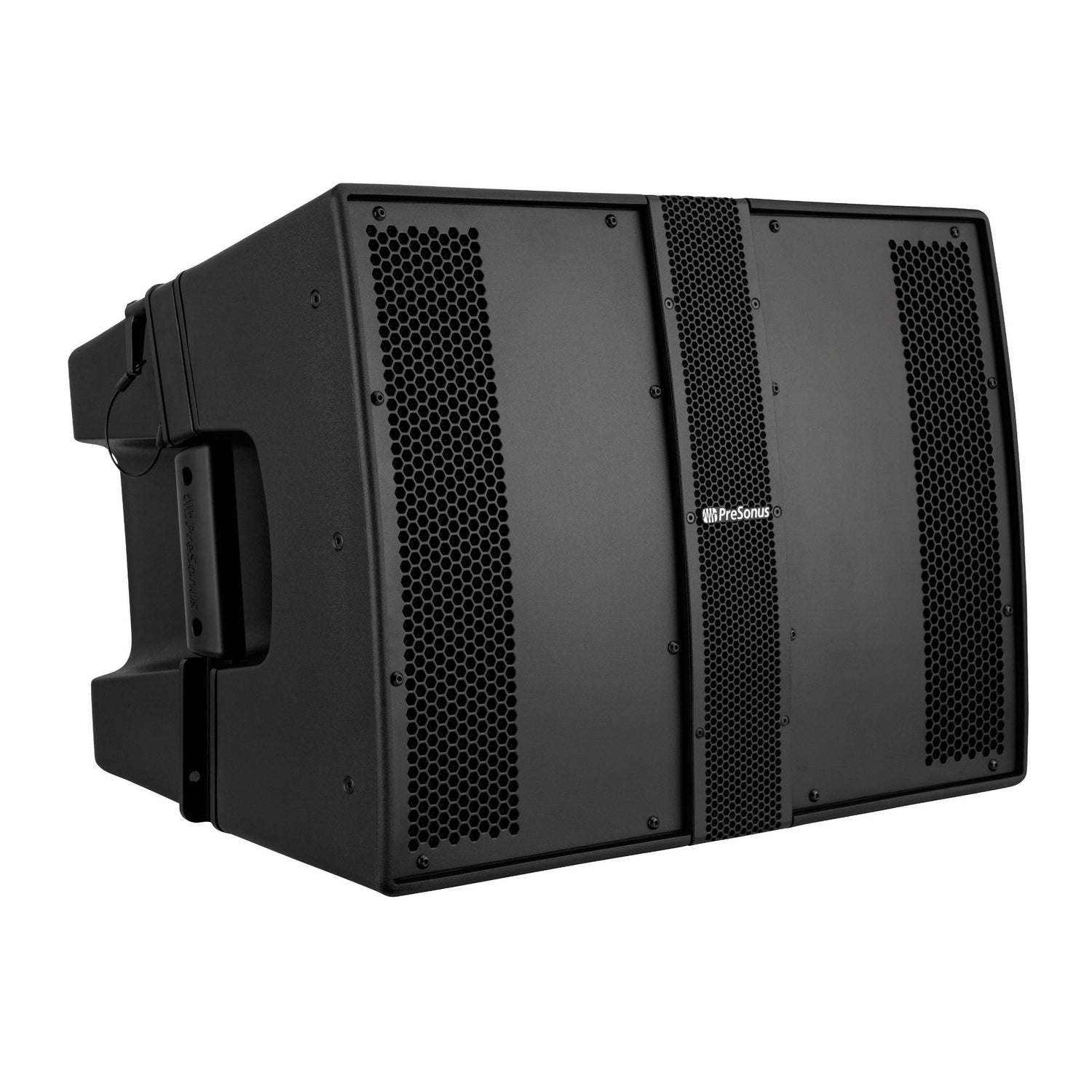

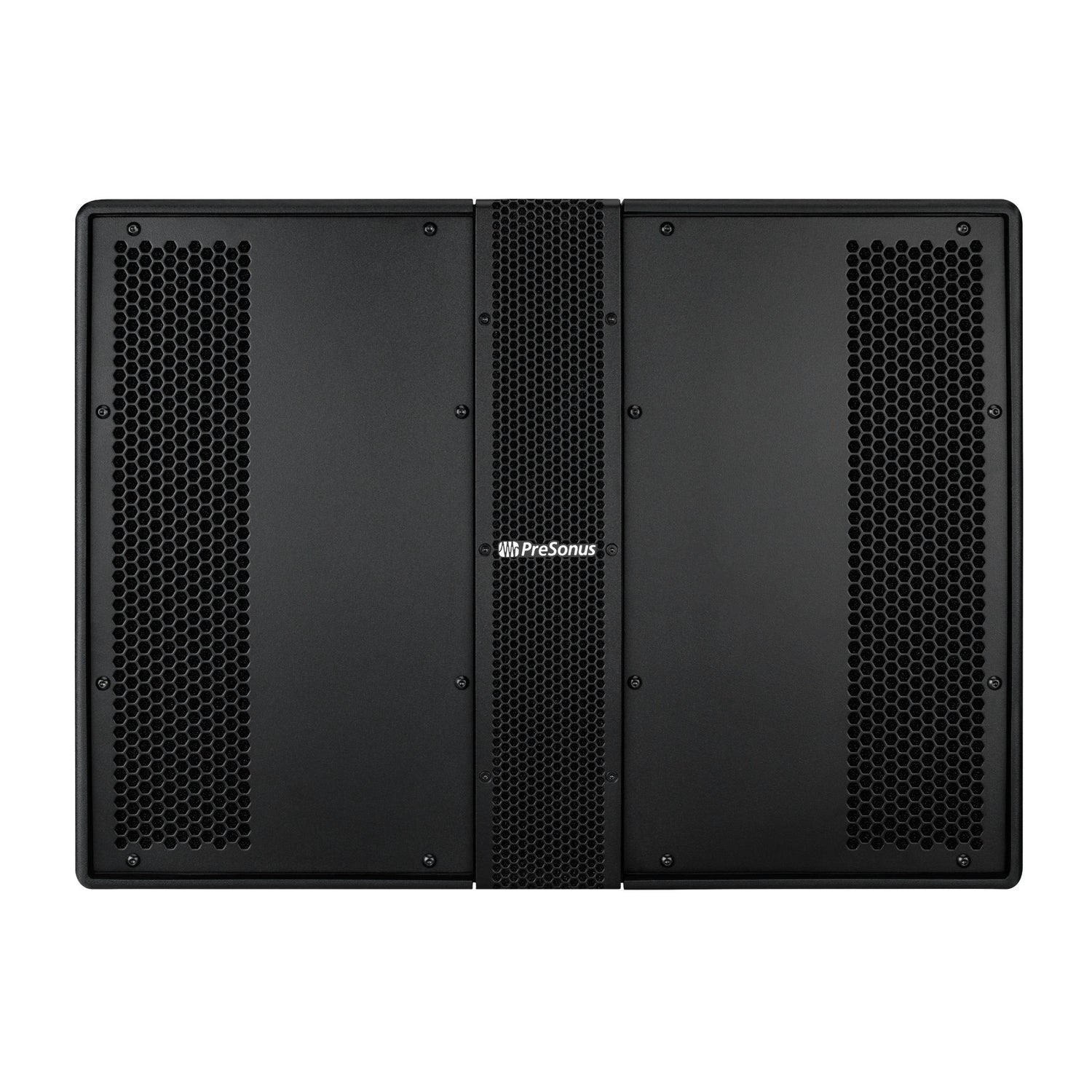

PreSonus 10-In 1000W 2-Way Constant Directivity Sound Reinforcement Loudspeaker

The new CDL10P has a lighter-weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in portable design. Like the CDL12P, CDL10P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis. The CDL10P's hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL10P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL10P's integrated 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.

Features:

• Continuous-directivity constant curve array with six 2-inch cone drivers, 120° horizontal dispersion
• 15 degrees vertical directivity, extendable 30-90 degrees with additional CDL10P
• 10-inch long-throw LF transducer with 2.5-inch voice coil
• Low 420 Hz crossover for minimal comb filtering and clear line array sound
• 500 x 500 W class D power for high SPL and fast transients
• Onboard DSP: high-pass filter, array mode (1–6 boxes), sub mode (off, CDL18s, ULT18, AIR18s)

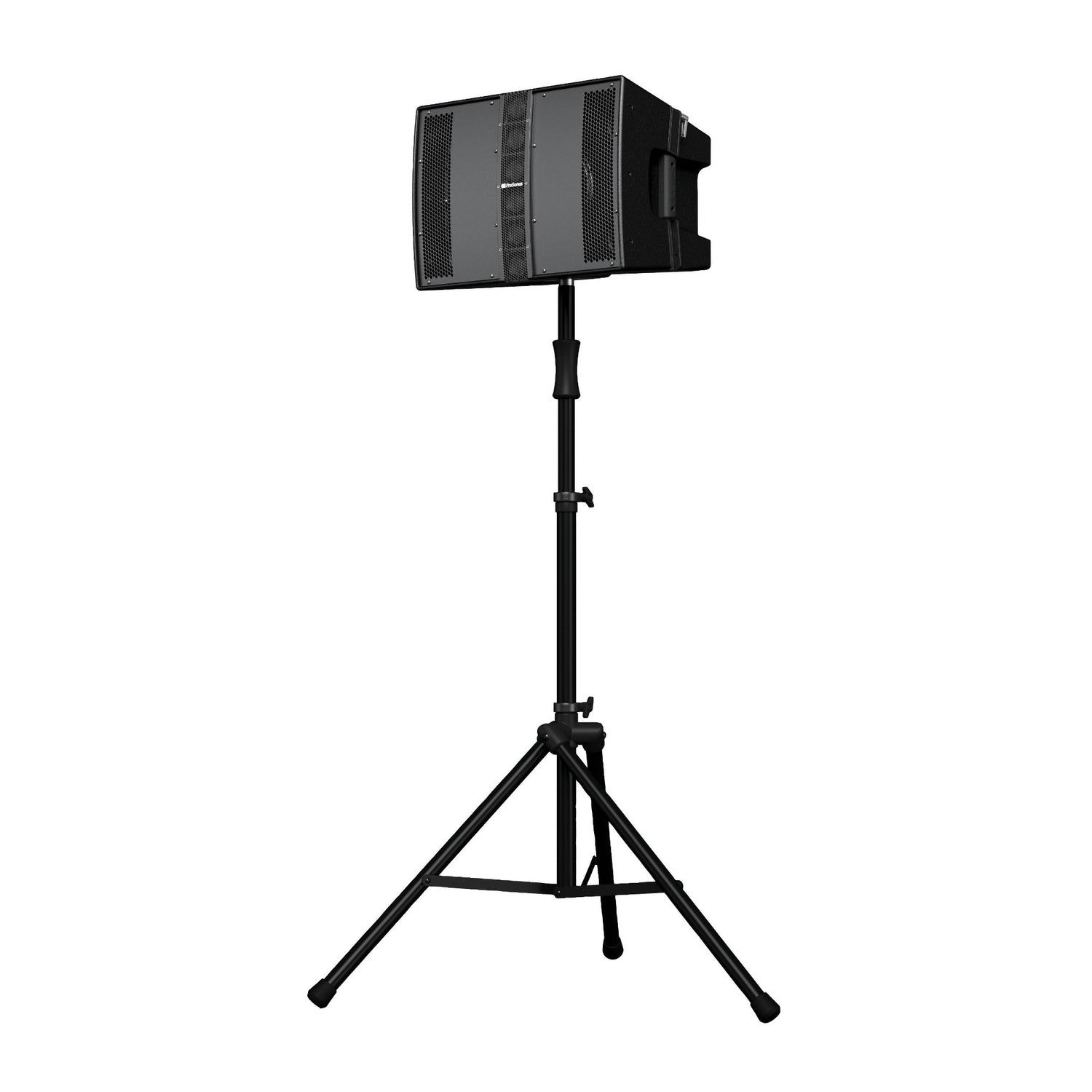

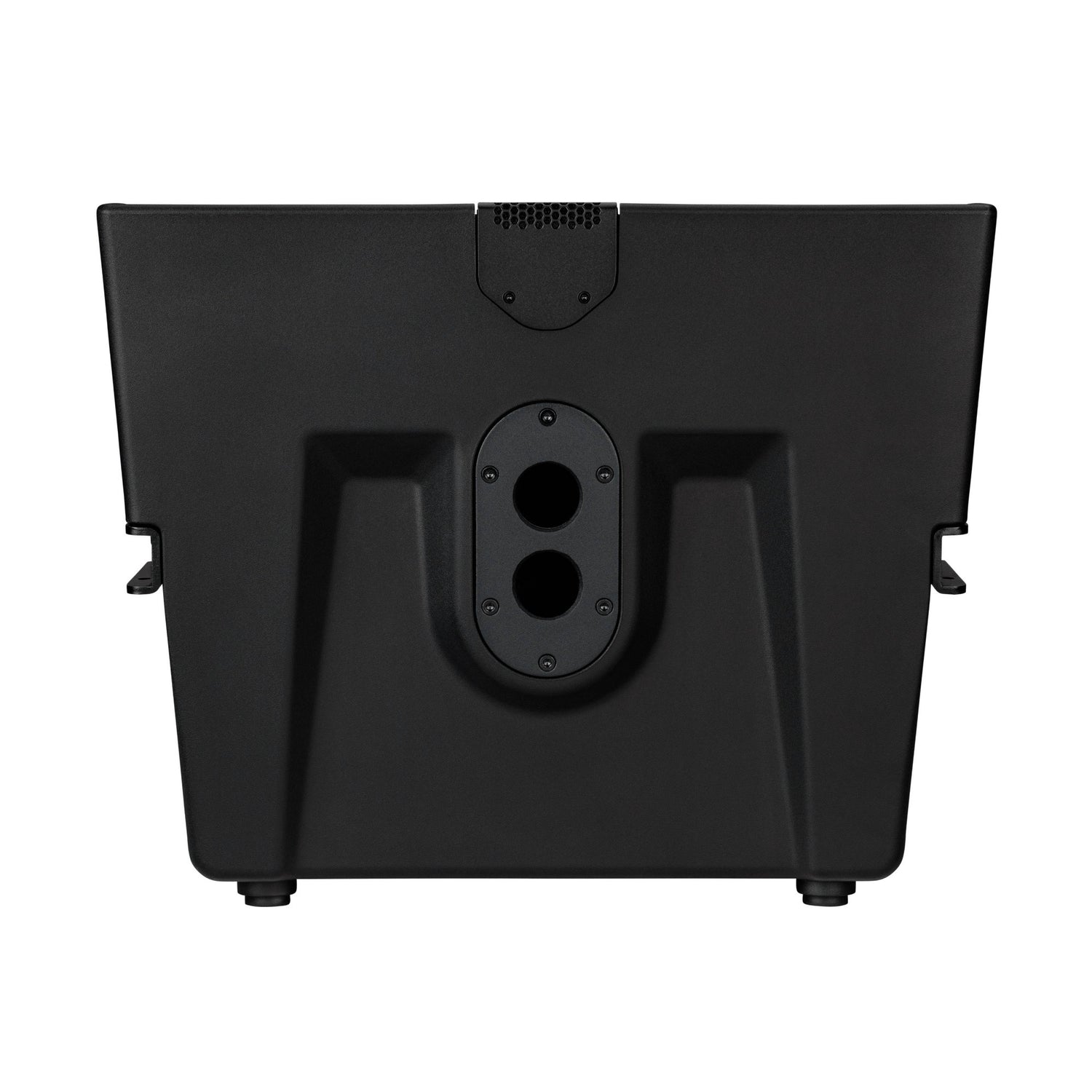

• 35 mm pole socket with 7.5 degrees downward tilt for tripod or subwoofer mounting

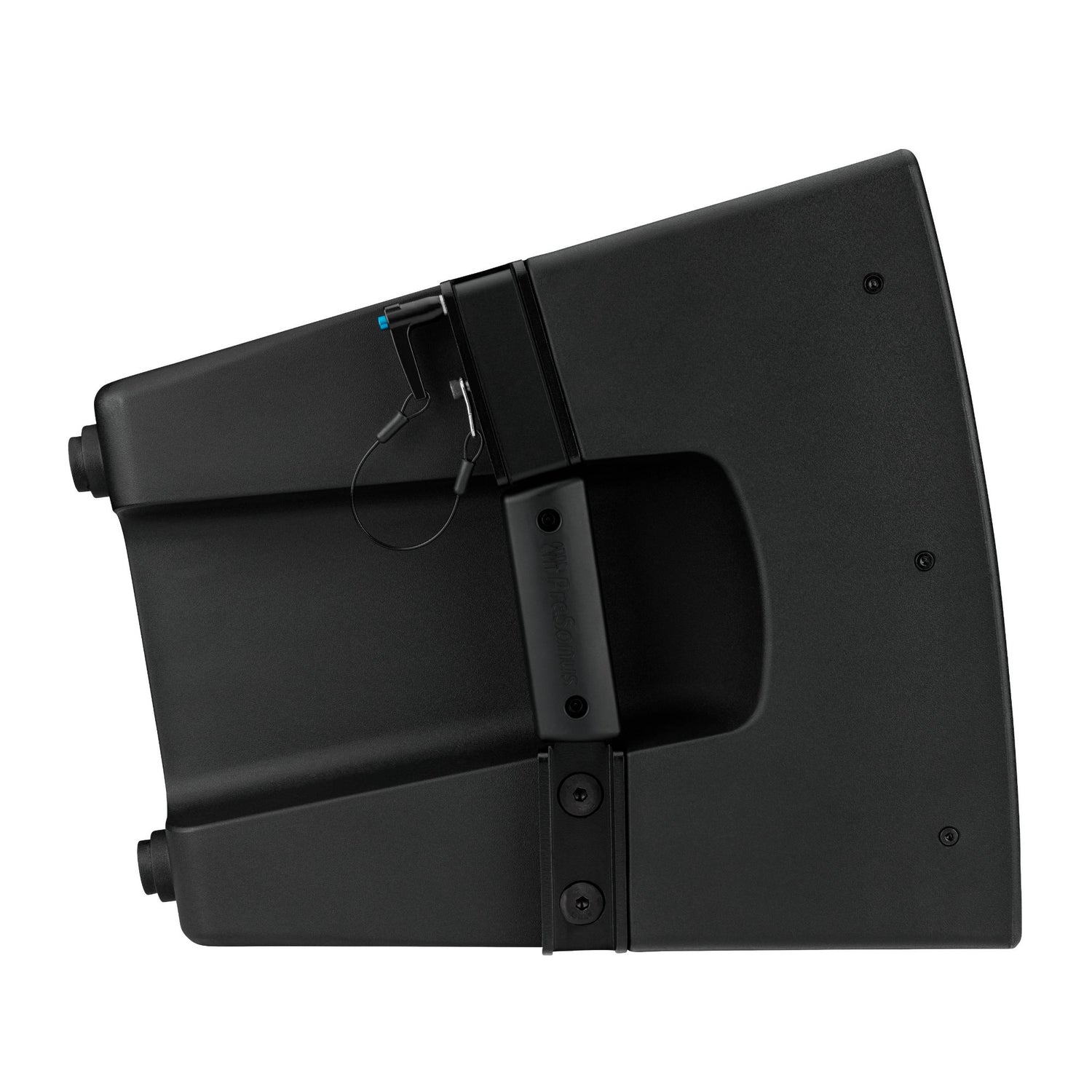

• Integrated flyware for up to six CDL10P array

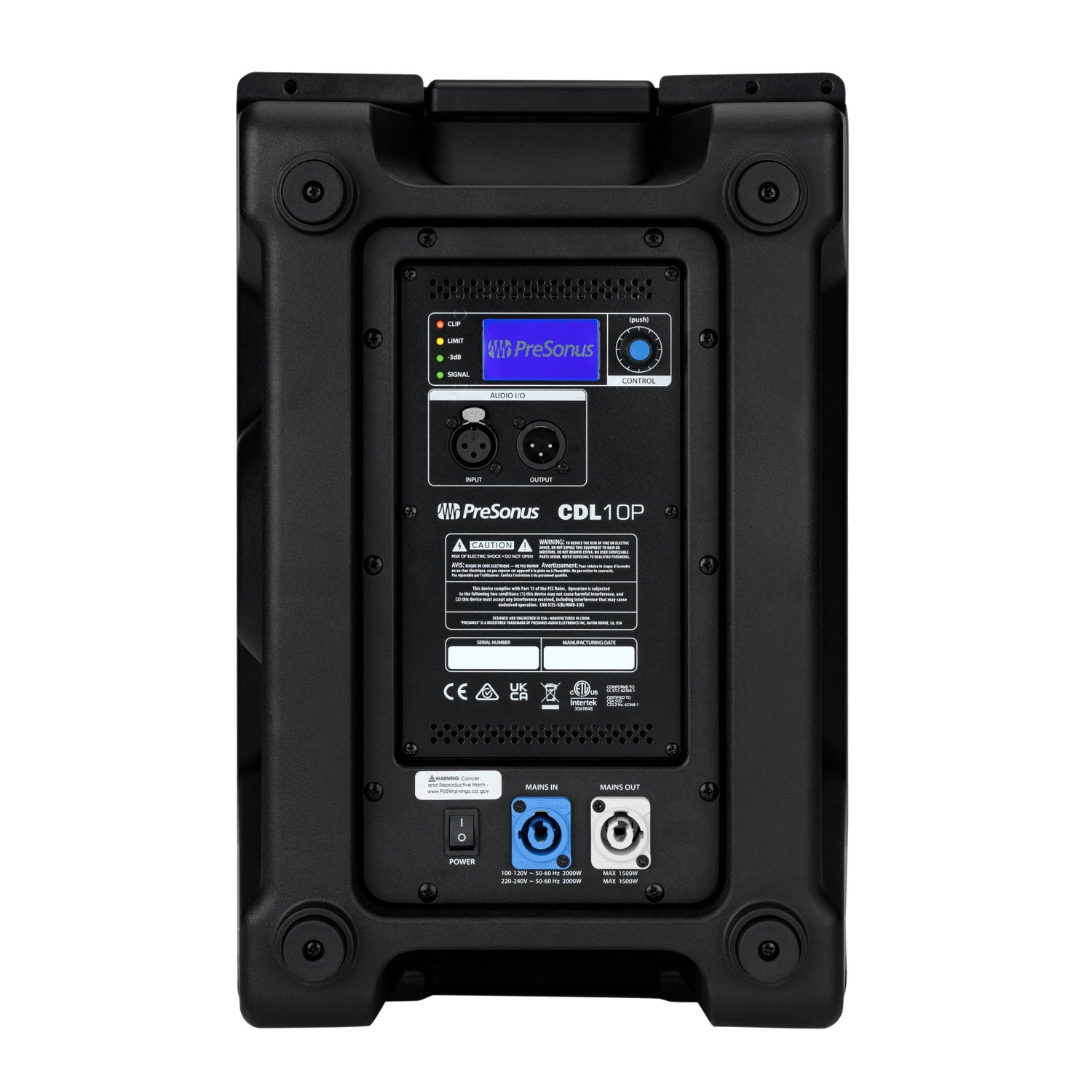

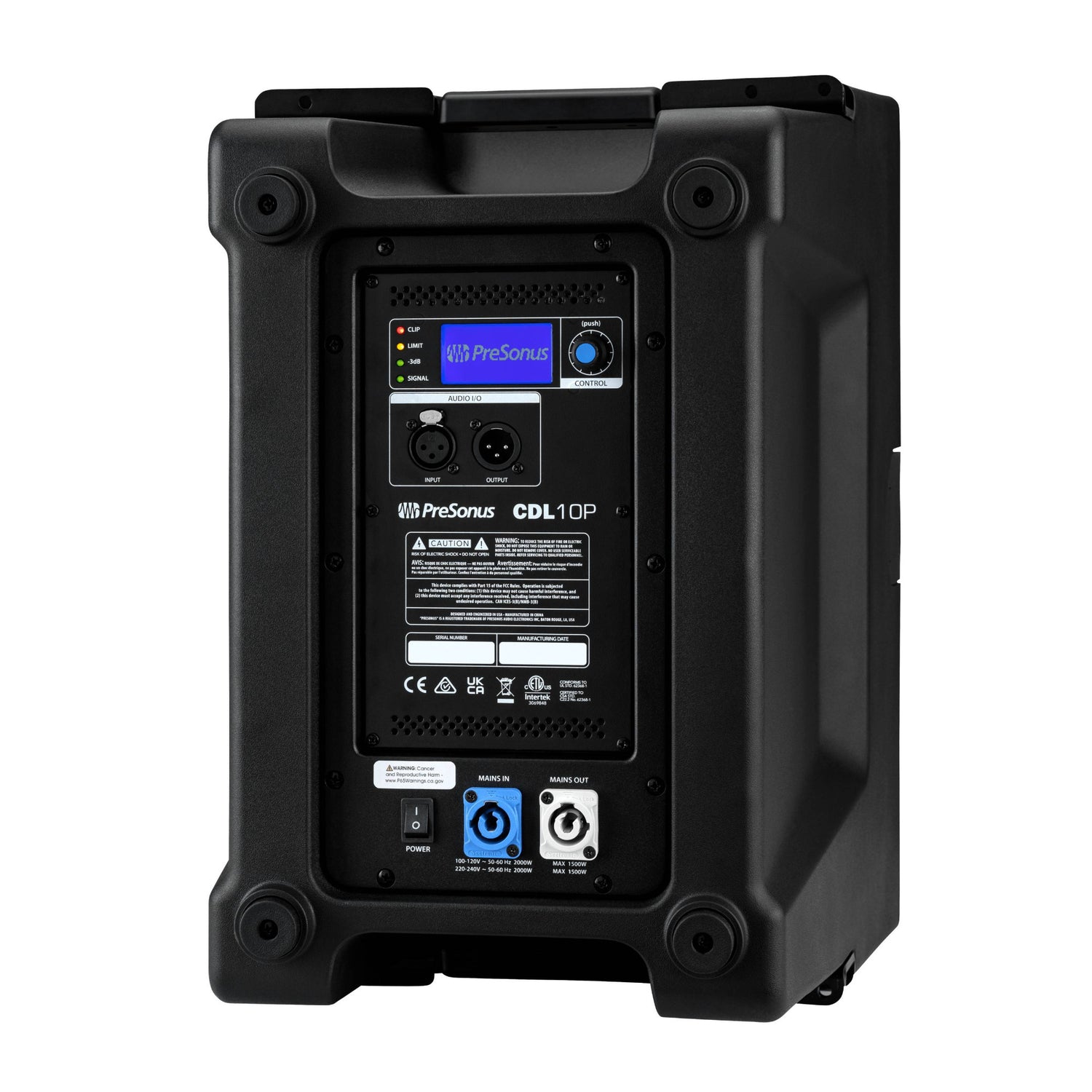

• Signal, -3 dB, limiter protection, clip monitoring
• Rugged lightweight plastic enclosure with 1.2 mm steel grille for touring
