Shure BLX288/SM58 H10 Frequency Band Wireless Dual Microphone System (Silver)
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Shure BLX288/SM58 H10 Frequency Band Wireless Dual Microphone Syste...

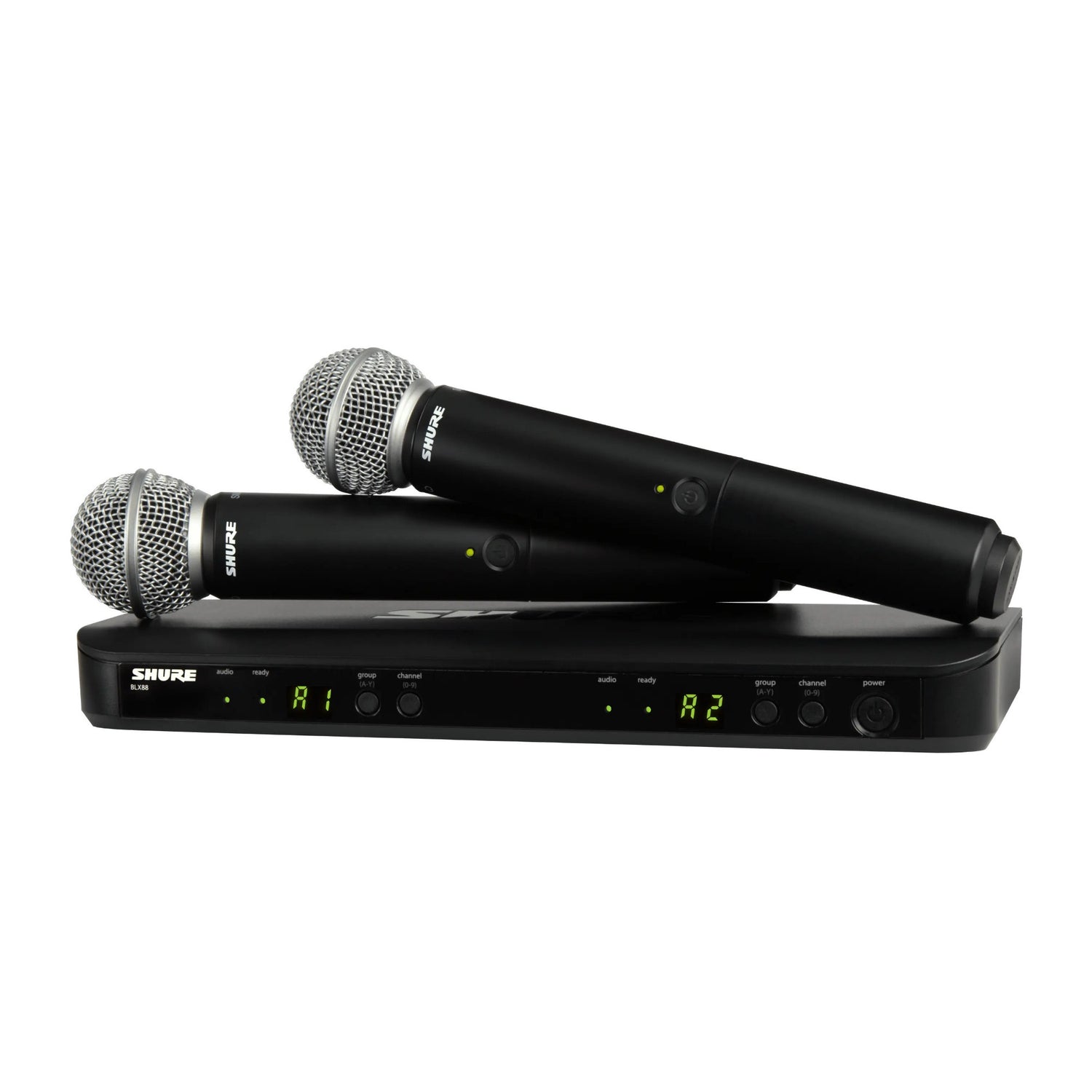

The Shure BLX288/SM58 Wireless Dual Vocal System provides the simple wireless setup and professional-grade performance of BLX Wireless in a two-transmitter and dual receiver set. Featuring two SM58 vocal microphones and one dual wireless receiver, the BLX288/SM58 is available in the regular black handheld with a gray grille. This wireless system works on a H10 frequency band.
Superior Audio
The Professional Shure sound for performance or presentation with two SM58 microphones for warm and clear vocals.
Wireless Range
The system operates up to a range of 300 feet (100m), so you can take the show into the crowd without interruption.
Easy Setup
A breeze to set up and operate, BLX will have you up and running in record time.
Battery Life
The BLX transmitters get up to 14 hours of power from a single pair of AA batteries, so the show can go on and on.
System Expansion
You can run up to 12 Channels per Frequency Band. You'll probably need to find a bigger stage before you run out of channels.
Performance
| Frequency Range | 50Hz - 15kHz |
| Dynamic Range | 100 dB (A) |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin |
| Headphone Connector | No |
Power
| Operating Voltage | 12–15 V DC |
| Bus Power | No |
Physical
| Color | Silver |
| Weight | BLX2: 7.7 oz, BLX88: 15.1 oz |
Microphone
| Form Factor | Handheld |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| High-Pass Filter | No |
| Tone Adjustment | No |
| Gain Adjustment | Yes |
| Indicators | Yes |
| On-Board Controls | No |
| Windscreen | No |
- 300 feet line of sight
- Note: Actual range depends on RF signal absorption, reflection and interference
- 50 to 15,000 Hz
- Note: Dependent on microphone type
- Ref. ±33 kHz deviation with 1 kHz tone
- 0.5 percent, typical
- -18-degree-C (0-degree-F) to 57-degree-C (135-degree-F)
- Note: Battery characteristics may limit this range.
- 0dB: -20 dBV maximum
- -10dB: -10 dBV maximum
- XLR connector: 200 ohm
- 6.35 mm (1/4 inch) connector: 50 ohm
- Ref. ±33 kHz deviation with 1 kHz tone
- XLR connector: –27 dBV (into 100 k ohm load)
- 6.35 mm (1/4 inch) connector: –13 dBV (into 100 k ohm load)
Shure BLX288/SM58 H10 Frequency Band Easy to Setup Wireless Dual Microphone System
General
| Color | Silver |
| Frequency band | H10 |
| Range | 542 to 572 MHz |
| Output power | 10 mW |
| Mic capsule | SM58 |
| Working range | |
| Audio frequency response | |
| Total harmonic distortion | |
| Dynamic range | 100 dB, A-weighted, typical |
| Operating temperature | |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |

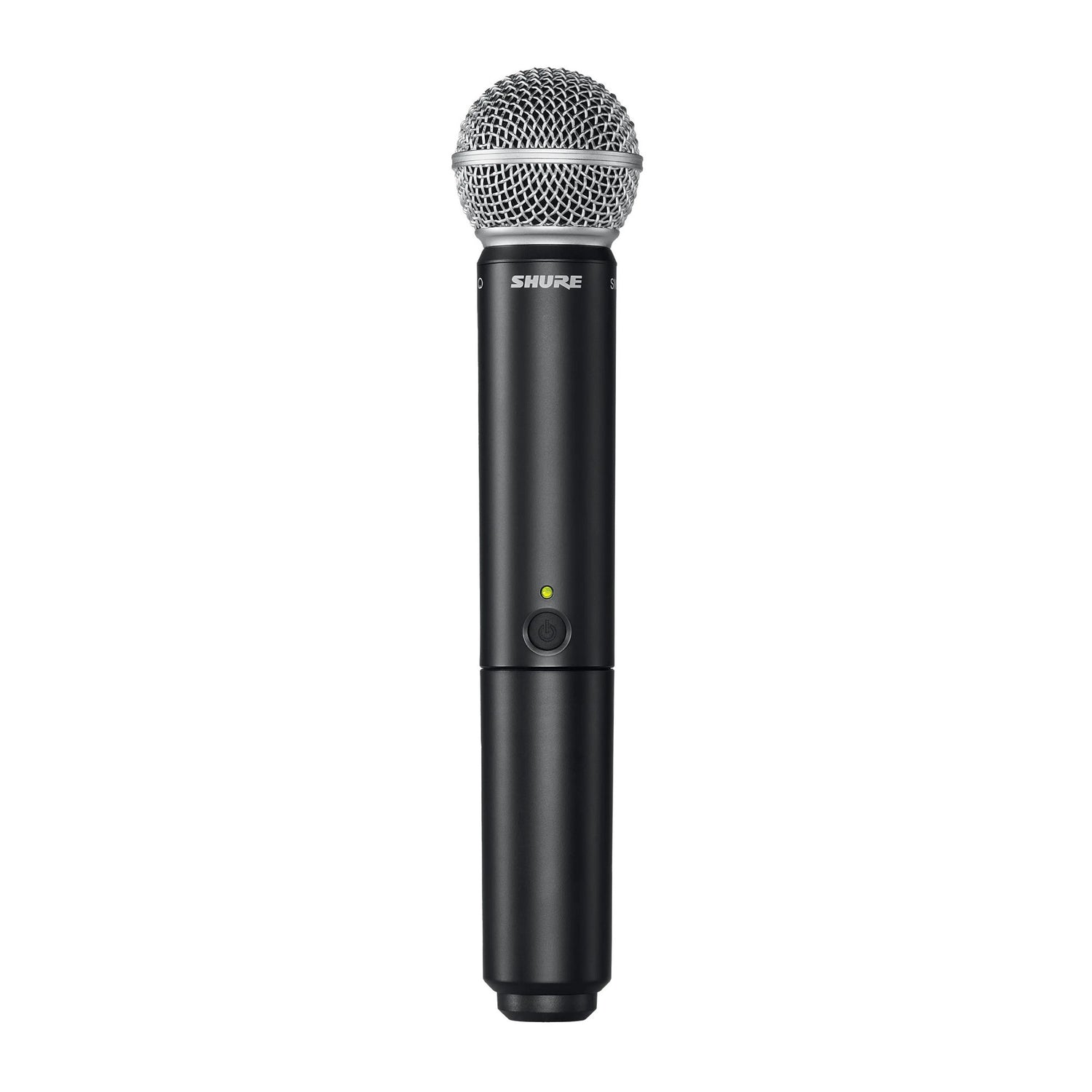

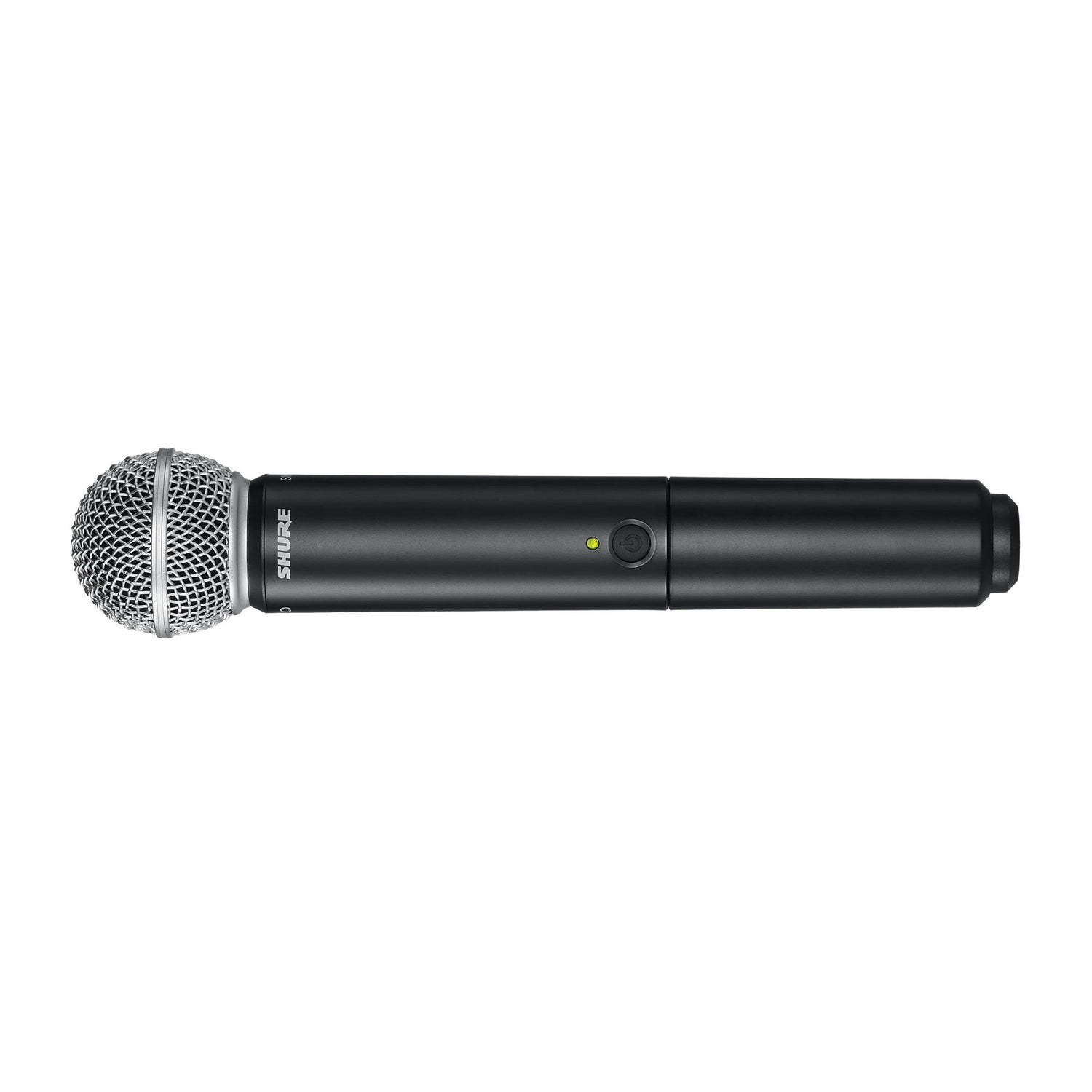

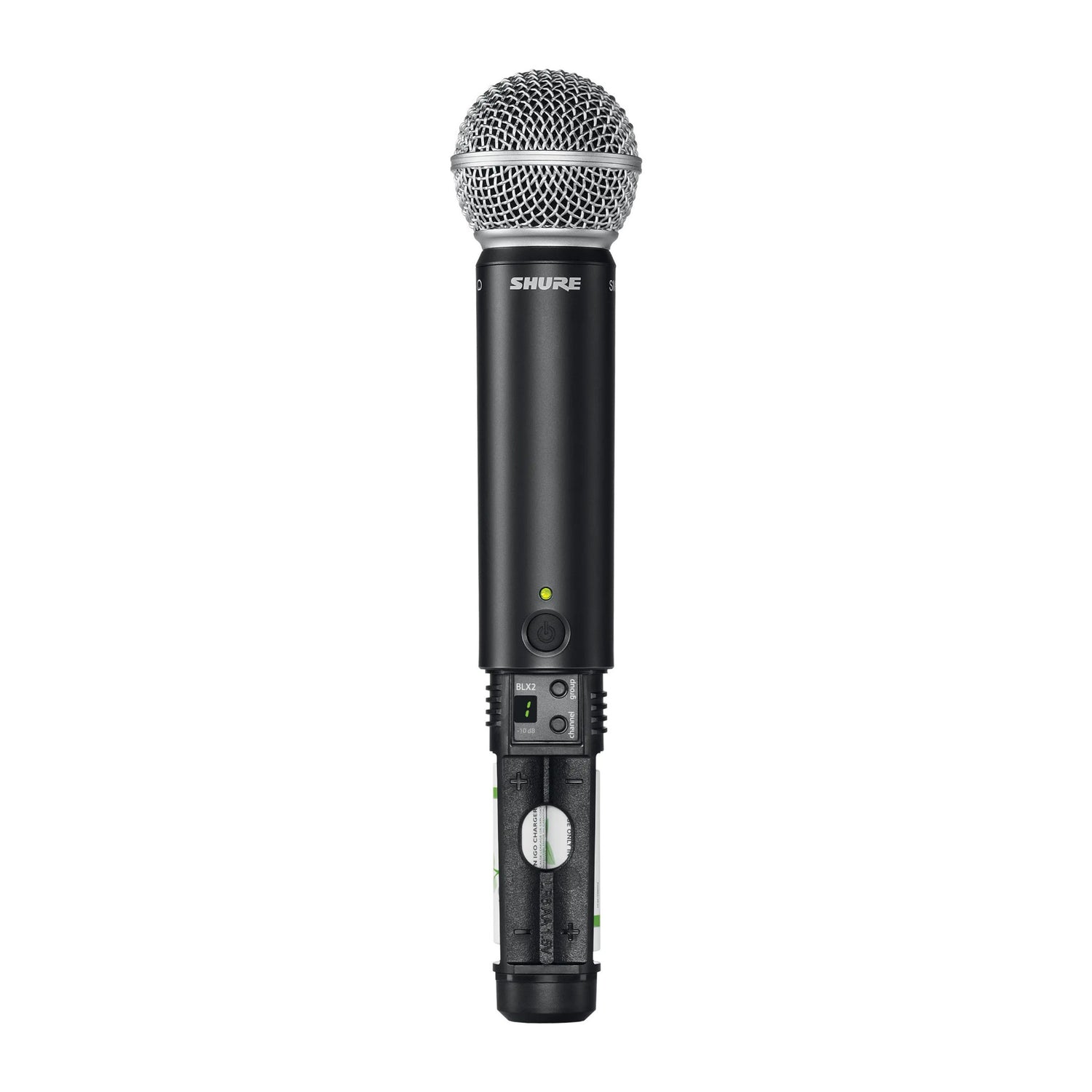

BLX2 Handheld Transmitter
| Audio input level | |
| Gain adjustment range | 10 dB |
| RF transmitter output | 10 mW, typical varies by region |
| Dimensions (L x D) | 8.82 x 2.09 inch (224 x 53 mm) |
| Weight | 7.7 oz (218 g) without batteries |
| Housing | Molded ABS |
| Power requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery life | Up to 14 hours (alkaline) |

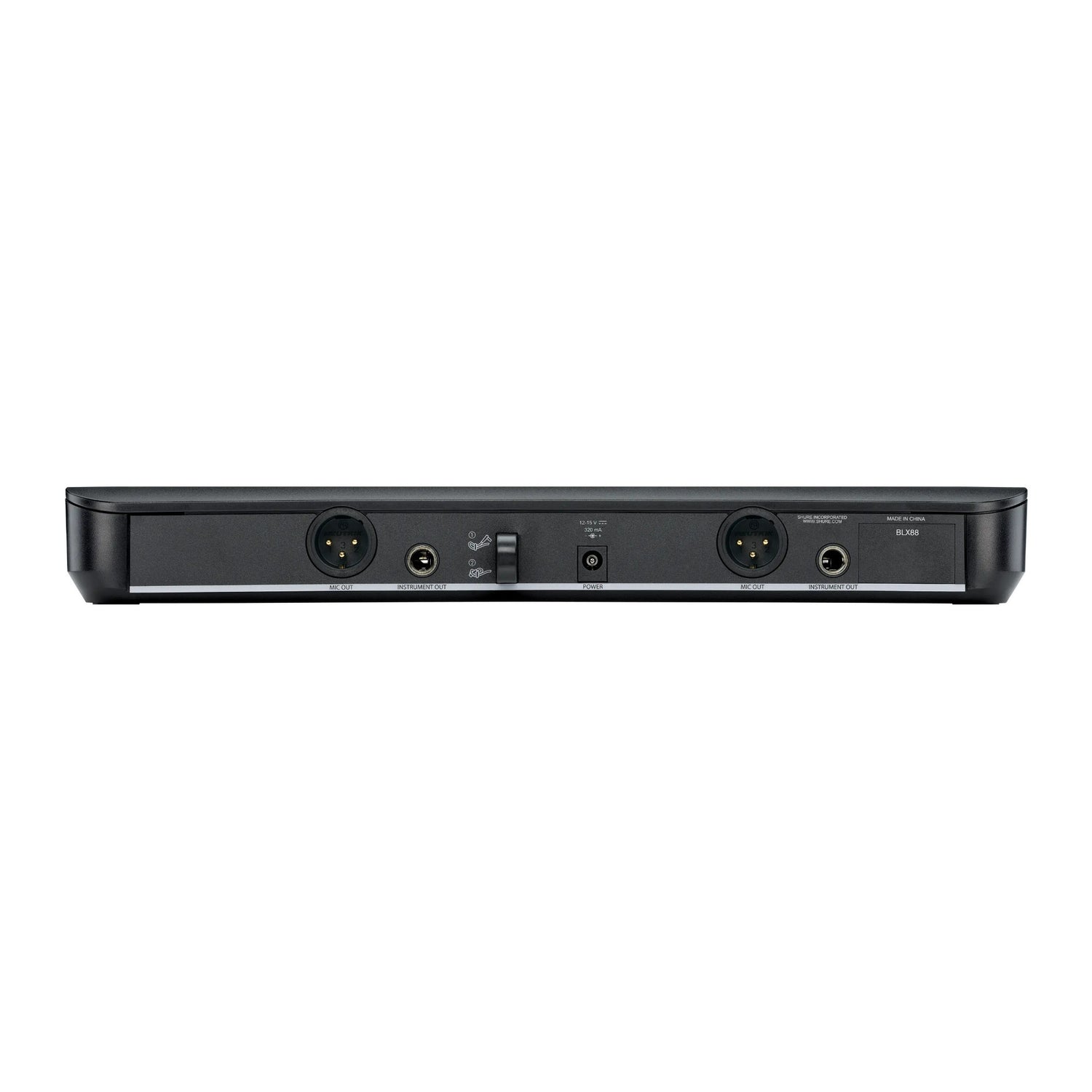

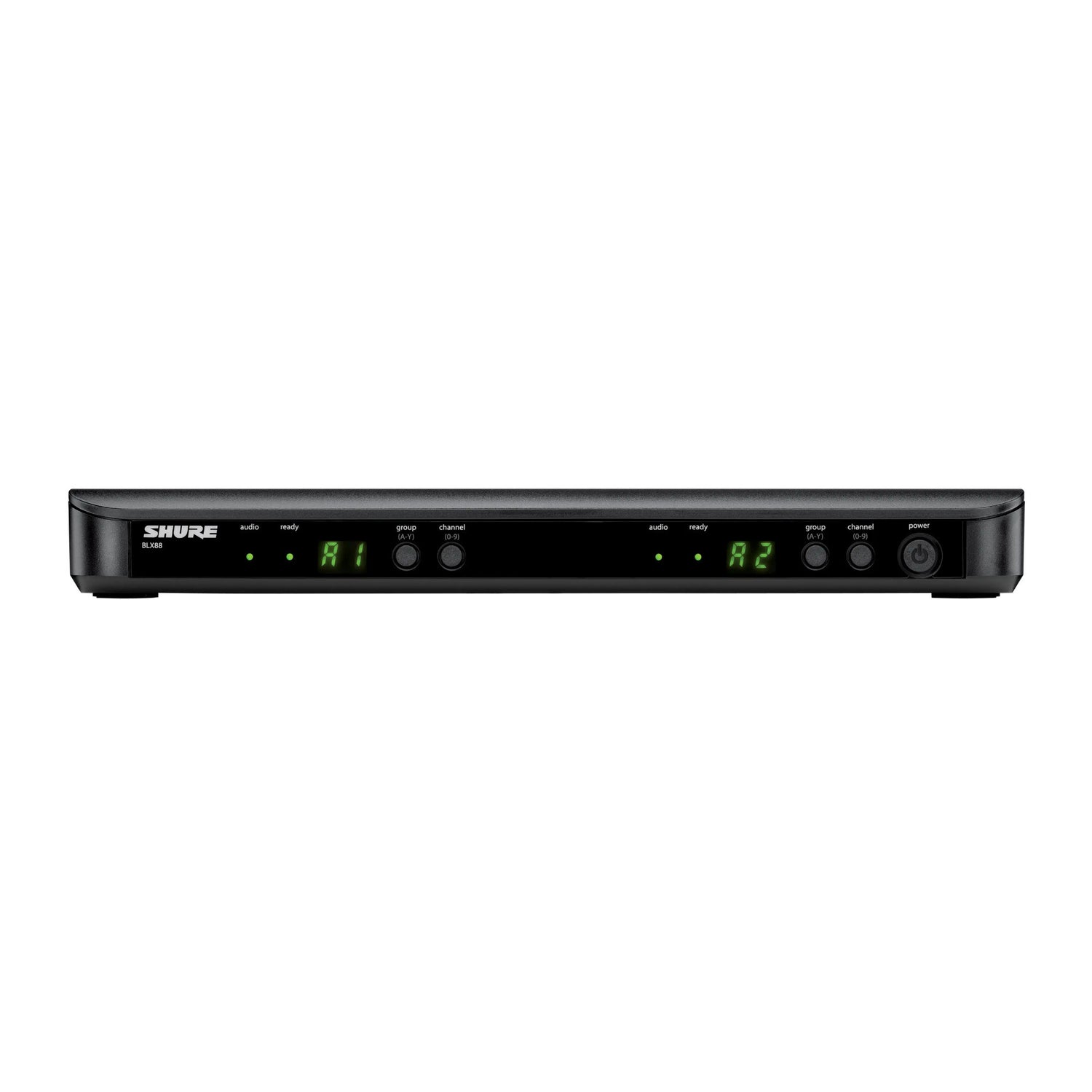

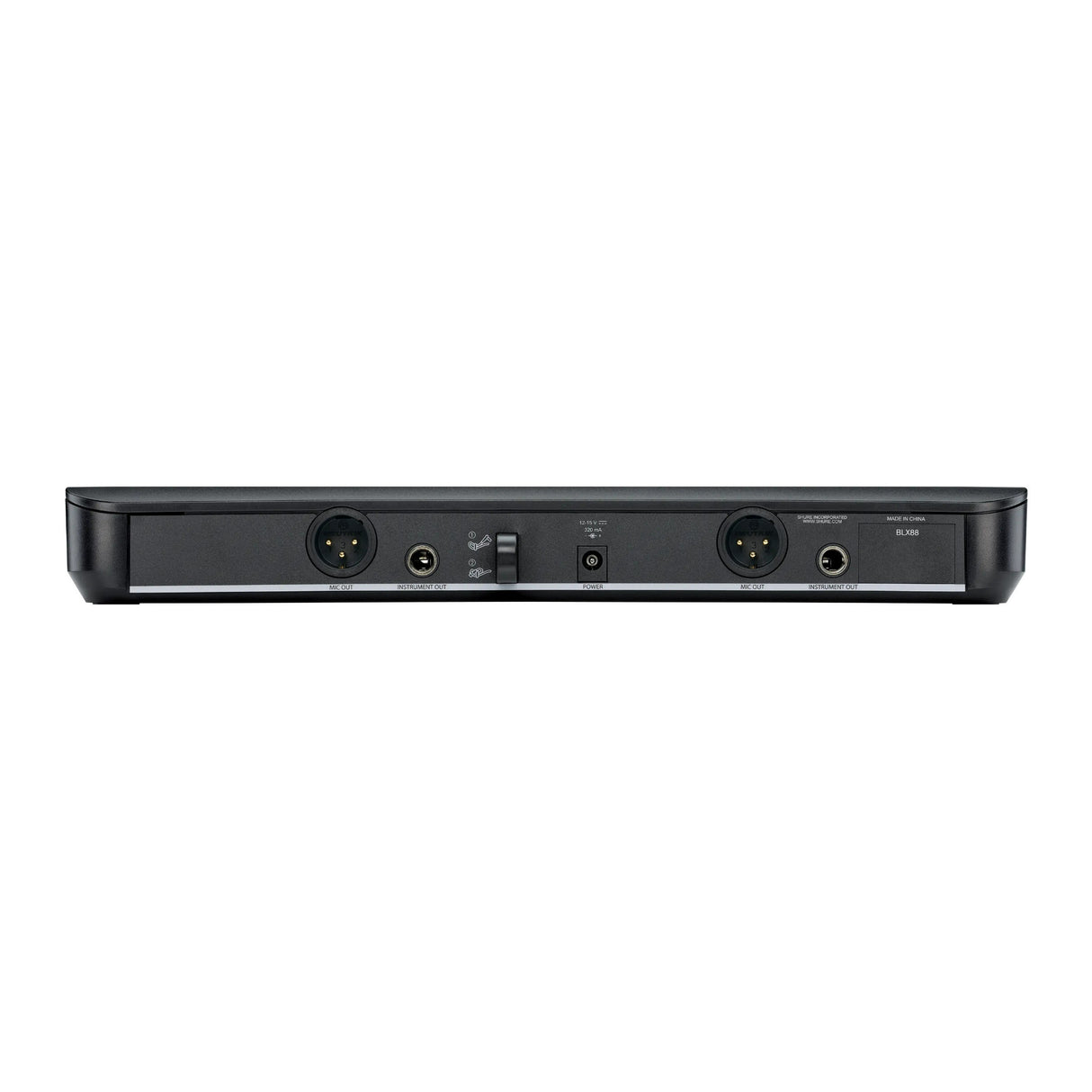

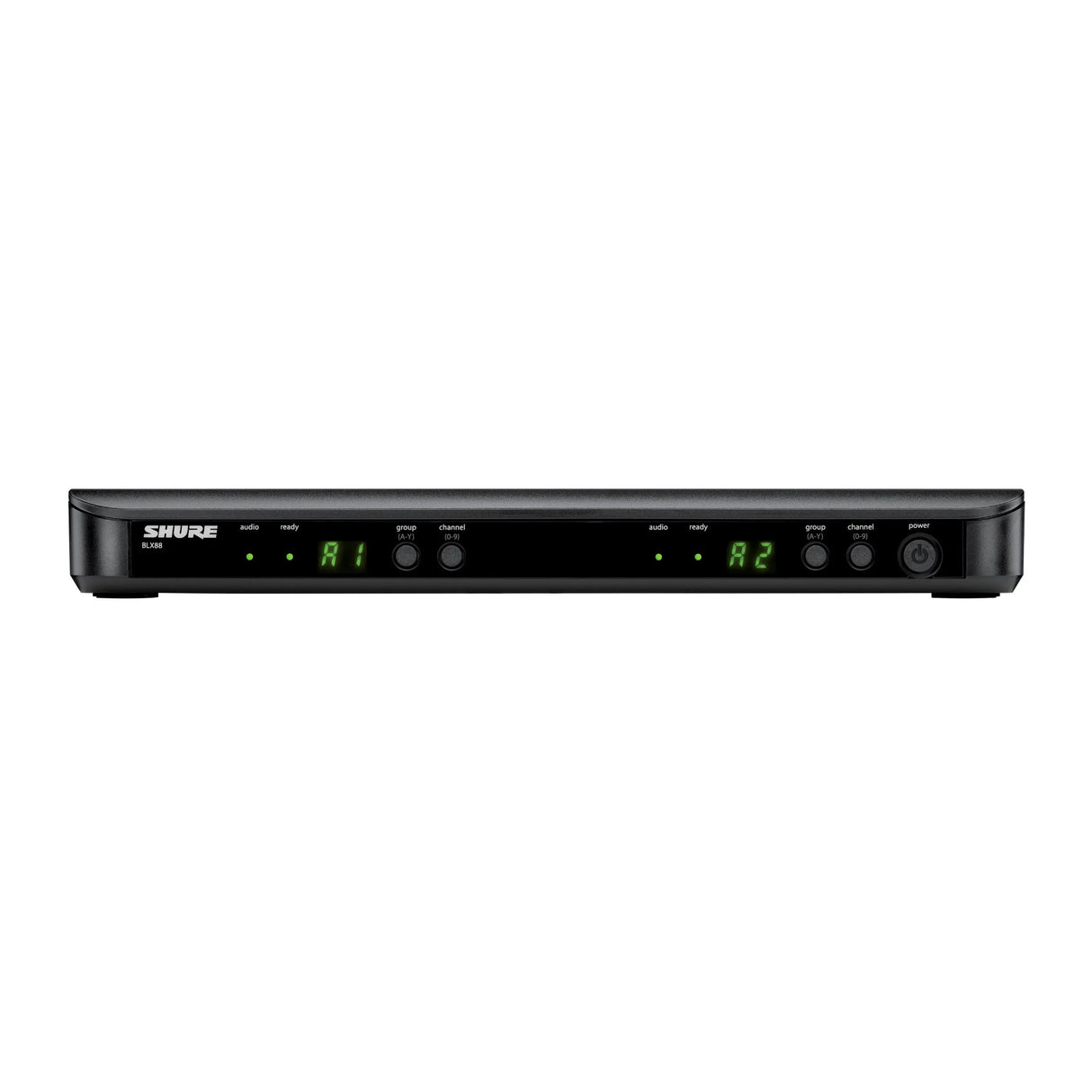

BLX88 Dual Wireless Receiver
| Output impedance | |
| Audio output level | |
| RF sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image rejection | >50 dB, typical |
| Dimensions (H x W x D) | 1.50 x 12.13 x 3.98 inch (38 x 308 x 101 mm) |
| Weight | 15.1 oz (429 g) |
| Housing | Molded ABS |
| Power requirements | 12–15 V DC at 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
