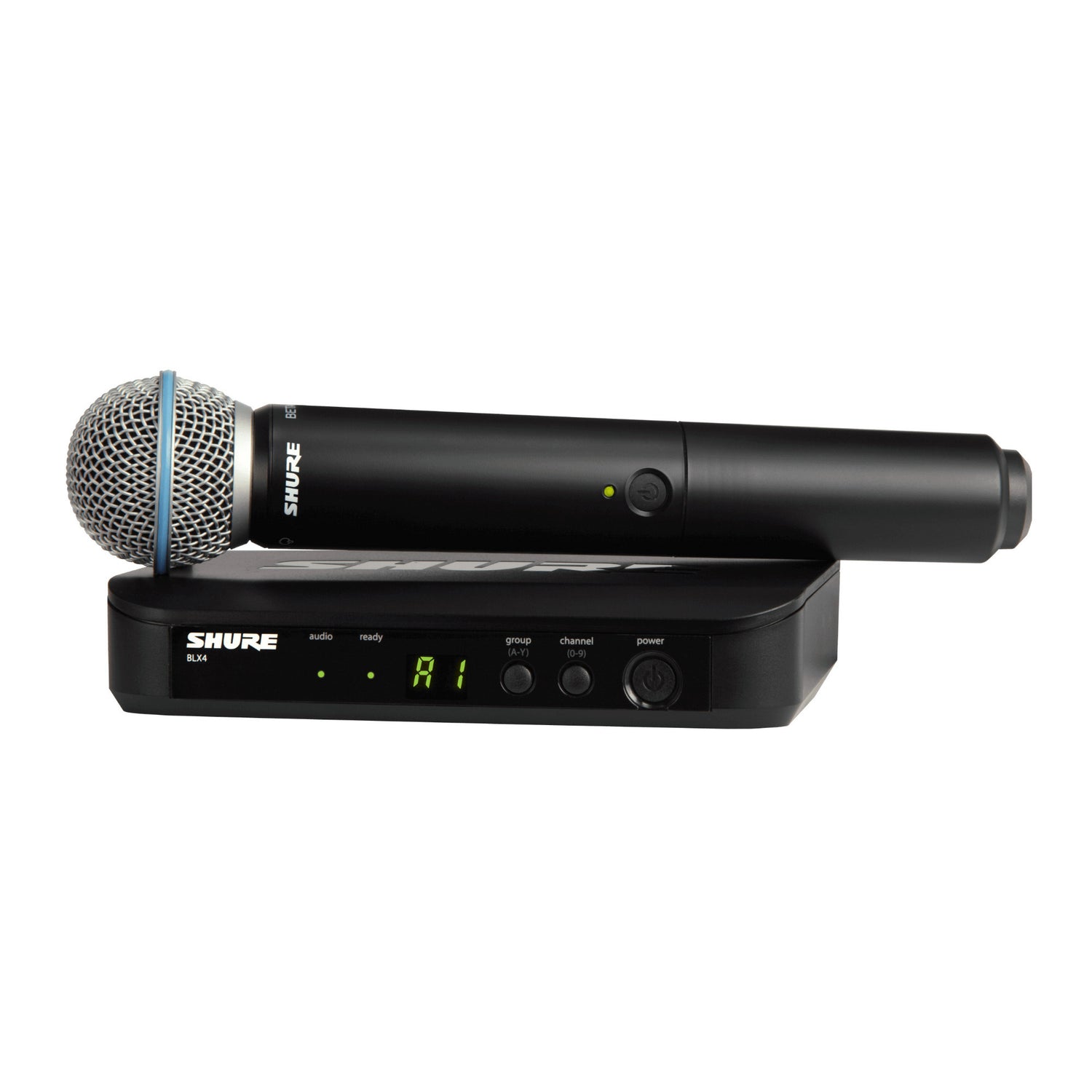

Shure BLX24/B58 10 mW Wireless Handheld Microphone System with H11 Band
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Shure BLX24/B58 10 mW Wireless Handheld Microphone System with H11 ...
The Shure BLX24/B58 Wireless Handheld Microphone System is precision-engineered for live performance and project studio recording. A tailored frequency response accentuates vocals and the supercardioid pattern isolates from other sound sources. It combines a simple setup and an intuitive interface for performance you can trust. The H11 frequency band ensures an accurate frequency range of 572 to 596 MHz perfect for your highly particular vocal needs.
Performance
| Frequency Range | 50Hz - 15kHz |
| Dynamic Range | 100 dB (A) |
Connectivity
| Output Connectors (Analog) | XLR |
| Headphone Connector | No |
Power
| Operating Voltage | 12–15 V DC at 235 mA supplied by external power supply (tip positive) |
| Bus Power | No |
Physical
| Color | Black |
| Weight | BLX4: 8.5 oz, BLX2: 7.7 oz |
Microphone
| Form Factor | Handheld |
| Primary Applications | Live performance and project studio recording |
| Capsule | Dynamic |
| Polar Pattern | Supercardioid |
| High-Pass Filter | No |
| Tone Adjustment | No |
| Gain Adjustment | Yes |
| Indicators | Yes |
| On-Board Controls | No |
| Windscreen | No |
- Note: Actual range depends on RF signal absorption, reflection and interference.
- Note: Dependent on microphone type
- XLR connector: 200 Ohm
- 6.35 mm (1/4 inch) connector: 50 Ohm
- XLR connector: –27 dBV (into 100 k Ohm load)
- 6.35 mm (1/4 inch) connector: –13 dBV (into 100 k Ohm load)
Shure BLX24/B58 10 mW Wireless Handheld Microphone System with Beta 58A and H11 Band
System
| Working range | 300 feet (91 m) line of sight |
| Audio frequency response | 50 to 15,000 Hz |
| Total harmonic distortion | Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical |
| Dynamic range | 100 dB, A-weighted, typical |
| Operating Temperature | -18 degree C (0 degree F) to 57 degree C (135 degree F) |
| Note | Battery characteristics may limit this range. |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
H11 Band
| Frequency range | 572 to 596 MHz |
| Output power | 10mW |

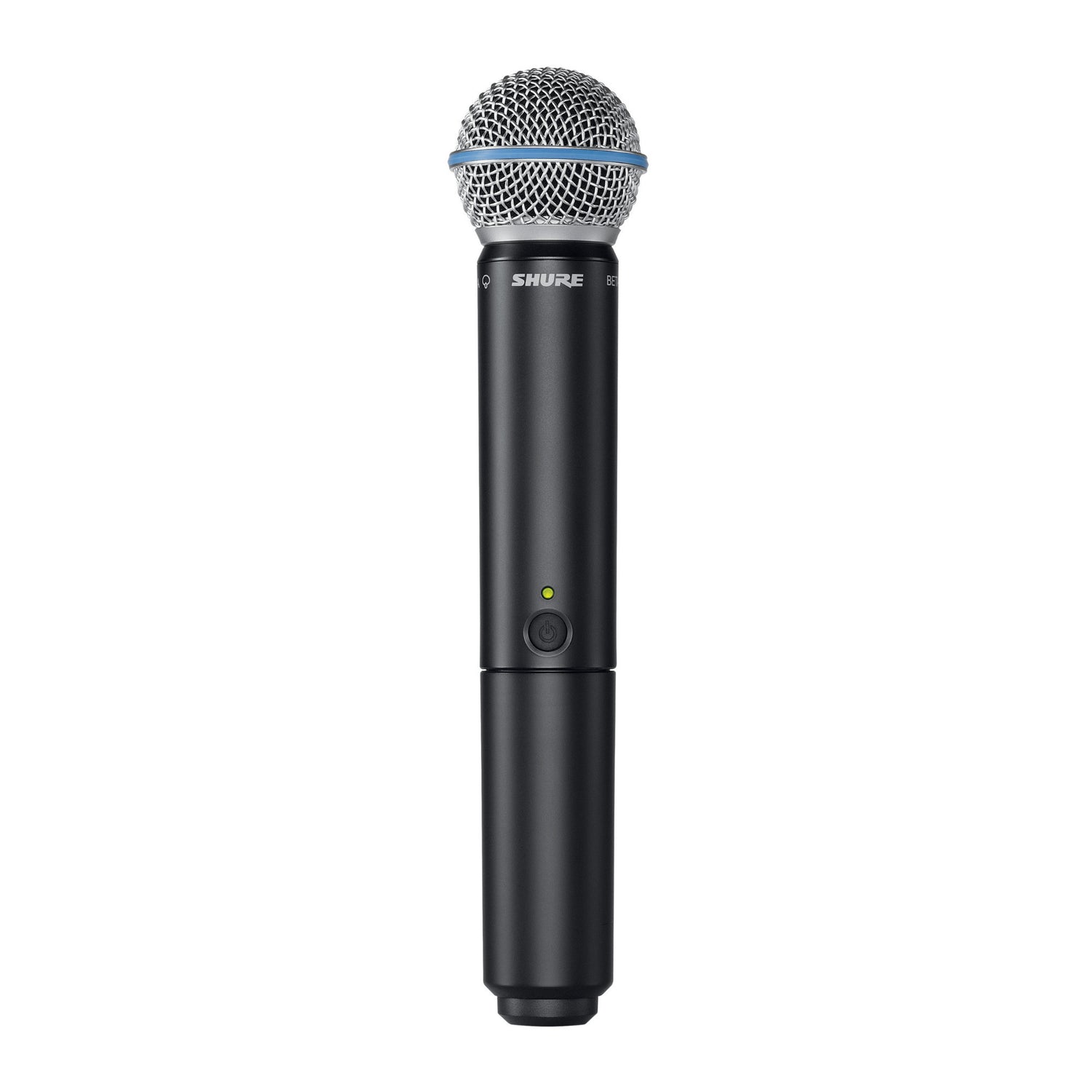

BLX2
| Audio input level | 0dB -20 dBV maximum, -10dB -10 dBV maximum |
| Gain adjustment range | 10 dB |
| RF transmitter output | 10 mW, typical (varies by region) |
| Dimensions (L x D) | 8.82 x 2.09 inch (224 x 53 mm) |
| Weight | 7.7 oz (218 g) without batteries |
| Housing | Molded ABS |
| Power requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | Up to 14 hours (alkaline) |

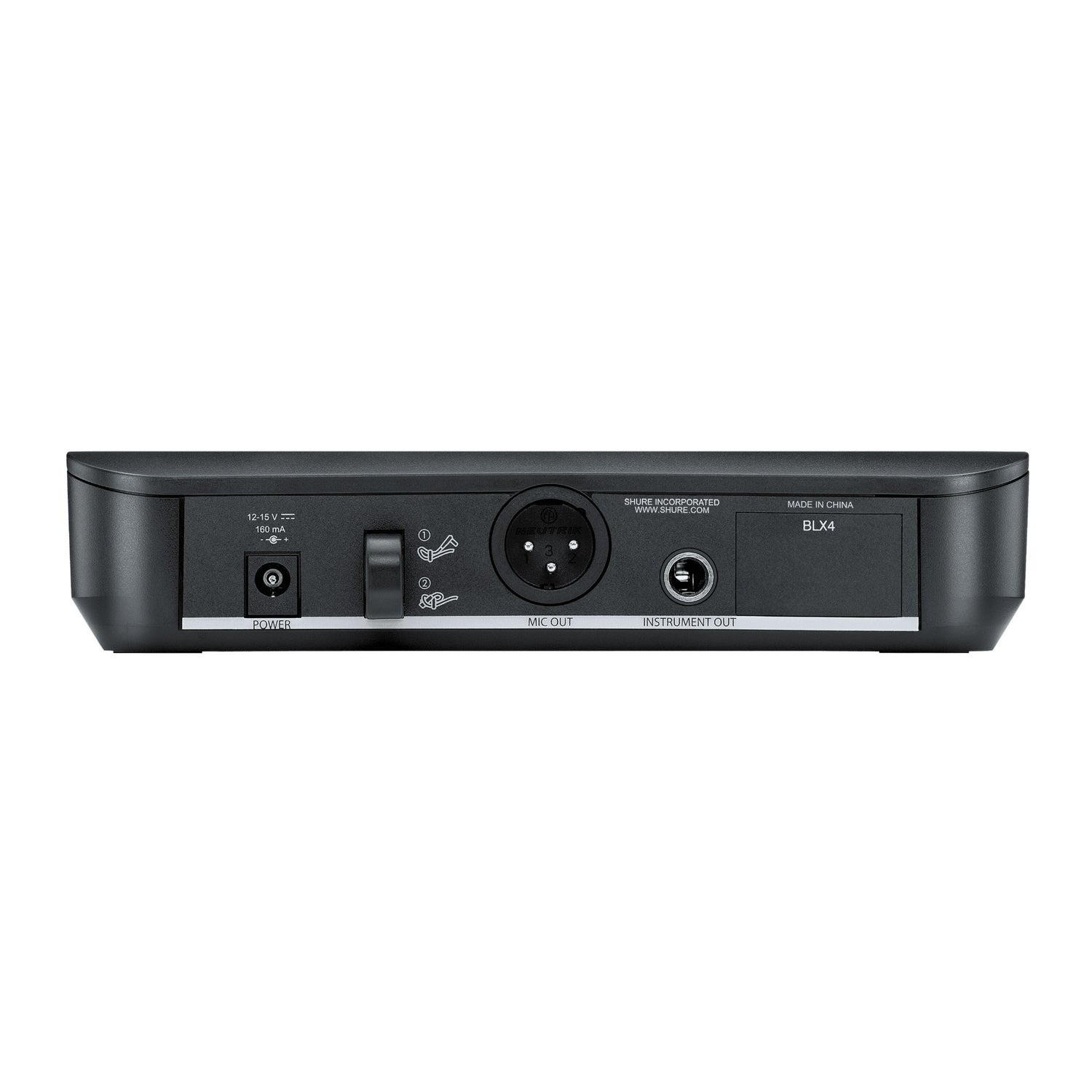

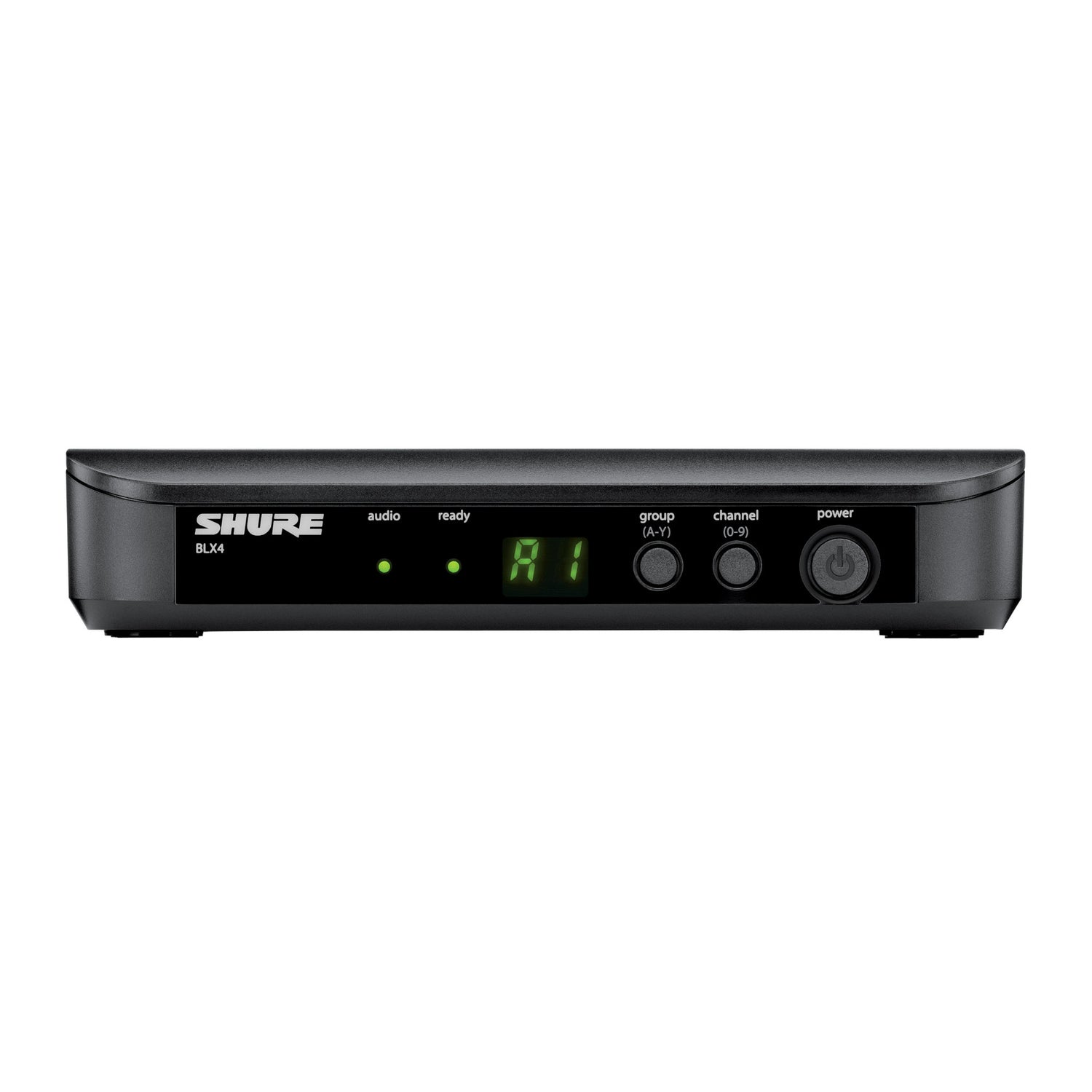

BLX4
| Output Impedance | |
| Audio output level ref | ±33 kHz deviation with 1 kHz tone |
| RF sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >50 dB, typical |
| Dimensions (H x W x D) | 1.57 x 7.40 x 4.06 inch (40 x 188 x 103 mm) |
| Weight | 8.5 oz (241 g) |
| Housing | Molded ABS |
| Power requirements | 12–15 V DC at 235 mA supplied by external power supply (tip positive) |
