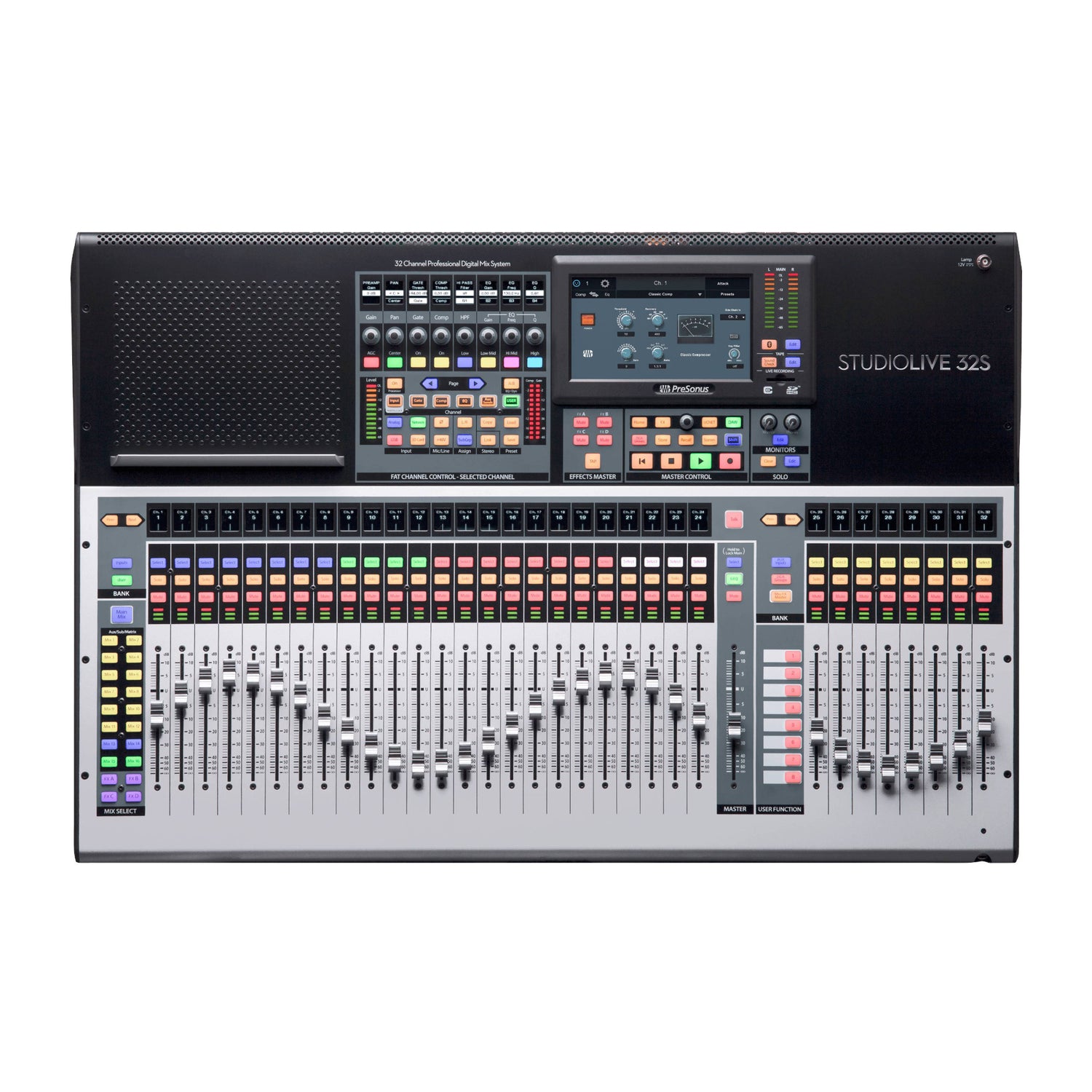

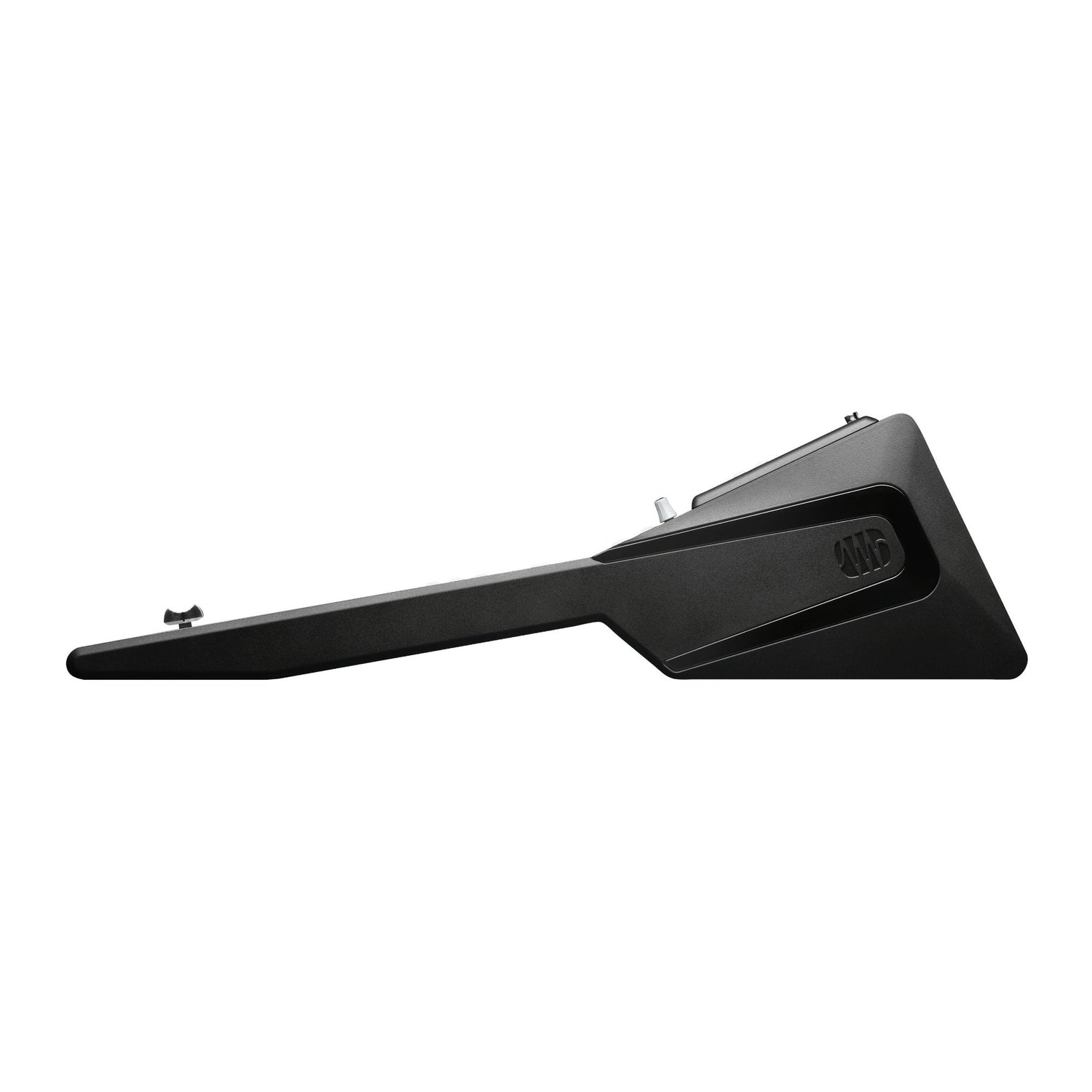

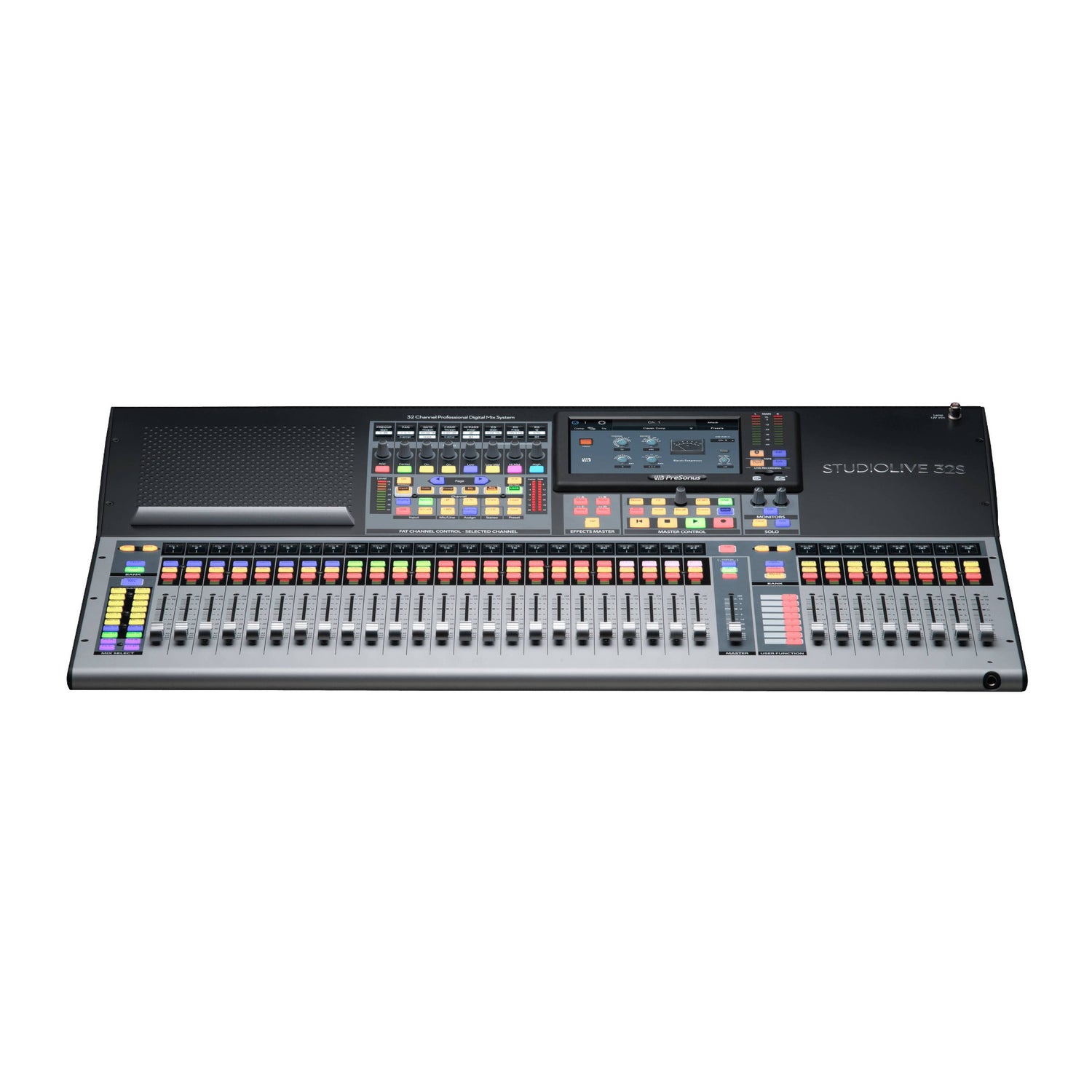

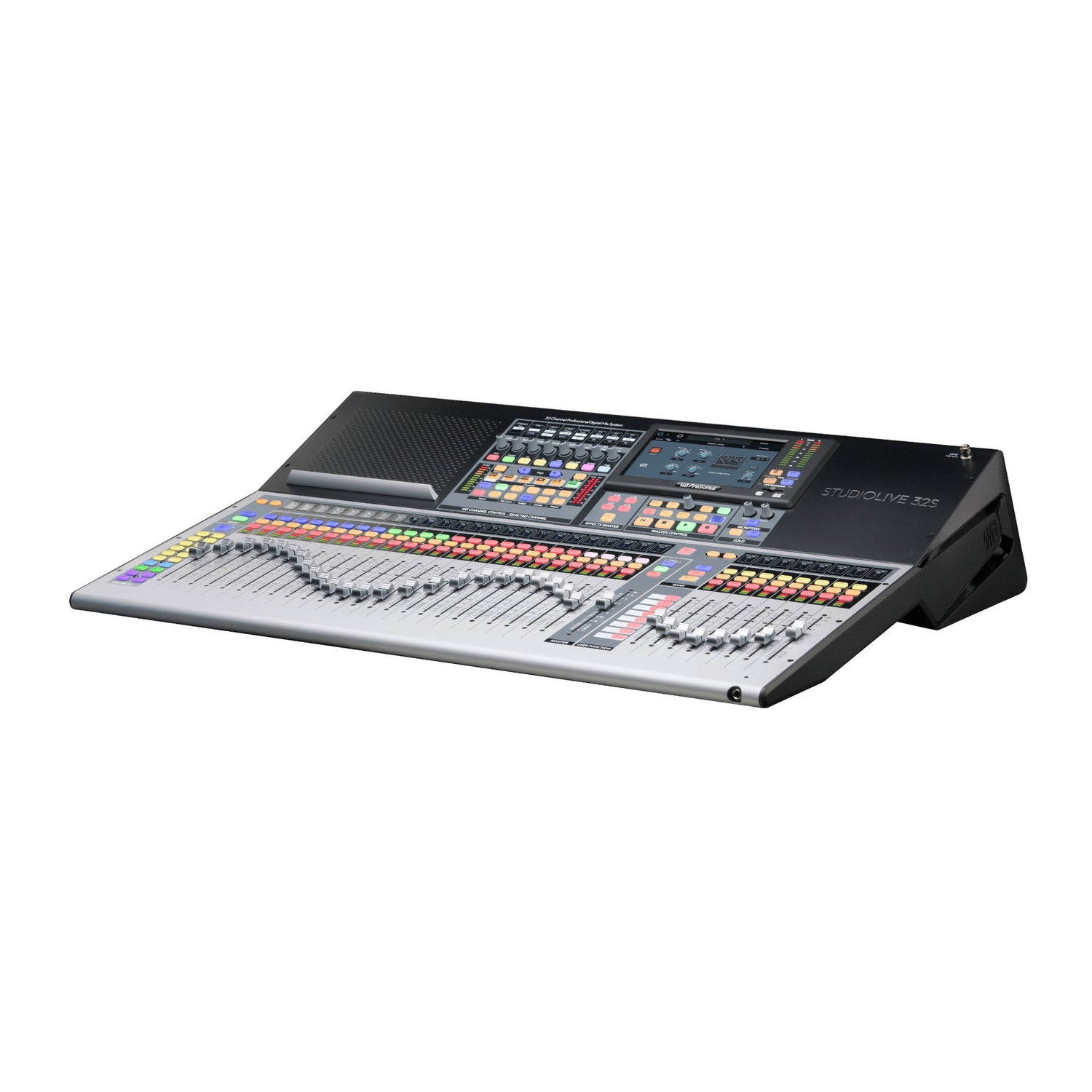

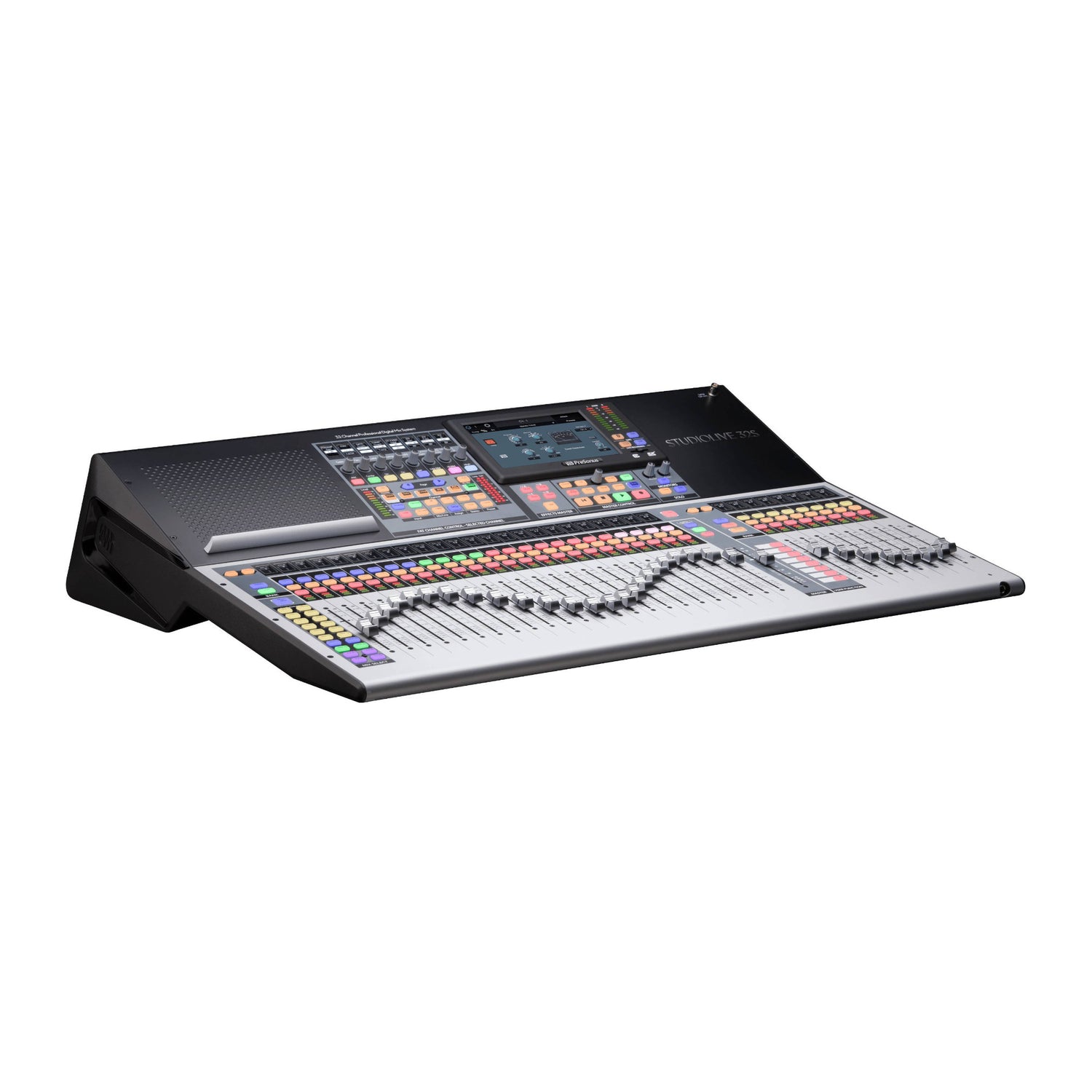

PreSonus StudioLive Series III 32S 32-Channel Digital Console Mixer
The StudioLive 32S is a 40-channel digital mixer with one-to-one channel control and full-sized console power in a compact, rack-mountable design. AVB networking expands connectivity with EarMix 16M personal mixers and NSB-series stage boxes. It offers 16 FlexMixes configurable as auxes, subgroups, or matrix mixes, plus four effects buses, four subgroups, and 24 DCAs for flexible, intuitive routing and group control. Fat Channel processing delivers vintage EQ, classic compressors, and more on every input and output.
Superior Sound
Equipped with a full 32 XMAX-R mic preamps and 16 Mix Outputs onboard, the StudioLive 32SX makes it easy to expand your system thanks to rock-solid audio networking. You can add remote I/O with NSB-Series stage boxes, personal monitor mixers with EarMix 16M, and even connect another StudioLive mixers for broadcast, monitor position, and more all with an Ethernet cable. Add 16 channels of Dante I/O with AVB-D16. No other system is as flexible. The unique 64x64 bidirectional USB audio interface makes recording and routing plug-in racks effortless. Playback streams launch instantly with one button—no extra routing needed, for easy live monitoring.
Multitrack Recording System
Included are PreSonus Capture software and a perpetual Fender Studio Pro Professional license. Record all 40 channels plus a stereo mix simultaneously via USB, SD Card, or both.
Next Level Mixing
A free firmware update adds Milan certification, an improved limiter with variable release, and expanded Digital Reverb XL controls with new presets, offering enhanced power and precision. With this firmware update, you also get the 7 additional State Space Models EQs (10 total) and 8 analog-inspired compressors (11 total) from the Fat Channel Collection installed standard, adding even more processing to create studio-quality mixers for your live session.
Electronics
| Headphone Jack | 1/4 inch TRS Active Stereo |
| Phantom Power | +48 VDC (±2 VDC) |
| Power Consumption | 85W (Continuous) |
| Voltage | 100–120V |
| Voltage Requirements | 100–230 VAC, 50–60 Hz |
General
| Color | Gray |
| Product Name | StudioLive Series III 32S Digital Console Mixer, Gray |
| Series | StudioLive |

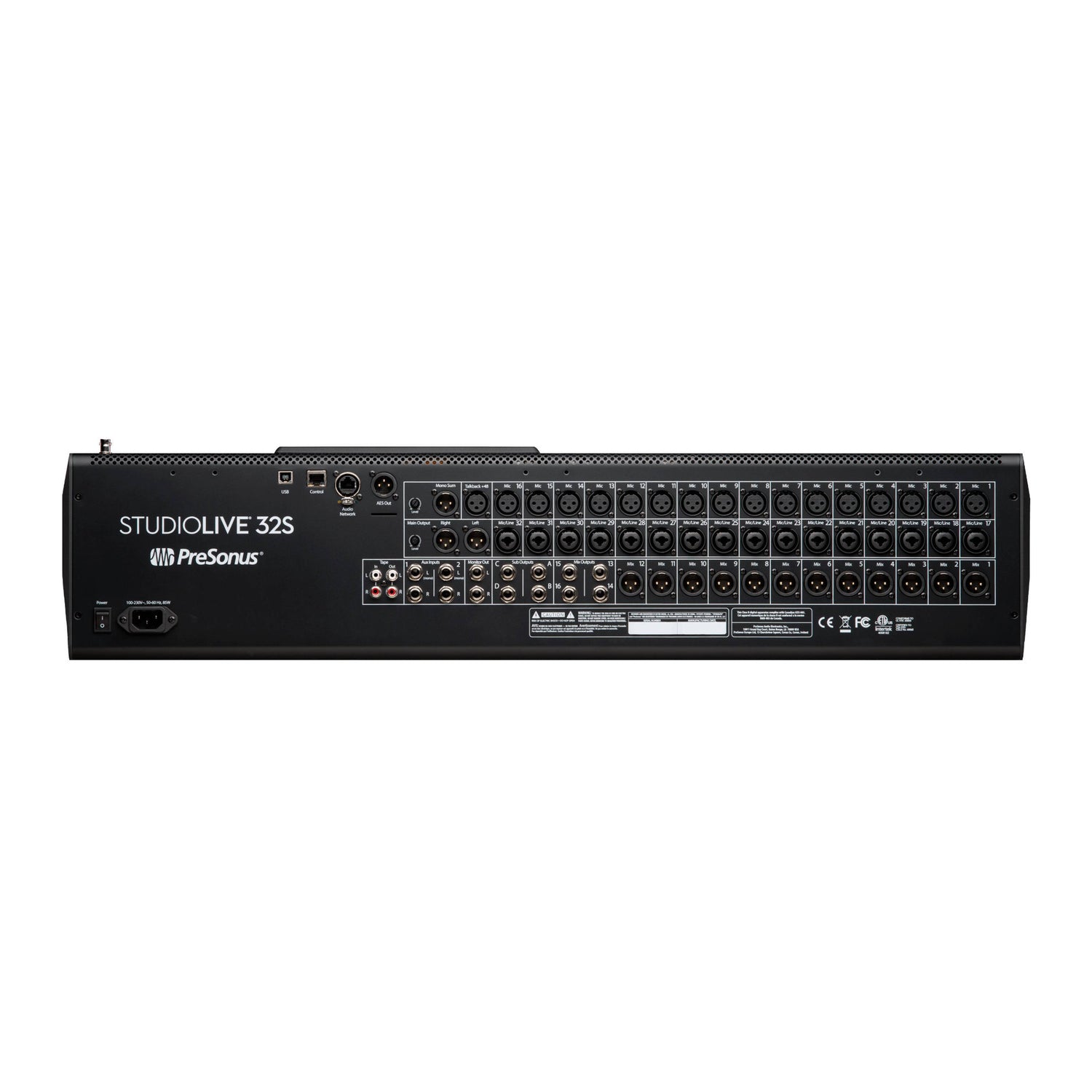

Hardware
| Digital Audio AES/EBU Output | XLR Male |
| Digital Audio AVB Audio Network Ports | Locking XLR, Ethernet |
| Digital Audio Bluetooth Input | Bluetooth 4.1, Stereo |
| Digital Audio Network Control Port | RJ-45 |
| Digital Audio USB Recording Port | USB 2.0, Type-B |
| Tape Connection Type | RCA Female, Unbalanced (Stereo Pair) |
Inputs
| Line Input Connection Type | 1/4 inch TRS Female, Balanced |
| Line Inputs Frequency Response | 20–20 kHz (±0.5 dBu at Unity Gain) |
| Line Inputs Impedance | 10 kΩ |
| Line Inputs Maximum Level | +18 dBu |
| Line Inputs Signal-to-Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) |
| Line Inputs Total Harmonic Distortion | <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted |
| Microphone Input Connection Type | XLR Female, Balanced |
| Microphone Preamp Common Mode Rejection Ratio | 65 dB (1 kHz at Unity Gain) |
| Microphone Preamp Frequency Response | 20–20 kHz (±0.5 dBu at Unity Gain) |
| Microphone Preamp Gain Control Range | 0 dB to 60 dB (±1 dB) |
| Microphone Preamp Input Impedance | 1 kΩ |
| Microphone Preamp Maximum Input Level | +12 dBu (Unity Gain) |
| Microphone Preamp Signal-to-Noise Ratio | 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) |
| Microphone Preamp Total Harmonic Distortion | <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted |
| Tape Maximum Input Level | +12 dBu (±0.5 dBu) |
Measurements
| Product Depth | 22.97 inch (583.84 mm) |
| Product Height | 6.51 inch (165.36 mm) |
| Product Height/Length | 6.51 inch (165.36 mm) |
| Product Width | 32.37 inch (822.21 mm) |
| Product Weight | 37.2 lb (16.9 kg) |
| Refinement Weight | 26–50 lb |
Miscellaneous
| Digital Audio Internal Processing | 32-Bit Floating Point |
| Power Cable | IEC |
| Recommended Ambient Operating Temperature | 0–40°C / 32–104°F |
| Supported Sample Rates | 44.1 kHz, 48 kHz |
Output
| Headphone Outputs Frequency Response | 20 Hz – 20 kHz (±0.5 dB) |
| Headphone Outputs Maximum Output | 100 mW/ch @ 60Ω Load |
| Headphone Outputs Signal-to-Noise Ratio | 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted |
| Headphone Outputs Total Harmonic Distortion | 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted |
| Line Outputs Connection Type | 1/4 inch TRS Female, Balanced |
| Line Outputs Maximum Output Level | +18 dBu (±0.5 dBu) |
| Line Outputs Output Impedance | 100 Ohms |
| Tape Maximum Output Level | +18 dBu (±0.5 dBu) |
| Tape Output Impedance | 100 Ohms |
| XLR Outputs Maximum Output Level | +24 dBu (±0.5 dBu) |
| XLR Outputs Output Impedance | 100 Ohms |
Performance
| Crosstalk (Adjacent Channels) | -87 dB (Ref = +4 dBu, 20 Hz – 20 kHz, Unweighted) |
| Digital Audio Bit Depth | 24-Bit |
| Digital Audio Dynamic Range | ADC 115 dB / DAC 115 dB (A-Weighted, 48 kHz) |
| Digital Audio Reference Level for 0 dBFS | +18 dBu |
| Digital Audio Total System Latency | 1.9 ms |
