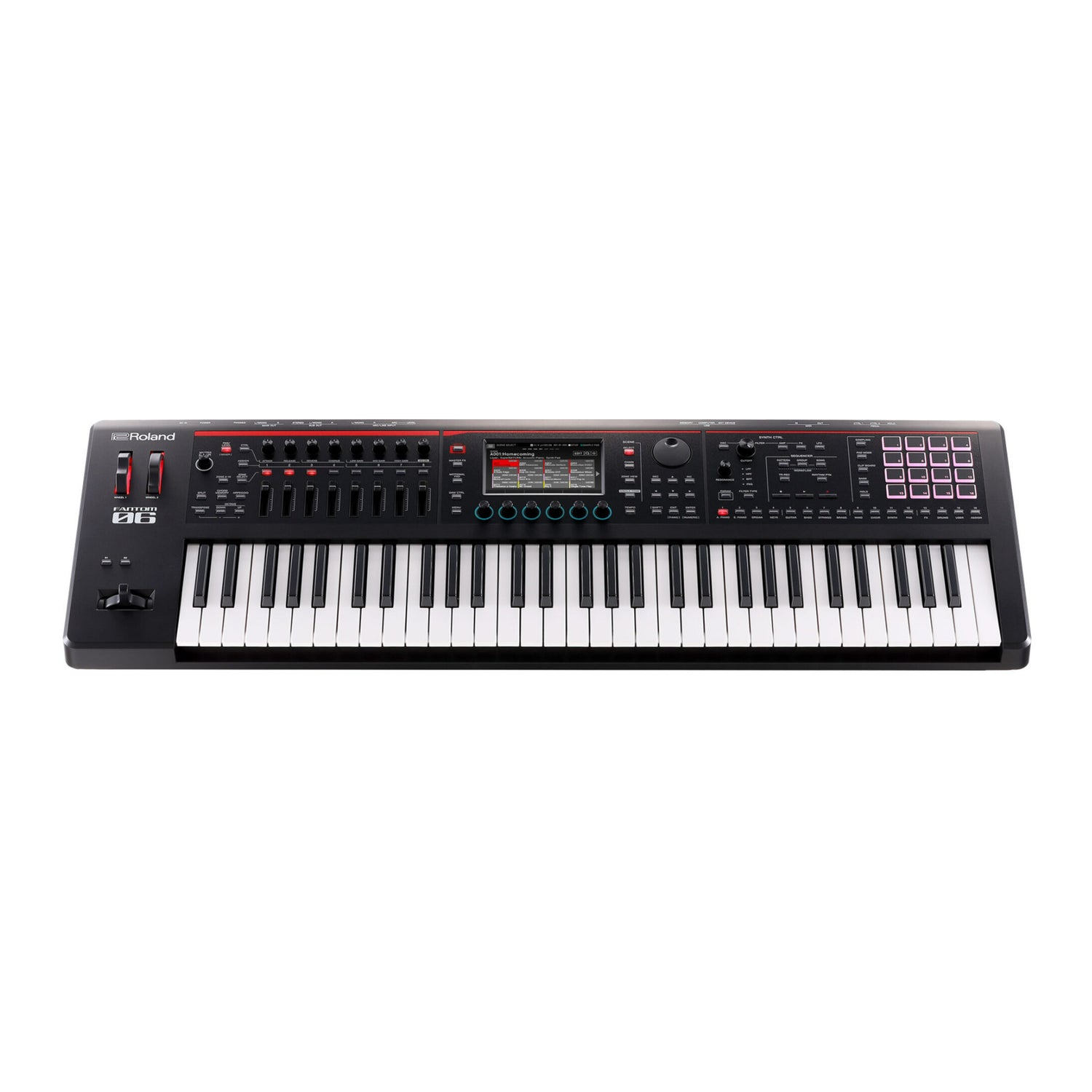

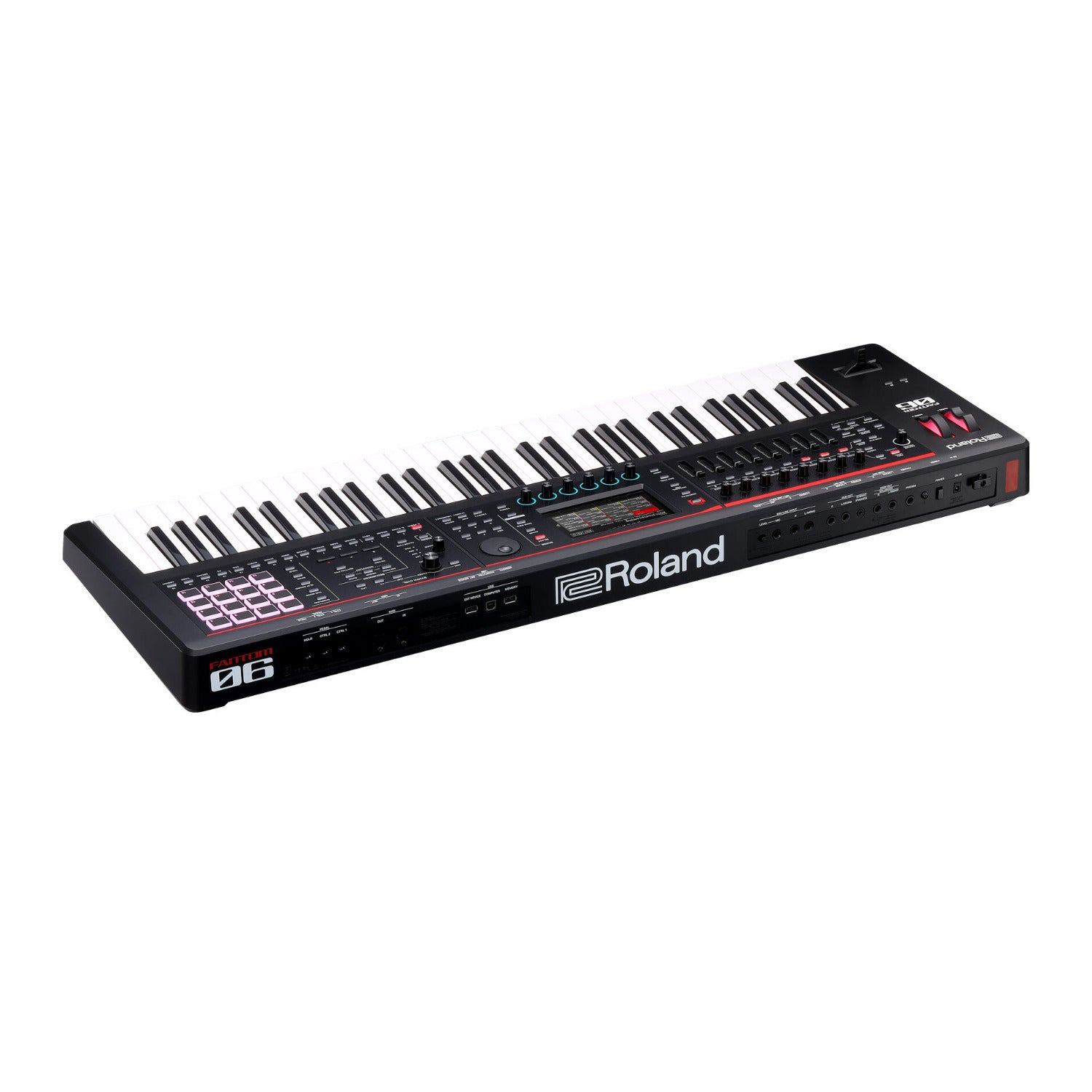

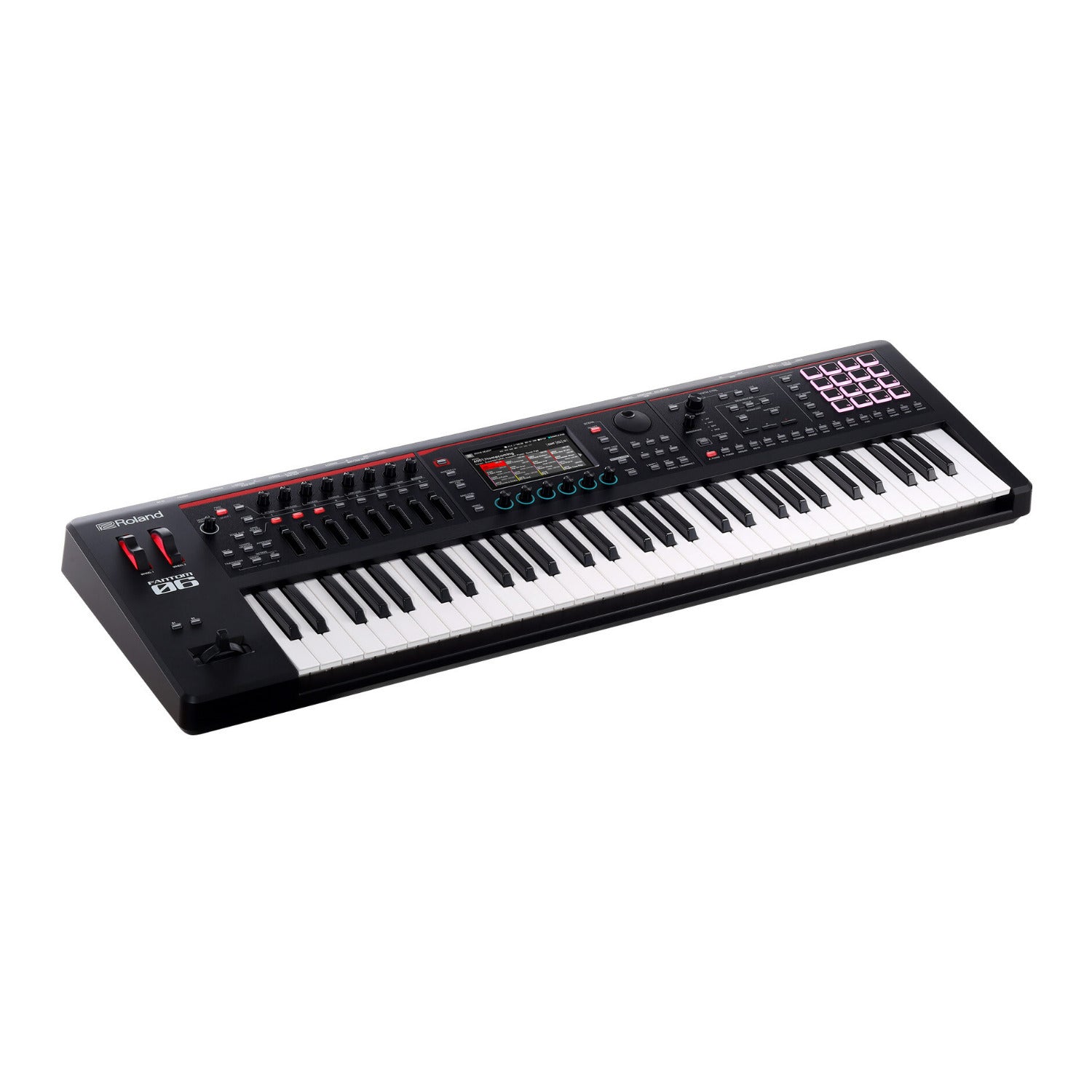

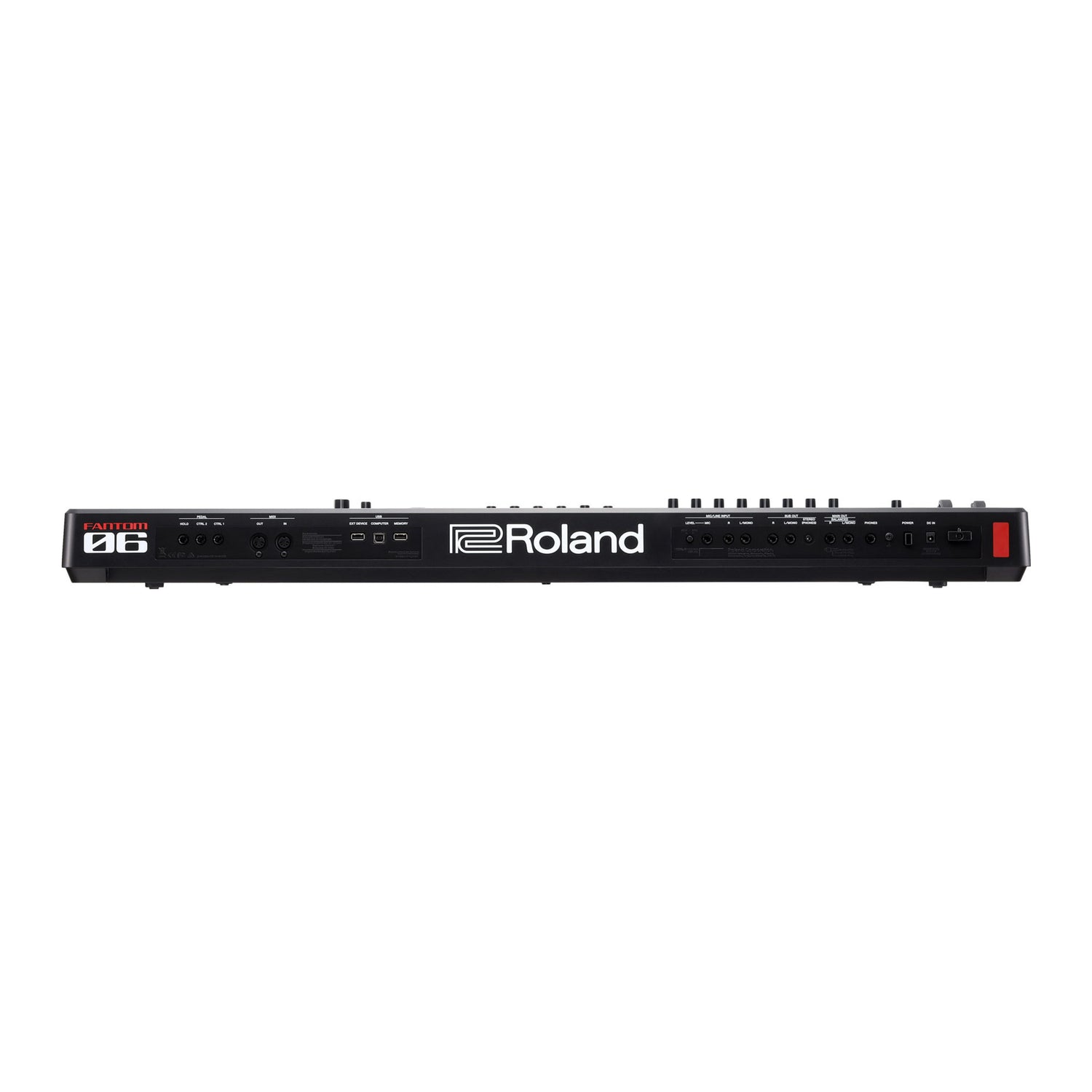

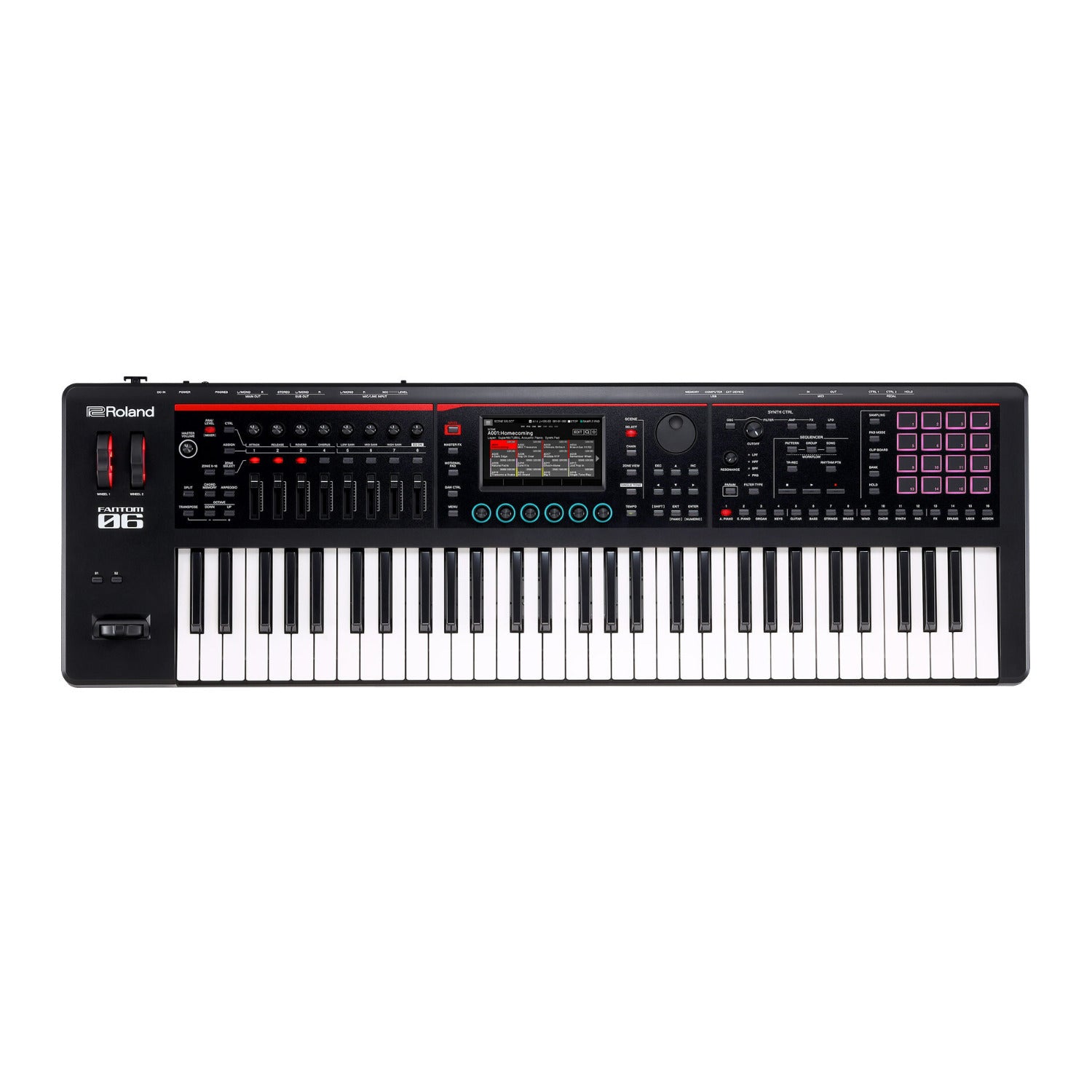

Roland 61-Note FANTOM-06 Synthesizer Keyboard With Color Touchscreen
Unify your creative vision with the wide range of features that the Roland FANTOM-06 Synthesizer Keyboard provides. It brings your creative world together, combining the sonic power and fluid workflow of the top-of-the-line FANTOM series in streamlined instruments that go everywhere your inspiration takes you. Equipped with a newly designed 61-note keyboard, FANTOM-06 has everything you need to create and perform at the highest level. Play and produce with thousands of Roland’s best sounds and unleash your musical vision with a color touchscreen, hands-on controls, and deep computer integration derived from the flagship models.
Keyboard
| Keyboard Type | Synth Action |
| Keyboard Size | 61 Key |
Sounds and Songs
| Maximum Polyphony | 8 voices |
MIDI and Recording
| Audio Recording Formats | WAV, 44.1 kHz / 16-Bit |
Power
| AC/DC Power Adapter | Included |
Physical
| Weight | 13 lbs 4 oz |
| Display | Color Touchscreen |
- ZEN-Core
- Supernatural acoustic
- Supernatural acoustic piano (EXSN01/03 Preload)
- Supernatural electric piano (EXSN02 Preload)
- Vtw organ (Only ZONE2)
- Various model sound generators (Require adding EXM Series)
- * ZEN-Core tones and model tones can import and export.
- * Backup file has compatibility with FANTOM-6/7/8, but it can read the enabled features only.
- EXZ series
- EXSN series
- EXM series
- * The expansion are rewritable internal sound generator memory.
- You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.
- Parts: 16 zones (Internal + External)
- 128 scenes x 4 bank
- * The Scenes can import and export.
- 3,500 tones or greater
- 90 Drum kits or greater
- Tone remain:
- 8 zones
- * When (Scene Remain Switch) enabled.
- Tone Remain does not apply to VTW Organ sounds.
- Rating system: 4 steps (0-3)
- Tone search/scene search: Rating, character
- Multi-effects: 16 systems, 90 types
- Part EQ: 16 systems
- Drum part comp: 6 systems
- Insertion effect: 2 systems, 90 types (Serial/Parallel connection selectable)
- TFX: 1 system, 90 types
- Input MFX: 1 system, 90 types
- Chorus: 9 types
- Reverb: 7 types
- Master compressor
- Input reverb: 7 types
- Input EQ: 1 system
- Band 13, 20, 32
- Type: Mono, Stereo
- Preset setting: 10
- User setting: 20
- Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
- Set: 100
- Marker: 36 (0-9, A-Z, a-z) per 1 Chain Set
- Original, SMF export/import supported
- PAD Sampler trigger data can be recorded.
- The pattern sequencer and SMF player can be used in each scene.
- They cannot be used at the same time.
- A total of approximately 256 MB (Share with Expansion titles)
- Keyboard Multisample can import and export as ZEN-Core Tone.
- The maximum is 60 minutes (the equivalent of approximately 660 MB).
- A total of approximately 2 GB (including imported WAV files)
- When you use the PAD samples as KBD Wave, then you have to manipulate it.
- Pitch bend/modulation lever *1
- 2 x Assignable Switch (S1/S2)
- 8 x Control knob
- 8 x Slider
- 2 x 1 Wheel
- 6 x Function knob
- 2 x 1 Sound modified knob
- 4 x 4 Pad
- *1: 1,024-step editing support
- It can be used with Cutoff, Resonance.
- Headphones jack: Stereo 1/4-inch phone type
- Main out jacks (L/Mono, R) (1/4-inch TRS type)
- Sub out jacks (L/Mono, R) (1/4-inch phone type)
- Sub out stereo (Phones) jacks: Stereo miniature phone type PHONES Support
- Mic Input jacks: 1/4 inch TRS type
- Line Input jacks: (L/Mono,R) (1/4 inch phone type)
- Foot Pedal jacks(HOLD, CTRL1, CTRL2)
- MIDI connectors (IN, OUT)
- USB Memory port
- USB Computer port (AUDIO/MIDI)
- External device port: A Roland A-49 or an A-PRO series MIDI Controller can be connected.
- * Operation is not guaranteed if a generic MIDI device is connected.
- Max 24 bit/96 KHz
- Record 16 Stereo Channel
- Playback 2 Stereo Channel
Roland 61-Note FANTOM-06 Synthesizer Keyboard With Color Touchscreen and Hands-On Controls
Keyboard
| Keyboard | 61 keys (with velocity) |
Sound generator
| Tone | |
| Expansion | |
| Scenes | |
| Tones | |
| Favorite | |
| Effects | |
| Vocoder | |
| Scene Chain |
Pattern sequencer
| MIDI Tracks | 16 |
| Group | 16 |
| Pattern | 8 (per each track) |
| Pattern Length | 64 measures |
| Recording method | Realtime recording, Step recording, TR-REC |
| Editing method | Piano roll edit (Touch Edit/Automation support), Microscope |
| Song | 1 (per scene) |
| File format |
SMF player
| Format | SMF (Format 0/1) |
| MIDI tracks | 16 |
| Tempo range | 5-300 BPM |
| Transpose function | -5-+6 semitone |
| Track mute | Yes |
| Track solo | Yes |
| A/B loop function | Yes |
Sampler Keyboard Multisample
| Format | 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported. |
| Number of samples | 2,048 |
| Number of multisamples | 128 |
| Sampling time | The maximum is 2 minutes 44 second (1 Sample). |
Sampler Pad Sample
| Format | 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported |
| Maximum polyphony | 8 |
| Number of samples | 16 pads x 4 banks |
| Sampling time |
Sampler Internal Storage Space for Files
| Size | 2 GB |
Others
| Rhythm pattern | Yes |
| Arpeggiator | Yes |
| Chord memory | Yes |
| Motional pad | Yes |
| PAD mode | Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play |
| AIRA link | When connect to MX-1 |
| Controllers | |
| Display | Graphic Type, 5.5 inch (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support) |
| Connectors | |
| Audio interface | |
| External memory | USB Flash drive sold separately |
| Power supply | AC adapter |
| Power consumption | 1,300 mAh |
Size and weight
| Width | 39 5/8 inch (1,006 mm) |
| Depth | 12 3/4 inch (323 mm) |
| Height | 3 3/4 inch (95 mm) |
| Weight | 13 lb (6.0 kg) |
