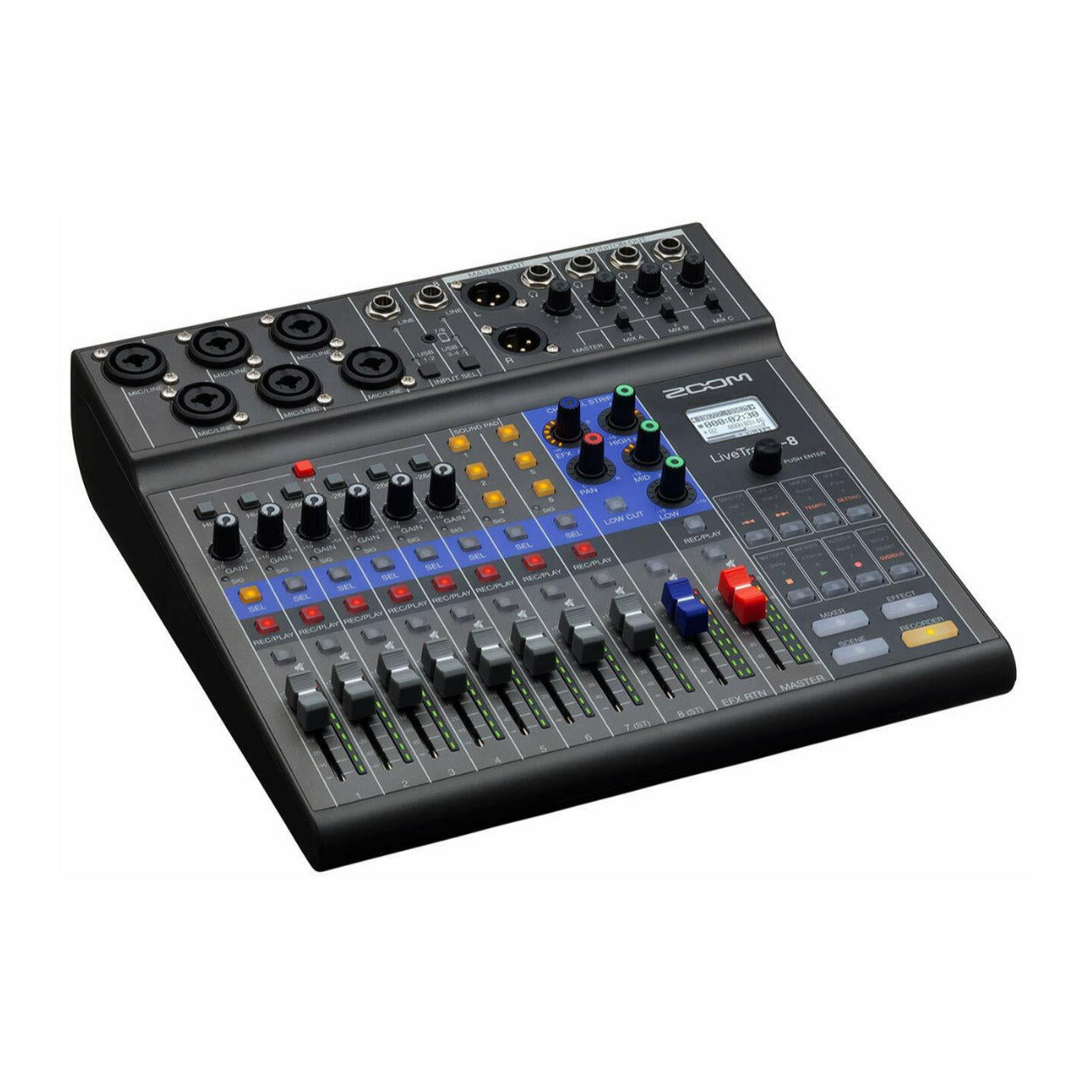

Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder make it easier than ever to mix, monitor, and record professional-sounding Podcasts and music performances in one portable, affordable package.
Power to the Podcast
Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom’s famous audio performance with features made for podcasters.
Sound Pad Magic
Just press a button to play intros, outros, jingles, ads, and sound effects. With 6 easily-assignable Sound Pads, the right sound is at your fingertips.
First-Time Caller, Long-Time Listener
Remote interviews are a snap with the L-8; just connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack, and more.
Freedom of Speech
Zoom’s preamps are famous for a good reason: they’re transparent, powerful, and ultra-reliable. The L-8 features six independent Zoom preamps, built to handle anything from a whisper to a raucous debate.
A Track for Everyone
The pros know that when you record everyone on their separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.
Hear Yourself Talk
If you can’t hear yourself, how are you supposed to speak your mind? The L-8 is equipped with four headphone outputs so that each participant can hear what is going on.
On Air, On the Move
The Zoom LiveTrak L-8 can run up to 1 1/2 hours with just four AA batteries, or on a USB battery, so you can podcast from anywhere.
Record Twice, Once
Used as an audio interface, the L-8 can record full episodes directly to your computer and an SD card simultaneously. You can also live stream while recording.
Save Time
Once you’ve dialed in your mix you can save it. The L-8 lets you save up to 7 show ‘scenes’ that can be saved and instantly recalled at the press of a button
Small in Size Big on Sound
From singer-songwriters to small bands, the L-8 is the ideal mixer and recorder for musicians who may be small in number, but big on sound.
Coming Through Loud and Clear
The L-8 features six high-performance preamps each with phantom power, a low noise floor (-121dBU EIN), and a maximum input gain of +54dB. Additionally, there are two Hi-Z, line-level, and USB inputs. You can also fine-tune each channel with EQ and onboard effects.
True Multi-Track Recording
The L-8 lets you record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz. You can punch in and overdub with ease, then transfer your work to your favorite DAW for fine-tuning.
Go Out and Play

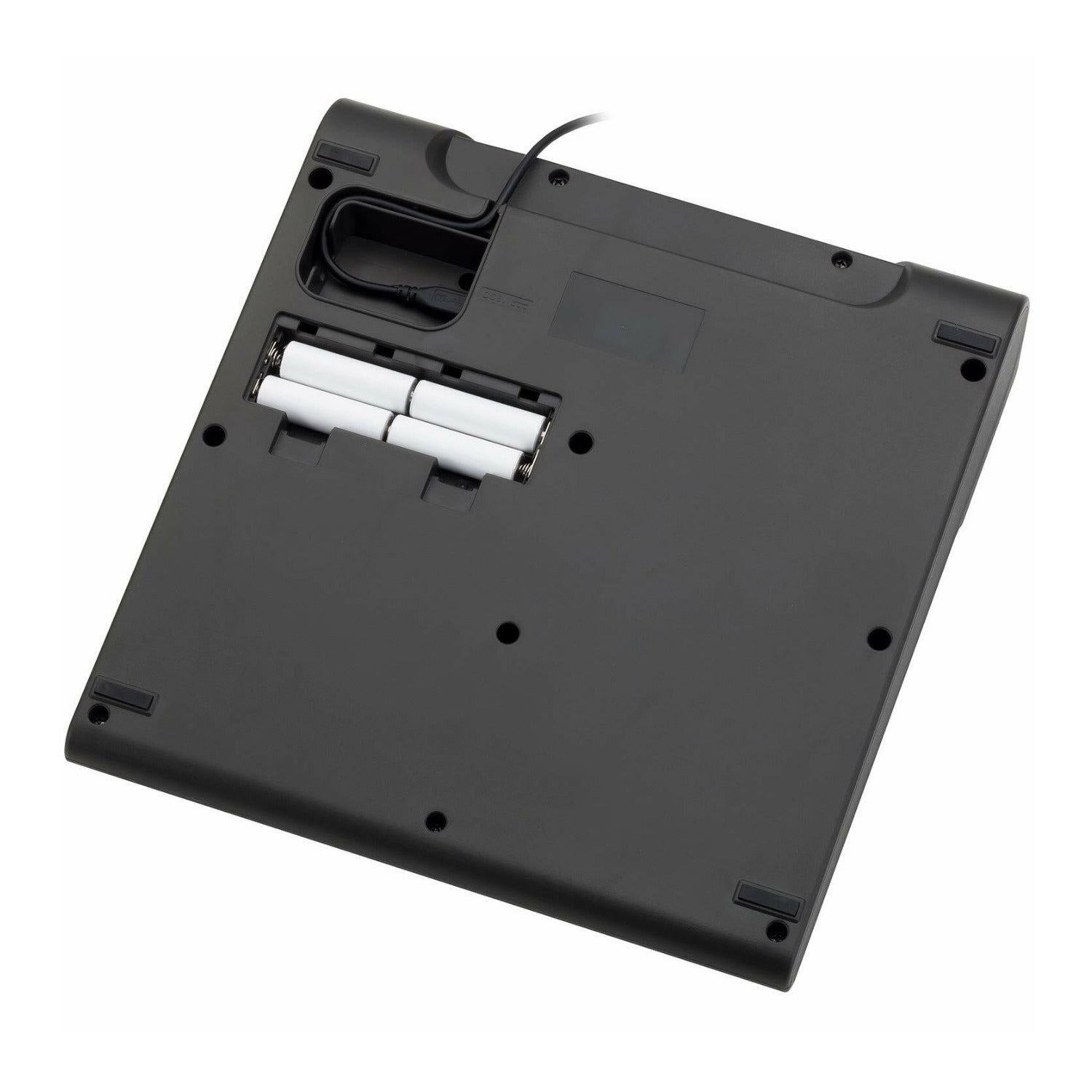

No outlet? No worries. Get up to 1 1/2 hours of power from just four AA batteries. You can also power using a USB battery, and with the L-8’s unique USB connection design, you never have to worry about accidentally disconnecting.
Individual Monitor Mixes
Never settle for that ‘compromise’ monitor mix again. The L-8 provides three custom monitor mixes, so no matter where you are on stage, you hear exactly what you need.
High-Quality Audio Interface
The L-8 is also a 12-in/4-out audio interface. Track directly into your favorite DAW or use the USB return to run backing tracks from your computer.
Signal Processing
| Gain Adjustment | No |
| Automatic Mic Mixing | No |
Digital Audio
| Sample Rates | 44.1,48,96 kHz |
Performance
| Frequency Response | 20 Hz to 20 kHz |
| Impedance | 100 Ohms |
Physical
| Weight | 3.43 lbs |
Mixer
| Number of Analog Input Channel | 6 |
| Display | LCD |
- Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
- Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)
- Input impedance: XLR: 3 kΩ
- Input impedance: TRS: 3 kΩ/1 MΩ (when Hi-Z ON)
- Maximum input level: –2 dBu when –26dB switch OFF (at 0 dBFS)
- Maximum input level: +24 dBu when –26dB switch ON (at 0 dBFS)
- Phantom power: +48 V
- Type: TS phone jack
- Input impedance: 10 kΩ
- Maximum input level: +3 dBu
- Smartphone Connection Jack
- Type: TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
- Input impedance: 10 kΩ
- Maximum input level: +3 dBu
- Type: XLR jacks (balanced)
- Maximum output level: +14.5 dBu
- Output impedance: 100 Ω
- Type: Standard stereo phone jack
- Maximum output level: 10 mW + 10 mW (60Ω load)
- Output impedance: 10 Ω
- Type: Standard stereo phone jack
- Maximum output level: 10 mW + 10 mW (60Ω load)
- Output impedance: 10-Ohm
- High: 10 khz, ±15 db, shelving
- MID: 2.5 khz, ±15 db, peaking
- Low: 100 hz, ±15 db, shelving
- OS:Windows 8.1 to 11 (32bit/64bit)
- CPU: Intel core i3 or faster
- USB: USB 3.0/USB 2.0
- Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
- Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
- OS: MacOS 10.12 ~ 12
- CPU: Intel core i3 or faster
- USB: USB 3.0/USB 2.0
- Operation is not guaranteed when used with USB hubs or expansion cards
- Iphone/ipad: OS: iOS 10 to 15
- Apple lightning-to-USB camera adapter required
- 4 AA batteries (alkaline, lithium, or rechargeable NiMH)
- AC adapter (ZOOM AD-17): DC 5V/1A
- Supports USB bus power
Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
Inputs and Outputs/Number of Channels
| Inputs | Mic/line: 6 |
| Line | 2 |
| Output | Master out: 1 |
| Master out (phones) | 1 |
| Monitor out (phones) | 3 |
Inputs
| Mic/line | |
| Line |
Output
| Master output | |
| Master output (phones) | |
| Monitor output |
Buses
| Master | 1 |
| Monitor | 3 |
| Send efx | 1 |
Channel Trip
| Low cut | 75 hz, 12 db/oct |
| EQ | |
| Level meter | 9 segments |
| Send effects | 8 types |
Recorder
| Maximum simultaneous recording tracks | 12 at 44.1/48/96 khz |
| Maximum simultaneous playback tracks | 10 |
| Recording format | wav 44.1/48/96 khz, 16/24-bit, mono/stereo |
| Recording media | 4Gb–32Gb SDHC-compliant cards (class 10 or higher) |
| 64GB–512GB sdxc-compliant cards (class 10 or higher) |
Audio Interface
| 44.1/48 KHZ | Recording: 12 channels |
| Playback | 4 channels |
| Bit depth | 24-bit |
| Interface | USB 2.0 |
System Requirements for Audio Interface Mode
| Windows | |
| Mac |
Card Reader
| Class | Mass storage USB 2.0 high speed |
| Sampling frequency | 44.1/48/96 kHz |
| Frequency response | 20 Hz – 20 kHz: –1 dB at 44.1 kHz |
| 20 Hz – 40 kHz | –3 dB at 96 kHz (when GAIN at 3 o'clock) |
| Equivalent input noise | –121 dBu or less (IHF-A) at +54dB/150Ω input |
| Display | LCD with backlight (96×64 resolution) |
| Power | |
| Estimated continuous recording time using batteries | Recording 44.1khz/16-Bit/4ch audio to Sd card (When 48v Is Off, LCD Backlight Is 15sec, battery saving is on and Headphone impedance Is 62ω) |
| Alkaline batteries | About 1.5 hours |
| NiMH batteries (1900 mAh) | About 3 hours |
| Lithium batteries | About 5 hours |
| The above values are approximate | |
| Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions | |
| Power consumption | 5W |
| External dimensions | (W x D x H): 268 × 282 × 74 mm |
| Weight (unit only) | 1.56 kg |
