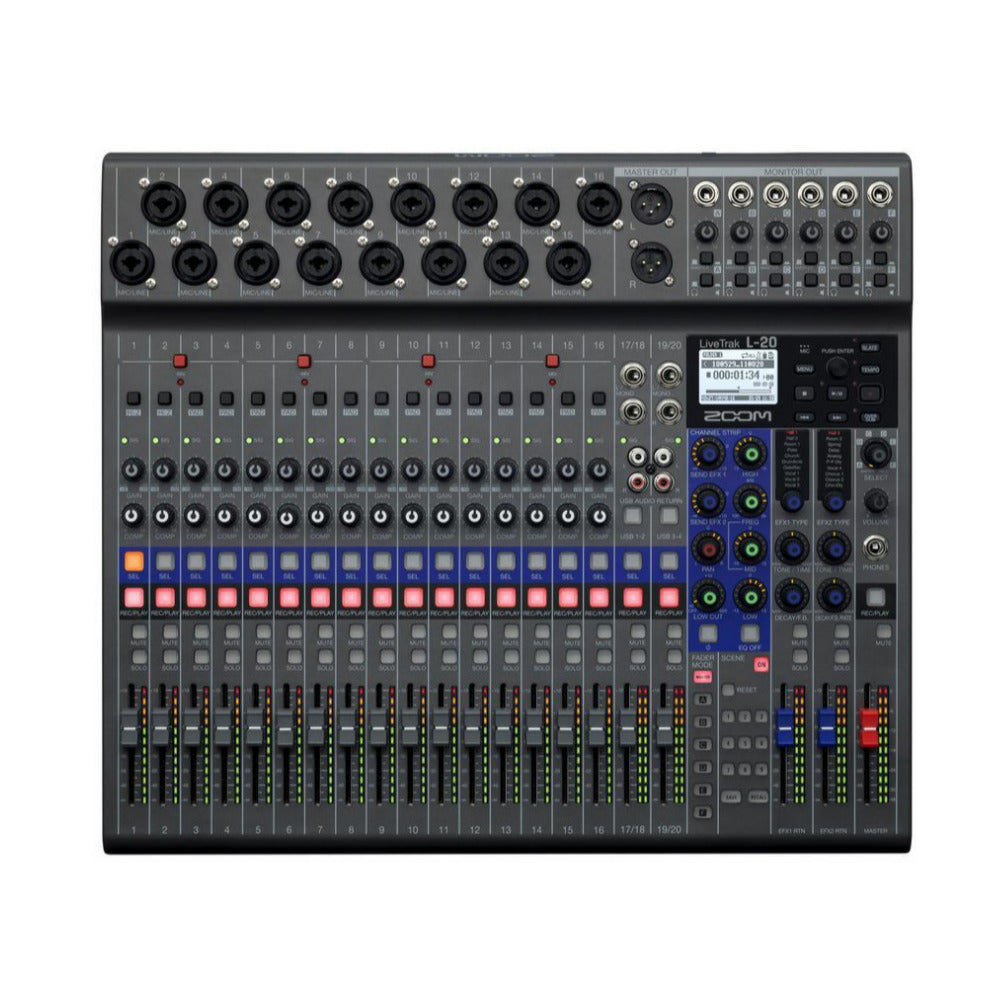

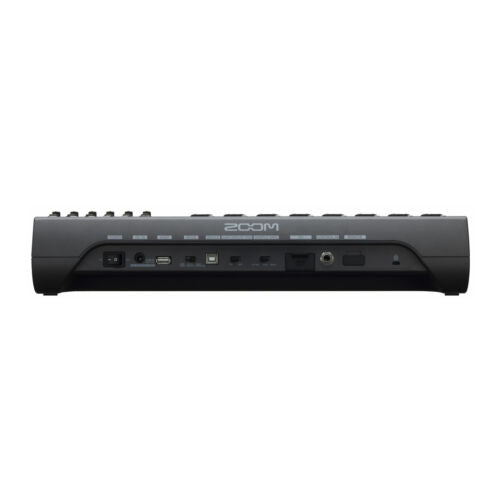

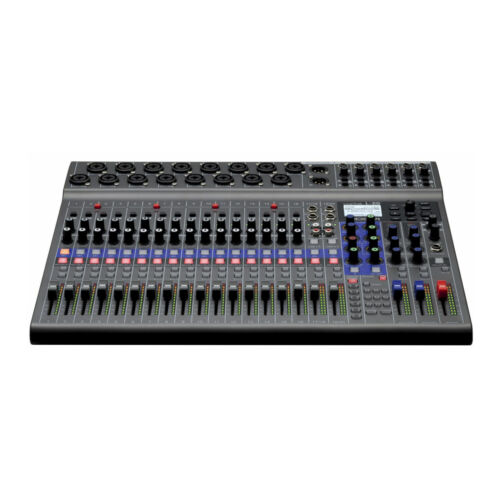

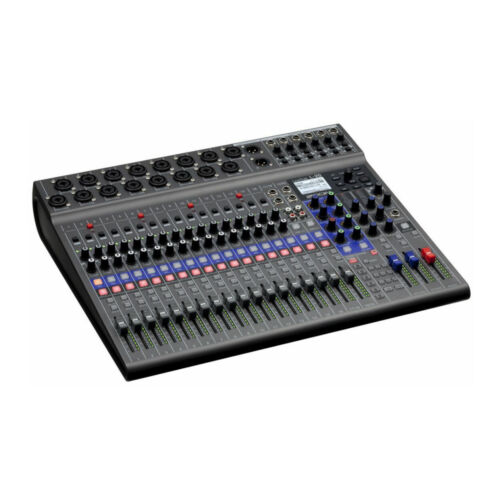

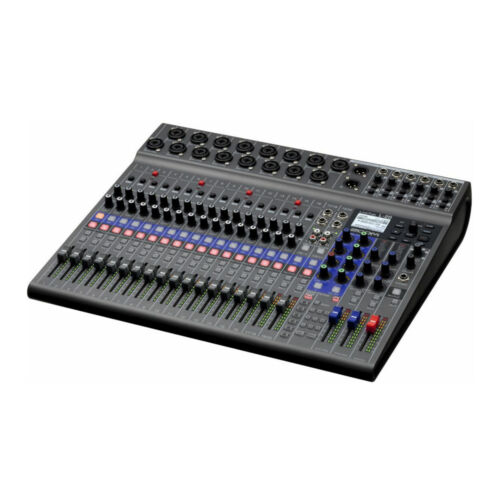

Zoom LiveTrak L-20 Digital Mixer
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Zoom LiveTrak L-20 Digital Mixer is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it’s built for bigger, bolder arrangements
20 Inputs for Bigger Sound
The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.
20 Tracks for Recording
Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz. At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mixdown finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later
Create Six Custom Monitor
With six independent monitor outputs for musicians, each output can have its custom mix, complete with effects, that can easily be switched from powerful headphone output to a balanced line output for stage monitors
One for the House
The LiveTrak L-20 features a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub-mixes, thus adjusting them to the musicians’ satisfaction
Big Beautiful Interface
Although the LiveTrak L-20 is designed to work as a stand-alone recording and mixing console, it can also be used as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class-compliant mode, which enables connection with iOS devices, is supported as well
Digital Audio
| Sample Rates | 44.1,48,96 kHz |
Performance
| Output Level | +14.5 dBu |
| Frequency Response | 20 Hz to 20 kHz |
| Impedance | 100 Ohms |
Power
| Power Consumption | 24 W |
Physical
| Weight | 3.71 kg |
Mixer
| Display | LCD |
Zoom LiveTrak L-20 Digital Mixer
General
| External dimensions | (W x D x H): 445 x 388.4 x 82.6 mm |
| Weight (main unit only) | 3.71 kg |
| Inputs | Mono (mic/line): 16 Stereo (line): 2 |
| Output | Master out: 1 monitor out: 6 phones: 1 |
Inputs
| Mono (mic/line) | |
| Type | XLR/TRS combo jacks (XLR: 2 hot, TRS: tip hot) input gain: Pad off: +16 – +60db|pad on: − 10 – +34 db |hi-z on: +6 – +50 db input impedance: XLR: 3 k omega| TRS: 10 k omega /1 m omega (when hi-z on) maximum input level: pad off: 0 dbu (at 0 dbfs) | pad on: +26 dbu (at 0 dbfs)|phantom power +48V |
| Stereo (Line) | |
| Type | TS phone/RCA pin (unbalanced) jacks, maximum input level: +10 dBu |
Outputs
| Master out | Type: XLR jacks (balanced) maximum output level: +14.5 dBu |output impedance: 100-ohm |
| Monitor out A–F (with balanced output) connected to monitor speakers | Type: TRS phone jacks (balanced) | maximum output level: +14.5 dBu |output impedance: 100-ohm |
| Monitor out A– F (with unbalanced output) connected to headphones | Type: standard stereo phone jacks|maximum output level: 42 mW + 42 mW at 60-ohm |output impedance: 100-ohm |
| Phones | Type: standard stereo phone jacks|maximum output level: 42 mW + 42 mW at 60 -ohm |output impedance: 100-ohm |
Buses
| Master | 1 |
| Monitor | 6 |
| Send EFX | 2 |
Channel Strip
| Low cut | 40–600 Hz, 12dB/OCT |
| EQ | High: 10 kHz, ± 15 dB, shelving | MID: 100 Hz – 8 kHz, ± 15 dB, peaking |low: 100 Hz, ± 15 dB, shelving |
Level Meters
| Level segments | 12 |
Send Effects
Effects|20 types
| EFX 1 hall 1, hall 2, room 1, plate, church, DrumAmb, GateRev, vocal 1, vocal 2, vocal 3 | |
| EFX 2 Hall 3, room 2, spring delay, analog P-P Dly, vocal 4, chorus 1, chorus 2 |
Recorder
| Maximum simultaneous recording tracks | 22 at 44.1/48/96 kHz |
| Maximum simultaneous playback tracks | 20 |
| Recording format | WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo |
| Recording media | 4GB–32GB SDHC cards (class 10 or higher), 64 GB–512GB sdxc cards (class 10 or higher) |
Audio Interface
| 44.1/48 KHZ | Recording: 22 channels | Playback: 4 channels |
| Bit depth | 24-bit |
| Interface | USB 2.0 |
Card Reader
| Class mass storage | USB 2.0 high speed |
System Requirements for Audio Interface
| OS | Windows 8.1 to 11 (32bit/64bit) | CPU: IntelCore i3 or faster\USB: USB 3.0/USB 2.0 Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. Only USB host controllers with Intel chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards |
| Mac | OS: macOS 10.14 to 12 | CPU: Intel Core i3 or faster | USB: USB 3.0/USB 2.0 operation is not guaranteed when used with USB hubs or expansion cards |
| iPhone/iPad | OS: iOS 9 to 15 Apple lightning-to-USB camera adapter required |
Additional Specs
| Sampling frequency | 44.1/48/96 kHz |
| Frequency characteristics | 44.1 khz: −1.0 db, 20 hz – 20 khz |96 khz: −3.0 db, 20 hz – 40 khz |
| Equivalent input noise | Actual measurements: −128db ein (ihf-a) at +60db/150ω input |
| Display | LCD with backlight (128×64 resolution) |
| Power | AD-19 ac adapter (dc12v 2a) |
| Power consumption | 24W maximum |
