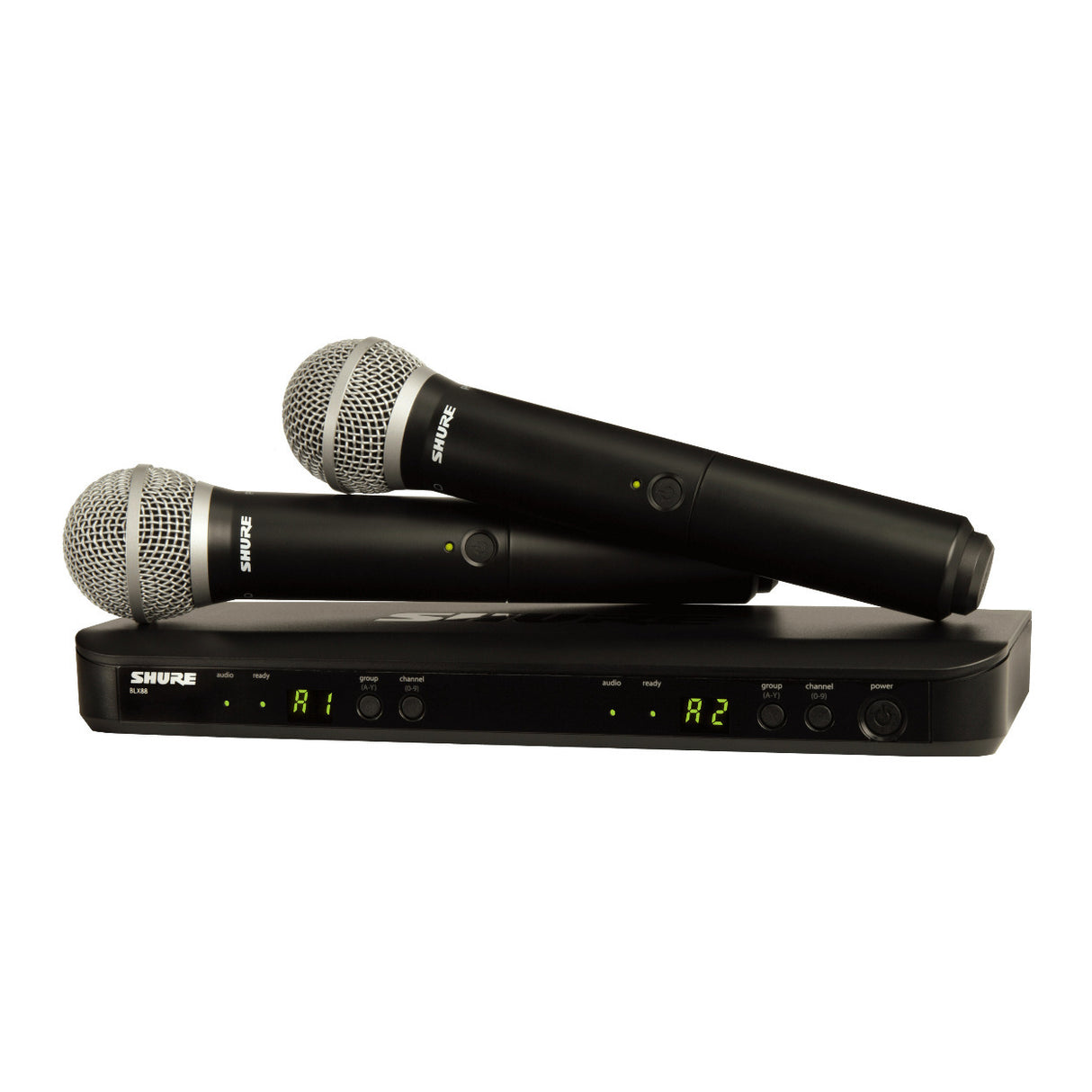

Shure BLX288/PG58 Wireless Vocal System with PG58 Handheld Transmitters
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Shure BLX288/PG58 Wireless Vocal System with PG58 Handheld Transmit...
The Shure BLX288/PG58 Wireless Vocal System combines professional-quality sound with a simple setup and an intuitive interface for legendary audio performance right out of the box. This wireless vocal system is precision-built and available in a variety of configurations; it is the most accessible way to own the stage. It features two PG58 handheld microphones.
Performance
| Sensitivity | -55 dBV/Pa |
| Impedance | 200 Ohms |
| Dynamic Range | 100 dB (A) |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin |
| Headphone Connector | No |
Power
| Operating Voltage | 12–15 V DC @ 235 mA (BLX88, 320 mA) |
| Bus Power | No |
Physical
| Color | Black/Silver |
| Weight | BLX2: 7.7 oz, BLX88: 15.1 oz |
Microphone
| Form Factor | Handheld |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| High-Pass Filter | No |
| Tone Adjustment | No |
| Gain Adjustment | Yes |
| Indicators | Yes |
| On-Board Controls | No |
| Windscreen | No |
- 0.5 percent, typical
- 0dB: -20 dBV maximum
- -10dB-10 dBV maximum
- XLR connector: 200 ohm
- 6.35 mm (1/4-inch) connector: 50 ohm
- XLR connector: –27 dBV (into 100 k ohm load)
- 6.35 mm (1/4-inch) connector: –13 dBV (into 100 k ohm load)
Shure BLX288/PG58 Wireless Vocal System with PG58 Handheld Transmitters, J11 Frequency Band
System
| Working range | 91 m (300 feet) Line of Sight (Note: Actual range depends on RF signal absorption, reflection and interference) |
| Audio frequency response | 50 to 15,000 Hz (Note: Dependent on microphone type) |
| Total harmonic distortion | Ref. ±33 kHz deviation with 1 kHz tone |
| Dynamic range | 100 dB, A-weighted, typical |
| Operating temperature | -18-degree C (0-degree F) to 57-degree C (135-degree F) (Note: Battery characteristics may limit this range) |
| Polarity | Positive pressure on the microphone diaphragm (or positive voltage applied to the tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output |
| Range | 596 to 616 MHz |
| Output power | 10 mW |
| Frequency band | J11 |
BLX2
| Audio input level | |
| Gain adjustment range | 10 dB |
| RF Transmitter Output | 10 mW, typical (varies by region) |
| Dimensions (L x D) | 8.82 x 2.09-inch |
| Weight | 7.7 oz. without batteries |
| Housing | Molded ABS |
| Power requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | Up to 14 hours (alkaline) |
BLX88
| Output Impedance | |
| Audio Output Level | Ref. ±33 kHz deviation with 1 kHz tone |
| RF sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image rejection | >50 dB, typical |
| Dimensions (H x W x D) | 1.50 x 12.13 x 3.98-inch |
| Weight | 15.1 oz |
| Housing | Molded ABS |
| Power requirements | 12–15 V DC at 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
