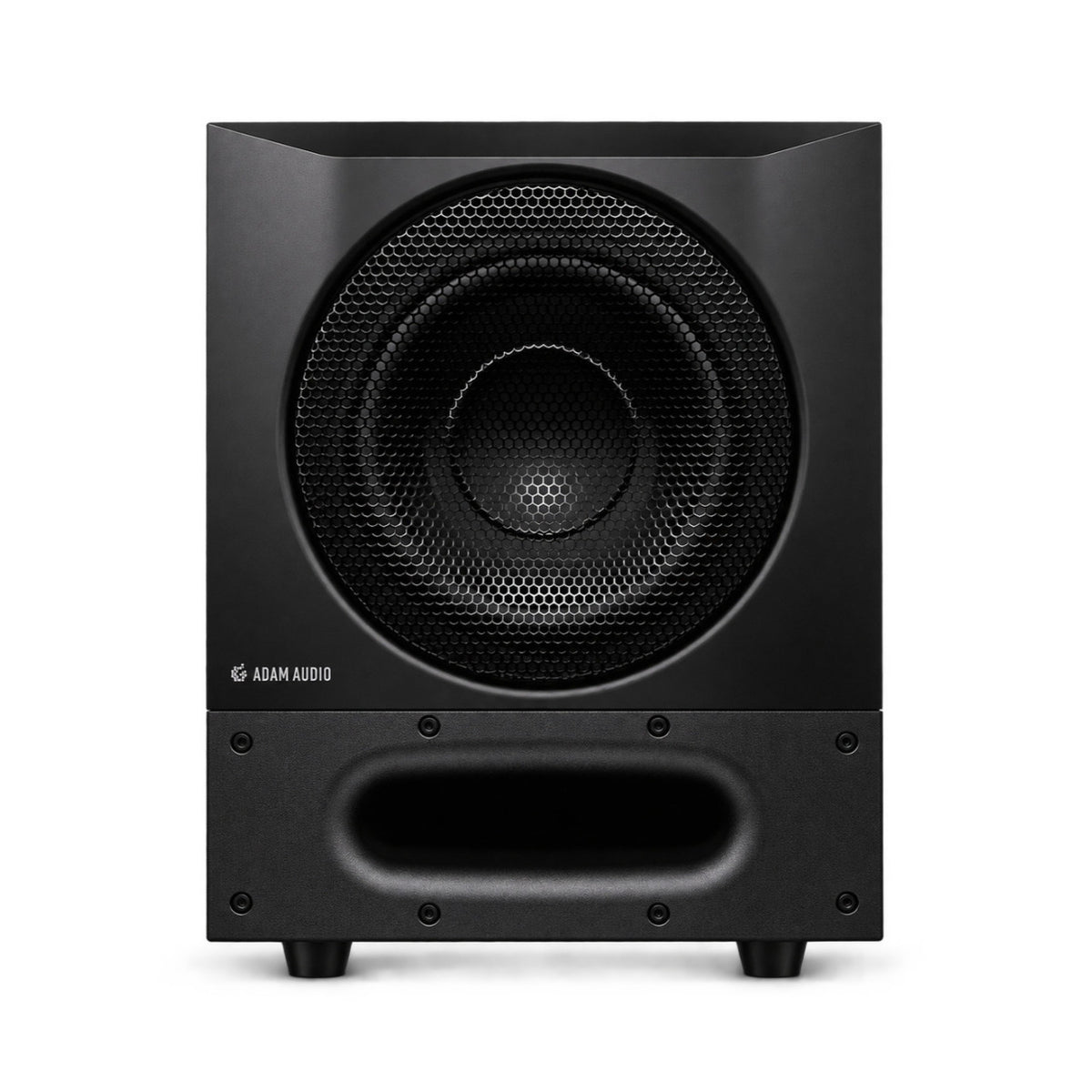

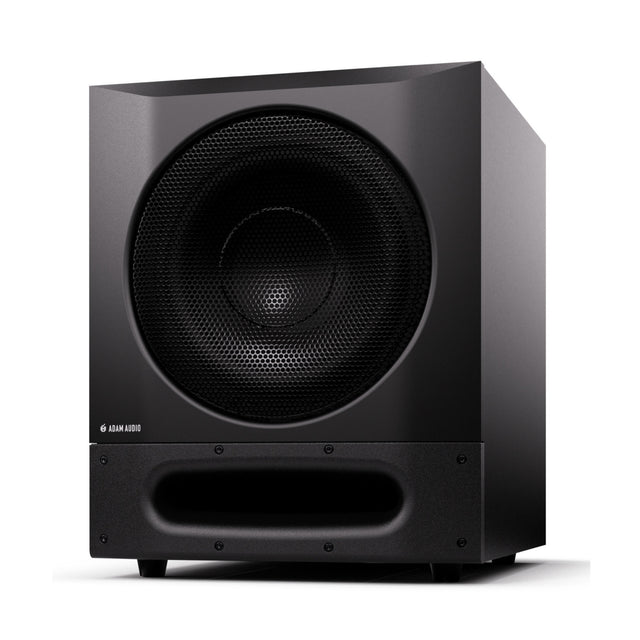

ADAM Audio Sub10 PRO 10-inch DSP-based Studio Subwoofer with AES3 Digital Audio and Ethernet Control
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Combining advanced DSP with powerful low-frequency reproduction, the Sub10 PRO provides a solid foundation for stereo and multi-channel monitoring. As part of ADAM Audio's latest generation of networked subwoofers, it pairs a high-excursion 10-inch woofer with an FEA-optimised bass port and a high-performance Class D amplifier to deliver tightly controlled bass.

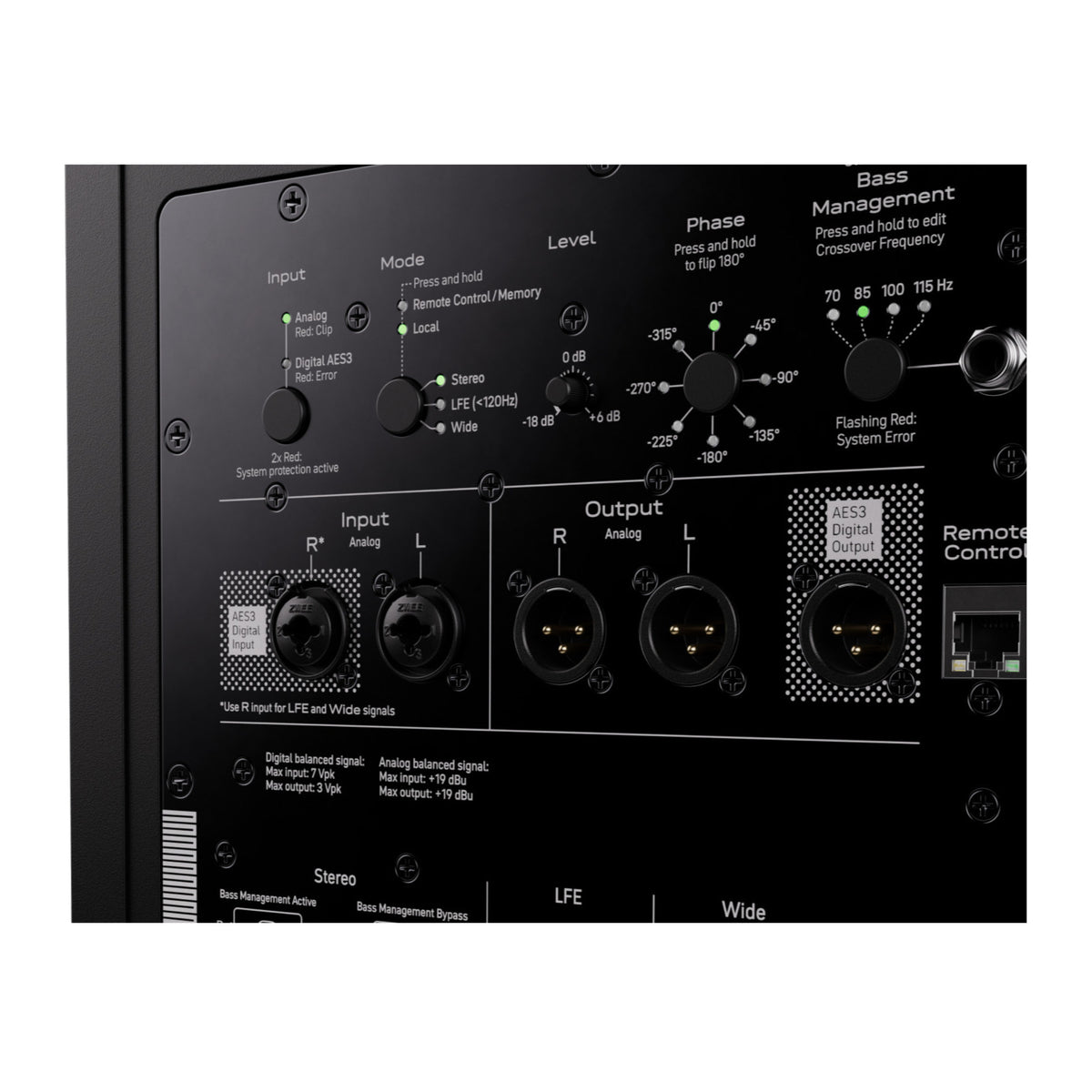

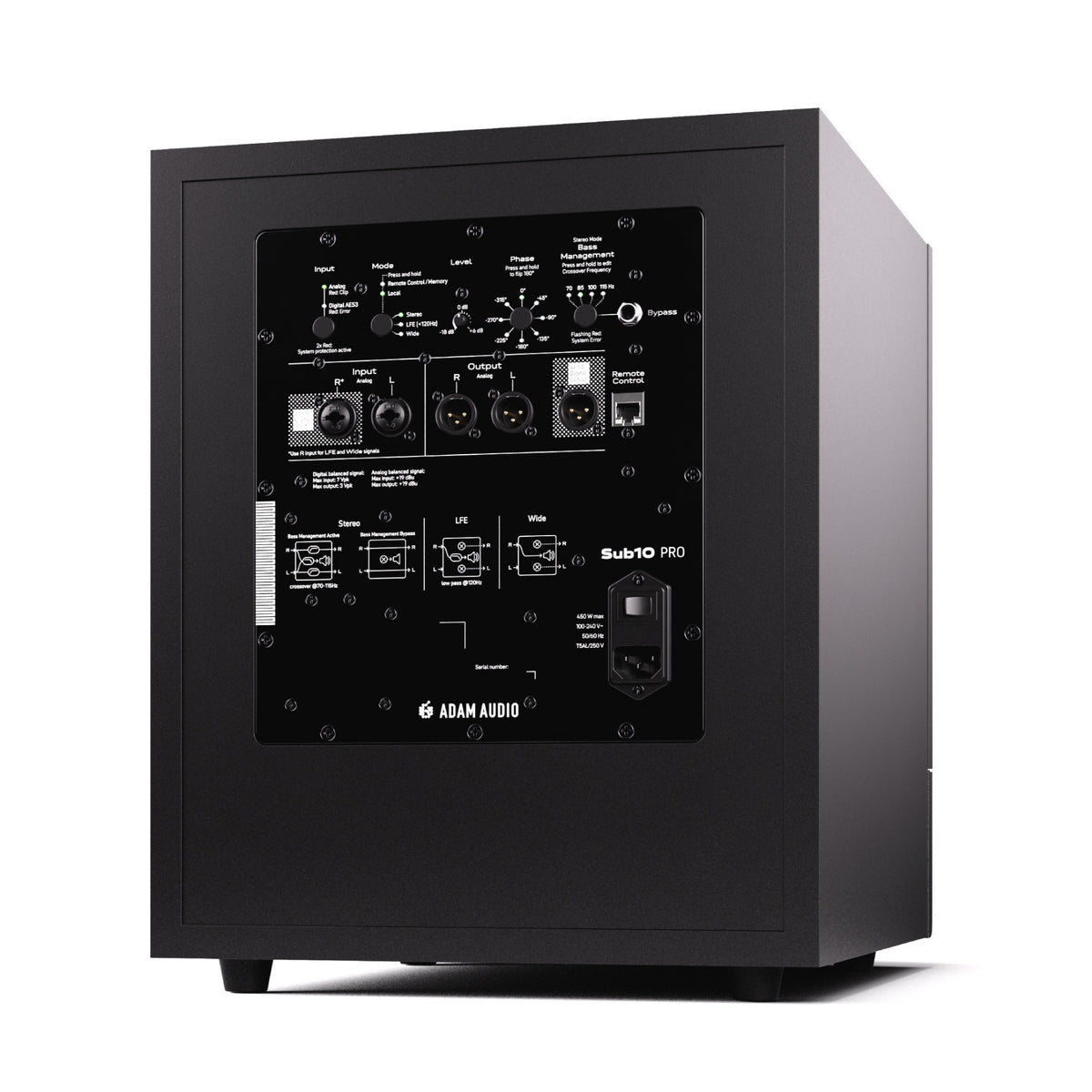

A comprehensive range of professional connectivity and control options can be found on the Sub10 PRO's backplate. Alongside precise phase and crossover adjustment, it provides AES3 digital I/O, balanced analog I/O via XLR and TRS, and a dedicated footswitch input for activating or bypassing bass management.
Network connectivity facilitates extensive management and calibration options through ADAM Control, the dedicated software for networked ADAM Audio products. Users can time-align the subwoofer, fine-tune its response across four bands of parametric EQ, and run Sonarworks calibration profiles directly on its integrated platform.
The Sub10 PRO offers three operating modes to accommodate different monitoring applications. Stereo provides straightforward routing for conventional 2.1 systems, while the dedicated LFE setting is optimized for immersive workflows such as Dolby Atmos.
ADAM Control
ADAM Control is the calibration and management platform for all networked ADAM Audio products. The extensive tuning and phase controls of the Sub10 PRO can be attenuated remotely and in real time over Ethernet. ADAM Control also facilitates firmware updates, allowing new features to be added to the Sub10 PRO over time.
High-Performance Woofer
The heart of the Sub10 Pro is its high-excursion, low-distortion woofer. Made from a fiber-reinforced paper material, the cone further strengthened by an elasticated rubber surround that permits considerable excursion while maintaining its mechanical design.
Digital Connectivity
AES3 is a professional standard for transmitting digital audio between interfaces and loudspeakers. Both the AES3 input and output connectors on the Sub10 PRO can carry 2 channels of digital audio up to 24-bit resolution and sample rates of 96 kHZ. By maintaining signal in the digital domain fewer conversions are required and higher quality audio can be transmitted over longer distances.
Powerful Amplification and Unfaltering DSP
The Sub10 PRO features a Class D amplifier that drives the woofer in a highly efficient manner at all listening levels. A smartly designed limiter works in tandem with the amp so the woofer can be driven to its extremes while always protecting the circuitry and mechanical components. The amplifier and limiter are managed by DSP-based electronics which benefit from consistent crossovers, filters, and equalization.
Multi-channel Ready
Alongside the Sonarworks platform for multichannel calibration, the Sub10 PRO offers two operational modes that were designed for immersive audio. LFE mode features a specifically designed 120 Hz cutoff that conforms to Dolby’s advice for LFE channels in Atmos systems. Wide mode allows the subwoofer to play full range, offering the maximum amount of flexibility for bass management elsewhere in the chain.

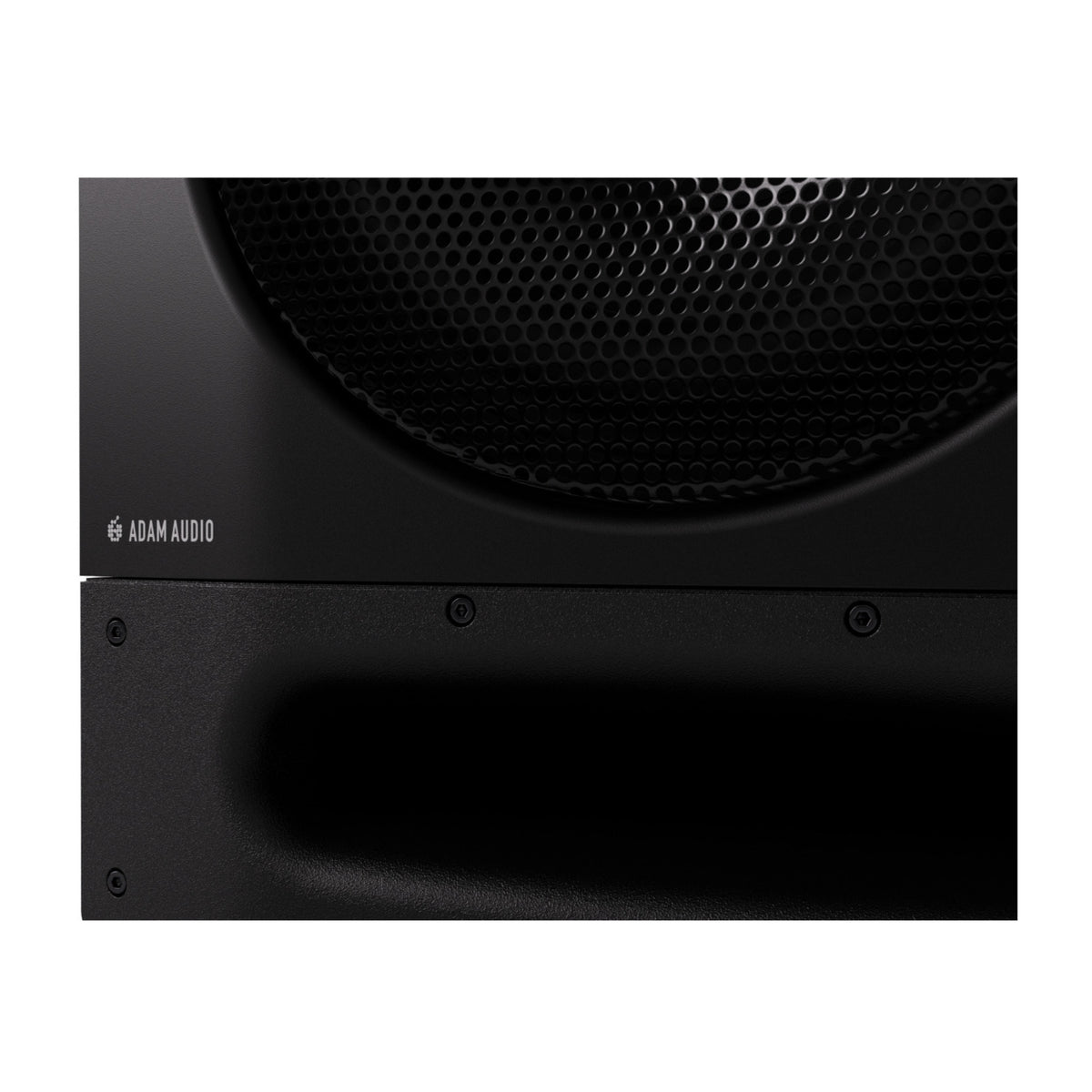

Berlin Industrial Design, Robust Cabinet and Grille
The Sub10 PRO features classic ADAM Audio design with a speckled finish to the bass port and matching curvature throughout. The cabinet is constructed from thick, vibration-resistant MDF wood that contributes to reducing unwanted resonances. There is additional bracing to support the port, and the woofer features a steel grille which protects the woofer when placed under desks.
Acoustics
| Frequency Response at -3 dB | 22 to 264 Hz |
| Frequency Response at -6 dB | 21 to 300 Hz |
| Maximum SPL in Full Space at 1 m, Sine Bursts Averaged 50 to 100 Hz at 3 Percent THD RMS | 106 dB SPL |
| Maximum SPL in Full Space at 1 m, Sine Bursts Averaged 25 to 50 Hz at 10 Percent THD | 102 dB SPL RMS, 105 dB SPL Peak |
| Maximum Peak SPL in Full Space at 1 m with IEC Weighted Noise | 114 dB SPL Full Range, 113 dB SPL with 85 Hz Bass Management |
| Dolby DARDT Maximum Peak SPL | 113 dB SPL |
| Crossover Frequencies | 70, 85, 100, 115 Hz |
| Self Generated Noise at 10 cm, Level Plus 6 dB, Wide Mode | Less than 20 dB(A) |
Driver
| Woofer Basket Diameter | 10 inches |
| Woofer Voice Coil Diameter | 45 mm |
| Woofer Cone Material | Paper |
Audio Inputs
| Analog Inputs | 2 x XLR and TRS Combo |
| Digital Input | XLR AES3 |
| Analog Input Impedance | 25 kOhm |
| Digital Input Impedance | 110 Ohm |
| Maximum Input Level | 19 dBu |
Audio Outputs
| Analog Outputs | 2 x XLR |
| Digital Output | XLR AES3 |
Signal Processing
| AD Converter | 24 bit |
| Internal Sample Rate | 96 kHz |
| Latency | 4 ms |
| Delay Range | 0 to 10 ms |
| Delay Resolution | 32 bit |
Amplification and Protection
| Woofer Amplifier Type | PWM |
| Woofer Amplifier Peak Output at 10 Percent THD with Limiter Deactivated | 325 W |
| Woofer Amplifier RMS Output at 1 Percent THD with Limiter Deactivated | 200 W at 3 Ohm |
| Protection | Independent Peak and Thermal Limiters, Over Current Protection, Over Temperature Protection, Under Voltage Protection |
Backplate Controls
| Input Sensitivity | 0 dBu equals 100 dB SPL at 1 m with 0 dB level setting, full space |
| Level | -18 dB to Plus 6 dB |
| Input Selection | Analog, Digital |
| Phase | 0, -45, -90, 135, 180, -225, -270, -315 degrees |
| Bass Management | 70, 85, 100, 115 Hz |
| Operating Modes | Stereo, LFE Below 120 Hz, Wide |
| Control | Remote, Local |
| Footswitch | Bypass, Latched TS Connection |
Network Control
| Networking Connector | RJ45 |
| Connection Type | Ethernet |
| Communication Protocol | AES70 and TCP |
| Control Software | ADAM Control |
| Advanced Room Adaptation | 4 x Parametric EQ, Level, Delay |
| Third Party Calibration Compatibility | Import from Sonarworks SoundID Reference |
Cabinet and Power
| Cabinet Design | Front Firing and Front Ported |
| Cabinet Material | Vinyl Wrapped MDF with Painted MDF Front Panel |
| Woofer Grille Material | Steel |
| Maximum Power Consumption | 450 W |
| Standby Power Consumption | 2.5 W |
| AC Input Voltage | 100 to 240 V, 50/60 Hz |
| Power Rating | 450 W Maximum |
| Peak Inrush Current | 6.8 A |
Physical Specifications
| Product Dimensions (WxHxD) | 17.7 x 14.2 x 17.7 inches |
| Product Weight | 50 lb 4 oz |
| Package Dimensions (WxHxD) | 23.1 x 18.9 x 22.9 inches |
| Package Weight | 66 lb 13.51 oz |
Environmental Conditions
| Operating Temperature | -10 to 40 degrees C |
| Operating Humidity | Less than 75 percent RH, Noncondensing |
| Transport and Storage Temperature | -20 to 65 degrees C |
| Transport and Storage Humidity | Less than 95 percent RH, Noncondensing |
Warranty
| Standard Limited Manufacturer Warranty | 2 Years |
| Optional Registered Warranty | 3 extra years with Product Registration in manufacturer's website |
