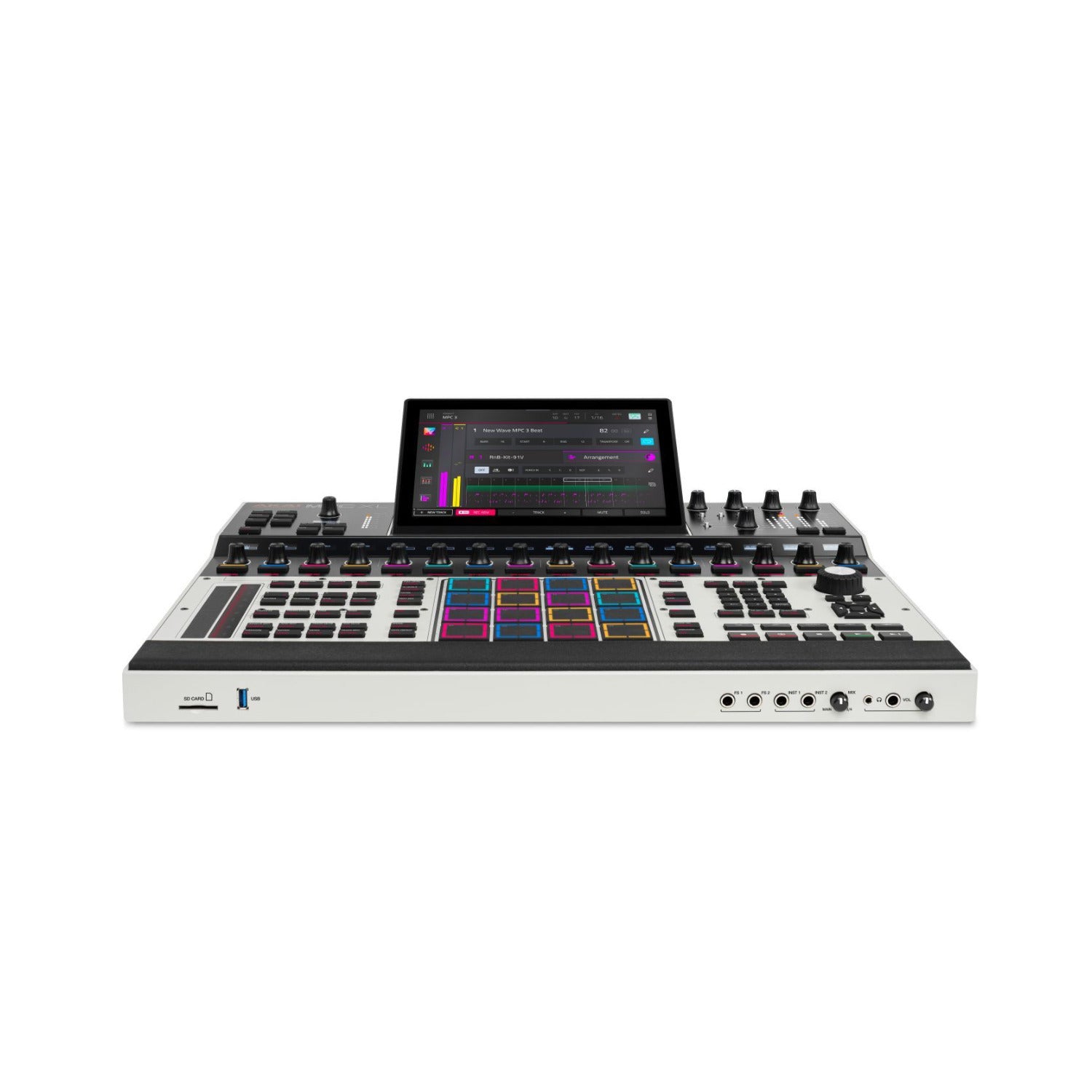

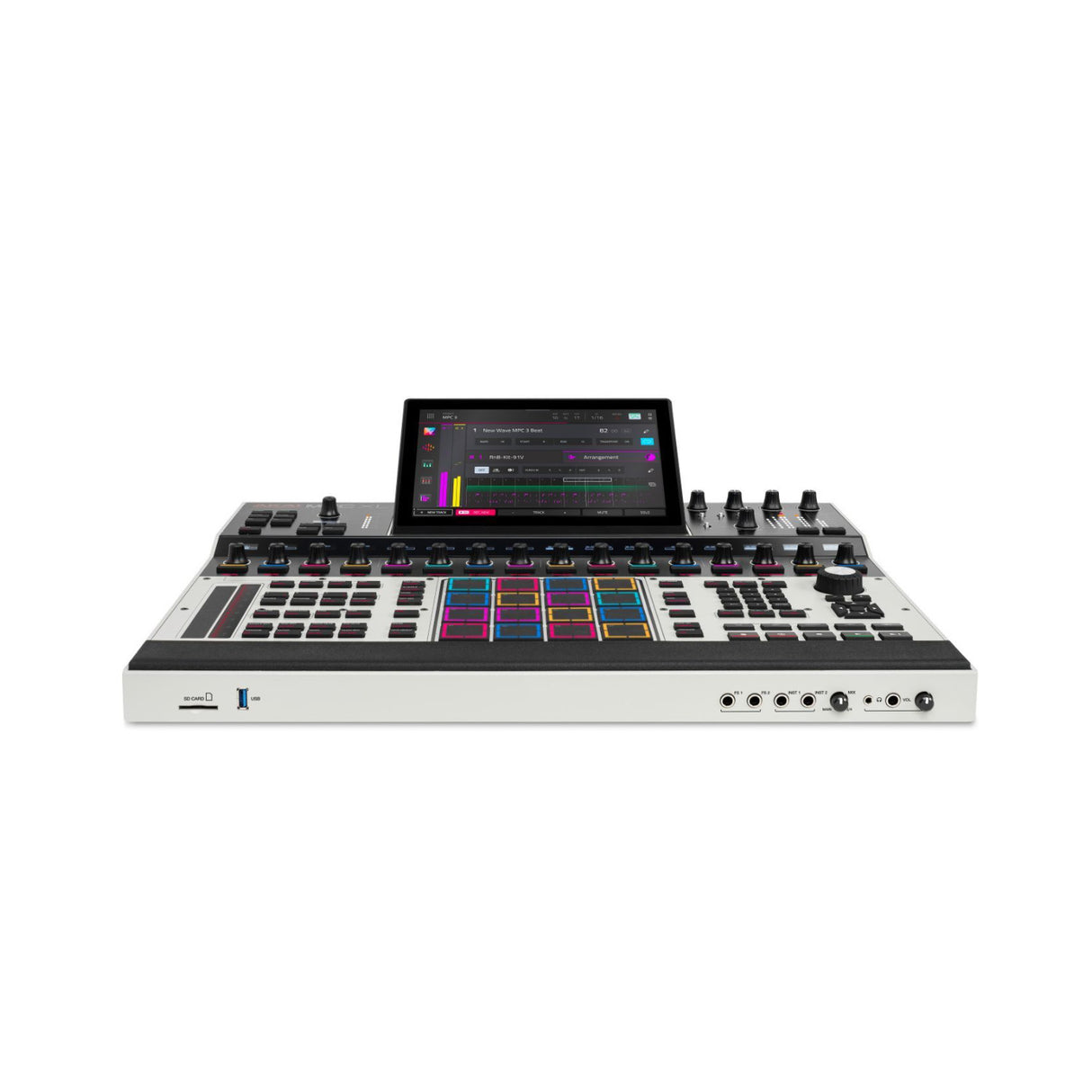

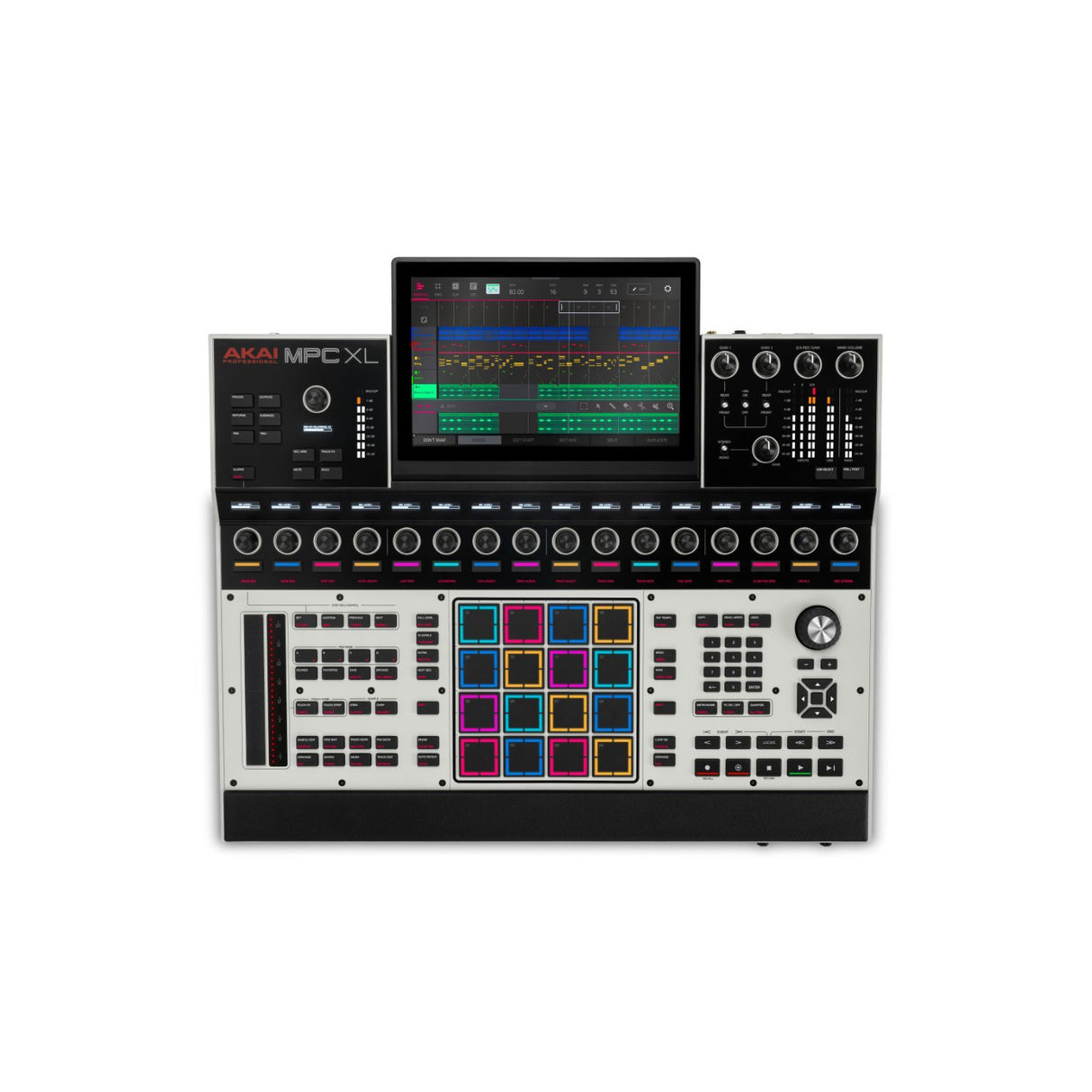

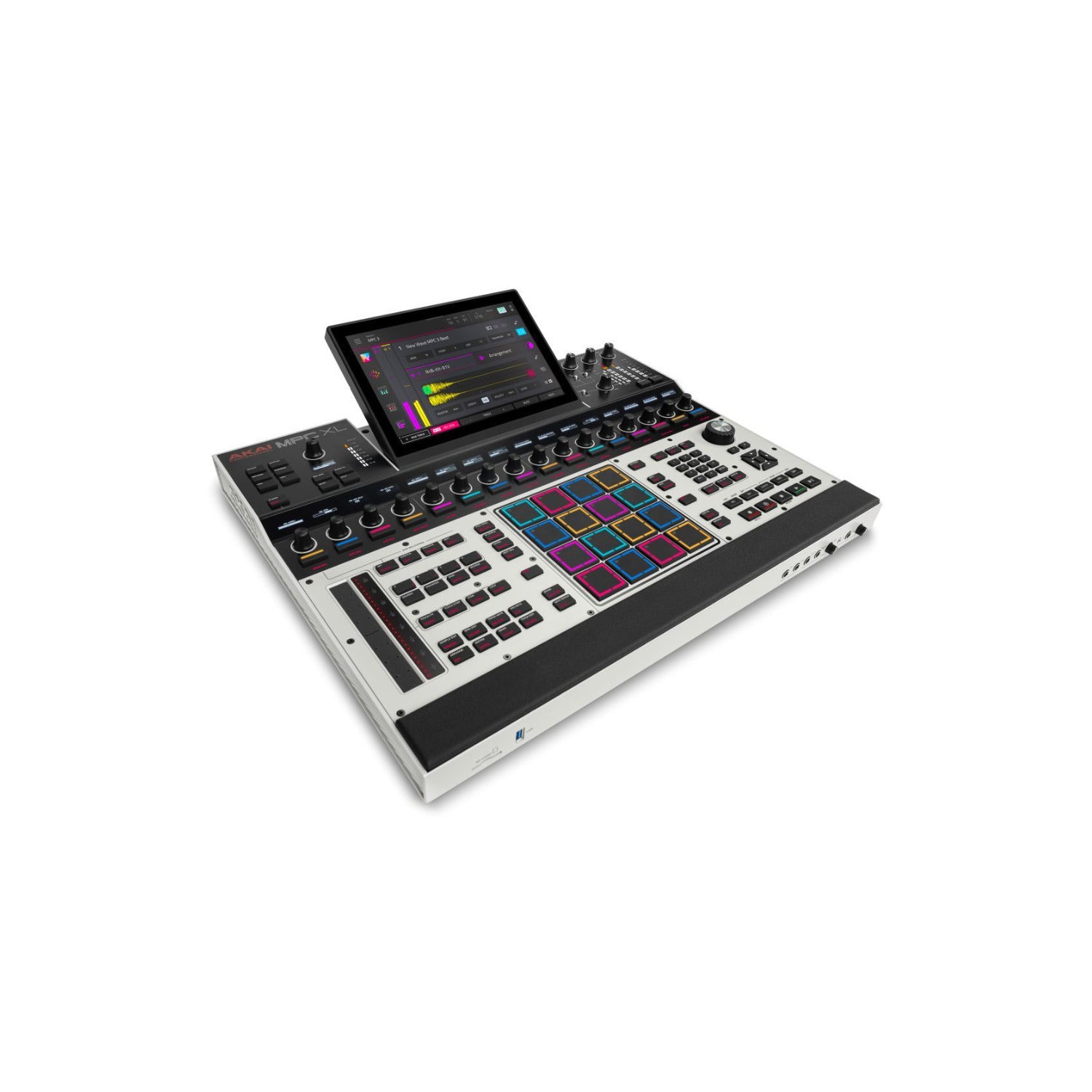

Akai Pro MPC XL Standalone Music Production System with 16 Pads and Touchscreen
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Akai Pro MPC XL is a next-generation, standalone music production system that combines the legendary MPC legacy with modern, computer-free workflows. Designed for beatmakers and producers, it delivers professional-grade sequencing, sampling, and performance capabilities in a single, powerful unit. With an ultra-responsive touch interface, advanced processing power, and extensive connectivity, MPC XL provides everything needed for creating, performing, and producing music without compromise.
Standalone Operation
No computer required; MPC3 OS allows a streamlined, all-in-one workflow.
Gen 2 8-Core Processor
Provides 4x the processing power of previous MPCs for smooth performance and multitasking.
16GB RAM
Enables running multiple plugins and large projects simultaneously.
256GB Internal SSD
Stores projects, samples, plug-in instruments, and presets with ample space and fast access.

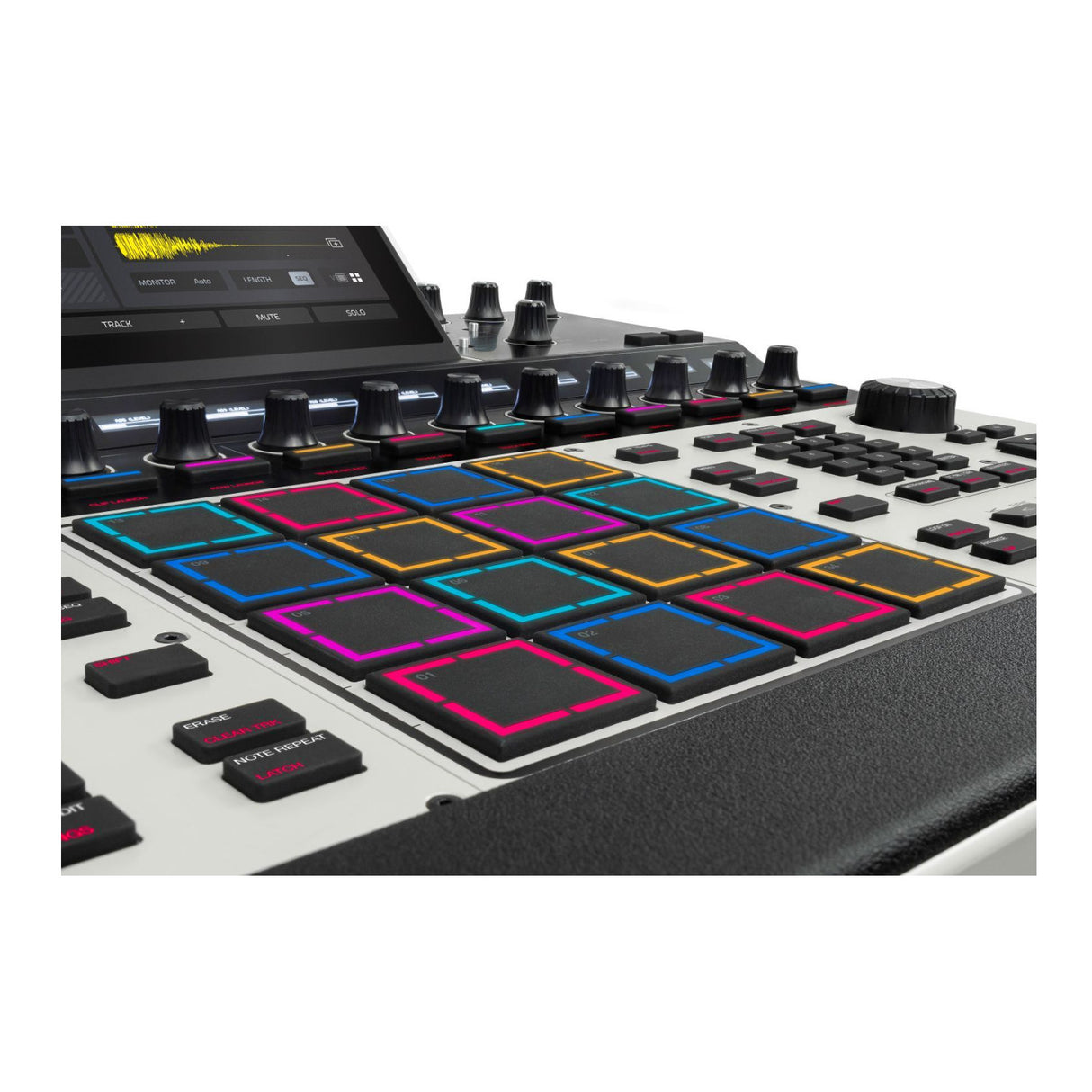

MPCe Pads with 3D-Sensing Technology
16 ultra-responsive pads with 4 quadrants per pad for expressive morphing, layering, looping, and controlling sounds and effects.
Assignable Performance Touch-Strip
Offers tactile control for Performance FX, note repeats, channel faders, and more.
Step Sequencer with 16 RGB Function Buttons
Advanced sequencing with 16 function modes for precise control.
16 Q-Link Knobs with OLED Displays
Provides immediate visual feedback for performance and parameter adjustments.

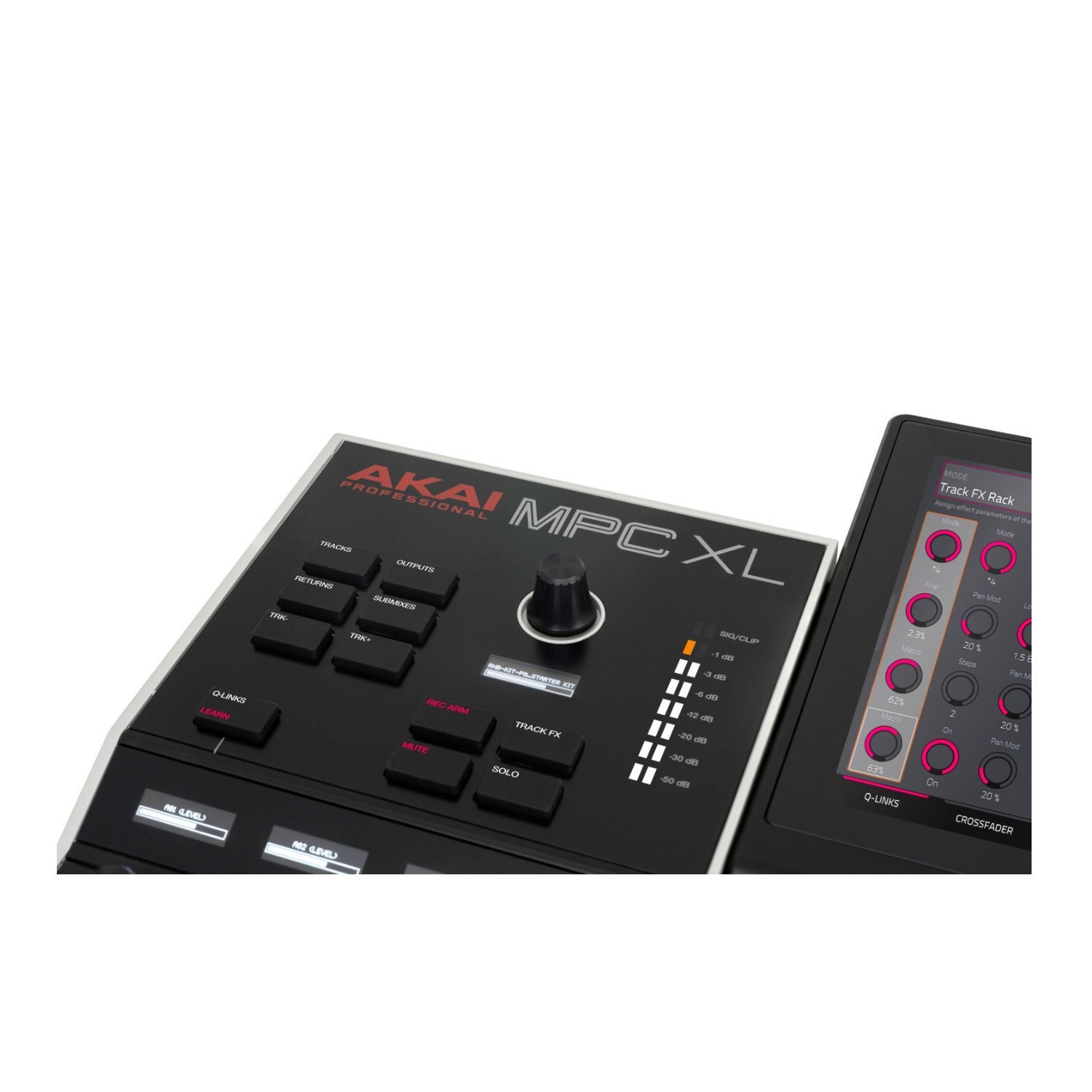

XL Channel Command
Quick access to mixing and recording parameters, including level, sends, and outputs, with a dedicated OLED display and encoder.
One-to-One Function Buttons
Immediate access to all features for efficient workflow.

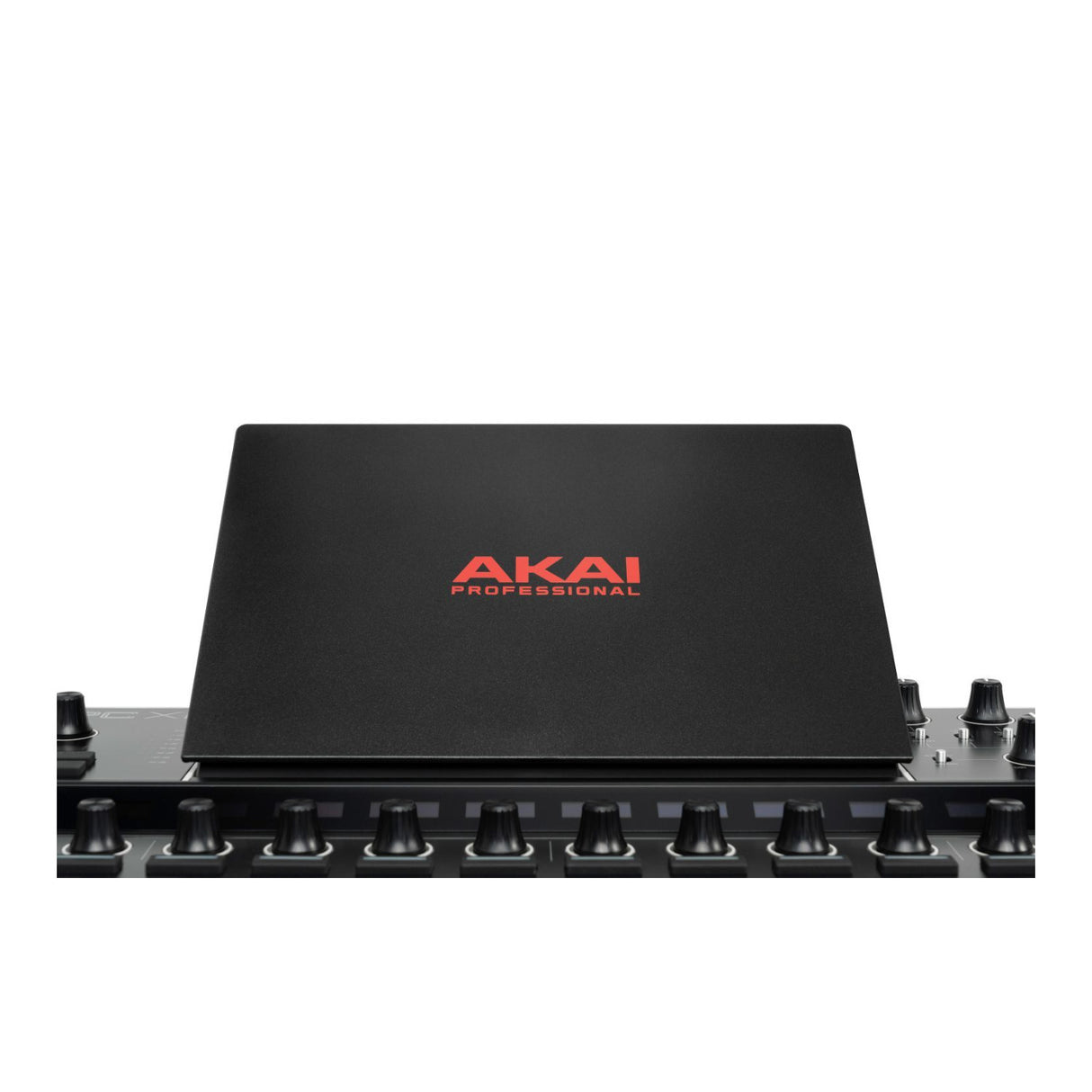

10.1-Inch HD Multi-Gesture Touchscreen
Tilt-enabled touchscreen for intuitive navigation and performance control.
Professional Audio Inputs
2 XLR/TRS combo inputs with mic preamps and phantom power; 2 dedicated instrument inputs for guitars and keyboards.
Multiple Outputs and Connectivity
8 separate line outputs, USB-C connectivity for 24 channels of audio I/O, 32 channels of MIDI I/O, and 8 stereo 1/8-inch CV/Gate outputs (16 total).
MPC3 OS Integration
Supports up to 32 plugin instruments, 16 audio tracks, pro stem separation, high-quality time-stretching, and advanced clip launching.
Digital Audio System
| ADCs | 24-bit at 44.1, 48, 88.2, 96 kHz |
| DACs | 24-bit at 44.1, 48, 88.2, 96 kHz |
| Digital Signal Processing | 32-bit floating point |
Mic Inputs 1–2
| (2) Balanced XLR + 1/4 inch TRS | |
| Frequency Response | 20 Hz – 20 kHz (+0.19 / -0.16 dB) |
| Dynamic Range | 109.8 dB (A-weighted) |
| SNR | 109.3 dB |
| THD+N | 0.001 percent |
| Maximum Input Level | +12.7 dBu |
| Sensitivity | -45.5 dBu |
| Gain Range | 58.2 dB |
Line Inputs 1–2
| (2) Balanced XLR + 1/4 inch TRS | |
| Frequency Response | 20 Hz – 20 kHz (+0.09 / -0.05 dB) |
| Dynamic Range | 109.8 dB |
| SNR | 109.4 dB |
| THD+N | 0.001 percent |
| Maximum Input Level | +20.1 dBu |
| Sensitivity | -9.6 dBu |
| Gain Range | 29.7 dB |
Line Inputs 3–4
| (2) Balanced 1/4 inch TRS | |
| Frequency Response | 20 Hz – 20 kHz (+0.09 / -0.05 dB) |
| Dynamic Range | 110.8 dB |
| SNR | 109.7 dB |
| THD+N | 0.001 percent |
| Maximum Input Level | +20.3 dBu |
| Sensitivity | -10.3 dBu |
| Gain Range | 30.6 dB |
Instrument Inputs 1–2
| (2) Unbalanced 1/4 inch TS | |
| Frequency Response | 20 Hz – 20 kHz (+0.15 / -0.05 dB) |
| Dynamic Range | 111.0 dB |
| SNR | 109.6 dB |
| THD+N | 0.0013 percent |
| Maximum Input Level | +10.1 dBu |
| Sensitivity | -19.6 dBu |
| Gain Range | 29.7 dB |
Phono Inputs
| (2) Unbalanced RCA | |
| Dynamic Range | 103.3 dB |
| SNR | 97 dB |
| THD+N | 0.036 percent |
| Maximum Input Level | 65 mVrms |
| Sensitivity | 2 mVrms |
Main Outputs 1–2
| (2) Impedance-balanced 1/4 inch TRS | |
| Frequency Response | 20 Hz – 20 kHz (+0.06 / -0.31 dB) |
| Dynamic Range | 115.6 dB |
| THD+N | 0.003 percent |
| Maximum Output Level | +20.3 dBu |
| Output Impedance | 100 Ω |
Line Outputs 3–8
| (6) Impedance-balanced 1/4 inch TRS | |
| Frequency Response | 20 Hz – 20 kHz (+0.06 / -0.24 dB) |
| Dynamic Range | 116.3 dB |
| THD+N | 0.005 percent |
| Maximum Output Level | +20.4 dBu |
| Output Impedance | 100 Ω |
Headphone Outputs
| (1) 1/4 inch stereo headphone | |
| (1) 1/8 inch stereo headphone | |
| Dynamic Range | 100.6 dB |
| THD+N | 0.025 percent |
| Frequency Response | 20 Hz – 20 kHz (+0.06 / -0.31 dB) |
| Maximum Power Delivered | 260 mW (32 Ω) |
| Maximum Output Level | +20.4 dBu |
| Output Impedance | 32 Ω |
Pads
| (16) Velocity- and pressure-sensitive pads with 3D sensing | |
| 8 selectable pad banks |
Knobs
| (17) 360 Degrees touch-sensitive Q-Link knobs | |
| (1) 360-degree encoder with push | |
| (7) 270 Degrees knobs (gain, mix, level) |
Buttons
| (105) Dedicated buttons | 36 single-color LED, 43 dual-color LED, 1 dual color + red, 17 RGB LED, 8 unlit |
Displays
| (1) 10.1-inch (256.5 mm) 1280×800 full-color multi-touch display | |
| (17) Monochrome 128×32 OLED displays | |
| CPU / Memory / Storage |
CPU: 8-core processor
| Memory | 16 GB |
| Storage | 256 GB internal NVMe SSD + SATA expansion bay |

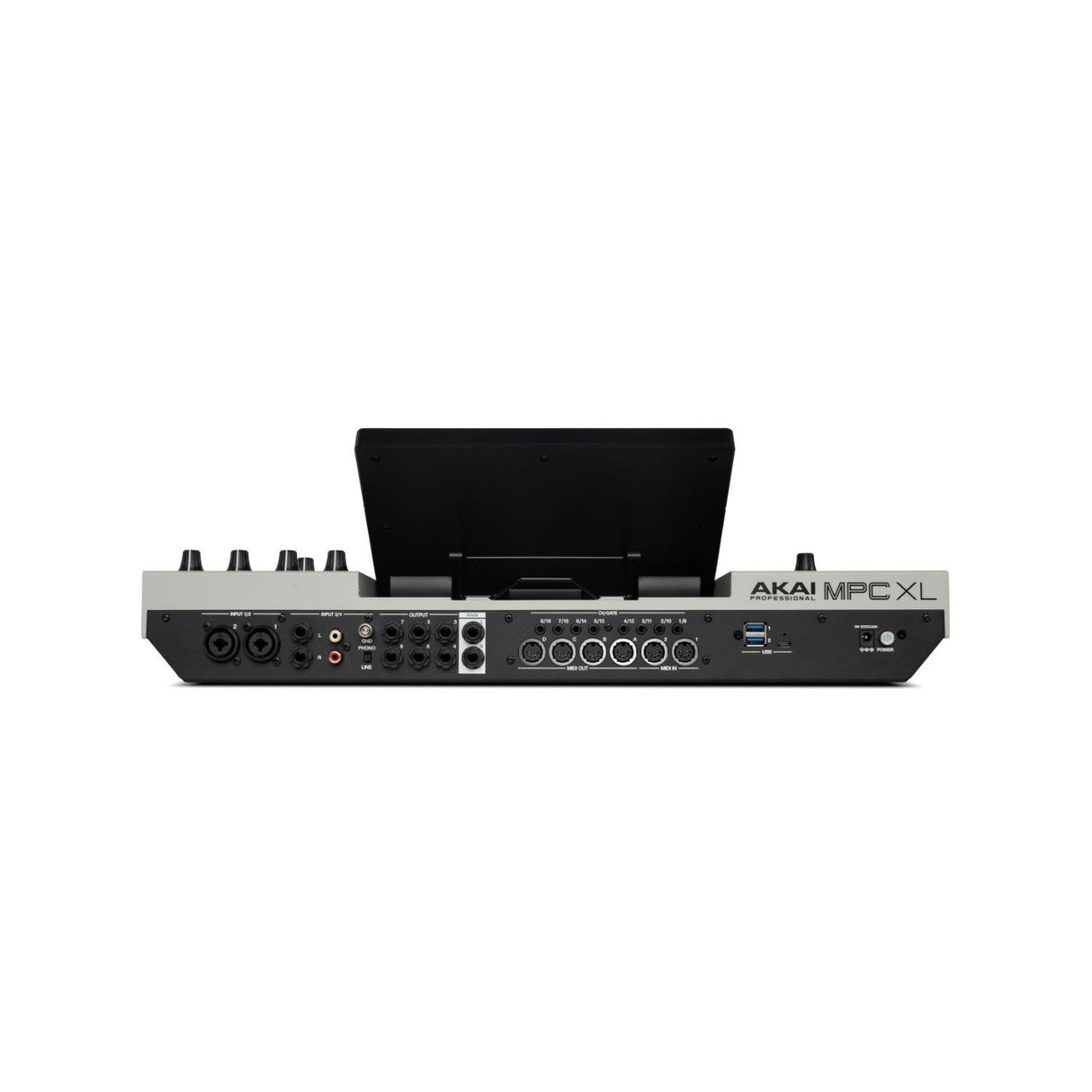

Connections
| Physical | Combo XLR/TRS inputs, line inputs, instrument inputs, TRS outputs, headphone outputs, MIDI I/O, CV/Gate outputs, USB-C, USB-A, SD card slot, power input, drive bay |
| Wireless | Wi-Fi, Bluetooth |
Power
| 19 V, 3.42 A, center-positive (adapter included) |
Dimensions (Display Flat)
| 21.4 inch × 19.2 inch × 3.7 inch (543 × 488 × 94 mm) |
Weight
| 15.87 lbs / 7.2 kg |
