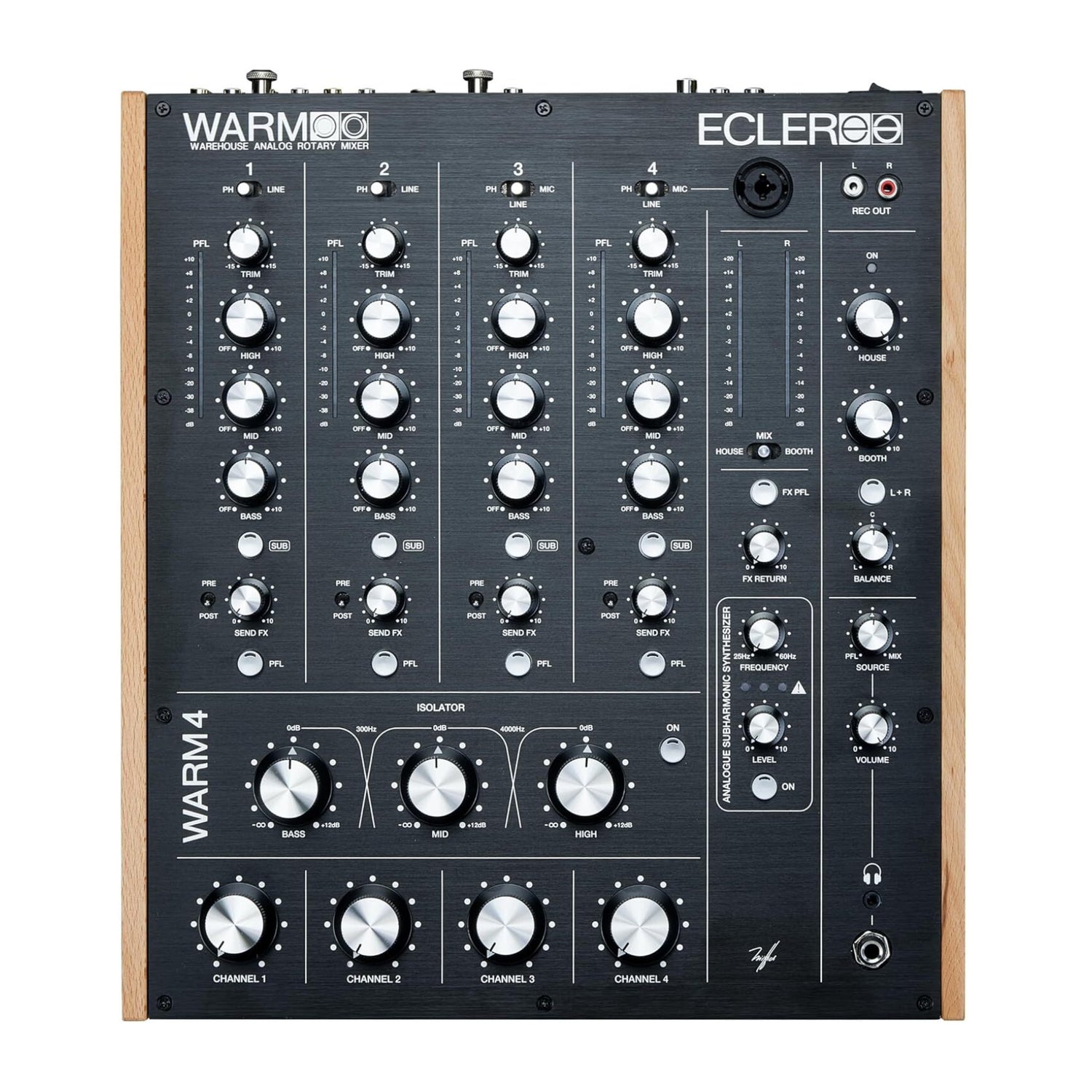

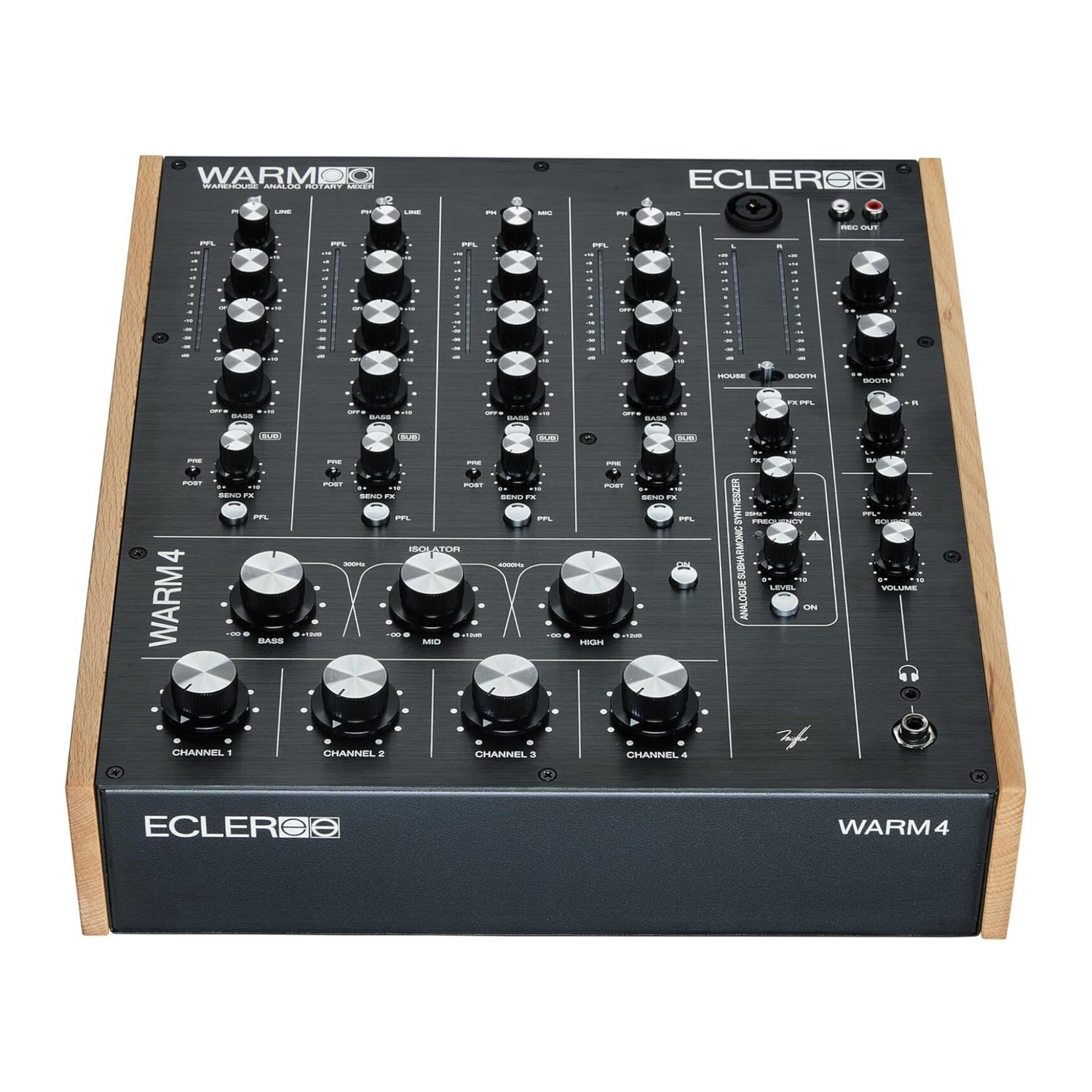

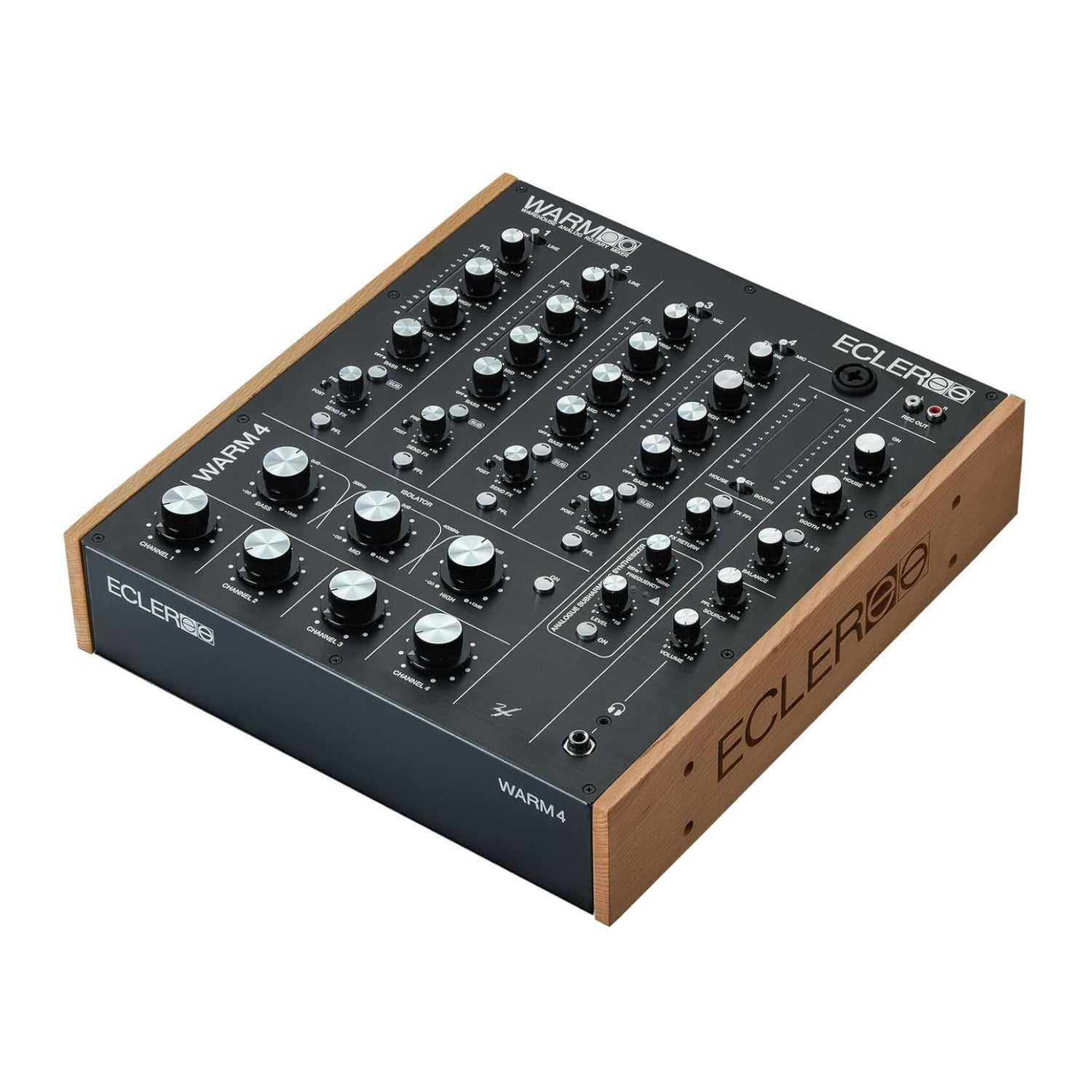

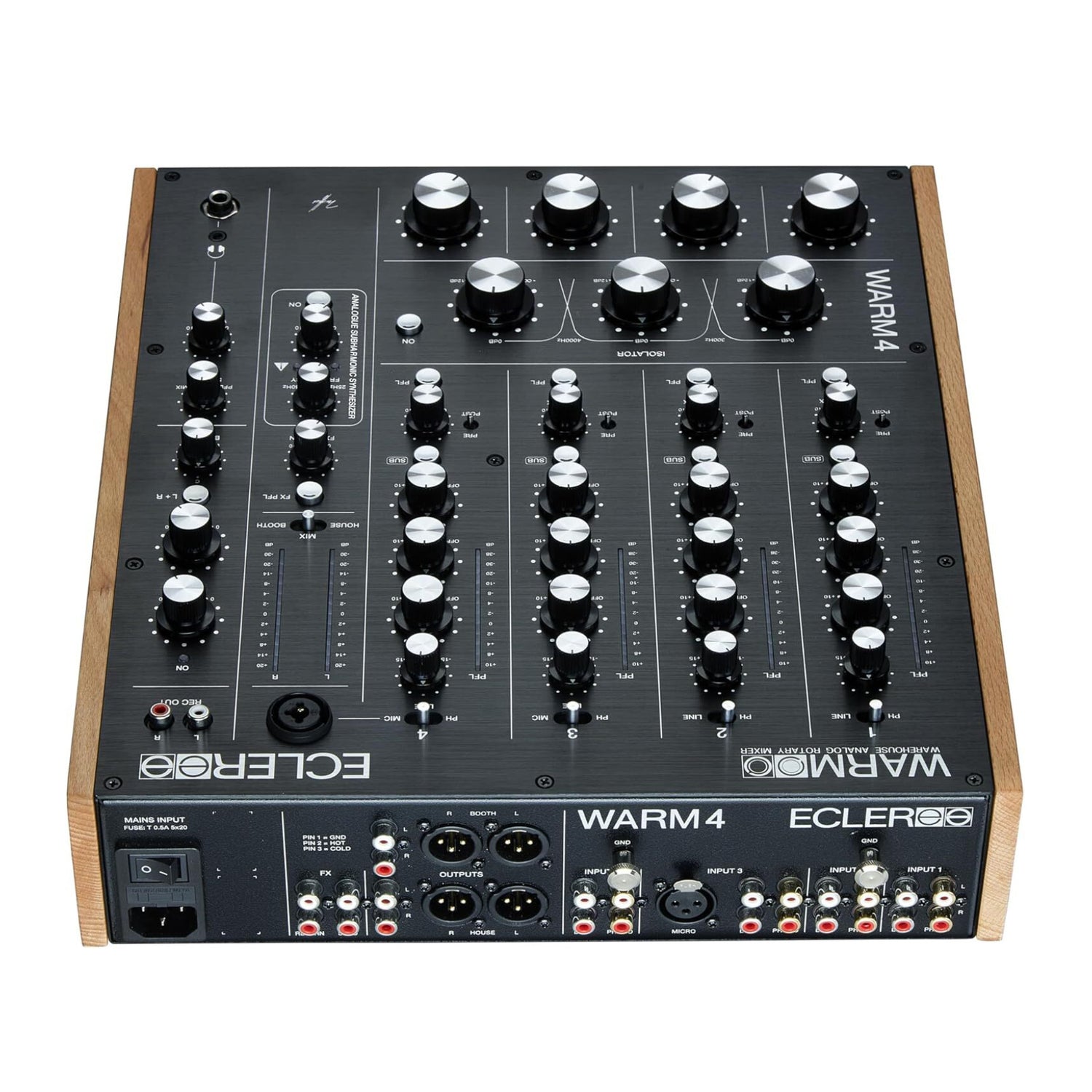

WARM4 is a professional four channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring 4 phono/line channels, 2 MIC inputs, classic sharp filters and a 4th order Isolator. WARM4 includes an unique feature, an Analogue Subharmonic Synthesizer selectable per channel, specially designed to generate and reinforce ultra-low frequencies. Perfect for Night Clubs, DJs studios and Itinerant DJ performances.
Features:
- 4 Mixing channels
- 4 PHONO inputs
- 4 LINE inputs
- 2 MICRO inputs
- Master Output on XLR and RCA connectors
- Booth Output on XLR and RCA connectors
- Headphone Monitor Output on 6.3mm Jack and 3.5mm mini-jack
- 3 Band full EQ cut
- 3 Band Isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct )
- Analogue Subharmonic Synthesizer for sub-bass frequency reinforcement selectable per channel
- Maximum Output without distortion: 21dBV (23dBu)
- FX Send control and Pre/Post fader selector per channel
- FX Return control and PFL
- Alps metal shaft high quality potentiometers
- Mechanized from a solid block of aluminium knob, without visible screw. Ecler Unique design
- Wooden side panels included
Audio Performance
Frequency Response
| Line | 10Hz–30kHz (-1dB) |
| Micro | 10Hz–25kHz (-1dB) |
| Phono | RIAA ±0.5dB |
| Fx Return | 10Hz–50kHz (-1dB) |
Thd+N
| Line | <0.004% |
| Micro | <0.7% |
| Phono | <0.06% |
| Fx Return | <0.001% |
Cmmr
| Micro | >75dB @ 1kHz |
Signal To Noise Ratio
| Line | >105dB |
| Micro | >90dB |
| Phono | >100dB |
| Fx Return | >110dB |
Trim / Tone Control (Inputs 1–4)
| Inputs | ±15dB |
| Bass | +10/-30dB |
| Mid | +10/-25dB |
| Treble | +10/-30dB |
Isolator Tone Control
| Bass | +12/-70dB |
| Mid | +12/-40dB |
| Treble | +12/-70dB |
Tone Filter Cut Frequency (-6dB, 12dB/Oct)
| Bass | 200Hz |
| Mid | 200Hz–6.8kHz |
| Treble | 6.8kHz |
Isolator Cut Frequency (-6dB, 24dB/Oct)
| Bass | 300Hz |
| Mid | 300Hz–4kHz |
| Treble | 4kHz |
Analogue Subharmonic Synthesizer
| Input Selective Filter | 50–120Hz |
| Harmonics Synthesis | 25–60Hz |
| Max Output Level | +12dBV |
Inputs
Number Of Inputs
| Line | 4 Stereo Unbalanced |
| Phono | 4 Stereo Unbalanced |
| Micro | 2 Mono Balanced |
| Fx Return | 1 Stereo Unbalanced |
Connector Types
| Line 1–4 | RCA Stereo |
| Phono 1–4 | RCA Stereo |
| Micro 3 | XLR3-F |
| Micro 4 | Combo XLR3F–6.3mm TRS Balanced |
| Fx Return | RCA Stereo |
Input Sensitivity / Impedance
| Line | 0dBV / 50kΩ |
| Phono | -40dBV / 50kΩ |
| Micro | -50dBV / >1kΩ |
| Fx Return | 0dBV / >6kΩ |
Outputs
Number Of Outputs
| House | 1 Stereo Balanced / 1 Stereo Unbalanced |
| Booth | 1 Stereo Balanced / 1 Stereo Unbalanced |
| Headphone | 2 Stereo Unbalanced |
| Fx Send | 1 Stereo Unbalanced |
| Rec | 1 Stereo Unbalanced |
Connector Types
| House | XLR3-M Stereo / RCA Stereo |
| Booth | XLR3-M Stereo / RCA Stereo |
| Headphone | 6.3mm Jack / 3.5mm Jack |
| Fx Send | RCA Stereo |
| Rec | RCA Stereo |
Output Level / Minimum Load
| House (Bal) | 0dBV / 600Ω (1V) (+12dB 4V) |
| House (Unbal) | 0dBV / 2.2kΩ (1V) (+12dB 4V) |
| Booth (Bal) | 0dBV / 2.2kΩ (1V) (+12dB 4V) |
| Booth (Unbal) | 0dBV / 2.2kΩ (1V) (+12dB 4V) |
| Rec | 0dBV / 10kΩ |
| Headphones | 200mΩ / 200Ω (Thd 1%) |
| Fx Send | 0dBV / 2.2kΩ |
Max Undistorted Output Level
| House (Bal) | 21dBV (23dBu) |
| Booth (Bal) | 21dBV (23dBu) |
| House (Unbal) | 21dBV (23dBu) |
| Booth (Unbal) | 21dBV (23dBu) |
Technical
| Control Mode | Rotary With Alps Blue Velvet Potentiometers And Alps RK09L Potentiometers |
| Phantom Voltage | 18VDC / 5mA Max (Default On) |
| Input VU Meter | LED 12 Segments (-38dBV To +10dBV) |
| House / Mix / Booth VU Meter | LED 12 Segments (-30dBV To +20dBV) |
| Subharmonic Output VU Meter | LED 3 Segments (-20dBV / 0dBV / +4dBV) |
Electrical
| Power Supply | Internal |
| AC Mains Voltage | 90–264VAC, 47–63Hz |
| AC Main Connector | 15A IEC Inlet |
| Rated Power Consumption | 39VA |
Physical
| Operating Temperature | -5°C To 45°C (23°F To 113°F) |
| Operating Humidity | 20–90% RH (No Condensation) |
| Storage Temperature | -10°C To 50°C (14°F To 122°F) |
| Storage Humidity | <90% RH (No Condensation) |
| Installation | Desktop |
| Included Accessories | IEC Cable (EU) |
| Dimensions (W x H x D) | 340 x 81 x 372 mm (13.39 x 3.19 x 14.65 in) |
| Weight | 5.32 kg (11.73 lb) |
| Shipping Dimensions (W x H x D) | 495 x 175 x 435 mm (19.49 x 6.89 x 17.13 in) |
| Shipping Weight | 6.74 kg (14.86 lb) |
