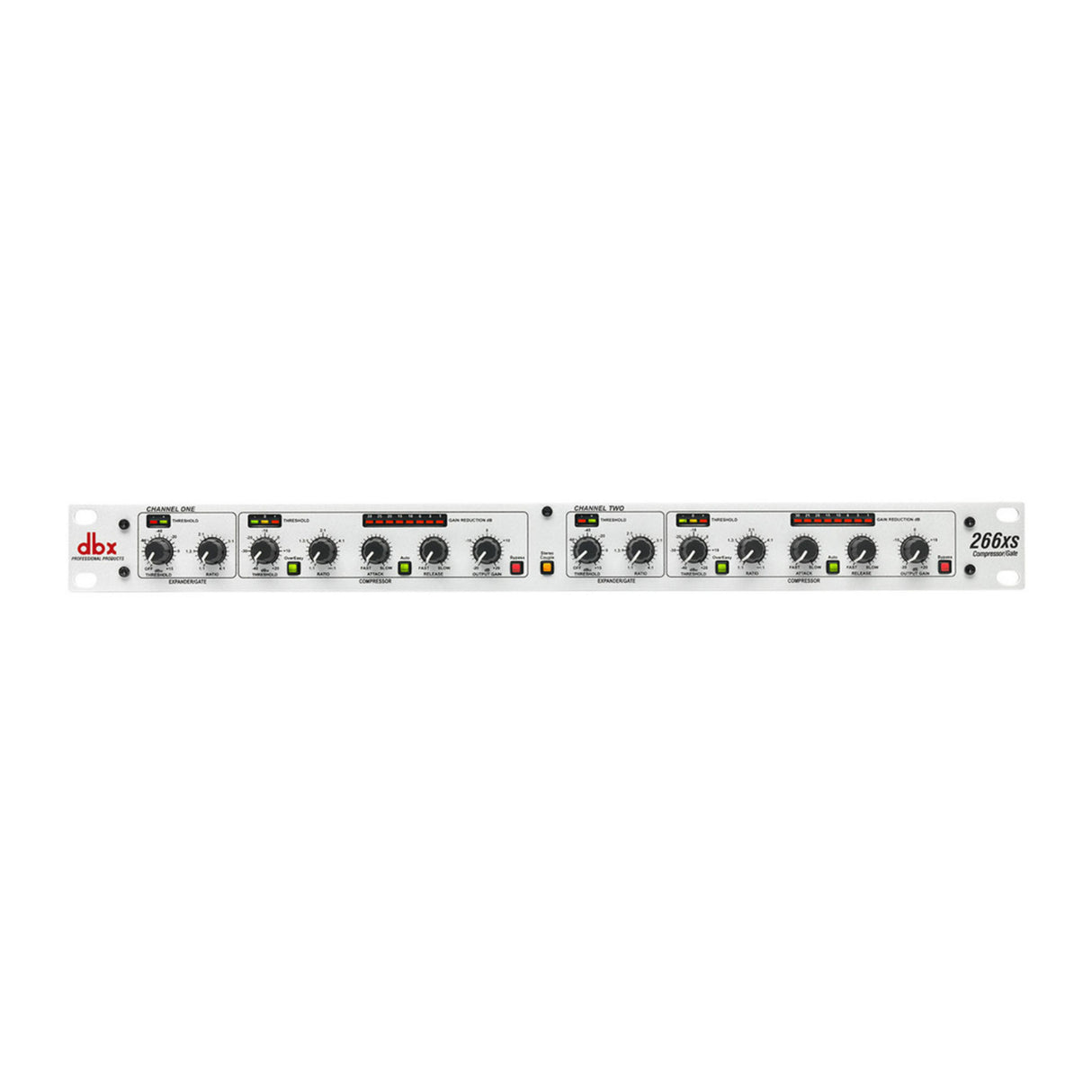

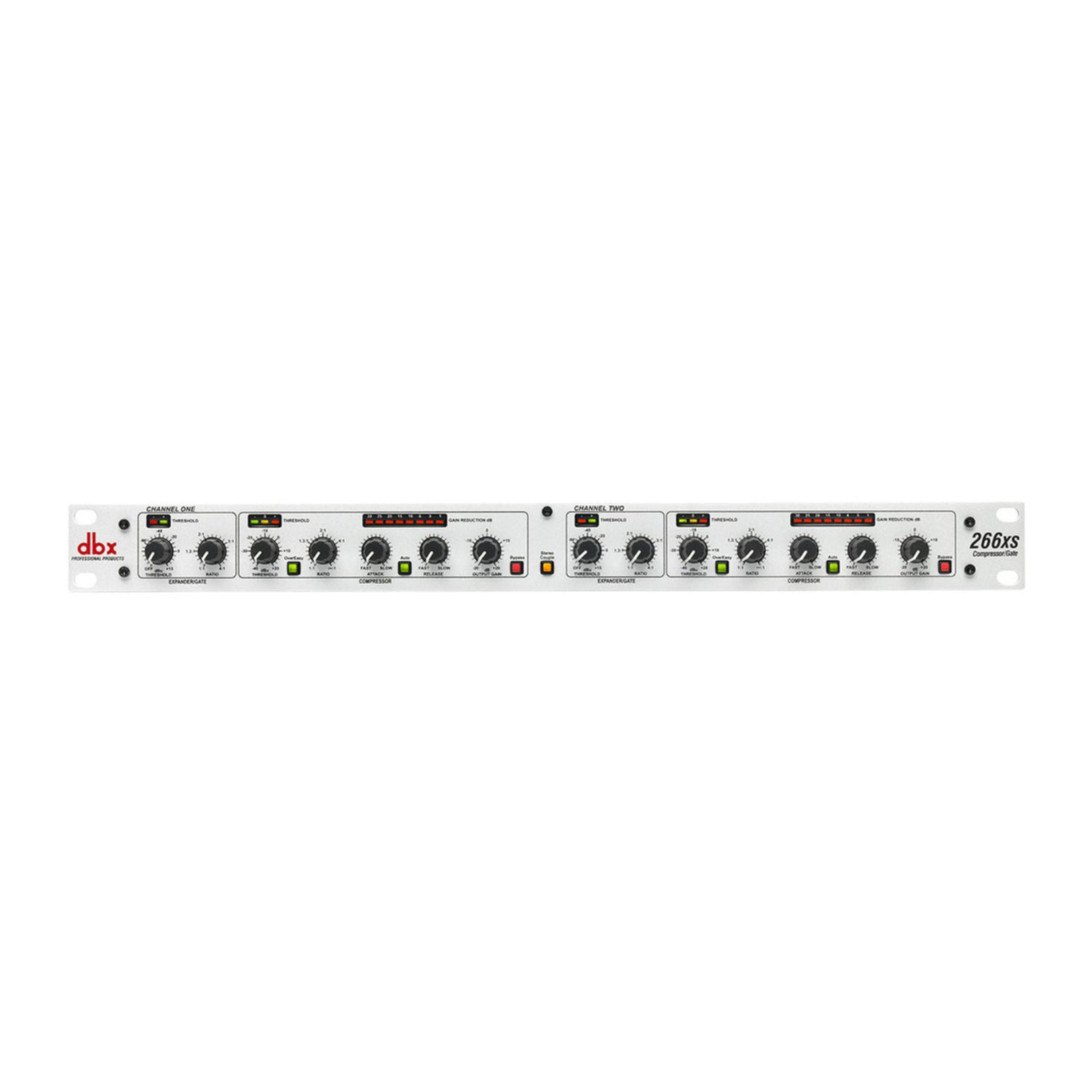

DBX DBX266XSV Professional Audio Compressor/Gate Dynamic Processor
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The DBX DBX266XSV Professional Audio Compressor/Gate Dynamic Processor gives you more dynamic control to help create a more polished, professional sound. Compression in your audio chain allows you to smooth out uneven levels, add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix adding greater clarity and making them stand out from the surrounding instruments.
Mechanism
The 266xs is the latest in a long line of the world's most successful compressors from the inventors of the technology. Its patented Overeasy compression technology provides smooth and musical performance while the AutoDynamic attack and release controls, found only on DBX compressors, puts great sound within easy reach.
Smooth Operation

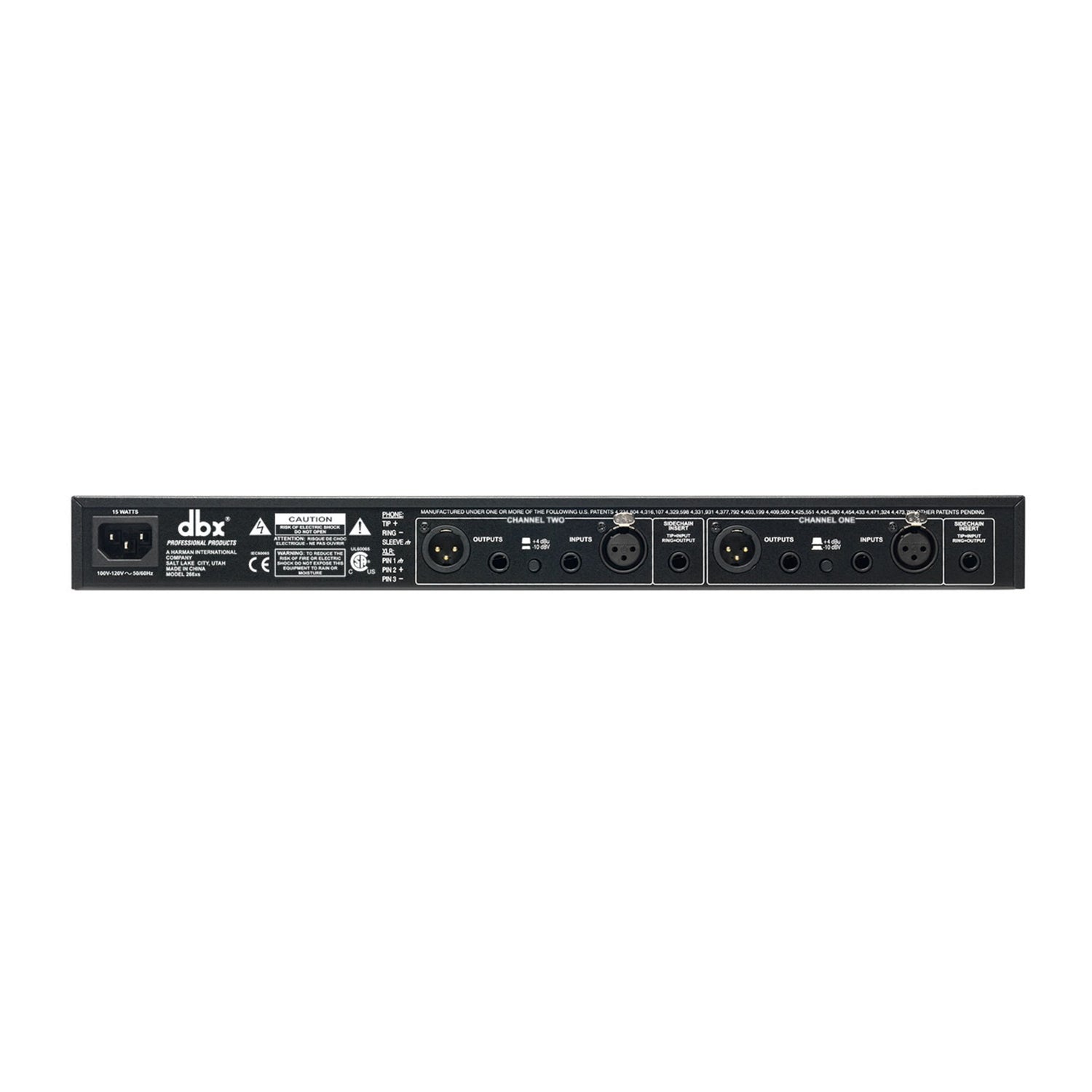

The 266xs can operate in stereo or dual-mono modes that have true RMS power summing and feature quality XLR and 1/4 inch TRS inputs and outputs. It cuts no corners on visual feedback with gain-reduction metering and easy-to-read backlit switches.
General
| Weight | 4.84 lb |
| Color | Silver |
DBX DBX266XSV Professional Audio Compressor/Gate Dynamic Processor
| Input connectors | 1/4 inch TRS and female XLR (pin 2 hot) |
| Input type | Electronically balanced/unbalanced, RF filtered |
| Input impedance | 40 kohm balanced/unbalanced |
| Max input | >+22dBu balanced or unbalanced |
| Output connectors | 1/4 inch TRS, male XLR (pin 2 hot) |
| Output type | Impedance-balanced/unbalanced, RF filtered |
| Output impedance | +4dBu: 100 ohm balanced, 50 ohm unbalanced; -10dBu: 1 kohm balanced, 500 ohm unbalanced |
| Max output | >+21dBu balanced/unbalanced into 2 kohm or greater; >+18dBm balanced/unbalanced (into 600 ohm) |
| Sidechain | 1/4 inch TRS Phone, normalled: ring output (send); tip input (return) |
| Sidechain impedance | Tip >10 kohm (input), ring 2 kohm (output) |
| Sidechain max input Level | Tip >+22dBu (input) |
| Sidechain Max output level | Ring >+20dBu (output) |
| Compressor threshold range | -40dBu to +20dBu |
| Compressor threshold characteristic | Selectable OverEasy or hard knee |
| Compressor ratio | 1:1 to Infinity: 1 |
| Compressor attack time | Scalable program-dependent AutoDynamic |
| Compressor release time | Scalable program-dependent AutoDynamic |
| Expander/gate threshold range | -60dBu to +15dBu |
| Expander/gate ratio | 1:1 to 4:1 |
| Expander/gate attack time | <100µs |
| Expander/gate release time | Program-dependent |
| Bandwidth | 0.35Hz to 90kHz, +0/-3dB |
| Frequency response | Flat: 20Hz-20kHz, +0, -0.5dB |
| Noise | <-93dBu unweighted (22kHz measurement bandwidth) |
| THD+Noise | Typically <0.2%; any amount of compression 1kHz |
| IMD | Typically <0.2% SMPTE |
| Dynamic range | >114 dB, unweighted |
| Interchannel crosstalk | <-95dB, 20Hz to 20kHz |
| CMRR | >40dB, typically >55dB at 1kHz |
| Stereo coupling | True RMS power summing |
| Power consumption | 15W maximum |
| Operating voltage | 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz |
| Operating temperature | 0 to 45-degree-C (32 to 113-degree-F) |
| Dimensions | 1.75 x 5.75 x 19 inch (4.45 x 14.6 x 48.26 cm ) |
| Weight | 4.84 lb (2.19 kg) |
| Reference 0dBu | 0.775Vrms |
