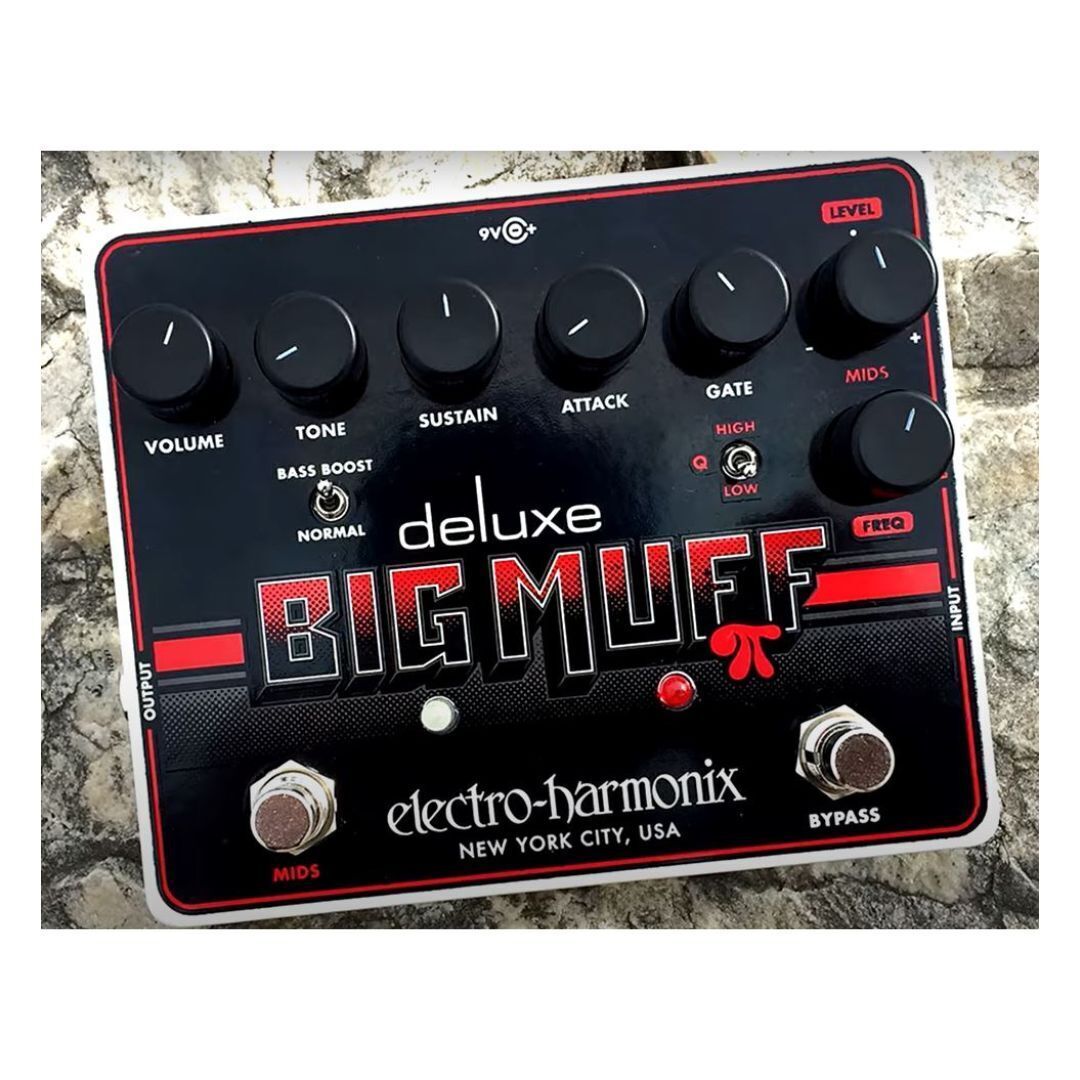

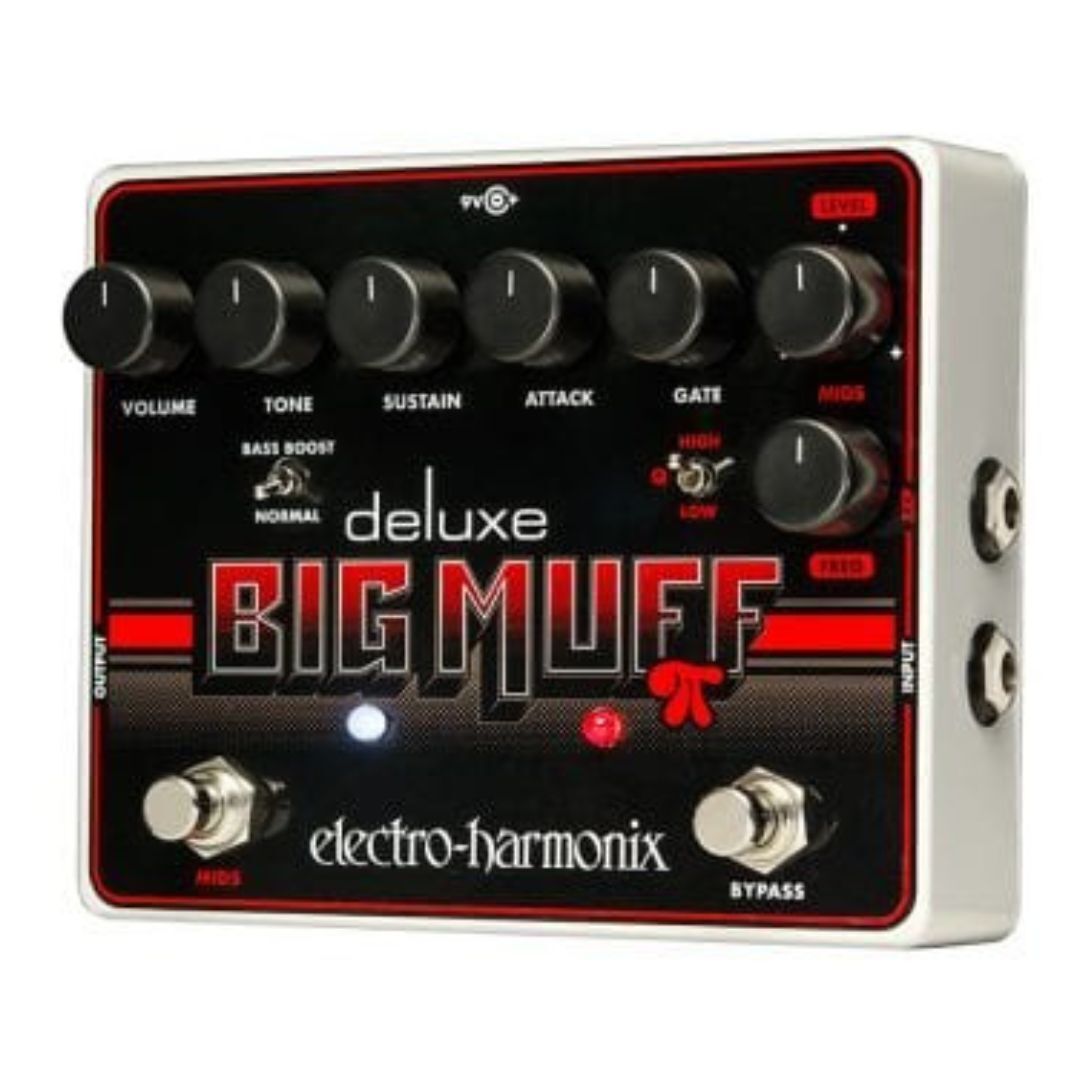

Electro-Harmonix Deluxe Big Muff Pi Fuzz Pedal
Legendary
fuzz with added features like a Bass Boost, Noise Gate, and adjustable Mids
section for the most versatile Muff ever. Long revered for its sweet singing
tone and violin-like sustain, the classic three-knob Electro-Harmonix Deluxe
Big Muff Pi Fuzz Pedal has helped
define the sound of rock guitar for over 50 years. Now, the team has added some
extras for those who crave more sound shaping control. The EHX Deluxe Big Muff
Pi delivers all the classic sounds of the original NYC Big Muff Pi, plus more. Added
footswitchable Mids sections boosts or cuts an adjustable mids frequency for added
definition or massive scooped tones. Add an optional expression pedal and turn
the Deluxe Big Muff into an extreme fuzzed out wah. The Attack control
preserves pick attack with an enhanced version of your dry signal while the
Bass Boost adds rumble at higher tone settings. The Gate removes unwanted hiss for
a more dynamic performance. This is the most versatile Big Muff ever. Switchable
Bass Boost for added bottom when you want it. True bypass for maximum signal
path integrity. Mids section features four controls so you can fine tune your
midrange boost or cut with 9V battery included.
Volume Knob
Works as
master volume control for the entire pedal.
Tone Knob
Provides a
range of sounds from high treble to deep bass.
Sustain Knob
As in the
original Big Muff Pi, adjusts the amount of sustain and distortion.
Attack Knob
Volume
control for the Attack effect.
Gate Knob
Turning gate
clockwise raises the gate threshold requiring greater input amplitude to open
the noise gate, allowing your notes to be heard and your instrument to pass
through.
MIDS Level Knob
When MIDS is
engaged, the MIDS level knob either boosts or cuts up to plus or minus 10dB, at
the frequency set by the frequency knob.
Bass Boost or Normal Switch
When set to
normal, the Big Muff circuit is identical to the NYC Big Muff. Flip the switch
up to BASS BOOST and the volume level of bass frequencies through the Big Muff
circuit increases.
Mid Q Switch (High or Low)
The Q switch
sets the resonance or bandwidth of the Mids EQ.
Mid Frequency Knob
Sets the center frequency of the MIDS EQ circuit ranging from 310Hz to 5.0 kHz.
| Circuit | Analog |
| Bypass | True Bypass |
| Audio | Mono |
| Power Supply | 9V battery included (optional 9.6VDC-200mA power adapter not included) |
| Dimensions | 5.75 x 4.75 x 2.5 inches |
| Current Draw | 22mA |
| Year Released | 2014 |
