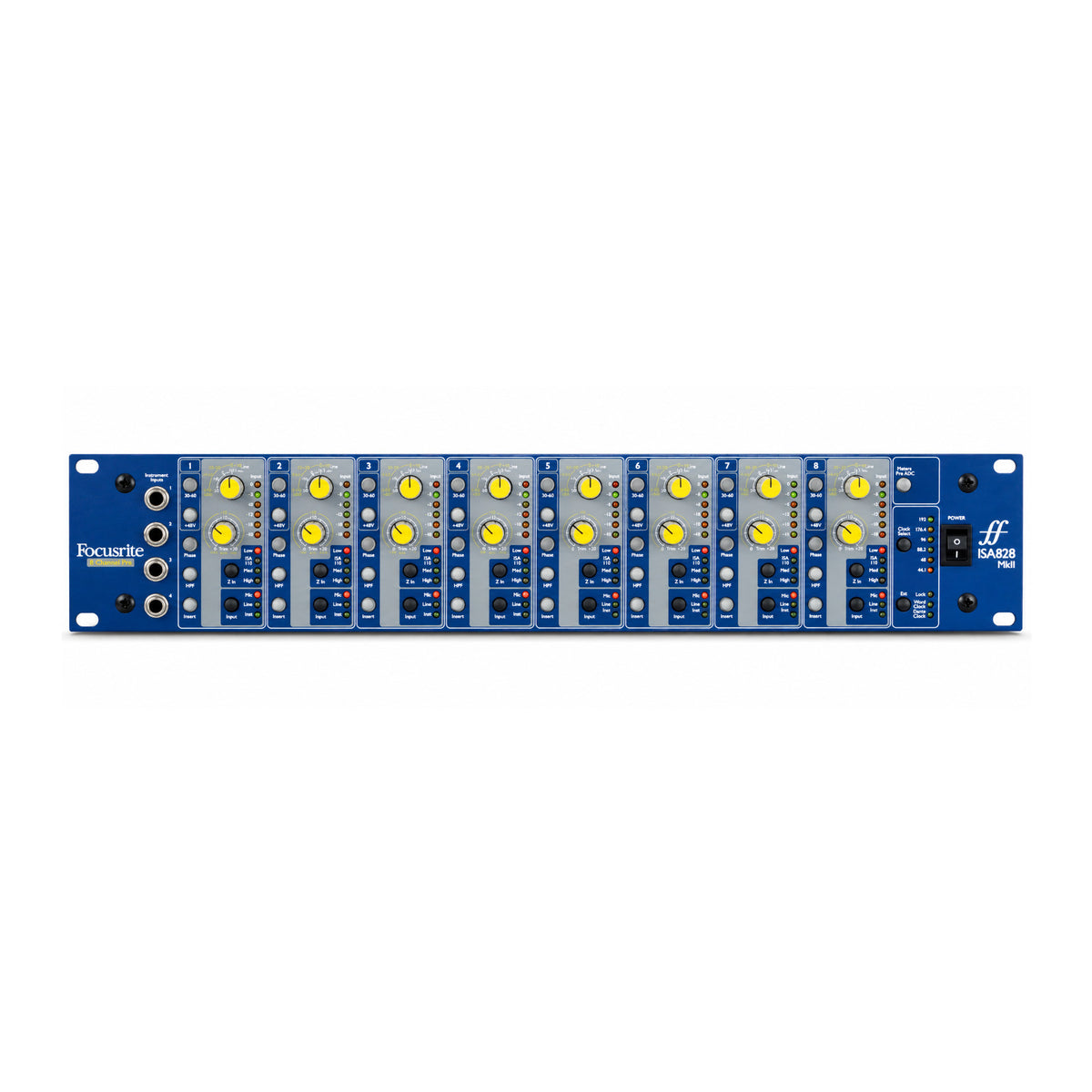

Focusrite ISA 828 MkII 8-Channel ISA Microphone Preamp
The Focusrite ISA 828 MK2 brings eight classic Focusrite microphone preamps into a rackmount format built for professional recording environments. Based on the mic preamp design of the original ISA 110 module from the Focusrite Studio Console, each channel uses a Lundahl LL1538 input transformer. Every channel supports mic or line input, while channels 1 through 4 also provide front panel instrument inputs for direct connection of instruments.
Flexible Gain and Input Impedance
Each microphone preamp provides switchable input impedance for subtle tonal choices with different microphones, including an ISA 110 setting that recreates the impedance of the original Focusrite mic preamp. Up to 60 dB of gain is available, along with an additional 20 dB of continuously variable trim for a total gain range of up to 80 dB. The first four instrument inputs also provide High 2.4 MΩ and Low 470 kΩ impedance options.
Signal Control and Monitoring
A fixed 75 Hz high pass filter with an 18 dB per octave roll off helps reduce rumble, stand borne noise, and other unwanted low frequency sound. Each channel also features a calibratable six segment LED peak level meter. Switchable rear panel insert points allow compatible signal processors such as compressors and equalizers to be integrated into the recording path.

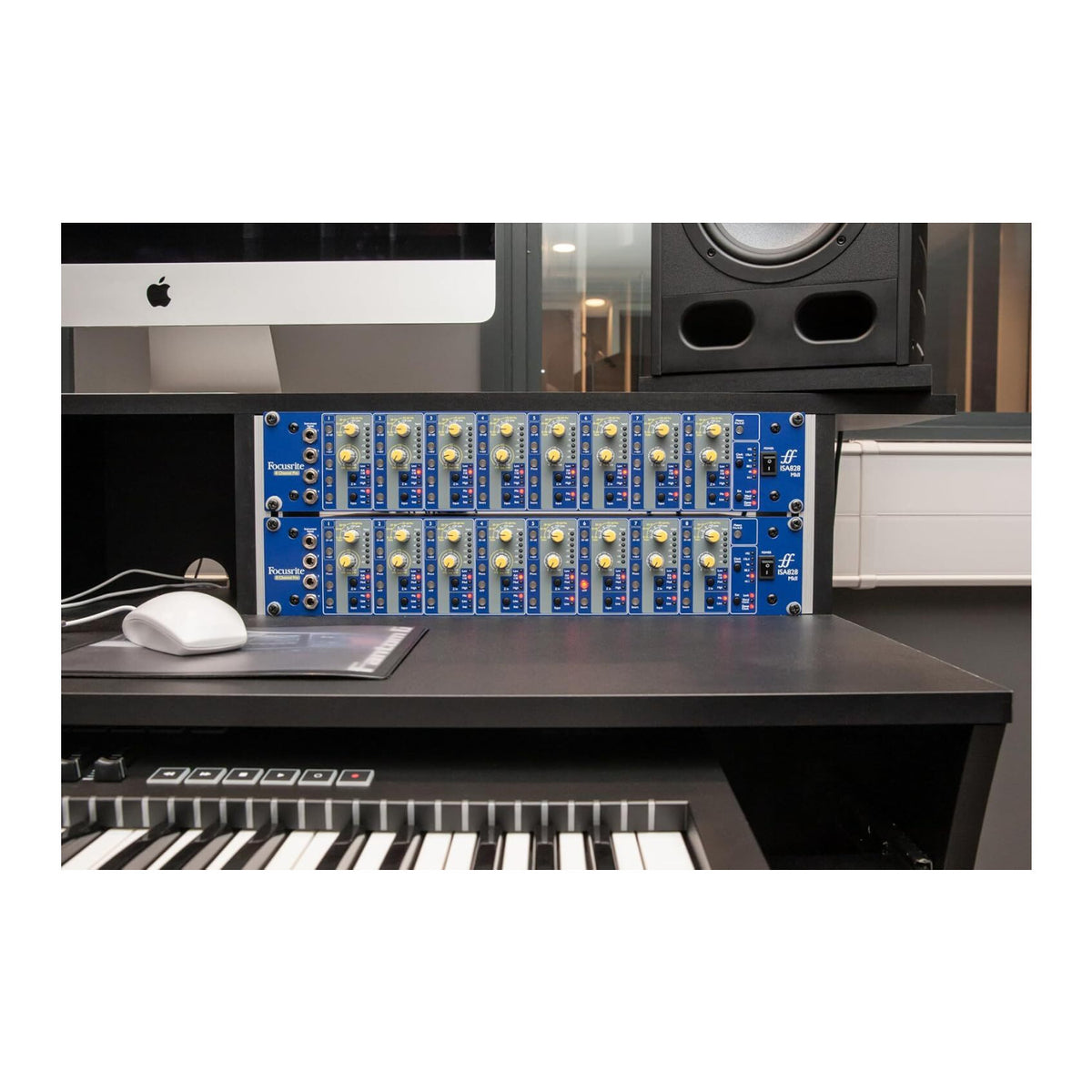

Rack Integration and Digital Expansion

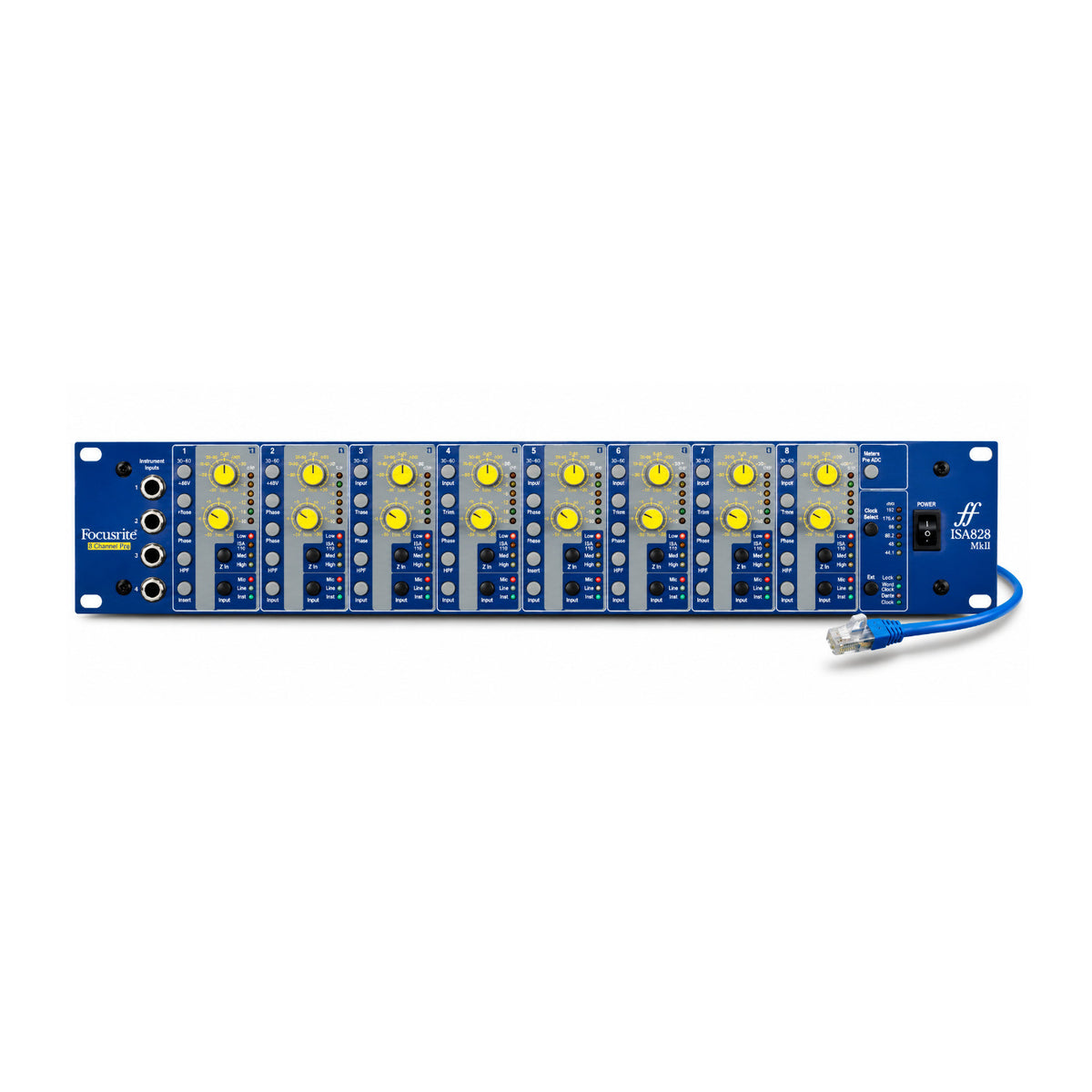

Dedicated mic and line input connectors allow multiple sources to remain connected at the same time, supporting permanent rack installations and streamlined studio routing. A switching power supply provides efficient, cooler operation. For digital expansion, the optional ISA ADN8 analog to digital card adds eight Dante, ADAT, and AES3 outputs with sampling rates up to 24 bit, 192 kHz.
Mic Inputs
| Gain Range | 0 dB to +30 dB with 30 to 60 switch disabled, and +30 dB to +60 dB with 30 to 60 switch enabled, in 10 dB steps, plus +20 dB continuous trim |
| Input Impedance | Low 600 Ω, ISA 110 1400 Ω, Medium 2400 Ω, High 6800 Ω |
| Maximum Input Level | +7 dBu, minimum gain, Medium Z |
| Frequency Response | 20 Hz to 20 kHz ±0.2 dB, minimum gain, Medium Z |
| THD + N | 91 dB below reference, 0.0028%, at 1 dB below reference, minimum gain, Medium Z |
| EIN | 123 dBu below reference, A weighted, typical |
| Signal to Noise Ratio | 122 dB, A weighted, typical, Medium Z |
| Common Mode Rejection Ratio | 93 dB below reference at 997 Hz, minimum gain, Medium Z |
| Phantom Power | +48 V, independently switchable per channel |
| High Pass Filter | 75 Hz knee frequency, 18 dB per octave, independently switchable per channel |
| Phase | Inverts the phase of the selected input |
| Extended Frequency Response | 10 Hz to 110 kHz ±1.5 dB, minimum gain, Medium Z |
Line Inputs
| Gain Range | 20 dB below reference to +10 dB in 10 dB steps, plus +20 dB continuous trim |
| Input Impedance | Low 600 Ω, ISA 110 1400 Ω, Medium 2400 Ω, High 6800 Ω |
| Maximum Input Level | +25 dBu, minimum gain, Low Z |
| Frequency Response | 20 Hz to 20 kHz ±0.1 dB, minimum gain, Low Z |
| THD + N | 91 dB below reference, 0.0028%, at 1 dB below reference, minimum gain, Low Z |
| Signal to Noise Ratio | 122 dB, A weighted, typical, minimum gain, Low Z |
| Extended Frequency Response | 10 Hz to 122 kHz ±3 dB, minimum gain, Low Z |
Instrument Inputs
| Gain Range | +10 dB to +40 dB with continuous gain using trim control |
Front Panel Connectivity
| Channel Count | 2 Channels In |
| Instrument Inputs | 4 x 1/4 inch jack inputs |

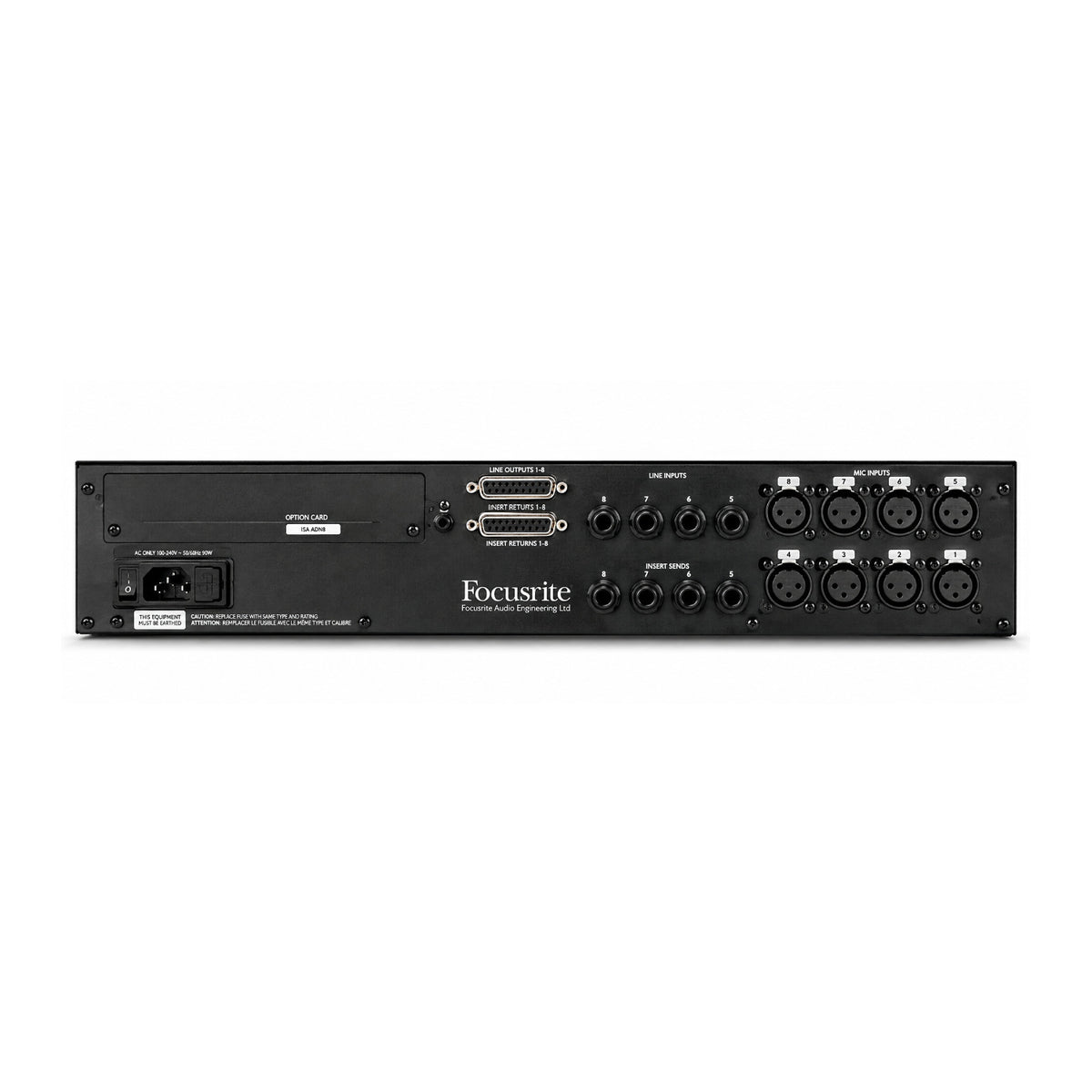

Rear Panel Connectivity
| Mic Inputs | 8 x Female XLR inputs |
Line Level
| Channel Count | 8 In and 8 Out |
| Inputs | 8 x 1/4 inch jack inputs |
| Outputs | 1 x DB-25 connector, AES59 |
Inserts
| Channel Count | 8 In |
| Input | 1 x DB-25 connector, AES59 |
Digital Card Slot
| Compatible Card | ISA ADN8 |
Front Panel Controls
| Controls | 16 x pots for Gain and Trim |
| Switches | 60 total for On and Off, 30 to 60 Gain, +48 V, Phase, HPF, Insert, Z In, Input, Meters Pre A to D, Clock Select, and External Word Clock |
Rear Panel Controls
| Control | 1 x Meter Trim pot |
