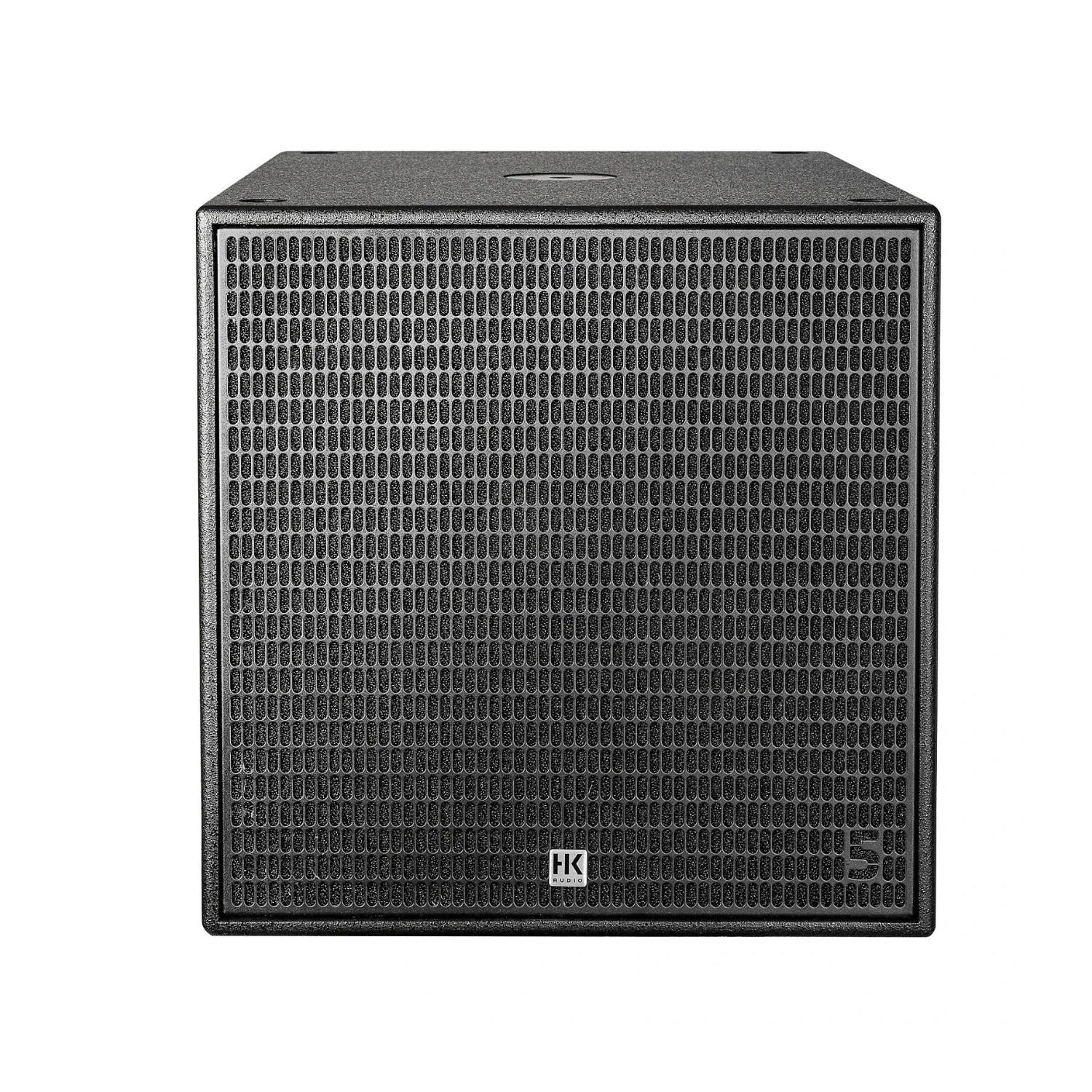

HK Audio Linear 5 MK II 118S HPA 18 Inch 3000W Active Subwoofer with DSP (Black)
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The HK Audio LINEAR 5 MK II 118S HPA is the most powerful subwoofer in the LINEAR 5 MK II series, engineered to deliver deep, controlled, and powerful low frequencies for professional live sound and installation environments. With a robust 18-inch driver powered by a 1,500W RMS (3,000W peak) Class D amplifier, it produces exceptional bass performance with precision and reliability. Designed for touring and demanding applications, this active subwoofer features advanced onboard DSP, network control capability, and flexible cardioid presets for optimized system configuration. Its durable birch multiplex cabinet and professional-grade components ensure long-lasting performance on stage or in fixed installations.
High-Power Amplification:
The subwoofer is powered by a 1,500W RMS and 3,000W peak Class D amplifier, delivering strong, clean, and efficient low-frequency performance suitable for demanding live sound applications.
Extended Low-Frequency Response:
With a frequency response of 36 Hz to crossover (±3 dB) and extending down to 33 Hz (-10 dB), it produces deep, punchy bass with excellent clarity and definition.
High Maximum SPL Output:
Capable of reaching 130 dB maximum SPL and 131 dB peak (half space), this subwoofer provides powerful output ideal for large venues and high-energy environments.
18-Inch High-Performance Driver:
Equipped with a single 18-inch woofer featuring a 4-inch voice coil, it ensures strong low-end reproduction and consistent performance under heavy use.
Advanced Integrated DSP:
The built-in DSP includes a fully parametric 10-band EQ, low-pass filter, polarity control, delay, limiter, and mute functions, allowing precise sound tuning and system optimization.
Four Selectable EQ Presets:
It offers Front, Cardioid 1:1 Vertical, Cardioid 2:1 Vertical, and Remote presets, enabling flexible configuration for different setup requirements.
Network Control Capability:
Featuring Ethercon RJ45 In and Thru ports, the unit supports remote control and monitoring through DSP CONTROL software for Windows and Mac OS.

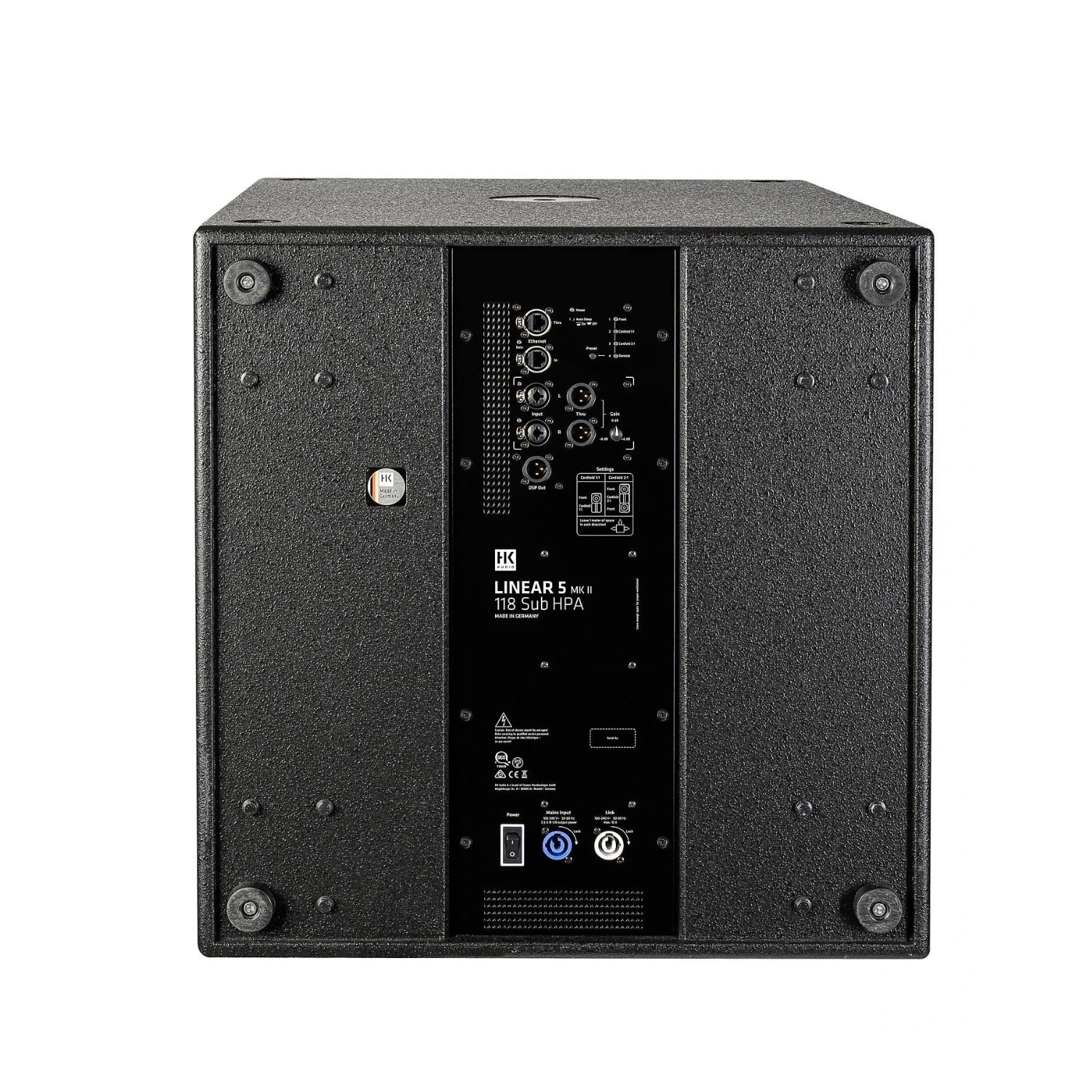

Professional Audio Connectivity:
The subwoofer includes two balanced XLR combo inputs, two balanced XLR thru outputs, and one balanced XLR DSP output for seamless integration into professional sound systems.
Reliable Power Connections:
PowerCon NAC3 In and Thru connectors (100–240V) provide secure power linking and dependable operation.
Durable Cabinet Construction:
Built with a birch multiplex enclosure, finished in black acrylic enamel, and protected by a 2 mm metal grille with acoustic foam backing, it is designed for durability in touring and installation environments.

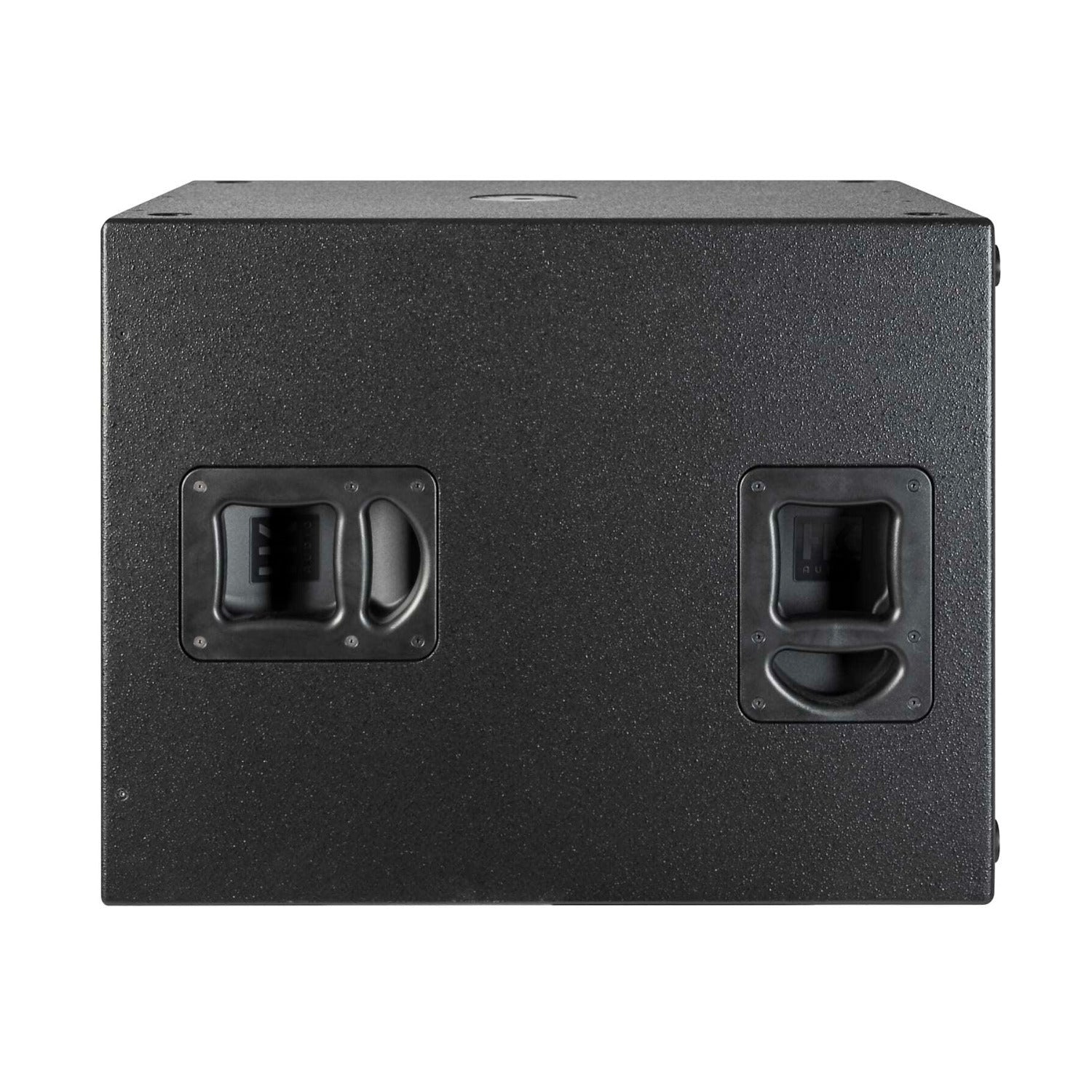

Convenient Handling and Mounting:
Four HK Audio MultiGrip handles ensure easy transport, and an integrated M20 pole mount allows flexible speaker system setup.
Acoustic Performance
| Max. SPL (average at 10% THD, half space) | 130 dB |
| Max. SPL peak (10% THD, half space) | 131 dB |
| Frequency response (±3 dB) | 36 Hz to crossover |
| Frequency response (-10 dB) | 33 Hz to crossover |
Power and Amplifier
| Power output | 1,500 W RMS / 3,000 W peak |
| Amplifier type | Class D |
| Power consumption | 2.5 A nominal at 100–240 V |
| Mains connectors | 1 x PowerCon NAC3 In, 1 x PowerCon NAC3 Thru |
Driver
| Low-frequency driver | 1 x 18-inch woofer with 4-inch voice coil |
Connectivity
| Analog inputs | 2 x XLR combo balanced |
| Analog through outputs | 2 x XLR balanced |
| DSP output | 1 x XLR balanced |
| Network ports | 1 x Ethercon RJ45 In, 1 x Ethercon RJ45 Thru |
| Maximum input level | +20 dBu |
DSP and Control
| DSP functions | fully parametric 10-band EQ, low-pass filter, polarity, level, delay, limiter, mute |
| Filter presets | Front, Cardioid 1:1 vertical, Cardioid 2:1 vertical, Remote |
| Remote software | DSP CONTROL for Windows and Mac OS |
| Sample rate | 48 kHz |
| System latency | ≤ 2.6 ms |
Construction
| Housing | Birch multiplex |
| Finish | Black acrylic enamel |
| Front grille | 2 mm metal grille with acoustic foam backing |
| Carrying handles | 4 x HK Audio MultiGrip |
| Pole mount | 1 x M20 |
Dimensions and Weight
| Dimensions (W x H x D) | 60 x 60.8 x 79 cm (23.62 inch x 23.94 inch x 31.10 inch) |
| Weight | 56.8 kg (125.22 lbs) |
