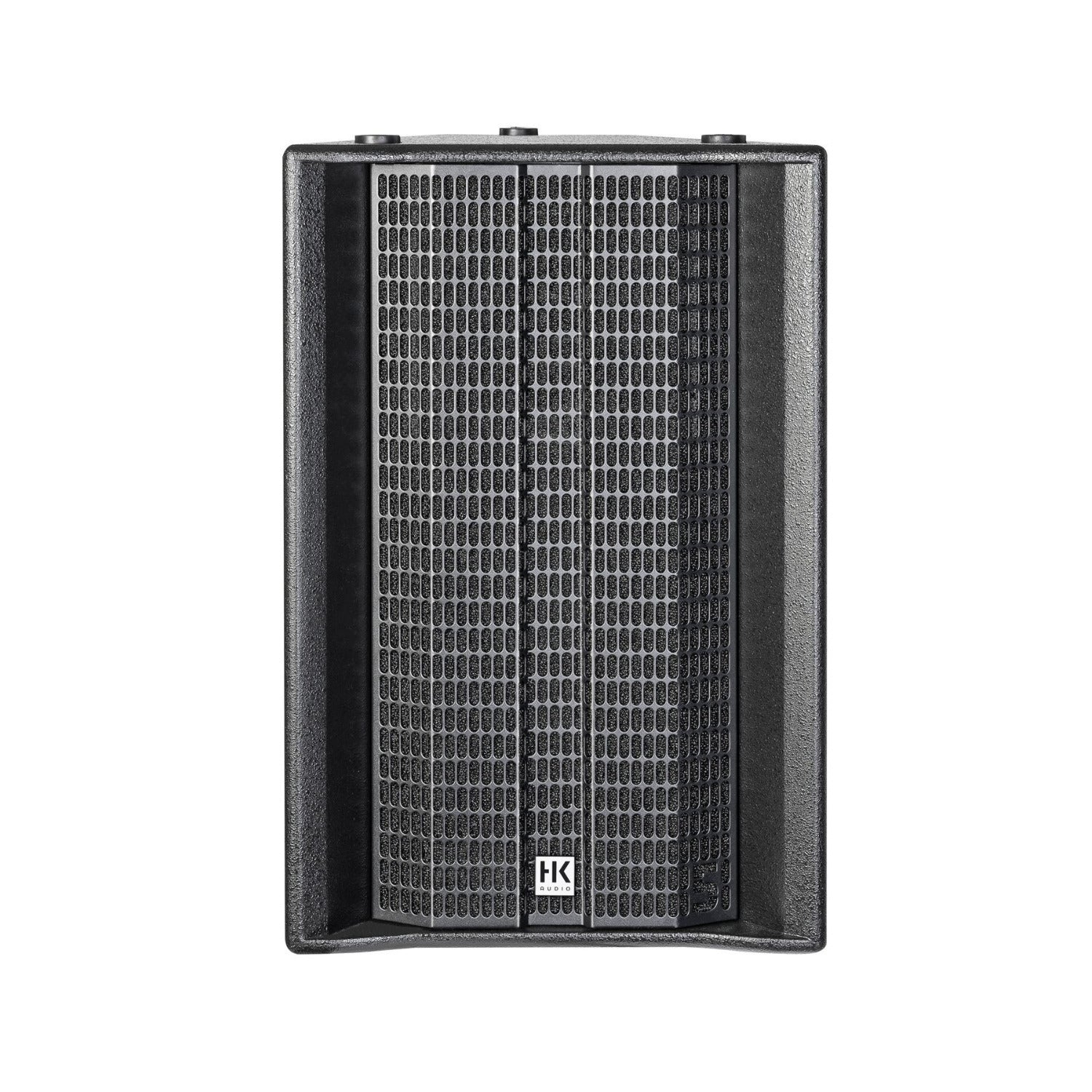

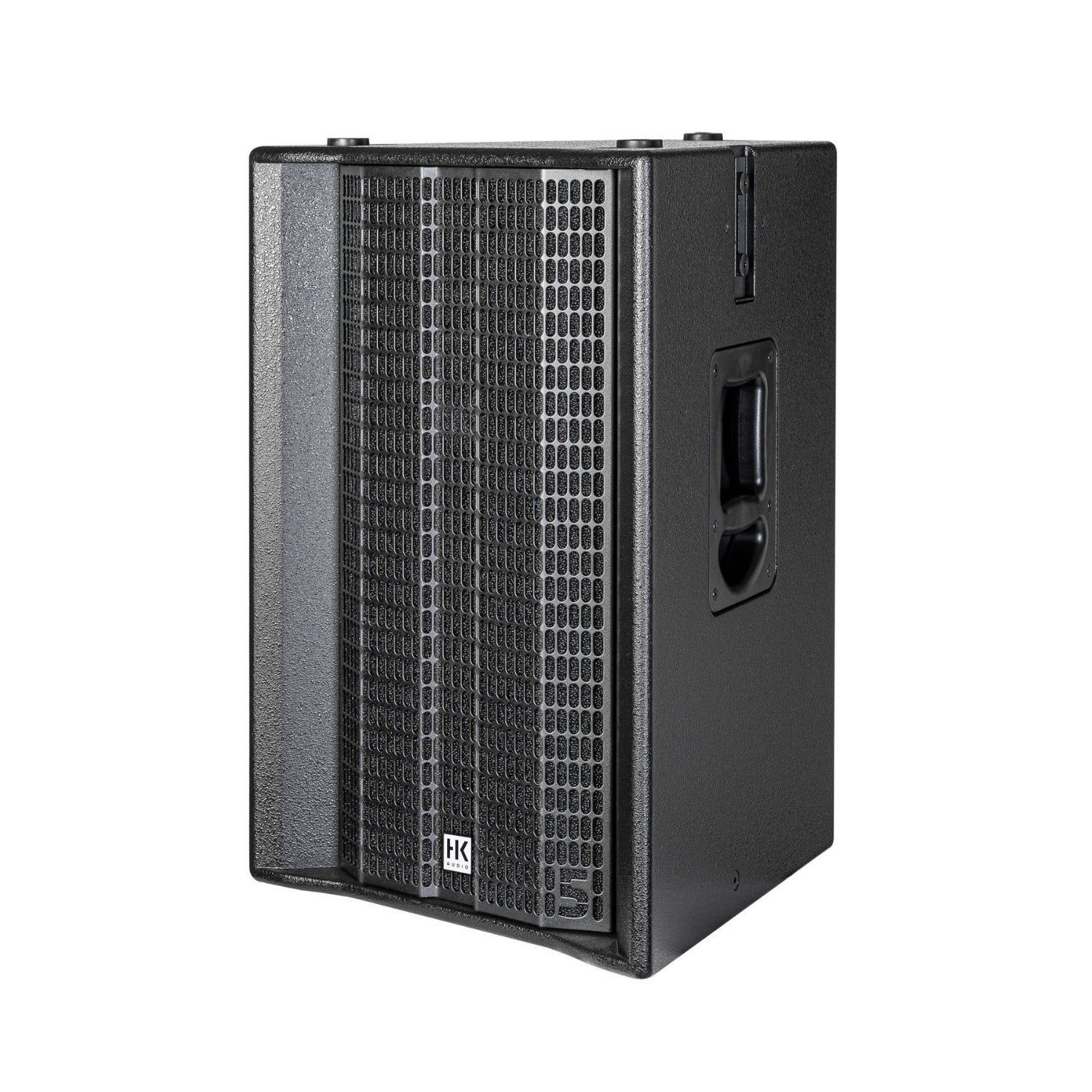

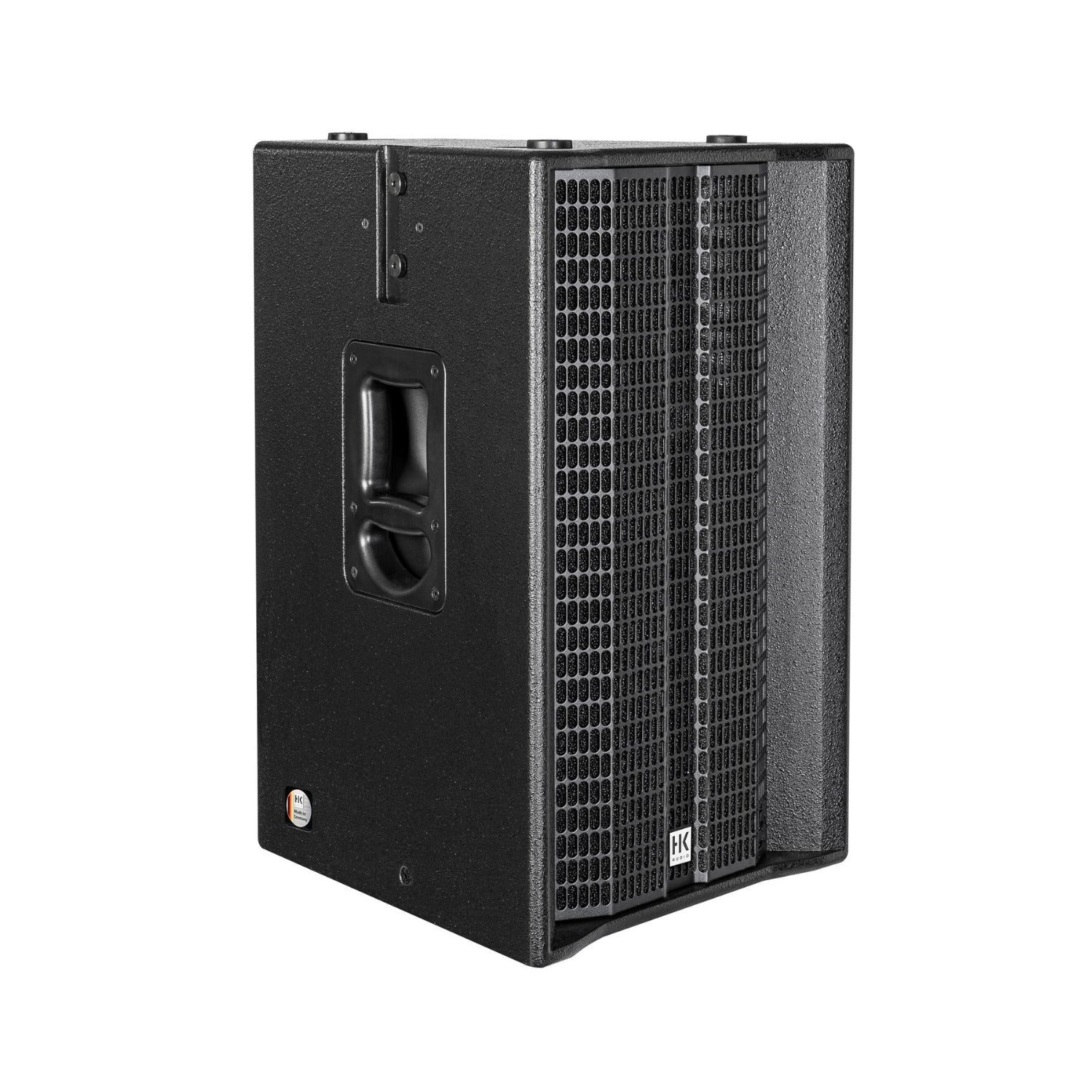

HK Audio LINEAR 5 MK II 308 LTA 1200W Long-Throw with DSP Control (Black)

The LINEAR 5 MK II 308 LTA is a compact yet powerful long-throw mid/high speaker designed for large rooms, wide halls, and open-air events. Bridging the gap between traditional point-source PAs and line arrays, it delivers balanced, full-range sound that can reach up to 40 meters and serve audiences of up to 3,000 people without the need for delay lines. Its three vertically arranged 8-inch horn-loaded woofers and 1-inch HF compression driver with Multicell Transformer (MCT) horn ensure rich, clear mids and crisp highs with no treble drop-off. Flexible setup options, including single units, clusters, or headstacks, make it scalable for any venue or event.

Power Output:

The LINEAR 5 MK II 308 LTA is powered by a 600 W RMS / 1,200 W peak bi-amped Class D amplifier, providing loud and balanced sound that can fill large rooms and outdoor spaces.

Sound Coverage:

It's 60 degrees x +5-degree/-25 degree MCT horn ensures precise long-throw coverage with consistent sound distribution, delivering clear audio to audiences at distances of up to 131 feet (40 meters).

Frequency Response:

The speaker offers a full-range frequency response of 105 Hz to 17 kHz (+/-3 dB), with extended low and high frequencies down to 98 Hz and up to 19 kHz (-10 dB), reproducing both music and speech with clarity.

Low/Mid Drivers:

Three vertically arranged, horn-loaded 8-inch (20.3 cm) woofers with 1.5 inch (3.81 cm) voice coils provide crisp mids and rich bass, ensuring detailed and punchy sound reproduction.

High-Frequency Driver:

A 1-inch (2.54 cm) compression driver with a 1.7 inch (4.32 cm) voice coil delivers clear, detailed highs without treble drop-off, ensuring natural and balanced sound across the frequency spectrum.

DSP Control:

The speaker features a fully parametric 10-band EQ, high-pass and low-pass filters, polarity adjustment, level control, delay, limiter, and mute functions, allowing precise tuning for any environment.

Preset Modes:

Users can quickly optimize sound for different setups with Single, Cluster, Headstack, and Remote presets, making deployment fast and flexible.

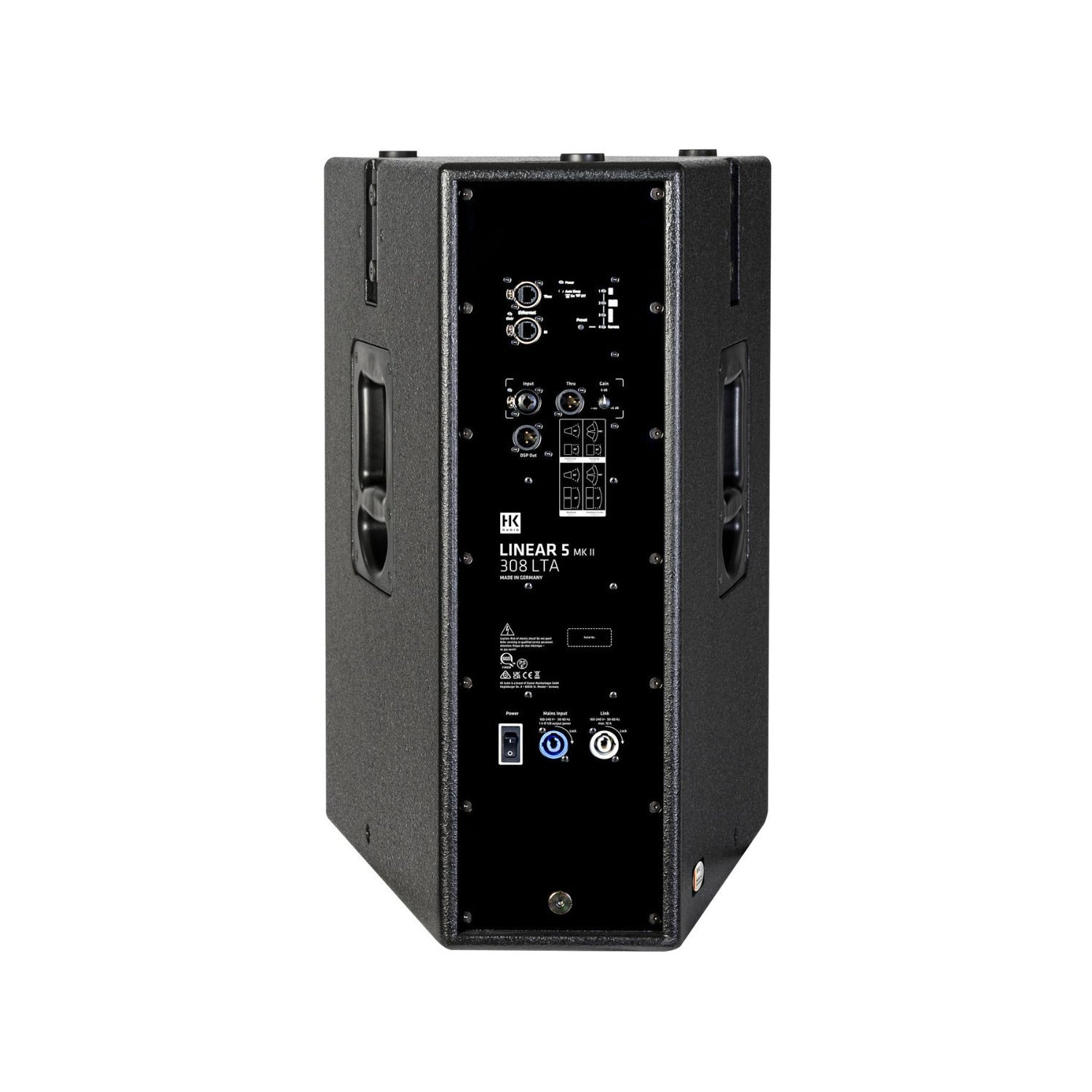

Connectivity:

The LINEAR 5 MK II 308 LTA includes a balanced XLR combo input, XLR thru, DSP out, and Ethercon RJ45 network ports, while PowerCon NAC3 In and Thru connectors simplify wiring and reduce cable requirements.

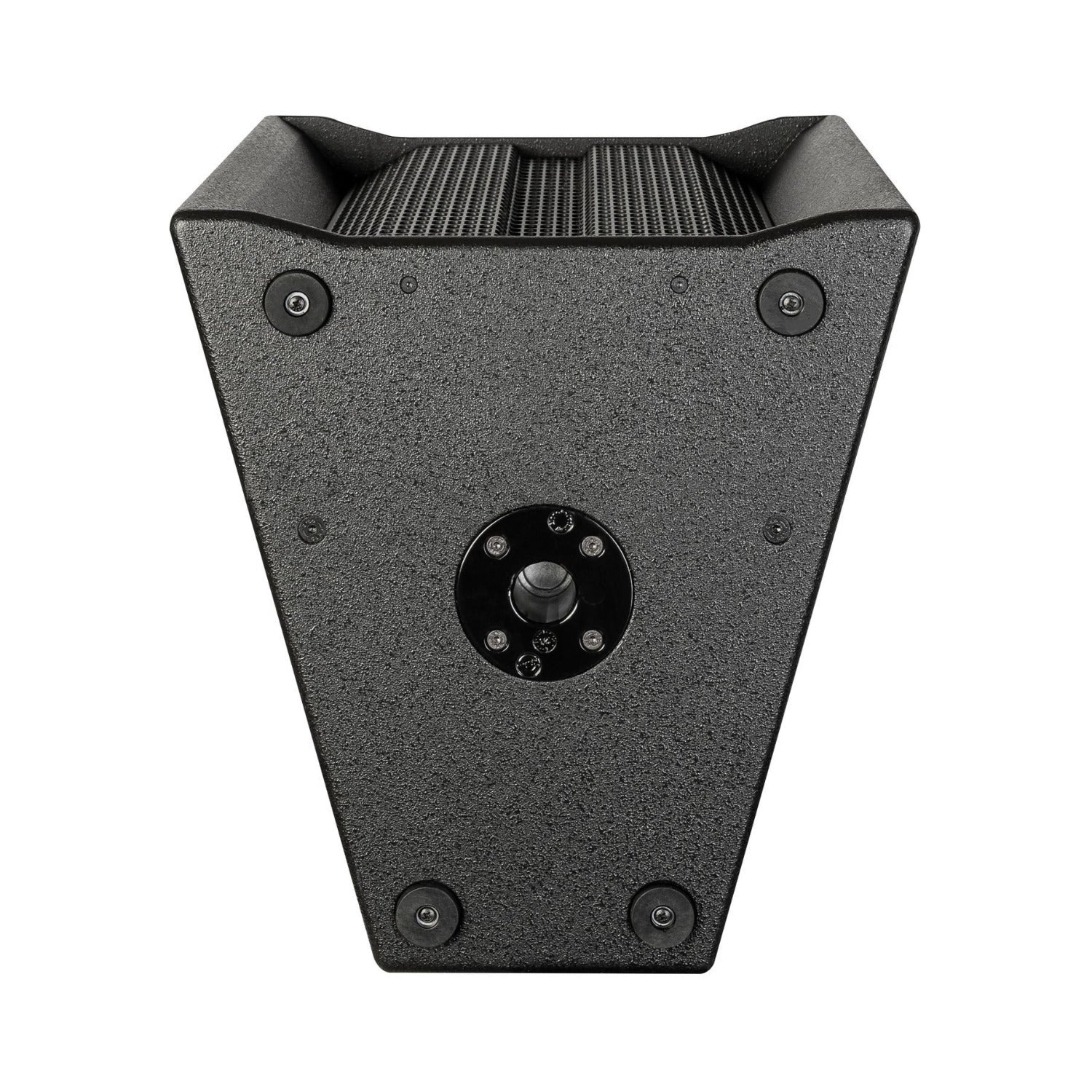

Rigging and Portability:

The speaker offers five M8 rigging points, a MonoTilt 0° pole mount, and two MultiGrip handles, making installation, transport, and positioning easy and flexible.

Build and Finish:

Its birch multiplex housing with black acrylic enamel finish and 2 mm metal grille backed with acoustic foam provides durability, protection, and clear sound reproduction.

Dimensions and Weight:

Compact and manageable, the speaker measures 17.44 inches (44 cm) wide, 26.67 inches (68 cm) high, and 18.11 inches (46 cm) deep, weighing 55.1 lbs (25 kg), combining portability with professional performance.
