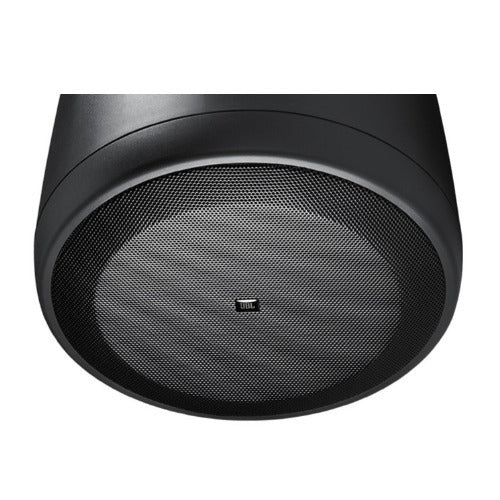

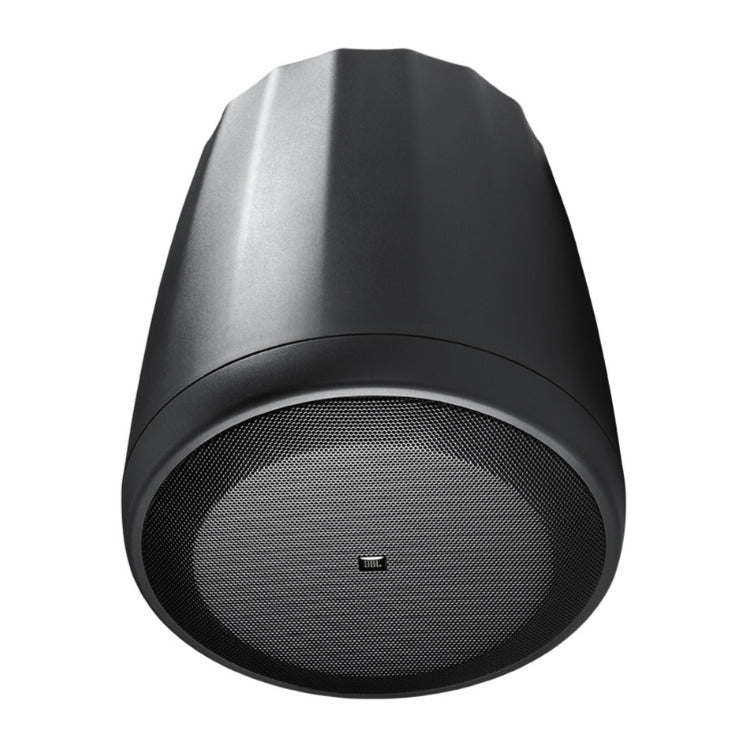

The Control 65P/T is a compact full-range, two-way pendant-type loudspeaker that provides superb sound reproduction and very consistent, wide coverage for rooms with open architecture ceilings and other locations where a pendant form factor is desired.

Radiation Boundary Integrator Technology

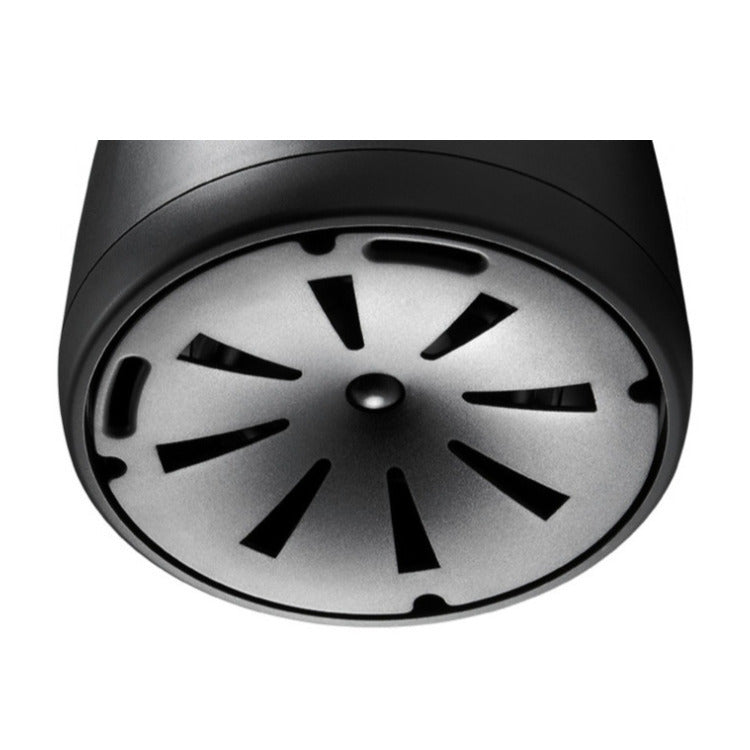

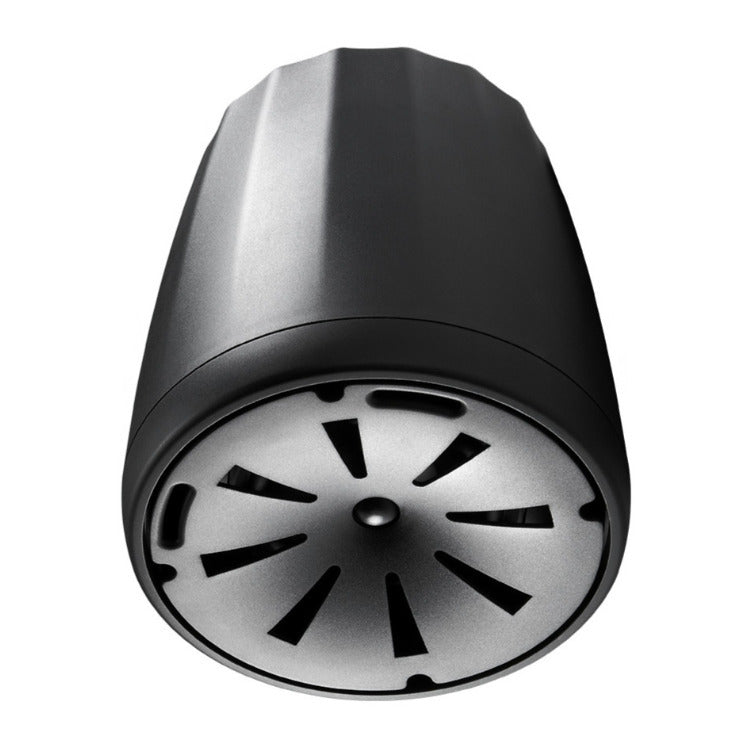

JBL’s patent-pending Radiation Boundary Integrator (RBI) technology, adapted from the groundbreaking VERTEC Series of line array loudspeakers, delivers consistent coverage of the listening area. Combining a large 200mm (8-inch) diameter waveguide with low-frequency

projection apertures, the two coaxially-mounted drivers provide seamless integration of coverage, resulting in extremely even pattern control and coverage where all listeners hear a consistent, high-fidelity sound quality. The wide 120-degree coverage pattern allows for the use of fewer speakers, reducing the cost of the installed system without sacrificing performance.

Sound Quality

Excellent sound quality coupled with stylish design and easy installation makes the Control 65P/T ideal for a wide variety of applications including retail, restaurants, hotels, casinos,

fitness centers, convention centers, exhibit spaces, conference rooms, atriums, museums, transit centers, and other open-ceiling applications.

Includes

The Control 65P/T includes a single-point mounting system for easy and secure suspension in open-ceiling applications. Two complete hanging cable systems are included, providing both main and safety suspension cables. Included are extra-long 4.5 m (15 foot) high tensile

galvanized steel wire rope having spring clips for the loudspeaker end of the cable and UL listed cable fasteners for infinitely adjustable suspension height.

High-quality Drivers

The system’s 130mm (5-1/4-inch) low-frequency driver features a polypropylene-coated cone and 25mm (1-inch) copper voicecoil for high power handling and improved long-term reliability. The coaxially-mounted 20mm (3/4-inch) textile soft-dome high-frequency driver features internal damping for a smooth extended response, along with an aluminum voicecoil former and neodymium magnet assembly with ferro-fluid cooling, for high-fidelity sound quality with enhanced long-term sound level capability.

Multi-tap Transformer

The Control 65P/T contains a high-quality 60 Watt multi-tap transformer for use on 70V/100V distributed loudspeaker lines and is switchable for 8-ohm voicecoil direct operation.

Easy to Install

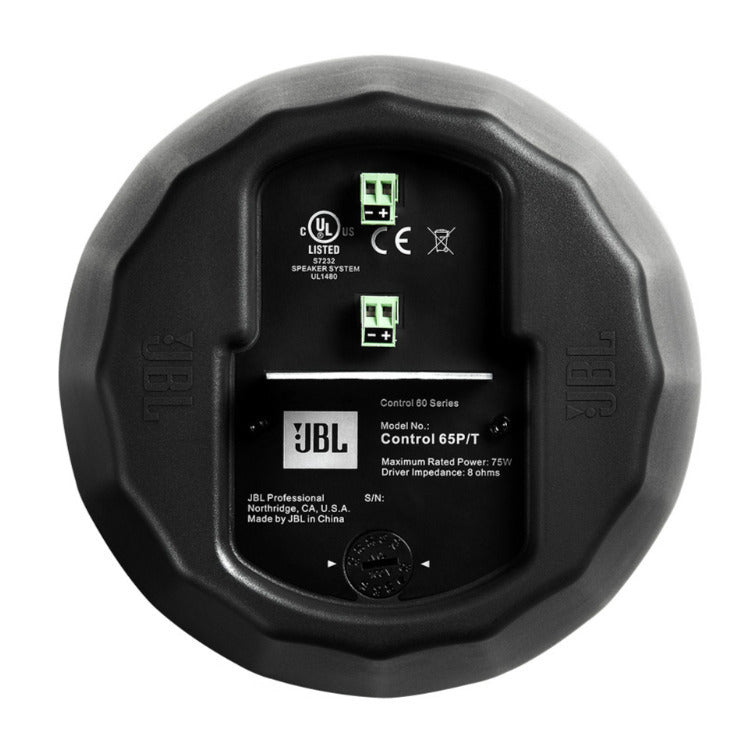

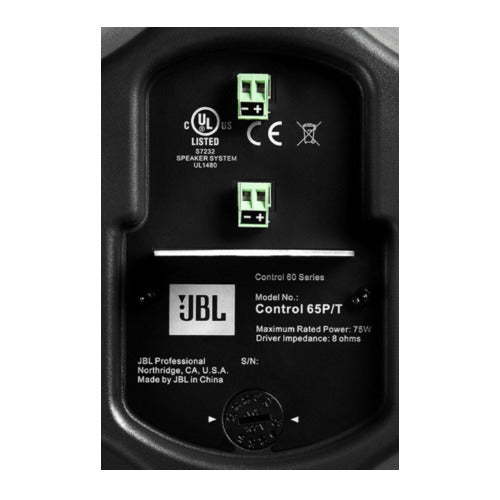

Euro-style clip-in connectors allow for easy wiring. For protected outdoor applications, rubber boots are included to cover the input connectors, and an optional terminal cover is available for harsher locations.
