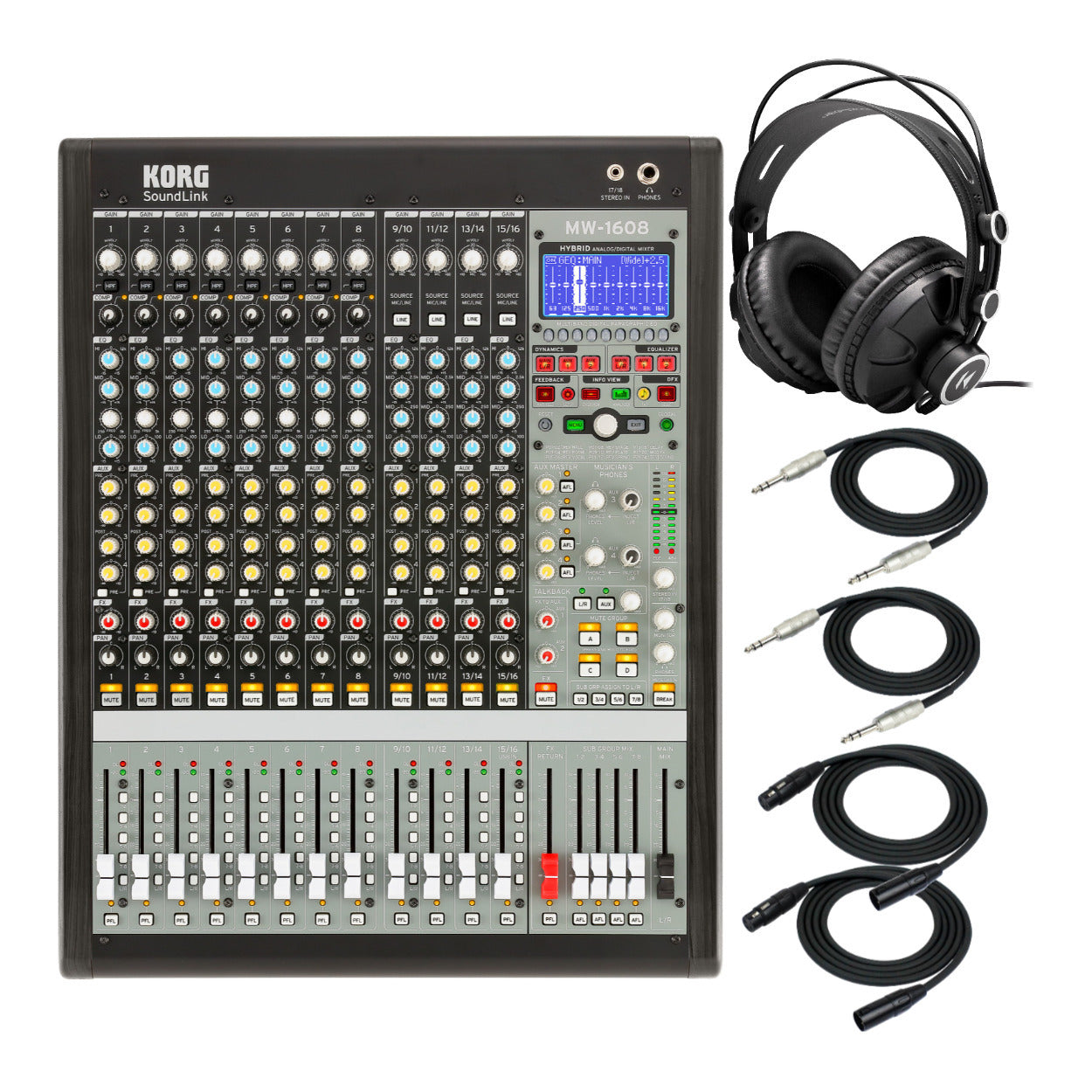

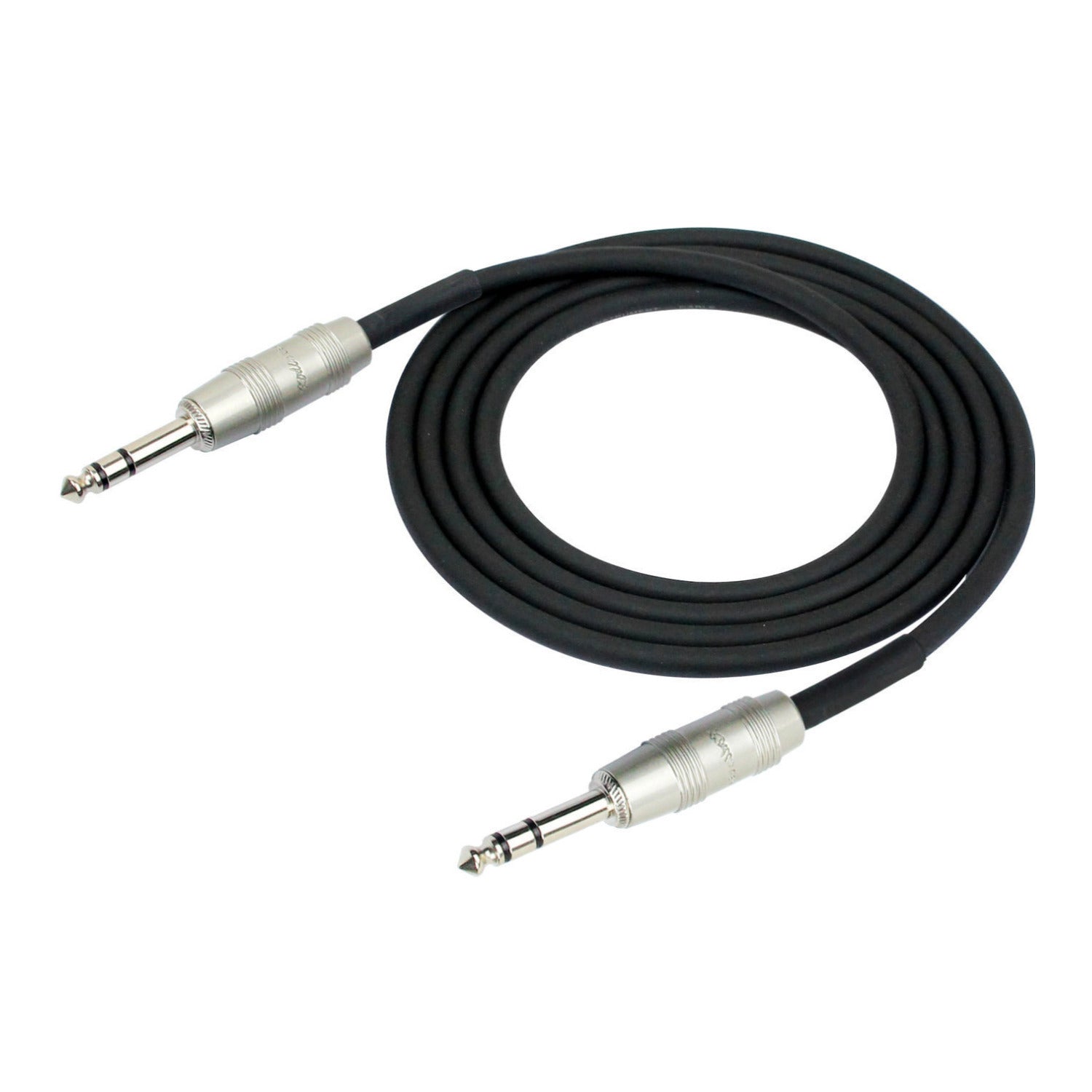

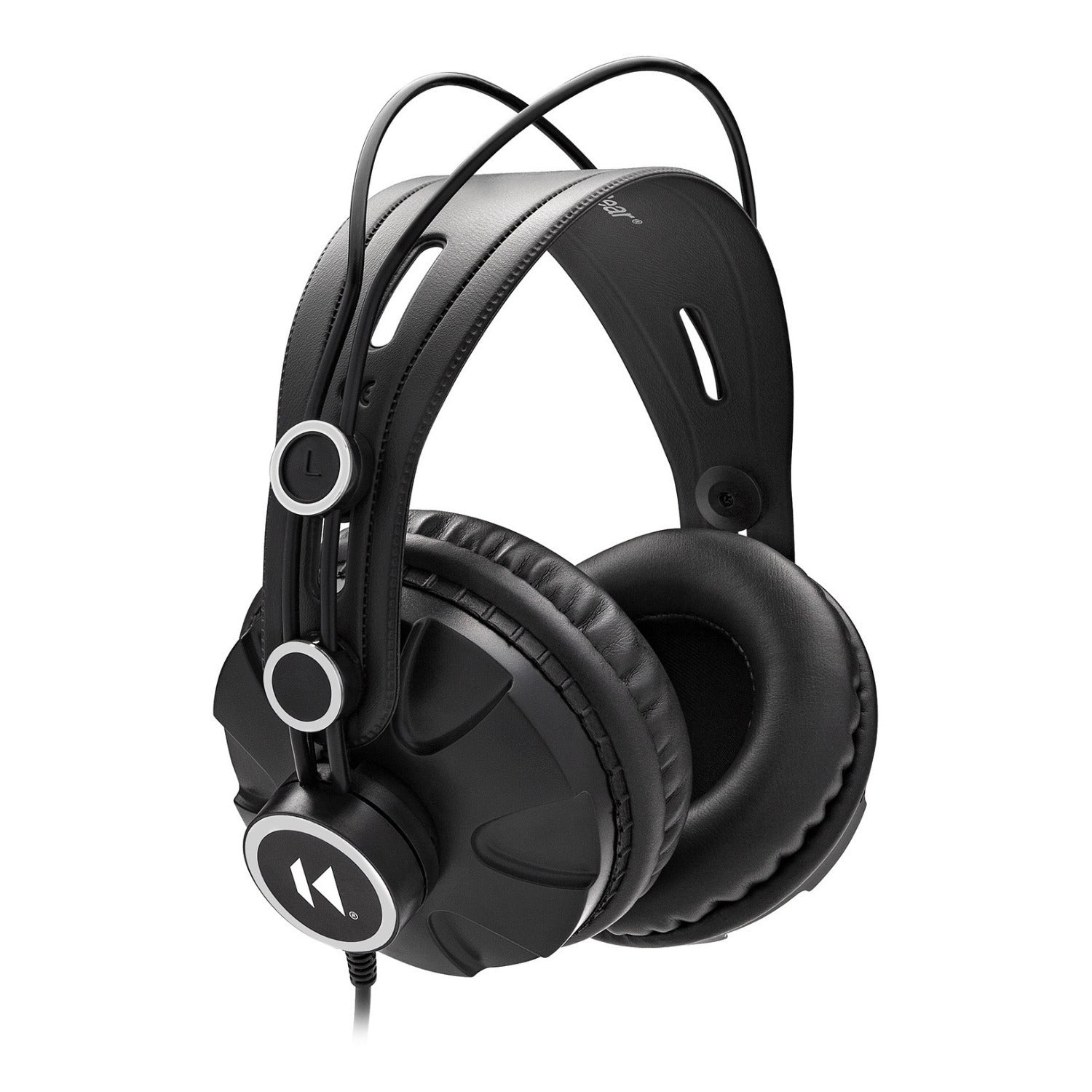

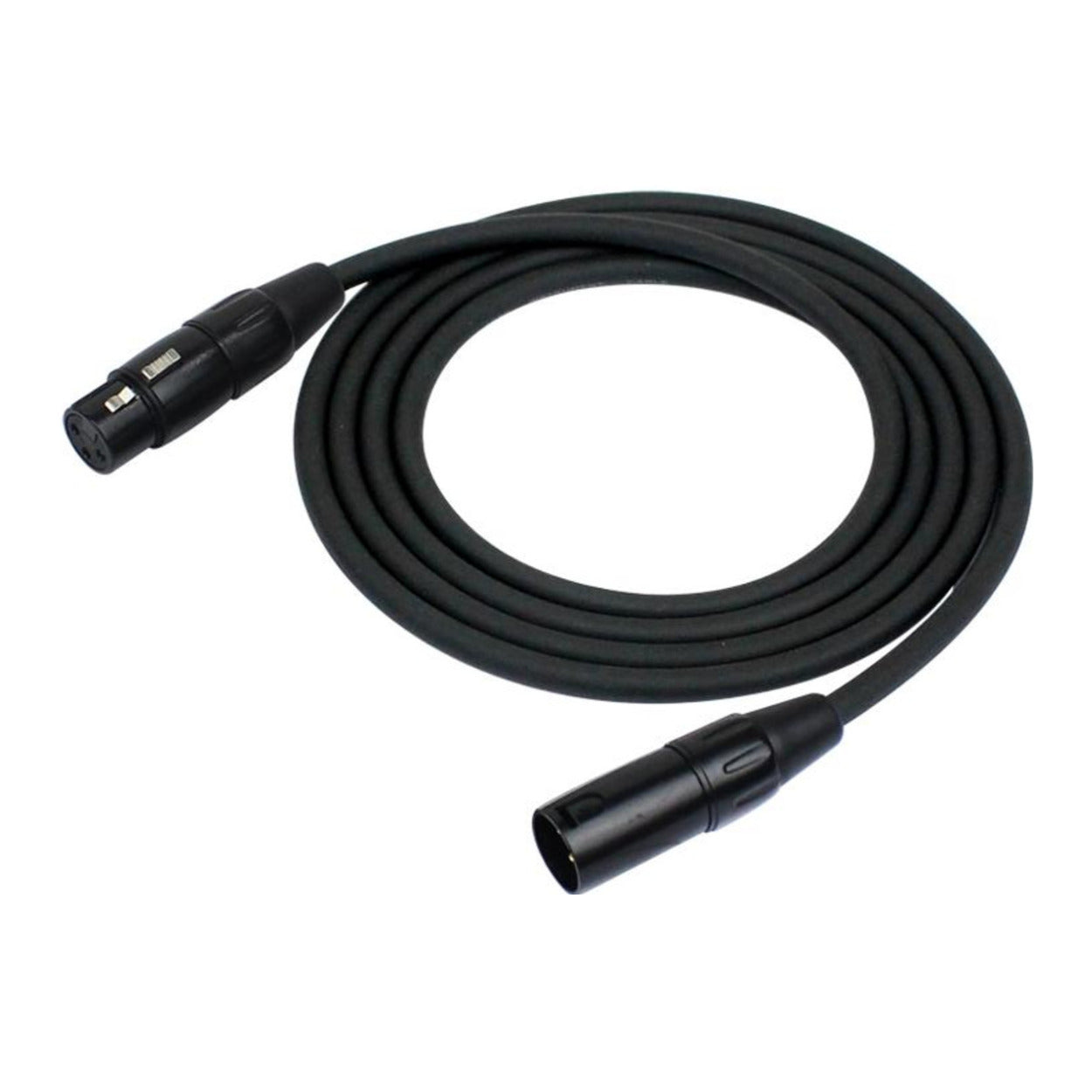

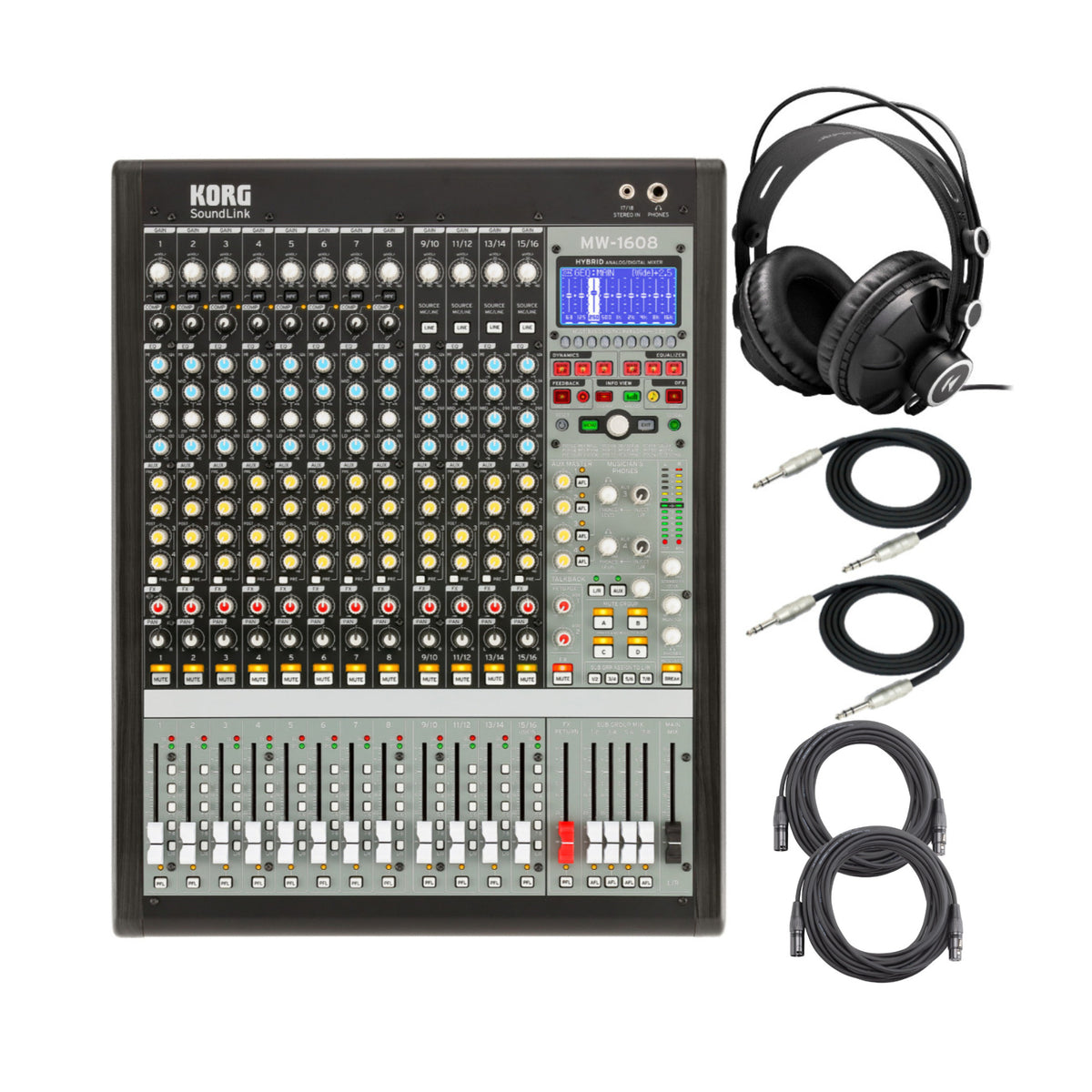

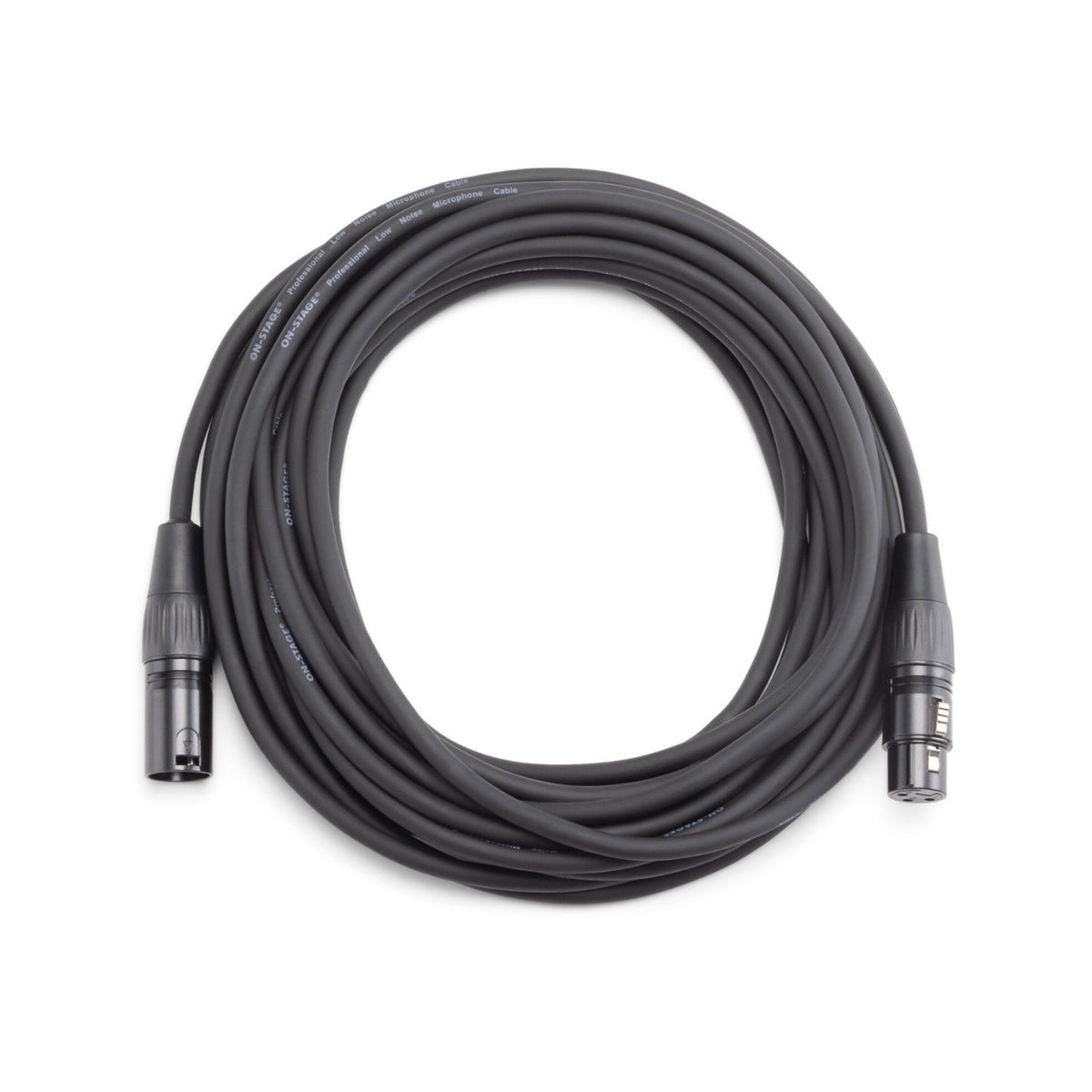

Created in collaboration with the mixer design team of Greg Mackie and Peter Watts, the Korg SoundLink MW1608 16-Channel 8-Bus Hybrid Analog/Digital Mixer makes creative mixing easy like never before. This bundle includes the Korg SoundLink MW1608 16-Channel 8-Bus Hybrid Analog/Digital Mixer, Knox Gear TX-100 Closed-Back Studio Monitor Headphones, two 1/4-Inch TRS Patch Cables and two Kirlin 25-Feet XLR Male to XLR Female Microphone Cables.

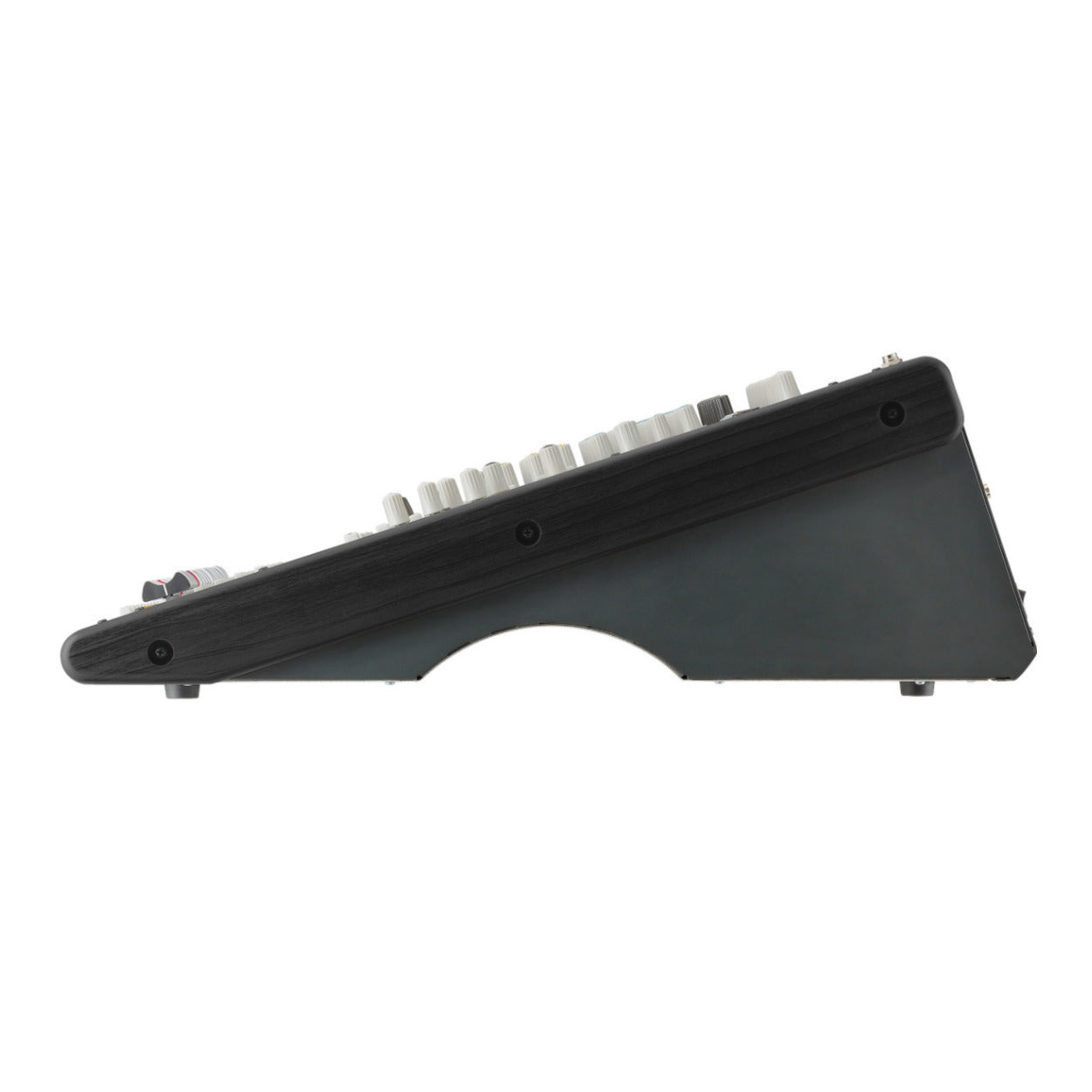

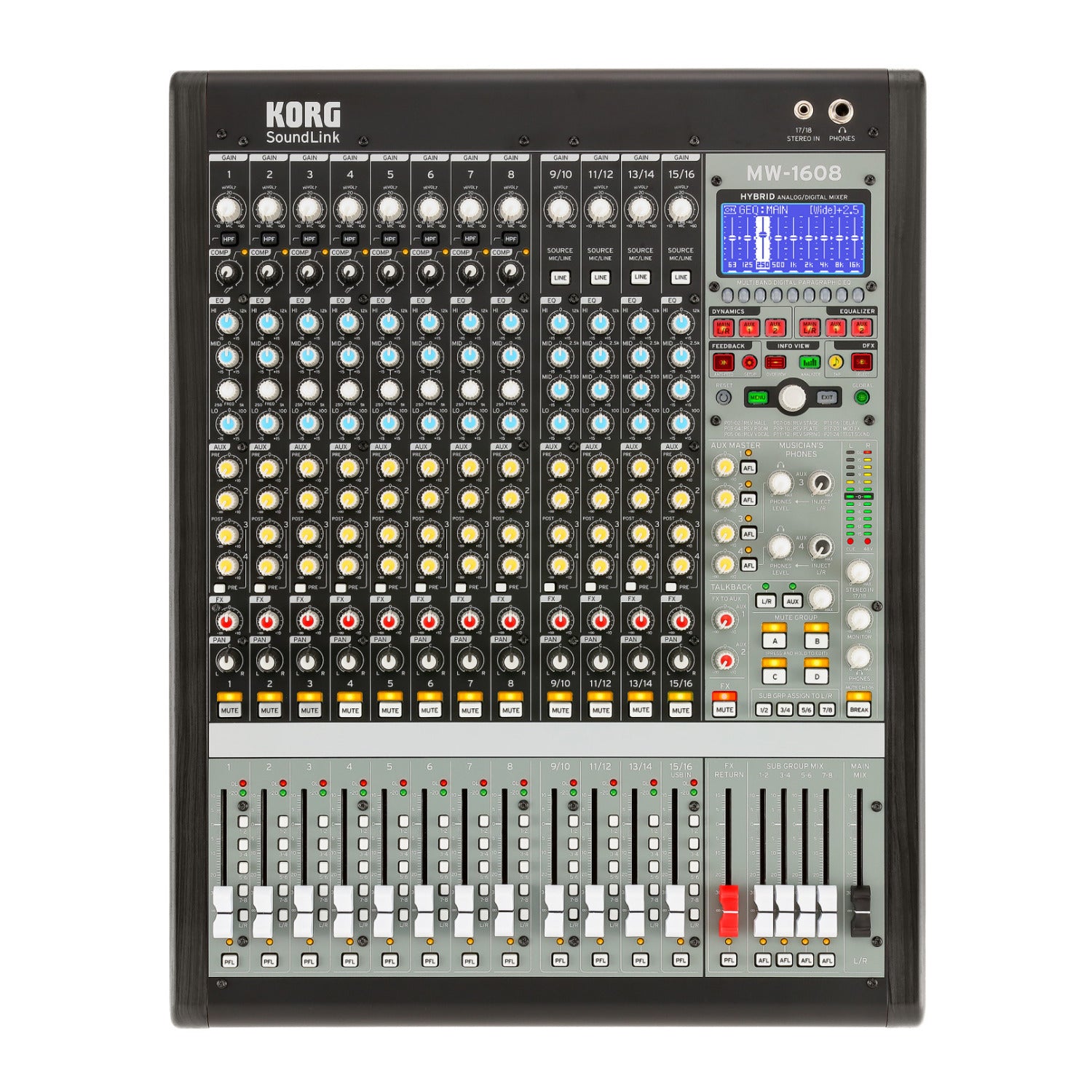

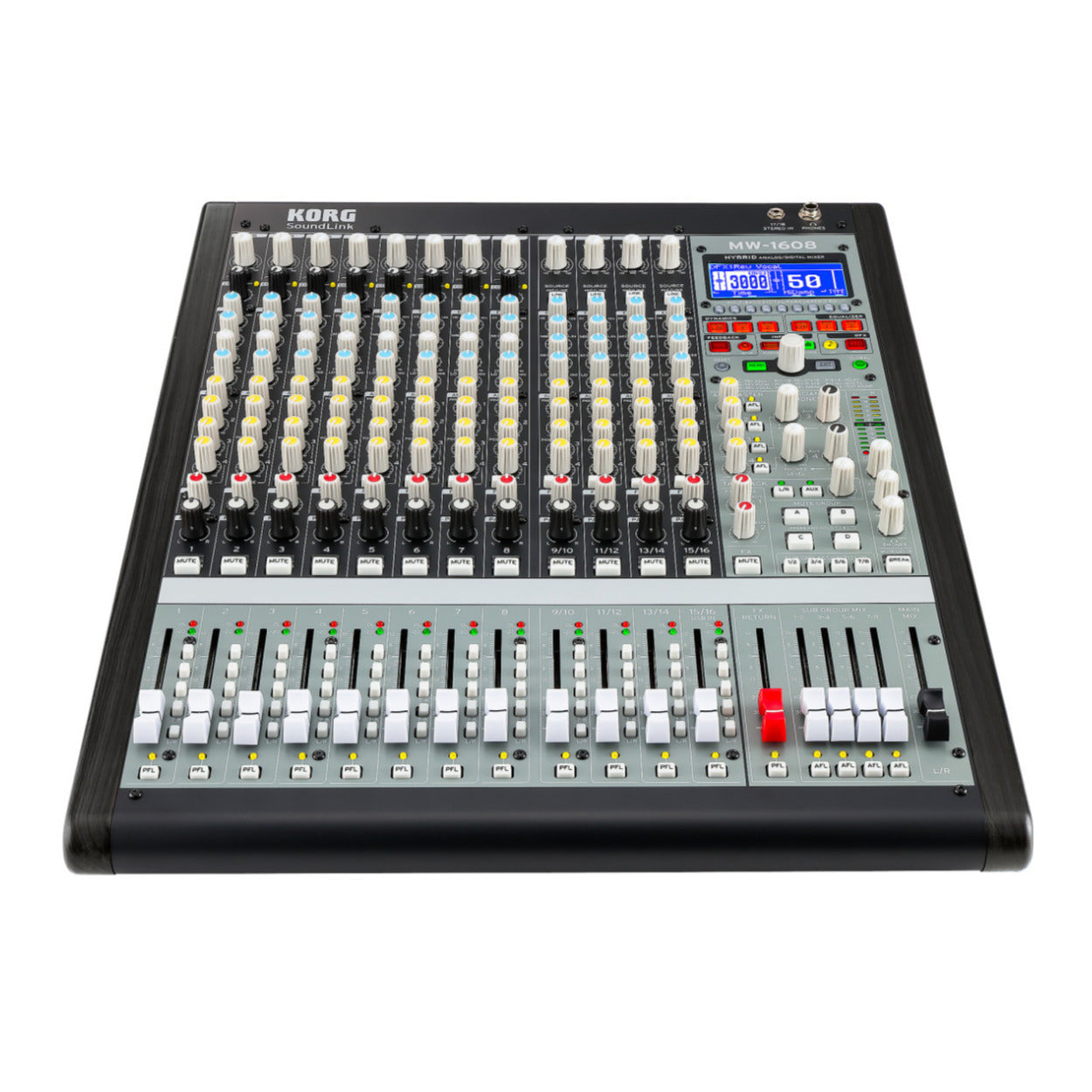

Korg SoundLink MW1608 16-Channel 8-Bus Hybrid Analog/Digital Mixer
This mixer offers impressive sound quality and a variety of musician-friendly features, providing you the best experience in a digital mixer.
Microphone Preamps
Peter Watts-designed HiVolt microphone preamps, with the most headroom of any comparably-priced analog or digital mixer (16.5V internal voltage), provide you a warm, rich sound.
Unique Design
This compact mixer also features Mute Groups that lets you program and recall different combinations of channels for various groups on stage, be it a drum solo, sound checks, or different songs.
One-Knob Boost
SoundLink’s Musician’s Phone feature offers a one-knob boost of the complete left/right mix into the musician’s individual track. The dedicated knobs make it easy to adjust the settings based on your preference for two Musicians monitor mixes, saving you the hassle of adjusting main mix settings or taking up a bus. This is a SoundLink exclusive feature.
Rack-Mount DSP
Mixing is made easy and a lot better with Korg SoundLink for EQ and other control features, and a row of individual L/R, AUX 1, and Aux 2 assign buttons for both Equalization and Dynamics. Each control is tweakable, recallable parameters. Linked with a 31-band Spectrum Analyzer, super-practical 31-band/9-band ParaGraphic EQ solves acoustical obstacles other small mixers can’t handle.
Korg SoundLink MW1608 16-Channel 8-Bus Hybrid Analog/Digital Mixer

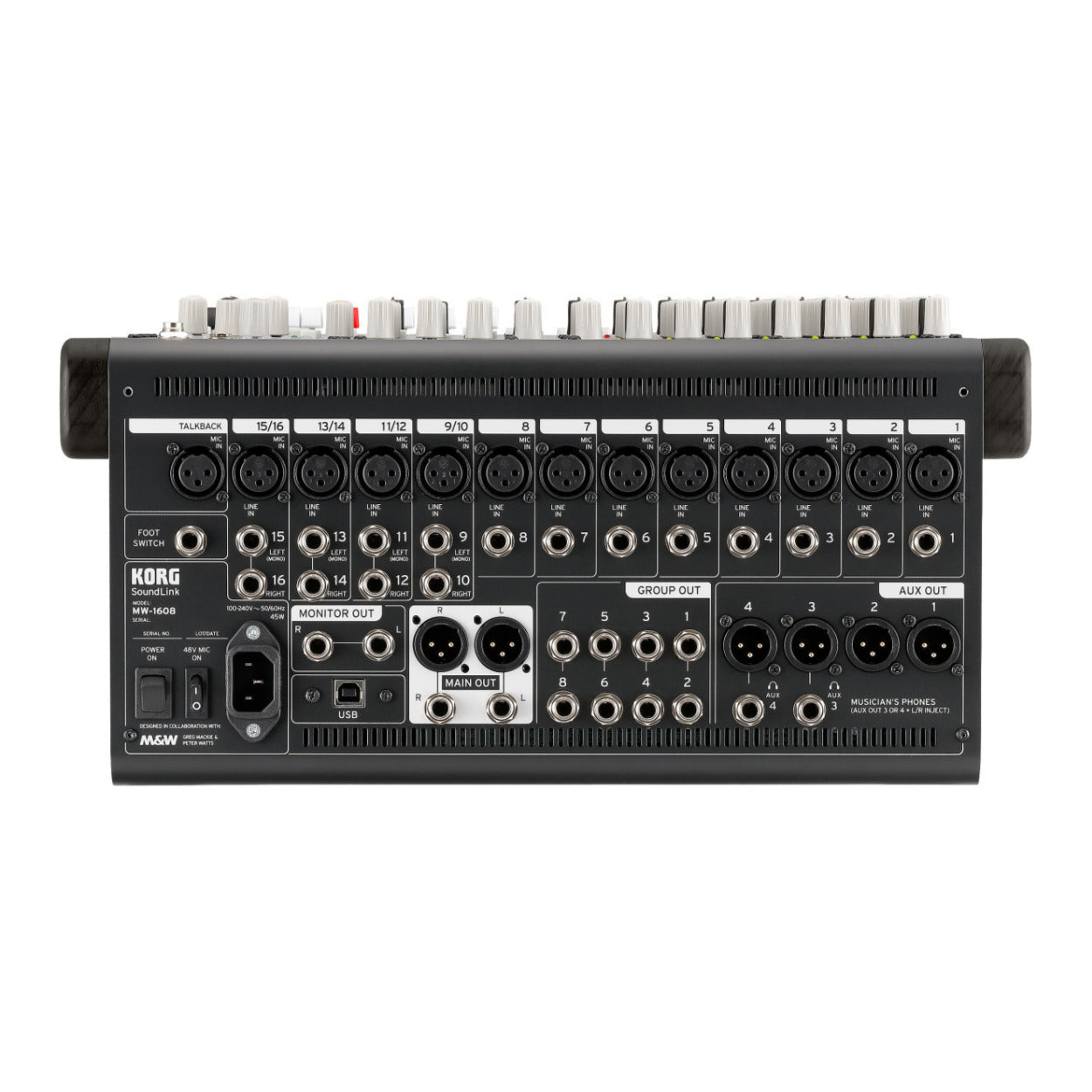

Analog
| Input type | Balanced female XLR and 1/4 inch TRS |
| HiVolt microphone preamp | -128dBu E.I.N, -10 to -60 dBU nominal input level; 3KΩ input impedance |
| Frequency response to main output (at unity gain) | +0.5 to -1.5 dBu 20Hz to 20kHz |
| THD to Main Output (20-20 kHz, unity gain, unwtd) | 0.004% |
| S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) | -70 dBu |
| System crosstalk (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) | Input to Output, -70 dBu; Adjacent Channels, -90 dBu |
| Gain control range (± 1 dB) | +10dB to +60dB (Mic), -10 to +40dB (Line) |
| Main outputs | Balanced male XLR and 1/4 inch TRS |
| Maximum output level | +26 dBu |
| Output impedance | 75 Ω |
| Headphone output | 100 mW / ch. @ 32Ω load, 20 Hz-20 kHz (+0.5dB, -1.5dB) |
Control
| Savable settings | Channel Mutes, Effects & effects Mutes, Mute Groups, Break settings, Dynamics, Graphic EQ, Feedback assign to bus |
| Recallable presets | four Mute Groups, 10 Global Scene Memories, 24 FX Memories, 10 Dynamics, 6 GEQ, 16 Channel Mutes, 3 Feedback bus assignments |
Signal Processing
| Mono channels | HI (12k, shelving), MID (peak, sweepable from 250hz to 5k) and LO (100 Hz, shelving), ±15dB boost/cut; |
| Stereo channels | HI (12k shelving), HI MID (2.5k shelving), LO MID (250 hz shelving) and LO (100Hz shelving) High Pass Filter: 12dB/octave at 80Hz |
| Digital multi-band EQ | 31-bands with nine frequencies selectable at any one time, Wide 1-octave interval and Narrow 1/2-octave modes |
| Digital compressor | Hard – 1ms to 40 ms Attack, +11dB to 0dB Threshold; Soft ¬– 1 ms to 40 ms Attack, +11 to -5dB Threshold |
| Digital limiter | 1ms to 40 ms Attack, +19 to +3dB Threshold |
| Digital noise gate | Hard – 40ms to 1500ms Release, -35 to +7dB Threshold; Soft – 40ms to 1500ms Release, -50 to +4dB Threshold |
| Digital Multiband EQ, Compressor, Limiter, and Noise Gate are assignable individually to Main L/R, Aux 1 and Aux 2 | |
| Spectrum analyzer | 24-channel with Peak Hold function |
Digital
| Main L/R Bus ADC dynamic range | 115dB (A-wtd) |
| Aux and FX Buses ADC dynamic range | 111dB (A-wtd) |
| DAC Dynamic Range for all out buses | 115dB (A-wtd) |
| USB stereo input / recording port | USB Class 1 |
| Internal processing | 32-bit for internal processing; |
| A/D/A bit depth | Korg Tru-Bit-Perfect 32-bit |
| USB bit depth | 24-bit Sampling rates: 48 kHz, 44.1 kHz |
| Digital effects | Rev Hall, Rev Hall Warm, Room, Warm Room, Rev Vocal, Rev Vocal Warm, Stage, Stage Warm, Plate Reverb, Plate Reverb Warm, Spring Reverb Warm, Analog Delay, Tape Echo, Variable Delay, Delay of the Korg SDD3000, Chorus, Flanger, Exciter, Sub Bass booster, 1 kHZ Test Tone, Slow Sweep, Fast Sweep, White or Pink Noise |
Physical
| Power connector | IEC |
| Input-voltage range | 100 to 240 VAC, 50/60 Hz |
| Power requirements (continuous) | 45 W |
| Recommended ambient operating temperature | 0 to 40 degree Celsius /32 to 104 degree Fahrenheit |
| Dimensions (W x H x D) | 15.6 x 7.36 x 20.89 inch / 396 mm x 187 mm x 530 mm (10.6 inch / 256 mm wide without side panels;) |
| Weight | 17.6 lb / 8.0 kg |
