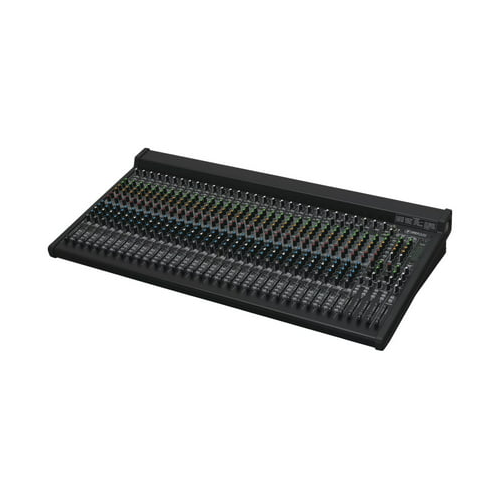

Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The largest in the VLZ4 lineup, the Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer is equipped to make the live sound in your venue, club, house of worship, and beyond sound better than ever. With 32 channels of classic analog Mackie sound signature, Onyx preamps, and plenty of routing options, this is the perfect step up to professional analog sound for your production.
Running Man FX Processors
This mixer features Running Man FX processors (RMFX+) featuring 24 gig-ready effects right into the board. This does not include useless effects such as the warbler or the insanity delay, but rather a suite of quickly accessible and useable reverbs, choruses, and delays that make coloring your mix a breeze.
Tap Delay
Additionally, it features a tap delay, typically only available on an outboard rack. Delays may easily be synced with the song at the tap of a finger. And because we love flexible routing, the processed signal may be sent directly to the mains and monitors from the effects section or re-routed to the two stereo channels to bring them through the EQ and aux section, utilizing the 60mm fader to draw them into the mix.
Single-Knob Compressors
The Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer has eight single-knob compressors to stop the dynamic signals from poking out of the mix. Four compressors are located on the last four mic inputs so that the most critical signals (such as vocals, snare drum, the occasional jaw harp, or mountain goats) may be addressed. Plus, there are single-knob compressors on each of the four subgroups so that grouped signals (such as a drum set or a choir of didgeridoos) may be blended for paramount smoothness.
4x2 USB Recording and Playback Function
This Mixer also features a 4x2 USB recording and playback function. This means that up to four signals may be recorded simultaneously and a stereo mix returned to the mixer for playback.
Applicable For
This mixer is ideal for live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, multitrack studio and field recording, video post-production, multimedia applications, broadcast, and more.
Signal Processing
| Gain Adjustment | No |
| Automatic Mic Mixing | No |
Digital Audio
| Bit Depth | 24 |
Performance
| Frequency Response | 20 Hz to 50 kHz |
| Impedance | 10k Ohms |
| THD+N | ≦0.005% |
Power
| Power Consumption | 65 W |
| AC Input Power | 100 - 120 VAC, 50 - 60 Hz |
Physical
| Weight | 39.0 lb |
| Operating Temperature | 32 to 104 Degree F |
Mixer
| Number of Analog Input Channel | 32 |
| Faders | 60 mm |
- +0, -1 dB, 20 Hz to 50 kHz
- +0, -3 dB, <10 Hz to >100 kHz
- Mic input to insert send out, max gain
- 150 termination -128.5 dBu
- 20 Hz to 20 kHz
Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB
Main Mix Noise
| 20 Hz to 20 kHz bandwidth, 1/4-Inch main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right. | |
| Main mix fader unity, channel faders down | -84.5 dBu (-88.5 dB Signal to Noise Ratio, ref +4 dBu) |
| Main mix fader at unity, channel faders at unity | -80 dBu |
Total Harmonic Distortion
| 1 kHz at 15 dB gain, 20 Hz to 20 kHz bandwidth | |
| Mic in to insert send | <0.001% |
| Mic in to main out | <0.005% |
Attenuation / Crosstalk
| 1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, mic in, 1/4-Inch main out, gain at unity | |
| Channel mute switch engaged | -90 dBu |
| Channel fader down | -88 dBu |
Frequency Response
| Mic input to main output (gain at unity) | |
| Equivalent input noise (EIN) |
Common Mode Rejection Ratio
| 1 kHz better than | -70 dB |
Maximum Levels
| Mic in | +21 dBu |
| All other inputs | +21 dBu |
| Main mix XLR out | +27 dBu |
| All other outputs | +21 dBu |
Impedances
| Mic in | 2.7 kilohm |
| Channel insert return | 2.5 kilohm |
| All other inputs | 10 kilohm or greater |
| Tape out | <10 kilohm |
| All other outputs | 120 kilohm |
| 3-Band EQ (mono channels) | |
| High shelving | ±15 dB at 12 kHz |
| Mid peaking | ±15 dB sweep 100 Hz to 8 kHz |
| Low shelving | ±15 dB at 80 Hz |
| Low cut filter | 18 dB/octave, -3 dB at 100 Hz |
USB
| Format | USB 1.1 |
| I/O | Stereo input, 4-channel output |
| A/D/A | 24 bit, 44.1 kHz/48 kHz |
AC Power Requirements
| Power consumption | 65 W |
| US | 100 to 120 VAC, 50 to 60 Hz |
| Operating temperature | 0 to 40 degree Celsius (32 to 104 degree Fahrenheit) |
Physical Properties
| Front height | 1.8 inch (46.3 mm) |
| Rear height | 6 inch (153 mm) |
| Depth | 19.1 inch (486 mm) |
| Width | 38 inch (964 mm) |
| Weight | 39 lb (17.7 kg) |
