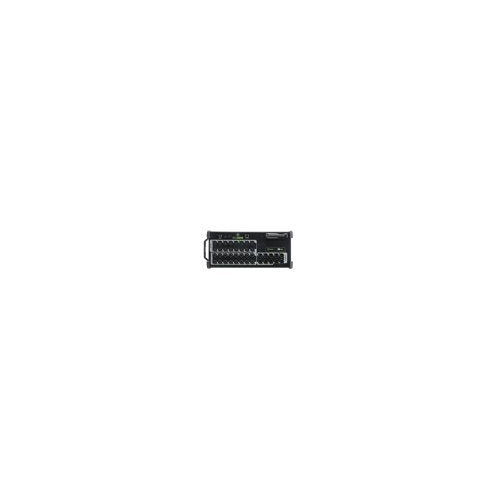

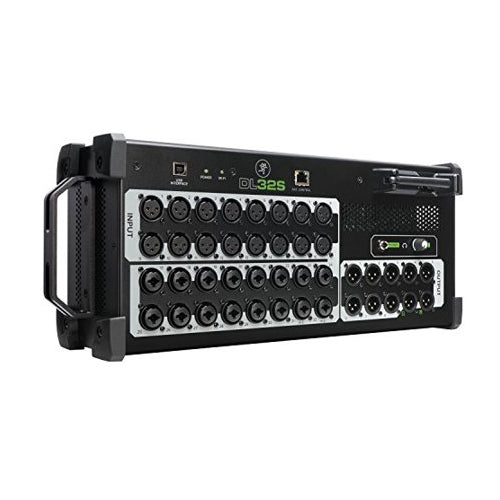

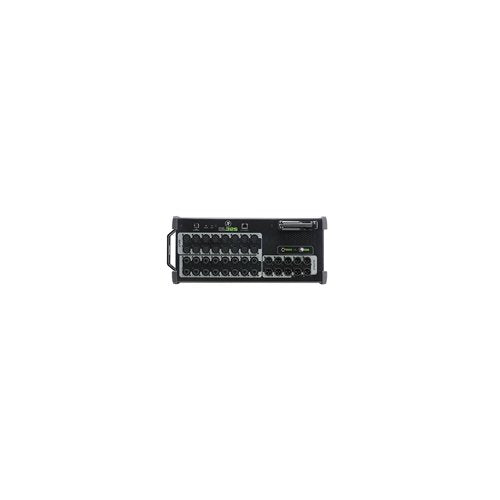

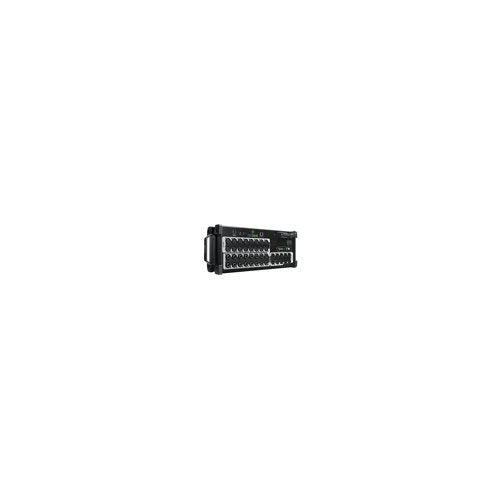

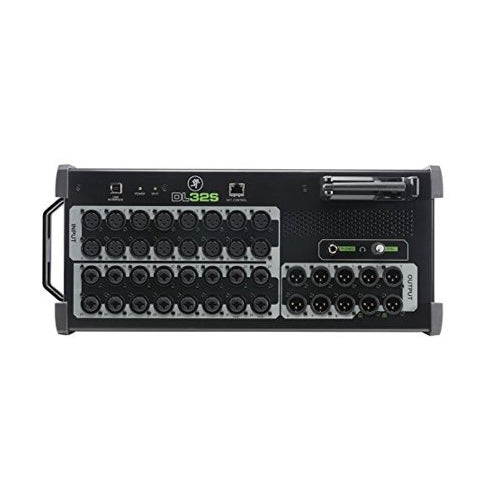

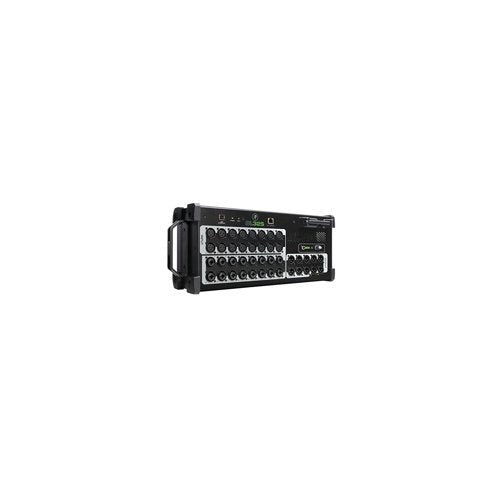

Mackie DL32S 32-Channel Digital Wireless Live Sound Mixer with Onyx+ Mic Preamps
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Mackie DL32S 32-Channel Digital Wireless Live Sound Mixer brings all the powerful DSP, renowned Onyx+ mic preamps, and Built-Like-A-Tank reliability that the DL Series is known for, in an all-new stage box form factor with built-in Wi-Fi. Fully loaded with DSP on each of the 32 Onyx+ mic preamps and 15 busses plus 4 FX processors, the DL32S Mixer delivers the mixing power you need to sound great every night. Get mixing quickly with built-in Wi-Fi and the industry-leading, multi-platform Master Fader app. Create stunning multi-track recordings and get playback for a virtual sound check via USB I/O. Mount it in a rack, set it on a desk, or put it right on the stage. Mix your way.
Master Fader
Master Fader is the main user interface for your DL Series mixer. Rather than knobs, faders, and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac, or PC and on up to 20 different devices simultaneously. The intuitive design of the Master Fader app makes managing your mix, large or small, easy and efficient. Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lockout devices from specific capabilities within the app. Plus, when you get a mix you like, you can save it all into a snapshot.
Powerful Processing
From EQ to compression, the Mackie DL32S Wireless Live Sound Mixer implements every bit of signal processing with the highest quality possible while maintaining the fidelity of each source. Every channel and output bus gets its own dedicated processing. The 4-band parametric EQ on each channel and output features a dedicated high-pass filter, modern and vintage modes, and built-in RTA for maximum versatility and detailed analysis of each source. The clear UI makes it easy to make adjustments, view settings, and choose presets. Each FX processor features tons of studio-quality reverbs and delays plus effects like chorus, tremolo, flanger, and sweep filter. You can fine-tune each effect with advanced parameters and EQ.
Total Freedom
Complete wireless control via iOS, Android, macOS, and Windows devices means you can mix from anywhere in the venue on up to 20 devices. Wireless control also means you can put the mixer itself where it makes the most sense for the application.
Signal Processing
| Gain Adjustment | No |
| Automatic Mic Mixing | No |
Digital Audio
| Bit Depth | 24 |
| Sample Rates | Up to 48 kHz |
| Latency | 2 |
Performance
| Output Level | +4 dBu |
| Frequency Response | 20 Hz to 20 kHz |
| Impedance | 300 Ohms |
| Noise Floor | -90 dBu |
Recording
| Max Multitrack Recording | 16 |
Power
| Power Consumption | 60 W |
| AC Input Power | 100 to 240 VAC |
Physical
| Weight | 8.8 lb |
| Operating Temperature | 32 to 104-degree |
Mixer
| Number of Analog Input Channel | 32 |
- Analog XLR adjacent inputs:
- <-105 dB at 1 kHz (unity gain)
- <-65 dB at 1 kHz (max gain)
- Mic input > Main bus > XLR output, unity gain: >110 dB, A-weighted
- XLR mic input to USB output: >113 dB, A-weighted
- XLR output from DSP (oscillator): >113 dB, A-weighted
- 1-16: XLR balanced
- 17-32: Combo XLR / TRS Bal-Unbal
- Plus Hi-Z via unbalanced instrument cable on inputs 31-32
- XLR, channels 1-32: 3 kOhm, balanced
- 1/4-inch TRS Line, channels 15-30: 30 kOhm, balanced
- 1/4-inch TS Hi-Z, channels 31-32: 1 MOhm, unbalanced
- XLR: +22 dBu
- 1/4-inch: +30 dBu
- 48 VDC nominal voltage, unloaded
- 14 mA maximum current supplied to any single input
- 5mA minimum current supplied to all inputs simultaneously
- Digital on/off control for each individual input
- +20 dBu into 600Ohm, each channel
- +22 dBu max into 100 kOhm, each channel
- Android: v6.0 or higher required (requires Google Play Store access to install)
- iOS: v11.0 or higher required
- Master Fader App for Android
- Master Fader App for iOS
Mackie DL32S DL Series 32-Channel Digital Wireless Live Sound Mixer with Onyx+ Mic Preamps
General Digital
| Sample rate | 48 kHz |
| A/D/A bit depth | 24-bit |
| System latency (analog input > main bus > analog output) | 1.5 ms |
| 0 dBFS reference | +22 dBu |
Frequency Response
| XLR inputs and outputs (±0, -1 dB) | 20 Hz to 20 kHz |
| 1/4-inch inputs (±0, -3 dB) | 20 Hz to 20 kHz |
Distortion
| THD+N, XLR mic input to XLR output, unity gain (1 kHz, +21 dBu signal; 30 kHz bandwidth) | <0.005% |
Noise / Dynamic Range / Signal-to-Noise Ratio
| EIN (150 termination) | -127 dBu, A-weighted |
| Crosstalk | |
| Analog XLR adjacent outputs | <-95 dB at 1 kHz |
| Signal-to-Noise ratio (ref +4 dBu, 1 kHz. mic input > main bus > XLR output, unity gain) | >92 dB, un-weighted |
| Output noise, XLR output (DSP muted) | <-90 dBu RMS |
| Dynamic range | |
| CMRR - XLR mic input (ref +20 dBu, +45 dB Gain) | >75 dB at 1 kH |
Analog Inputs
| Connectors | |
| XLR Mic Pre | Onyx+ |
| Input impedance | |
| Max input level | |
| 48V Phantom power (XLR) |
Analog Outputs
| Connectors | XLR balanced |
| Output impedance | 300Ohm |
| Max output level | +22 dBu |
Analog Headphone Out
| Connector | 1/4-inch TRS stereo |
| Max output level |
USB
| Connection | USB 2.0 high speed (as a device) |
| Connector | USB-B |
| Supported MS Windows (Driver installation required) | Windows 10 |
| Supported Mac OS (Audio Class 2.0 Compliant, no driver required) | macOS 10.13, 10.14 |
| Audio | 32 in / 32 out, 48 kHz, 16/24-bit |
Networking
| Connection | 100 Mb Ethernet |
| Control | Complete |
| Simultaneous control | 20 devices |
| Antenna | External, SMA connector, 50 |
| Access point, number of clients | Maximum 20 (wired or wireless) |
| IEEE 802.11 b/g standard | 2.4 GHz |
| WLAN channels | 1 to 11 (with auto-channel select option) |
| Access point security | WPA2 |
| Supported operating modes | Access point, External Router, Wi-Fi client |
Devices and OSs
| Operating systems | Android and iOS |
| System requirements | |
| Control application |
Power
| Power requirements | 100 to 240 VAC, 50 to 60 Hz, universal supply |
| Line cord | User-replaceable IEC |
| Power consumption | 60 W |
| Operating temperature (extended ambient temperature) | 32 to 104-degree (0 to 40-degree-C) |
Physical
| Dimensions (H x W x D) | 7.3 x 17.6 x 5.8 inch (185 x 447 x 147 mm) |
| Weight | 8.8 lb (4.0 kg) |
| Rack | 4U rack spaces |
