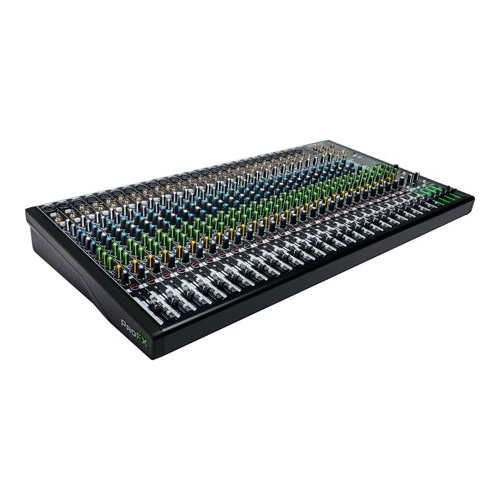

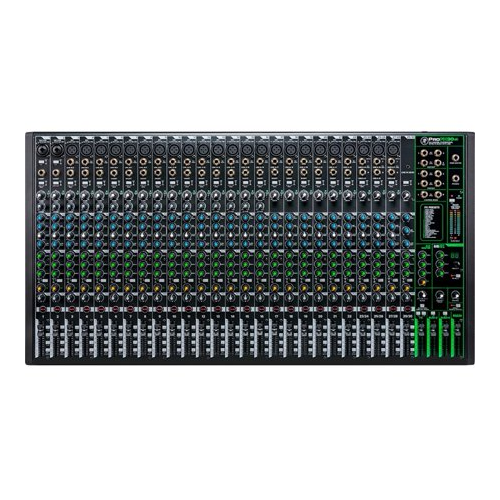

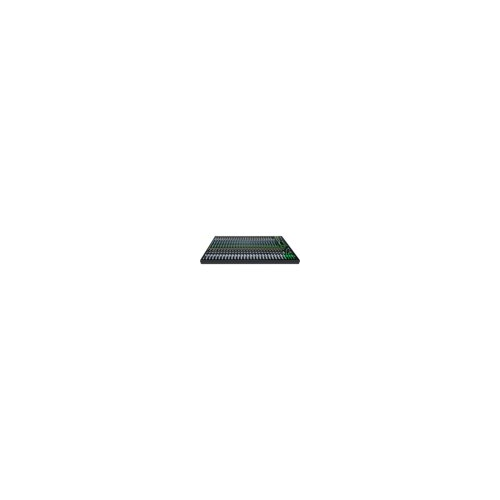

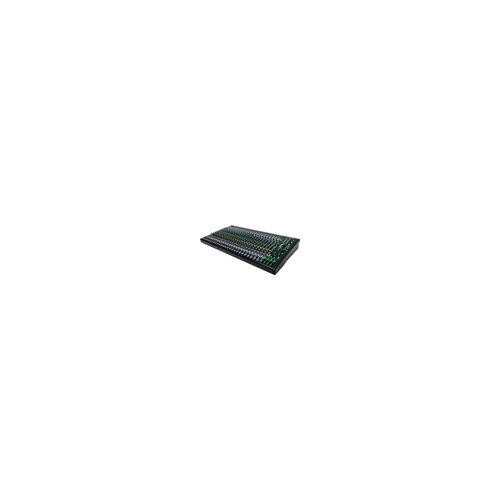

Mackie ProFX30v3 30-Channel Professional USB Mixer
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Experience the best-in-class series of professional analog USB mixers with effects. The Mackie ProFX30v3 30-Channel Professional USB Mixer brings next-level performance and versatility to recording studios and performance venues. The Mackie ProFX30v3 is fully optimized for professional recording and live sound reinforcement. With 25 award-winning Onyx preamps and a versatile GigFX effects engine, you'll get colorful high-resolution recordings with sample rates up to 192 kHz. Plus, the analog USB mixer includes Waveform OEM for recording, mixing, and editing.

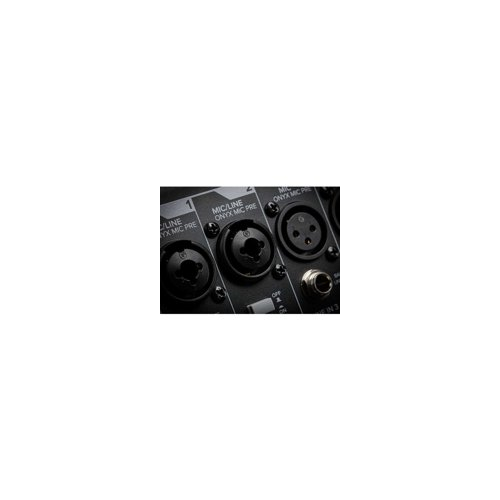

Onyx Mic Preamps
The Mackie ProFX30v3 features seven award-winning Onyx mic preamps for capturing pristine audio in the studio or on stage. Ultra-low noise and up to 60dB of gain mean tons of headroom and clarity for any microphone.

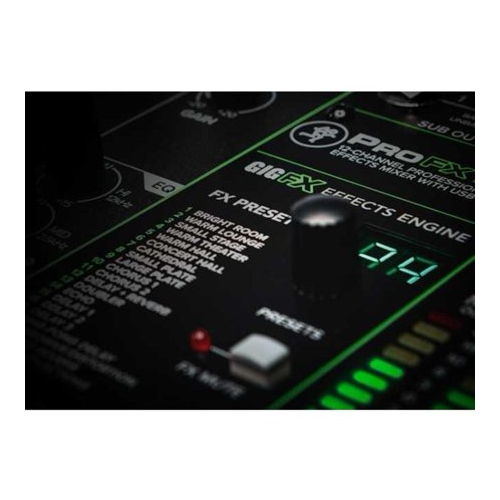

GIGFX High-Resolution Effects Engine
The Mackie ProFX30v3 has a high-resolution effects engine to give your sound the perfect touch, whether you need to add a bit of reverb to a guitar track or explore new sounds. With 24 incredible effects, you’ll have everything you need to shape your sound beyond a limit.

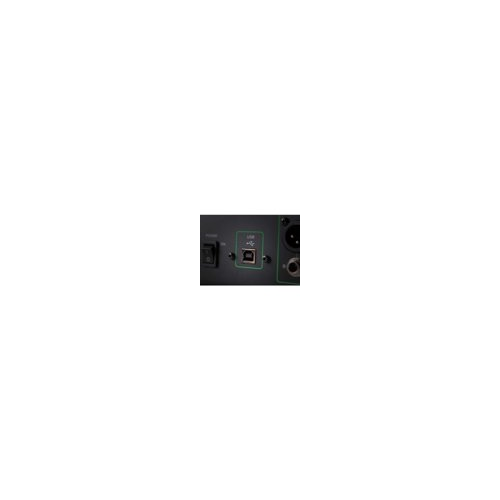

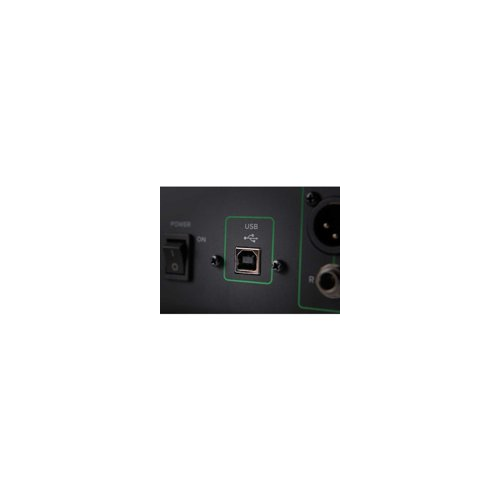

2x4 192 kHz USB Recording
Mackie ProFX30v3 is optimized for USB recording at sample rates up to 192 kHz. Use the 2x4 I/O to send separate mixes from your computer to your headphones and the channel strip professional workflow at its finest.

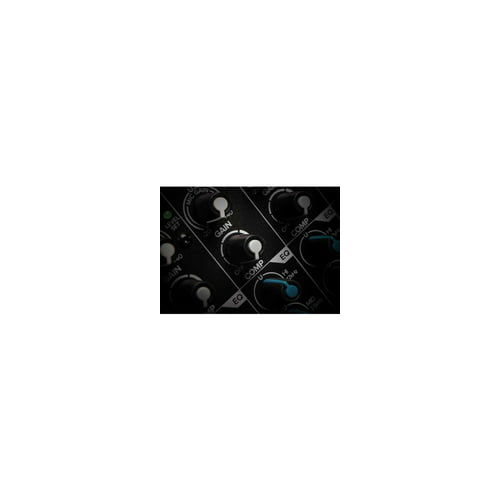

Built-In Compression
When you need to keep levels in check, why bother with a compression plugin when you have a dedicated compression knob on every channel? Compress highly dynamic audio sources like podcast dialogue, vocalists, guitars, and more with a single turn of a knob.

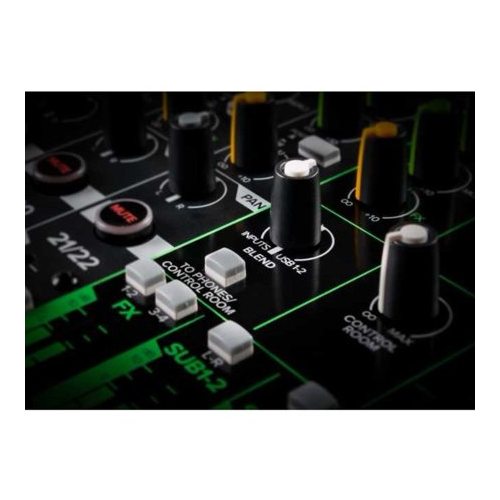

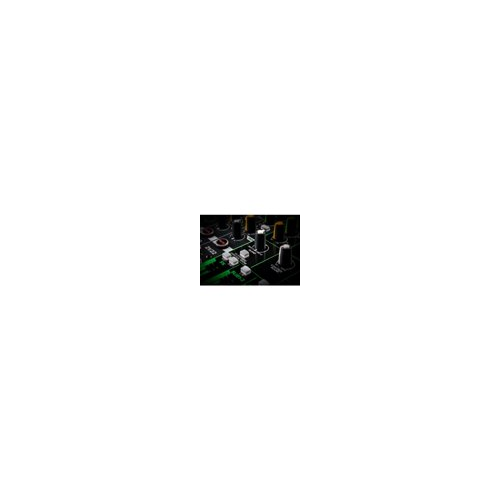

Latency-Free Direct Monitoring
Real-time monitoring is crucial for every recording application, and latency issues can make monitoring unbearable. What if you need to monitor the mix from your computer? The Mackie ProFX30v3 makes it easy with latency-free direct monitoring. You can even use the dedicated control to blend between your DAW and channel inputs.
Waveform OEM DAW
Waveform OEM is a multi-award-winning workstation, featuring powerful and creative tools to inspire the modern musician. Unlike typical Lite versions, it does not impose any restrictions you get unlimited track count, powerful features, compatibility with all popular plug-ins, and efficient performance on macOS, Windows, and Linux operating systems.
DAW Essentials Collection
Introducing a collection of 16 contemporary FX plug-ins for use with any DAW. These plug-ins utilize the very latest algorithms and coding techniques to deliver extraordinary sound quality in an extremely efficient package, allowing the plug-ins to be used liberally across a wide range of native computer systems.
- Mic in to Insert Send out, max gain: -128 dBu
- Residual output noise:
- All outputs, master levels off, all channel levels off: -95 dBu
- All outputs, master levels unity, one channel level unity: -85 dBu
- Mic into main out (+4 dBu output): <0.01%
- 1/4 inch main output: 40 dB
- XLR main output: 46 dB
- 1/4 inch sub output: 40 dB
- Aux output (pre-fader): 40 dB
- Aux output (post-fader): 50 dB
- FX send: 50 dB
- USB output: 30 dB
- USB input to XLR main output: 46 dB
- 1 Stereo Input, 2 Stereo Outputs
- A/D/A: 24 bit, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
- Low: ±15 dB at 80 Hz
- Mid: ±15 dB at 2.5 kHz
- High: ±15 dB at 12 kHz
Mackie ProFX30v3 30-Channel Professional USB Mixer
Noise Characteristics
| Equivalent input noise (EIN) (150 ohms source impedance, 20 Hz to 20 kHz) | |
| Frequency response | Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz |
Distortion (22 Hz to 80 kHz Bandwidth)
Attenuation and Crosstalk
| Adjacent inputs at 1 kHz | -90 dB |
| Inputs to outputs at 1 kHz | -80 dB |
| Fader off at 1 kHz | -75 dB |
| Mute switch/break switch mute at 1 kHz | -100 dB |
Common Mode Rejection Ratio (CMRR)
| Mic into main out, max gain, 1 kHz | 70 dB |
Maximum Levels
| All inputs | +22 dBu |
| Main mix XLR | +28 dBu |
| All other outputs | +22 dBu |
Impedances
| Mic in | 3.3 kOhms |
| Channel insert return | 10 kOhms |
| All other inputs | ≥20 kOhms |
| Phones out | 25 Ohms |
| All other outputs | 120 Ohms Unbalanced, 240 Ohms Balanced |
| 1/8 inch input to |
Digital Effects
| Number of presets | 24 |
Meters
| OL, +15, +10, +6, +3, 0 (0 dBu), –2, –4, –7, –10, –20, –30 |
USB
| Format | USB 2.0 |
| I/O |
Phantom Power
| 48 VDC to all Mic channels simultaneously |
AC Power Requirements
| Power consumption | 50 watts |
| Universal AC power supply | 100 to 240 VAC, 50 to 60 Hz |
| Power connector | 3-Pin IEC Line Cord |
Equalization
| Low | ±15 dB at 80 Hz |
| Mid | ±15 dB 100 Hz to 8 kHz |
| High | ±15 dB at 12 kHz |
| Low cut filter | 18 dB/octave at 100 Hz |
| 1/8 inch stereo channel |
Dimensions
| Height | 4.4 inch (112 mm) |
| Width | 32.3 inch (820 mm) |
| Depth | 17.1 inch (434 mm) |
| Weight | 26.5 lb (12.0 kg) |
