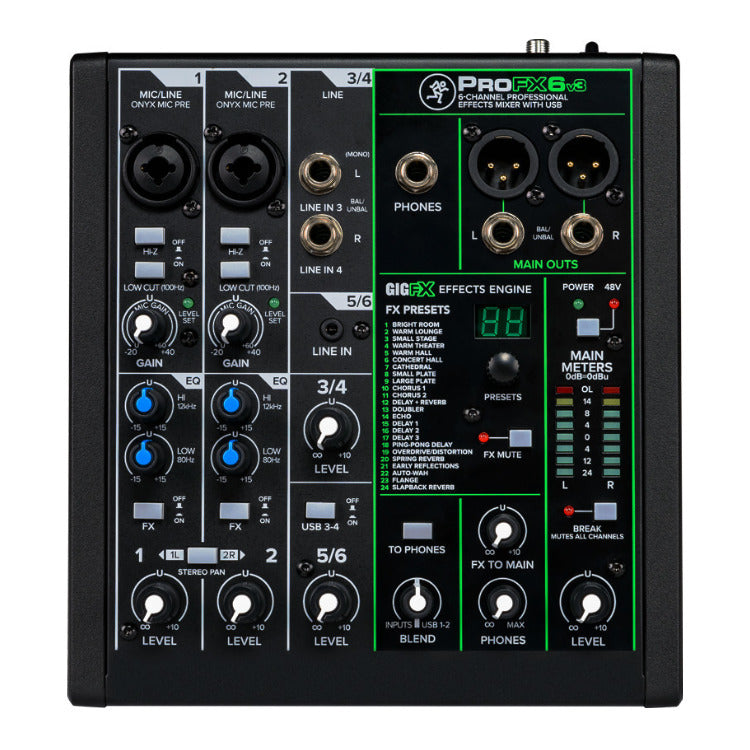

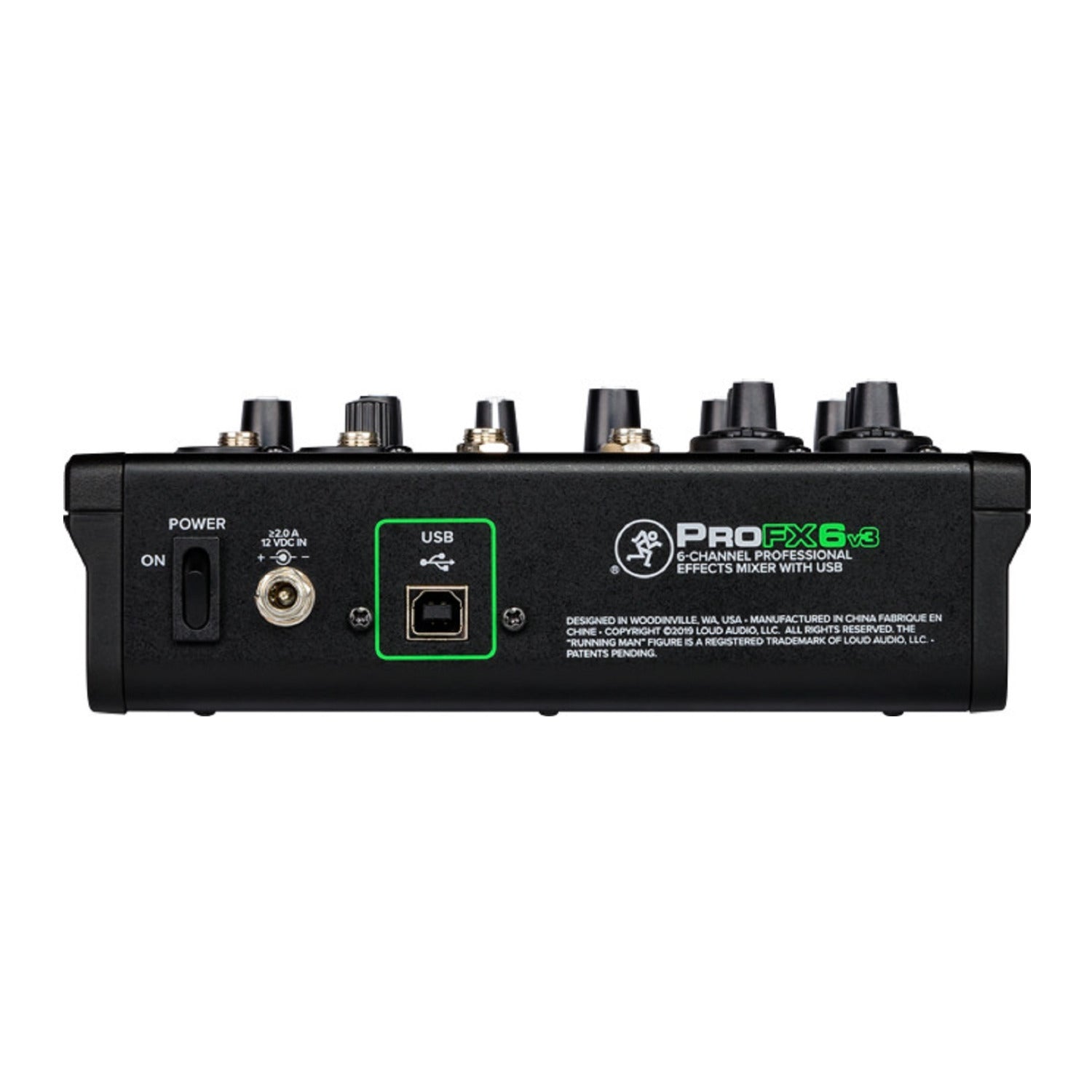

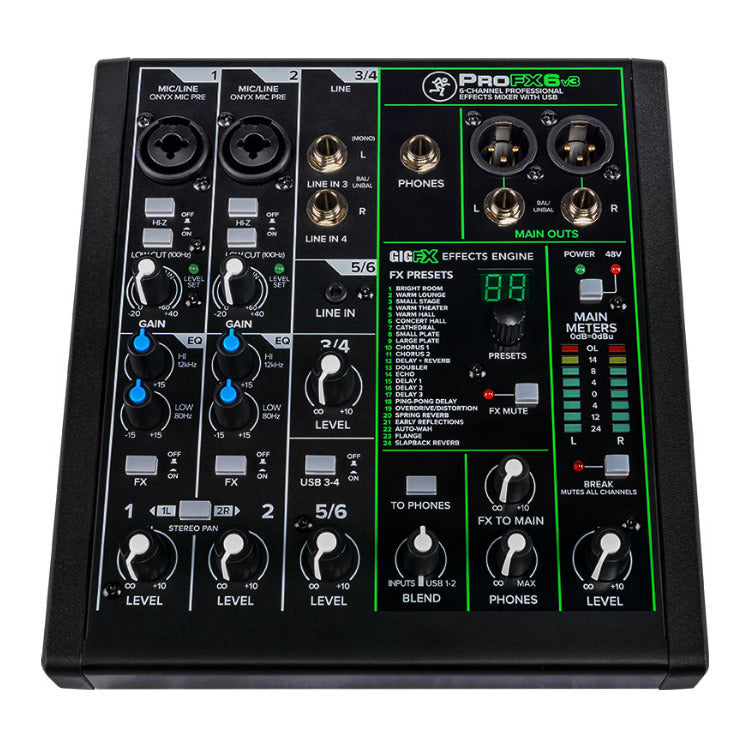

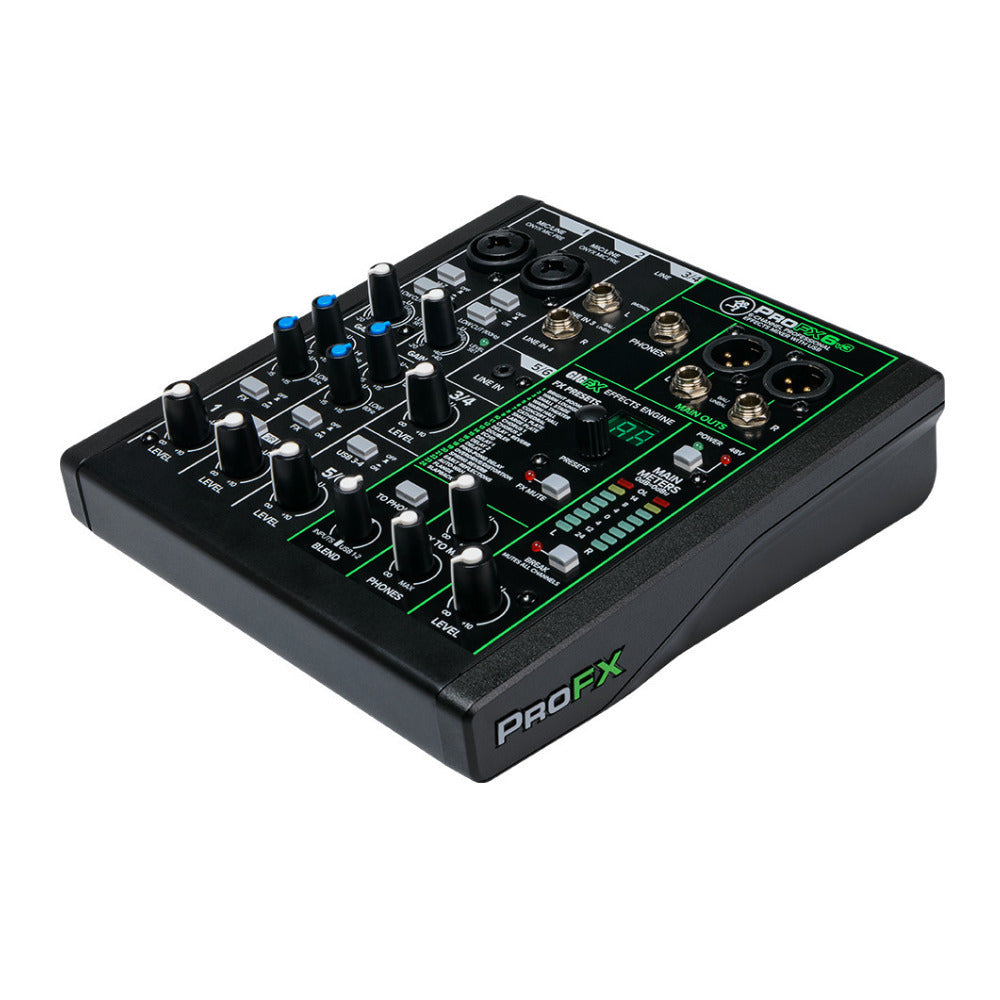

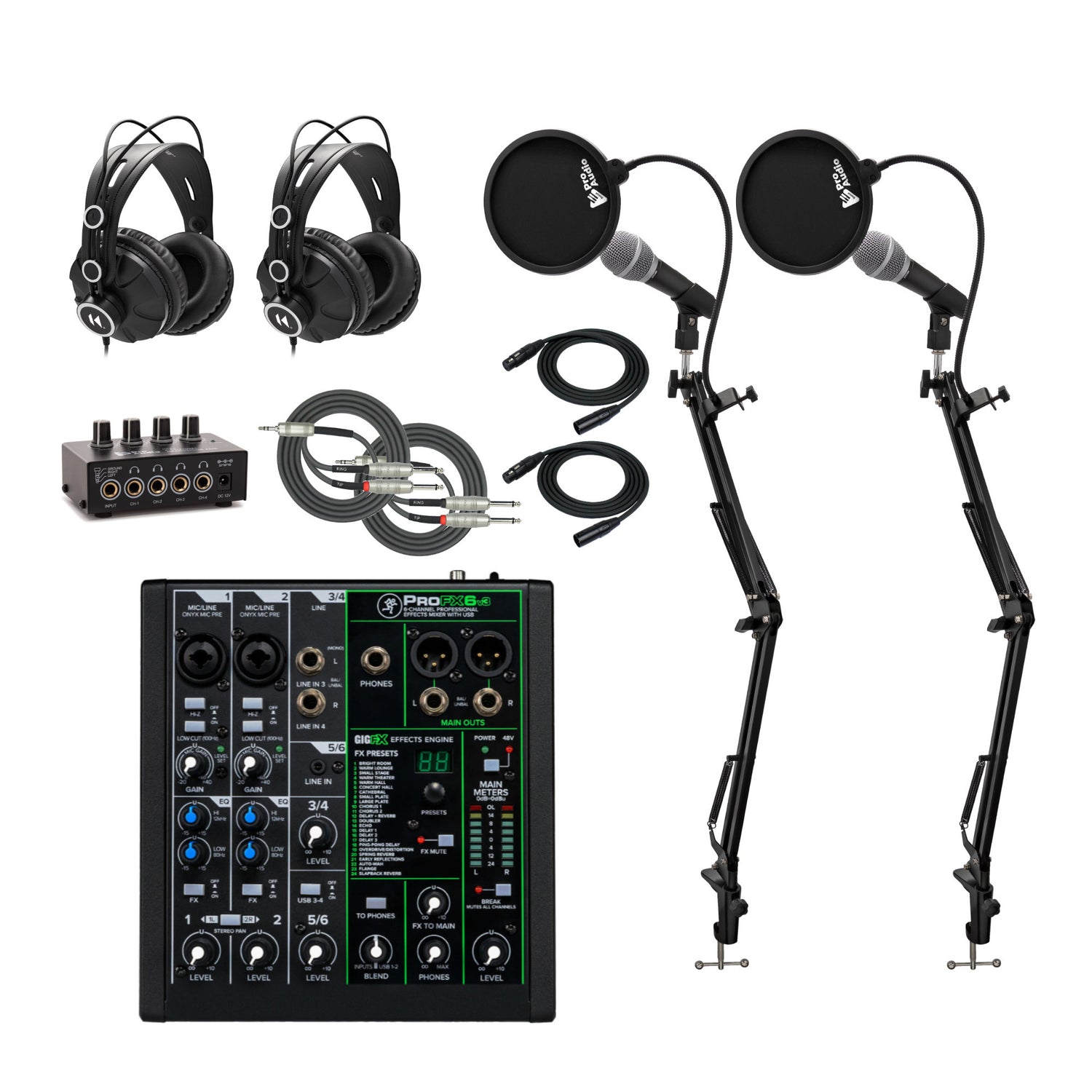

Mackie ProFX6v3 6-Channel Professional Effects Mixer Podcast Bundle
Mackie ProFX6v3 6-Channel Professional Effects Mixer with USB is the ultimate affordable solution for live sound, home recording, and content creation. Now with renowned Onyx mic preamps that offer 60dB of headroom, everything from gain hungry mics to guitars will sound better than ever. You can also keep it all in check with easy single-knob compression. The GigFX effects engine offers 24 built-in FX for even more options for adding the finishing touch. Record your tracks in 24-Bit/192kHz quality with 2x4 USB I/O with zero-latency hardware monitoring for easy overdubs. Both Pro Tools | First and Waveform OEM recording software/plugin packages are included.
Onyx Preamps
The Onyx Mic Preamps are designed for maximum studio-quality performance. Ultra-low noise and up to 60dB of gain means tons of headroom and crystal-clear sound even with gain-hungry mics.
GigFX Effects Engine
The high-resolution GigFX Effects Engine makes adding great-sounding effects to your mix easy. Now with 24 great-sounding effects, you have more options than ever for adding that finishing touch to a vocal or kicking up the drama on your podcast.
2x4 192kHz USB Recording
Recording in extreme quality is easy with ProFX6v3 Effects Mixer. Sample rates up to 192kHz combined with Onyx mic preamps ensure you get the most pristine sound possible. This makes it great for live recordings, music playback, and more.
Pro Tools | First and Waveform OEM DAW
The ProFX6v3 Mixer now comes with industry-standard Pro Tools | First and the exclusive Musician Collection featuring 23 Avid plug-ins, including the legendary 304C Compressor and 304E EQ bundle. The Waveform OEM DAW plus their 16 plug-in DAW Essentials collection is included as well. Waveform OEM is an award-winning workstation, featuring powerful and creative tools to inspire the modern musician. You get unlimited track count, powerful features, compatibility with all popular plug-ins and efficient performance on MacOS, Windows, and Linux operating systems.
Applications
Suitable for Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, video post-production, multimedia applications, broadcast, and much more.
Main
| Configuration | Bundle 1 |
| Channels | 6 |
| Color | Black |
- Mic in to insert send out, max gain: -126 dBu (150 Ω Source Impedance, 20 Hz to 20 kHz)
- All outputs, master levels off, all channel levels off: -95 dBu
- All outputs, master levels unity, one channel level unity: -80 dBu
- 120 Ohms unbalanced
- 240 Ohms balanced
- Mic input channel to insert output: 60 dB
- Mic input channel to 1/4-inch main output: 80 dB
- Mic input channel to XLR main output: 86 dB
- Mic input channel to 1/4-inch sub output: 80 dB
- Mic input channel to Aux output (pre-fader): 80 dB
- Mic input channel to Aux output (post-fader): 90 dB
- Mic input channel to FX send: 90 dB
- Mic input channel to USB output: 70 dB
- Mono line input channel to insert output: 40 dB
- Mono line input channel to 1/4-inch main output: 60 dB
- Mono line input channel to XLR main output: 66 dB
- Mono line input channel to 1/4-inch sub output: 60 dB
- Mono line input channel to Aux output (pre-fader): 60 dB
- Mono line input channel to Aux output (post-fader): 70 dB
- Mono line input channel to FX send: 70 dB
- Mono line input channel to USB output: 50 dB
- Stereo line input channel to 1/4-inch main output: 20 dB
- Stereo line input channel to XLR main output: 26 dB
- Stereo line input channel to 1/4-inch sub output: 20 dB
- Stereo line input channel to Aux output (pre-fader): 20 dB
- Stereo line input channel to Aux output (post-fader): 30 dB
- Stereo line input channel to FX send: 30 dB
- Stereo line input channel to USB output: 10 dB
- 1/8-inch input to 1/4-inch main output: 40 dB
- 1/8-inch input to XLR main output: 46 dB
- 1/8-inch input to 1/4-inch sub output: 40 dB
- 1/8-inch input to Aux output (pre-fader): 40 dB
- 1/8-inch input to Aux output (post-fader) 50 dB
- 1/8-inch input to FX send 50 dB
- 1/8-inch input to USB output: 30 dB
- 1 x stereo input
- 2 x stereo outputs
Mackie ProFX6v3 6-Channel Professional Effects Mixer with USB
Noise Characteristics
| Equivalent Input Noise (EIN) | |
| Residual output noise |
Frequency Response
| Mic input to any output (gain at unity, +0 dB / -1 dB | 20 Hz to 30 kHz |
Distortion
| Mic in to main out (+4 dBu output) | <0.03% (22 Hz to 80 kHz bandwidth) |
Attenuation and Crosstalk
| Adjacent inputs at 1 kHz | -90 dB |
| Inputs to outputs at 1 kHz | -80 dB |
| Fader off at 1 kHz | -75 dB |
| Mute switch / break switch mute at 1 kHz | -90 dB |
Common Mode Rejection Ratio (CMRR)
| Mic in to Main out, max gain, 1 kHz | 70 dB |
Maximum Levels
| All inputs | +22 dBu |
| Main mix XLR | +28 dBu |
| All other outputs | +22 dBu |
Impedances
| Mic in | 3.3 kOhms |
| Channel insert return | 10 kOhms |
| All other inputs | ≥20 kOhms |
| Phones out | 25 Ohms |
| All other outputs |
Equalization
| Low | ±15 dB at 80 Hz |
| High | ±15 dB at 12 kHz |
| Low cut filter | 18 dB/octave at 100 Hz |
Maximum Voltage Gain (EQ Flat)
| Mic input channel | |
| Mono line input channel | |
| Stereo line input channel | |
| 1/8-inch input | |
| USB input to XLR main output | 46 dB |
Digital Effects
| Number of presets | 24 |
Meters
| Two columns of 8 segments each | OL, +14, +8, +4, 0 (0 dBu), -4, -12, -24 |
| Two columns of 12 segments each | OL, +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30 |
| Main L/R Mix |
USB
| Format | USB 2.0 |
| I/O | |
| A/D/A | 24 bit, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
Power Requirements
| Phantom power | 48 VDC to all mic channels simultaneously |
| Universal AC power supply | 100-240 VAC, 50-60 Hz |
| Power connector | 12VDC at 2A Class I hard-wired |
| Wall mount adapter | 3-pin IEC line cord |
Physical Properties
| Dimensions (H x W x D) | 2.8 x 7.5 x 8.4 inches |
| Weight | 2.6 lb |
