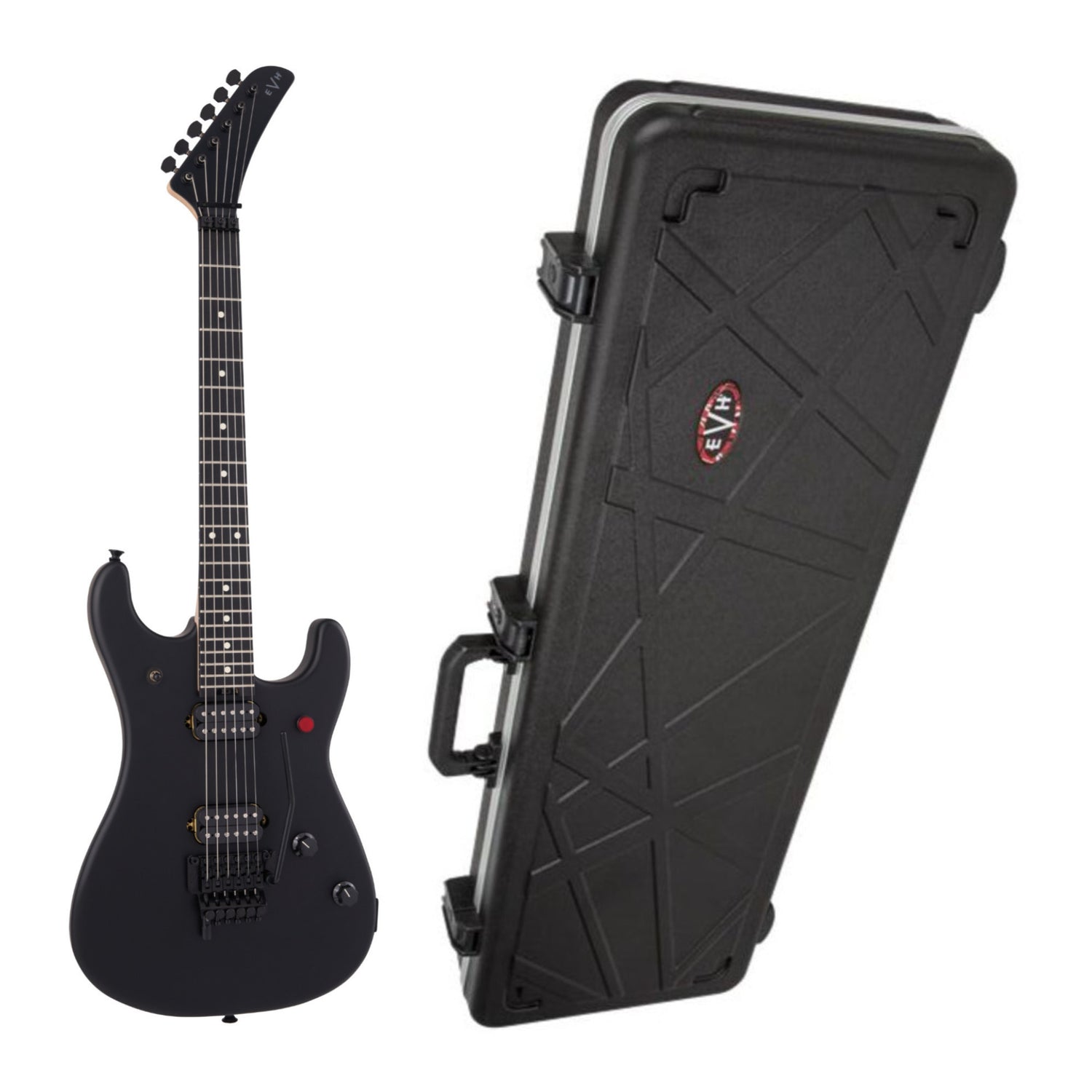

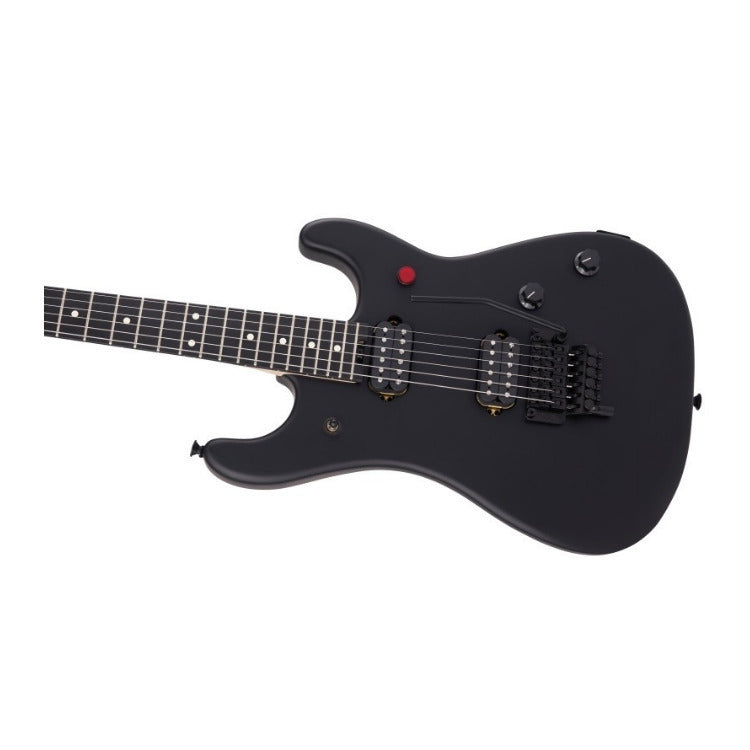

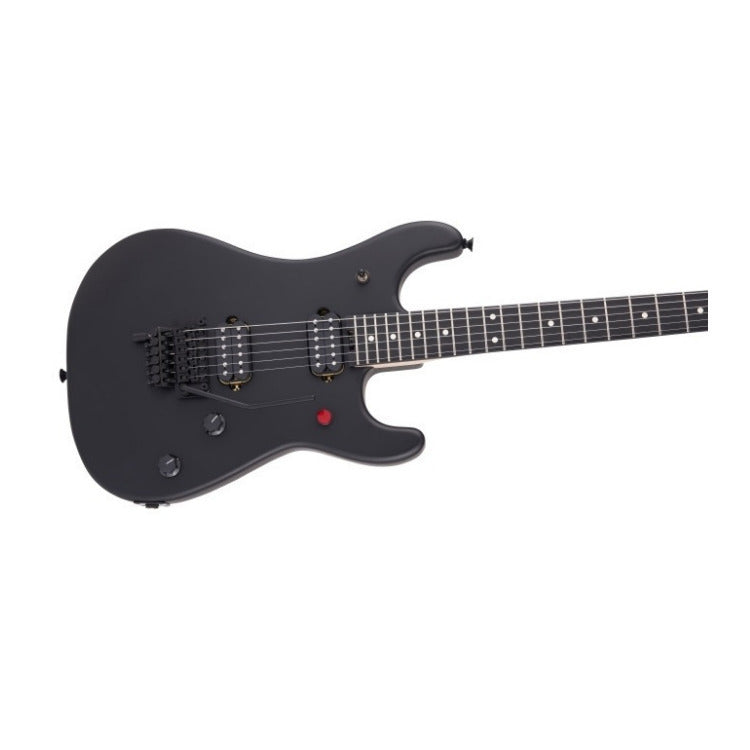

EVH 5150 Series Standard 6-String Electric Guitar (Stealth Black) with Case
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

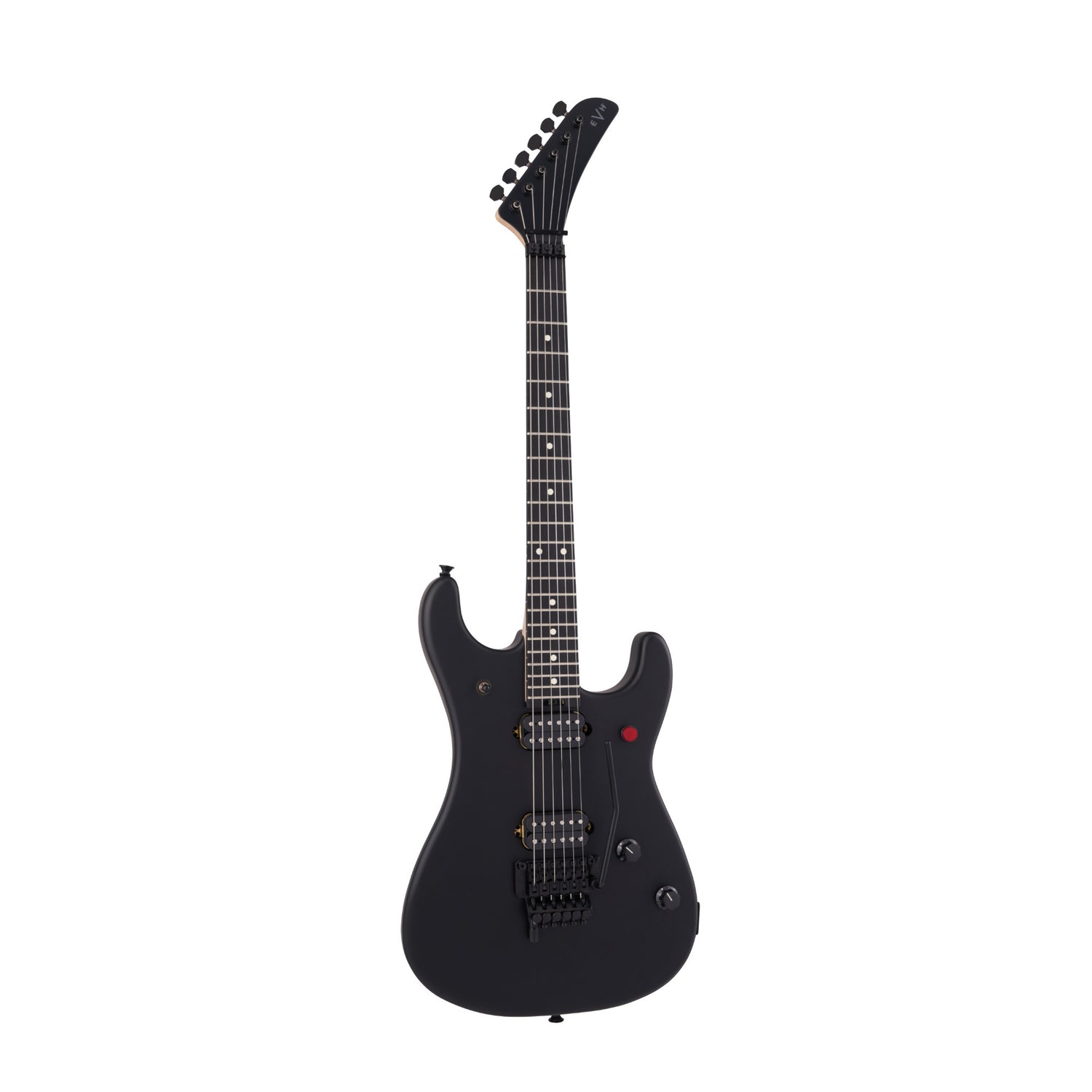

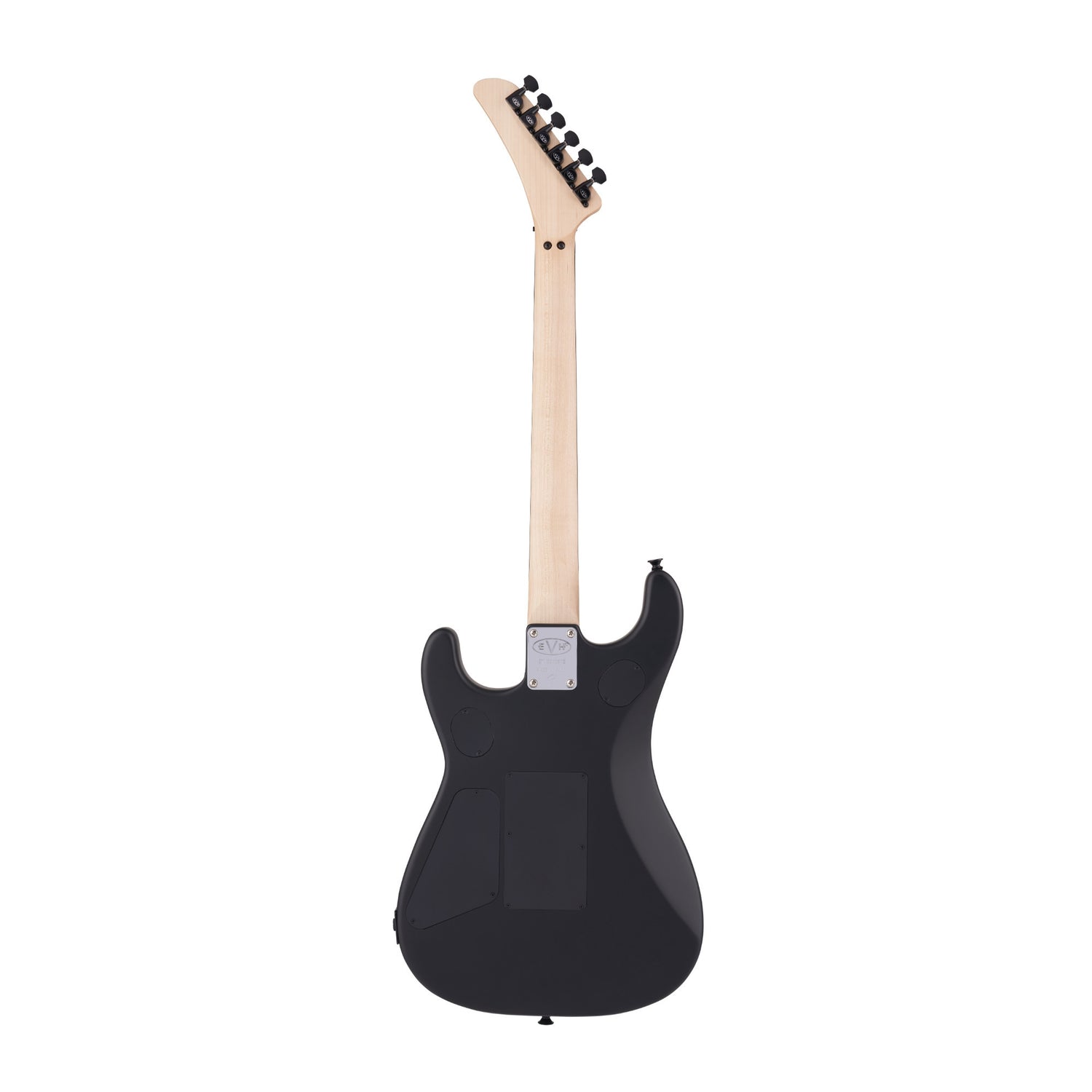

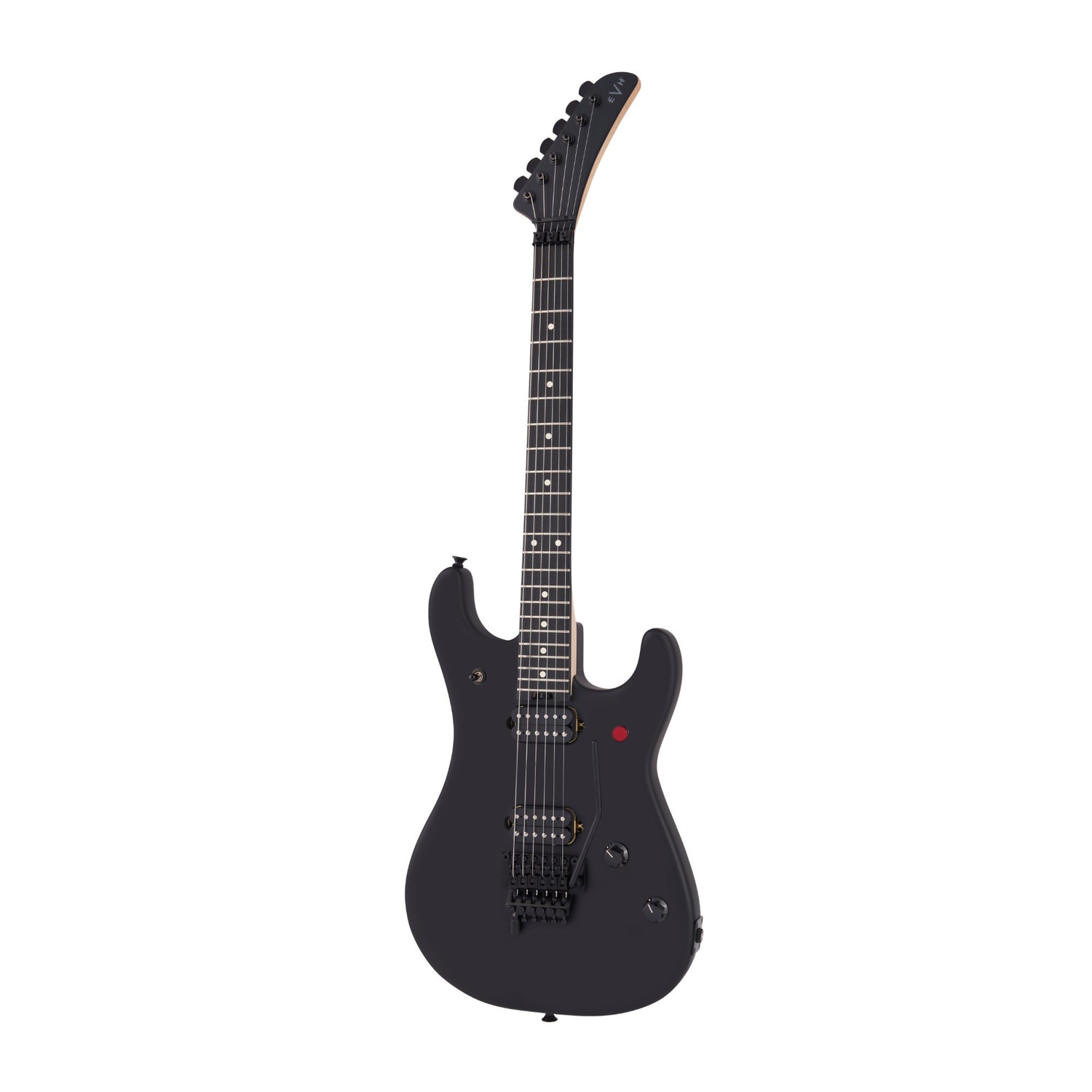

EVH 5150 Series Standard 6-String Electric Guitar with Ebony Fingerboard (Right-Handed, Black)
Engineered for speed, comfort, and full-throttle attitude, the reimagined EVH 5150 Series Standard 6-String Electric Guitar from the past blends both throwback and modernized features. Like its predecessor, the 5150 Standard features a modified Strat-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on Quartersawn maple neck features a comfortable modified C profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel, and color matched color-matched hockey stick headstock with EVH logo decal. Built for smooth and speedy playability, the 12-16 inch compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays. While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout.
Mechanism

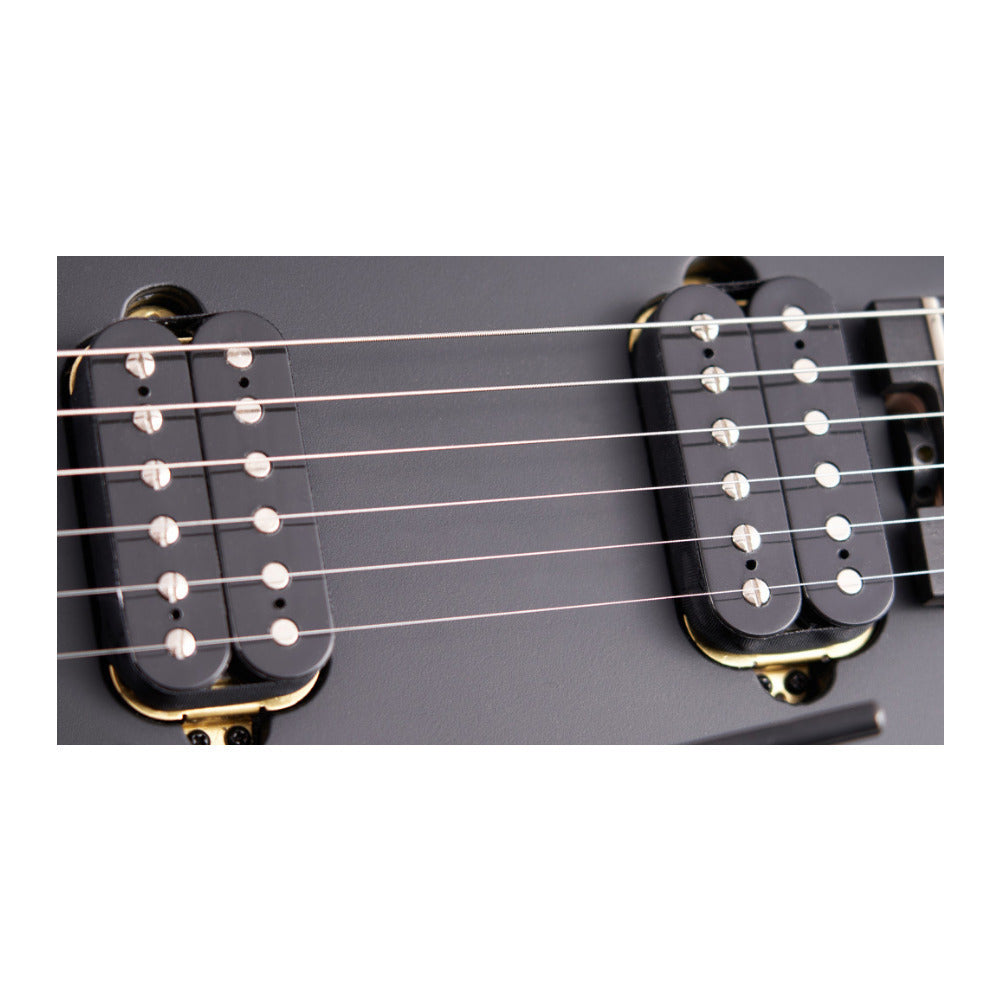

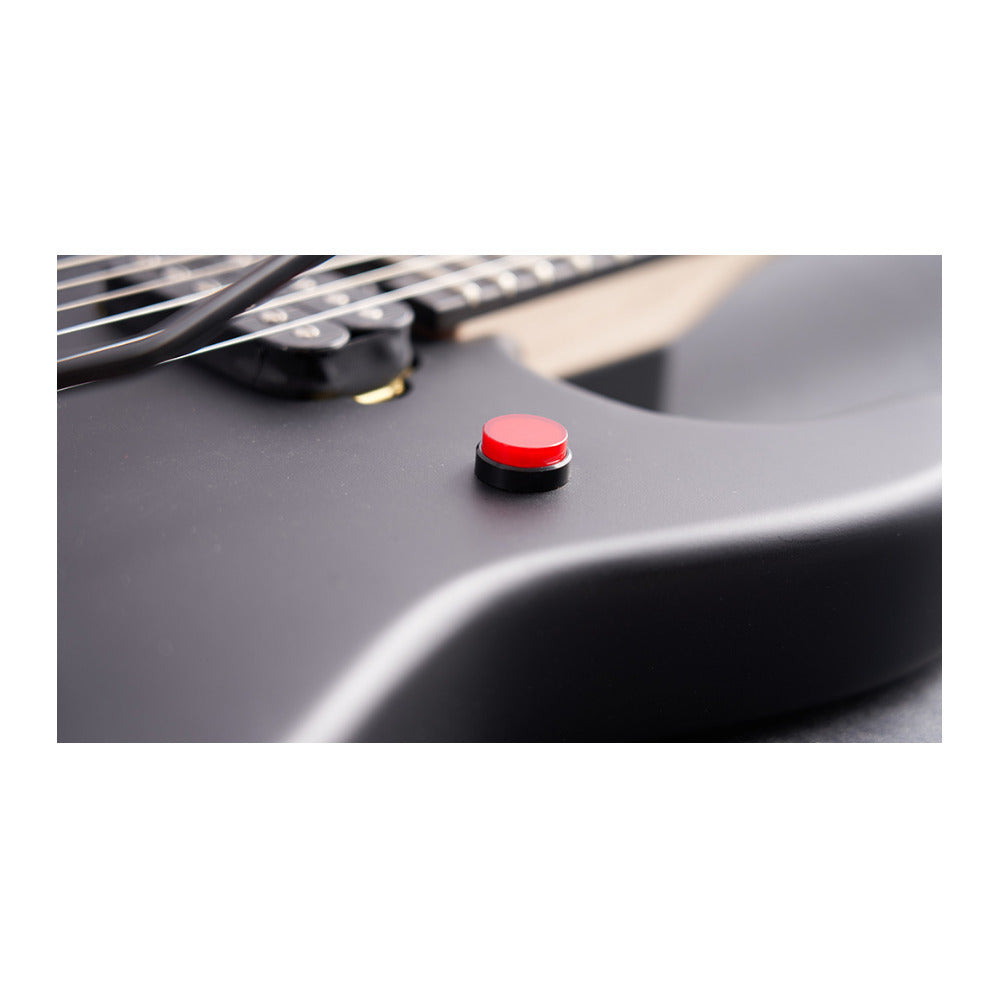

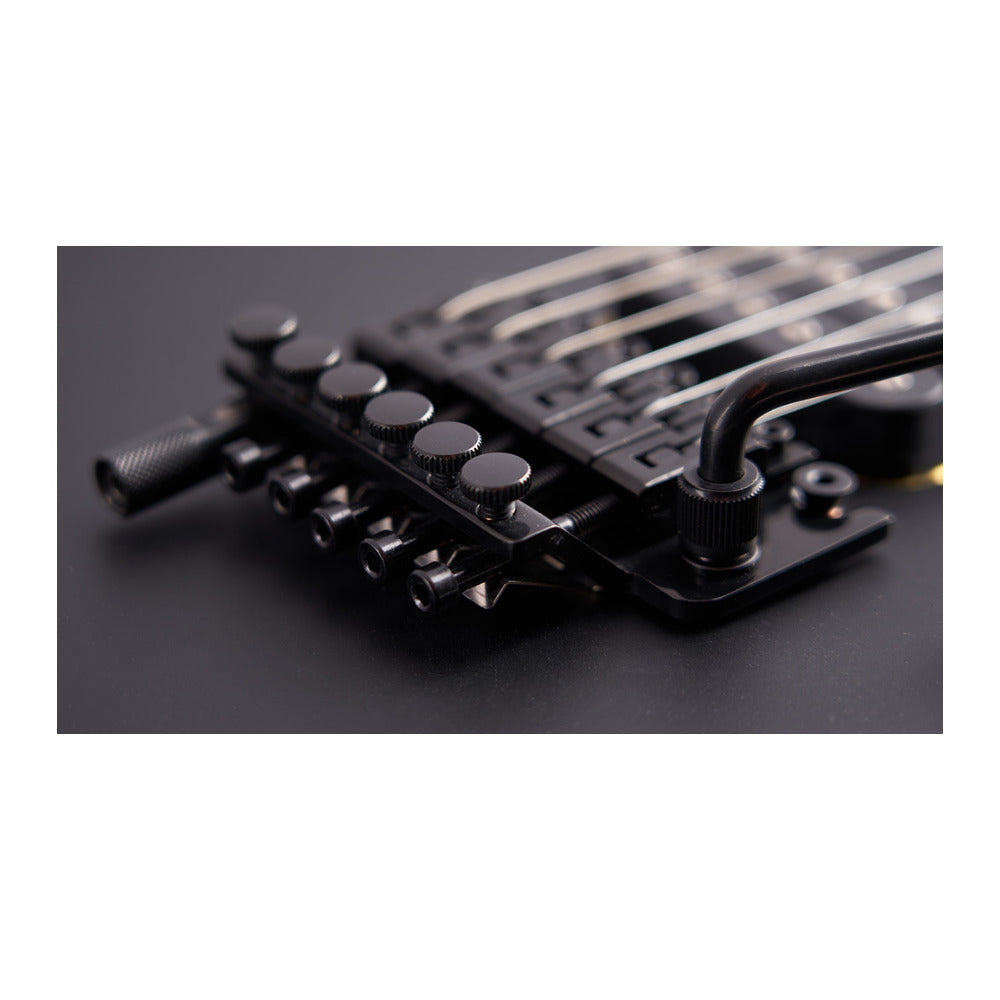

The custom-designed EVH Wolfgang Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls-to-the-wall overdrive, and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom-designed low-friction volume knob creates even-volume tapering for the smoothest volume swells, while the high-friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those s, rhythmic effects. Decked out with a dive-bomb certified EVH-branded top-mount Floyd Rose bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna for switching back and forth from drop-D to standard tuning in an instant. A high-octane, high-performance axe, the 5150 Standard boasts spotlight-ready style in an all-new Stealth Black finish with all-black hardware, including the EVH-branded Gotoh tuning machines.
Modified Strat-Style Body with Deeper Upper Body Curve
Reminiscent of the early super-Strat body styles, this modified Strat-style body features a deeper upper body curve that hugs your frame for increased performance comfort.

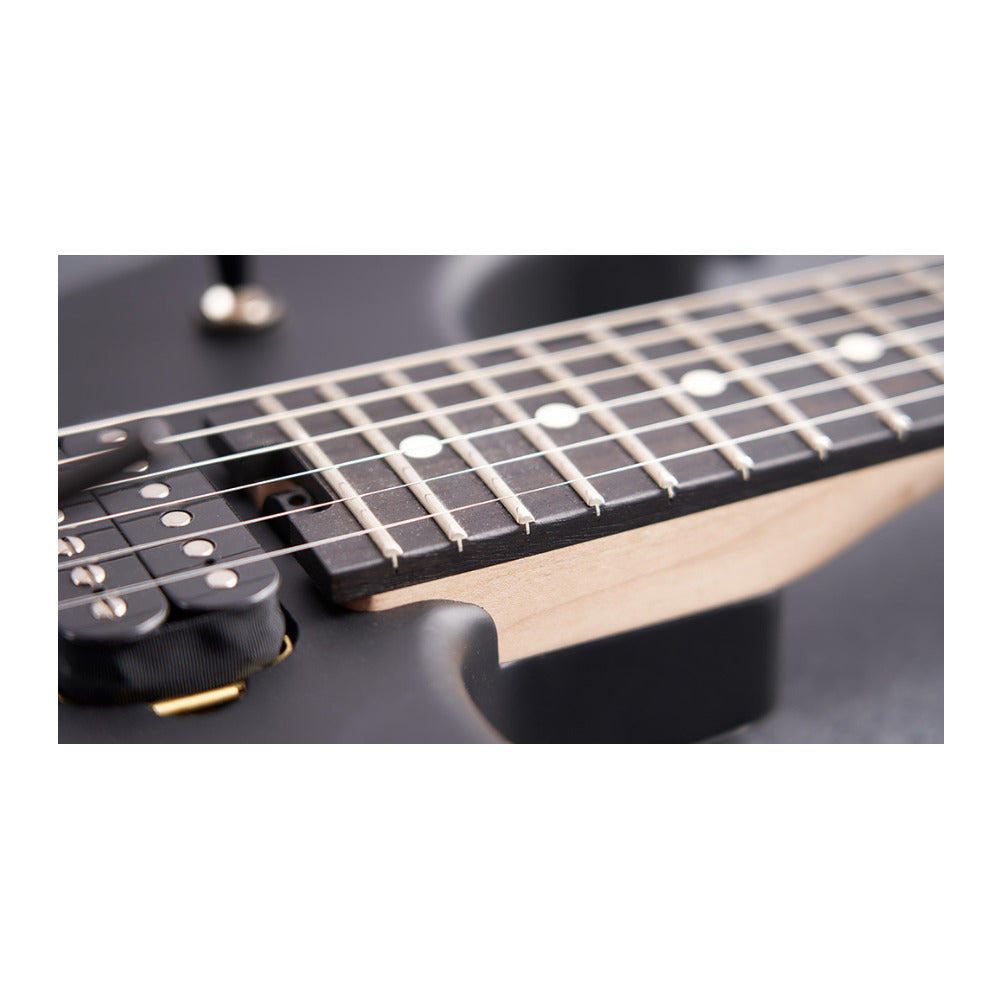

12-16 Inch Compound Radius Ebony Fingerboard
The innovative 12-16 Inch compound radius design features a fingerboard that gradually flattens toward the heel from its smaller and more rounded profile at the nut. This makes for unparalleled comfortable chording and riffing near the nut and precise shred articulation and bending near the heel. A premium wood, ebony has very tight wood grains and creates a slick and fast-playing surface. Ebony fingerboards are known for their clear and crisp attack and are favored by guitarists looking for a sharp top end, pleasing brightness, and articulate mid-range.

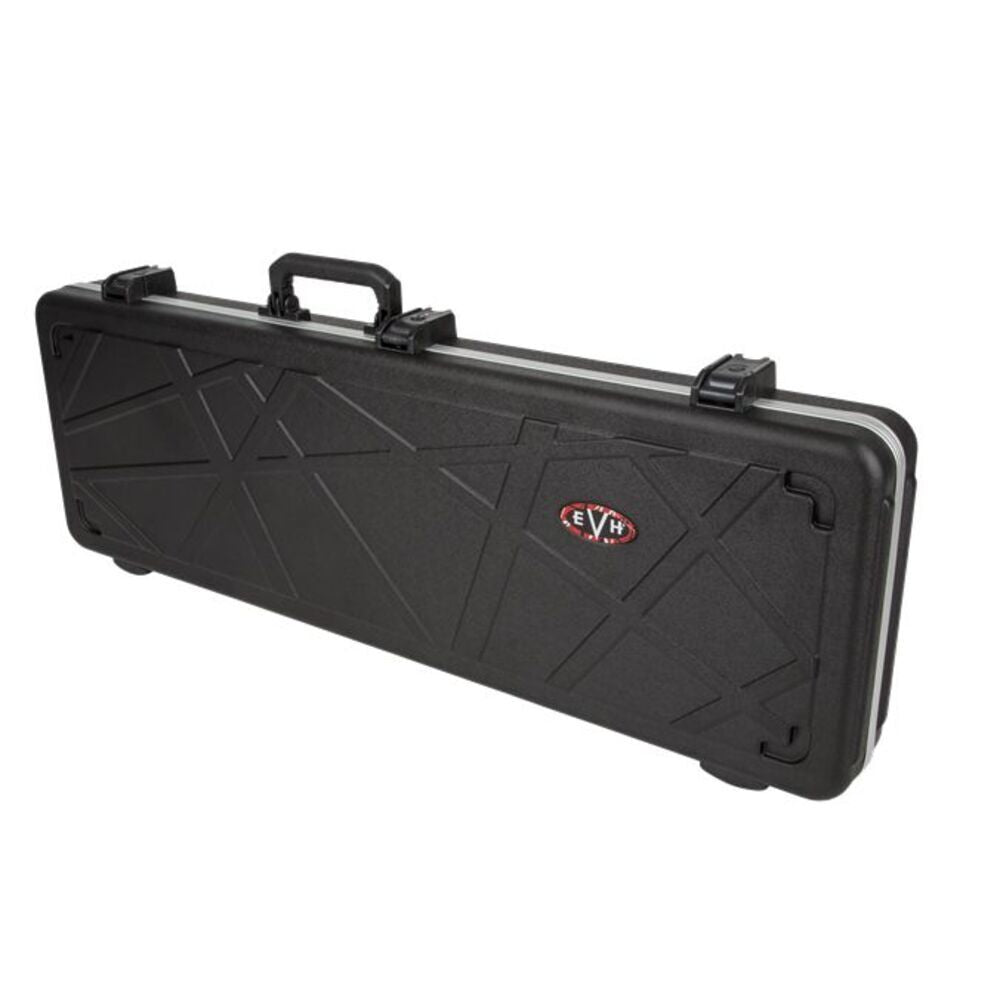

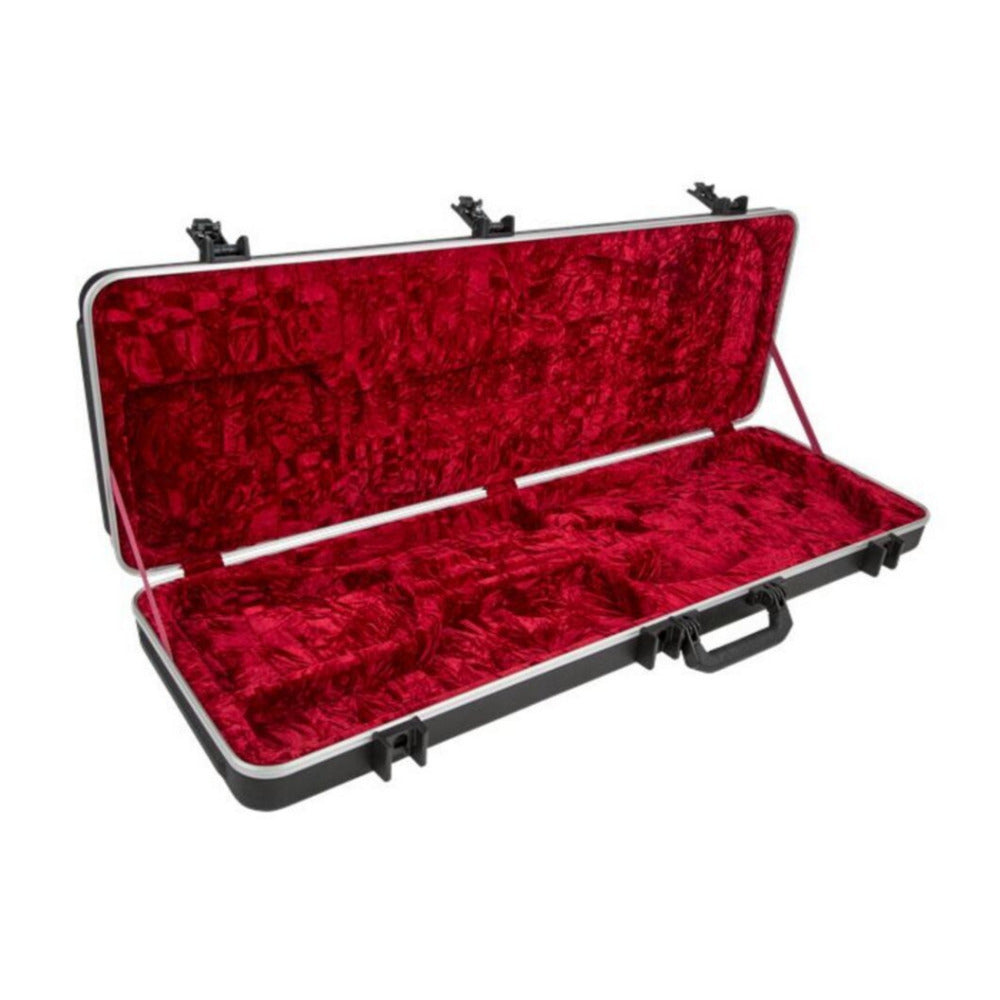

EVH Striped Series Electric Guitar Hardshell Case with Red Plush Molded Interior (Black)
The best way to transport or store your EVH Stripe Series guitar is with the EVH Striped Series Electric Guitar Hardshell Case. It features a red plush molded interior. A single storage compartment is perfect for straps, cables, picks, or any other accessories. The exterior features molded stripes, an EVH logo, and durable TSA latches.
General
| Number of Strings | 6-String |
| Cutaway | Double Cutaway |
| Body Material | Basswood |
| Guitar Neck Joint | Bolt-On |
| Number of Frets | 22 |
| Bridge Type | Tremolo |
| Right/Left Handed | Right-Handed |
| Body Type - Instruments | Solid |
| Fingerboard Material | Ebony |
| Scale Length | 25.5 in |
| Pickups | Humbucker |
| Switching | 3-Way |
| Fretboard | Ebony |
EVH 5150 Series Standard 6-String Electric Guitar with Ebony Fingerboard
General
| Series | 5150 series guitars |
| Color | Stealth Black |
| Number of strings | 6 |
| Orientation | Right-hand |
Body
| Body finish | Satin urethane |
| Body shape | 5150 |
| Body material | Basswood |
Electronics
| Bridge pickup | Direct mount EVH Wolfgang humbucking |
| Neck pickup | Direct mount EVH Wolfgang humbucking |
| Pickup color | Black |
| Controls | Volume (500K EVH bourns low friction pot) with treble bleed circuit, tone (250k EVH bourns high friction pot) |
| Pickup switching | 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup |
| Auxiliary switching | Kill Switch |
| Pickup configuration | HH |
Neck
| Neck material | Quartersawn Maple |
| Neck construction | Bolt-On with graphite reinforcement |
| Neck thickness | .790 inch at 3rd Fret and .810 inch at 12th fret |
| Neck finish | Hand-rubbed satin urethane |
| Neck shape | EVH modified C backshape |
| Scale length | 25.5 inch (64.77 cm) |
| Fingerboard radius | 12-16 inch Compound radius (304.8 to 406.4 mm) |
| Fingerboard material | Ebony |
| Number of frets | 22 |
| Fret size | Jumbo |
| Nut material | Floyd rose R3 mocking |
| Nut width | 1.685 inch (42.8 mm) |
| Position inlays | Cream dot |
| Side dots | Cream |
| Truss rod nut | Heel-mount truss rod adjustment wheel |
| Truss rod wrench | 2.5 mm Hex |
| String trees | Floyd Rose retainer bar |

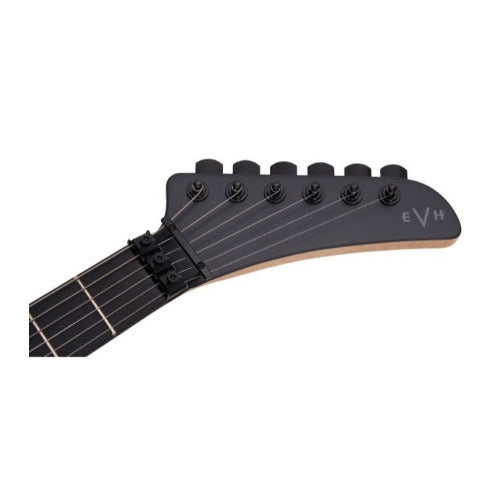

| Headstock | EVH hockey stick |
| Neck plate | 4-Bolt standard |
Hardware
| Bridge | Top-Mount EVH-branded Floyd Rose locking tremolo with EVH-D-tuna |
| Hardware finish | Black |
| Tremolo arm | Floyd Rose 1000 series locking |
| Tremolo block | Brass |

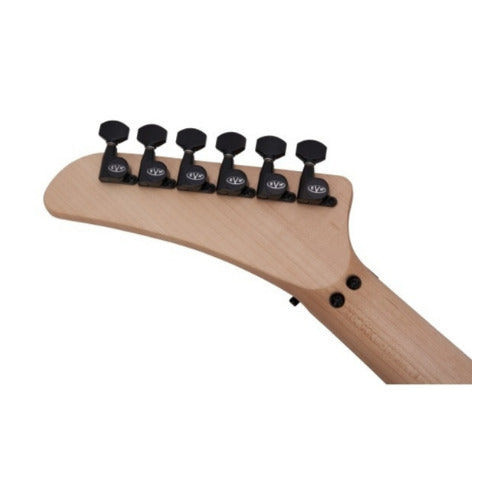

| Tuning machines | EVH-branded Gotoh |
| Control knobs | Black knurled with white indicator |
| Switch tip | Black |
Miscellaneous
| Strings | EVH nickel-plated steel (.009-.042 gauges) |
| Strap buttons | Oversized |
Accessories
| Case/gig bag | Optional EVH striped hardshell (p/n 022-6100-506); Optional EVH black gig bag (p/n 022-1512-006) |
| Included accessories | Tremolo arm, hex keys and user manual |
EVH Striped Series Electric Guitar Hardshell Case with Red Plush Molded Interior
| Condition | New |
| Case primary application | Electric guitar case |
| Wheels | No |
| Color | Black |
| Interior | Red plush molded |
| Closure type | Toggle |
| Pattern | Striped |
| Latches | TSA |
