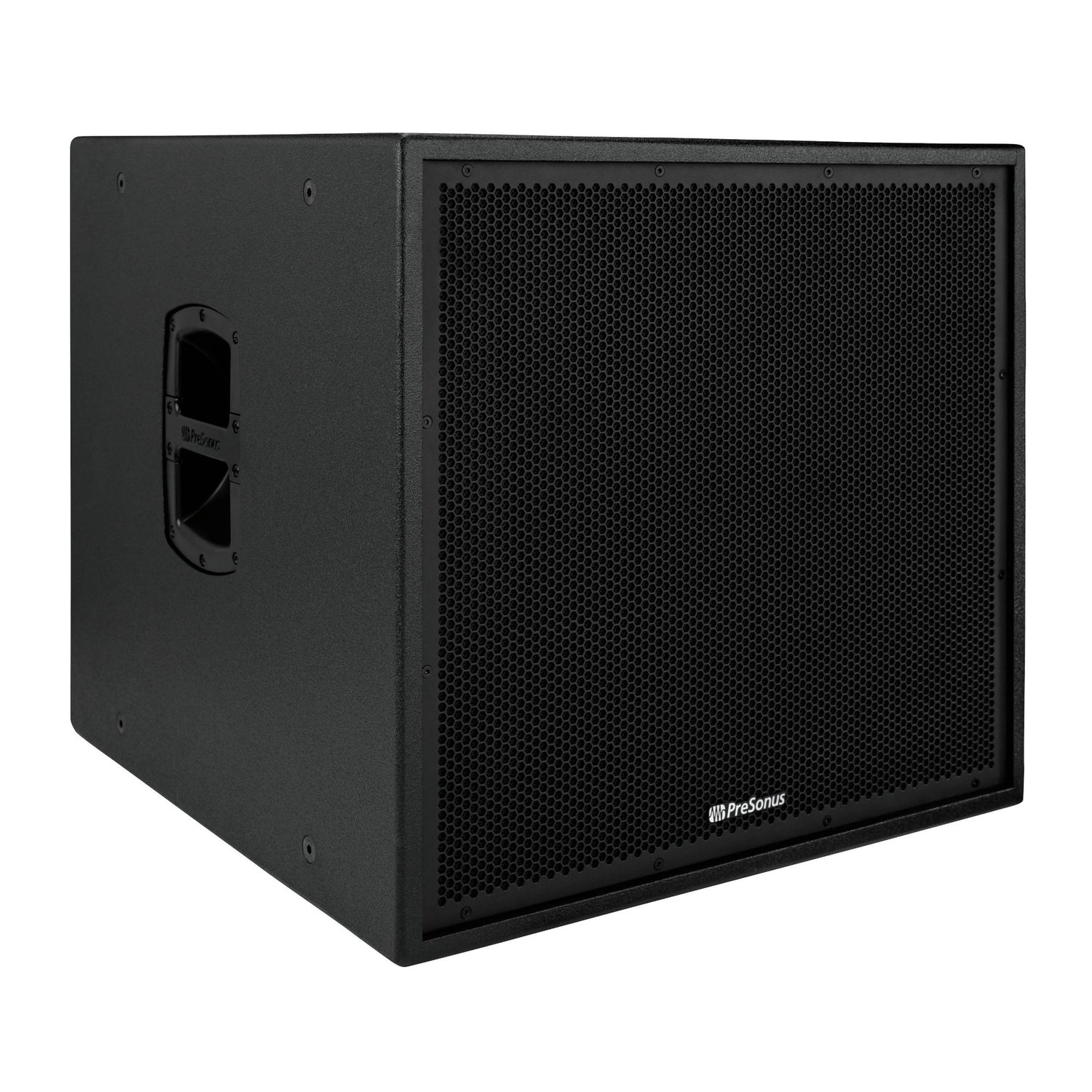

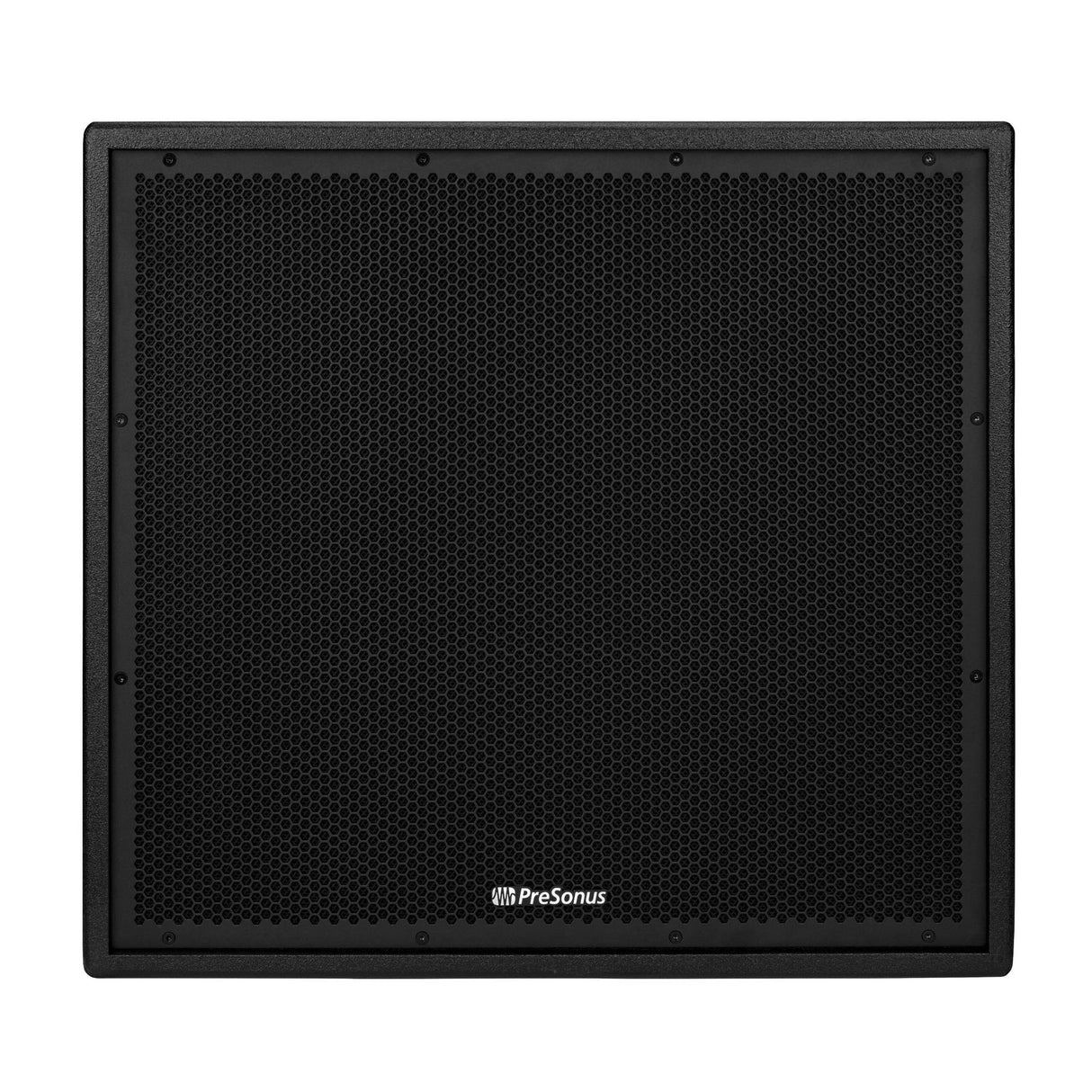

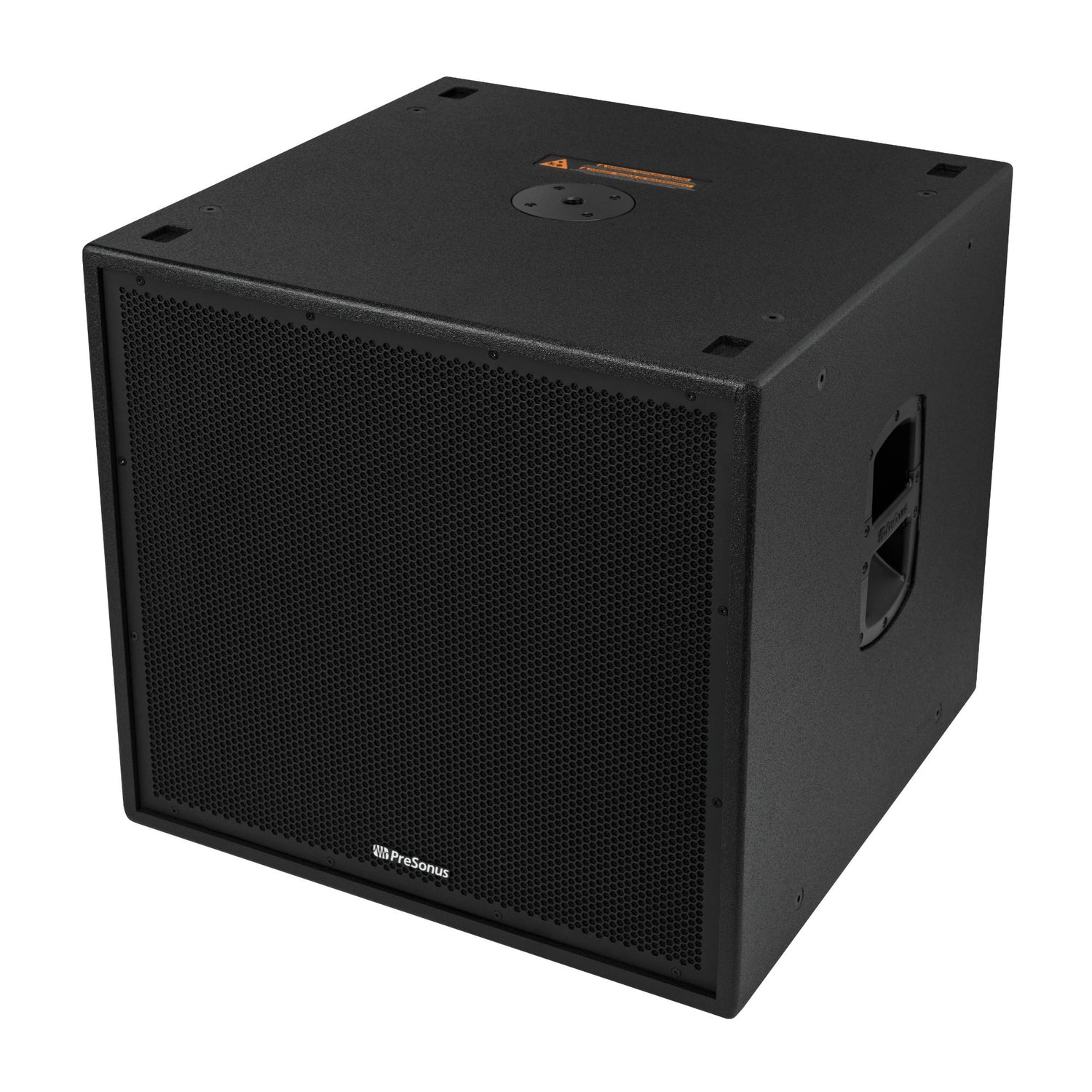

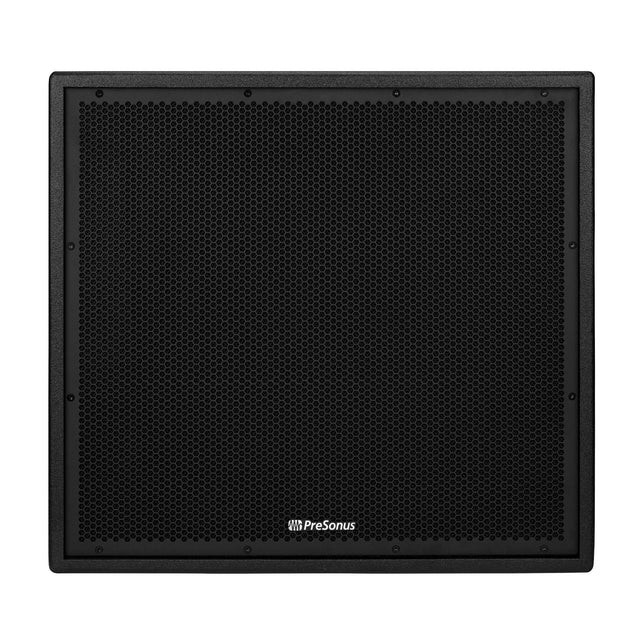

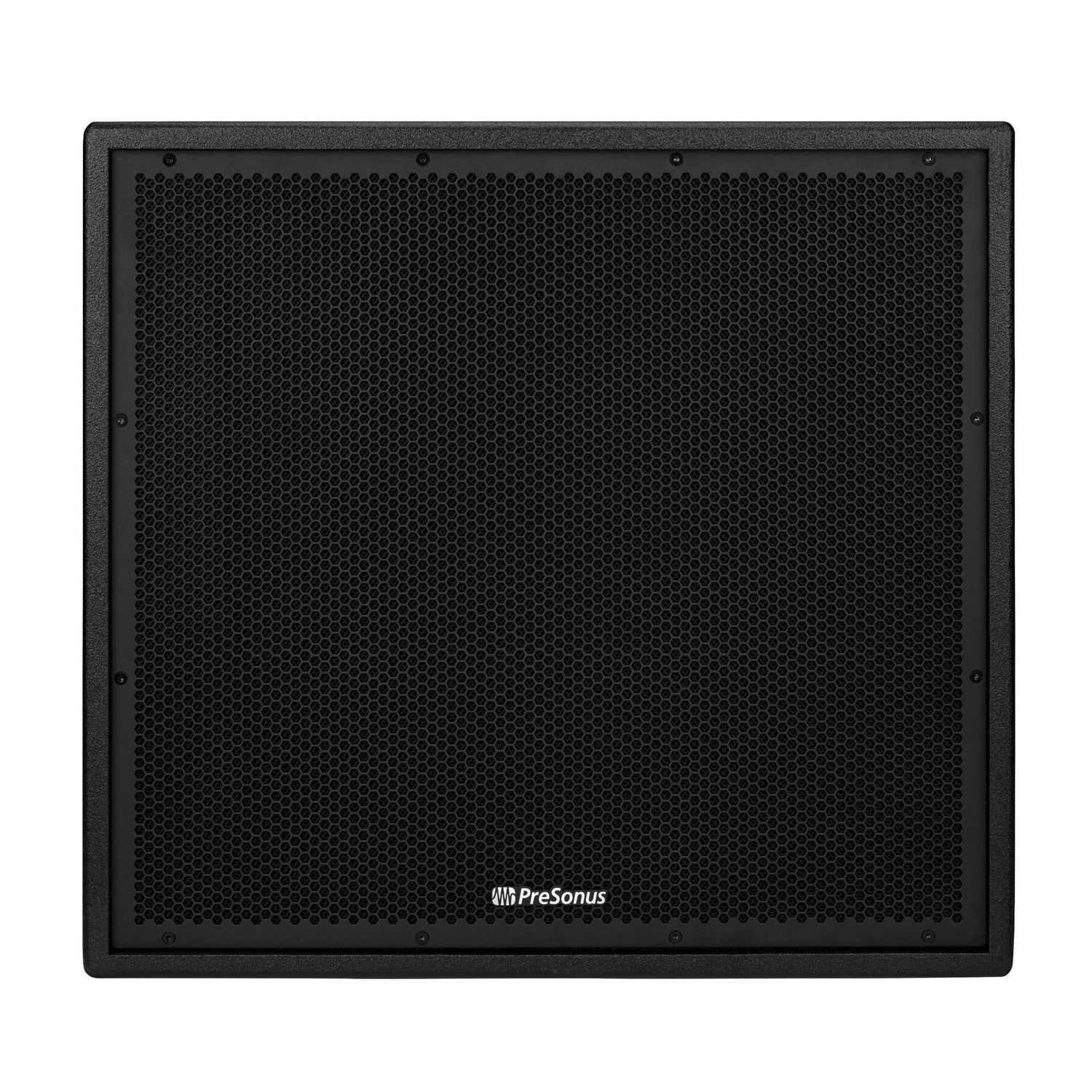

PreSonus CDL Sub18 18-Inch 1000W Active Powered Subwoofer
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
A terrific complement for any full-range loudspeaker and the perfect companion for PreSonus CDL-series loudspeakers, the CDL Sub18 Active Subwoofer delivers tight, coherent low-end, driven by an integrated 2,000-watt Class D power amp, and features a unique ported design that maximizes efficiency. Its powerful, articulate sub-bass performance and compact design make the CDL Sub18 a great choice for installed and mobile sound.
The CDL Sub18 features an 18-inch LF transducer with 4-inch voice coil, providing 7 mm of driver travel before over-excursion to move more air for a low-end punch you can feel. When flown or combined for ground-stacked applications, the CDL Sub18 and CDL12P or CDL10P form a complete system with an even response across the frequency spectrum.

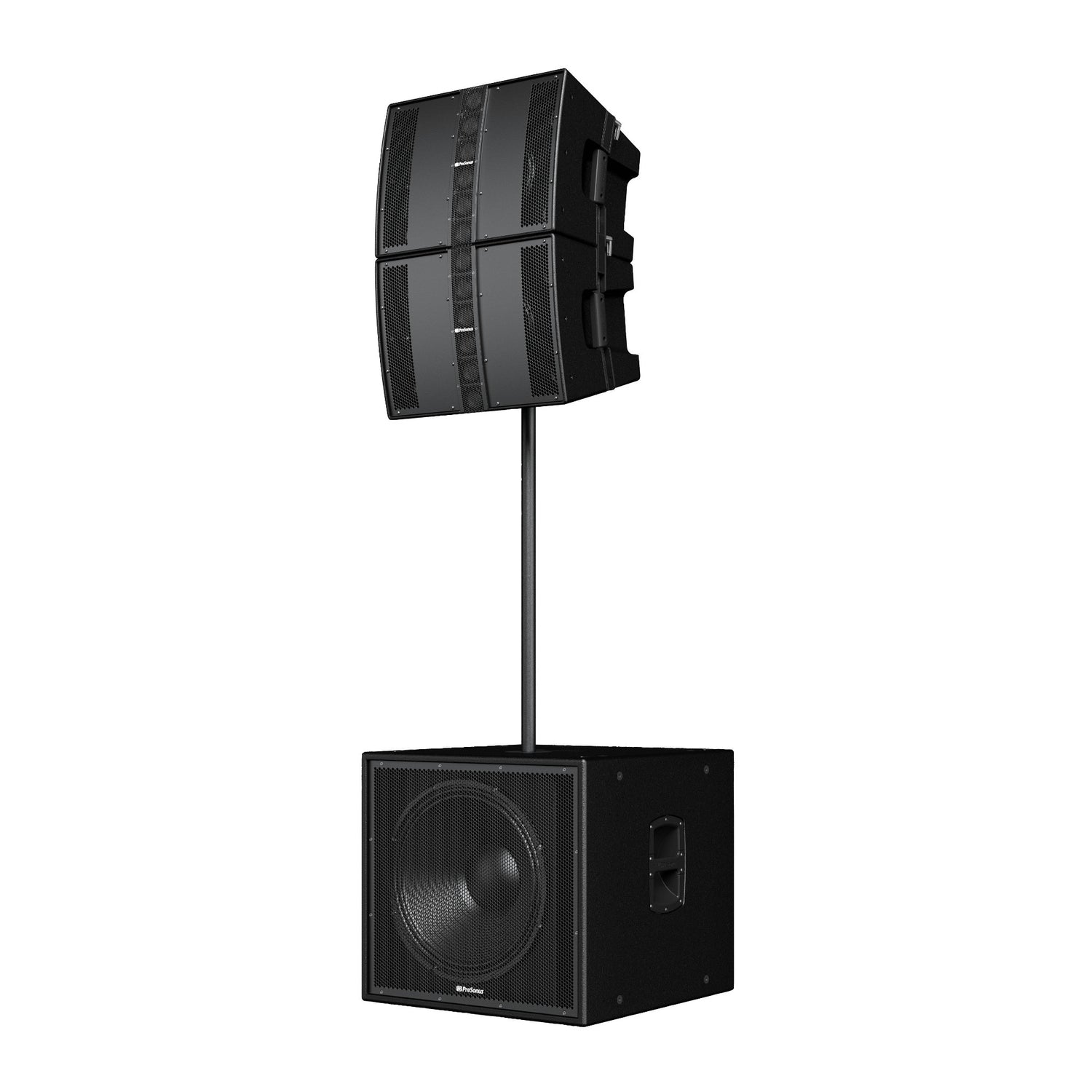

An integrated pole mount supports ground-stacked systems with up to two CDL-series loudspeakers. For more bass, stack two CDL Sub18 subwoofers together. Integrated M10 fly points make it easy to suspend CDL Sub18 subwoofers, for flexibility in any environment.
For flexibility in various live sound situations, a menu system is provided for adjusting the performance of the subwoofer. This includes, sound enhancing presets, plus a variable low pass filter for adjusting the transition between full range loudspeakers.
Features:
- 18-inch low-frequency driver with a 4-inch voice coil
- 2,000W peak (1000W RMS) Class D power amp
- Maximum SPL 135 dB peak with 36 Hz to 144 Hz frequency response
- Unique ported design that maximizes efficiency
- Easy-to-use Menu and Performance Monitoring LED's
- Variable Low Pass Frequency Control
- Integrated M20 pole mount for ground-stacked systems
- Integrated M10 Fly Points for suspending

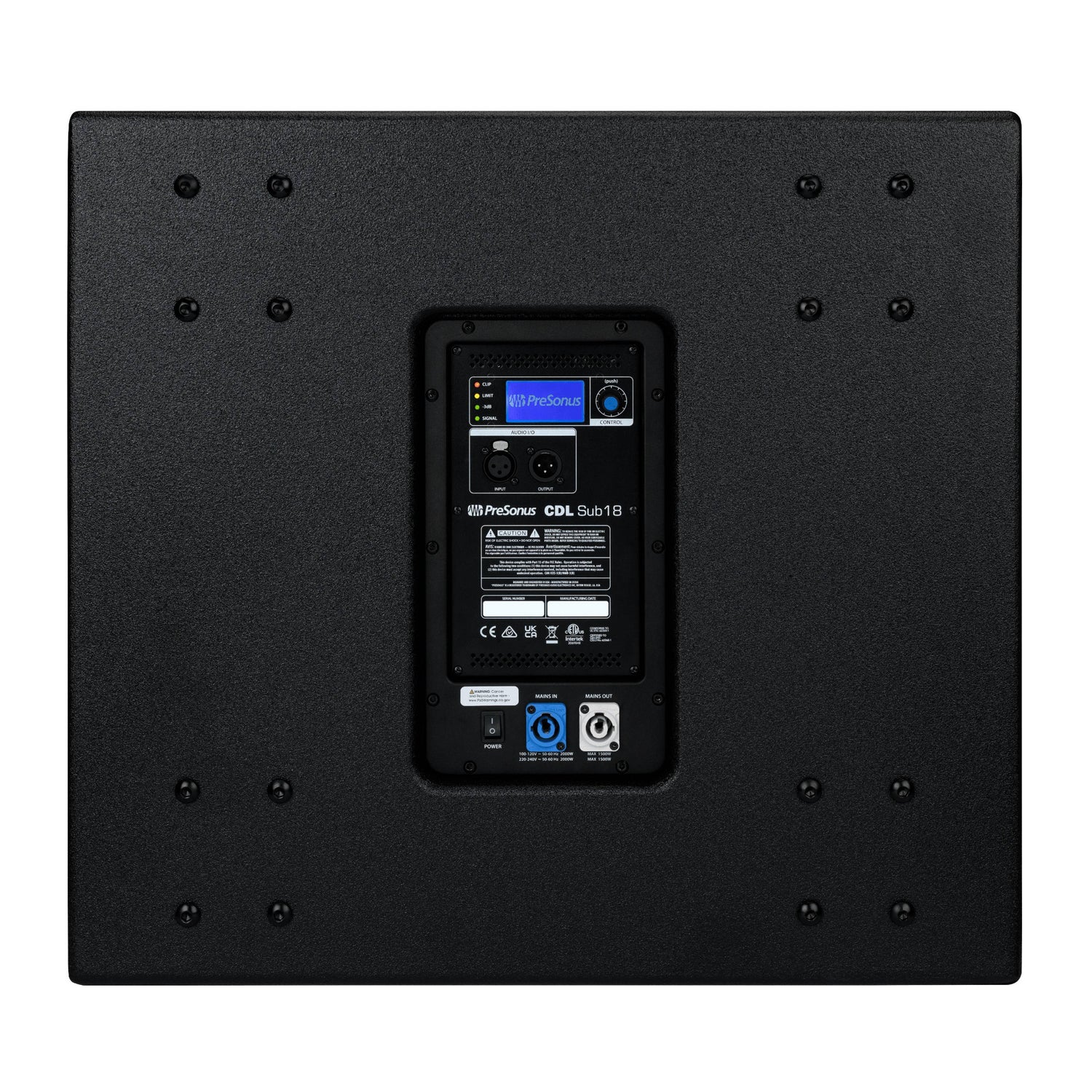

- Balanced XLR input and balanced XLR direct output
- Locking In and Out powerCon AC connectors
- Rugged, Chemline Polyurea-finished
- 15 mm eucalyptus plywood enclosure with tour-grade steel grille
Electronics
| Channels | Not Applicable |
| Inputs | 1 XLR |
| Line Out | 1 Direct Line Out (XLR) |
| Power Consumption | 2000 Watts |
| Voltage Requirements | 100–240 VAC, 50–60 Hz |
General
| Amplifier Type | Class-D |
| Color | Black |
| Product Name | CDL Sub18 Active Subwoofer, Black |
| Series | CDL |
Hardware
| Cooling | Free Air Convection |
| Handle | 2 Side Handles |
| LF Power | 2 × 500W Bridged (1000W Total) |
| Line Inputs Impedance | 10 kΩ |
| Line Inputs Maximum Level | +22 dBu |
Measurements
| Product Depth | 25 inch (63.5 cm) |
| Product Height | 22.75 inch (57.8 cm) |
| Product Width | 24.5 inch (62 cm) |
Miscellaneous
| Power Cable | powerCON In and Out |
Performance
| Amplifier Dynamic Range | 119 dB (A-Weighted) |
| Maximum Output Level | 135 dB |
| Total Power Output | 2000W Peak (1000W RMS) |
Speakers
| Speaker Type | Powered Subwoofer |
| Total Impedance | N/A |
