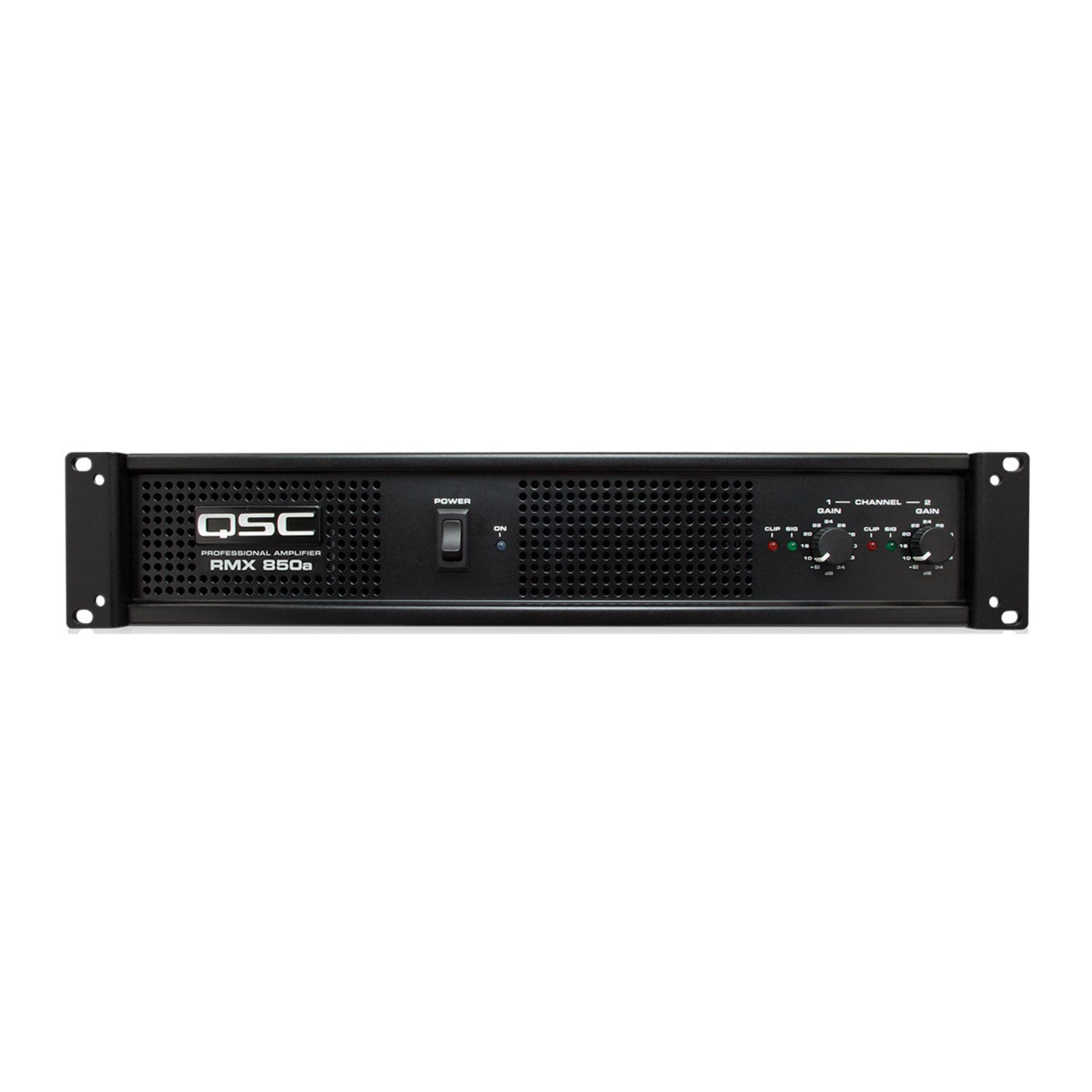

QSC RMX850a 850a Professional Performance Two Channels Compact Power Amplifier
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The QSC RMX850a Power Amplifier is designed for professional quality performance. The QSC is known for incorporating road-proven designs into its products.
Compact Design
This amplifier is compact in size, delivering up to 430 watts. It is designed with a high-current toroidal transformer, which provides greater 2-ohm power and low noise. It features independent user-defeatable clip limiters that reduce distortion. It is enriched with selectable low-frequency filters to protect speakers and increase headroom.
Easy Connection

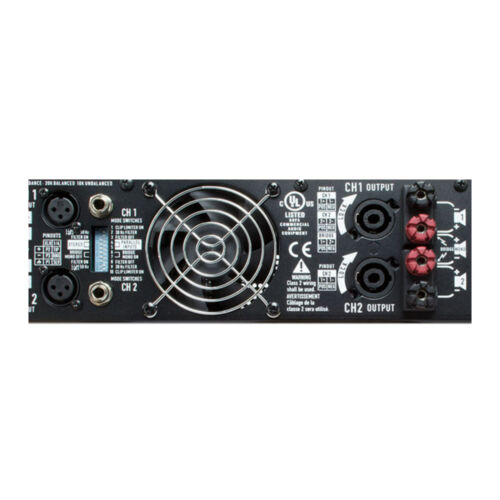

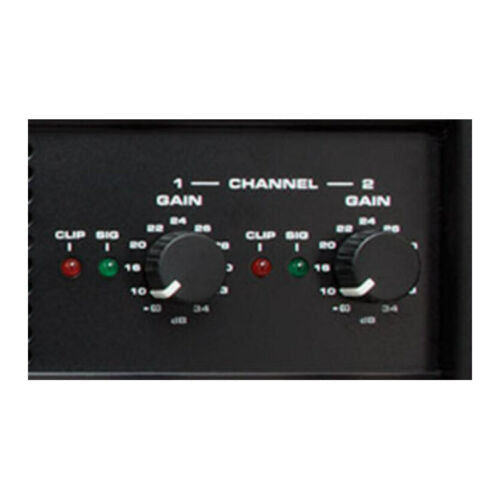

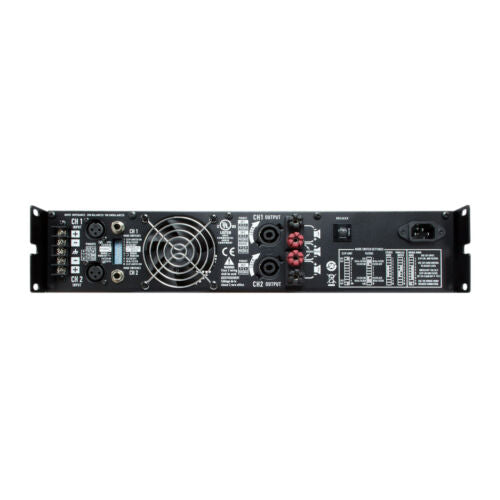

The QSC RMX850a amplifier has balanced 1/4-inch TRS, XLR, and barrier strip inputs, as well as touch-proof binding posts and Neutrik Speakon outputs. Its front-mounted gain controls allow for easy access and adjustment of gain levels.
Control
The amplifiers feature signal and clip LED indicators for monitoring performance. It has independent DC and thermal overload protection on each channel, which automatically protects the amplifier and speakers from damage.
General
| Configuration | Core |
| AC Input Power | 100, 120, 230 V AC (factory configured), 50–60 Hz |
| Ports | 11 |
Audio
| Impedance | 20k Ohms |
| Tone Adjustment | No |
- 8Ω, FTC 20 Hz to 20 kHz, 0.1 percent THD: 185 watt
- 8Ω, EIA 1 kHz, 0. Percent THD: 200 watt
- 4Ω, FTC 20 Hz to 20 kHz, 0.1percent THD: 280 watt
- 4Ω, EIA 1 kHz, 0.1percent THD: 300 watt
- 2Ω, EIA 1 kHz, 1percent THD: 430 watt
- 8Ω, FTC 20 Hz–20 kHz, 0.1percent THD: 530 watt
- 8Ω, EIA 1 kHz, 0.1percent THD: 600 watt
- 4Ω, EIA 1 kHz, 1percent THD: 830 watt
- Typical, 1/8 power pink noise at 4Ω: 4.5 A
- Severe, 1/3 power pink noise at 4Ω: 6.6 A
- AC mains plug 100/120V 230V: NEMA 5-15CEE7/7
- 20 Hz to 20 kHz, 10 dB below rated power: < 0.03percent tdD, 4Ω and 8Ω
- 1 kHz and below, full rated power: < 0.03percent tdD, 4Ω and 8Ω
- 20 Hz to 20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filter bybassed, 8Ω)
- Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+)
- Output: Touch-proof binding posts; Neutrik Speakon
- Front: AC switch; Channel 1 and 2 gain knobs
- Rear: 10-position DIP switch
- Power on: Green
- Signal: Yellow (1 per channel)
- Clip/protect: Red (1 per channel)
- Turn-on/off muting
- AC coupling (850, 1450)
- Triac crowbar (1850HD, 2450, 4050HD, 5050) on each channel
QSC RMX850a 850a Professional, Two Channels Power Amplifier with Input and Output Connectors
| Power per Channel, Stereo Mode (both channels driven) | |
| Power, Bridge-Mono Mode | |
| Signal to noise (20 Hz to 20 kHz) | -100 dB |
| Distortion (SMPTE-IM) | < 0.01percent |
| Input sensitivity at 8Ω | 1.15V (+3.4dBu) |
| Voltage gain | 31.6x (30 dB) |
| Output circuitry | Class AB |
| Current draw (120 V AC) | |
| Distortion (typical) | |
| Frequency response | |
| Damping factor (1 kHz and below) | > 300 at 8Ω |
| Input impedance | 10 kΩ unbalanced; 20 kΩ balanced |
| Input stage clipping | 10 V rms (+22 dBu) |
| Cooling | Continuously variable speed fan, back-to-front airflow |
| Connectors (each channel) | |
| Controls | |
| LED indicators | |
| Amplifier protection | Full short circuit, open circuit, tdermal, ultrasonic, RF protection. Stable into reactive or mismatched loads |
| Load protection | |
| Product dimensions (H x W x D) | 3.5 (2 RU) x 19 x 15.9-inch |
| Carton dimensions (H x W x D) | 24 x 22 x 6-inch |
| Net weight | 35lb |
| Shipping weight | 41lb |
| Power requirements | 100, 120, 230 V AC (factory configured), 50 to 60 Hz |
