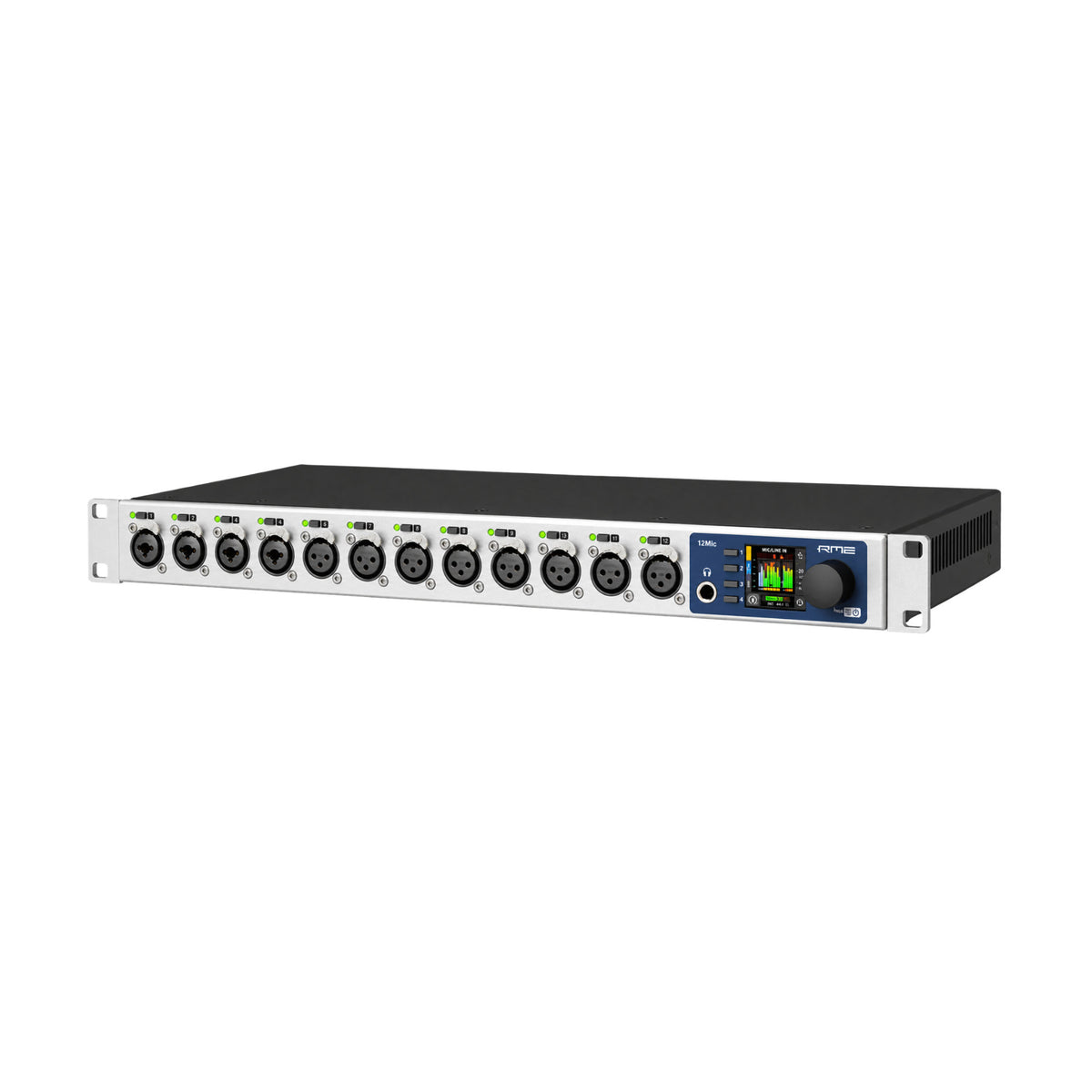

RME 12Mic 12-Channel High-End Digitally-controlled Microphone Preamp with AVB and MADI Networking
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 3 PM EST Mon - Friday will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

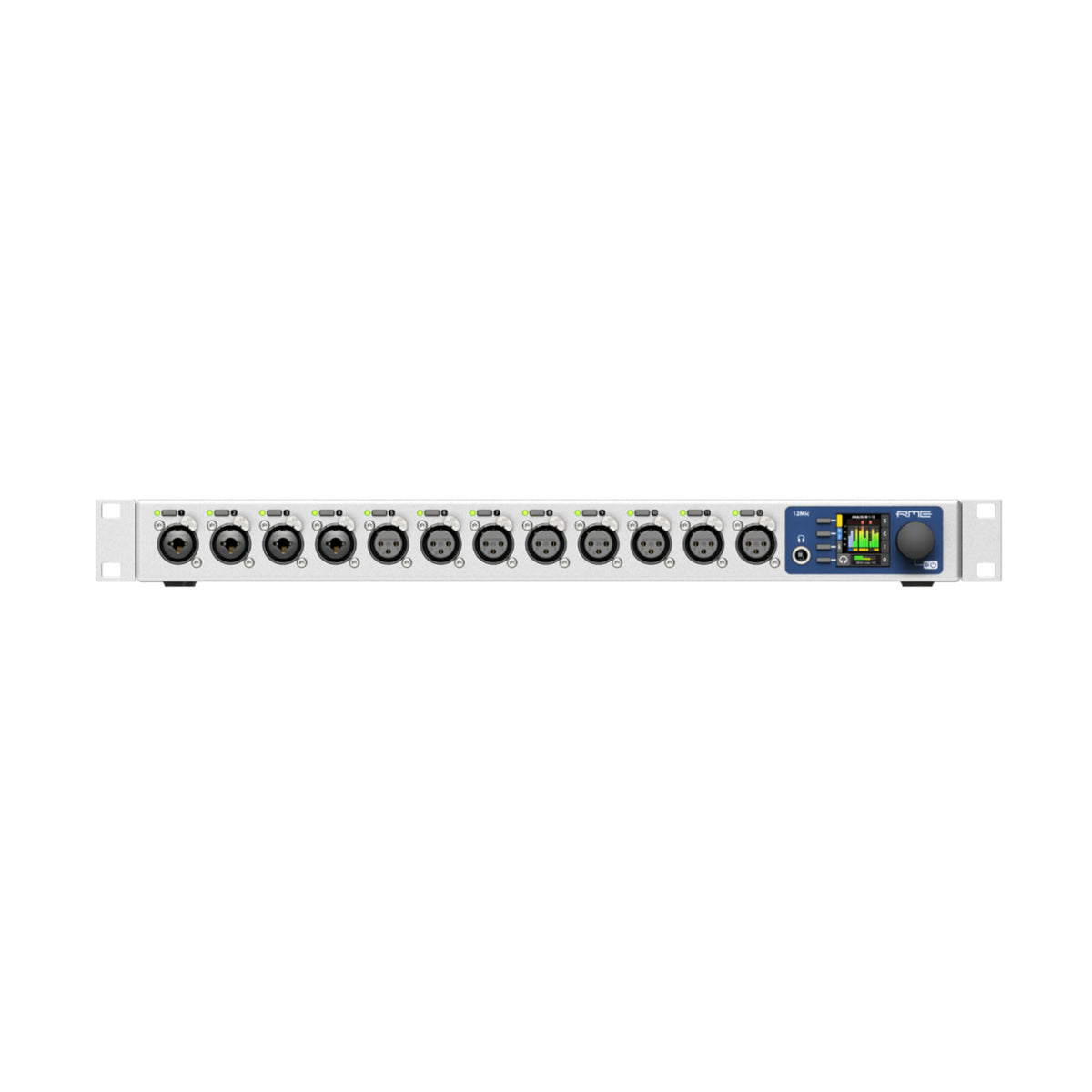

The RME 12Mic is a 12 channel digitally-controlled microphone preamplifier and converter built for professional recording, live sound, broadcast, and networked audio systems. All 12 front panel XLR inputs accept microphone and line level signals with up to 75 dB of gain, while the first four inputs also accept TRS connections with switchable Hi-Z for instruments.
Professional Recording Across 12 Channels
The PAD free microphone stages accept signals up to +18 dBu, while 24-bit conversion supports sample rates up to 192 kHz. Gain can be adjusted in 1 dB steps, making level matching across large microphone setups more predictable for multichannel sessions, ensembles, live recording, and installed systems.
AVB, MADI, and ADAT Integration

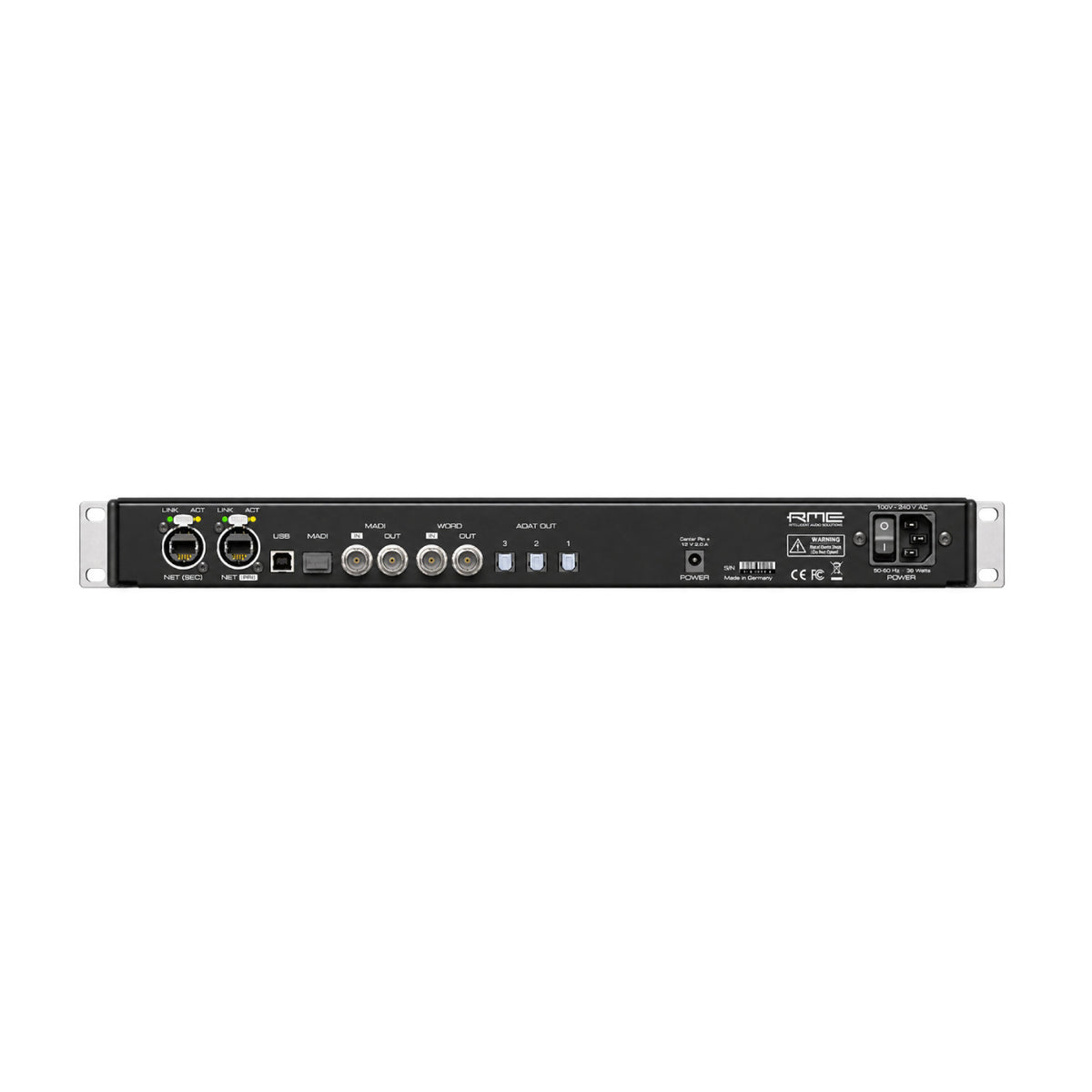

Dual Gigabit AVB network ports provide redundant network connectivity, while coaxial MADI supports up to 64 channels at 48 kHz. An optional SFP module adds optical MADI for independent or redundant operation. Three ADAT outputs provide up to 24 channels at single speed, allowing the 12Mic to integrate with existing interfaces, converters, and monitoring systems.
Fast Control and Flexible Routing
Front panel controls provide direct access to gain groups, phantom power, monitoring, and device settings without requiring deep menus. A web interface adds remote control and access to the internal routing matrix, while SteadyClock FS provides low jitter digital clocking for complex digital audio systems.
Analog Inputs
| Microphone and Line Inputs | 12 x XLR |
| Combo Inputs | Channels 1 through 4 support XLR and TRS |
| Mic Gain Range | 75 dB in 1 dB Steps |
| TRS Gain Range | 42 dB in 1 dB Steps |
| Maximum XLR Input Level at 0 dB Gain | +18 dBu |
| Hi-Z Instrument Inputs | 4, Switchable |
| Hi-Z Input Impedance | 1 MOhm |
| AD Resolution | 24-Bit |
Digital Connectivity
| AVB Network Ports | 2 x RJ45 1 Gigabit Ethernet |
| AVB Redundancy | Yes |
| Coaxial MADI | BNC, 75 Ohm |
| Optical MADI | Optional SFP Module |
| MADI Channels at 48 kHz | Up to 64 |
| MADI Channels at 96 kHz | Up to 32 |
| MADI Channels at 192 kHz | Up to 16 |
| ADAT Outputs | 3 x Optical |
| ADAT Output at Single Speed | Up to 24 Channels |
| ADAT Output at 96 kHz | Up to 12 Channels |
| Word Clock | BNC |
| USB | USB 2.0 for Remote Control and Firmware Updates |
Monitoring and Control
| Headphone Output | 6.3 mm TRS |
| Front Display | 1.54-inch Full-Color |
| Front Panel Control | Encoder, Function Buttons, Individual Channel Buttons |
| Remote Control | Web Interface |
| Routing Matrix | Up to 268 x 282 Channels |
| Internal Presets | Up to 15 |
| Clocking Technology | SteadyClock FS |
Physical and Power
| Rack Format | 1U |
| Dimensions | 17.3 x 1.7 x 9.6 inches |
| Weight | 6.2 lbs. |
| Internal Power Supply | 100 to 240 V AC |
| Optional Redundant Power Input | 12 V DC, 2.5 A |
| Typical Power Consumption | 20 W |
| Standby Power Consumption | 0.5 W |
| Conformity | CE, FCC, WEEE, RoHS |
