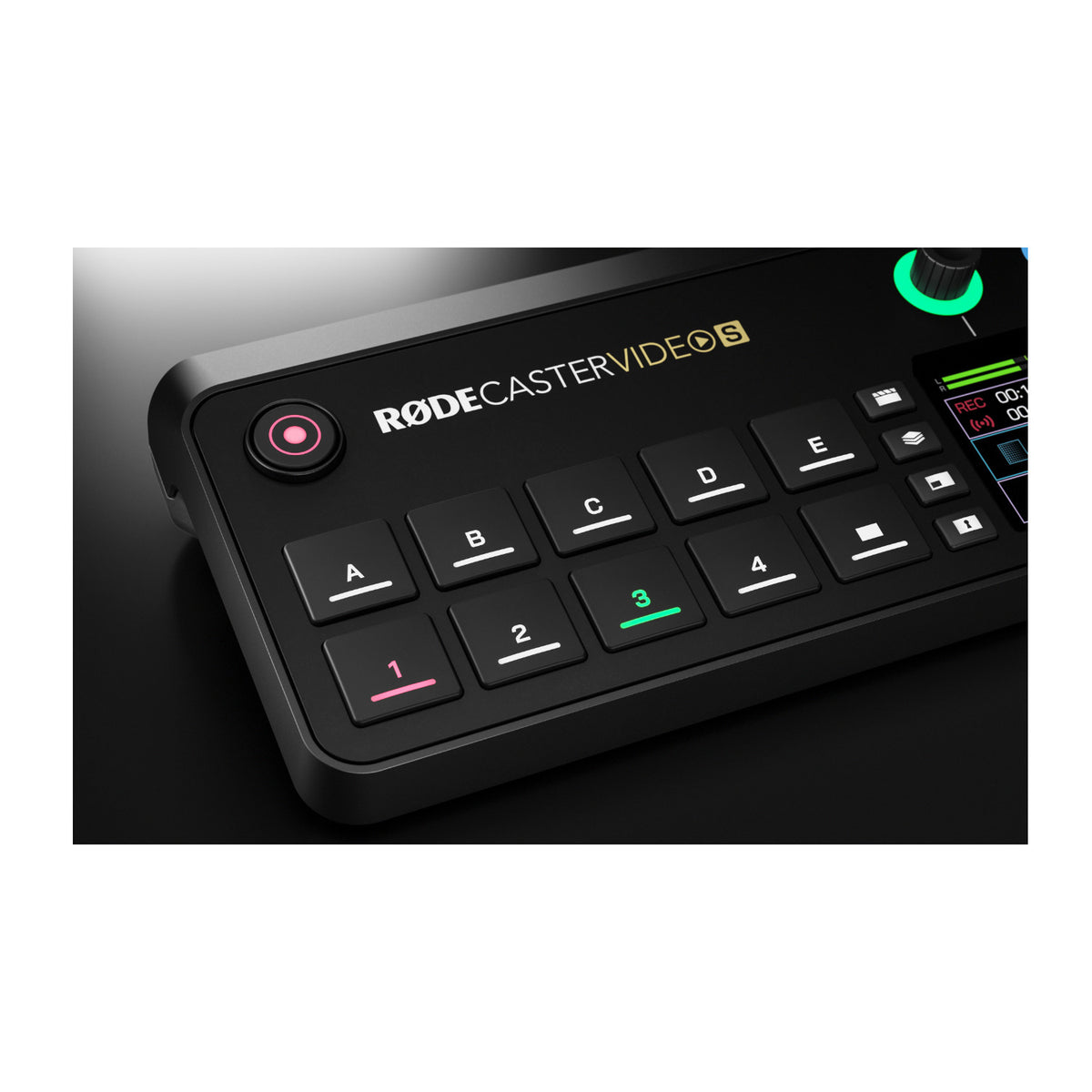

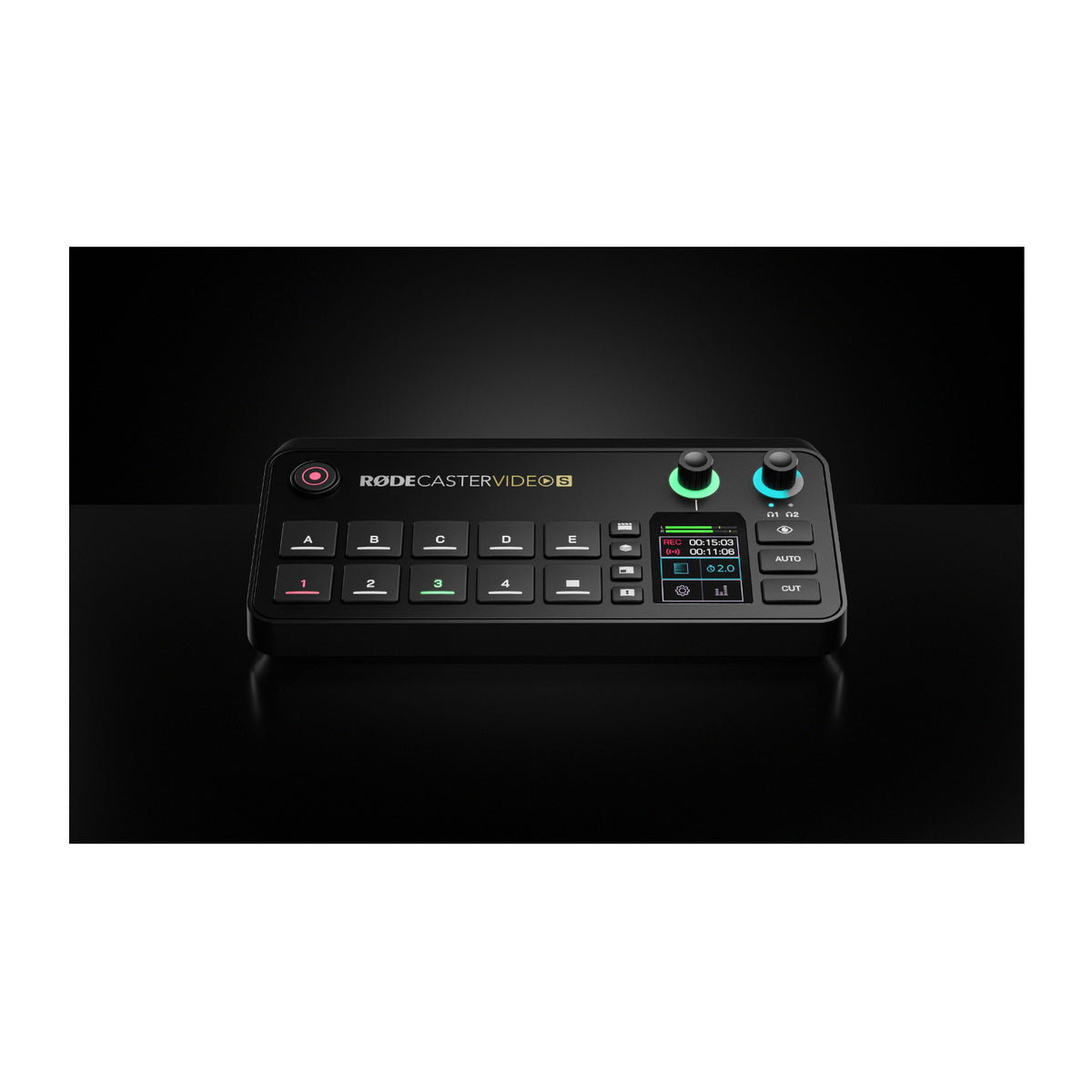

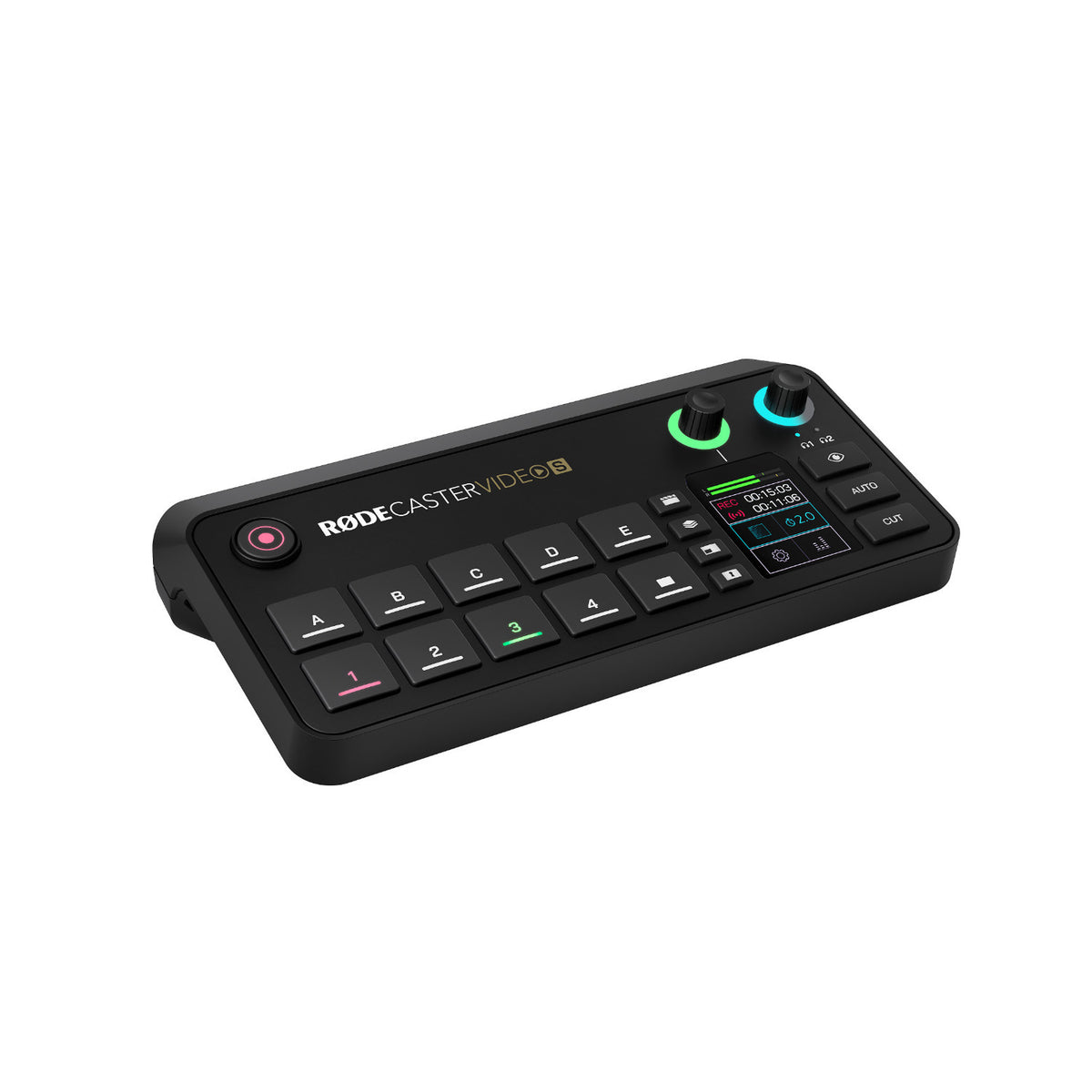

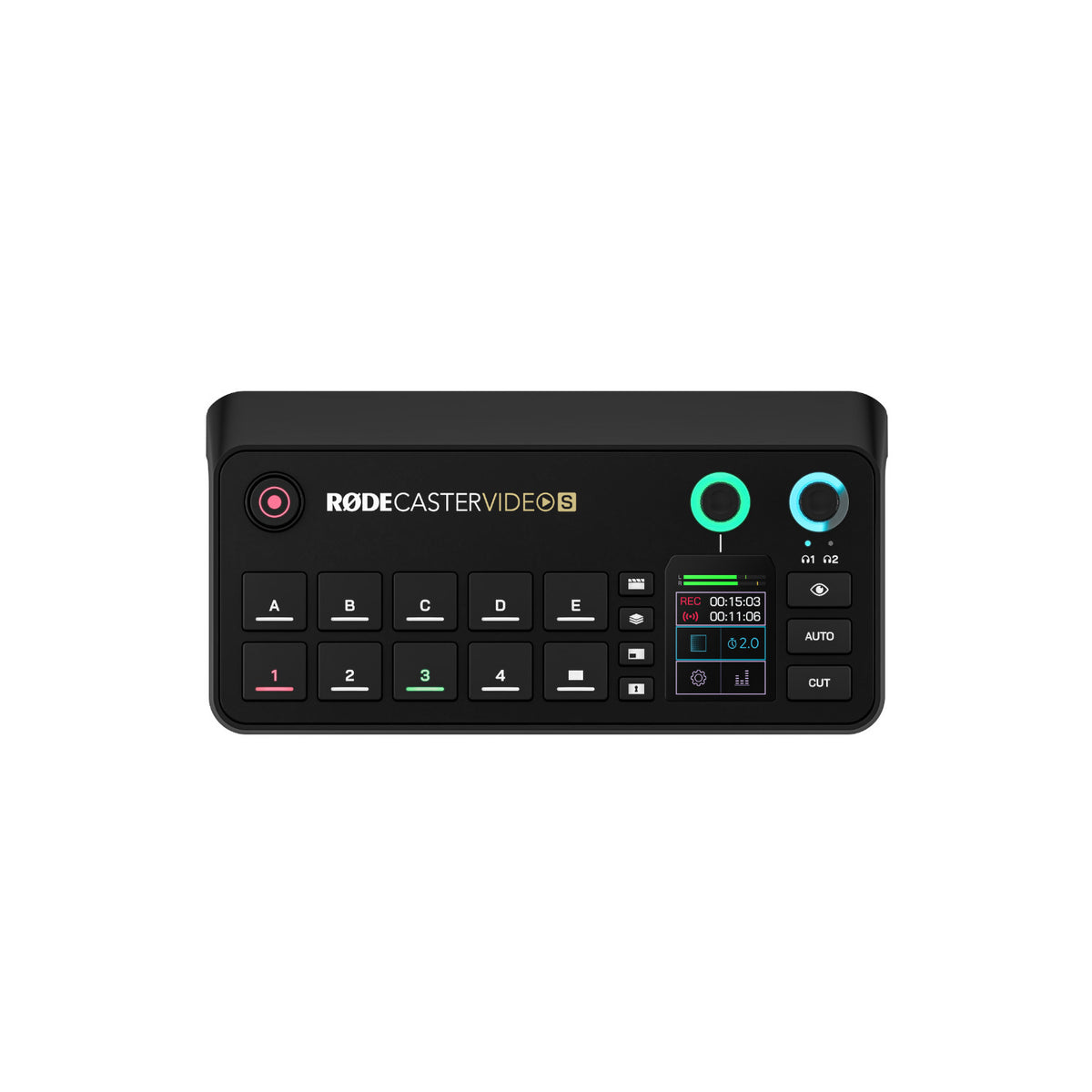

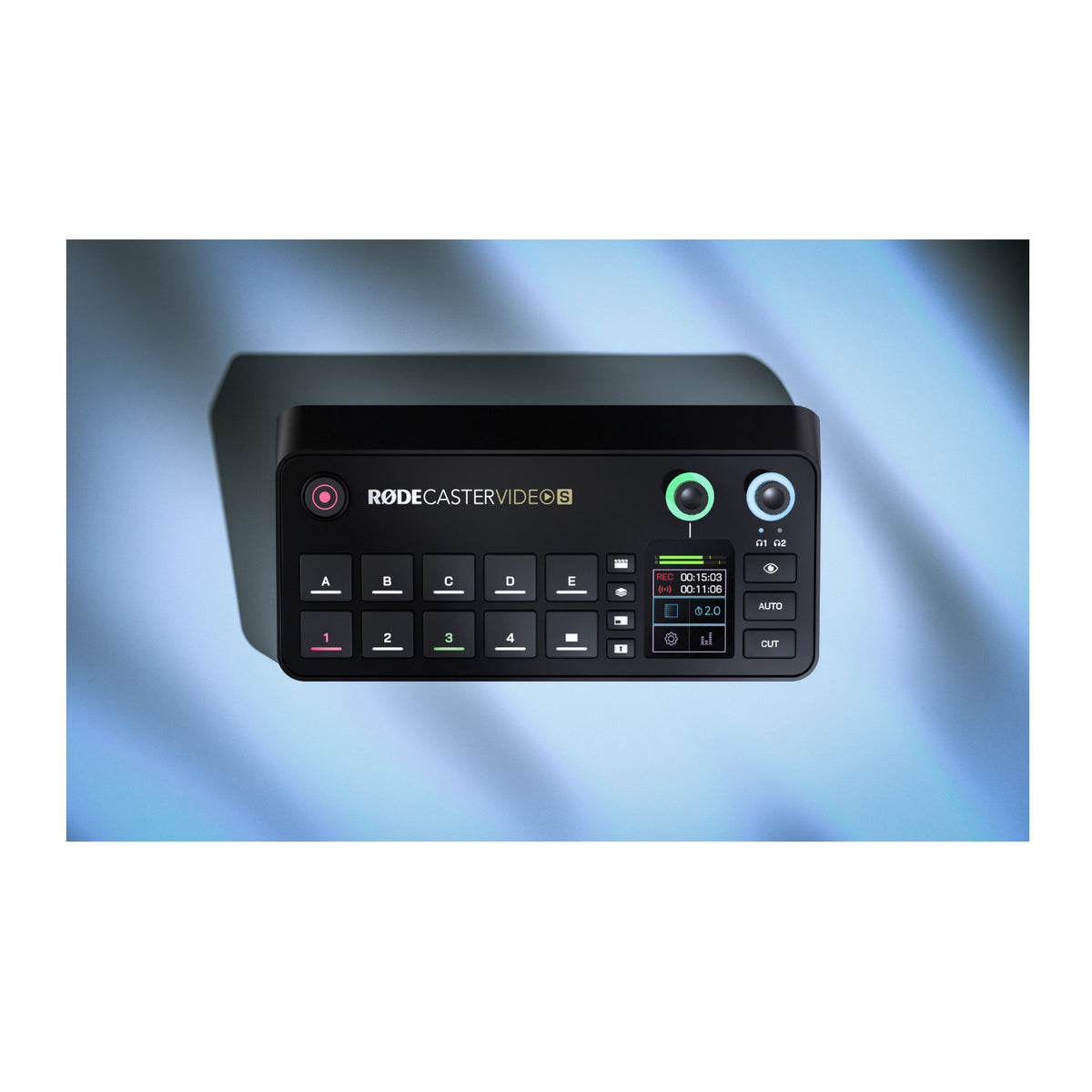

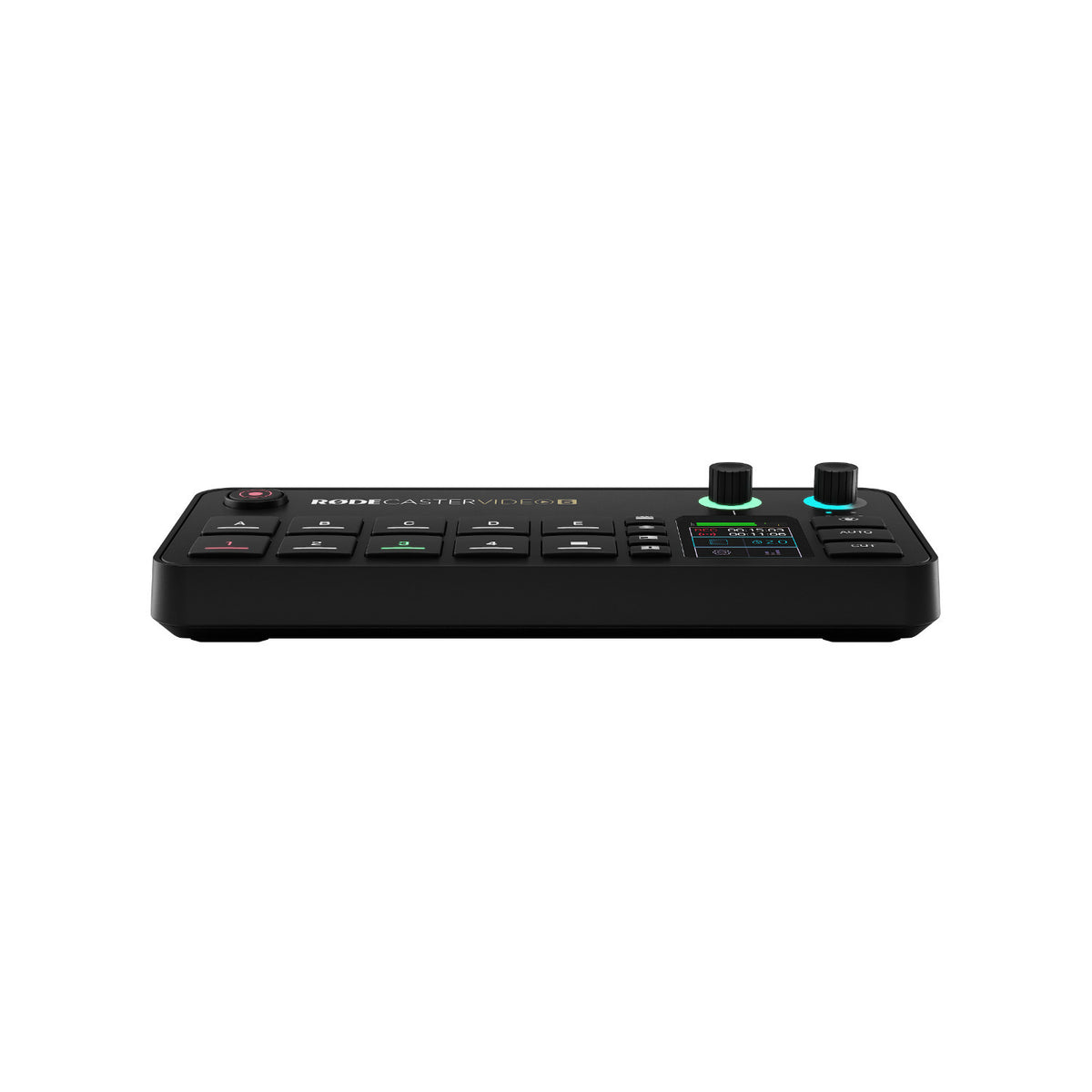

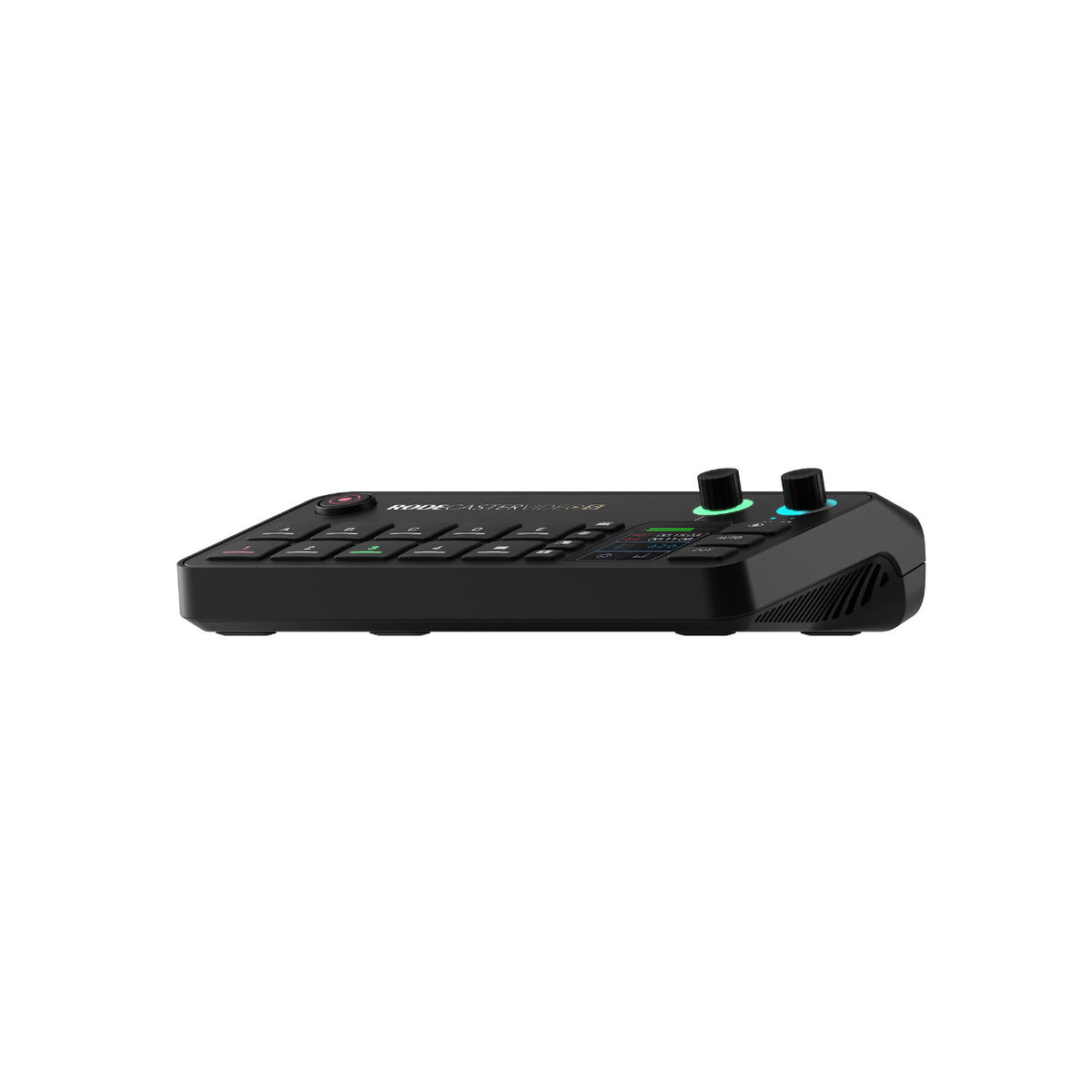

RDECaster Video S All-in-One Video and Audio Production Console for...

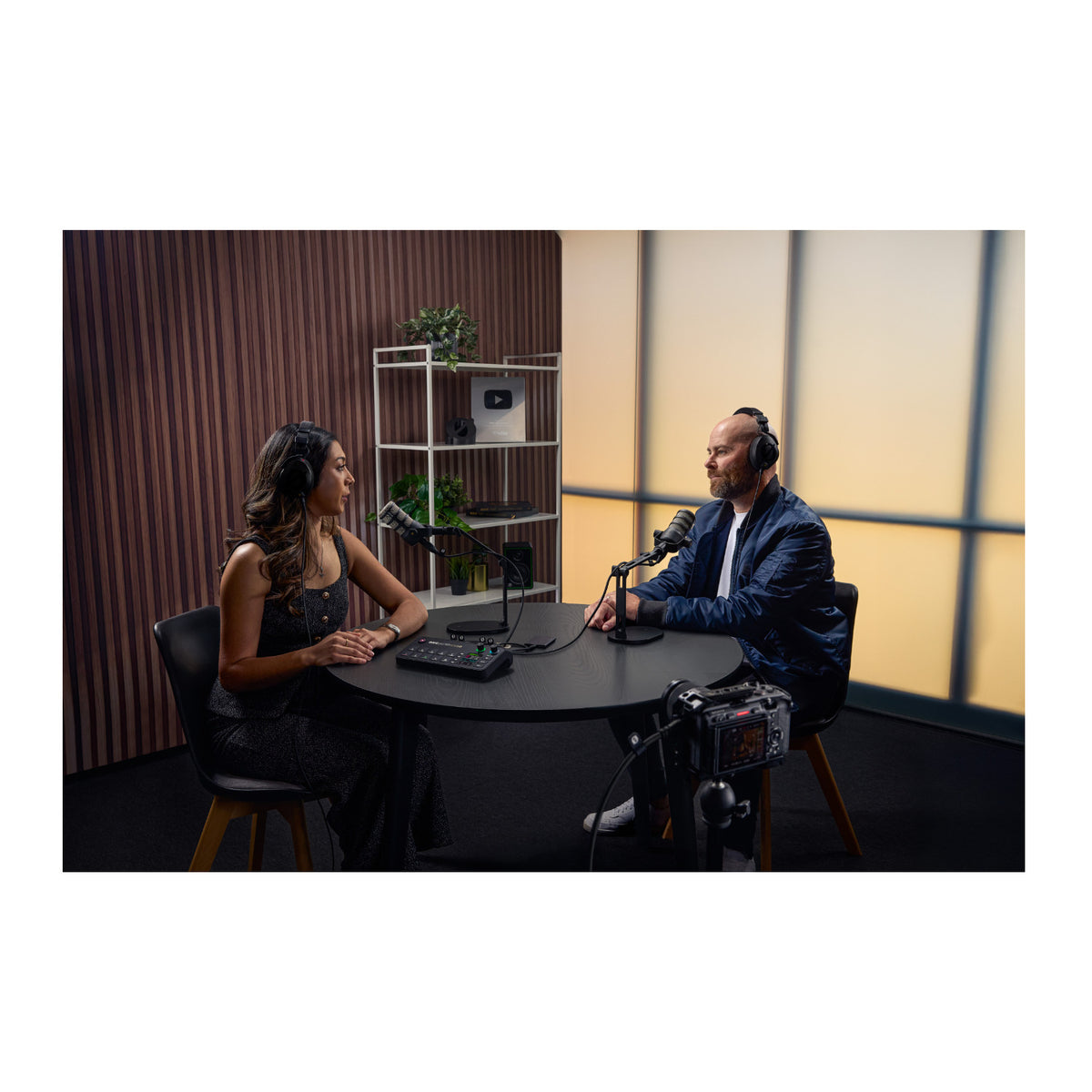

The RØDECaster Video S is a revolutionary all-in-one console for video and audio production, giving you intuitive control over every aspect of your content. A streamlined version of the RØDECaster Video, it combines powerful video switching, recording, and production tools with a fully integrated professional audio mixer. From studio shoots and video podcasts to interviews and live streams, the RØDECaster Video S delivers seamless, broadcast-quality results with total ease.
Key Features
- Switch between up to four video sources and five fully customizable scenes

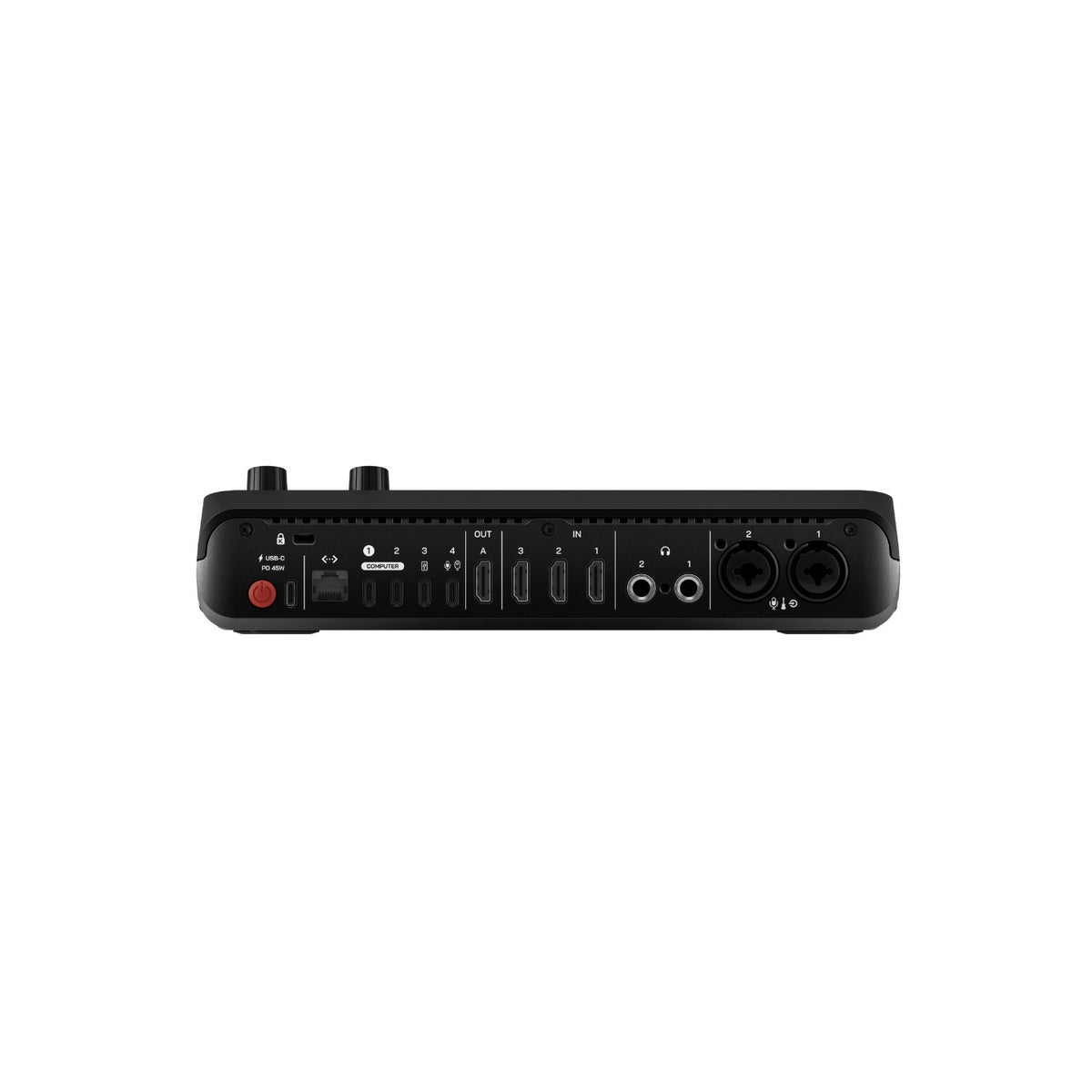

- Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port

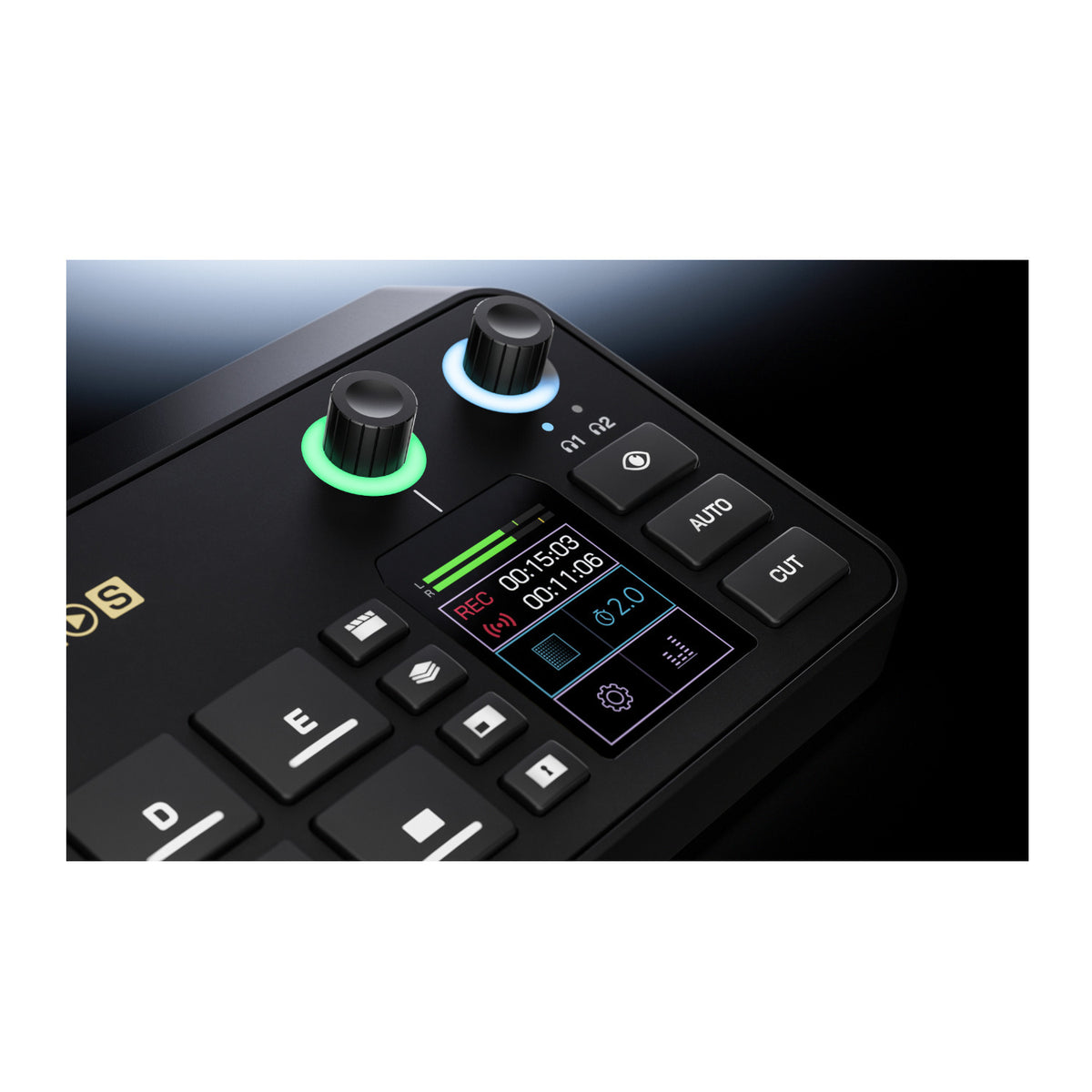

- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
- Two Neutrik combo jacks for connecting microphones and instruments
- Ultra-low-noise, high-gain Revolution Preamps and studio-grade APHEX audio processing
- Media playback, keying, transitions, multi-source scenes and graphic overlays accessible from the front panel
- Connect an external SSD via USB to record video or output directly to a computer via UVC
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
- Wi-Fi and Ethernet connectivity for streaming and device control
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
- 1 configurable – Preview, Program, Multiview, Inputs 1–4
- 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HDMI only)
- 1920x1080i: 25, 29.97, 30
- Program and Preview
- Live inputs, scene, and media thumbnails
- Audio mixer and channel status
- Recording, network, and storage status
- Run time, date, and time information
- 2 combo jacks (microphone, line, or instrument) with Revolution Preamps
- 2 × Series IV wireless receivers
- USB 1: 2-in/2-out or multichannel (20-in) output
- USB 1 Chat: 2-in/2-out with mix-minus (uses USB 1 port)
- USB 2: 2-in/2-out with MFi support
- USB 4: Compatible with RØDE USB microphones and RØDECaster Pro II/Duo
- 2 × headphone outputs (1/4-inch)
- APHEX VoxLab Processing: Per channel
- Advanced APHEX granular processing on each channel:
- Compressor
- Equaliser (EQ)
- De-esser
- Panning
- Noise Gate
- High-pass Filter
- Aural Exciter
- Big Bottom
- Frequency range: 20Hz – 20kHz
- Input gain: Up to 76dB
- Equivalent Input Noise: -131.5dBV (A-weighted)
- 18 possible audio sources (9 stereo channels simultaneously):
- Combo 1 and 2 (can be combined for stereo)
- Wireless 1 and 2
- Video clips, sounds
- HDMI 1, 2, 3 (each can be split for two mono)
- Bluetooth
- 3 USB audio interfaces (computers)
- 1 hosting USB audio device (USB microphone)
- 11 Outputs with Custom Routing:
- Live mix, Headphone 1, Headphone 2, Recording, USB 1 Chat, USB 1, USB 2, USB 4, Bluetooth, HDMI A, Network
- Each output configurable with custom level, mute status, and level offset for each of the 9 inputs
- YouTube Live
- Twitch Live
- Facebook Live
- Twitter/X Live
- Custom server
- Ethernet (10/100/1000 BaseT)
- Wi-Fi 6 (2.4 and 5 GHz) for streaming, configuration, remote control, and OTA updates
- Scene Builder: Advanced construction of scenes and remote device control
- Auto-switching: Automatic switching based on audio input
- Audio Mixer: Advanced configuration and control of audio sources, processing, and routing
- Stream Profiles: Configure streaming settings and profiles
- Device Configuration: Advanced settings and customisations
- Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
- 4 video inputs + 1 Program feed as independent H.264/AVC files (up to 1080p30)
- macOS 11 or later
- Windows 10 Version 1803 or later
- Windows 11
VIDEO
| Video Input Feeds | 4 simultaneous |
| HDMI Inputs | 3 × Type-A (HDMI 1.4b) |
| USB (UVC) Inputs | 1 × multi-function USB-C for UVC video |
| HDMI Outputs | |
| Video Input Frame Rates | |
| Video Output Frame Rates (1920x1080p) | 24, 25, 30, 50, 60 |
| Video Streaming Standards (1920x1080p) | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
| Video Engine Colour Space / Bit Depth | 4:4:4 RGB / 8-bit |
| HDMI Input Colour Space / Bit Depth | 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit |
| USB Input Colour Space | 4:2:2 YUV, 4:2:0 YUV (NV12) |
| HDMI Output Colour Space / Bit Depth | 4:4:4 RGB, 4:4:4 YUV / 8-bit |
| USB Output Colour Space / Bit Depth | 4:2:2 YUV / 8-bit |
| Format and Frame Rate Converters | On all HDMI and USB inputs |
| NDI Protocols | Single TCP, Multicast |
| NDI Formats | Hx2, Hx3 |
| NDI Video Codecs | H.264, HEVC/H.265, 4:2:0, 8-bit |
| NDI Audio Codecs | AAC-LC, L-PCM Stereo 2.0 at 48kHz |
| NDI Interfaces | Wired Ethernet |
SWITCHING
| Total Number of Layers | 9 simultaneous in Preview and Program |
| Downstream Keyers | 2 (overlays and logo) |
| Chroma Keyers (Green and Blue) | 2 |
| Luma Keyer | 1 |
| Media Players | 2 simultaneous |
| Transitions | SMPTE wipes, dip, and fade |
| True Preview | Display complete scenes and overlays simultaneously in Preview and Program |
| Generated Borders | All scenes |
| Multiview |
MEDIA PLAYER & STORAGE
| On-Board Storage | 24GB |
| Video Format | MP4 |
| Image Formats | PNG, JPG |
| Audio Format | WAV |
CONNECTIVITY
| Bluetooth | 5.3 (for stereo audio input or phone calls) |
AUDIO
| Analog Audio Inputs | |
| Wireless Audio Inputs | |
| Digital Audio Inputs | |
| Analog Audio Outputs | |
| Audio Processing | |
| Preamps | |
| Streaming Sample Rate / Bit Depth | 48kHz / 32-bit |
| Recording Sample Rate / Bit Depth | 48kHz / 24-bit |
| Audio Mixer |
STREAMING, RECORDING, AND SOFTWARE
| Direct Streaming | RTMP/RTMPS over Ethernet or Wi-Fi |
| Supported Platforms | |
| Network | |
| RØDECaster App / Companion Software | |
| Storage Media | External USB mass storage device (exFAT format) for recordings |
| Video Recording | |
| Isolated (ISO) Video Recording | |
| Audio Recording | Stereo mix WAV audio file |
| Multitrack Audio Recording | 9 independent stereo WAV audio files |
| Compatible Operating Systems |
POWER & MECHANICAL
| Power Supply Requirements | USB-C PD 45W, 20V 2.25A |
| Weight (grams) | 875 |
| Dimensions (millimetres) | Length: 253.5 Width: 128.4 Height: 60.2 |
