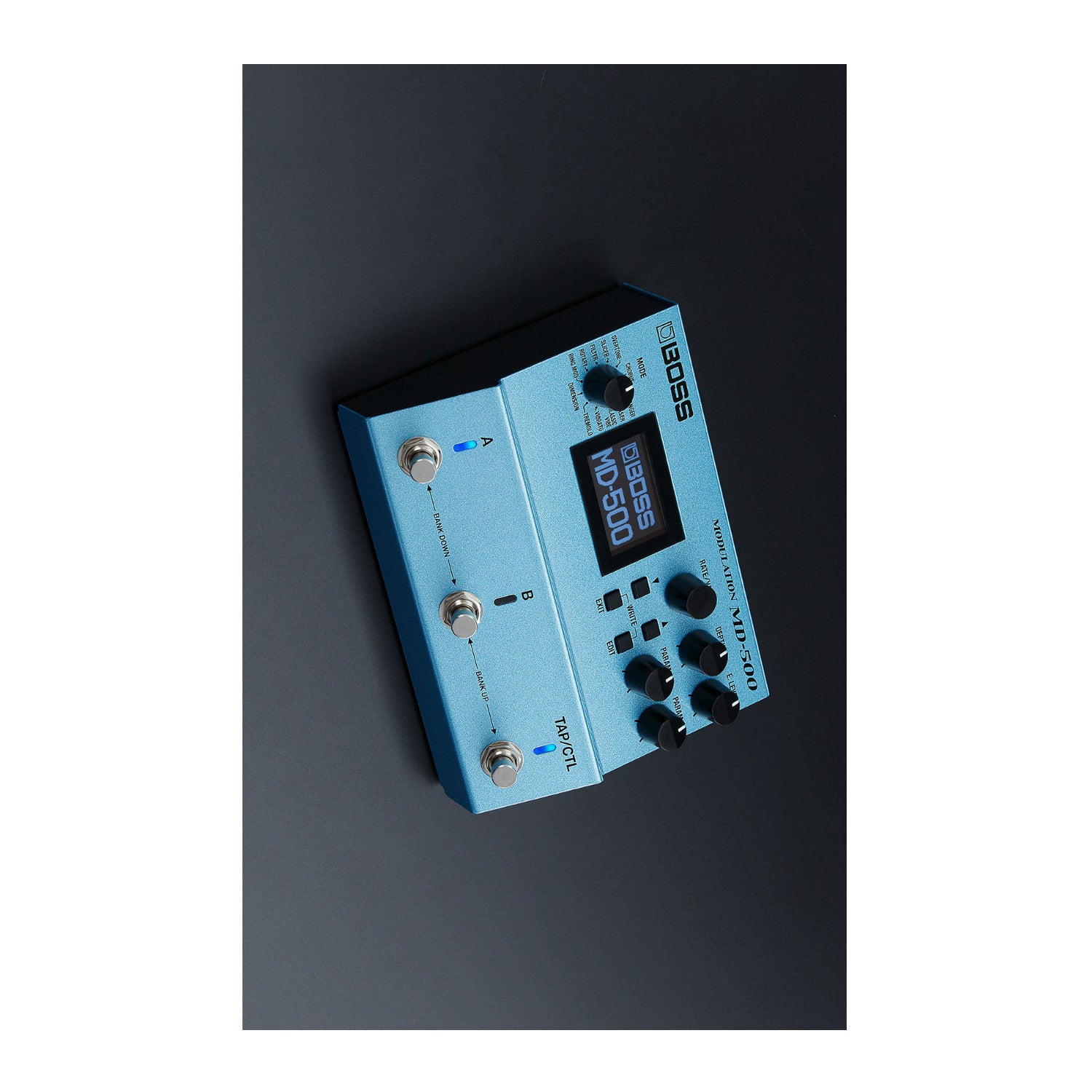

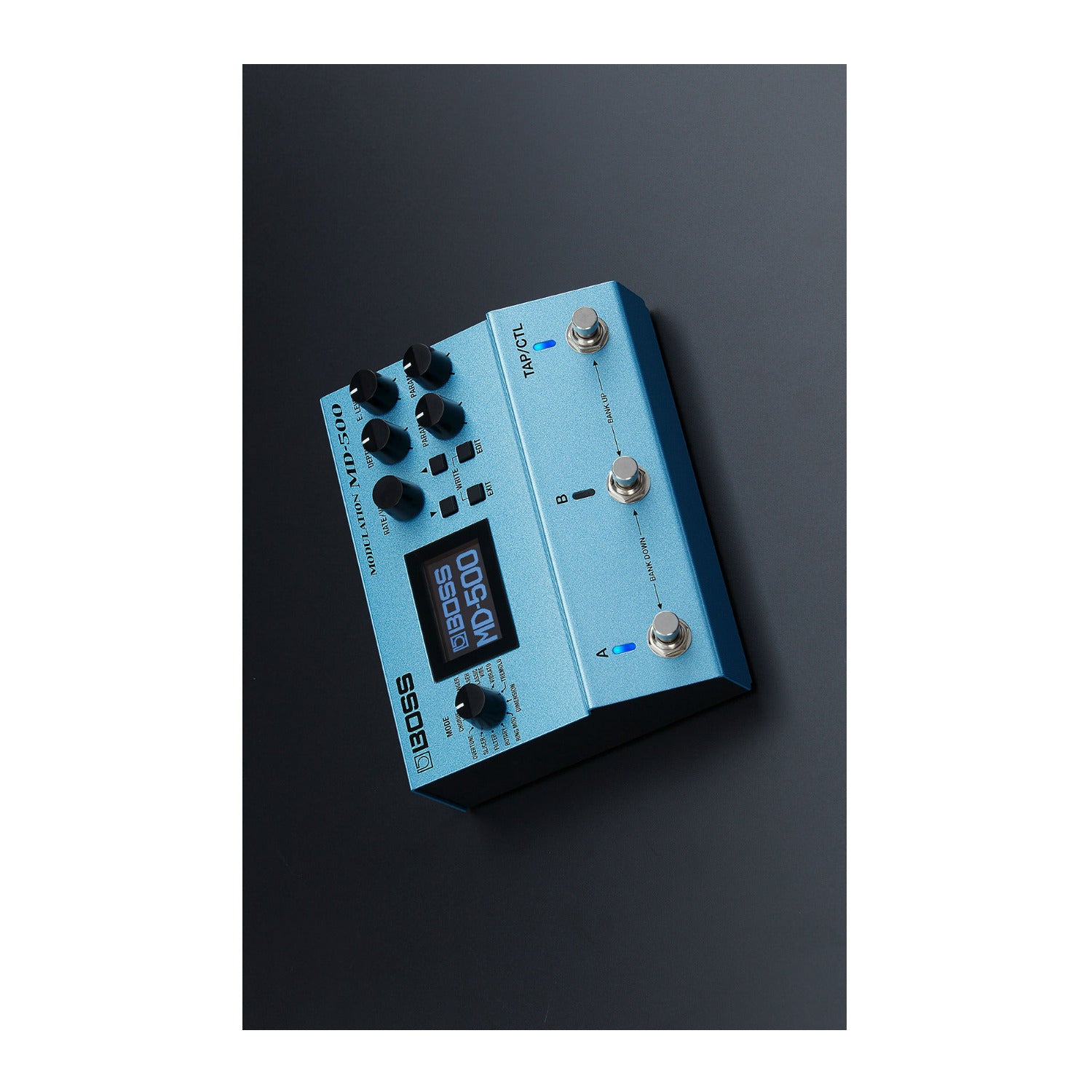

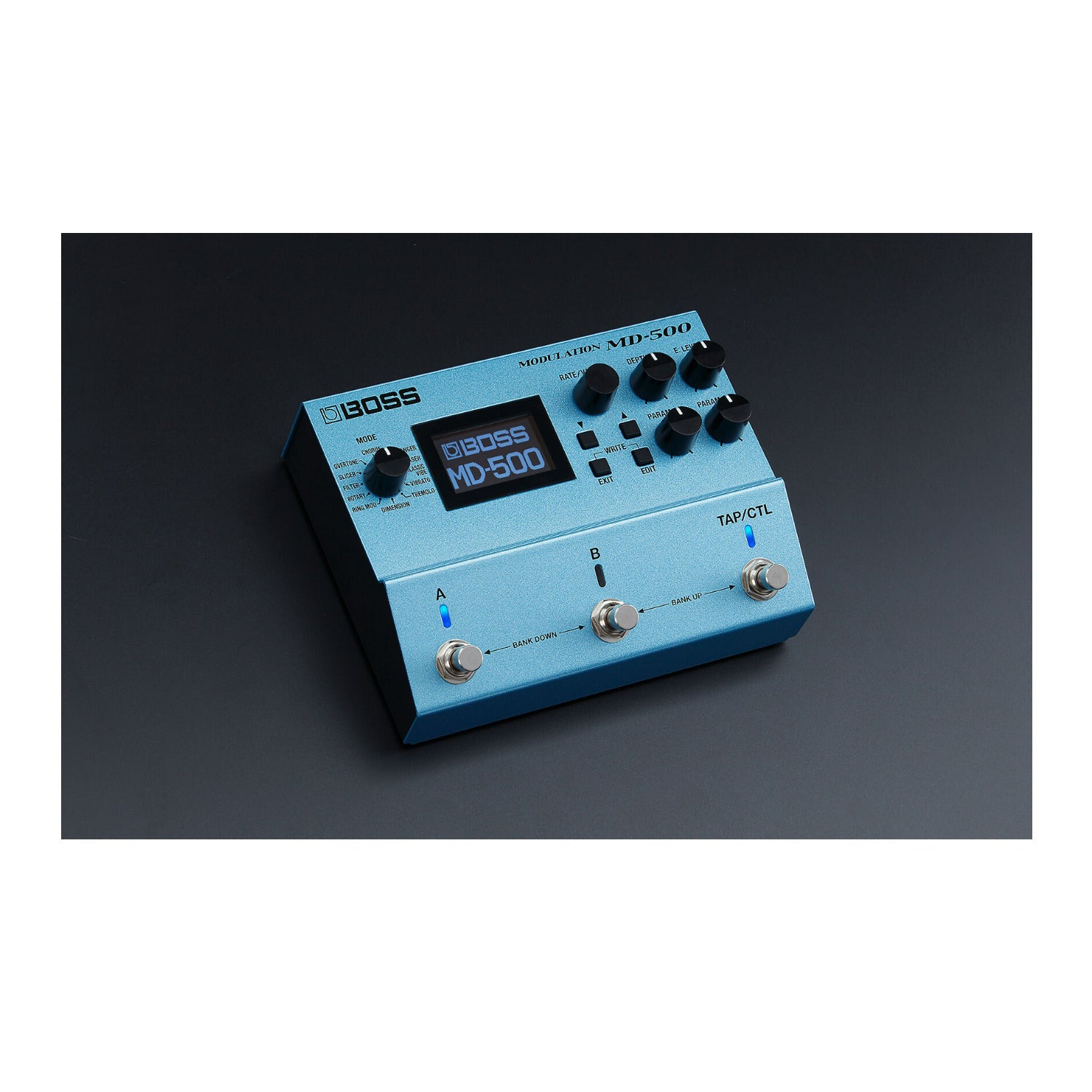

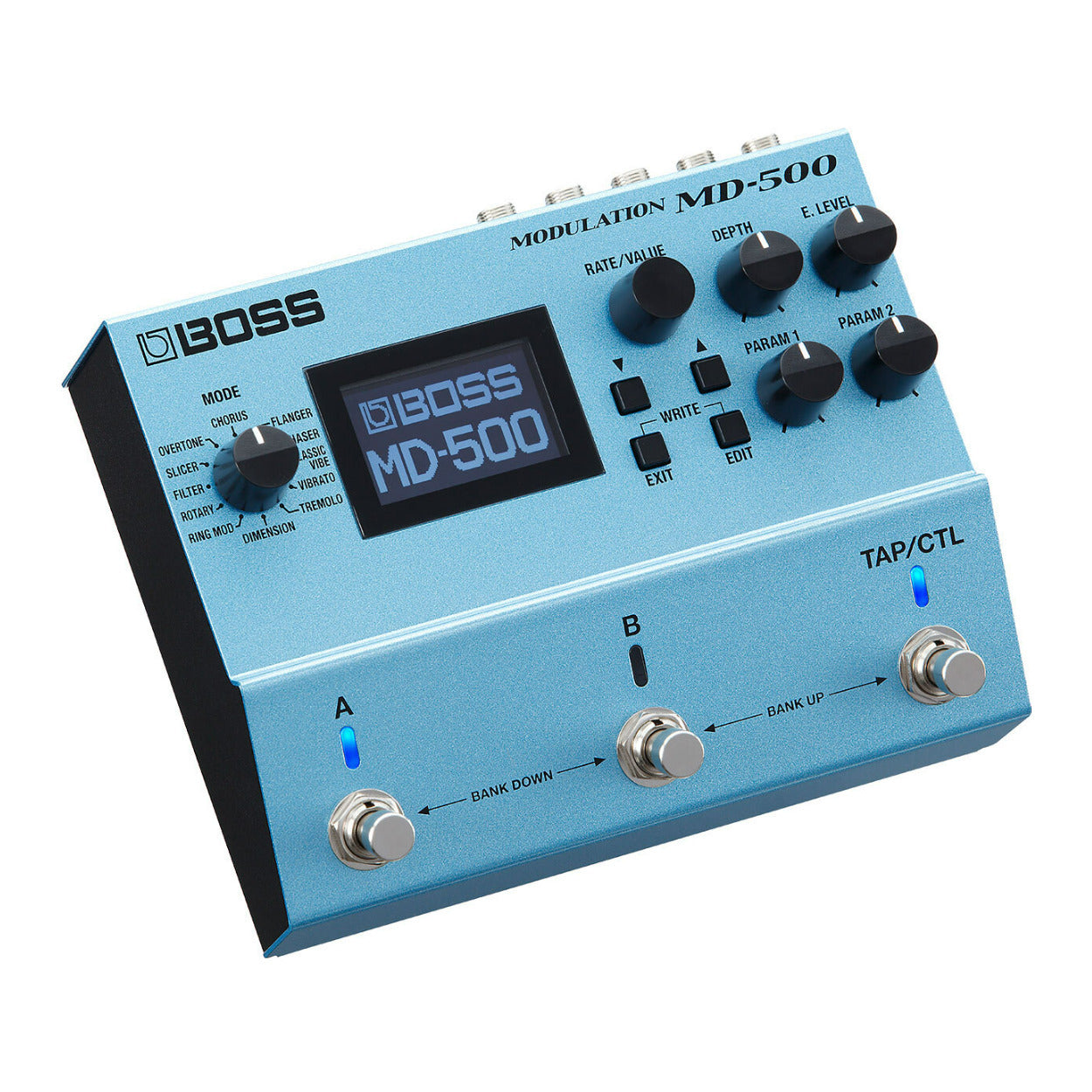

BOSS MD-500 Modulation Pedal with 12 Modes and 28 Modulation Types
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The BOSS MD-500 Modulation Pedal delivers an expansive range of modulation effects with studio-grade sound quality and deep customization, making it a powerful tool for guitarists and sound designers.
Extensive Modulation Library
Features 12 modes and 28 modulation algorithms, including chorus, flanger, phaser, tremolo, rotary, vibrato, and more, along with unique effects like Slicer and Overtone.
Advanced Prime Algorithms
Enhanced modulation effects provide expanded tonal range, improved clarity, and deeper control with newly developed processing technology.
Studio-Quality Audio Performance
Utilizes 32-bit AD/DA conversion, 32-bit floating-point processing, and a 96 kHz sampling rate for highly detailed and transparent sound.
Vintage Effect Emulations
Includes accurate recreations of classic effects such as the CE-1 Chorus Ensemble, Dimension D, and other iconic modulation sounds.
Dual Effect Capability
A/B Simul mode allows two effects to run simultaneously in series or parallel, offering expanded tonal possibilities.
Flexible Signal Routing
An external loop enables integration of additional pedals, allowing effects to be placed before, after, or within the signal chain.
Intuitive Interface
A large LCD screen and hands-on controls provide easy navigation and quick adjustments, with dynamic parameter controls based on the selected effect.
USB Connectivity
Connect to a computer for patch editing, backup, and management using dedicated software.
Configurable Bypass Options
Selectable true bypass or buffered bypass allows seamless integration into any pedalboard setup.
BOSS MD-500 Modulation Pedal with 12 Modes and 297 Patch Memories
Product Overview
| Type | Advanced modulation effects pedal |
| Processing | 32-bit floating point |
| AD/DA Conversion | 32-bit |
| Sampling Frequency | 96 kHz |
| Memory Capacity | 297 patch memories (99 banks × 3: A/B/C) |
Modulation Modes
| Chorus | |
| Flanger | |
| Phaser | |
| Classic Vibe | |
| Vibrato | |
| Tremolo | |
| Dimension | |
| Ring Mod | |
| Rotary | |
| Filter | |
| Slicer | |
| Overtone |
Audio Performance
| Nominal Input Level | -10 dBu |
| Maximum Input Level | +8 dBu |
| Input Impedance | 1 MΩ |
| Nominal Output Level | -10 dBu |
| Maximum Output Level | +8 dBu |
| Output Impedance | 2 kΩ |
| Recommended Load Impedance | 20 kΩ or greater |
| Bypass | Buffered bypass or true bypass (relay-based) |

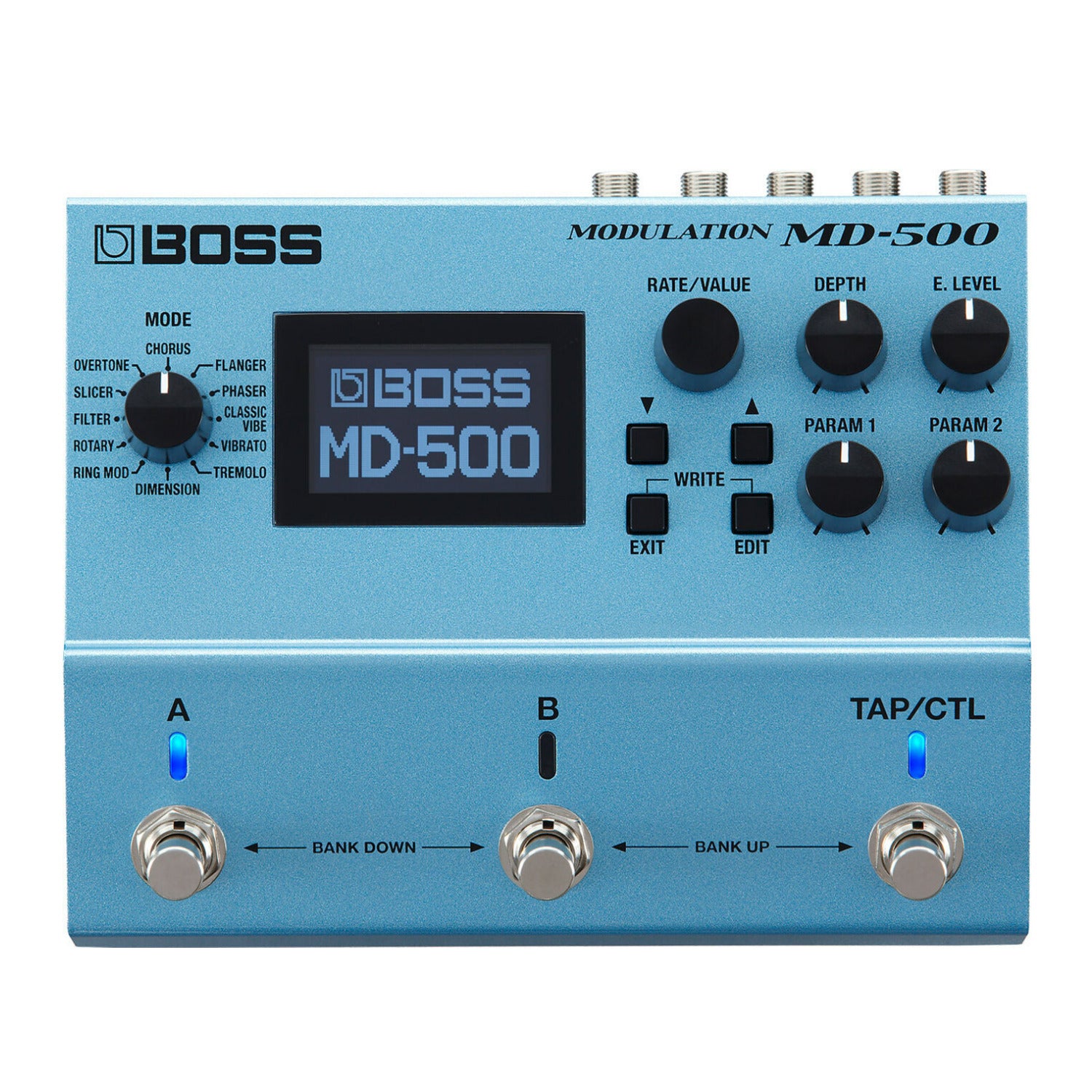

Controls & Interface
| Footswitches | A, B, TAP/CTL |
| Buttons | Down, Up, Exit, Edit |
| Knobs | Mode, Rate/Value, Depth, Effect Level, Param 1, Param 2 |
| Display | Backlit graphic LCD (128 × 64) |

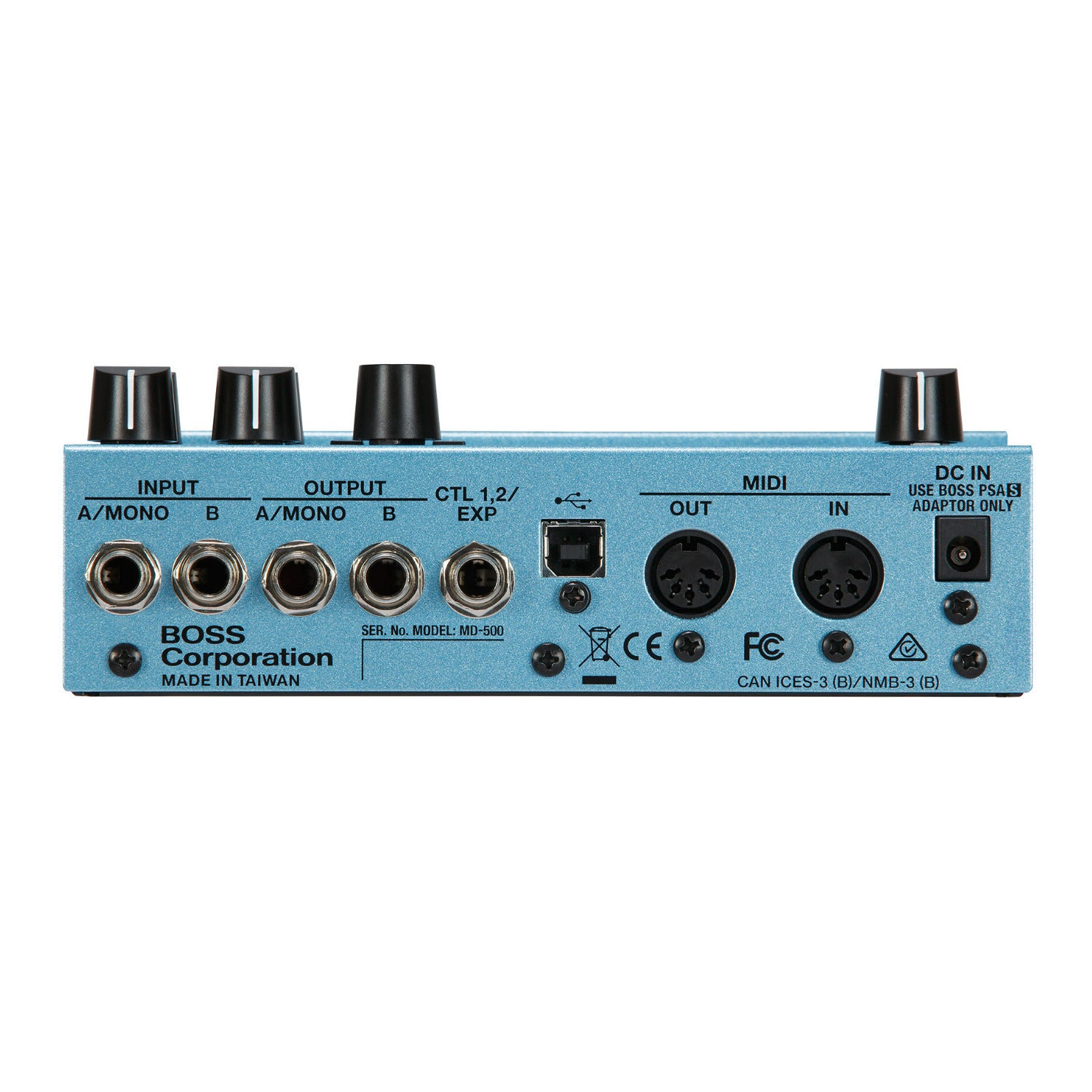

Connectivity
| Inputs | 2 × 1/4-inch (A/MONO, B) |
| Outputs | 2 × 1/4-inch (A/MONO, B) |
| Expression/Control | CTL 1/2 / EXP (1/4-inch TRS) |
| USB | USB Type-B (computer connection) |
| MIDI | In/Out |
| Power Input | DC IN |
Power
| Power Options | 4 × AA batteries or AC adapter (sold separately) |
| Current Draw | 225 mA |
| Battery Life | Approx. 4.5 hours (alkaline) |
| Compatible Adapter | PSA-S series (optional) |
Physical Specifications
| Dimensions (W × D × H) | 6.7 × 5.4 × 2.4 inches (170 × 138 × 62 mm) |
| Weight | 2 lb 4 oz (1 kg) including batteries |
Included Accessories
| Owner’s manual | |
| Safety leaflet | |
| 4 × AA alkaline batteries |
Additional Features
| Studio-quality modulation effects with deep customization | |
| Extensive preset memory for live and studio use | |
| MIDI and USB integration for expanded control and editing |
