Samson AirLine AWXm Wind Instrument Wireless Microphone System with HM60 Horn Mic (ATX/AR99m) - K Band
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

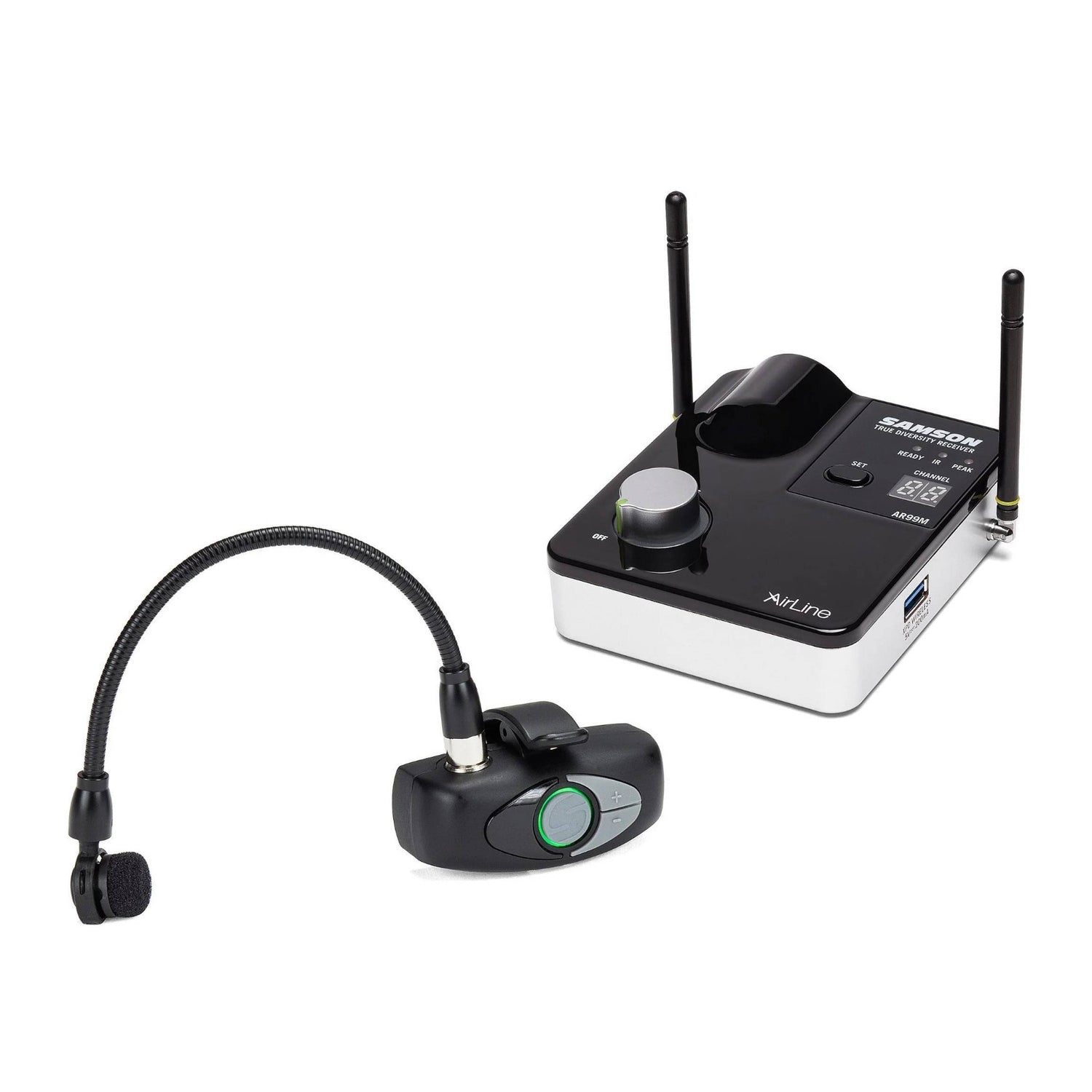

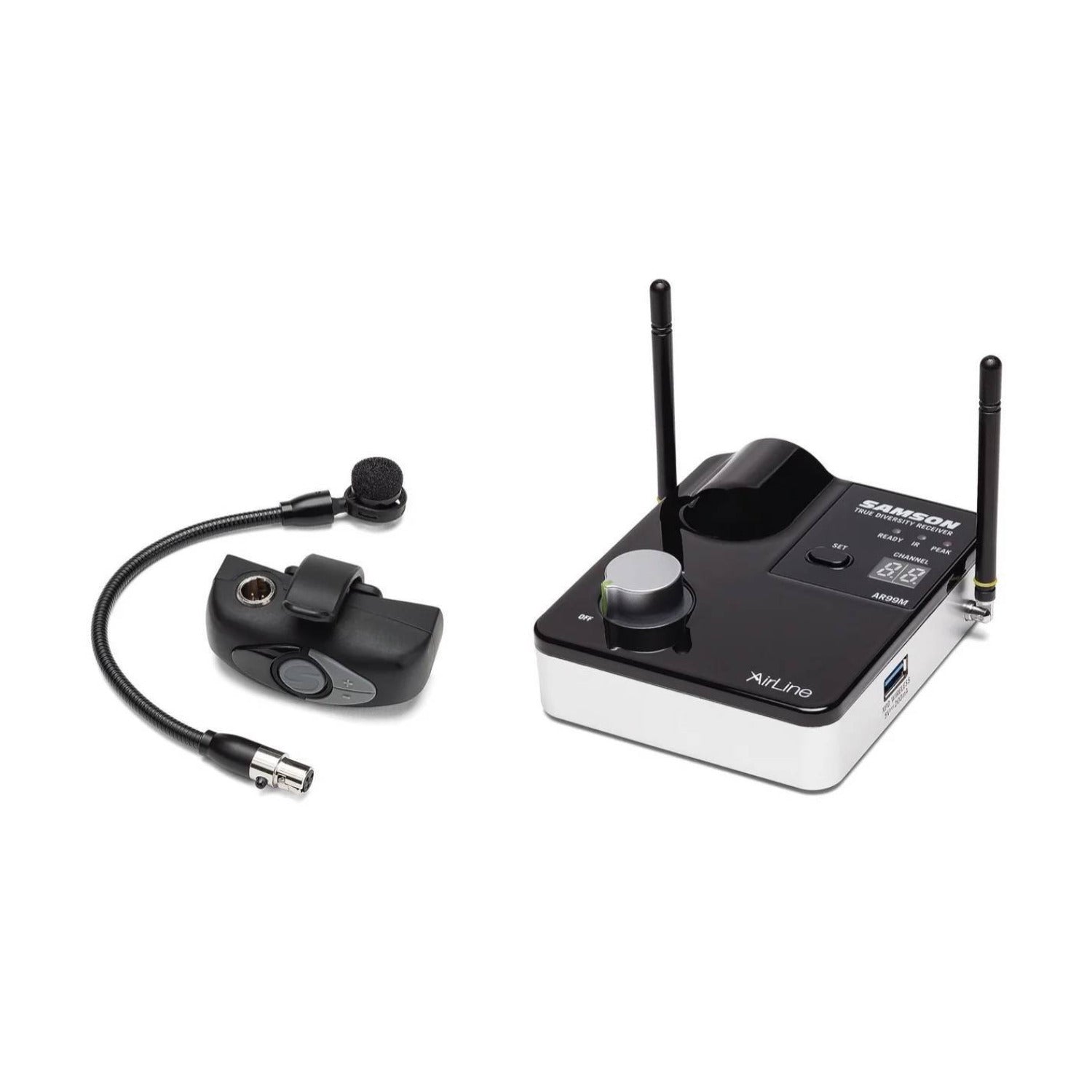

For the working horn player who wants the freedom to go wireless, the AirLine AWXm Wind Instrument System offers the latest in wireless technology by combining the innovative ATX clip-on transmitter with the portable AR99m micro-receiver. Small enough to fit in any gig bag, this system provides high-definition sound for wind instruments without the need for a beltpack or cables.
Relay Your Sound

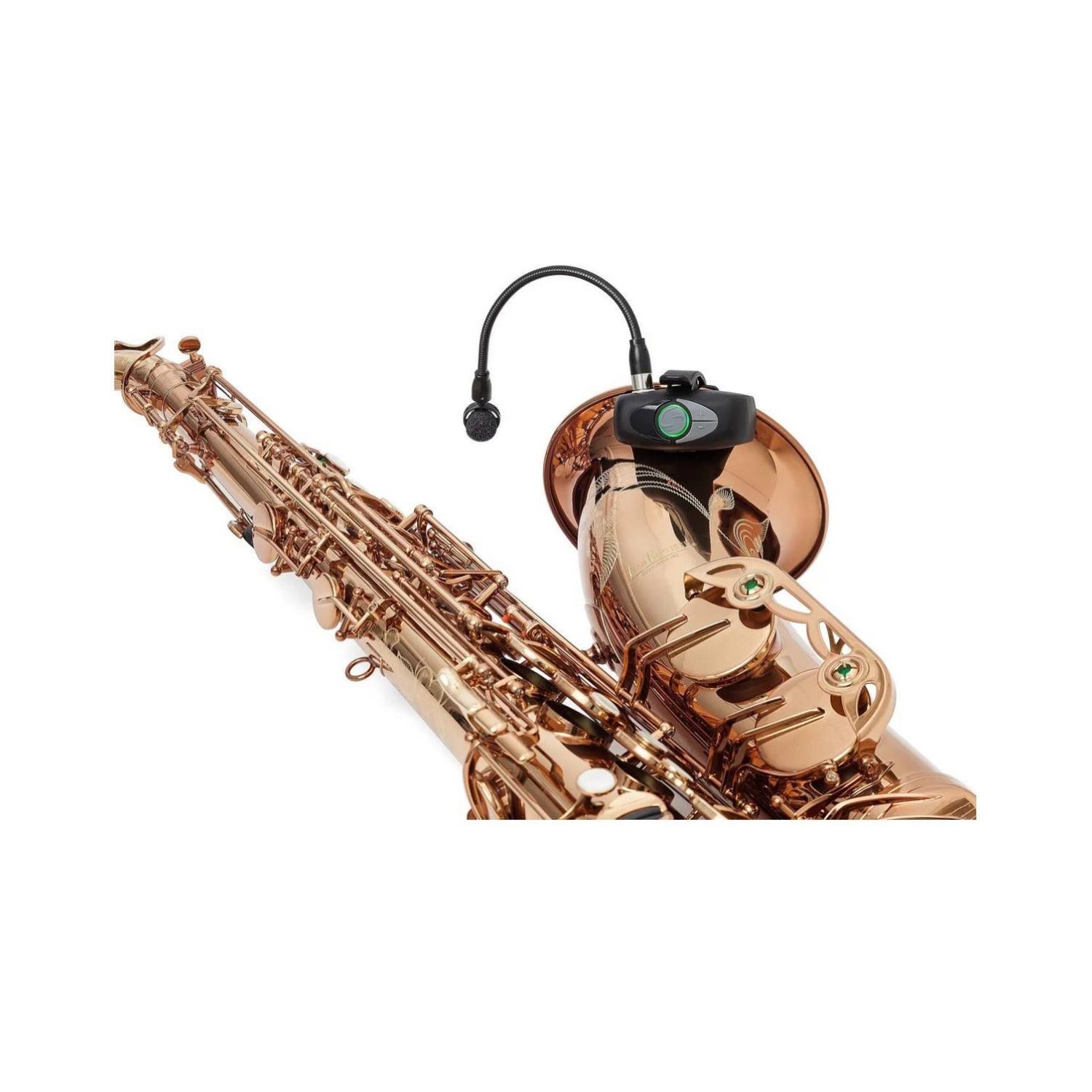

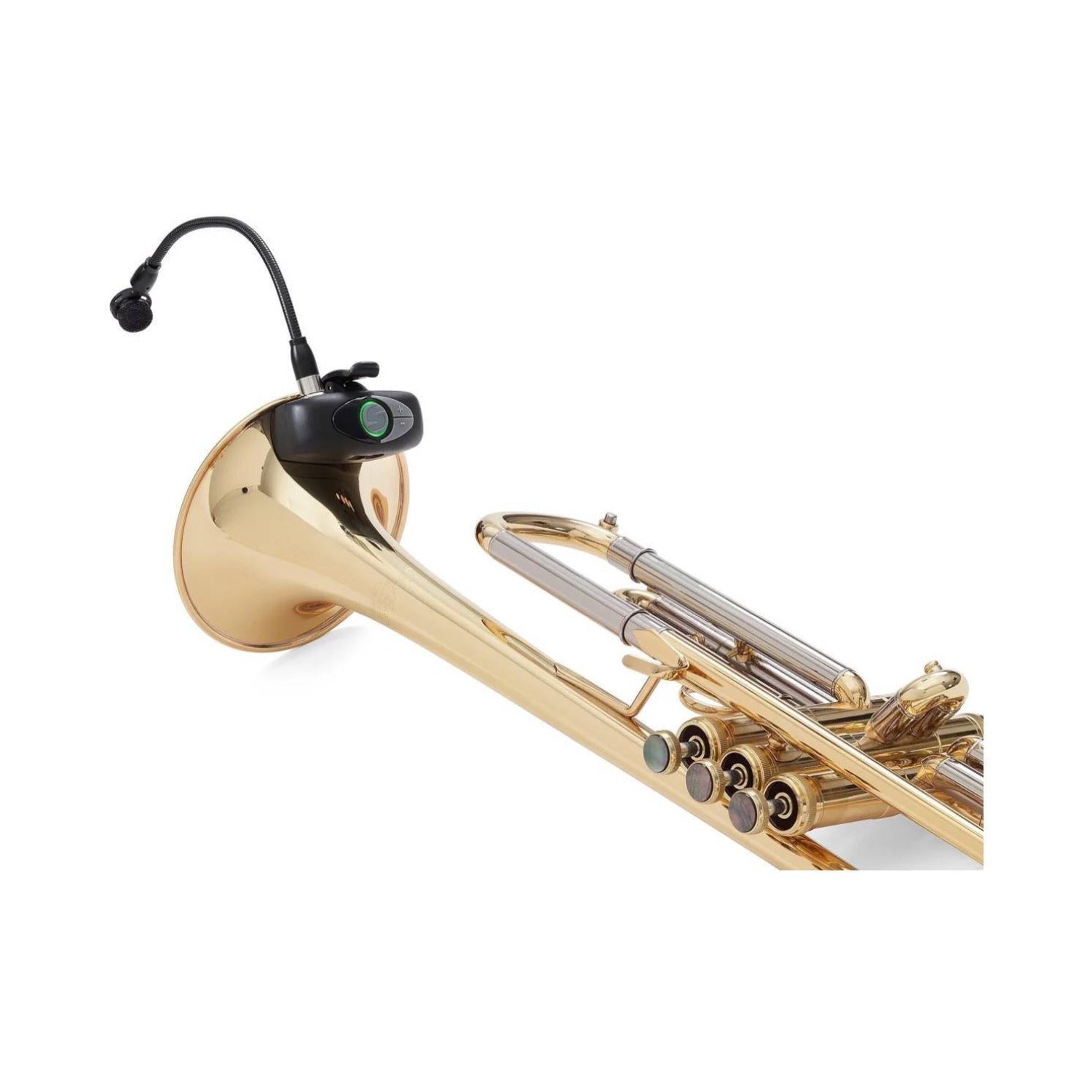

The unobtrusive design of the ATX wireless transmitter allows for easy mounting while providing a gentle but secure clip-on connection to the instrument's bell. With up to eight hours of rechargeable wireless battery life, the ATX transmitter is the perfect complement to your instrument's bell.
Capture The Sound, Your Way

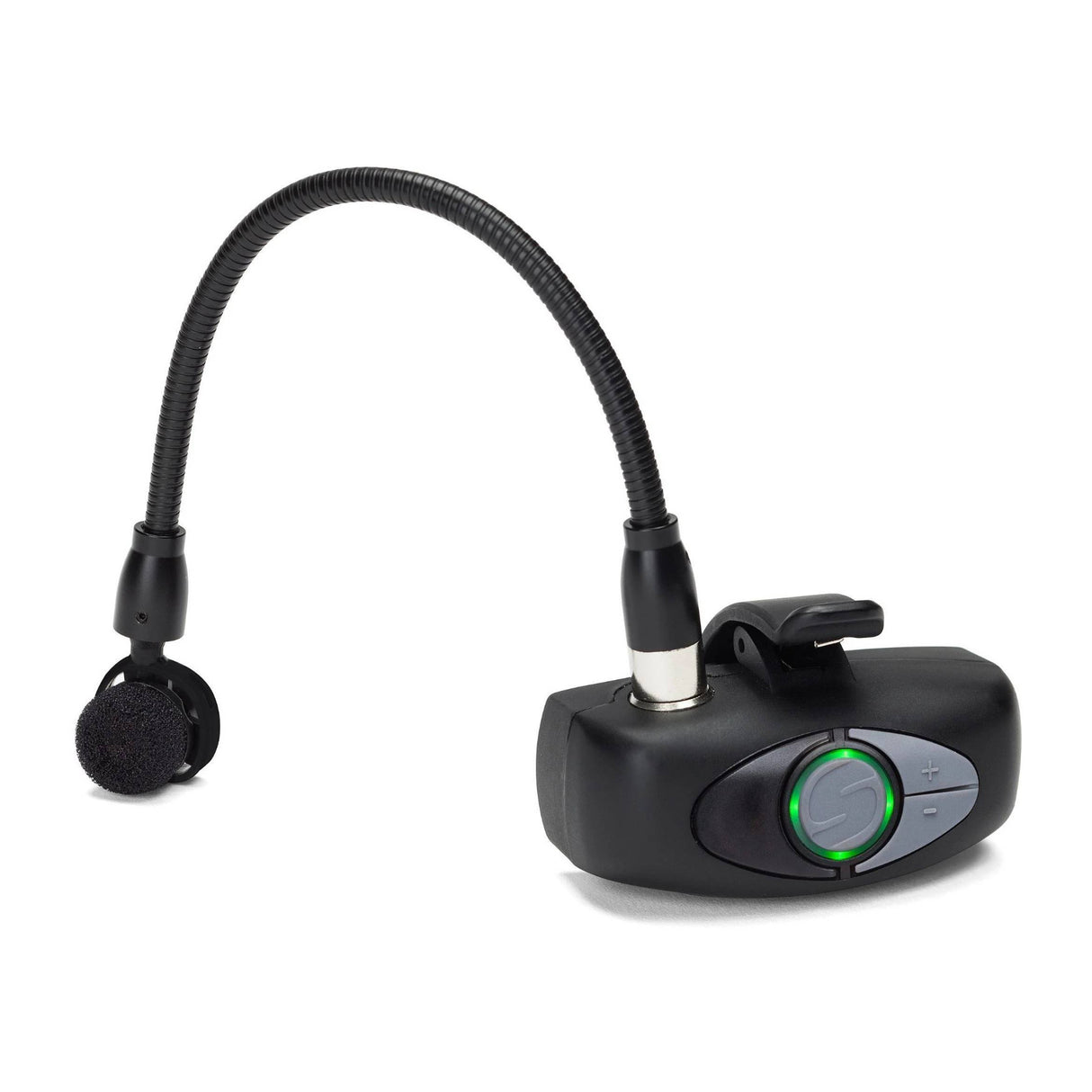

Capture the sound of your instrument with the HM60 condenser microphone. Designed specifically for live performance, the microphone delivers the dynamic, natural sound of the instrument with a wide 20 Hz to 18 kHz frequency response. Capable of handling high sound pressure levels (SPLs) up to 125 dB, the HM60 is ideal for close-miking brass and woodwind instruments. The supercardioid polar pattern provides excellent isolation of the instrument while reducing the pickup of unwanted ambient noise. The unique 3-point halo isolation mount minimizes mechanical vibration and key click noise.
Multifunctional, One Compact Design

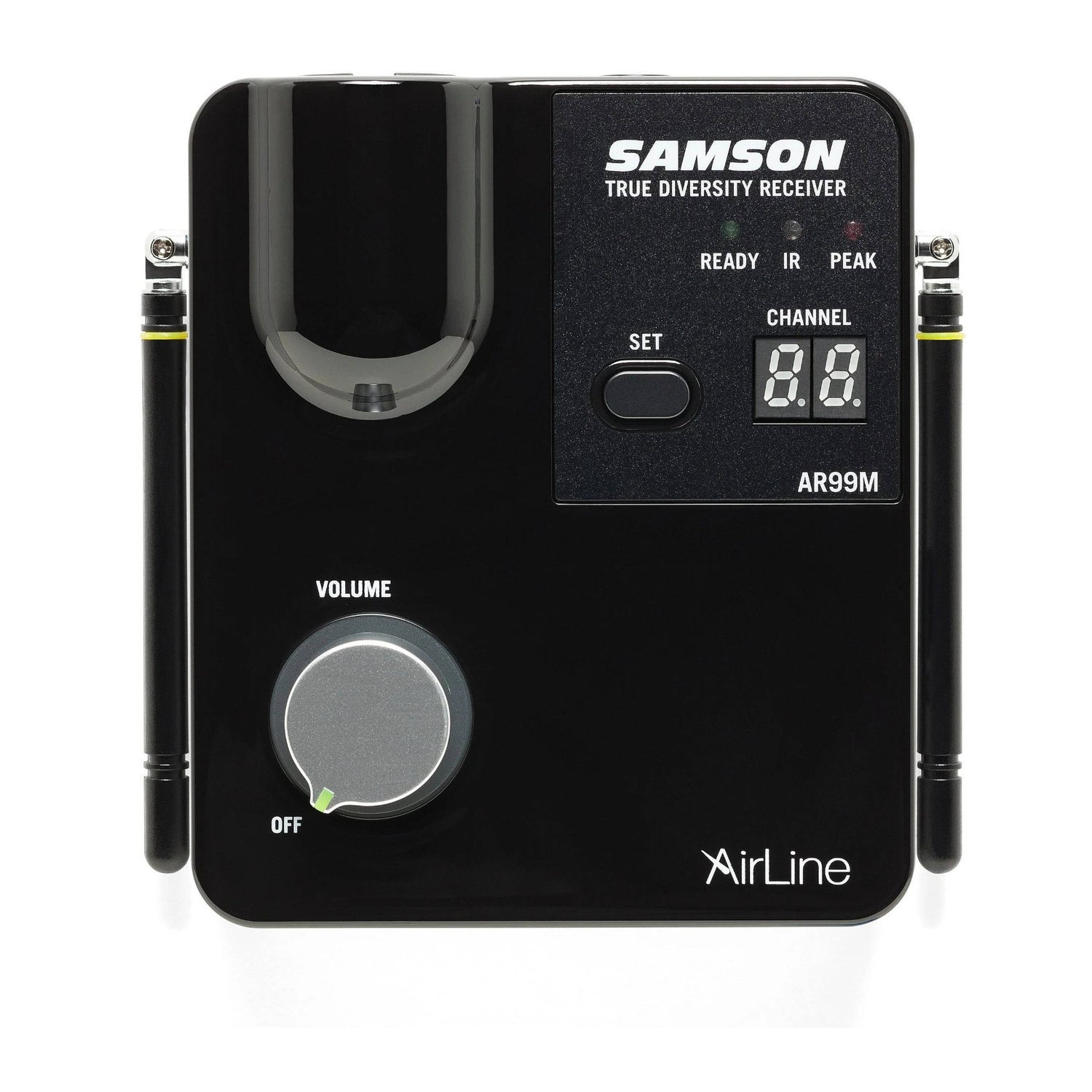

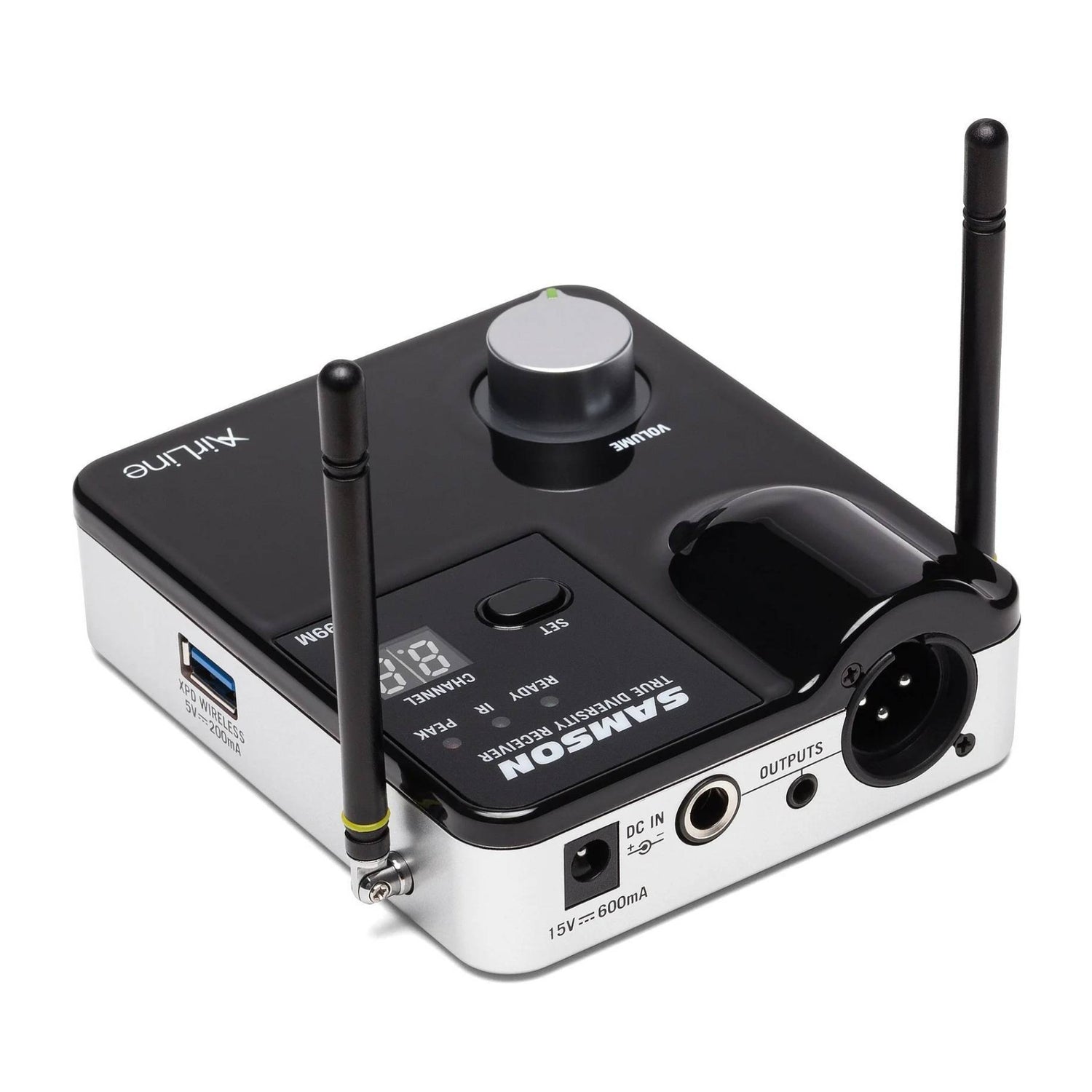

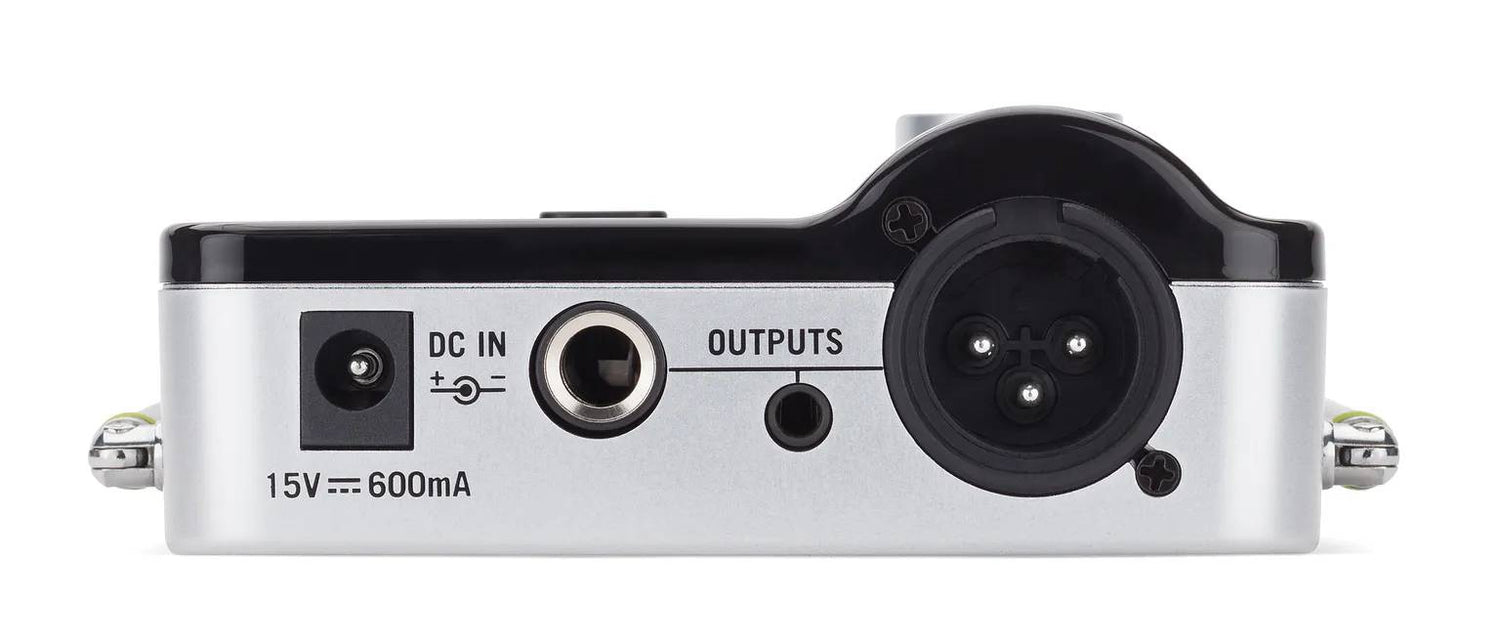

The AR99m micro-receiver is all about functionality and versatility. With a 300 ft range and three output connectors (1/4 inch, 1/8 inch and XLR), the AR99m offers more compatibility at a fraction of the size of other receivers. Ensure maximum wireless clarity anywhere by scanning the 100 available channels with a simple push of a button; the AR99m analyzes and selects the clearest channel for your area. Turn the AR99m into a two-channel system by connecting a Samson XPD Series USB Digital Wireless System (sold separately) or conveniently charge the ATX transmitter using the receiver's USB port.
System
| Working Range | 300' (100 m) line of sight |
| Audio Frequency Response | 50 Hz – 15 kHz |
| T.H.D. (Overall) | <1% (@ AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise Ratio | >95 dB |
| Operating Temperature | –10°C (14°F) to +60°C (+140°F) |
| Tone Key Frequency | 35 kHz |
ATX Transmitter
| Input Connector | Mini-XLR (P3) |
| Input Impedance | 3 kΩ |
| Input Gain Range | 20 dB |
| RF Power | 10 mW EIRP |
| Power Requirements | 3.6V 500 mAh Lithium-Ion rechargeable battery |
| Battery Life | Up to 8 hours |
| Dimensions | 5.9 in x 6.7 in x 3.9 in (150 mm x 170 mm x 100 mm) |
| Weight | 0.13 lb / 60 g |
AR99m Receiver
| Audio Output Level (1/8 in & 1/4 in jack, unbalanced) | +14 dBu |
| Audio Output Level (XLR jack, balanced) | +9 dBu |
| Audio Output Impedance (1/8 in & 1/4 in jack, unbalanced) | 810 Ω |
| Audio Output Impedance (XLR jack, balanced) | 240 Ω |
| Sensitivity | 100 dBm / 30 dB SINAD |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC, 600 mA |
| Dimensions | 4.3 in x 3.74 in x 1.5 in (110 mm x 95 mm x 39 mm) |
| Weight | 0.42 lb / 192 g |
