Samson Concert 288m Presentation Dual-Channel UHF Wireless System (...
The Samson Concert 288m Presentation is a dual-channel wireless lavalier and headset microphone system designed for situations where two microphones are needed. Fast to set up and easy to operate, it offers two presenters, lecturers, or instructors quality sound and dependable performance for presentations and events in small venues, wedding halls, and houses of worship as well as educational and corporate facilities.

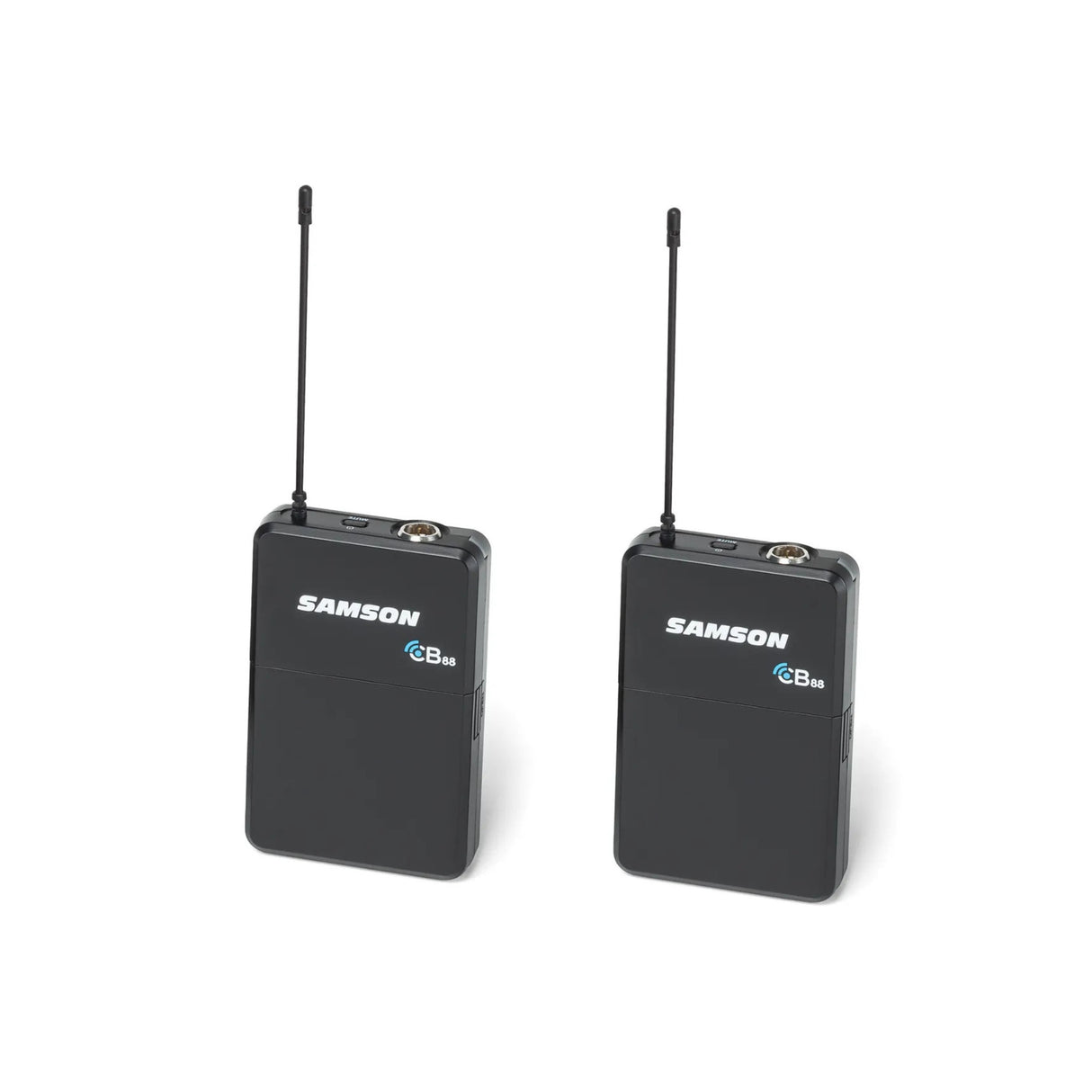

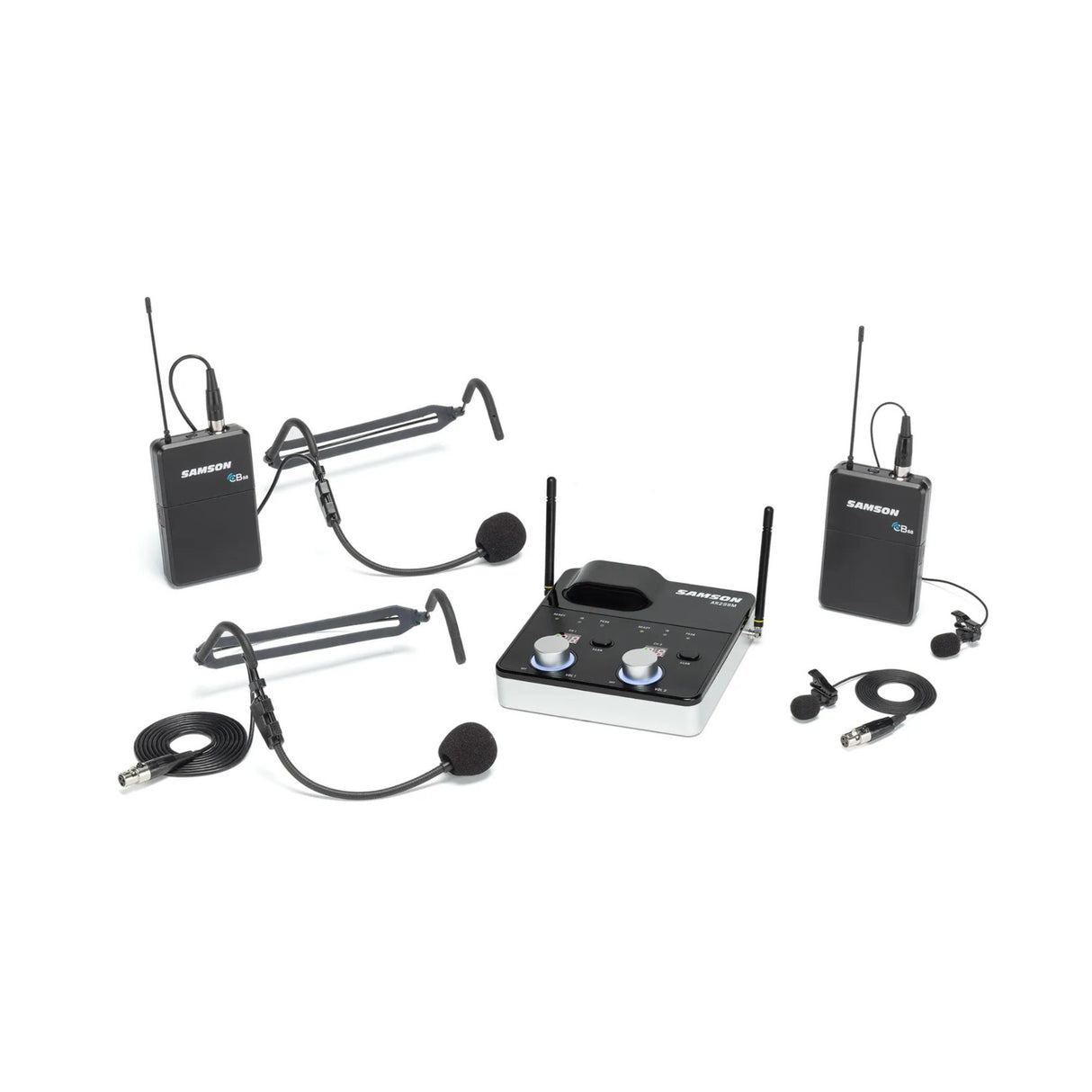

The Concert 288m Presentation offers a flexible solution by including two CB88 bodypack transmitters each with its own cardioid lavalier mic and HS5 headset mic. The lav provides a discreet hands-free mic option, while the headset allows for positioning the mic closer to the speaker's mouth for a clearer sound in loud environments. The transmitters feature a convenient On-Off/Mute switch and operate for up to 8 hours on two AA batteries at a range up to 300'.

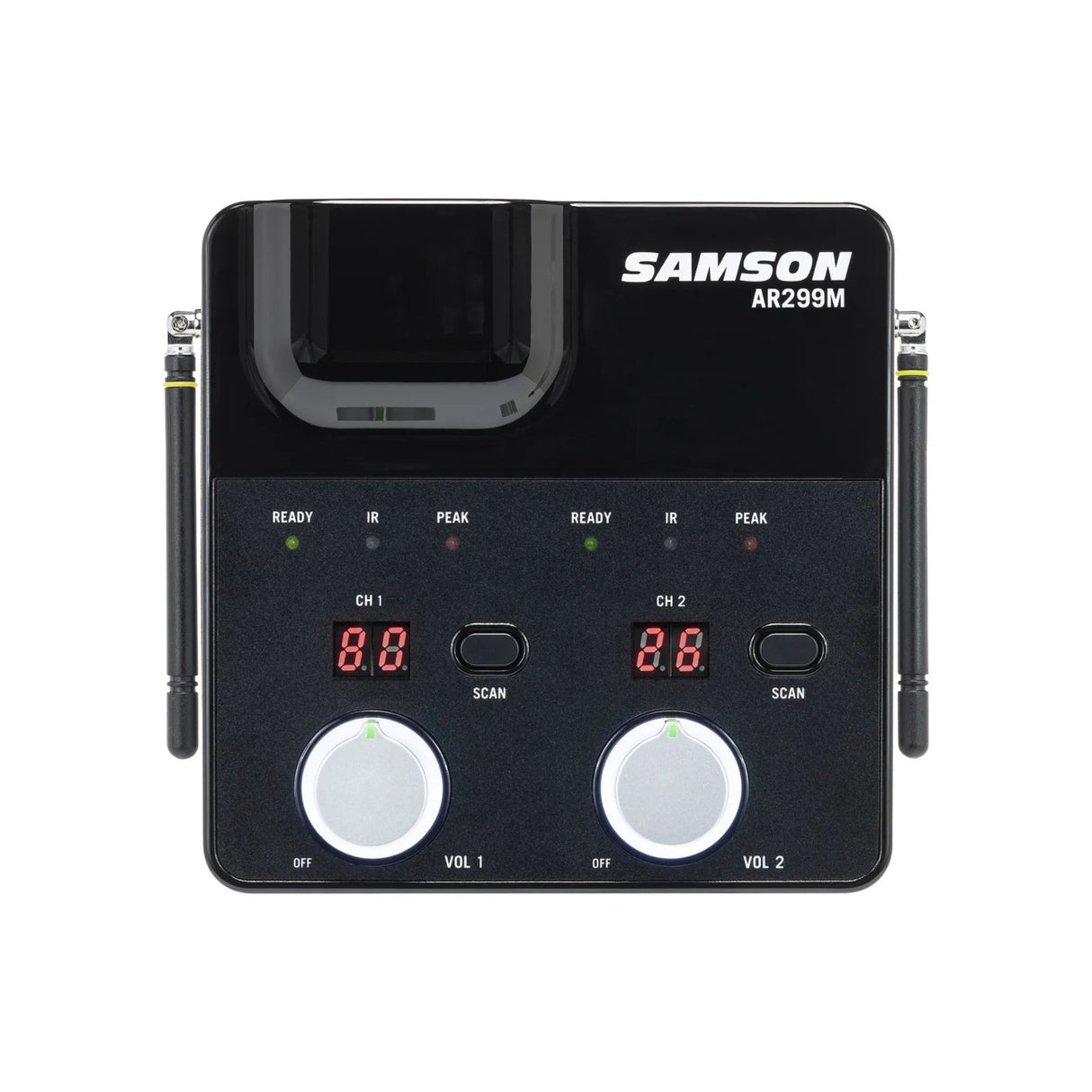

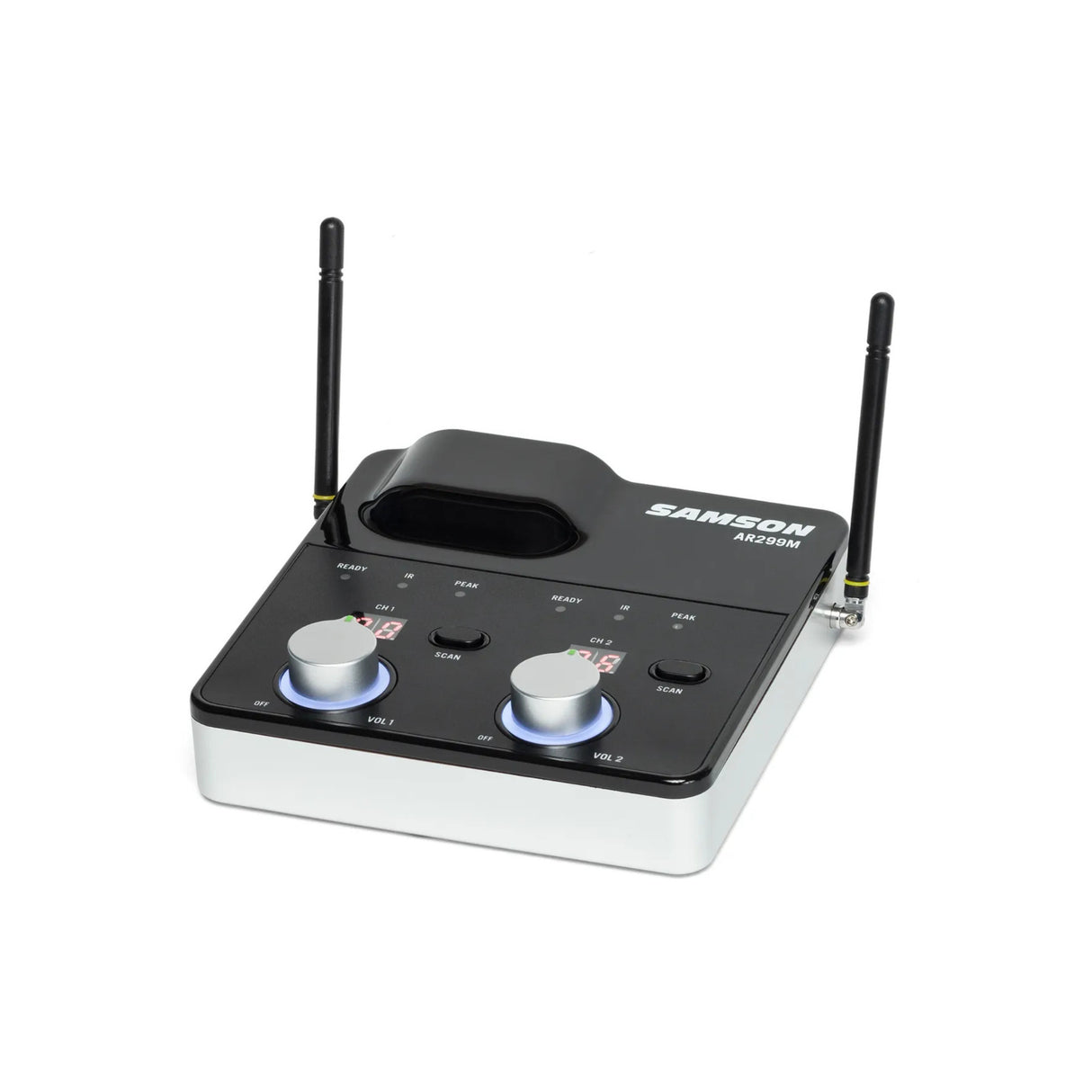

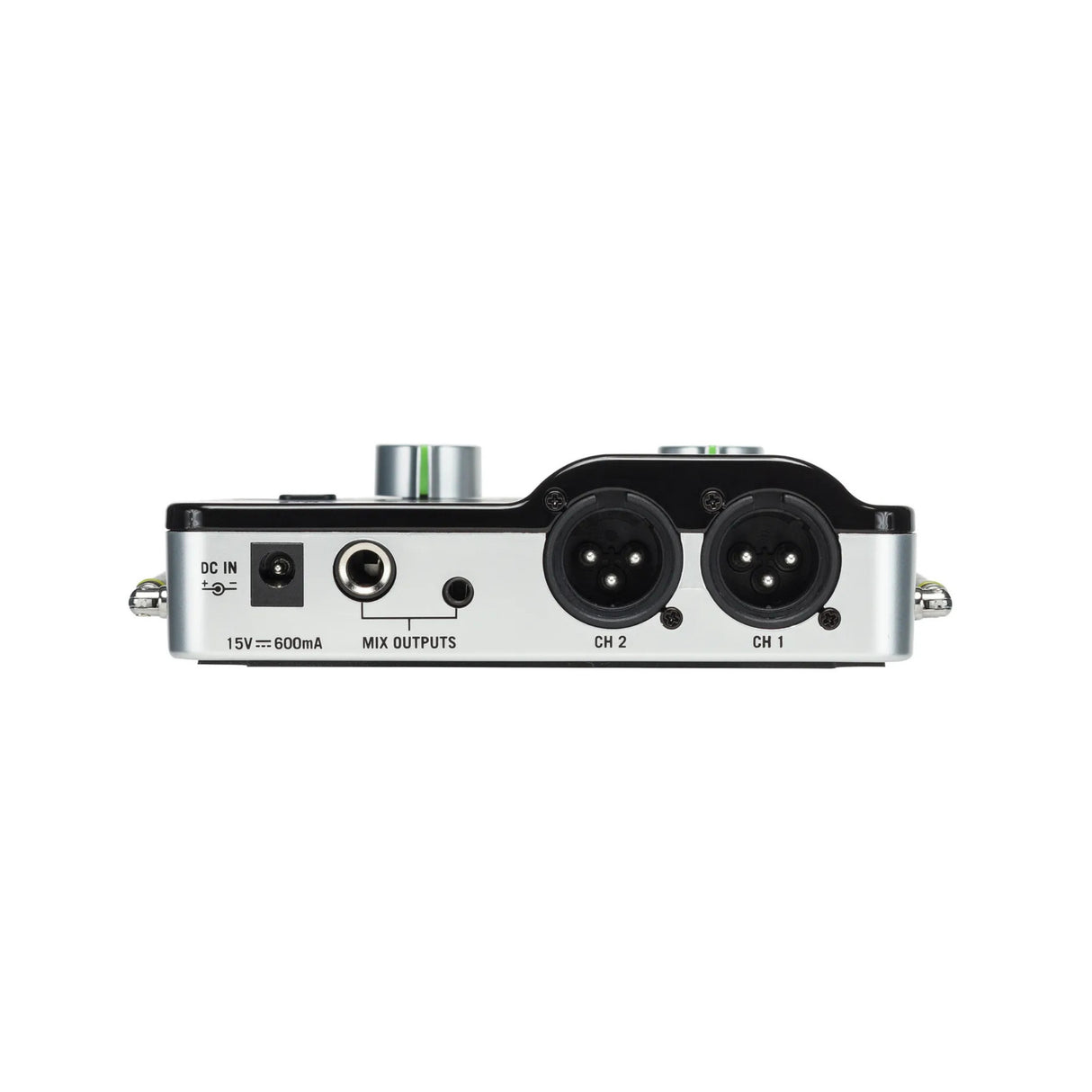

Also included is the AR299m dual-channel tabletop micro receiver with foldable antennas, which is small and light enough to fit into any carry bag. The rear-panel connections include a variety of XLR, 1/4in, and 3.5mm connectors, giving you flexible options for connecting to any mixing board or PA system.
Quick to set up at the press of a button, the receiver scans 100 selectable frequencies to locate a clean RF channel that's free from interference. Just hold the Set button to sync the receiver with the transmitter via IR, and you're ready to go. Up to eight microphones can operate simultaneously per frequency band.
Straightforward Setup and Operation
- The bodypack transmitters offer variable mic input gain control.
- The receiver is equipped with separate volume controls for each mic.
- The microphones are optimized for speech intelligibility and feature a locking connector for a secure connection to the transmitter.
- Two balanced XLR outputs allow you to route the individual mic signals to two separate mixer or PA channels.
- 1/4in and 3.5mm unbalanced mix outputs combine both mic signals to a single output.
- Tone key and auto mute technology prevents undesired noise and interference when the transmitter is out of range
Main
| Receiver No. of Channels | Dual-Channel |
| Microphone Type | Cardioid polar |
| Microphone Style | Lavalier |
| Battery Type | Alkaline |
| Polar Pattern | Cardioid |
| Configuration | Core |
| Color | Black |
- D: 542 to 566 MHz
- 2x XLR 3-Pin Balanced Output
- 1x 1/4in TS Unbalanced Output
- 1x 1/8in / 3.5 mm TRS Unbalanced Output
- Bias/Plug-In Power is Unspecified by Manufacturer
- No Phantom Support
- 2x Lavalier
- 2x Headset
System
| Wireless Technology | Analog UHF |
| Diversity | Yes, True Diversity |
| RF Frequency Band | |
| Number of RF Channel Frequencies | 100 |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Dynamic Range | >100 dBA |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
Receiver
| Receiver Type | 1x Tabletop |
| Mounting Options | No |
| Antenna | 2x Fixed External |
| Number of Audio Channels | 2 |
| Audio I/O | |
| Frequency Response | 50 Hz to 15 kHz |
| Display | Alphanumeric LED |
| Power Requirements | AC/DC Power Adapter |
Transmitters
| Included Transmitters | 2x Bodypack |
| RF Output Power | 10 mW |
| Antenna | Fixed External |
| Input Level | Microphone |
| Audio I/O | 1x TA3M/Mini-XLR 3-Pin Male Input |
| Bias/Plug-In and Phantom Power | |
| Muting | Off/On Switch |
| Auto-Level/Gain | No |
| Sync Method | IR |
| Display | Single-LED Indicators Only |
Microphones
| Microphone Type | |
| Polar Pattern | Cardioid |
| Output Connector | 1x TA3F/Mini-XLR 3-Pin Female |
| Cable Length | 3.94' / 1.2 m |
| Color | Black |
Power
| Transmitter Battery Type | 2x AA (Not Included) |
| Transmitter Battery Life | 8 Hours (Alkaline) |
| AC/DC Power Adapter | 15 VDC at 600 mA (Included) |
| Input Power | 110 to 220 VAC, 50 / 60 Hz |
Physical
| Environmental Resistance | No |
