Samson Concert 88x Presentation UHF Wireless System with LM5 Mic (B...

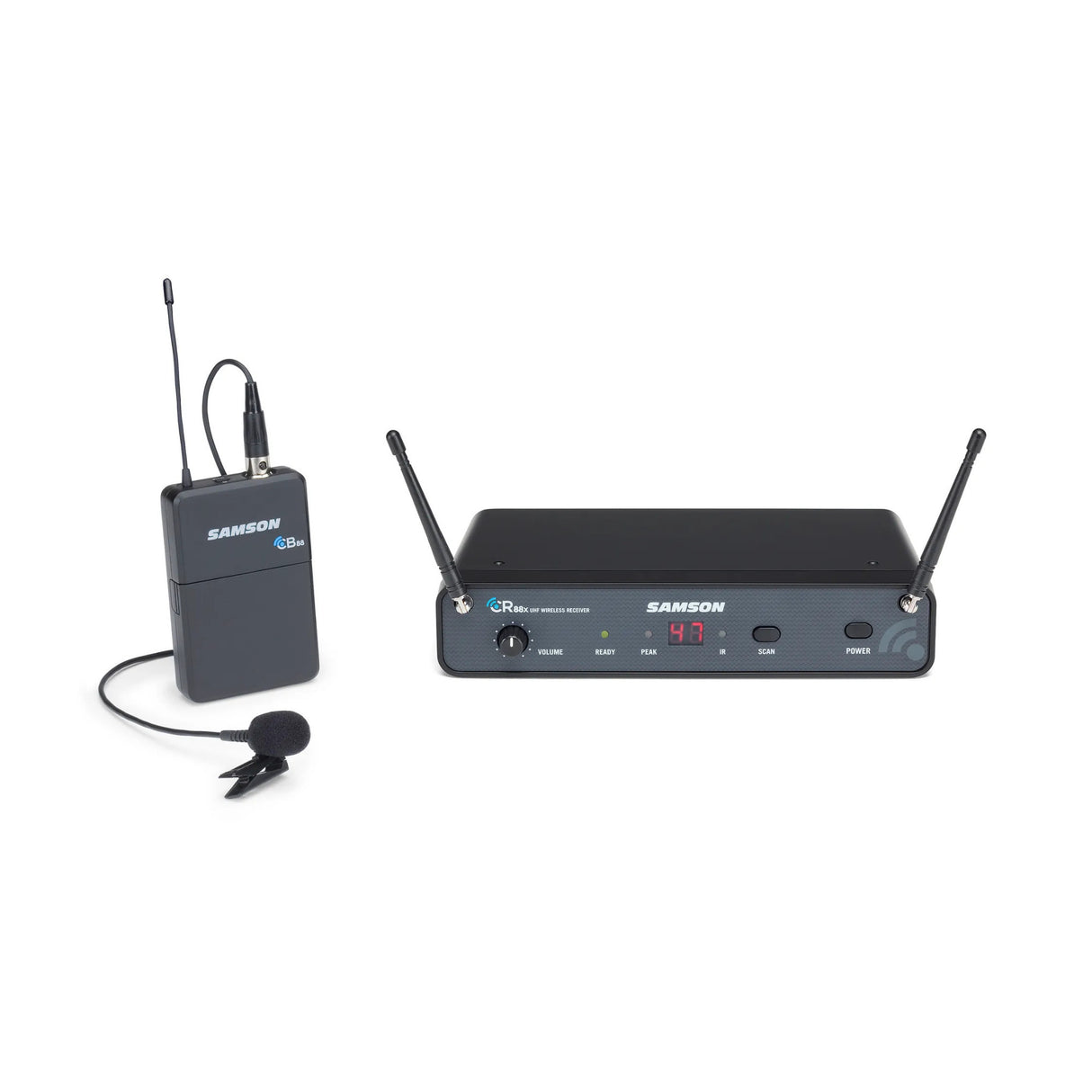

The Concert 88x Presentation system is the perfect wireless solution for presenters, lecturers, and educators. The included lavalier microphone allows for hands-free movement while still delivering clear and professional audio. Ideal for on-screen talent, plays, and stage productions, as well as in a house of worship, the Concert 88x Presentation system provides reliable wireless performance.
Pro Performance. Simple Setup.

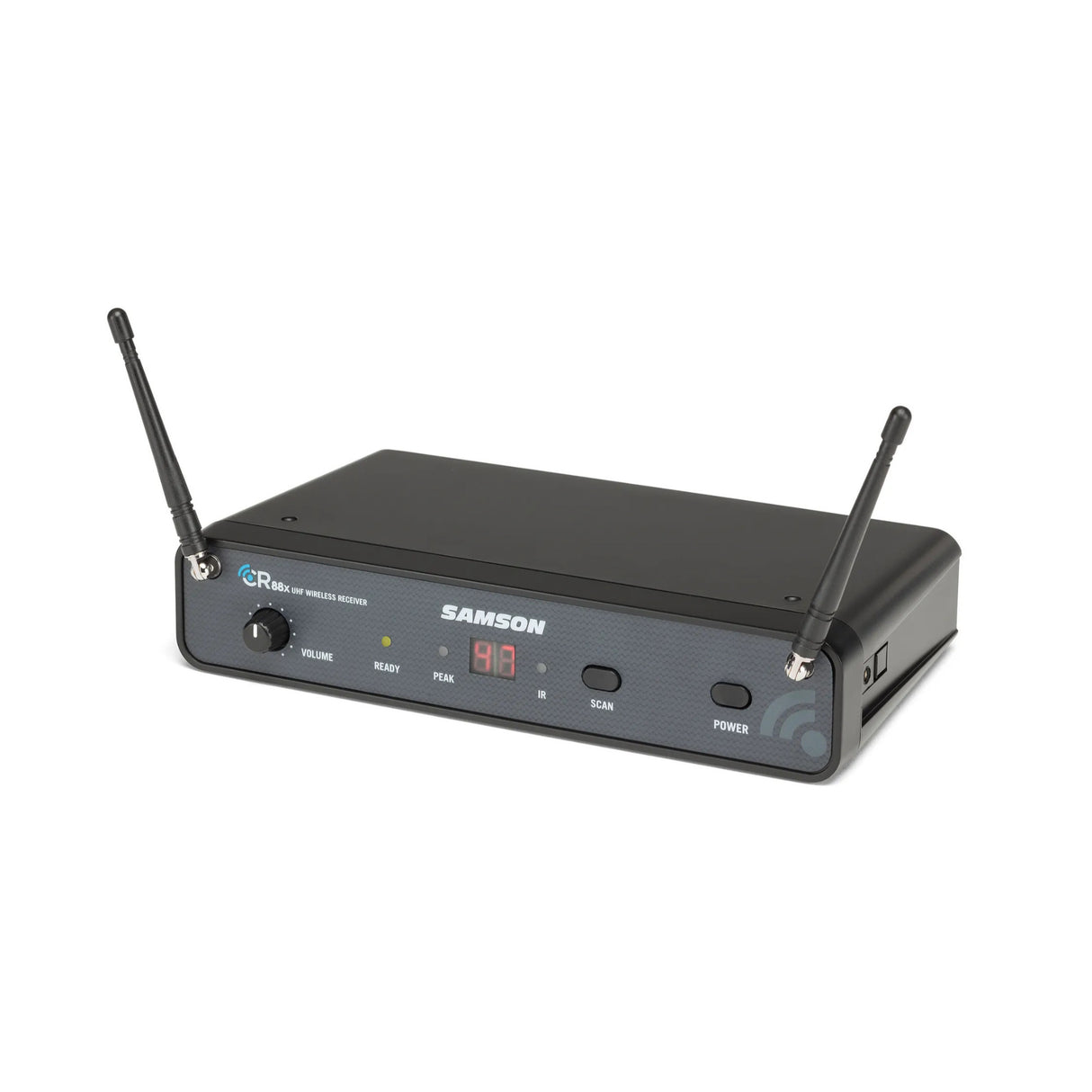

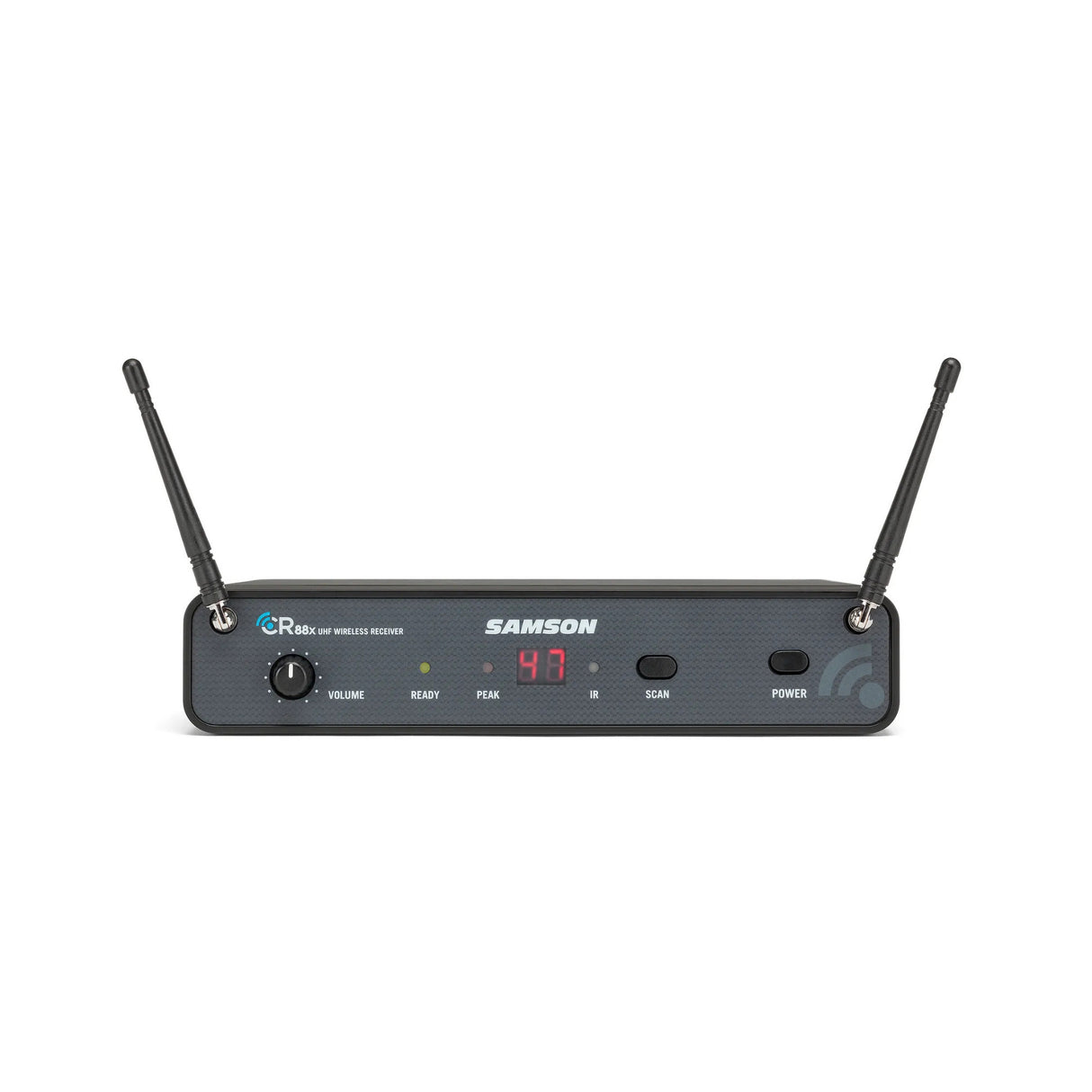

Simplicity and performance are at the heart of the Concert 88x wireless systems. One-touch scanning analyzes all available channels and selects the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of channels available for your event/application.
Sound Secure

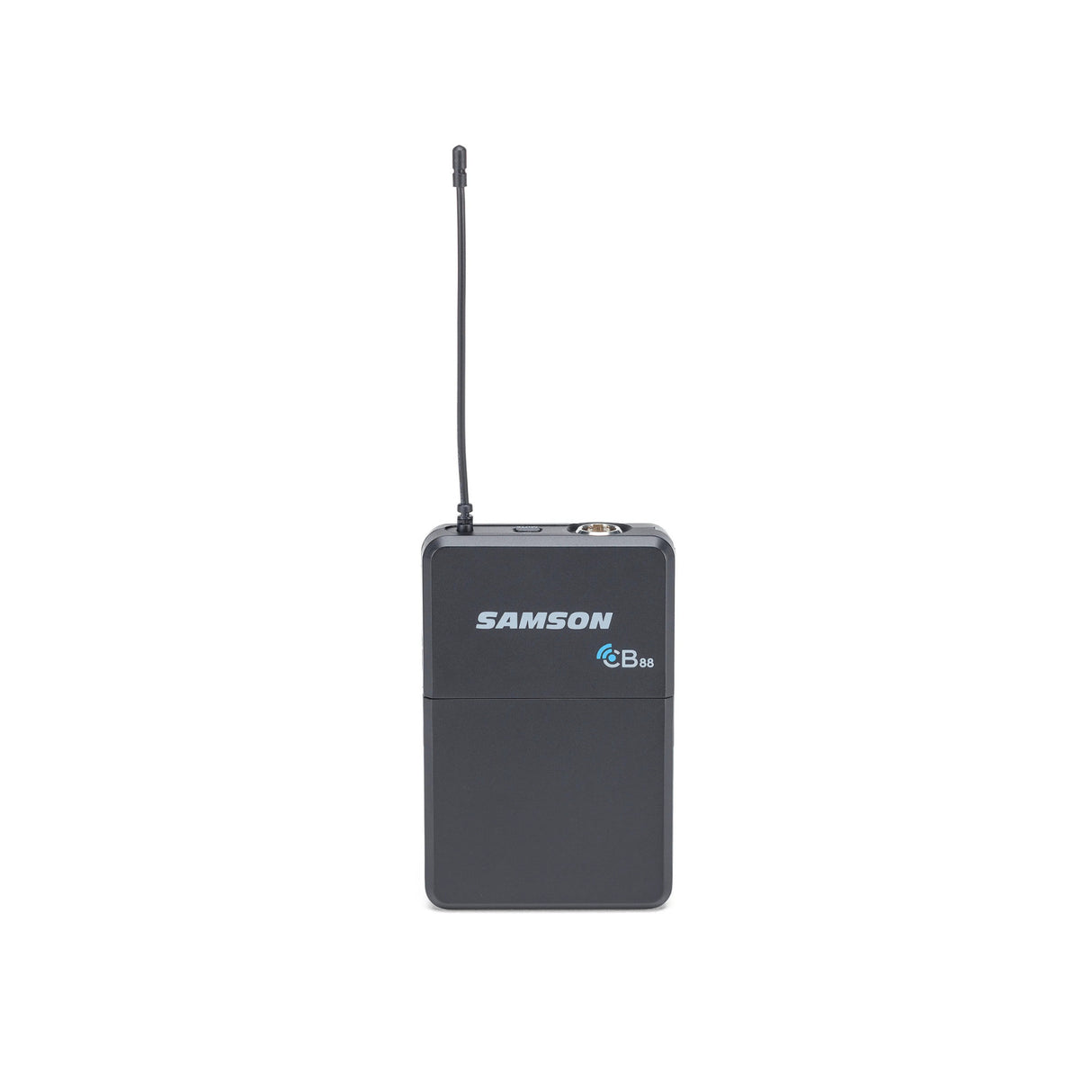

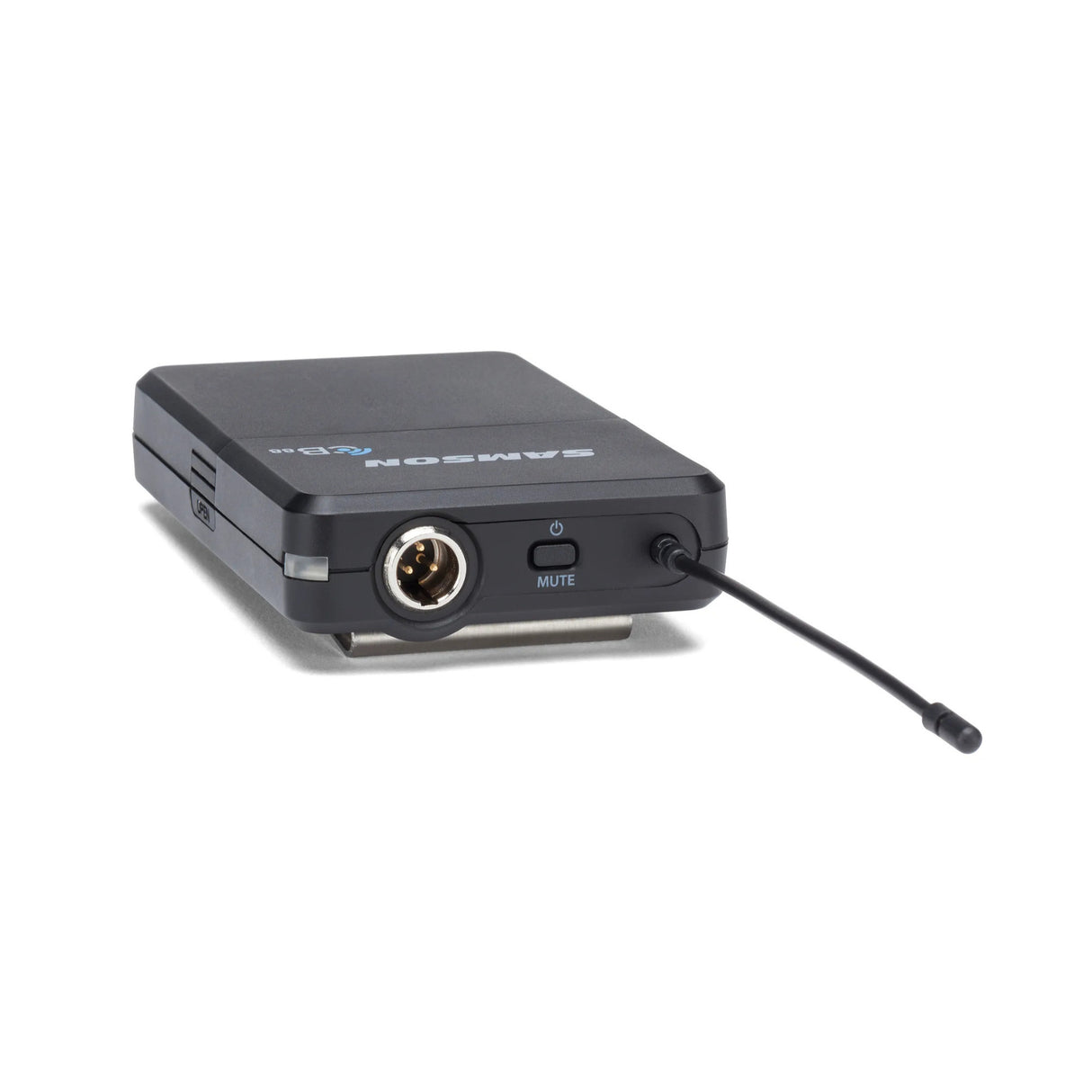

The CB88 Beltpack Transmitter features a silent mute switch that eliminates popping noises when muting or unmuting the system, and an adjustable gain control for optimal performance. The CB88 fits securely on the performer's belt, waistband, or even in a pocket and provides up to eight hours of continuous operation from a pair of AA batteries.
Freedom to Roam the Stage
True-diversity design minimizes dropouts for loud, clear wireless reception up to 300 feet. Tone key and auto-mute circuitry ensures that only the audio signal from the CB88 beltpack transmitter reaches the receiver, and automatically mutes the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.
Making Connections

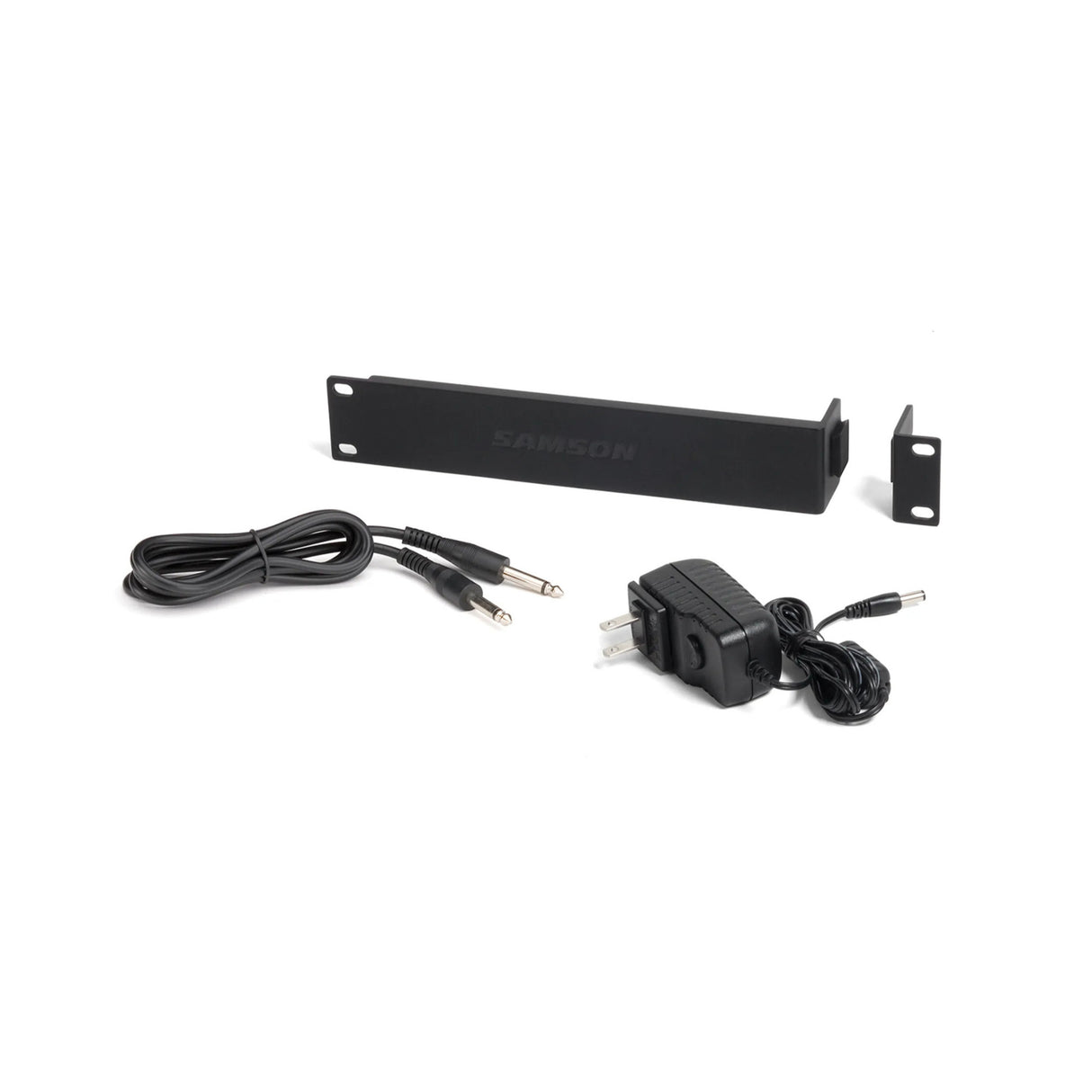

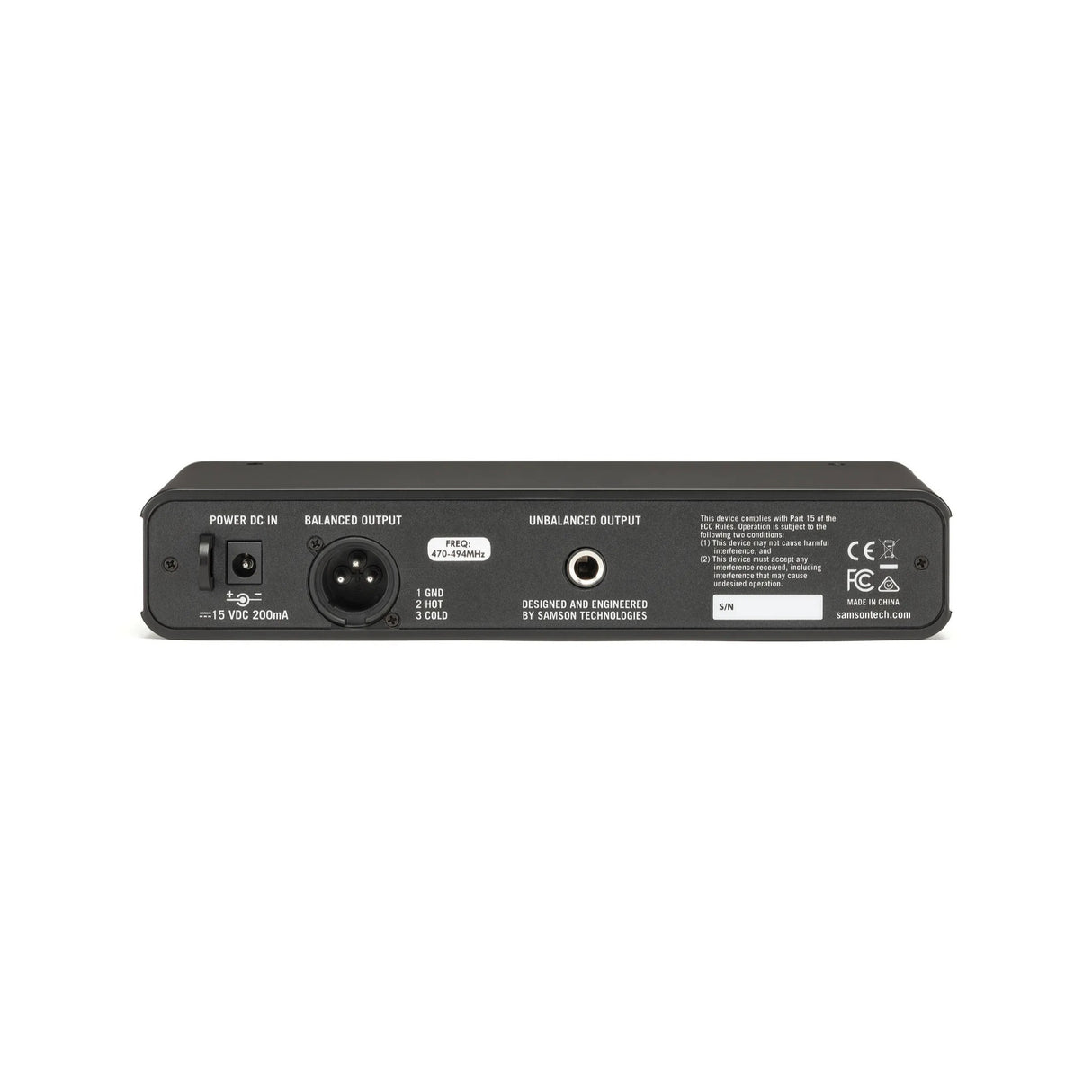

The rear panel provides both balanced (XLR) and unbalanced (1/4in) connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR88x receivers to be installed in a portable audio rack or fixed location.
Lavalier Microphone
The Samson LM5 Lavalier Microphone features an omnidirectional pickup pattern that provides excellent pickup even when the presenter's head is turned to the side-or when talking face-to-face with another person. Use the convenient clip to attach the microphone directly to a tie, lapel, fabric fold, etc.
Main
| Receiver No. of Channels | Single-Channel |
| Microphone Type | Cardioid polar |
| Microphone Style | Lavalier |
| Battery Type | aa |
| Polar Pattern | Cardioid |
| Configuration | Core |
| Color | Black |
- D: 542 to 566 MHz
- 1x XLR 3-Pin Balanced Output
- 1x 1/4in TS Unbalanced Output
- Bias/Plug-In Power is Unspecified by Manufacturer
- No Phantom Support
- Receiver: 8.3 x 1.7 x 4.9in / 21 x 4.4 x 12.5 cm
- Transmitter: 2.4 x 3.8 x 0.7in / 62 x 96 x 18.5 mm
- Receiver: 14.1 oz / 400 g
- Transmitter: 3.3 oz / 93 g
System
| Wireless Technology | Analog UHF |
| Diversity | Yes, True Diversity |
| RF Frequency Band | |
| Number of RF Channel Frequencies | 100 |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Dynamic Range | >100 dBA |
| Encryption | No |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
Receiver
| Receiver Type | 1x Tabletop |
| Mounting Options | Rackmount (with Included Hardware, 1 U) |
| Antenna | 2x Fixed 1/4 Wave External (Front-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | |
| Network I/O | No |
| Word Clock I/O | No |
| USB/Lightning Connectivity | No |
| Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
| Display | Alphanumeric LED |
| Power Requirements | AC/DC Power Adapter |
Transmitters
| Included Transmitters | 1x Bodypack |
| RF Output Power | 10 mW |
| Antenna | Fixed 1/4 Wave Flexible Whip |
| Input Level | Microphone / Instrument |
| Audio I/O | 1x TA3M/Mini-XLR 3-Pin Male Input |
| Bias/Plug-In and Phantom Power | |
| USB I/O | No |
| Muting | Off/On Switch |
| Gain Range | Up to 38 dB |
| Auto-Level/Gain | No |
| Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
| Sync Method | IR |
| Display | Single-LED Indicators Only |
Microphones
| Microphone Type | 1x Lavalier |
| Polar Pattern | Omnidirectional |
| Output Connector | 1x TA3F/Mini-XLR 3-Pin Female |
| Color | Black |
Power
| Transmitter Battery Type | 2x AA (Not Included) |
| Transmitter Battery Life | 8 Hours (Alkaline) |
| AC/DC Power Adapter | 15 VDC at 200 mA, Center-Positive (Included) |
Physical
| Environmental Resistance | No |
| Housing | Plastic (Transmitter) |
| Dimensions | |
| Weight | |
