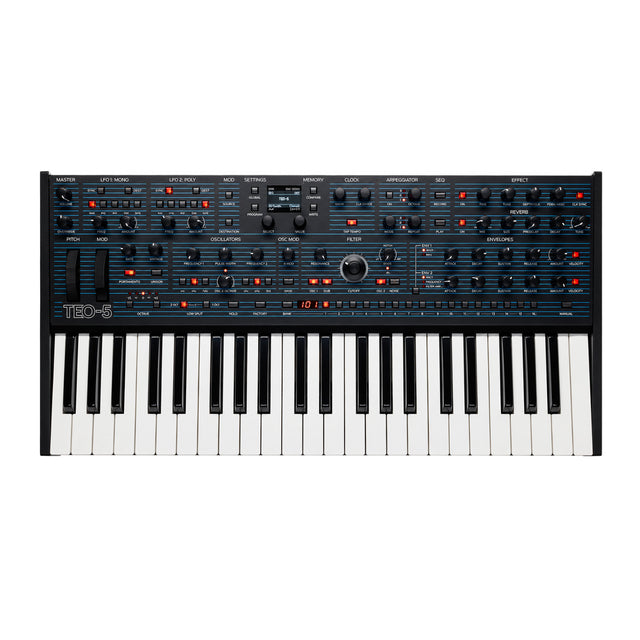

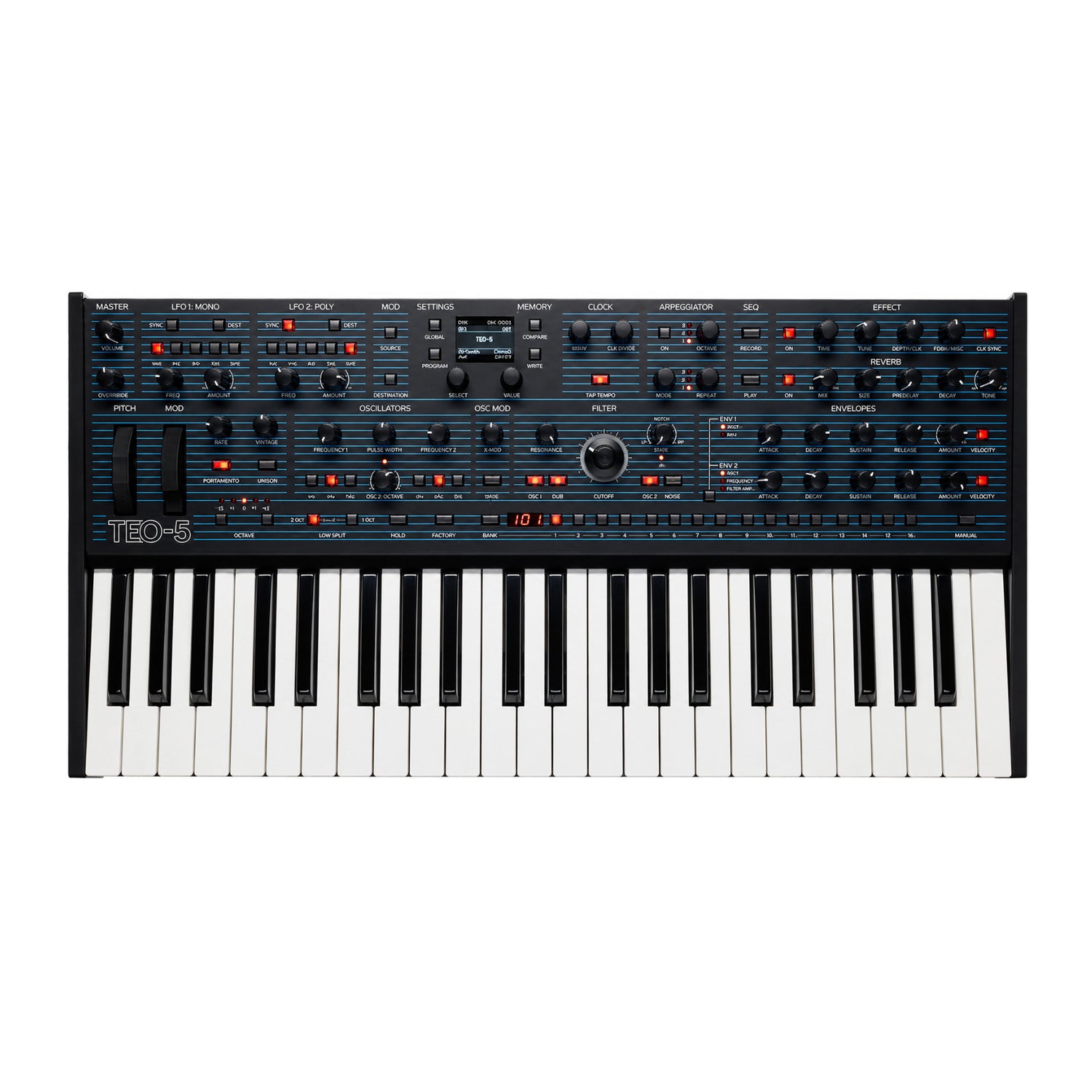

Oberheim TEO-5 5-Voice 44-Key Analog Synthesizer Keyboard with 64 Step Polyphonic Sequencer
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Oberheim TEO-5 brings five voices of genuine analog synthesis into a compact keyboard instrument built for sound design, studio production, and live performance. Two voltage controlled oscillators per voice provide triangle, sawtooth, and pulse waves, while through zero FM expands the oscillator section with complex harmonic textures unavailable from traditional oscillator modulation.
Classic SEM Filter Character
The 2 pole SEM state variable filter moves continuously from low pass through notch to high pass response. A separate band pass mode adds another tonal path. This flexible filter architecture supports warm basses, animated pads, resonant leads, evolving textures, and sharply defined effects without changing instruments.
Deep Modulation and Integrated Effects
The modulation matrix provides 19 routes, 19 sources, and 64 destinations, including audio rate options. Polyphonic and monophonic LFOs can run freely or synchronize with the arpeggiator, sequencer, or incoming MIDI clock. Each program can use a selectable digital effect and dedicated reverb, while separate overdrive adds harmonic intensity.
Expressive Performance and Sequencing
The 44 key Fatar keyboard responds to velocity and channel aftertouch. A 64 step polyphonic sequencer and multimode arpeggiator support evolving patterns, rhythmic ideas, and performance movement. The instrument stores 256 permanent Factory programs and 256 editable User programs, providing immediate access to finished sounds and space for original patches.
General
| Brand | Oberheim |
| Model | TEO-5 |
| Manufacturer SKU | OB-3700 |
| Product Type | Polyphonic Analog Synthesizer |
| Voice Count | 5 |
| Program Memory | 256 Factory Programs and 256 User Programs |
| Weight | 17 lbs. |
| Dimensions (LxWxH) | 25 x 12.75 x 4.4 inches |
Oscillator
| Oscillators Per Voice | 2 Voltage Controlled Oscillators |
| Wave Shapes | Triangle, Sawtooth, and Pulse |
| Oscillator Modulation | Through Zero FM |
| Oscillator Sync | Supported |
Filter
| Filter Type | 2 Pole SEM State Variable Analog Filter |
| Variable Modes | Low Pass, Notch, and High Pass |
| Additional Mode | Switchable Band Pass |
Modulation
| Modulation Routes | 19 |
| Modulation Sources | 19 |
| Modulation Destinations | 64 |
| LFO Types | Polyphonic and Monophonic |
| LFO Wave Shapes | Triangle, Sawtooth, Reverse Sawtooth, Square, and Sample and Hold |
| LFO Synchronization | Arpeggiator, Sequencer, or MIDI Clock |
Effects
| Simultaneous Digital Effects | Up to 2 Per Program |
| Effect 1 Types | Stereo Delay, BBD Delay, Tape Delay 1, Tape Delay 2, Chorus, Flanger, Phaser, High Pass Filter, Distortion, Ring Modulation, Rotating Speaker, and Lo Fi |
| Effect 2 Type | Dedicated Plate Reverb |
| Additional Processing | Separate Overdrive |
Sequencing and Performance
| Sequencer | 64 Step Polyphonic Sequencer |
| Arpeggiator | Multimode |
| Chord Memory | Supported |
| Unison Mode | Supported |
| Alternative Tunings | 65 Built In Tunings |
Keyboard

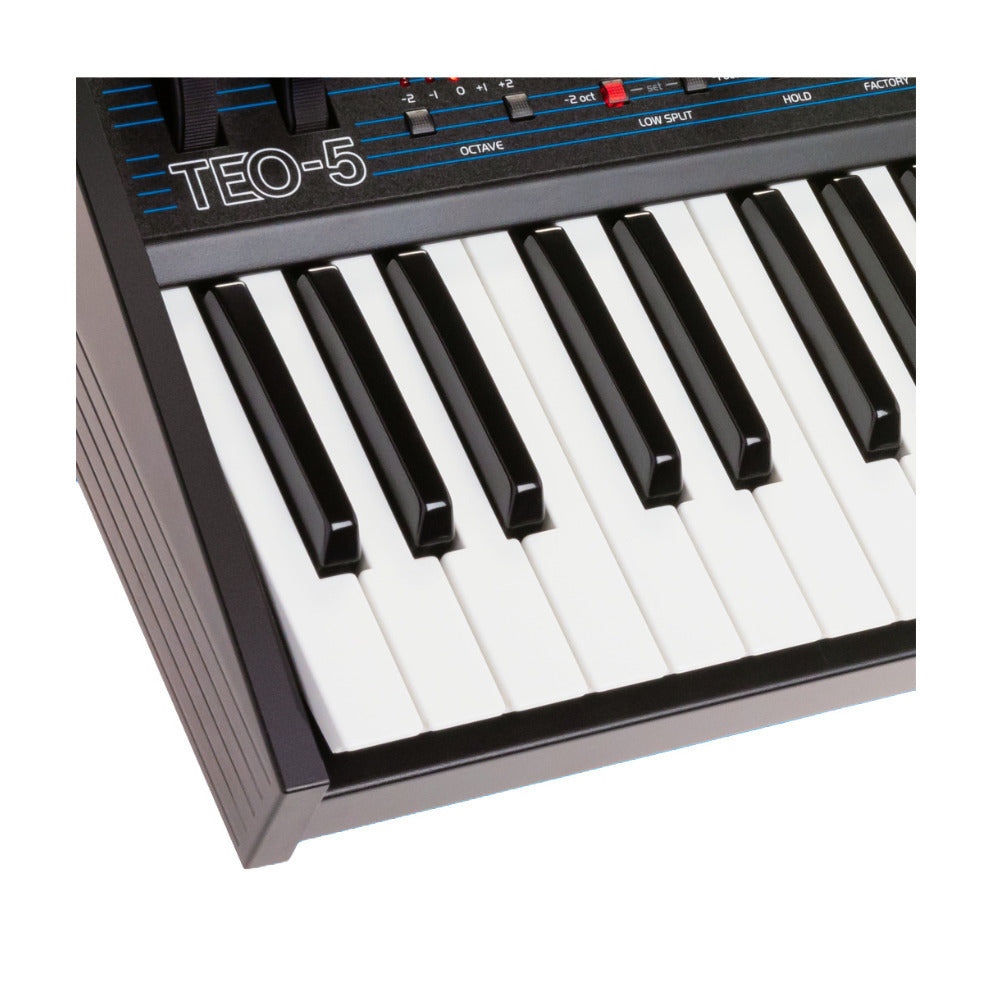

| Key Count | 44 Keys |
| Keyboard Range | 3.5 Octaves |
| Keybed Manufacturer | Fatar |
| Velocity Sensitivity | Supported |
| Aftertouch | Monophonic Channel Aftertouch |
| Aftertouch Curves | 8 |
| Velocity Curves | 7 |
| Performance Controls | Pitch Wheel and Modulation Wheel |

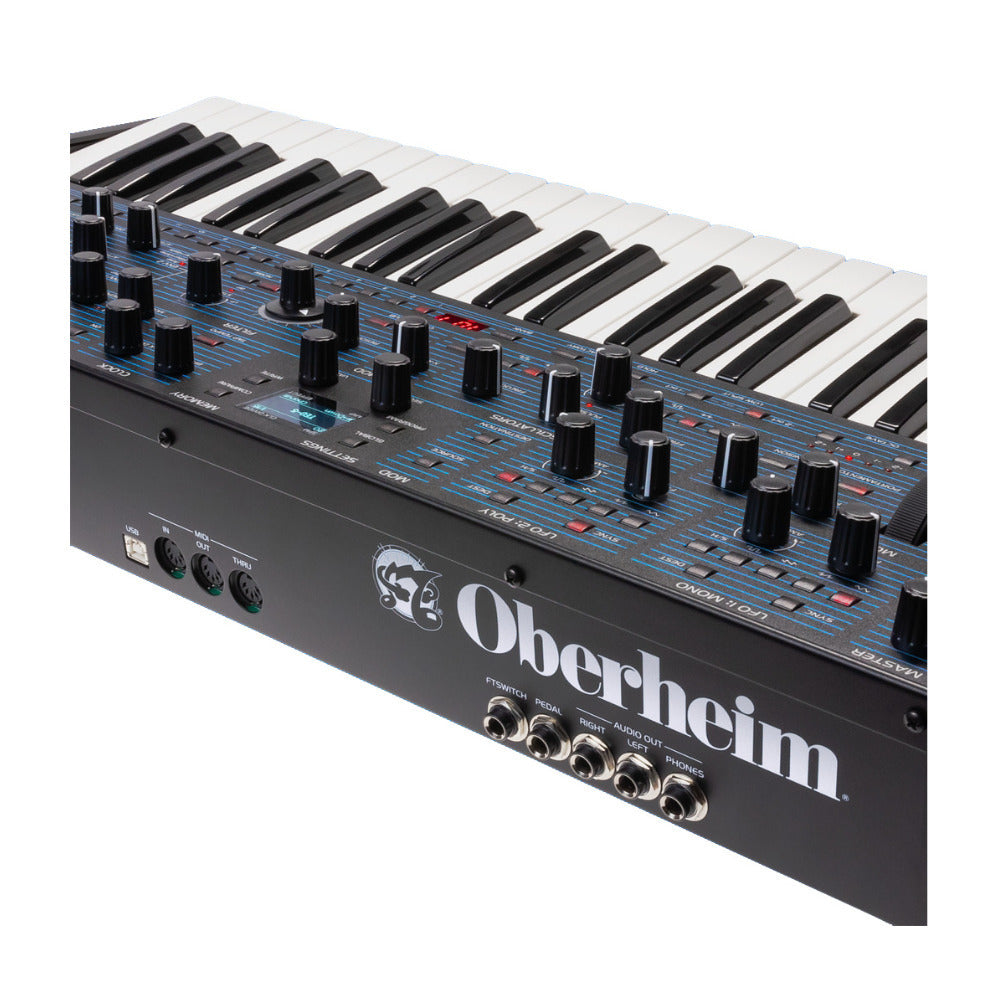

Connections
| Audio Outputs | Left and Right Unbalanced 1/4 Inch TS |
| Headphone Output | 1/4 Inch Stereo |

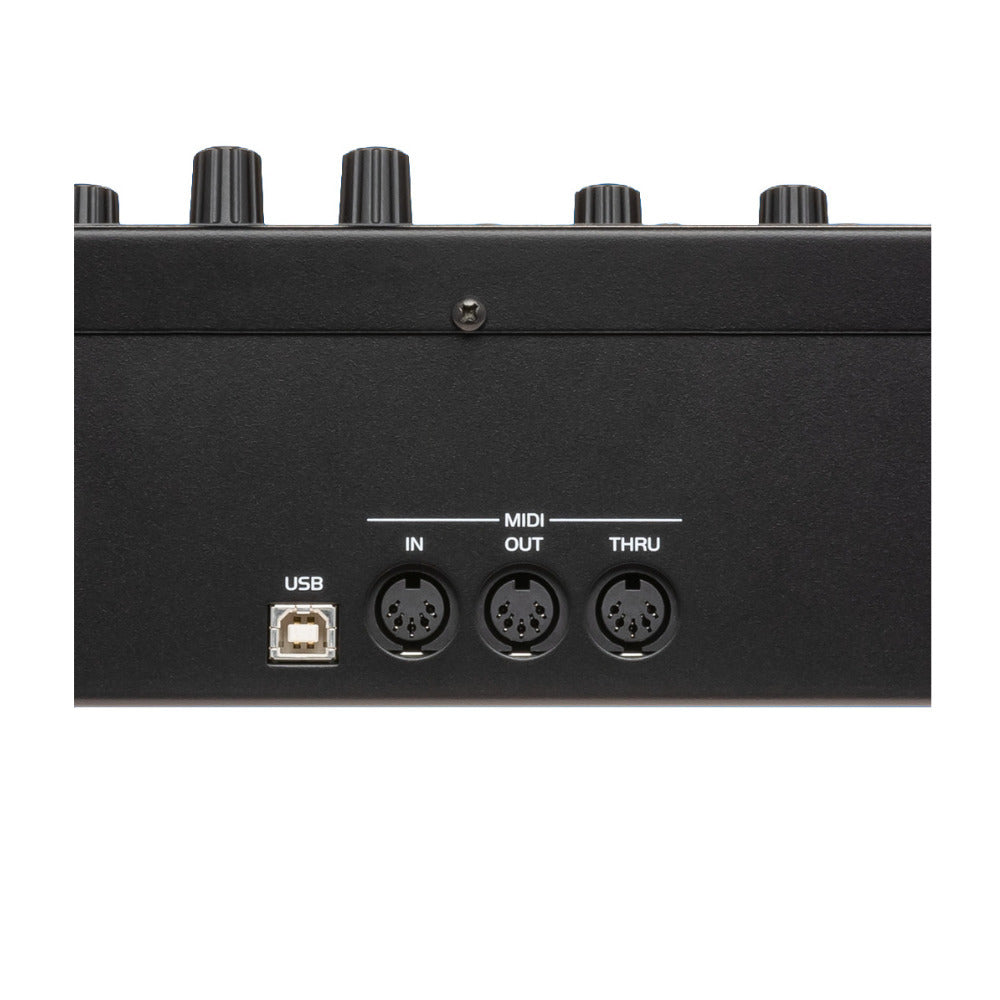

| MIDI Connections | MIDI In, MIDI Out, and MIDI Thru |
| USB | Bidirectional Class Compliant USB MIDI |
| Footswitch Input | Sustain, Arpeggiator Latch, or Sequencer Start and Stop |
| Pedal Input | Expression Pedal |
Power
| Input Voltage | 100 to 240 Volts |
| Frequency | 50 or 60 Hz |
| Power Consumption | 20 Watts |
| Power Connector | Grounded IEC C13 Type |
