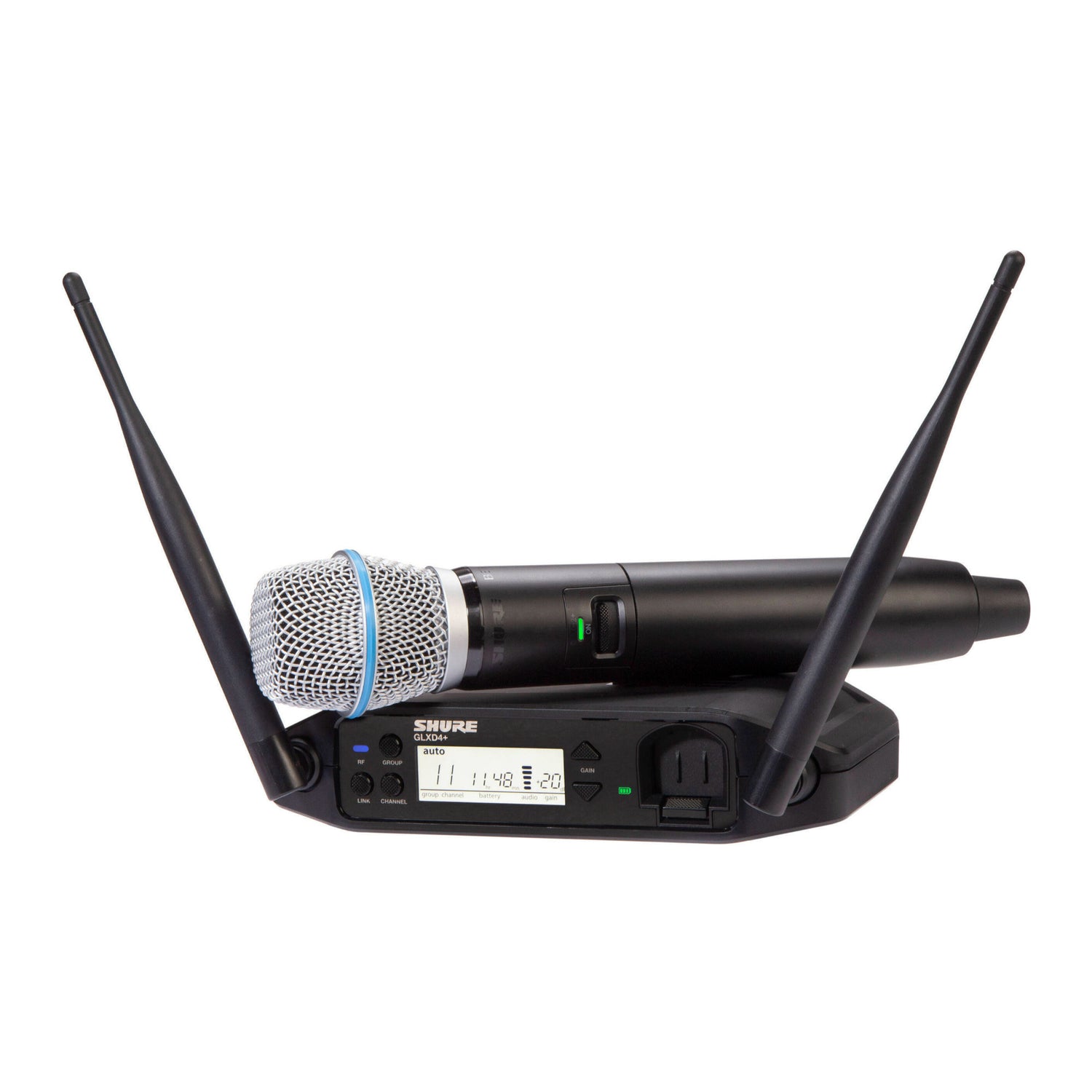

Shure GLXD24+/B87A Z3 Frequency Band Digital Wireless Handheld System (Black)
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Featuring the industry standard BETA 87A vocal microphone, the new Shure GLXD24+/B87A Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of automatic frequency management with new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. This system works on a Z3 frequency band.
Performance
| Frequency Range | 50 - 20kHz |
| Maximum SPL | 140 dB SPL (0.5% THD) |
| Impedance | 100 Ohms |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
| Headphone Connector | No |
Power
| Operating Voltage | AC/DC Power Adapter 14.5 to 17 VDC at 600 mA (Included) AC Input Power 100 to 240 VAC, 50 / 60 Hz |
| Bus Power | No |
Physical
| Color | Black |
| Weight | Receiver: 10.9 oz, Transmitter: 9.3 oz |
Microphone
| Form Factor | Handheld |
| Capsule | Condenser |
| Polar Pattern | Supercardioid |
| High-Pass Filter | No |
| Tone Adjustment | No |
| Gain Adjustment | Yes |
| Indicators | Yes |
| On-Board Controls | No |
| Windscreen | No |
- Charging: 0-degree-C (32-degree-F) to 40-degree-C (104-degree-F)
- Operating: 0-degree-C (32-degree-F) to 45-degree-C (113-degree-F)
- Up to 4 typical, 8 optimal
- 2.4 GHz only: Up to 4 typical, 5 optimal
- Antenna folded: 7.2 x 4.8 x 1.6 inch (182.82 x 121.97 x 40.3 mm)
- Antenna opened: 7.2 x 4.8 x 7.3 inch (182.82 x 121.97 x 185.6 mm)
- XLR output: Impedance balanced
- 6.35 mm (1/4 inch) output: Impedance balanced
- XLR output: 100 ohm
- 6.35 mm (1/4 inch) output: 100 ohm (50 ohm, Unbalanced)
- XLR connector: +1 dBV
- 6.35 mm (1/4 inch) connector: +8.5 dBV
- XLR output: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4 inch) connector: Tip=audio, Ring=no audio, Sleeve=ground
- Impedance: 50 ohm
- Maximum input level: -20 dBm
- Shure rechargeable li-ion battery: SB904
- USB power supply (US/Canada): SBC10-USB15WSUSTWJ
- Charging: 0-degree-C (32-degree-F) to 40-degree-C (104-degree-F)
- Operating: -18-degree-C (0-degree-F) to 45-degree-C (113-degree-F)
Shure GLXD24+/B87A Z3 Frequency Band Digital Wireless Handheld System with BETA 87A Vocal Microphone
General
| Frequency band | Z3 |
| Tuning bandwidth | 2400 - 2483.5 MHz and 5725 - 5850 MHz |
| Transmit mode | Shure proprietary digital |
| RF output power | 10 mW E.I.R.P. maximum |
| Ambient temperature range | |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of lowimpedance output) and the tip of the high impedance 1/4-inch output |
| Audio frequency response | 20 Hz – 20 kHz |
| Dynamic range | 122 dB, A-weighted |
| RF sensitivity | -88 dBm, typical |
| Total harmonic distortion | 0.2%, typical |
| Battery life | Up to 11.5 hours |
| Channel count |

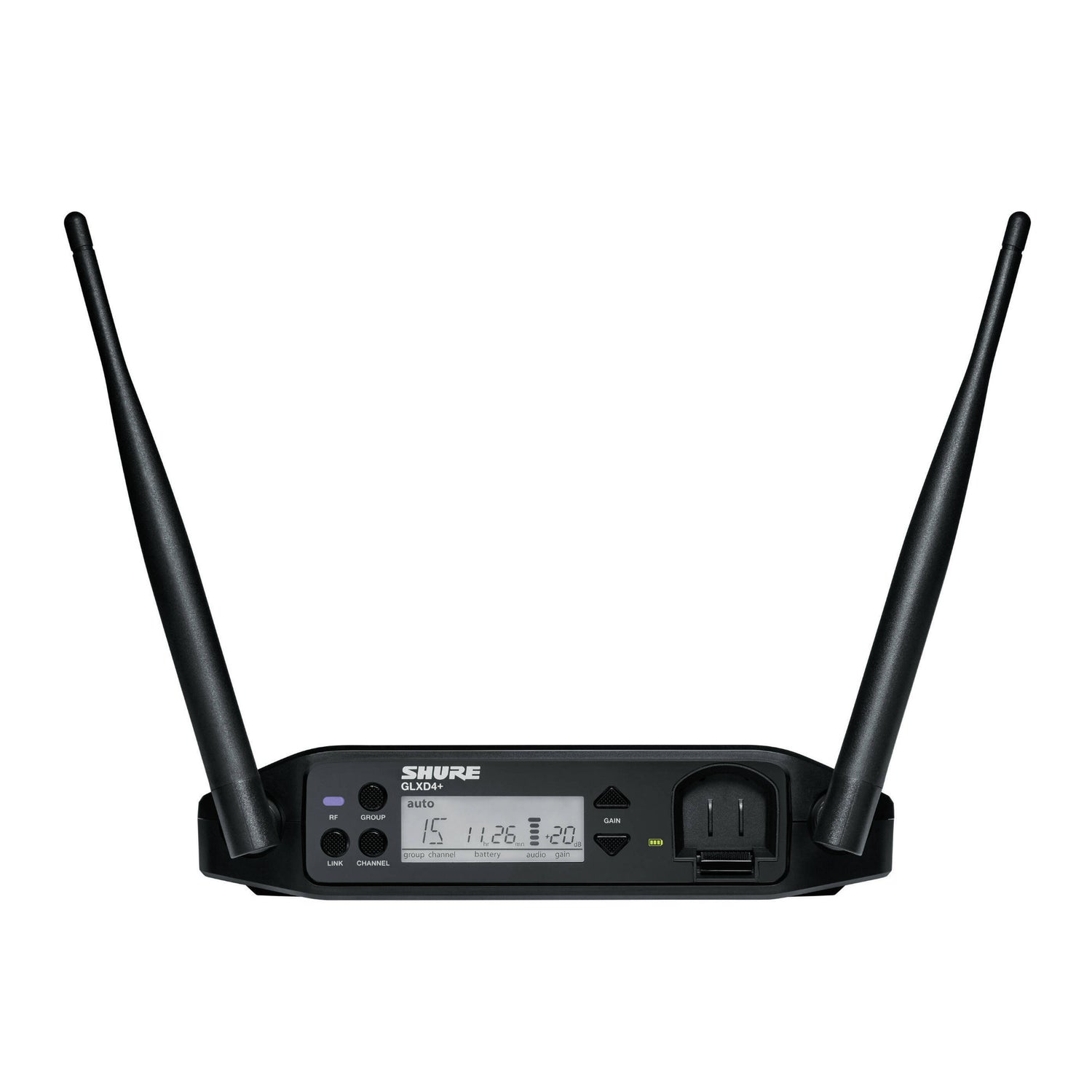

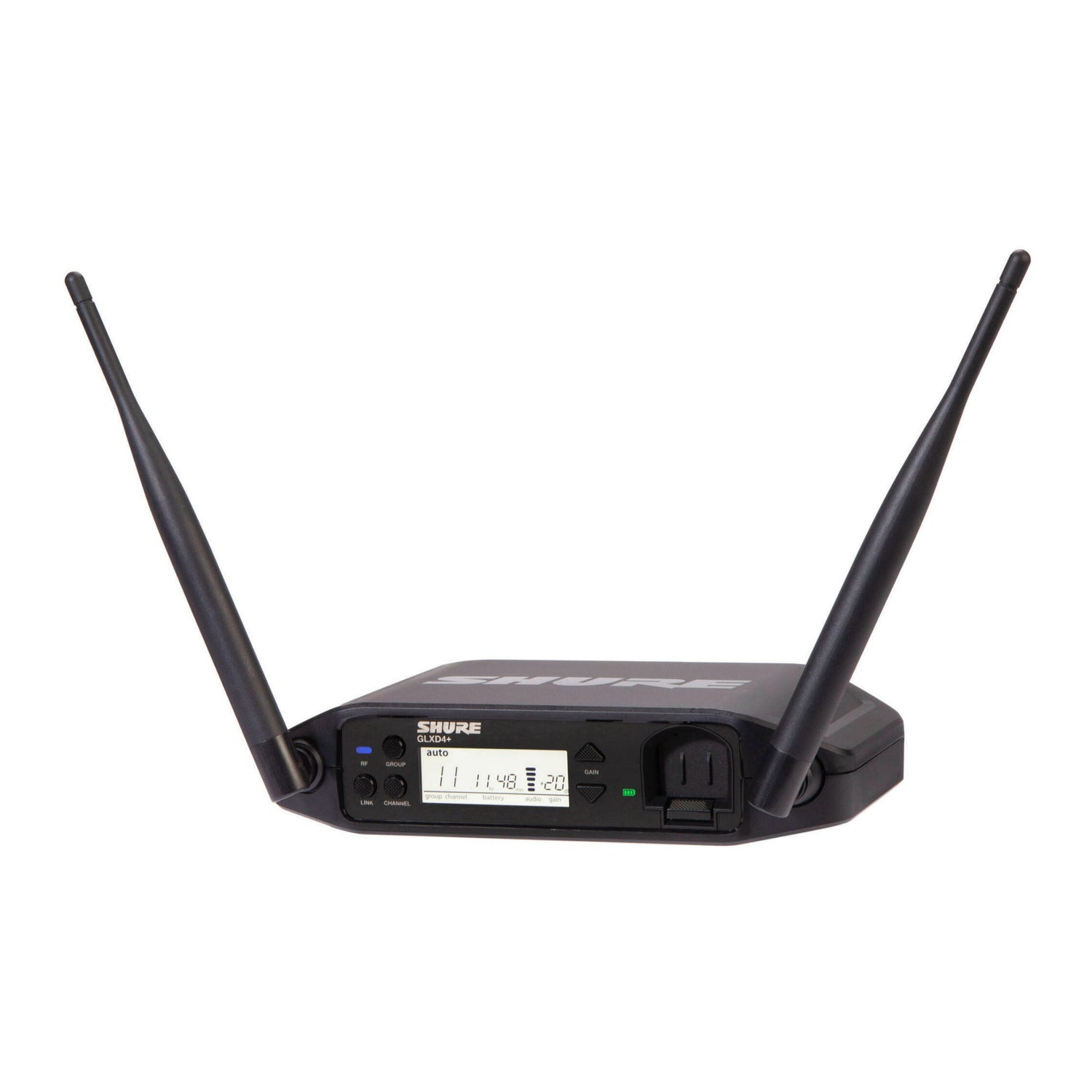

GLXD4+ Receiver
| Power requirements | 14.5 V – 17 V, 600 mA (efficiency level VI power supply) |
| Antenna type | Dual-band 1/2 wave sleeve dipole, non-removable |
| Dimensions | |
| Weight | 10.9 oz (310 g) |
| Housing | PC/ABS |
| Spurious rejection | > 35 dB, typical |
| Gain adjustment range | -20 to 40 dB, 1 dB increments |
| Phantom power protection | Yes |
| Audio Output | |
| Configuration | |
| Impedance | |
| Maximum audio output level | |
| Pin assignments | |
| Receiver Antenna Input | |
GLXD2+
| Power requirements | |
| Dimensions | 9.69 inch (246 mm) |
| Weight | BETA 87A: 9.3 oz (265 g), without battery |
| Housing | Aluminum alloy, ABS plastic |
| Maximum input level | BETA 87A: 147 dB SPL |
SB904
| Battery type | Rechargeable Li-Ion |
| Nominal capacity | 2420 mAh (8.71 Wh) |
| Nominal voltage | 3.6 V |
| Dimensions (H x W x D) | 2.87 x 0.83 x 0.82 inch (72.8 x 20.96 x 20.80 mm) |
| Weight | 1.89 oz (53.7 g) |
| Housing | PC/ABS |
| Ambient temperature range |
