Shure SLXD4Q Plus Black Quad Channel Receiver with Dante and 24 Bit...

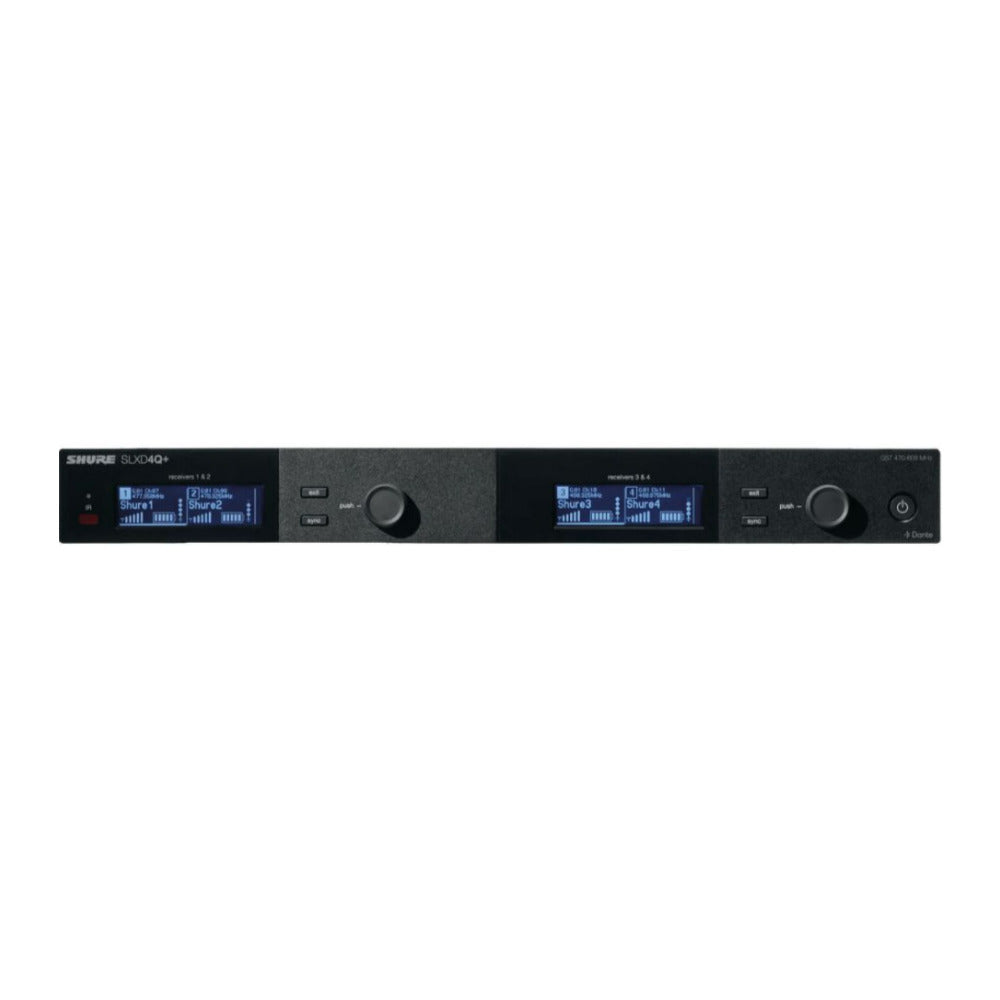

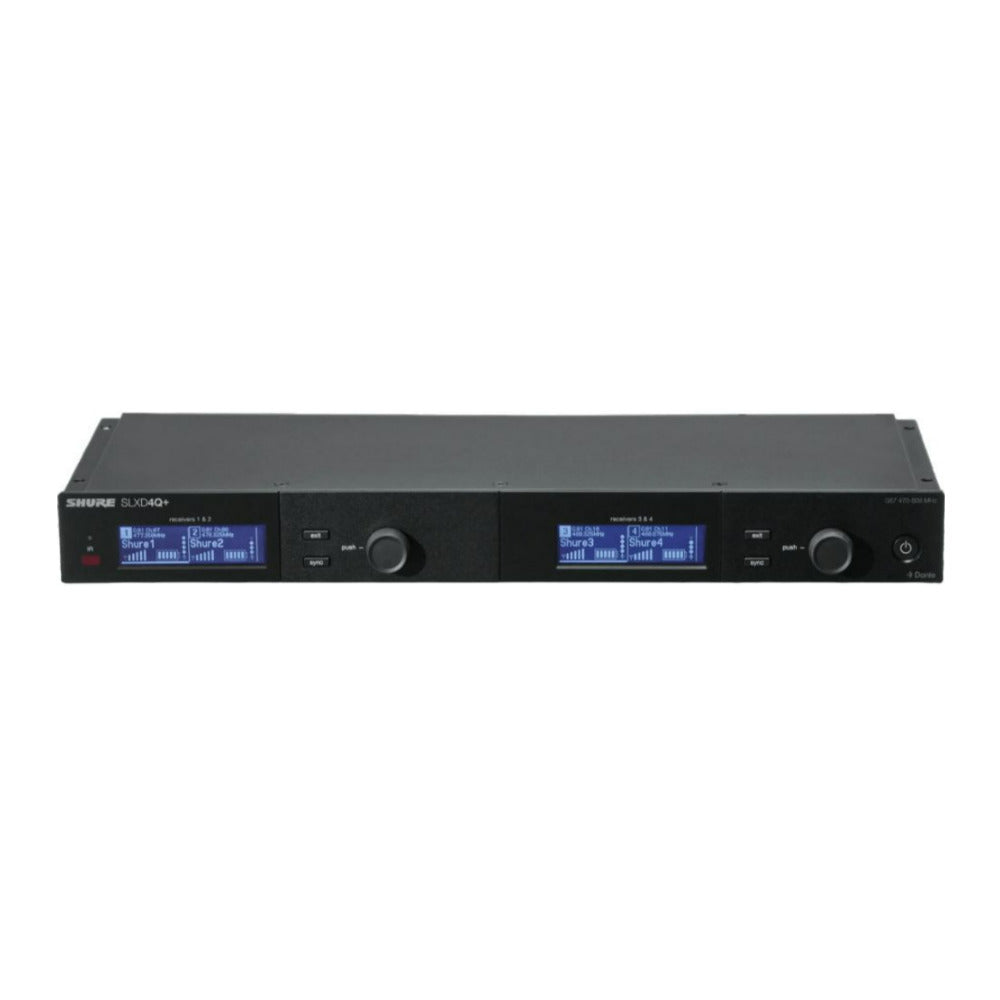

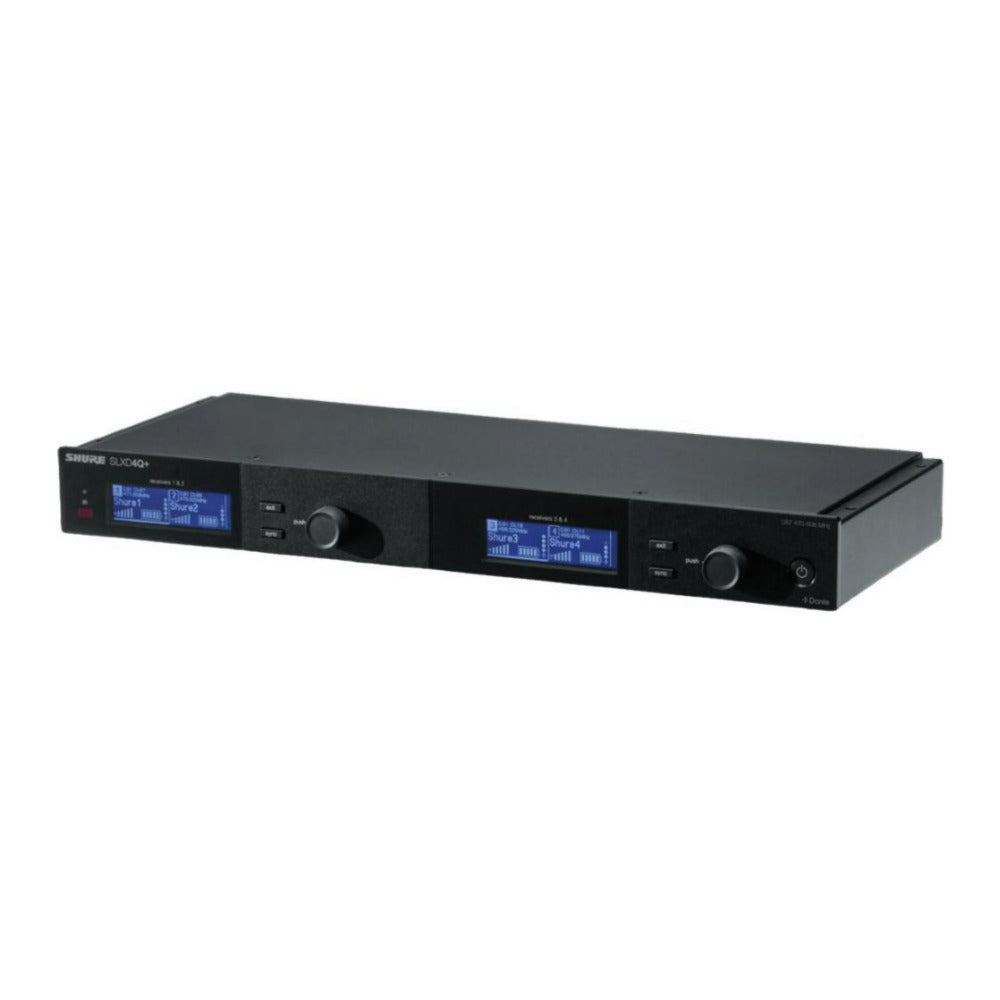

The Shure SLXD4Q Plus Quad Channel Receiver in Black with Dante Audio connectivity is the best choice for streamlining SLX-D digital wireless performance into a space-saving footprint. Featuring expanded capabilities for confident speech presentation and vocal performance - from lecture halls to live entertainment.
Four Channels of Wireless Versatility, Wherever Required
The SLXD4Q Plus features four channels in a single rack space with a wide 138 MHz tuning range and 32 available channels per frequency band, depending on the region. It delivers transparent 24-bit digital audio with a 118 dB dynamic range. Audio Summing allows the receiver output to match available mixer channels (4, 3, 2, or 1), while four XLR and four 1/4-inch outputs, along with two local ethernet connections, provide flexible connectivity. RF Cascade enables an 8-channel system by linking two SLXD4Q Plus units without additional accessories. The system includes bias voltage power supply management, digital predictive switching diversity, and easy transmitter-receiver pairing via IR scan and sync. It operates for up to eight hours on two AA batteries or an optional Shure SB903 rechargeable battery and is built with rugged metal construction. It also features Dante Audio Networking, carried on a single Ethernet cable.
Physical
| Weight | 9.10 lbs. |
Amplifier
| Channels | 4 |
- Spurious Rejection: Greater than 75 dB, typical
- Connector Type: BNC
- Impedance: 50 ohms
- Bias Voltage: 15 V DC, 150 mA maximum, per antenna (switchable on-off)
- Audio Frequency Response: 20 Hz - 20 kHz (plus 1, minus 2 dB)
- Gain Adjustment Range: Minus 18 to plus 42 dB in 1 dB steps
- 1/4-Inch (6.35 mm): Balanced (tip equals audio plus, ring equals audio minus, sleeve equals ground)
- XLR: Balanced (1 equals ground, 2 equals audio plus, 3 equals audio minus)
- 1/4-Inch (6.35 mm): 1.1 kiloohm (550 ohms unbalanced)
- XLR (line): 500 ohms (250 ohms Unbalanced)
- XLR (mic): 150 ohms
- 1/4-Inch (6.35 mm): Plus 12 dBV unbalanced, plus 18 dBV balanced
- XLR: LINE setting equals plus 18 dBV, MIC setting equals minus 12 dBV
- 1/4-Inch (6.35 mm): Yes
- XLR: Yes
- Connector Type: BNC (Note: For connection of one additional receiver in the same band)
- Configuration: Unbalanced
- Impedance: 50 ohms
- Insertion Gain: 0 to 2 dB, typical
- Network Interface: 10/100 Mbps, 1 Gbps, Dante Digital Audio
- Network Addressing Capability: DHCP or manual IP address
- Maximum Cable Length: 328 feet (100 m)
Shure SLXD4Q Plus Quad Channel Receiver with Dante, 24-Bit Digital Audio, and 32 Channels
| Dimensions (H x W x D) | 1.65 x 15.47 x 5.98-inch (42 x 393 x 152 mm) |
| Weight | 3.85 lbs (1750 g, without antennas) |
| Housing | Galvanized steel |
| Power Requirements | 15 V at 1.03 with Dante |
| RF Input | |
| Audio Output | |
| Configuration | |
| Impedance | |
| Full Scale Output | |
| Mic and Line Switch | 30 dB pad |
| Phantom Power Protection | |
| Cascade Output | |
| Networking | |
