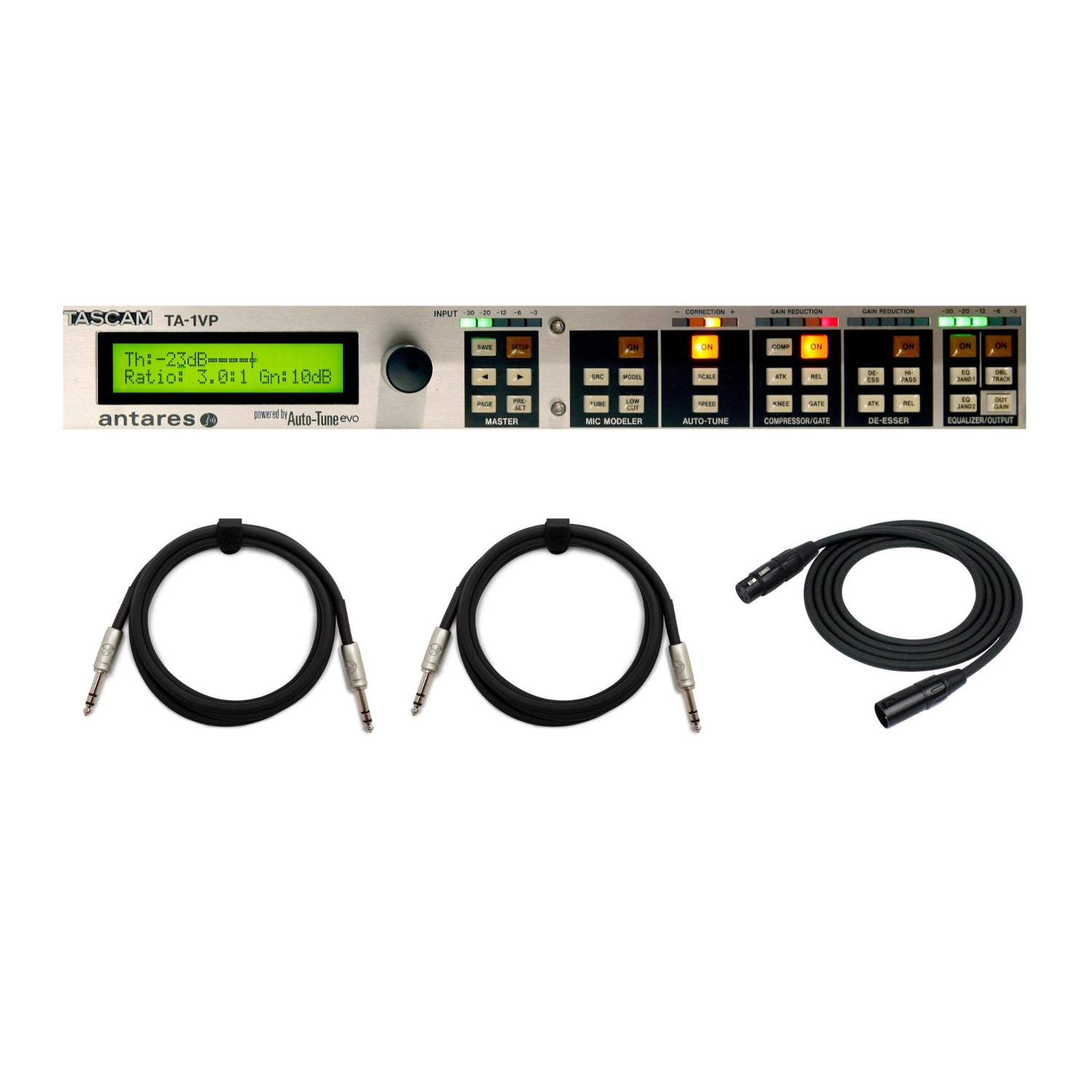

Tascam Vocal Processor with XLR male to Female and 1/4 TRS Cable Bundle
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

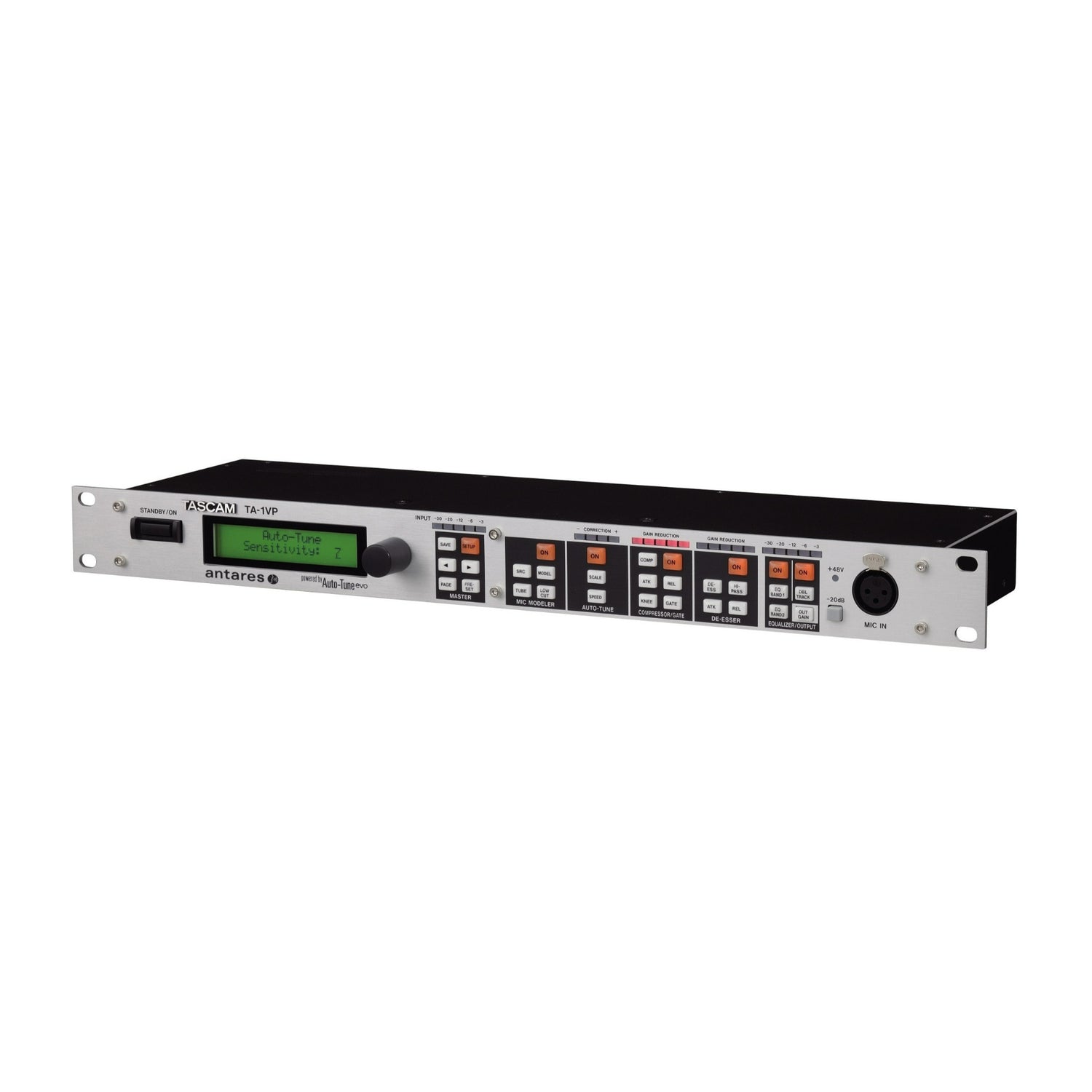

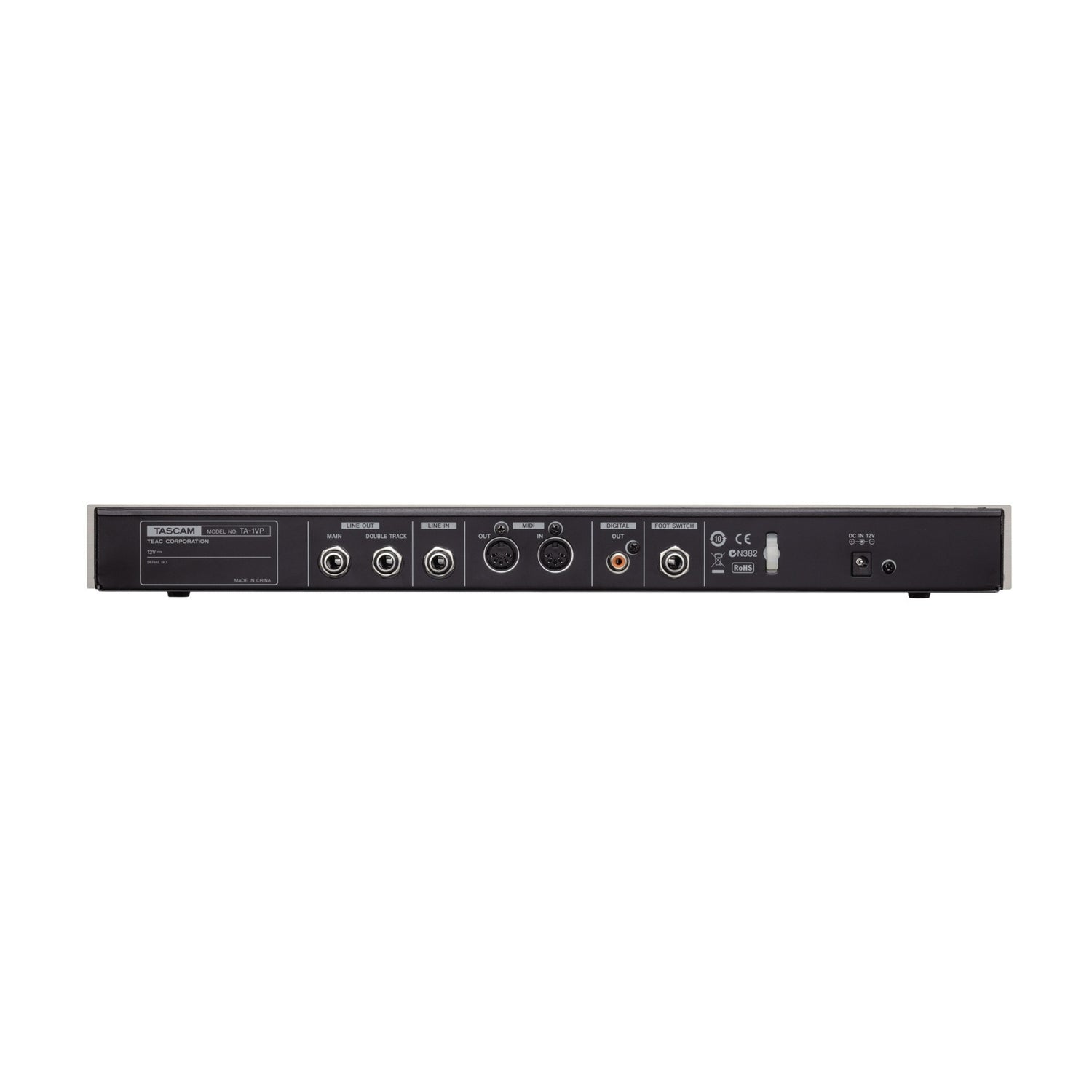

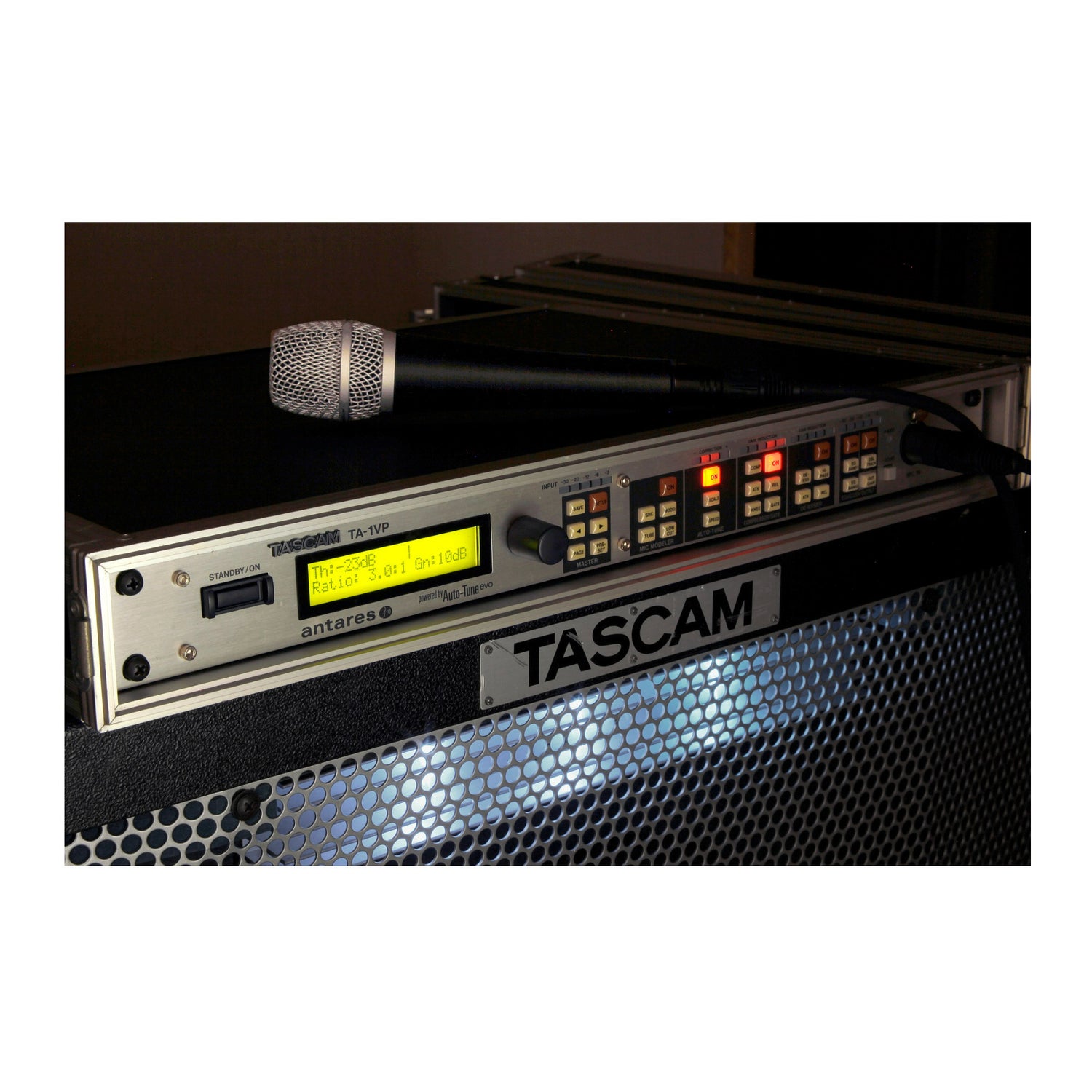

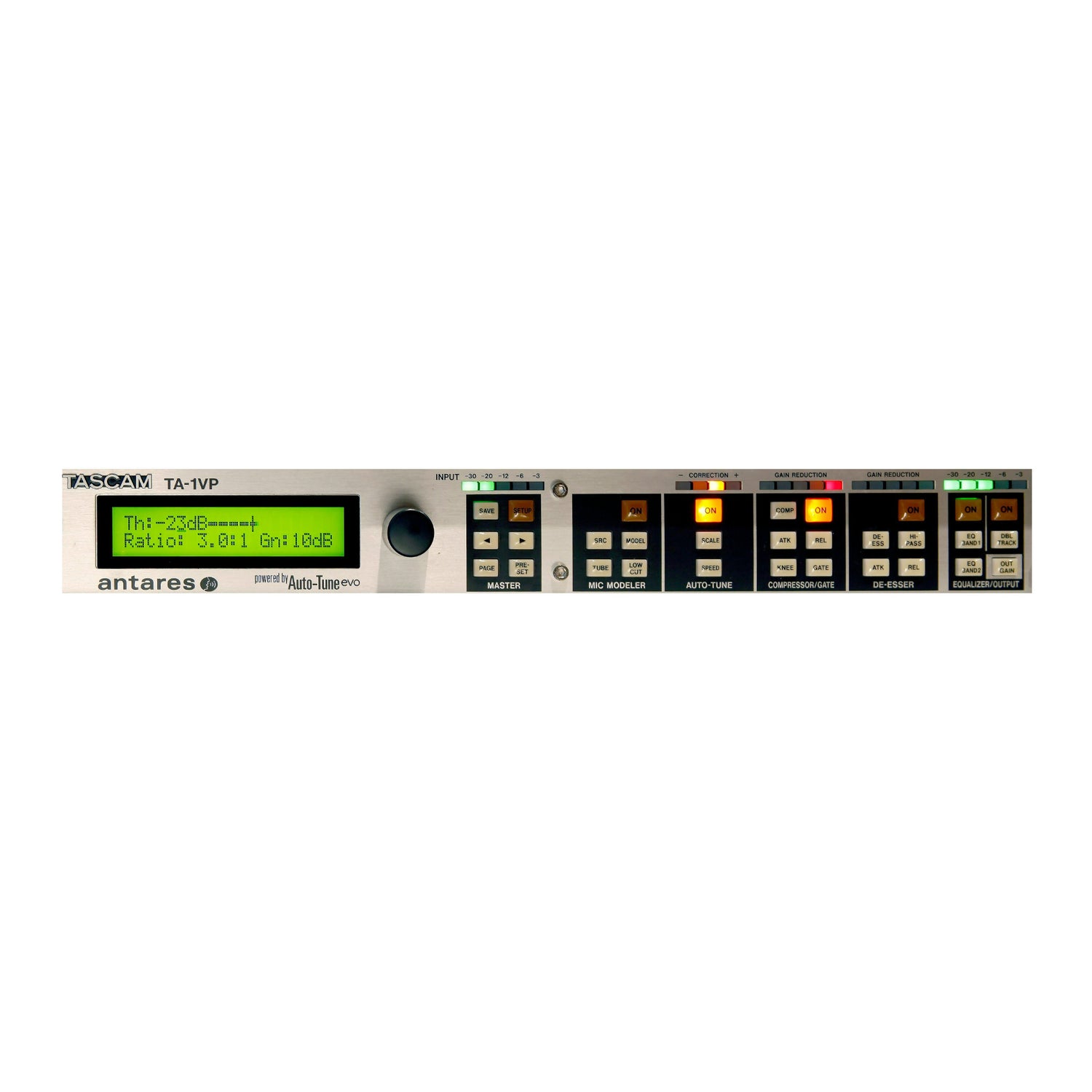

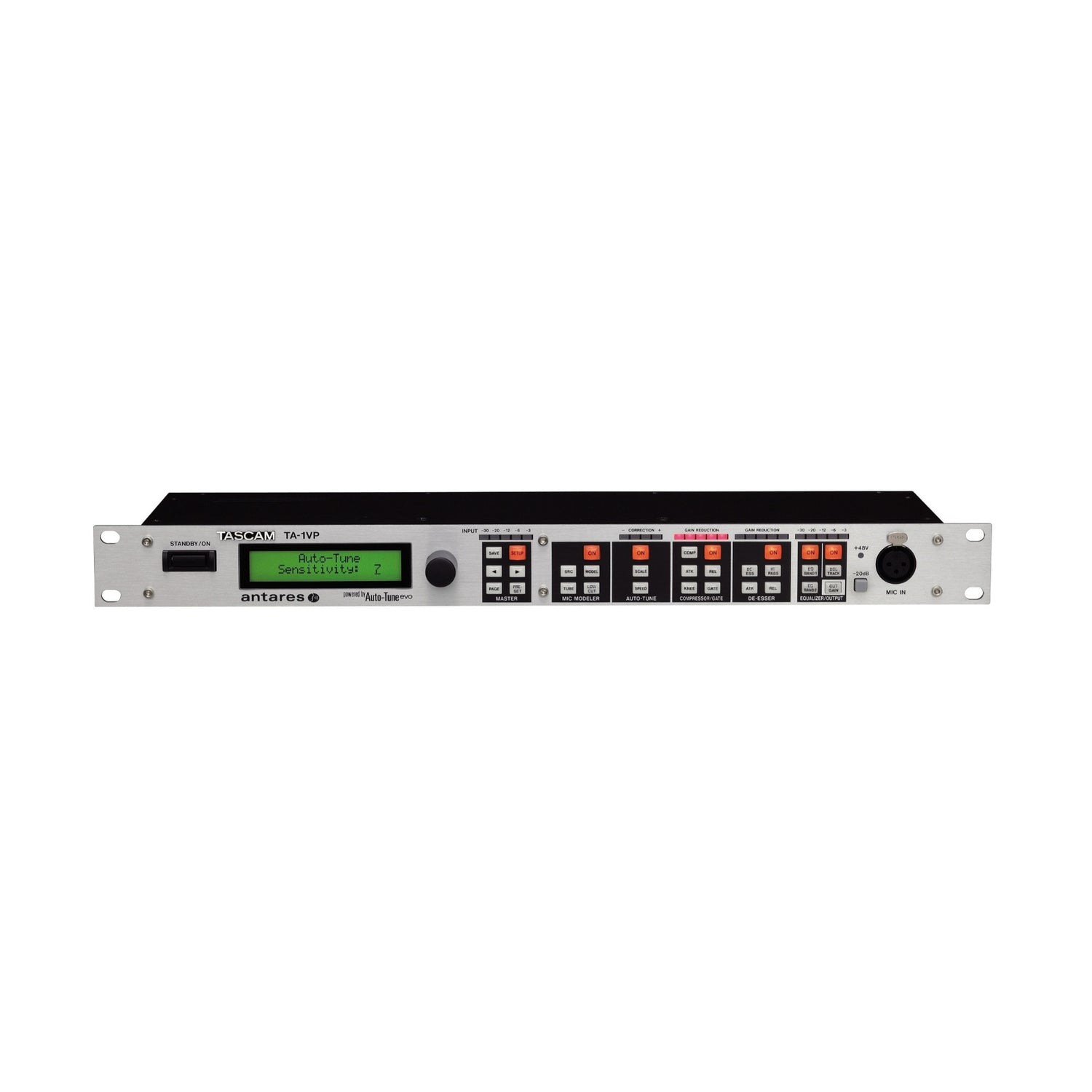

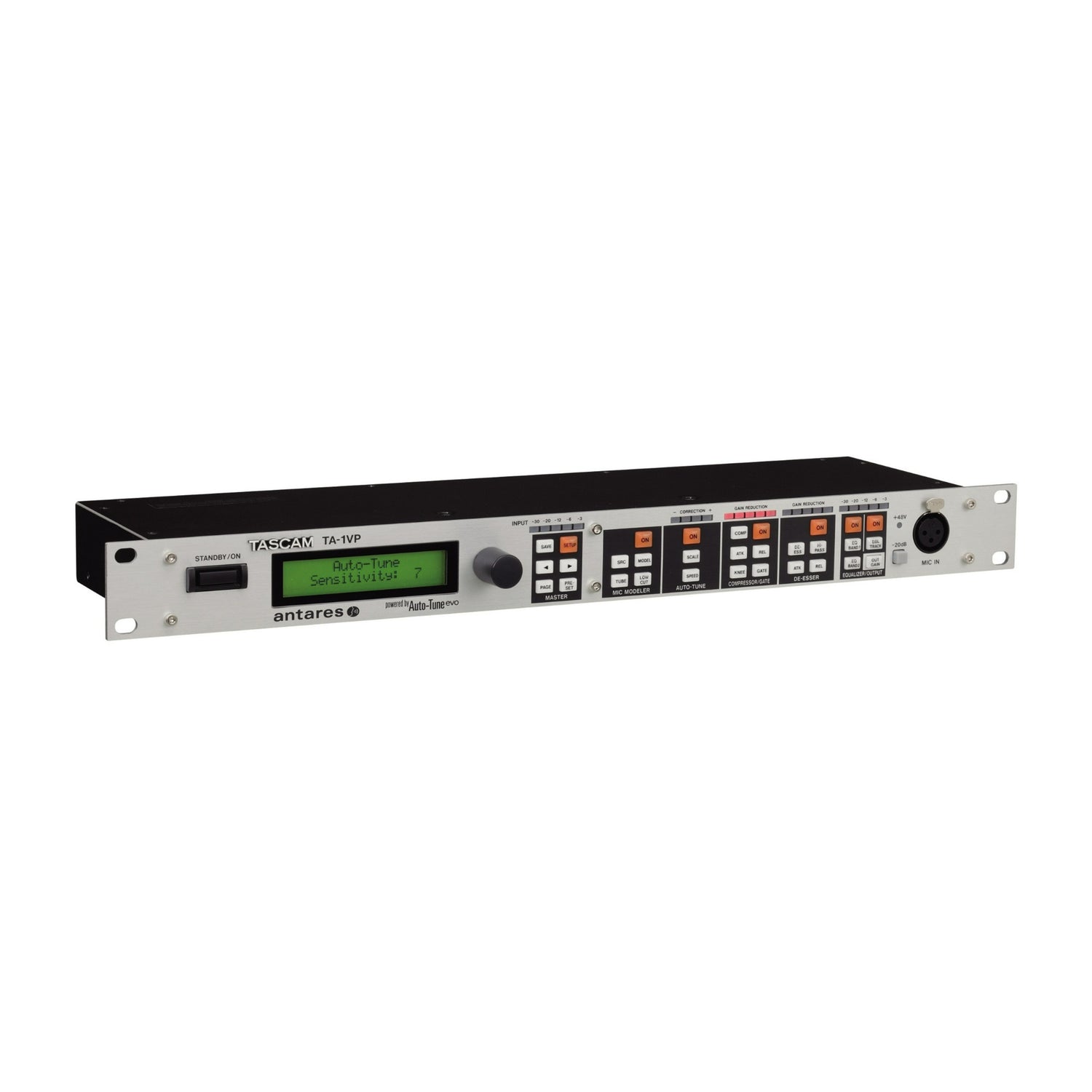

Tascam Vocal Processor
The TASCAM TA-1VP vocal processor was co-developed with Antares Audio Technologies to bring together everything you need for a polished, modern vocal sound, in the studio or live. The rackmount processor includes a microphone preamp, compression, de-essing, microphone and tube modeling, and Antares’ world-famous Auto-Tune pitch correction. Whether you want gentle, transparent pitch correction or the full-strength effect that's required for pop or hip hop vocals, the TA-1VP delivers this sound for you on stage. Perfect for live performance, house of worship, or studio use, the TA-1VP brings your vocal sound into the 21st century.

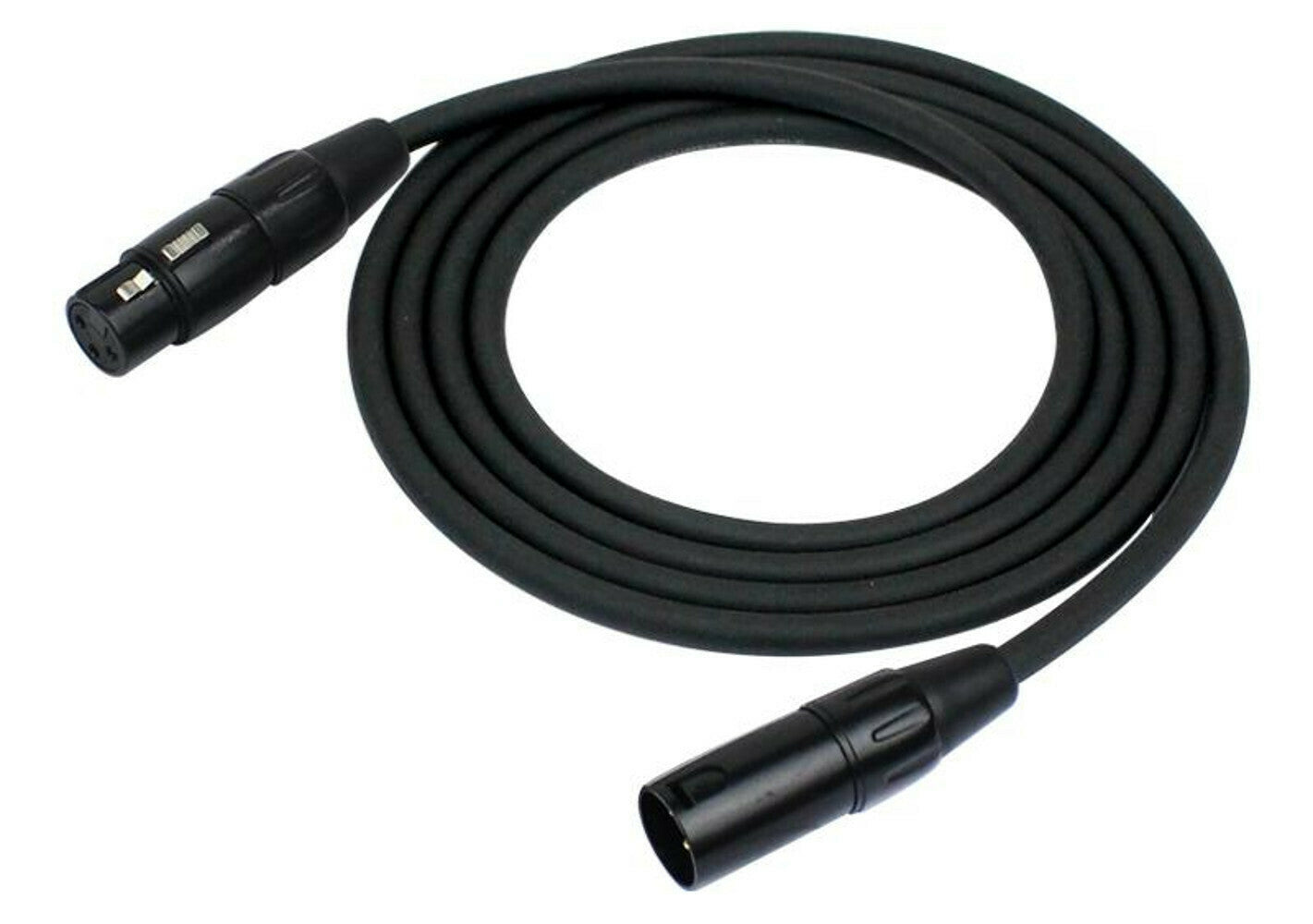

Knox Gear 25Ft XLR Cable Male to XLR Female Microphone Cable
Knox Gear 25FT XLR Male - XLR Female Microphone Cable, is professionally designed to prevent external interference and ensure signals travel rapidly and smoothly with minimum distortion, delay, or loss. These cables feature two 20-gauge CCAM conductors, which are twisted pair with cotton yarn fillers, conductive PVC shield with 100% coverage, and CCAM spiral shielding with 90% coverage.

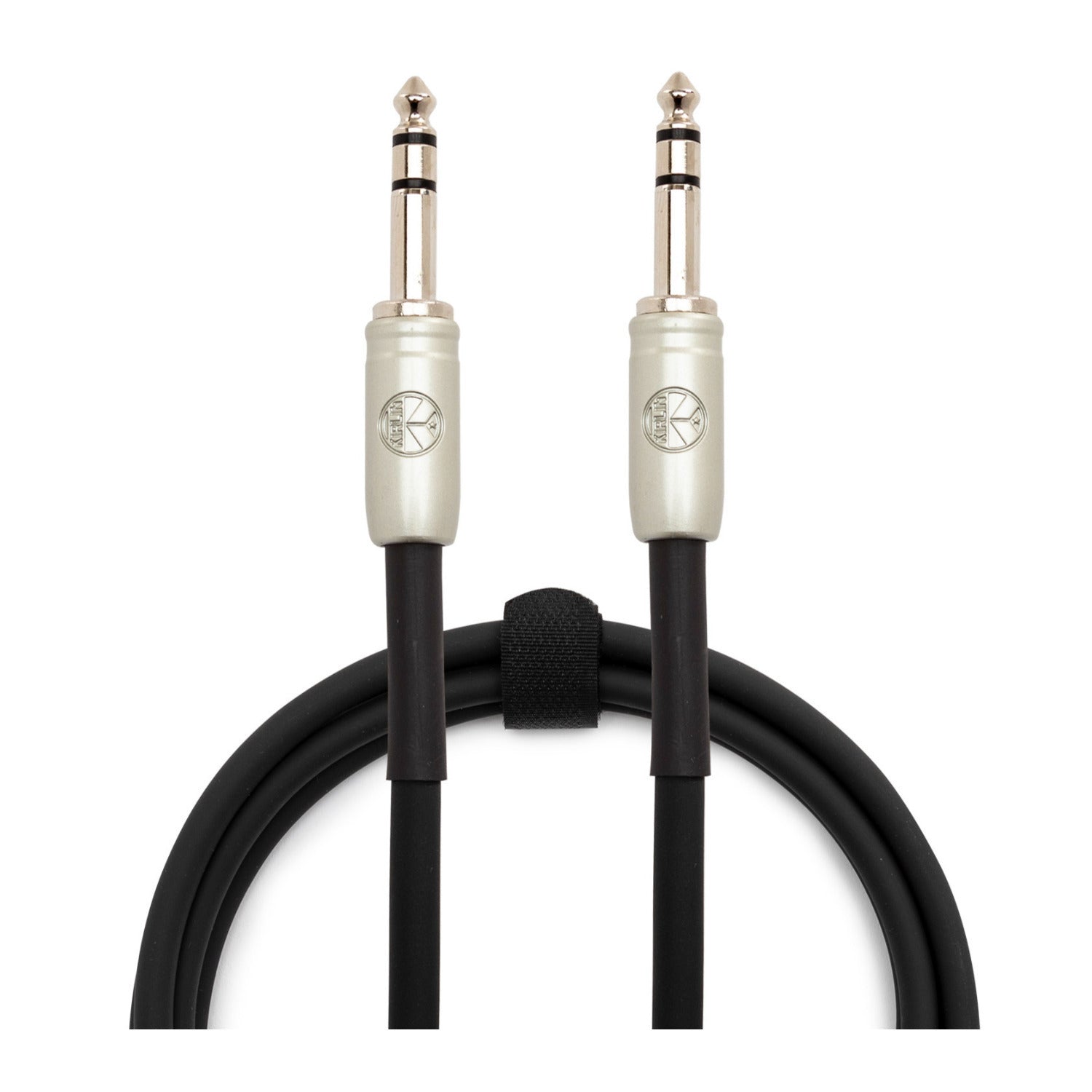

Knox Gear 1/4in TRS to 1/4inTRS Cable (6-Feet)
Knox Gear 1/4in TRS to 1/4in TRS Cable (6-Feet) is a heavy-duty cable for connecting your guitar or other electric instrument to an amplifier.
Ideal for Gigging
At 6 feet long, this cable is perfect for touring or live sound applications. This male-to-male cable can be attached to any standard amplifier from a guitar, bass, electric keyboard or other compatible instrument.
Main
| Configuration | Bundle 1 |
- SHURE: SM58, SM57, Beta 58a, KSM 32
- audio-technica: 3035, ATM31, ATM41a, 4050
- Rode: NT1, NT2, NT3
- DAC: M177, E200, E350
- Generic Mics: Hand-held dynamic, Studio dynamic, Wireless, Small diaphragm condenser, Large diaphragm condenser
Tascam Vocal Processor
Mic Input
| Connector | XLR-3-31 (1: GND, 2: HOT, 3: COLD) x 1 |
| Input impedance | 2.2kOhm |
| Nominal input level (PAD) | –56.5dBu (0.001Vrms) to –26.5dBu (0.037Vrms) |
| Nominal input level | –20.5dBu (0.073Vrms) to +9.5dBu (2.314Vrms) |
| Maximum input level | +9.5dBu (2.314Vrms) |
Line Input (Balanced)
| Connector | 1/4 inch TRS Phone jack (Tip: HOT, Ring: COLD, Sleeve: GND) x 1 |
| Input impedance | 10kOhm |
| Nominal input level | +8dBu (1.947Vrms) to +24dBu (12.283Vrms) |
| Maximum input level | +24dBu (12.283Vrms) |
Main (Balanced)
| Connector | 1/4 inch TRS Phone jack (Tip: HOT, Ring: COLD, Sleeve: GND) x 1 |
| Output impedance | 100 Ohm |
| Nominal output level | +4dBu (1.228Vrms) |
| Maximum output level | +20dBu (7.75Vrms) |
Double Track (Balanced)
| Connector | 1/4 inch TRS Phone jack (Tip: HOT, Ring: COLD, Sleeve: GND)x 1 |
| Output impedance | 100 Ohm |
| Nominal output level | +4dBu (1.228Vrms) |
| Maximum output level | +20dBu (7.75Vrms) |
Digital Output
| Connector | RCA Pin jack x 1 |
| Format | IEC60958-3 (S/PDIF) |
| Output impedance | 75 Ohm |
| Output level | 0.5Vp-p/75 Ohm |
MIDI Input
| Connector | DIN 5 pin x 1 |
| Format | MIDI standard |
MIDI Output
| Connector | DIN 5 pin x 1 |
| Format | MIDI standard |
Remote I/O
| Connector | 1/4 inch TS jack x 1 (for Footswitch) |
RS-232C
| Connector | D-sub 9 pin x 1 |
Parallel
| Connector | D-sub 25 pin x 1 |
Ethernet
| Connector | RJ-45 x 1 |
| Compatible standard | 100BASE-TX |
General
| Power | AC 100 - 240V, 50/60Hz (AC adapter TASCAM PS-P1220E) |
| Power consumption | 4W |
| Dimensions | 19.0 x 1.73 x 5.0 inch |
| Weight | 4.4 lb |
| Operating temperature range | 41-degree-F to 95-degree-F |
| Included items | AC power code, RC-10 remote control unit, rack-mounting screw kit, security screw kit, Owner's manual (with warranty) |
Audio Performance
| Mic input | 20Hz to 20kHz, ±0.5dB (Line output) |
| Line input | 20Hz to 20kHz, ±0.5dB (Line output) |
Distortion
| Line input | 0.008% or less (Line output) |
S/N ratio
| Mic input | 98dB or more (Line output) |
| Line input | 98dB or more (Line output) |
| Dynamic range | 120dB or more (Line output) |
Miscellaneous
| Input analog trim | 0dB to +3dB |
| Auto-Tune | Chromatic and 24 diatonic scales, all user customizable Return speed, Pitch detection sensitivity |
| Specific mics | |
| Model Mics | Hand-held dynamic, Studio dynamic, Small diaphragm condenser 1, Small diaphragm condenser 2, Small diaphragm condenser 3, Large diaphragm condenser 1, Large diaphragm condenser 2, Large diaphragm condenser 3, Drum mic - kick, Drum mic - snare, Drum mic - cymbal, Telephone |
| Tube saturation drive | 0dB to 12dB |
Compressor
| Threshold | –36dB to 0dB |
| Ratio | 1.0:1 to 99:1 |
| Attack | 1ms to 200ms |
| Release | 1ms to 200ms |
| Knee | Continuously various |
Gate
| Threshold | –96dB to 0dB |
| Ratio | 1:1.0 to 1:99 |
De-esser
| Threshold | –60dB to 0dB |
| Ratio | 1.0:1 to 99:1 |
| Attack | 1ms to 200ms |
| Release | 20ms to 2550ms |
| Highpass frequency | 2971Hz to 20kHz |
| Attack | 1ms to 200ms |
| Release | 1ms to 200ms |
| Parametric EQ | 6dB Lowpass, 6dB Highpass, 12dB Lowpass, 12dB Highpass, Bandpass, Notch, Low shelf (variable slope), High shelf (variable slope), Peaking, Double tracking, Stereo or variable mono mix |
| *2 independent bands |
Factory Settings
| Input analog trim | 0dB |
| Input | LINE |
| Phantom | Off |
| Audio type | Soprano voice |
| Auto-Tune detune | 0 cents |
| Sensitivity | 7 |
| MIDI channel | Omni |
| MIDI prog change | Off |
| MIDI control change | All Off |
| Footswitch assign | All Off |
| MIDI Sysex reception | No |
| LCD contrast | 4 |
| Preset | Male voice |
Knox Gear 25-Feet XLR Male to XLR Female Microphone Cable
| Wire gauge | 20 x 2 |
| Conductor material | CCAM |
| Shielding | 90% |
| Shielding material | CCAM |
| Jacket OD (mm) | 6.5 |
| Jacket material | PVC |
| Length | 25 ft. |
Knox Gear 1/4in. TRS to 1/4in. TRS Cable (6-Feet)
| Connectors | 1/4in TRS |
| Length | 6' |
| Warranty | 1-year limited warranty |
