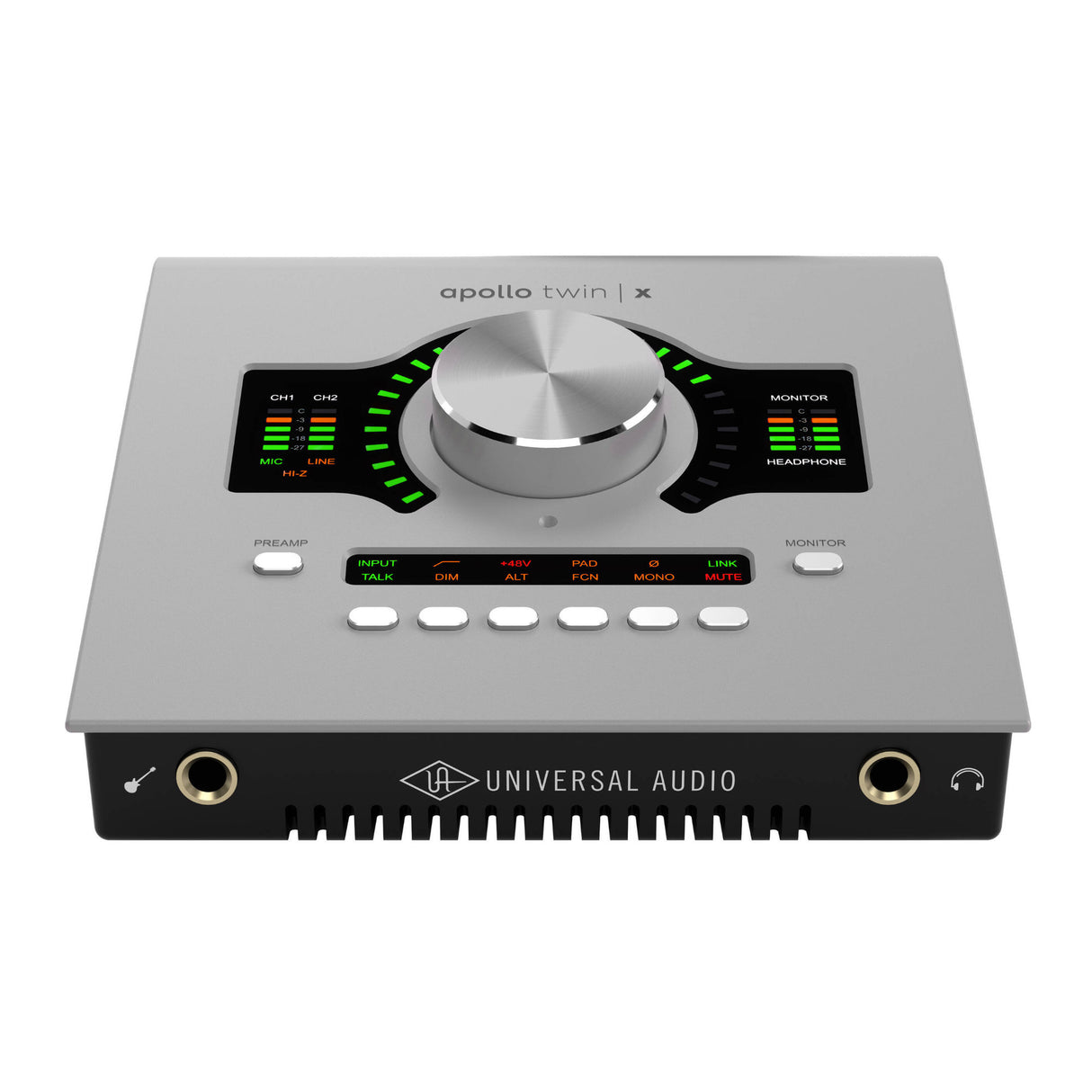

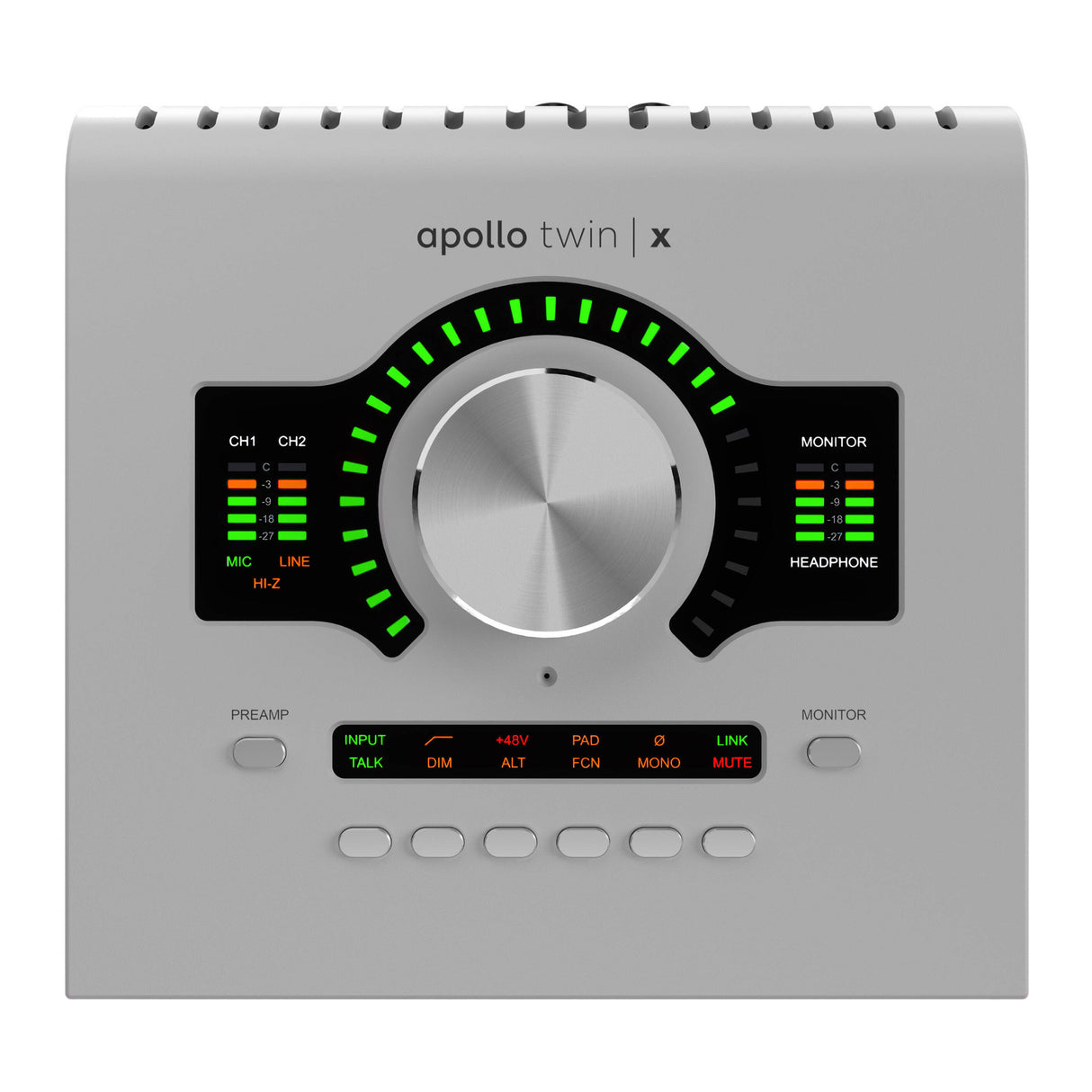

Universal Audio Apollo Twin X QUAD Gen 2 Audio Interface with Studio+ Bundle
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Universal Audio Apollo Twin X QUAD Gen 2 Audio Interface with Studi...
The Universal Audio Apollo Twin X QUAD Gen 2 with Studio+ Bundle is a desktop Thunderbolt 3 audio interface designed for musicians, producers, and songwriters. It offers professional-grade recording, real-time plug-in processing, and precise monitoring. With QUAD Core DSP, two Unison preamps, and a suite of UAD plug-ins, you can record, mix, and produce tracks with professional accuracy.
QUAD Core DSP for Real-Time Processing
Track and mix with near-zero latency using the QUAD Core DSP. Process UAD plug-ins in real time without taxing your computer. This allows you to use classic analog emulations and modern effects while recording or performing live.
Unison Mic Preamps
Two Unison-enabled mic preamps let you capture authentic analog tones. Emulate preamps from Neve, API, Manley, and more. Auto-Gain ensures optimal input levels with one click, making setup fast and easy.
Elite-Class AD/DA Conversion
Apollo Twin X QUAD delivers 24-bit / 192 kHz conversion with 129 dB dynamic range. Paired with Apollo Monitor Correction, you hear accurate mixes on any system.
Flexible Connectivity
Connect professional gear with two analog line-level inputs, a Hi-Z instrument input, optical ADAT, S/PDIF, and monitor outputs. Expand your setup with additional Thunderbolt Apollo interfaces for up to 128 channels.
Studio+ Bundle
Includes over 65 UAD plug-ins for channel strips, EQs, compressors, effects, and instruments. Plug-In Scenes let you recall settings instantly. Record through iconic gear from Avalon, Teletronix, Pultec, Ampeg, and more.
Bass Management and Monitoring
Add a subwoofer to your stereo or surround setup with the Bass Management feature. Control speaker outputs, trim, and mute settings through the UAD Console app.
Hybrid Workflow
Combine onboard DSP with your computer’s native processing to handle large sessions. Track, mix, and produce with a hybrid workflow that supports complex plug-in chains.
General
| Display | 1x Color |
| Channels of I/O | 10 Inputs / 6 Outputs |
| Built-In DSP | Quad-Core |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 2 |
| Built-In Microphone | No |
| Input Level Adjustment | 1x Knob |
Signal Processing
| Pad | -20 dB |
| High-Pass Filter | 75 Hz |
| Solo/Mute | No |

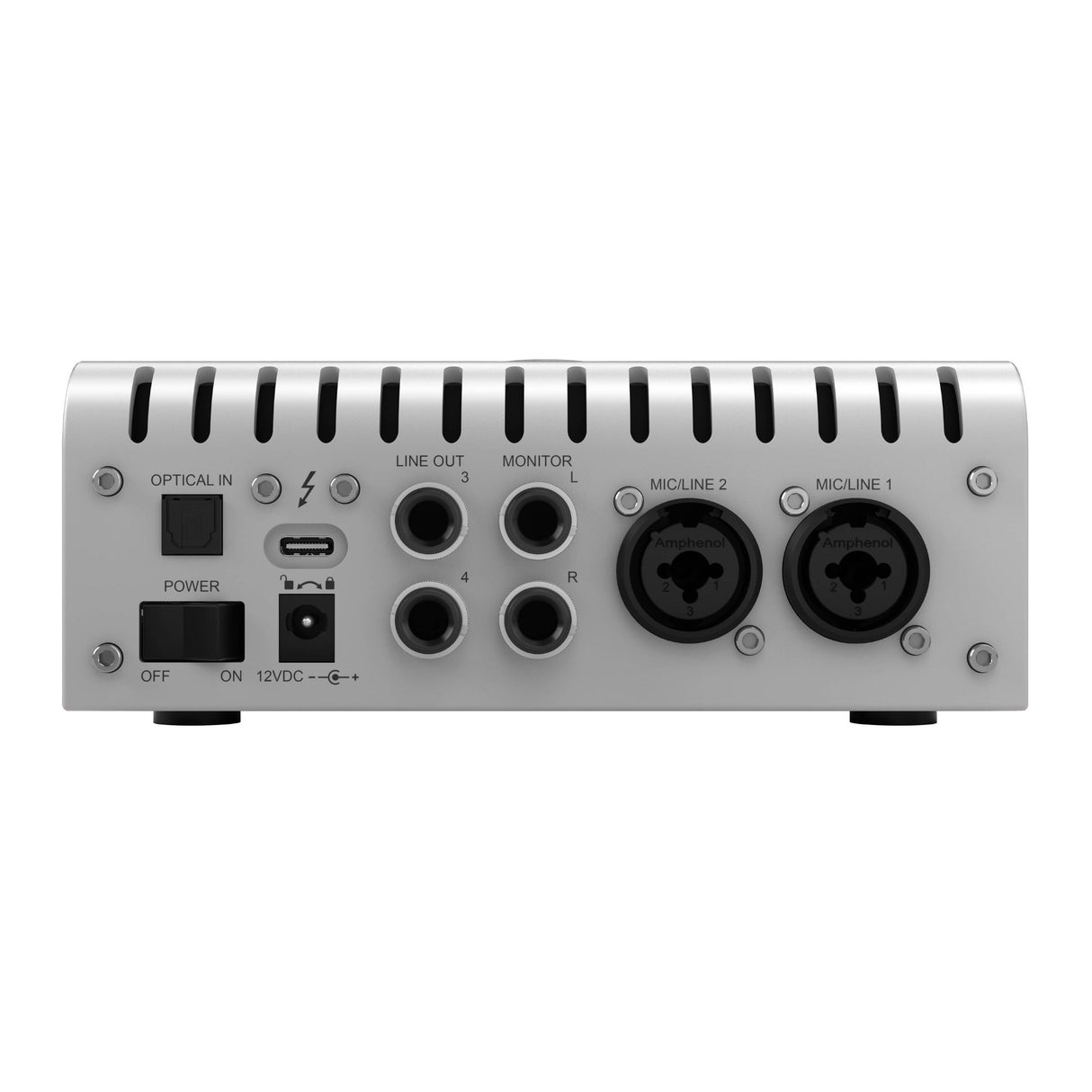

Connectivity
| Analog Audio I/O | 2x Combo XLR-1/4in TRS Balanced Mic Input |
| Analog Audio I/O | 1x 1/4in TS Unbalanced Hi-Z Input |
| Analog Audio I/O | 2x 1/4in TRS Balanced Line Output |
| Analog Audio I/O | 1x 1/4in TRS Headphone Output |
| Analog Audio I/O | 2x 1/4in TRS Balanced Monitor Output |
| Phantom Power | 48 V |
| Digital Audio I/O | 1x TOSLINK Optical ADAT / S/PDIF Input |
| Host Connection | 1x USB-C (Class-Compliant) |
| Host Connection Protocol | Thunderbolt 3 |
| USB (Non-Host) | No |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Wireless | No |
Performance
| Frequency Response | 20 Hz to 20 kHz ±0.05 dB |
| Maximum Output Level | Monitor Outputs 20.2 dBu |
| Headphone Output Power | 68 mW into 300 Ohms, 38 mW into 600 Ohms |
| Impedance | Headphone Outputs 300 to 600 Ohms |
| Dynamic Range | Hi-Z Inputs 122 dB (A-Weighted), Line Inputs 124 dB (A-Weighted), Line Outputs 128 dB, Monitor Outputs 129 dB (A-Weighted) |
| THD+N | Hi-Z Inputs -111 dB / 0.00014%, Line Inputs -115 dB, Line Outputs -117 dB, Monitor Outputs -120 dB / 0.0001%, Headphone Outputs -108 dB / 0.0004% (300 Ohms), -112 dB / 0.00025% (600 Ohms) |
Digital Audio
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Latency | A/D Conversion 1.1 ms at 96 kHz |
| Sync Sources | S/PDIF |
| Clocking | Internal |
Audio Storage & Playback
| Media/Memory Card Slot | No |
Compatibility
| OS Compatibility | Windows / macOS |
| Mobile Device Compatibility | No |
| Required Hardware | Thunderbolt 3 Port |
Power
| Power Requirements | AC/DC Power Adapter (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz (1.2 A) |
| AC/DC Power Adapter | 12 VDC |
| Power Consumption | 19 W |
Physical
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | 9.17 x 0.23 x 0.1 in / 232.98 x 5.87 x 2.51 mm |
| Weight | 3.2 lb / 1.5 kg |
