Universal Audio Apollo x8p Gen 2 Thunderbolt 3 Audio Interface with...

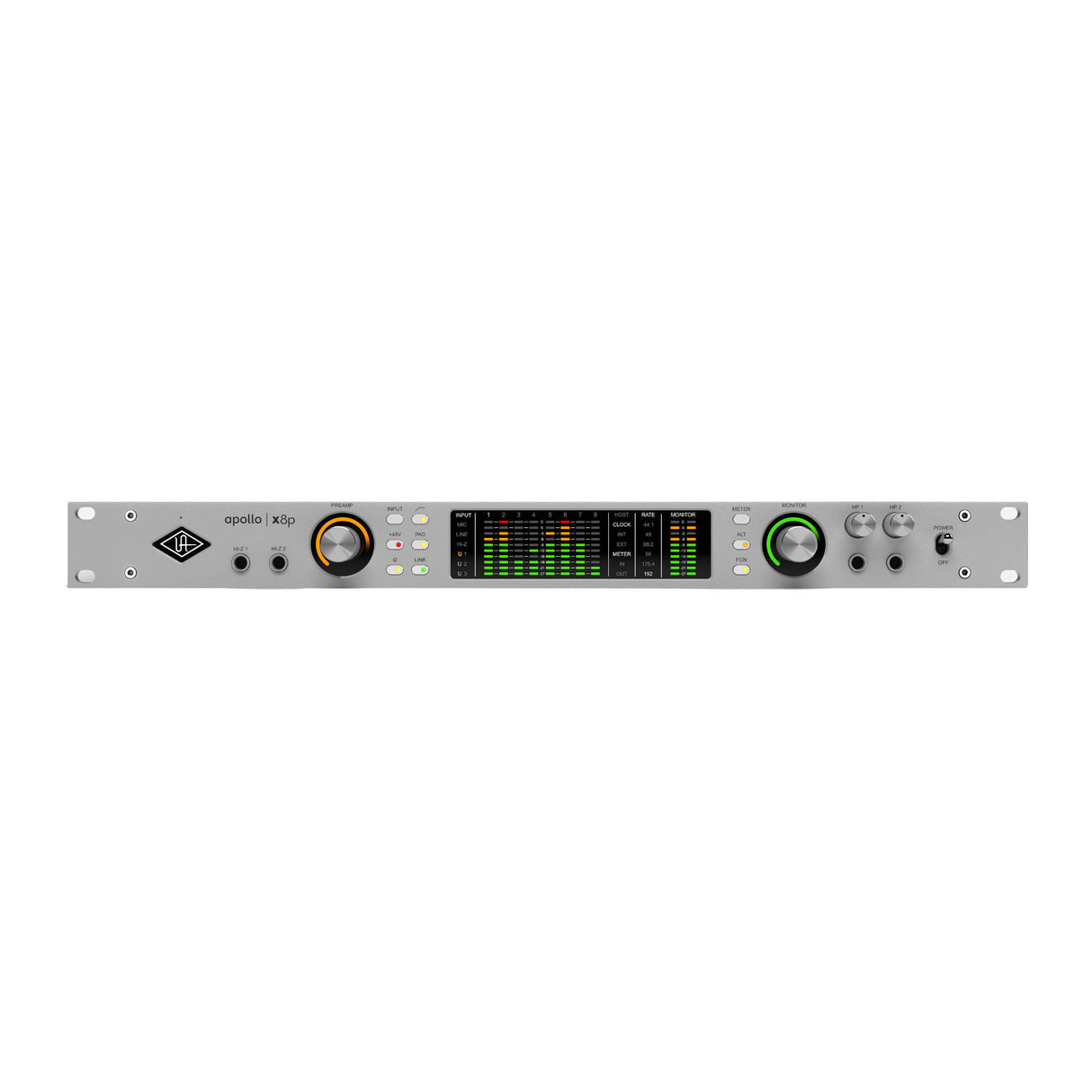

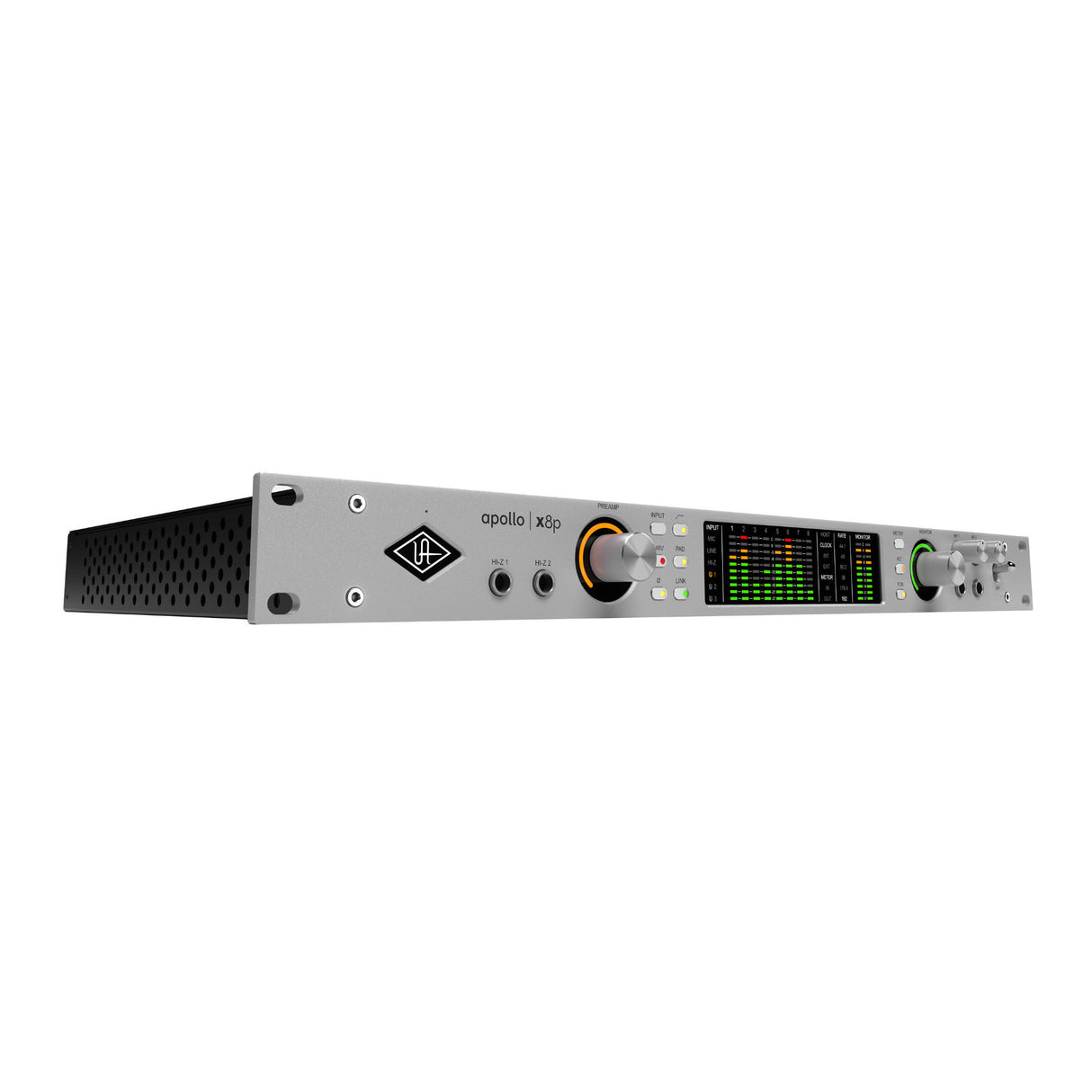

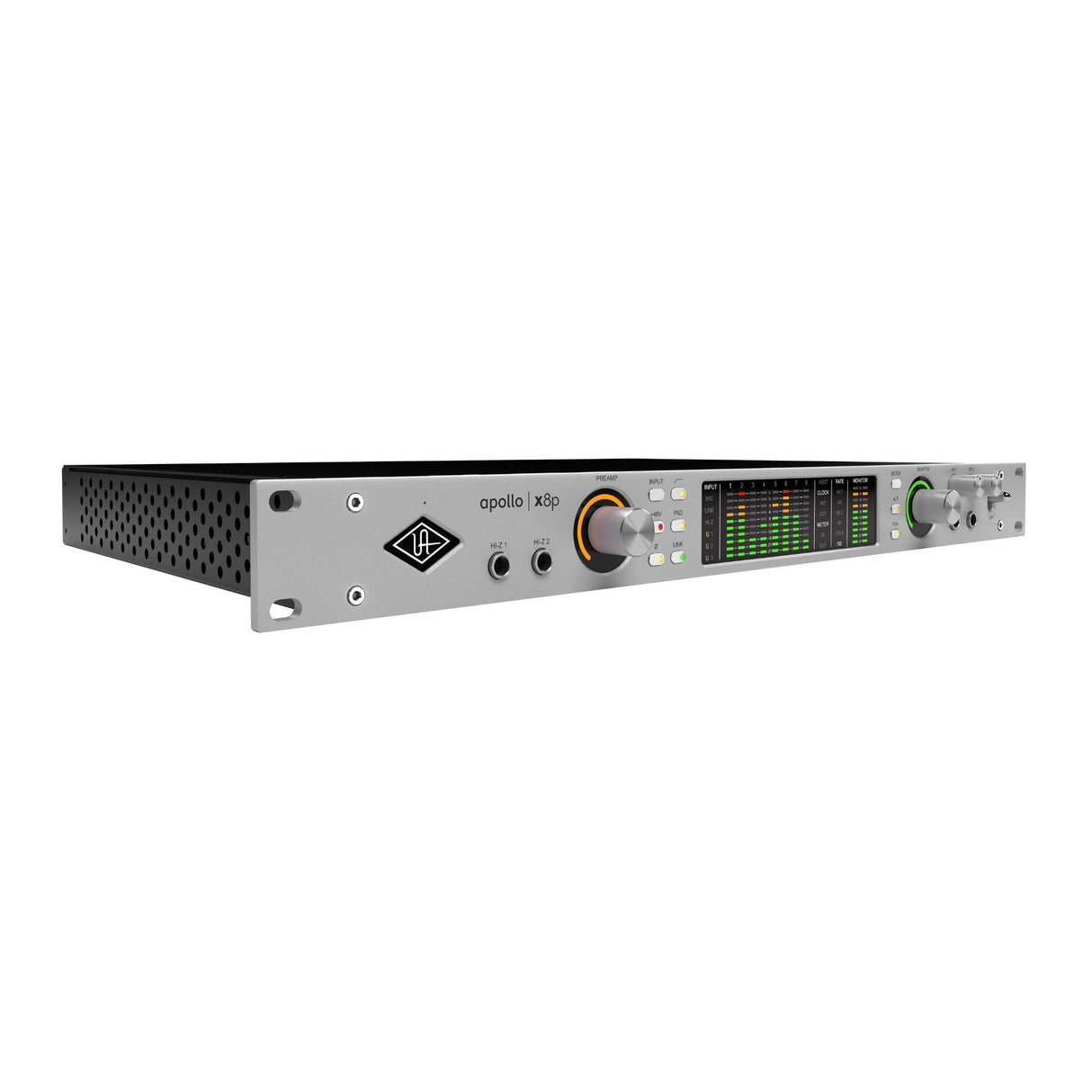

Take your studio to the next level with the Universal Audio Apollo x8p Gen 2, a 16x22 Thunderbolt 3 audio interface designed for engineers and producers recording large sessions. With eight Unison mic preamps, Auto-Gain, and Gen 2 Elite-Class 24-bit / 192 kHz AD/DA converters, Apollo x8p delivers pristine audio quality and real-time UAD processing with near-zero latency on Mac and Windows.
The included Studio+ Bundle offers 56 UAD plug-ins, including channel strips, compressors, EQs, reverbs, and instruments, allowing you to record, mix, and produce professional-grade music with classic analog sound and modern digital precision. Plug-In Scenes let you recall settings instantly, even mid-performance.
16x22 Thunderbolt 3 Audio Interface
Provides 16 inputs and 22 outputs with HEXA Core DSP for real-time UAD plug-in processing.
Eight Unison Mic Preamps with Auto-Gain
Track with the sound of classic analog preamps in real time. Auto-Gain sets input levels quickly and accurately.
Elite-Class Gen 2 24-bit / 192 kHz AD/DA Converters
Dual Crystal Clocking ensures ultra-low jitter and high-fidelity audio conversion for accurate monitoring.
2 Monitor Outputs and 2 Headphone Outputs
Includes Apollo Monitor Correction and Bass Management for calibrated listening in stereo or 7.1 surround setups.
Digital I/O: 2 ADAT or S/PDIF, Wordclock I/O
Easily connect professional digital outboard hardware and sync with other devices.
Studio+ UAD Bundle

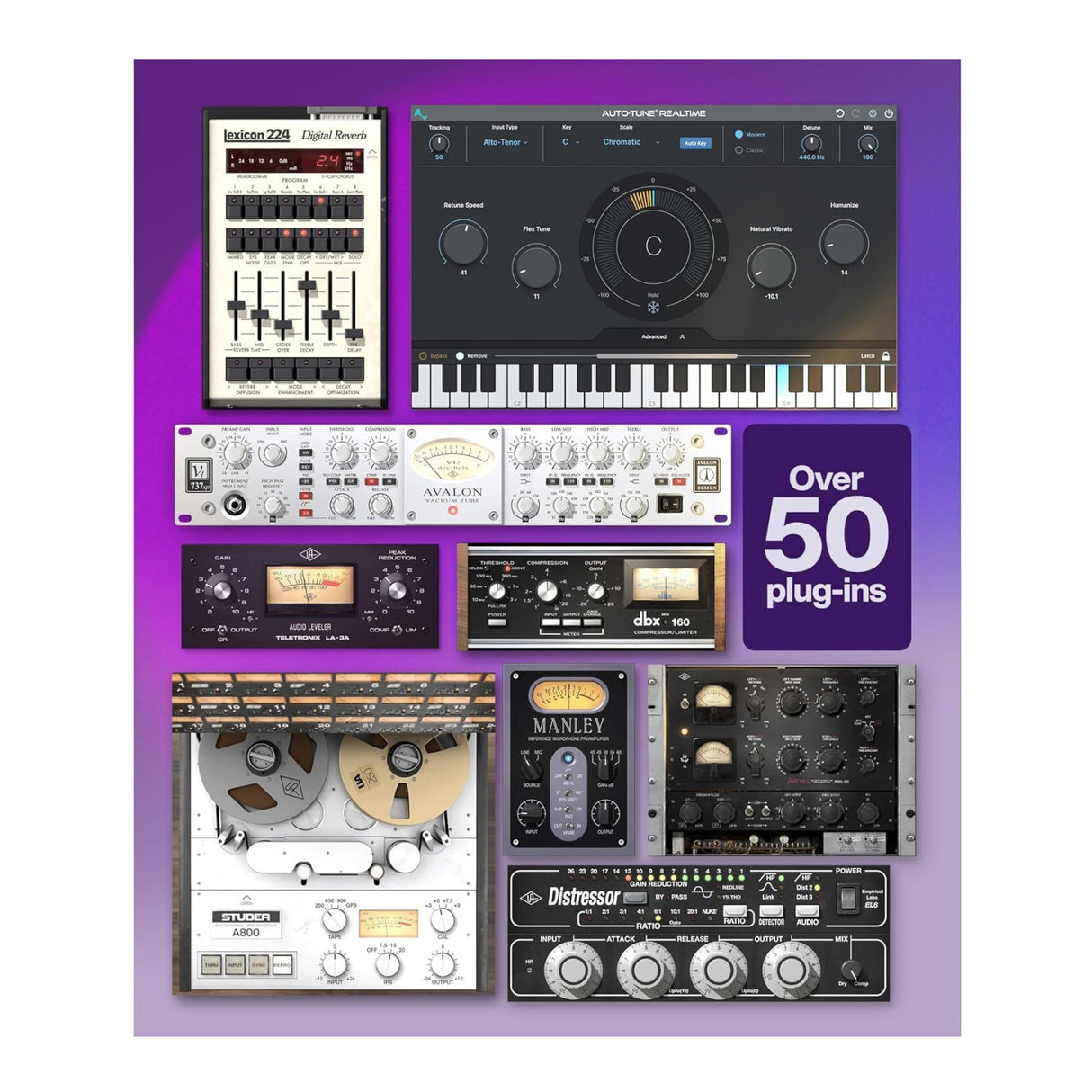

56 plug-ins, including Avalon VT-737, Manley, Pultec, Teletronix LA-2A, UA 1176, Auto-Tune, Moog Minimoog, and more.
Auto-Gain and Room Correction
Quickly set input gain across all channels and optimize monitoring with Sonarworks SoundID profiles.
Expandable Studio
Link up to four Thunderbolt Apollo interfaces for up to 128 channels, creating a scalable hybrid recording workflow.
Professional Connectivity

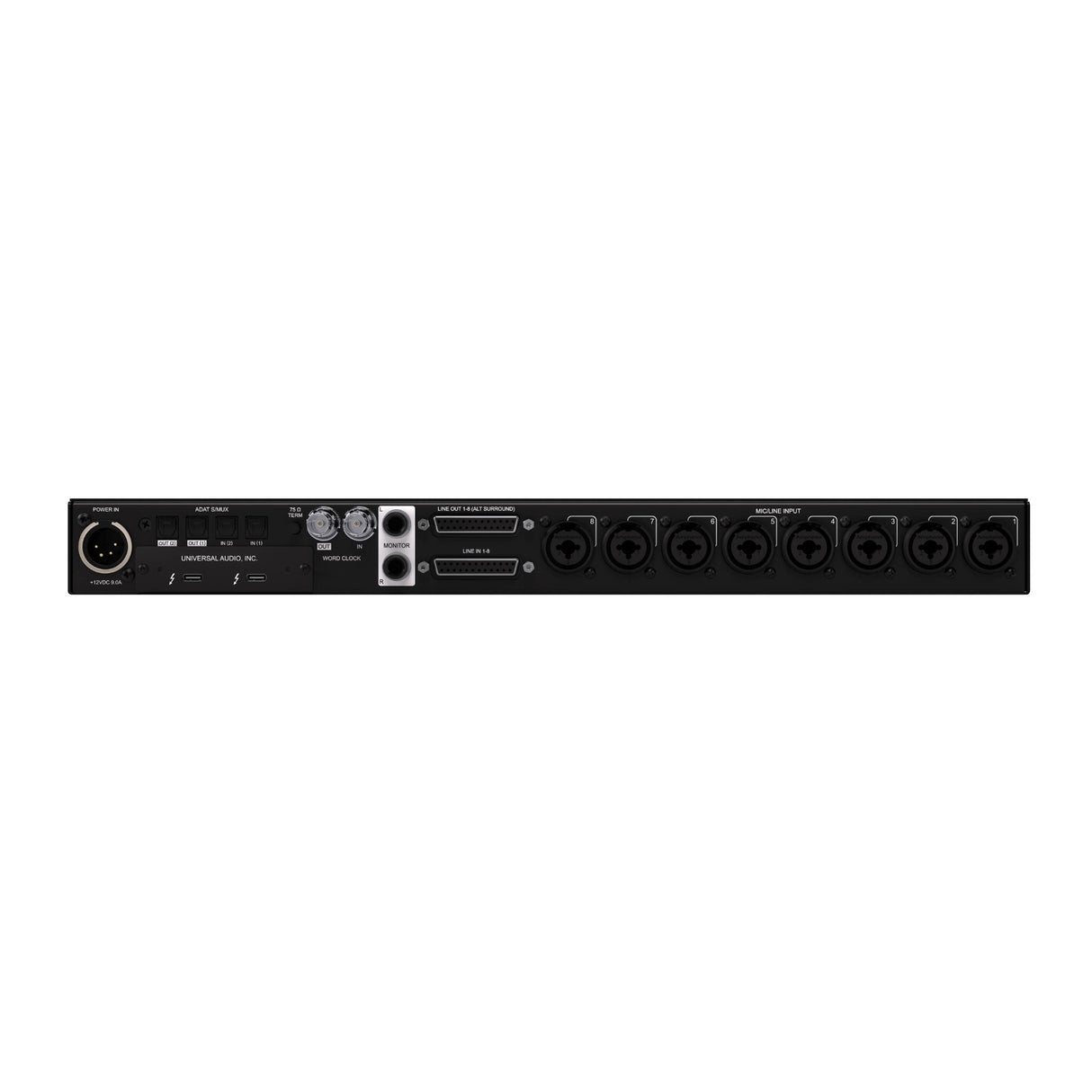

Includes 8 analog line inputs, DB-25 connections, 2 Hi-Z inputs, optical ADAT/S/PDIF I/O, wordclock I/O, and 1U rackmount design.
High-Fidelity Performance
24-bit / 192 kHz resolution, 130 dB dynamic range, and low THD ensure precise, clean recordings.
Software Compatibility
Works with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more.
- 8x Combo XLR-1/4 inch TRS Balanced/Unbalanced Mic/Line Input
- 2x 1/4 inch TS Unbalanced Hi-Z Input
- 1x DB-25 Balanced Line Input
- 2x 1/4 inch TRS Balanced Monitor Output
- 1x DB-25 Balanced Line Output
- 2x Mini-TOSLINK / 3.5 mm Optical ADAT / S/PDIF Input
- 2x Mini-TOSLINK / 3.5 mm Optical ADAT / S/PDIF Output
- Mic/Line Inputs: 20 Hz – 20 kHz ±0.07 dB
- Hi-Z Inputs: 20 Hz – 20 kHz ±0.08 dB
- Line Outputs: 20 Hz – 20 kHz ±0.05 dB
- Headphone Outputs: 20 Hz – 20 kHz ±0.02 dB
- Monitor Outputs: 20 Hz – 20 kHz ±0.02 dB
- Mic Inputs: 26 dBu (Pad On)
- Line Inputs: 24 dBu (Reference Level +4 dBu)
- Line Outputs: 24 dBu (Reference Level +4 dBu), 12.2 dBu (-10 dBV)
- Headphone Outputs: 17.8 dBu (300 Ω), 18.3 dBu (600 Ω)
- Monitor Outputs: 24 dBu (+4 dBu), 10 dBV (-10 dBV)
- Mic Inputs: 5.4 kΩ
- Line Inputs: 10 kΩ
- Line Outputs: 100 Ω
- Hi-Z Inputs: 1 MΩ
- Monitor Outputs: 100 Ω
- Word Clock Inputs: 75 Ω
- Hi-Z Inputs: 122 dBA
- Line Inputs: 124 dBA
- Mic Inputs: 123 dBA
- Line Outputs: 127 dBA
- Monitor Outputs: 130 dBA
- Mic Inputs: -115 dB / 0.00018%
- Hi-Z Inputs: -111 dB / 0.00028%
- Line Inputs: -116 dB / 0.00016%
- Line Outputs: -119 dB / 0.00011%
- Monitor Outputs: -127 dB / 0.000045%
- Chassis Only: 19 x 12 x 1.74 inches / 48.3 x 30.5 x 4.42 cm
- Including Controls: 19 x 13.5 x 1.74 inches / 48.3 x 34.3 x 4.42 cm
- Weight: 8.9 lb / 4.0 kg
- Package Weight: 16.99 lb
- Box Dimensions: 23.5 x 17 x 8.7 inches
| Channels of I/O | 16 Inputs / 22 Outputs |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 8 |
| Analog Audio I/O | |
| Digital Audio I/O | |
| Host Connection | 1x USB-C (Thunderbolt 3) |
| USB (Device Connection) | 1x USB-C |
| Sync I/O | 1x BNC Word Clock Input / Output |
| Phantom Power | 48V, Selectable On/Off |
| Built-In DSP | HEXA Core for real-time UAD plug-in processing |
| Built-In Microphone | Talkback |
| Input Level Adjustment | 1x Knob |
| Pad (Mic) | -20 dB (Switchable per Channel) |
| Gain/Trim Range (Mic/Line/Hi-Z) | +10 dB to +65 dB |
| Solo/Mute | Mute per Master |
| Frequency Response | |
| Maximum Input Levels | |
| Maximum Output Levels | |
| Headphone Output Power | 120 mW into 300 Ω / 67 mW into 600 Ω |
| Impedance | |
| Dynamic Range | |
| THD+N | |
| Latency | 1.1 ms at 96 kHz |
| Sync Sources | ADAT, Internal, S/PDIF, Word Clock |
| OS Compatibility | Windows / macOS |
| Power Requirements | AC/DC Power Adapter Included, 12 VDC at 6 A |
| AC Input Power | 100–240 VAC, 50/60 Hz |
| Power Consumption | 30 W (Typical) / 72 W Max |
| Rackmount Size | 1U |
| Dimensions | |
