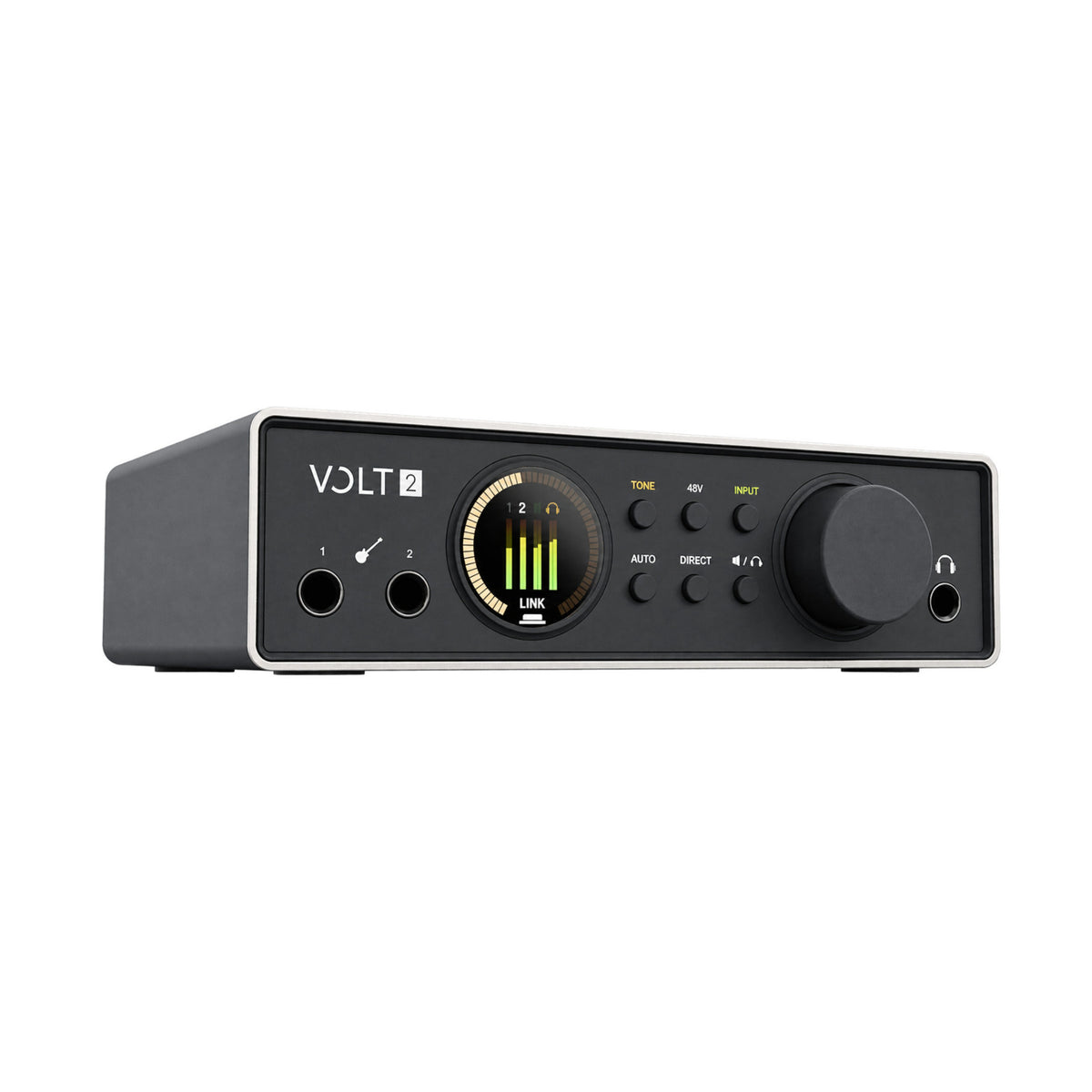

Universal Audio Volt 2 Gen 2 2-In / 4-Out USB Audio Interface with 32-Bit Audio and Smart Display
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 3 PM EST Mon - Friday will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Universal Audio Volt 2 Gen 2 2-In / 4-Out USB Audio Interface with ...
The Universal Audio Volt 2 Gen 2 gives home producers, singer songwriters, podcasters, and small creative setups two recording channels with enough flexibility for vocals, guitars, stereo instruments, and two person sessions. Two digitally controlled preamps provide 60 dB of gain, while 32 bit conversion at sample rates up to 192 kHz captures detailed recordings. Two rear microphone and line inputs pair with two front instrument inputs, so the interface can handle microphones, keyboards, guitars, basses, and other common home studio sources without adding unnecessary complexity.
Shape the Sound Before You Record
Each channel offers Warmth, Focus, and Shine Tone Shaping modes. Warmth adds smoother, tube inspired body. Focus emphasizes punch and clarity. Shine opens the upper range with a more airy character. You can also leave Tone Shaping off for a clean signal. Because both channels have independent settings, you can give a vocal one character and an instrument another during the same take.
Spend Less Time Watching Levels
The full color Smart Display shows input levels, output levels, gain, and selected settings. Assistive Auto Gain listens while you sing or play for 10 seconds, then sets the preamp level automatically. Clip Protection is enabled by default and uses gain staging with software limiting to help prevent unexpectedly loud input peaks from clipping a recording. Direct monitoring lets you hear live inputs with Tone Shaping directly through the headphones or monitors without waiting for audio to pass through recording software.
Loopback supports podcasts, livestreams, and other content that combines live input with computer playback. Stereo channel linking simplifies paired microphone or stereo instrument recording, while independent 48 V phantom power lets each microphone channel be configured separately. Volt 2 Gen 2 runs from USB bus power with compatible systems and works with Mac, Windows, iPad, and iPhone.
System
| Simultaneous Input and Output | 2 Input, 4 Output |
| Microphone and Line Preamp Inputs | 2 x XLR and TRS Combo |
| Instrument Inputs | 2 x 1/4 inches TS |
| Monitor Outputs | 2 x 1/4 inches TRS Balanced |
| Headphone Output | 1 x 1/4 inches TRS Stereo |
| USB Host Connection | 1 x USB 2.0 Type-C |
| External Power Connection | 1 x USB Type-C, 5 VDC |
| Digital or Optical I/O | None |
| MIDI | None |
Conversion
| Bit Depth | 32 Bit |
| Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Simultaneous Analog to Digital Conversion | 2 Channels |
| Simultaneous Digital to Analog Conversion | 4 Channels |
Microphone Inputs
| Available Gain | 60 dB |
| Tone Shaping Modes | Warmth, Focus, Shine |
| Frequency Response | 20 Hz to 20 kHz, +/- 0.08 dB |
| Dynamic Range | 119 dB A Weighted |
| Total Harmonic Distortion Plus Noise | -110 dB, 0.0003 Percent |
| Maximum Input Level | 14 dBu |
| Input Impedance | 2 Kilohms |
| Phantom Power | +48 V, Switchable Per Channel |
| Connector Type | XLR Female |
Instrument Inputs
| Frequency Response | 20 Hz to 20 kHz, +/- 0.02 dB |
| Dynamic Range | 116 dB A Weighted |
| Total Harmonic Distortion Plus Noise | -108 dB, 0.0004 Percent |
| Maximum Input Level | 13 dBu |
| Input Impedance | 1 Megohm |
| Connector Type | 1/4 inches TS Unbalanced |
Line Inputs
| Frequency Response | 20 Hz to 20 kHz, +/- 0.05 dB |
| Dynamic Range | 119 dB A Weighted |
| Total Harmonic Distortion Plus Noise | -108 dB, 0.0004 Percent |
| Maximum Input Level | 22 dBu |
| Input Impedance | 10 Kilohms |
| Connector Type | 1/4 inches TRS Balanced or TS Unbalanced |
Monitor Outputs
| Frequency Response | 20 Hz to 20 kHz, +/- 0.05 dB |
| Dynamic Range | 126 dB A Weighted |
| Total Harmonic Distortion Plus Noise | -112 dB, 0.0003 Percent |
| Maximum Output Level | 20.2 dBu |
| Output Impedance | 200 Ohms |
| Connector Type | 1/4 inches TRS Balanced |
| DC Coupled | Yes |
Headphone Output
| Frequency Response | 20 Hz to 20 kHz, +/- 0.08 dB |
| Dynamic Range at 300 Ohms | 116 dB A Weighted |
| Total Harmonic Distortion Plus Noise at 300 Ohms | -103 dB, 0.0007 Percent |
| Maximum Output Power at 32 Ohms | 45 mW Per Channel |
| Maximum Output Power at 300 Ohms | 24 mW Per Channel |
| Connector Type | 1/4 inches TRS Stereo |
| DC Coupled | Yes |
Monitoring and Workflow
| Smart Display | Full Color |
| Auto Gain | Assistive Auto Gain |
| Auto Gain Measurement Time | 10 Seconds |
| Clip Protection | Enabled by Default |
| Direct Monitoring | Selectable Per Channel or All Channels |
| Loopback | Yes |
| Stereo Channel Linking | Yes |
| Independent Monitor and Headphone Volume Control | Yes |
| Monitor Mute | Yes |
| Headphone Mute | Yes |
| UAD Console Compatibility | Yes |
| LUNA Integration | Yes |
| Session Recall | Yes |
Power
| Bus Powered | Yes |
| External Power Requirement When Needed | 5 VDC at 1 A Minimum |
| Typical Power Consumption | 3.4 W |
| Maximum Power Consumption | 4.9 W |
Compatibility
| Mac | macOS 12 Monterey or Newer |
| Windows | Windows 10 64 Bit or Newer |
| iPad and iPhone | iPadOS or iOS 16 or Newer |
| Processor Support | Intel, AMD, Apple Silicon |
| DAW Compatibility | Major DAWs Including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools, and Others |
| Windows Driver | UA ASIO Driver Through UA Connect |
| Mac Driver Requirement | No Dedicated Driver Required |
Physical Specifications
| Dimensions (WxDxH) | 7.4 x 4.9 x 2 inches |
| Weight | 1.3 lb |
| Shipping Box Dimensions (WxDxH) | 9.1 x 7.3 x 3.1 inches |
| Shipping Weight | 2.1 lb |
| Operating Temperature | 32 to 104 degrees F |
