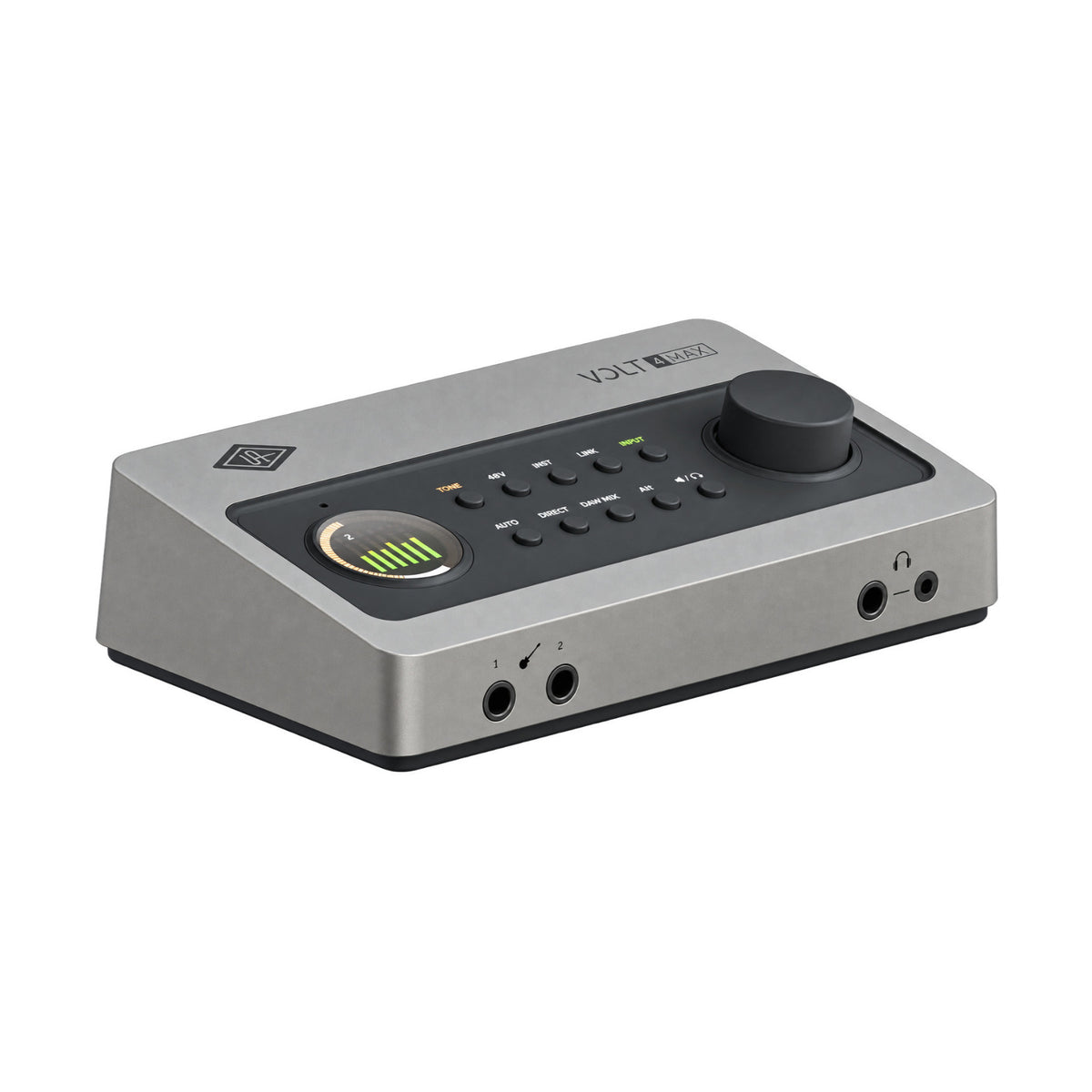

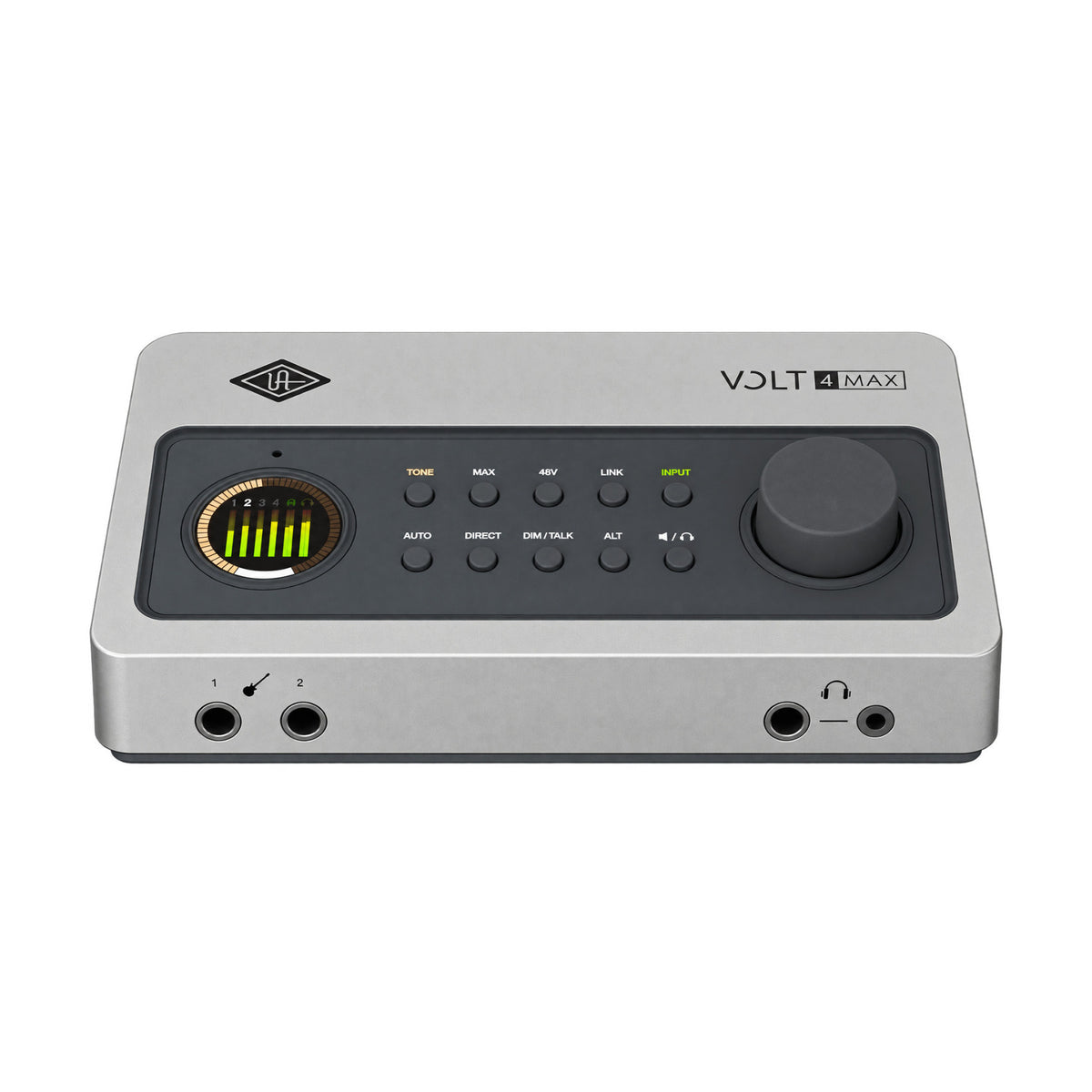

Universal Audio Volt 4 Max 12-In / 6-Out USB Audio Interface with 32-Bit Audio and 60db Mic Preamps
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 3 PM EST Mon - Friday will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Universal Audio Volt 4 Max is built for home and project studios that want more control without moving to a large rack system. It combines two digitally controlled microphone preamps with two additional line inputs, six outputs, and 32 bit conversion at sample rates up to 192 kHz. That makes it practical for recording vocals and instruments while keeping synths, outboard gear, two monitor pairs, and other studio equipment connected.
Shape and Control the Sound Before Recording
Each microphone preamp provides 60 dB of gain plus Warmth, Focus, and Shine Tone Shaping modes. Max Processing adds 6 realtime compression presets designed for vocals, guitars, and bass. Pairing the three Tone choices with the Max presets creates more than 18 available character combinations, helping users choose a useful recording sound before building a software processing chain.
Built to Handle the rest of the Studio
Two additional line inputs support stereo synths and other line level equipment, while Main and Alt monitor outputs let users switch between two speaker pairs directly from the interface. Two headphone outputs share one cue mix, and the built in talkback microphone makes it easier to communicate with another performer during a session.
ADAT optical input can add up to eight channels at 44.1 or 48 kHz, while optical S/PDIF supports two channel digital input. MIDI input and output connect compatible keyboards and controllers, and the onboard USB hub can power a compatible MIDI controller. The full color Smart Display shows levels, settings, and compression gain reduction, while Auto Gain and Clip Protection simplify level setting and help protect takes from unexpected peaks.
System
| Simultaneous Input and Output | 12 Input, 6 Output |
| Microphone Preamps | 2 |
| Available Preamp Gain | 60 dB |
| Tone Shaping Modes | Warmth, Focus, Shine |
| Max Processing | 6 Realtime Compression Presets |
| Bit Depth | 32 Bit |
| Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |

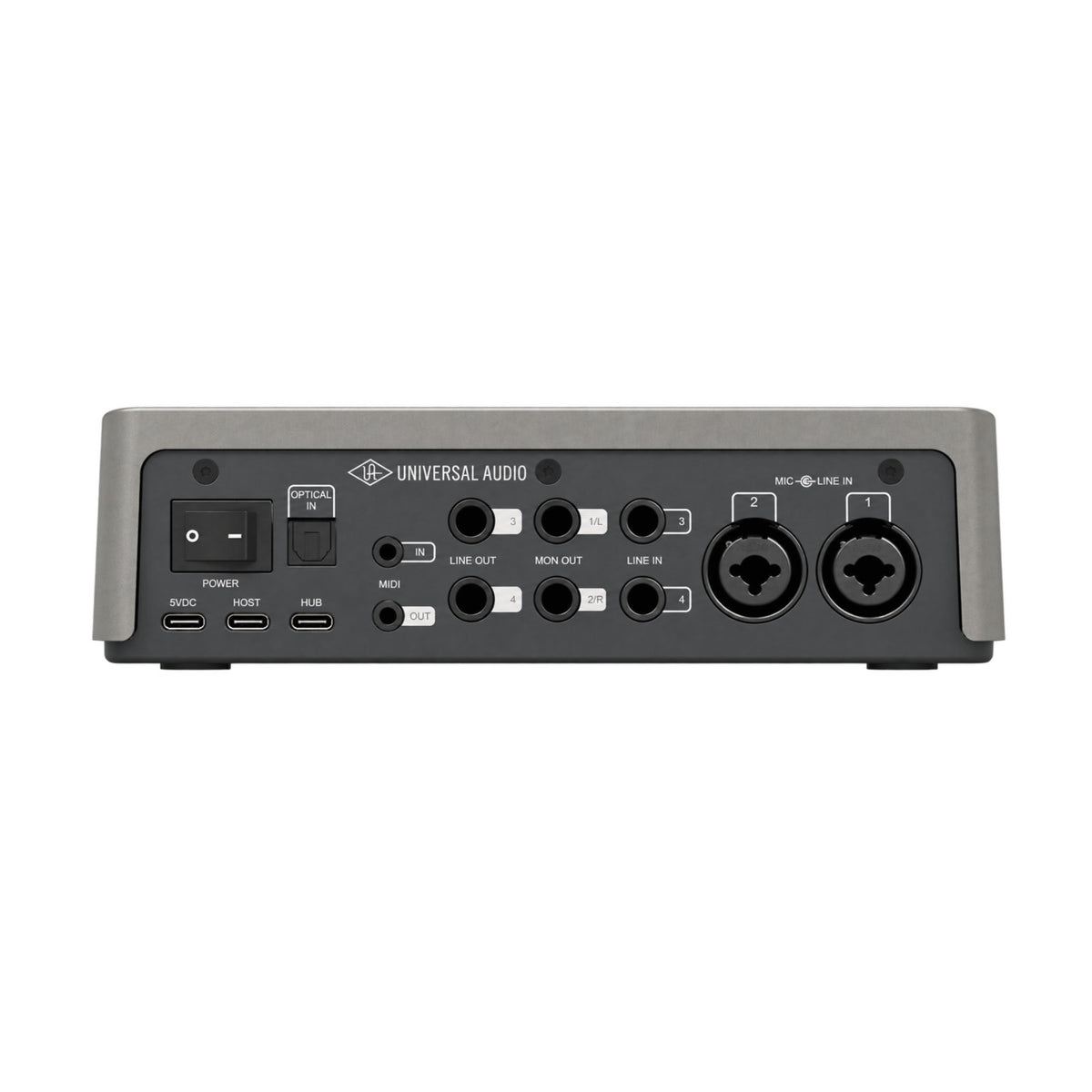

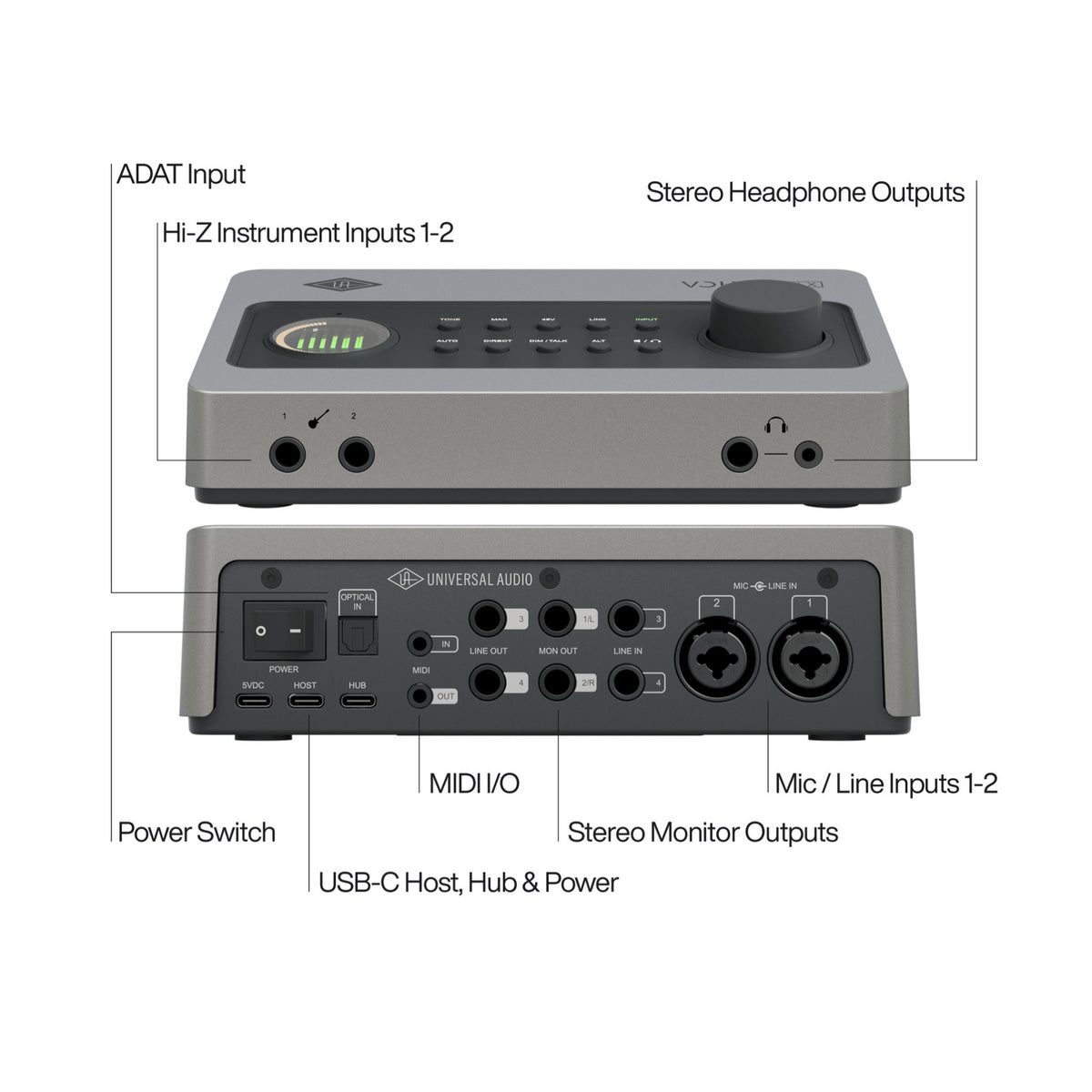

Analog Input and Output
| Microphone and Line Inputs | 2 x XLR and TRS Combo |
| Additional Line Inputs | 2 x 1/4-inch |
| Instrument Inputs | 2 x 1/4-inch |
| Monitor Outputs | 2 Stereo Pairs, Main and Alt |
| Headphone Outputs | 2 Stereo, Shared Cue Mix |
| Phantom Power | Plus 48 V, Switchable Per Channel |
Digital Expansion
| Optical Input | ADAT or S/PDIF |
| ADAT at 44.1 or 48 kHz | Up to 8 Input Channels |
| ADAT at 96 kHz | Up to 4 Input Channels |
| ADAT at 192 kHz | Up to 2 Input Channels |
| S/PDIF | 2 Input Channels at Supported Sample Rates |
Connectivity
| USB Host | USB 2.0 Type-C |
| USB Hub | 1 x Type-C, Up to 5 V at 0.5 A |
| External Power Input | USB Type-C, 5 V at 1.5 A Minimum |
| MIDI Input | 1 x 1/8-inch TRS Typ- A |
| MIDI Output | 1 x 1/8-inch TRS Type-A |
| Built In Talkback Microphone | Yes |
Monitoring and Workflow
| Smart Display | Full Color with Gain Reduction Metering |
| Main and Alt Speaker Switching | Yes |
| Auto Gain | Yes |
| Clip Protection | Yes |
| Loopback | Yes |
| UAD Console Integration | Yes |
| LUNA Integration | Yes |
| Session Recall | Yes |
Performance
| Microphone Input Dynamic Range | 119 dB A Weighted |
| Monitor and Line Output Dynamic Range | 126 dB A Weighted |
| Maximum Monitor and Line Output Level | 20.2 dBu |
Power
| USB Bus Powered | Yes |
| Typical Power Consumption | 5.5 W |
| Maximum Power Consumption | 7.1 W |
| Power Switch | Rear Panel |
Compatibility
| Mac | macOS 12 Monterey or Newer |
| Windows | Windows 10 64 Bit or Newer |
| iPad and iPhone | iPadOS or iOS 16 or Newer |
| Processor Support | Intel, AMD, Apple Silicon |
| DAW Compatibility | All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools, and more |
