Universal Audio Volt 876 32-Bit USB Audio Interface with 24 Inputs,...
The Universal Audio Volt 876 gives bands, producers, engineers, and larger recording setups eight analog pre-amps, flexible monitoring, and expandable digital I/O in a single 1 RU interface. Its 32-Bit, 192 kHz conversion captures sessions with high resolution, while digitally controlled pre-amps make settings precise and recallable. Each analog input can use Vintage mode for the richer character inspired by UA's classic 610 tube pre-amp design, plus a 76 Compressor for shaping dynamics before the signal reaches the recording software.
Record the Whole Session Without Breaking the Flow

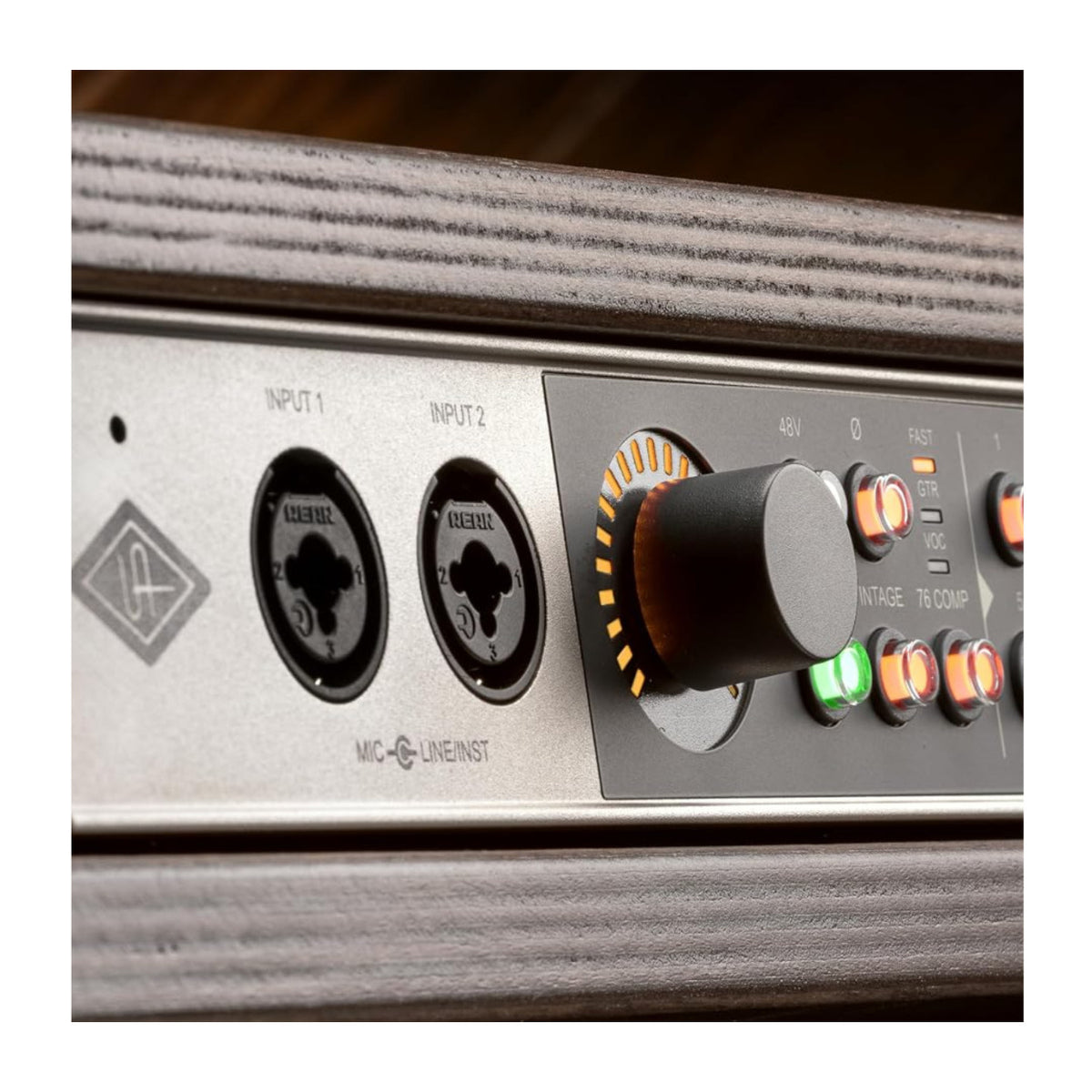

Eight combo inputs handle microphones and line sources, with instrument capability on channels 1 and 2. Assistive Auto Gain can set recording levels through UAD Console, while polarity control and individually switchable 48 V phantom power support multichannel microphone setups. An integrated talkback microphone, dual headphone outputs, direct monitoring, two stereo cue mixes, and alternate monitor switching help keep performers and engineers connected during tracking.
Expand When the Session Gets Bigger

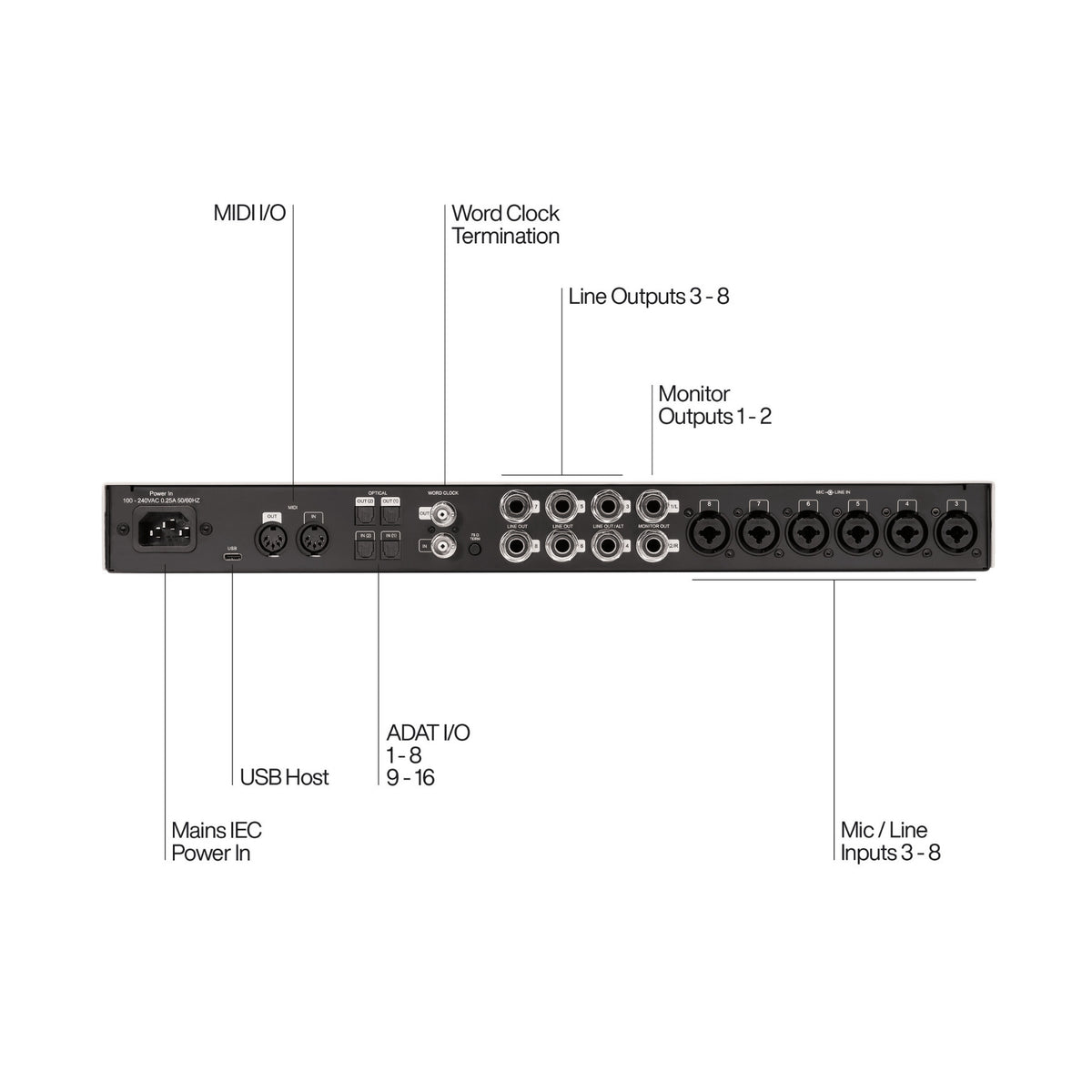

Dual optical input and output ports provide up to 16 channels of ADAT expansion at 44.1 or 48 kHz. Up to three Volt 876 units can be linked for as many as 24 analog pre-amp channels, or the interface can operate in standalone ADAT mode as an 8 input and 8 output pre-amp and converter. Word clock, MIDI, eight analog outputs, and optical S/PDIF support integration with larger studio systems.
UAD Console provides remote access to nearly every hardware function and can save and recall complete mixer settings. The result is a recording system that keeps the focus on performances instead of repeatedly rebuilding routing, gain, and monitoring settings between sessions.
System
| Product Type | USB Audio Interface |
| Simultaneous USB I/O | 24 Input, 28 Output |
| Rack Size | 1 RU |
| USB Connection | 1 x USB 2.0 Type-C |
| MIDI | 1 x 5-Pin DIN Input, 1 x 5-Pin DIN Output |
Analog Inputs
| Microphone, Line, Instrument Inputs | 2 x XLR and TRS Combo |
| Microphone and Line Inputs | 6 x XLR and TRS Combo |
| Available Pre-amp Gain | 60 dB |
| Vintage Mode | Selectable Per Channel |
| 76 Compressor Settings | Vocal, Guitar, Fast, Off |
| Phantom Power | +48 V, switchable per channel |
| Polarity Inversion | Selectable Per Channel |
Microphone Input Performance
| Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB |
| Dynamic Range | 116 dB A Weighted |
| Total Harmonic Distortion + Noise | -110 dB, 0.0003 Percent |
| Maximum Input Level | 14 dBu |
| Input Impedance | 2 Kilohms |
| Connector Type | XLR Female |
Instrument Input Performance
| Frequency Response | 20 Hz to 20 kHz, +/- 0.03 dB |
| Dynamic Range | 116 dB A Weighted |
| Total Harmonic Distortion + Noise | -87 dB, 0.004 Percent |
| Maximum Input Level | 12.5 dBu |
| Input Impedance | 1 Megohm |
| Connector Type | 1/4-inch TS Unbalanced |
Line Input Performance
| Frequency Response | 20 Hz to 20 kHz, +/- 0.05 dB |
| Dynamic Range | 116 dB A Weighted |
| Total Harmonic Distortion + Noise | -108 dB, 0.0004 Percent |
| Maximum Input Level | 22 dBu |
| Input Impedance | 10 Kilohms |
| Connector Type | 1/4-inch TRS Balanced or TS Unbalanced |
Analog Outputs
| Line Outputs | 8 |
| Monitor Output Selection | Line Outputs 1 and 2 or 3 and 4 |
| Headphone Outputs | 2 Stereo |
Monitor and Line Output Performance
| Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB |
| Dynamic Range | 119 dB A Weighted |
| Total Harmonic Distortion + Noise | -111 dB, 0.0002 Percent |
| Maximum Output Level | 20.2 dBu |
| Output Impedance | 100 Ohms |
| Connector Type | 1/4-inch TRS Balanced or TS Unbalanced |
| DC Coupled | Yes |
Headphone Output Performance
| Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB |
| Dynamic Range at 300 Ohms | 116 dB A Weighted |
| Total Harmonic Distortion + Noise at 300 Ohms | -108 dB, 0.0004 Percent |
| Maximum Output Power at 32 Ohms | 225 mW Per Channel |
| Maximum Output Power at 300 Ohms | 65 mW Per Channel |
| Maximum Output Power at 600 Ohms | 35 mW Per Channel |
| Connector Type | 1/4-inch TRS Stereo |
| DC Coupled | Yes |
Conversion
| Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Bit Depth | 32 Bit |
| Simultaneous Analog to Digital Conversion | 8 Channels |
| Simultaneous Digital to Analog Conversion | 12 Channels |
ADAT Digital I/O
| Connector Type | Optical TOSLINK |
| Optical Ports | 2 Input, 2 Output |
| Format | ADAT Digital Lightpipe with S MUX |
| 44.1 and 48 kHz | 16 Input, 16 Output |
| 88.2 and 96 kHz | 8 Input, 8 Output |
| 176.4 and 192 kHz | 4 Input, 4 Output |
S/PDIF Digital I/O
| Connector Type | Optical TOSLINK |
| Format | IEC 958 |
| Channels | 2 Input, 2 Output |
| Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Clocking
| Word Clock Connectors | BNC Input and Output |
| Word Clock Input Termination | 75 Ohms, Switchable |
| Synchronization Sources | Internal, Word Clock, ADAT, S PDIF |
Monitoring and Workflow
| Integrated Talkback Microphone | Yes |
| Direct Monitoring | Yes |
| Cue Mixes | 2 Stereo with UAD Console or LUNA |
| Alternate Monitor Switching | Yes |
| Hardware Remote Control | UAD Console |
| Mixer Setting Recall | Yes |
| Assistive Auto Gain | Yes |
| Stereo Channel Linking | Odd and Even Input Pairs |
Operating Modes
| USB Interface Mode | Yes |
| Standalone ADAT Mode | Yes |
| ADAT Expansion Mode | Yes |
| Maximum Linked Volt 876 Units | 3 |
| Maximum Analog Preamp Channels with 3 Units at 44.1 or 48 kHz | 24 |
Power
| AC Input | 100 V to 240 V AC, 50 to 60 Hz |
| Maximum Power Consumption | 35 W |
| Bus Powered | No |
| AC Connector | IEC C14 |
Environmental
| Operating Temperature | 32 to 104 degrees F |
Physical Specifications
| Chassis Dimensions (WxDxH) | 17 x 13.1 x 1.7 inches |
| Chassis Weight | 9 lbs. |
| Shipping Box Dimensions (WxDxH) | 21.5 x 17 x 5.5 inches |
| Shipping Weight | 14.2 lbs. |
