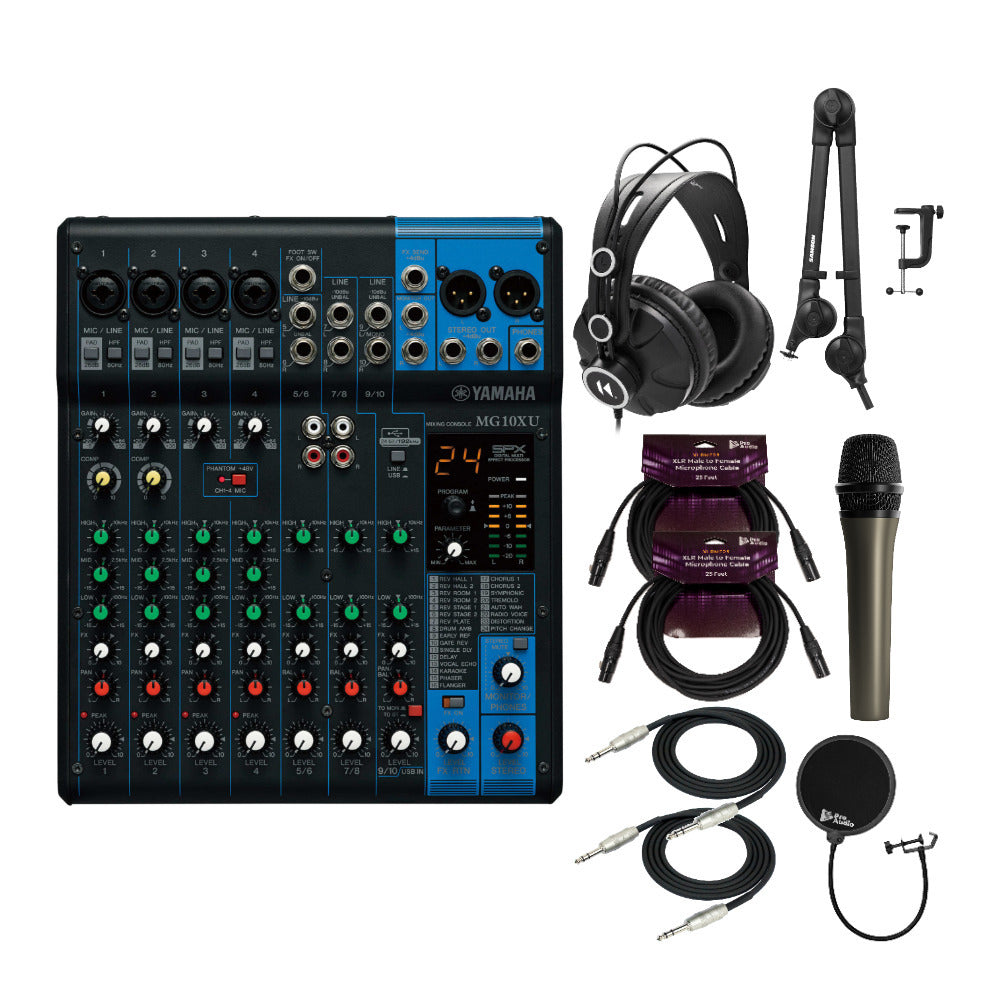

Yamaha MG10XU 10 Input Stereo Mixer with Microphone and Headphones Bundle
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

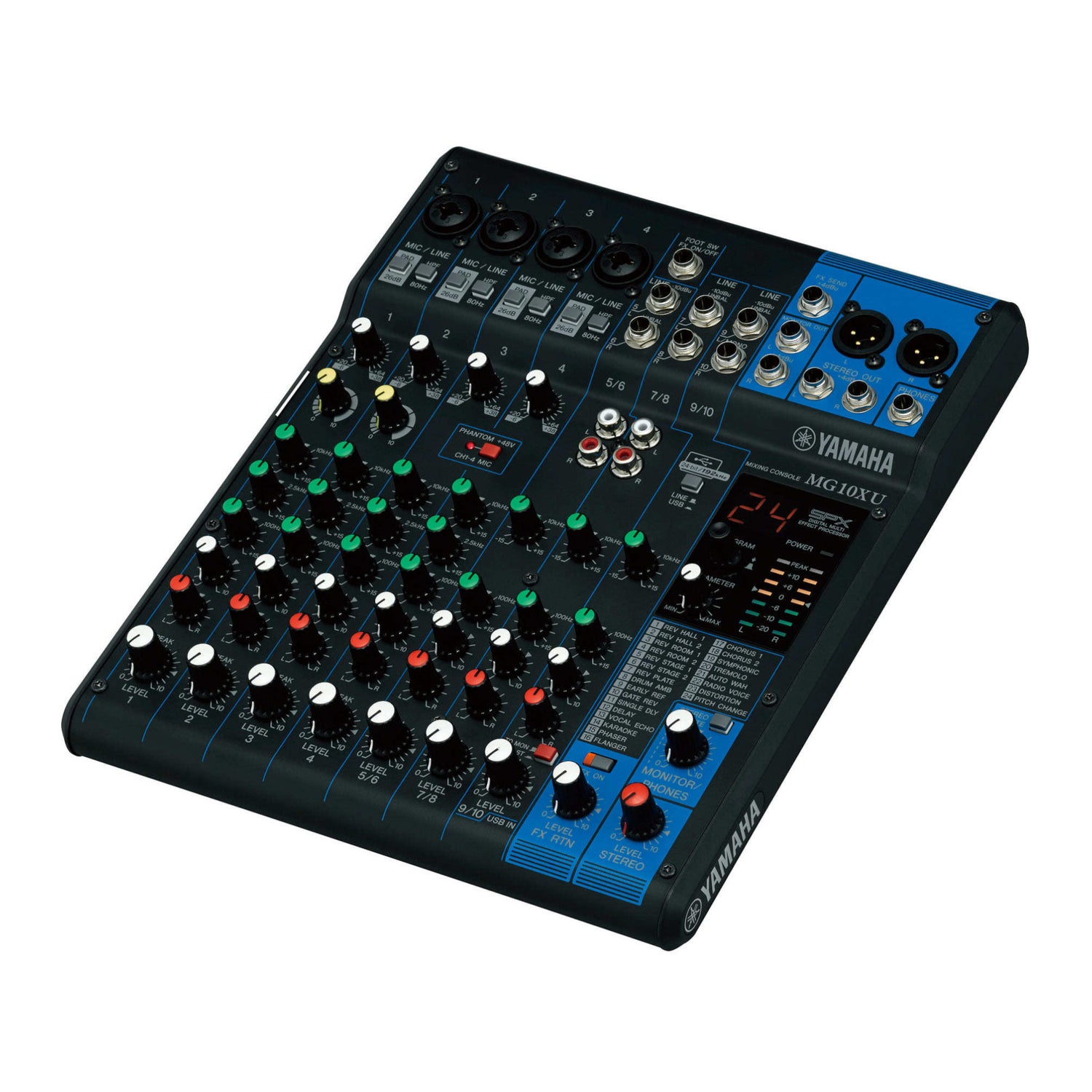

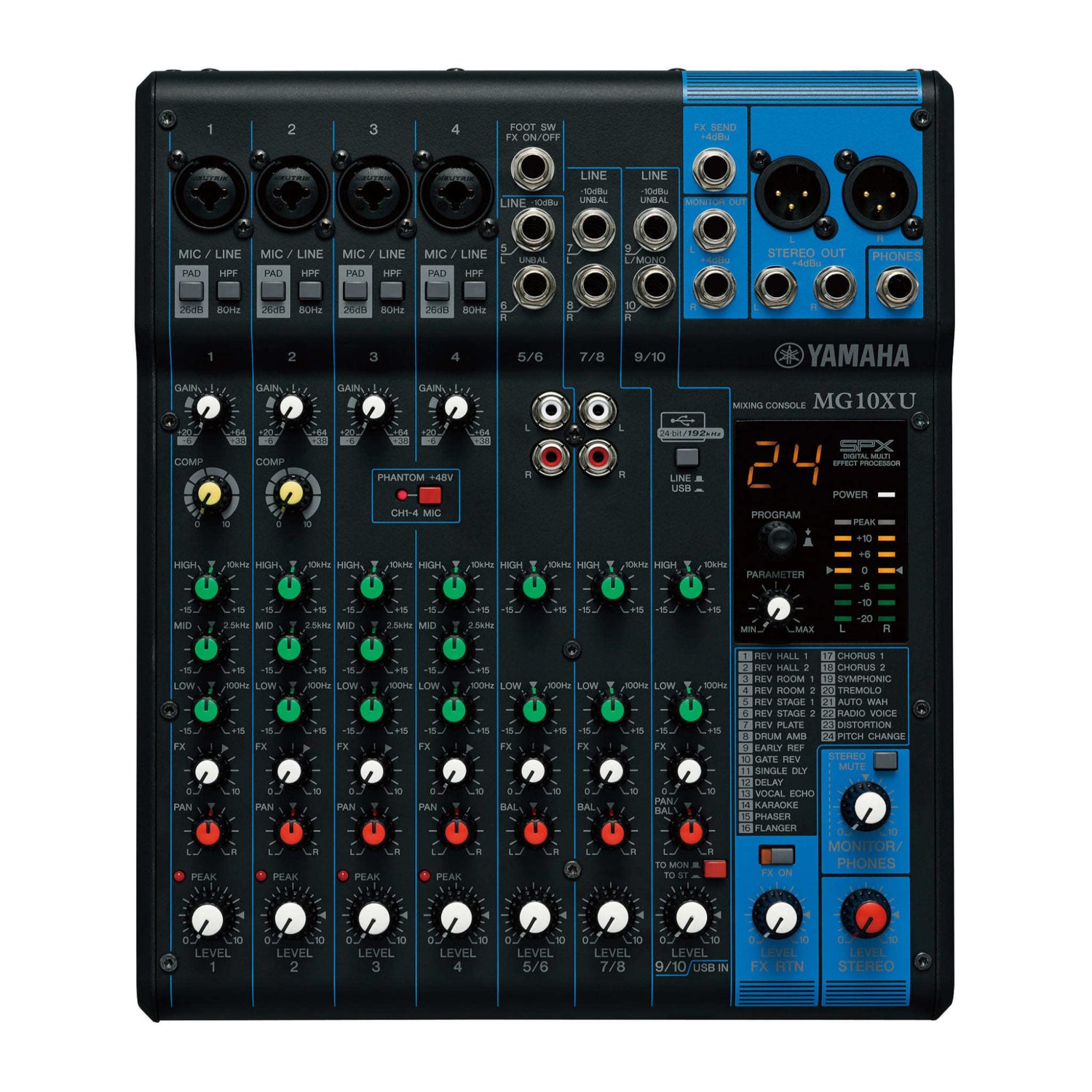

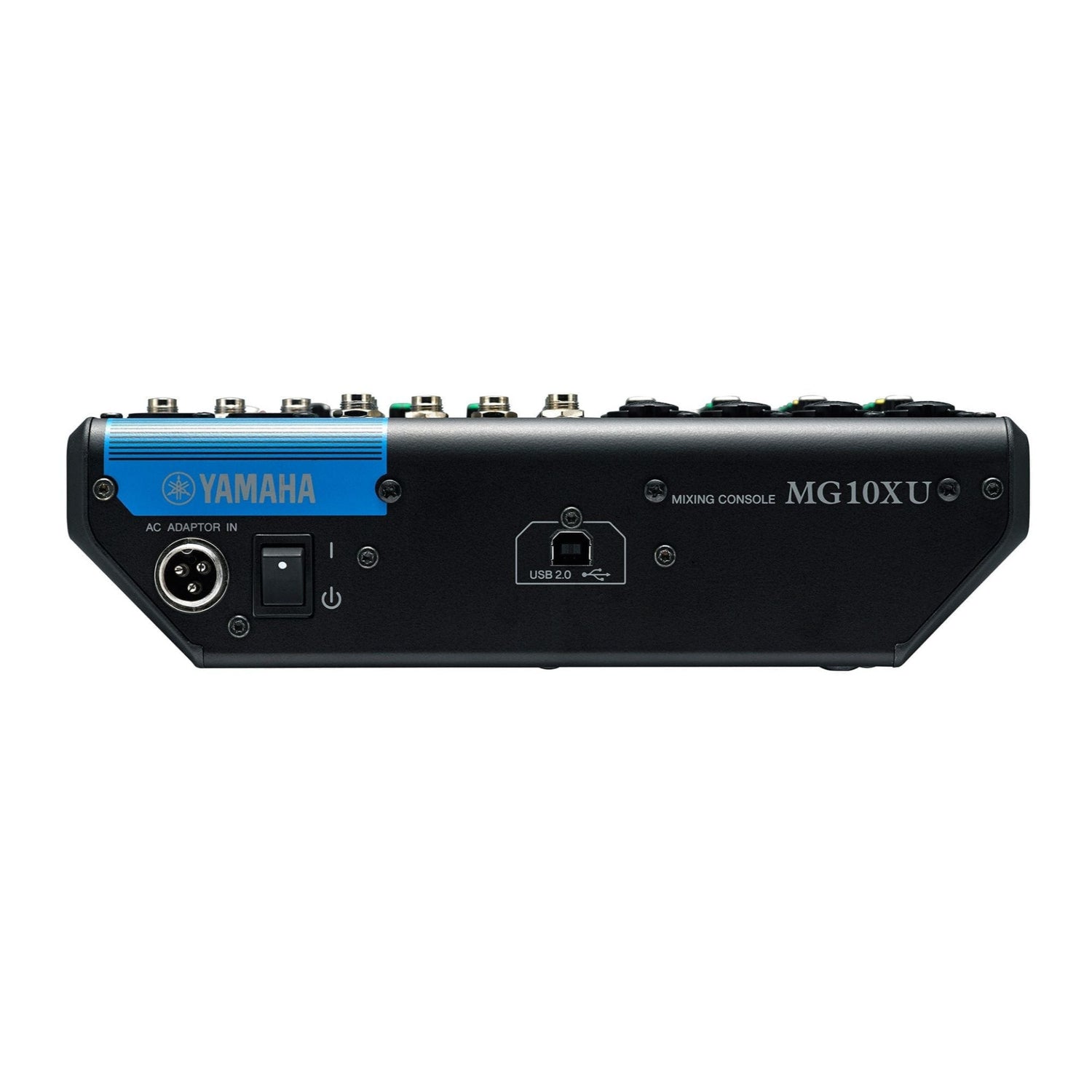

Yamaha MG10XU 10-Input Stereo Mixer with Effects
With an intuitive, easy-to-use interface, the Yamaha MG Series MG10XU 10-Input Stereo Mixer boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled in its class. This mixer incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.
D-PRE (Discrete Class-A Mic Preamps)
MG Series mixing console features Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural-sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allows them to handle signals from any audio source.

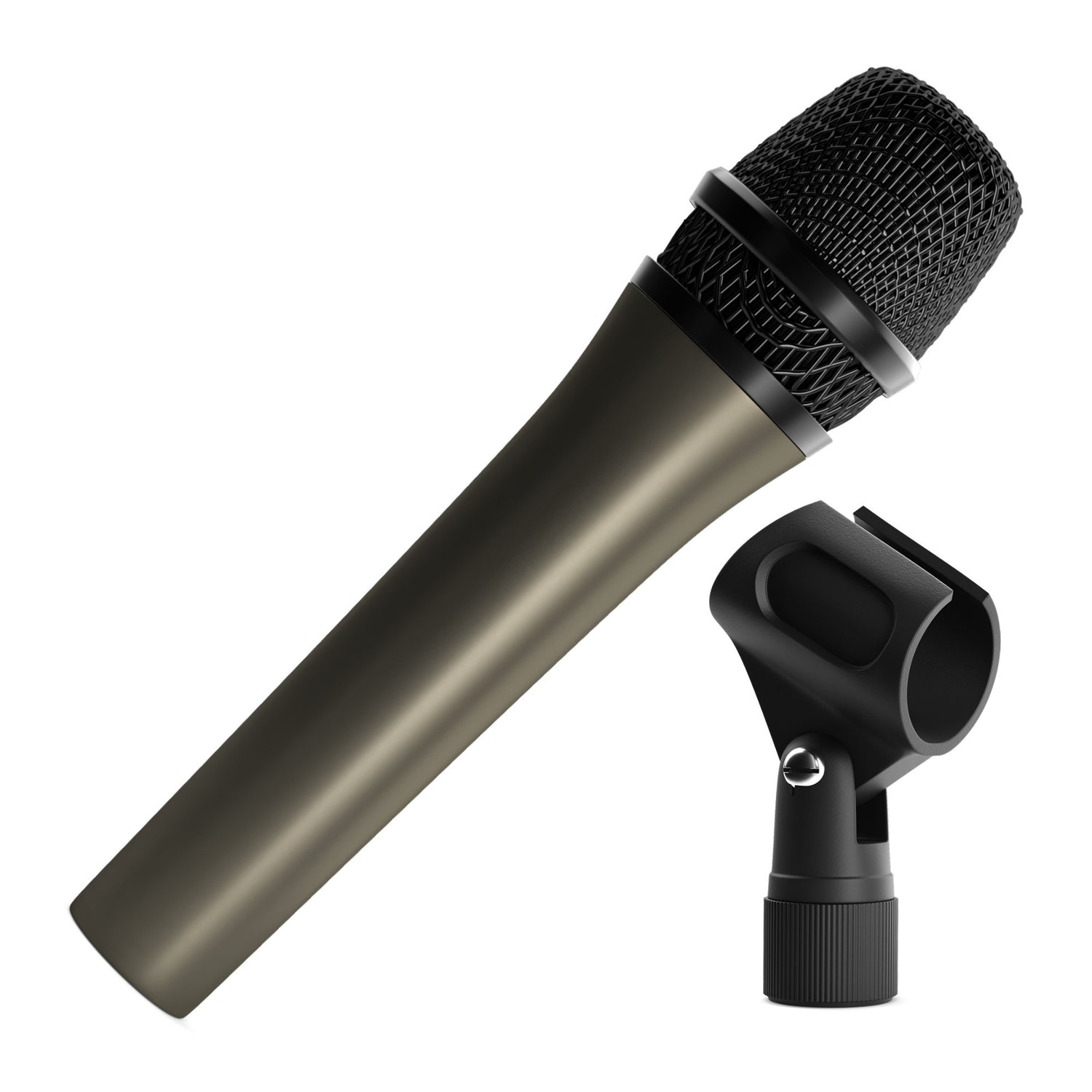

Knox Gear HDM-100 Uni-Directional Dynamic Cardioid Microphone (Clip Included)
You don't get many second chances when it comes to live vocal performances, live streaming from a laptop, podcasting on the fly, and taking daily Zoom meetings. So, make sure things are done right the first time with the Knox Gear HDM-100. This dynamic cardioid microphone's sturdiness, durability, and overall ease of setup are unsurpassed.

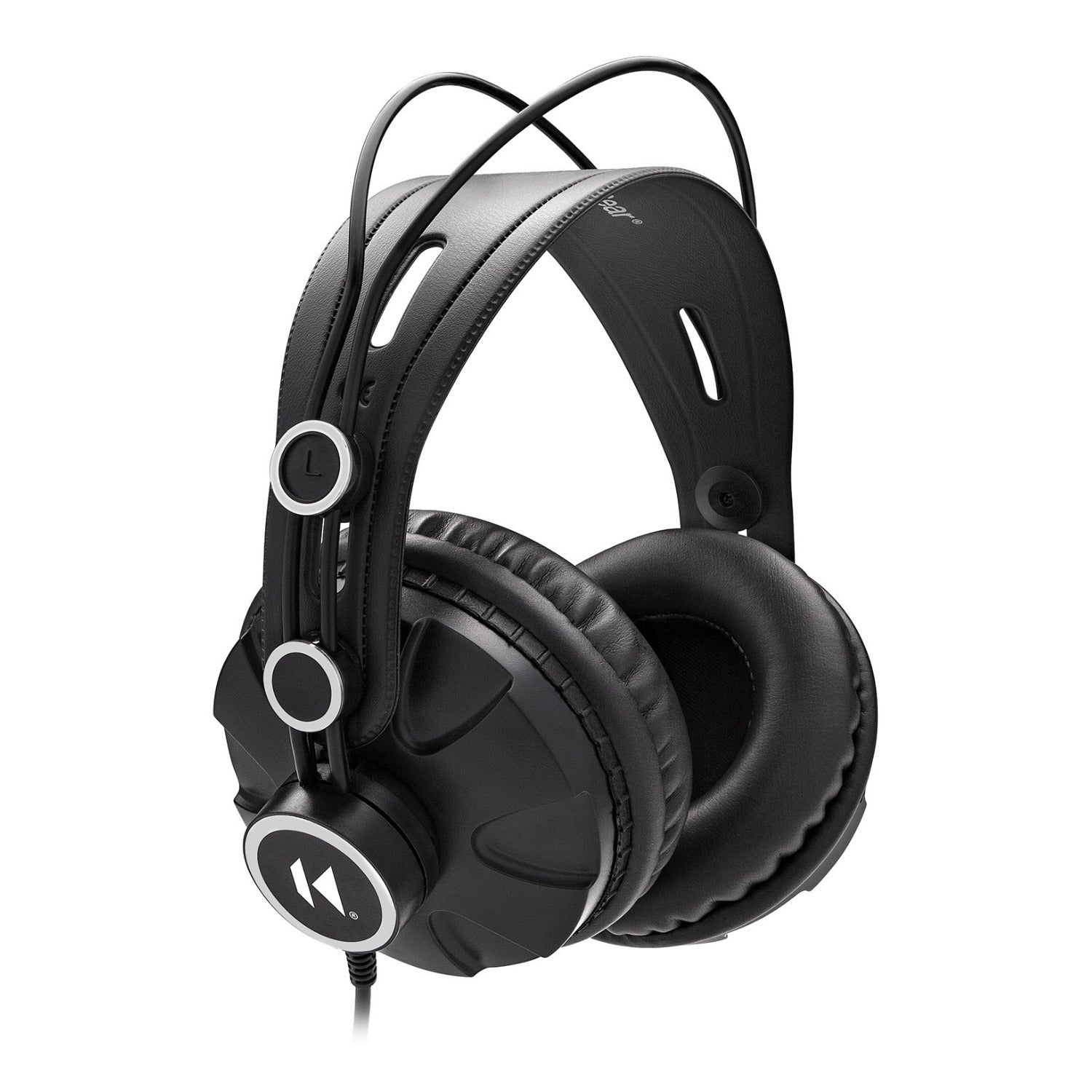

Knox Gear TX-100 Closed-Back Studio Monitor Headphones
Introduce your ears to a world of crystal-clear, expansive, high-fidelity audio with the TX-100 Closed-Back Studio Monitor Headphones from Knox Gear. These adjustable over-ear headphones are engineered for exceptional comfort, superior sound quality, and convenient portability anywhere you go. These headphones include a 1/4-inch adapter and feature an extra-long 10-feet cord for versatility.

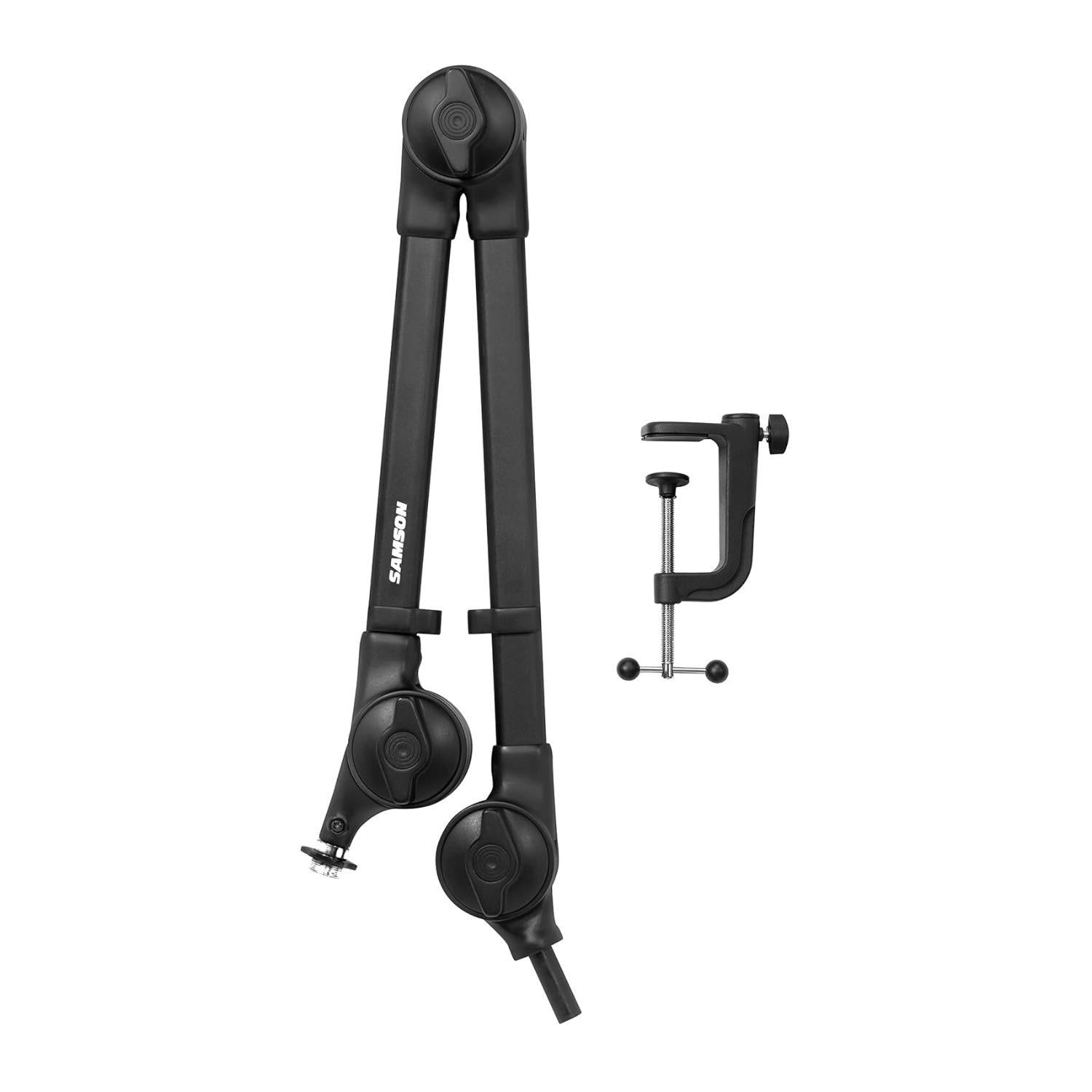

Samson MBA26 Microphone Boom Arm 26 Inch Aluminum Desktop Clamp Stand (Black)
The Samson Technologies MBA26 Microphone Boom Arm is a durable and flexible desktop mounting solution designed for podcasting, streaming, broadcasting, and content creation. Built with a strong aluminum body and a smooth articulating arm system, it delivers stable microphone positioning with easy adjustment. The 26-inch reach provides wide positioning flexibility, while the clamp-style base ensures secure attachment to desks or tables.

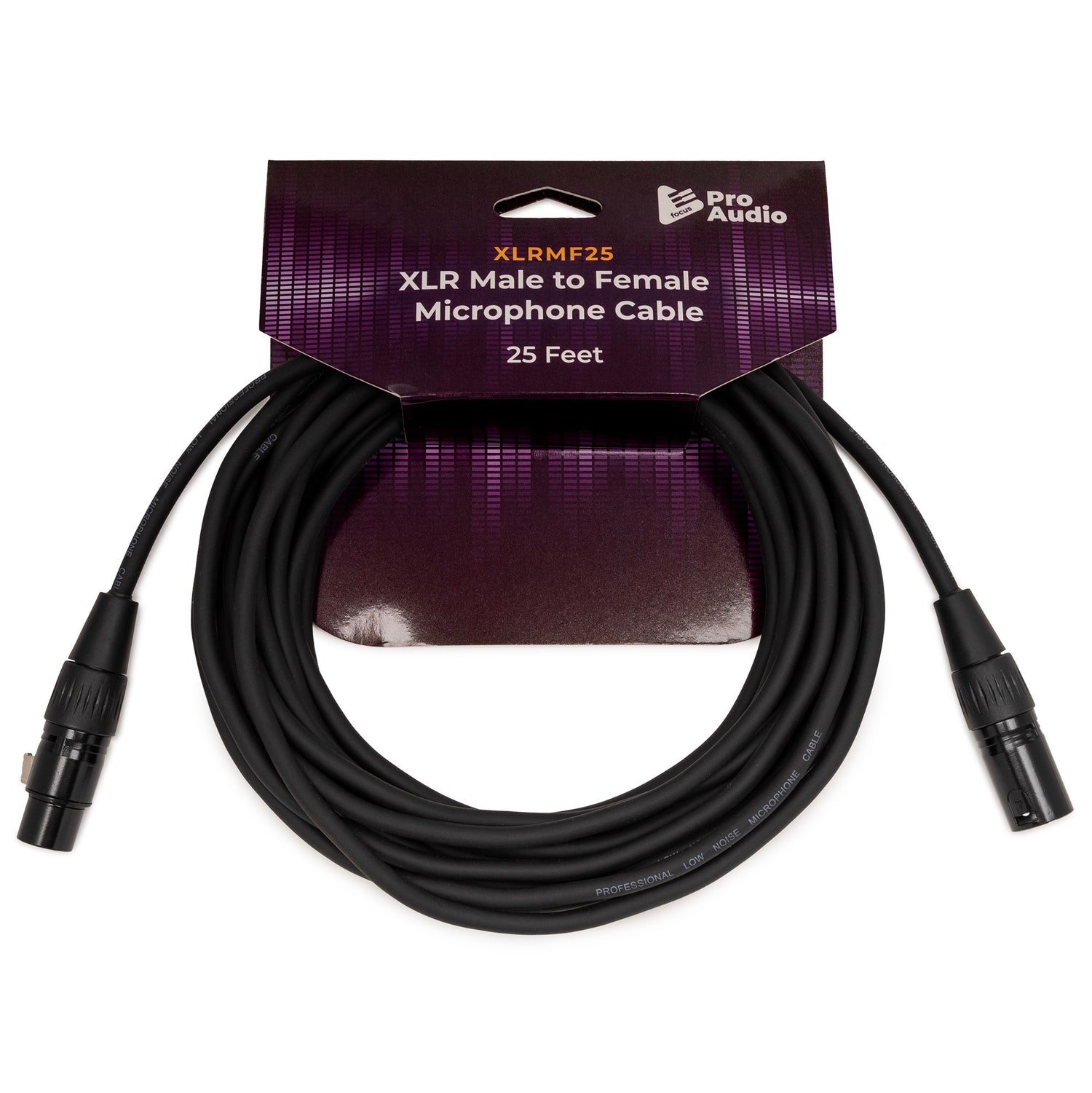

FocusProAudio 25-Feet XLR Male to Female Microphone Cable
FocusProAudio 25-Feet XLR Male to XLR Female Microphone Cable is professionally designed to prevent external interference and ensure signals travel rapidly and smoothly with minimum distortion, delay, or loss. These cables feature two 20-gauge CCAM conductors, which are twisted pairs with cotton yarn fillers, conductive PVC shield with 100 percent coverage, and CCAM spiral shielding with 90 percent coverage.

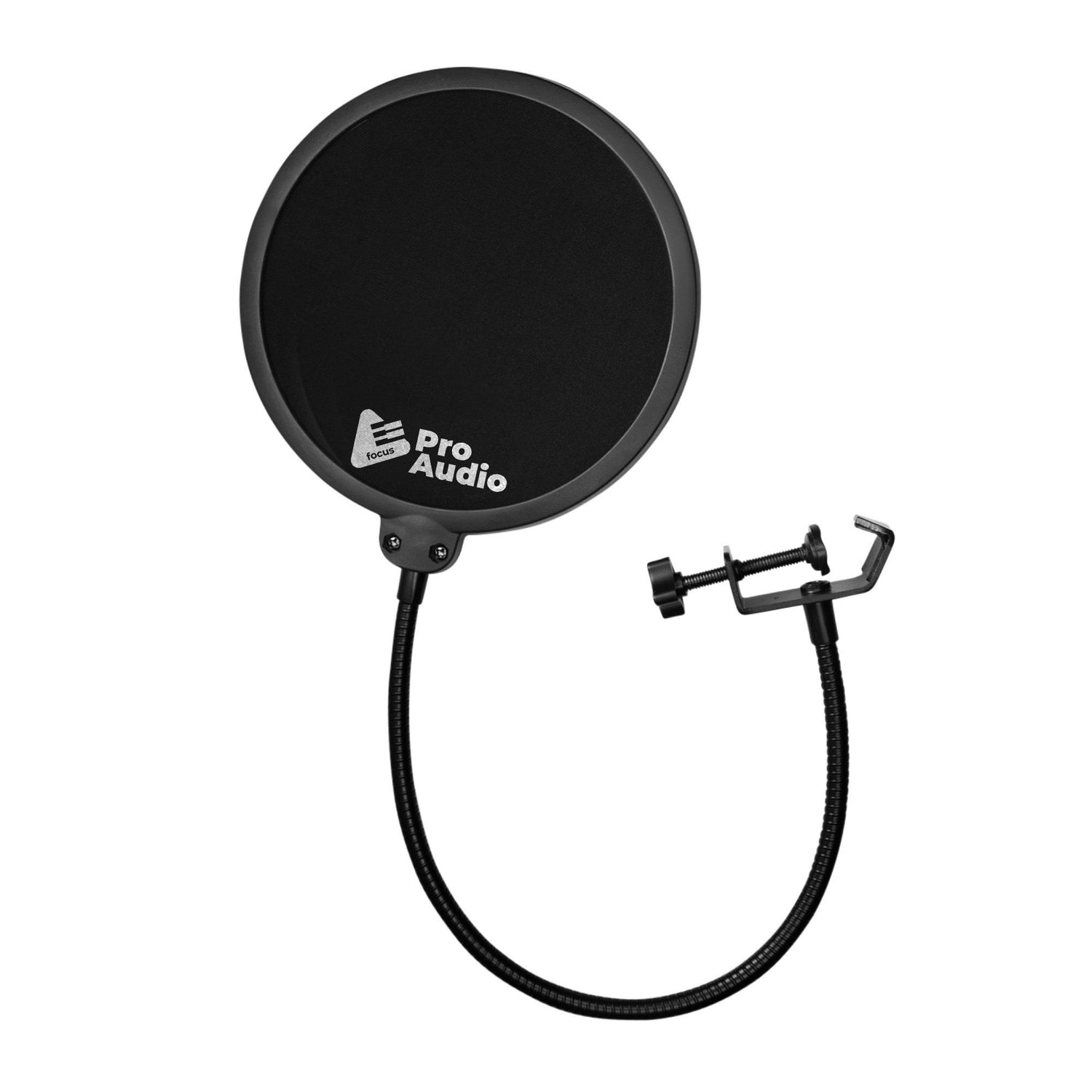

FocusProAudio Pop Filter for Broadcasting and Recording Microphones
The FocusProAudio Pop Filter for Broadcasting and Recording Microphones is a guard used by amateurs and professionals to achieve clearer audio recordings by eliminating 'popping' sounds from P's and B's. It also keeps saliva from hitting the microphone. The included gooseneck clamp enables the filter to be placed in a variety of positions.

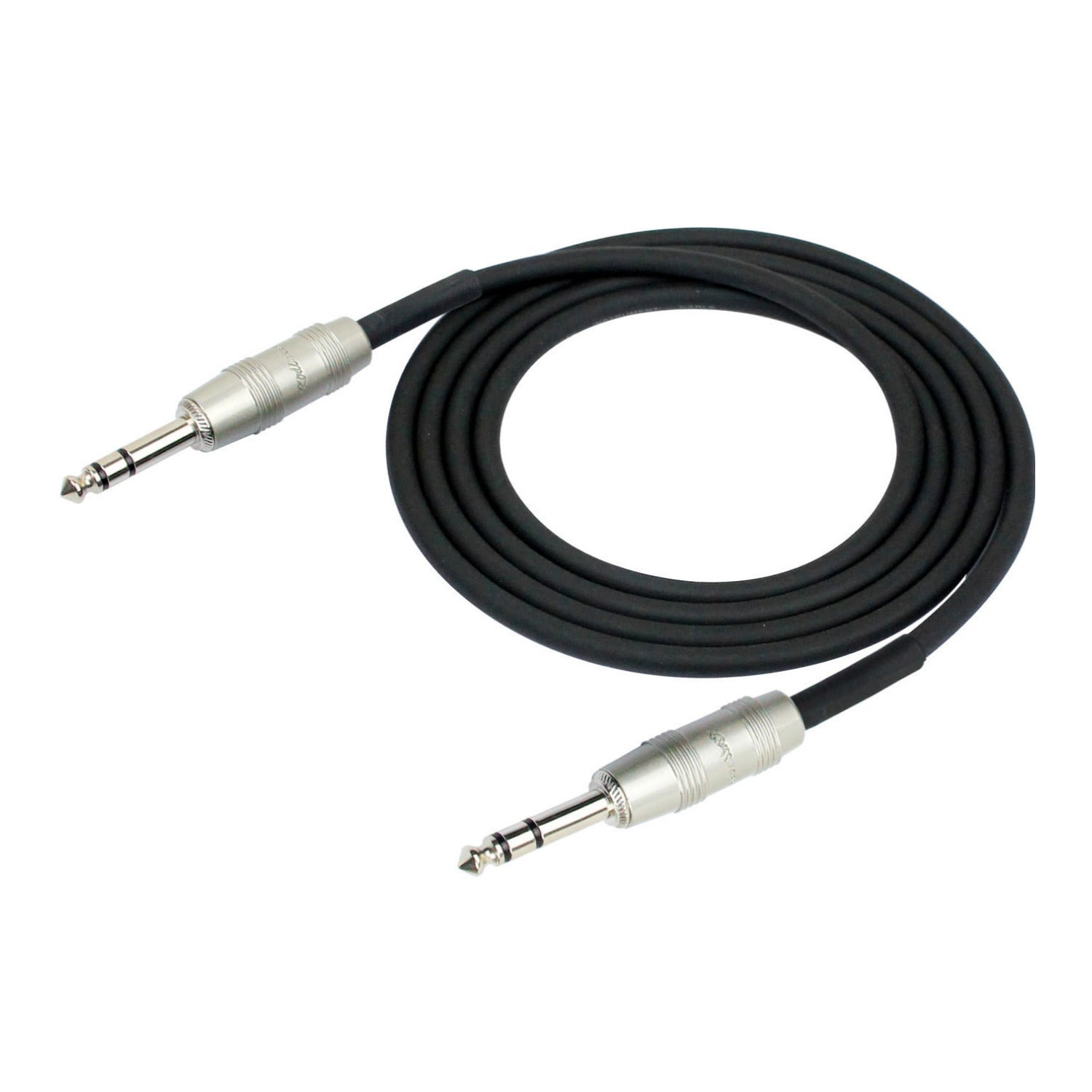

Knox Gear 1/4-Inch TRS to 1/4-Inch TRS Cable (6-Feet)
Knox Gear 1/4-Inch TRS to 1/4-Inch TRS Cable (6-Feet) is a heavy-duty cable for connecting your guitar or other electric instrument to an amplifier.
- Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150 Ohm, Gain knob: Max)
- Residual output noise: -102 dBu (Stereo Out, Stereo Level knob: Min)
Yamaha MG10XU 10-Input Stereo Mixer with Effects
Outline
| Mixing capability (on-board processors) | SPX algorithm: 24 programs |
| Phantom Power | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
Input Channels
| Mono (mic/line) | 4 |
| Stereo (line) | 3 |
Output Channels
| Stereo out | 2 |
| Monitor out | 1 |
| Phones | 1 |
| Aux Send | 1 |
| Bus | Stereo: 1, AUX: 1 (including FX) |
Input Channel Function
| Pad | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (mono) |
| Comp | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ high | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ mid | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
| EQ low | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| Peak LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
General Specifications
| Total harmonic distortion | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Hum and noise level | |
| Crosstalk | -83 dB |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power consumption | 22.9 W |
Dimensions
| Weight | 9.6 inch (244 mm) |
| Height | 2.8 inch (71 mm) |
| Depth | 11.6 inch (294 mm) |
Weight
| 4.63 lb (2.1 kg) |
