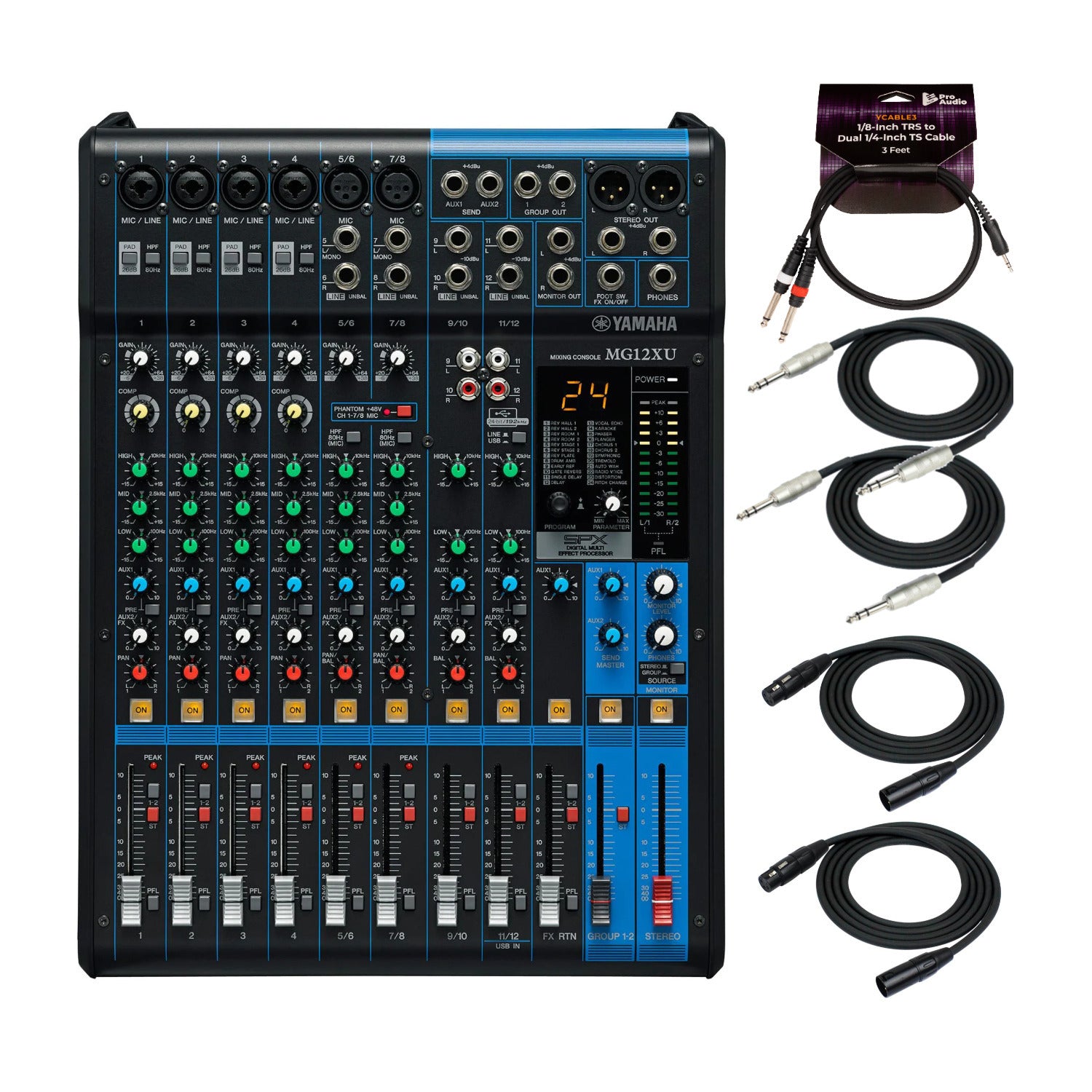

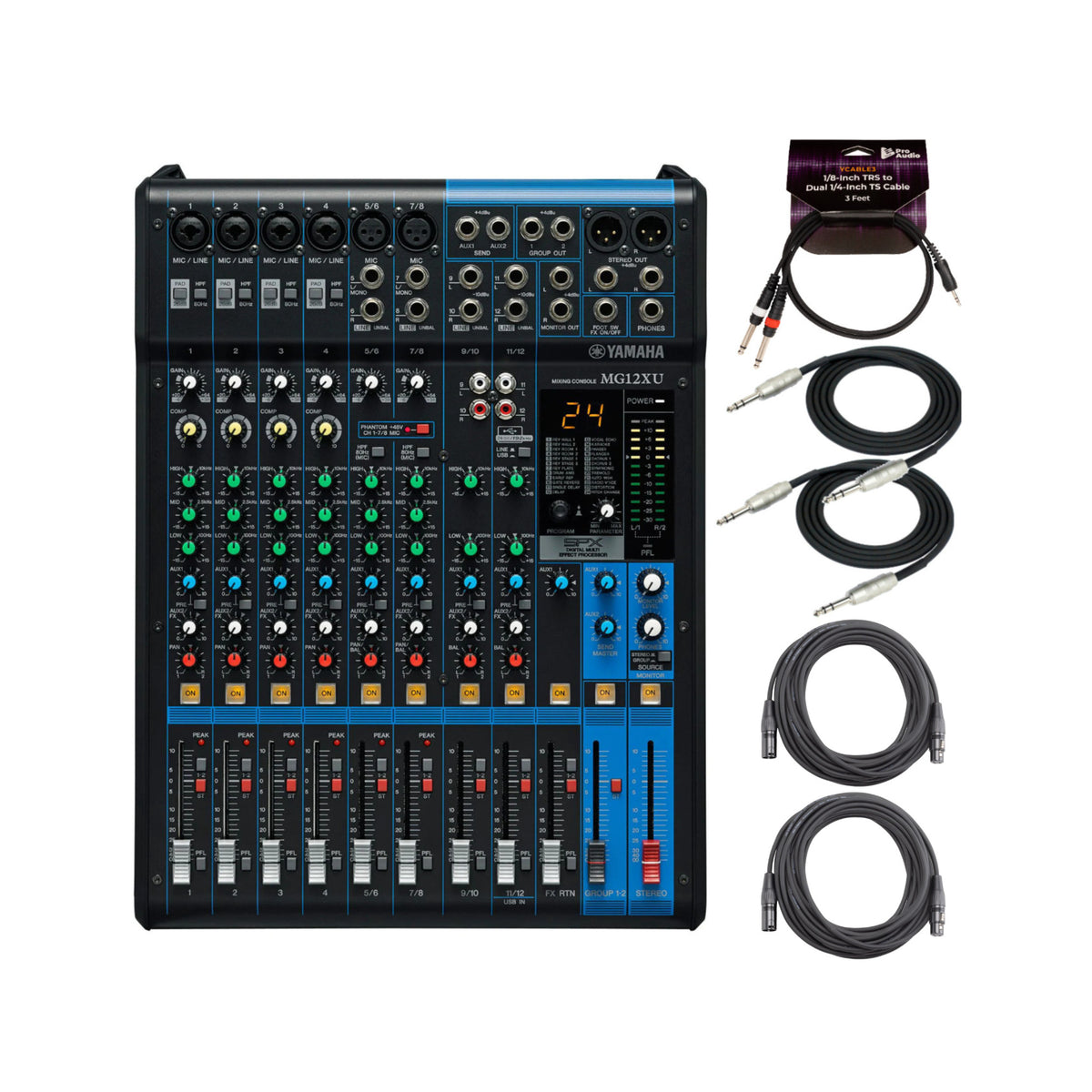

Yamaha MG12XU 12-Input 4-Bus Mixer Bundle with Cables
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

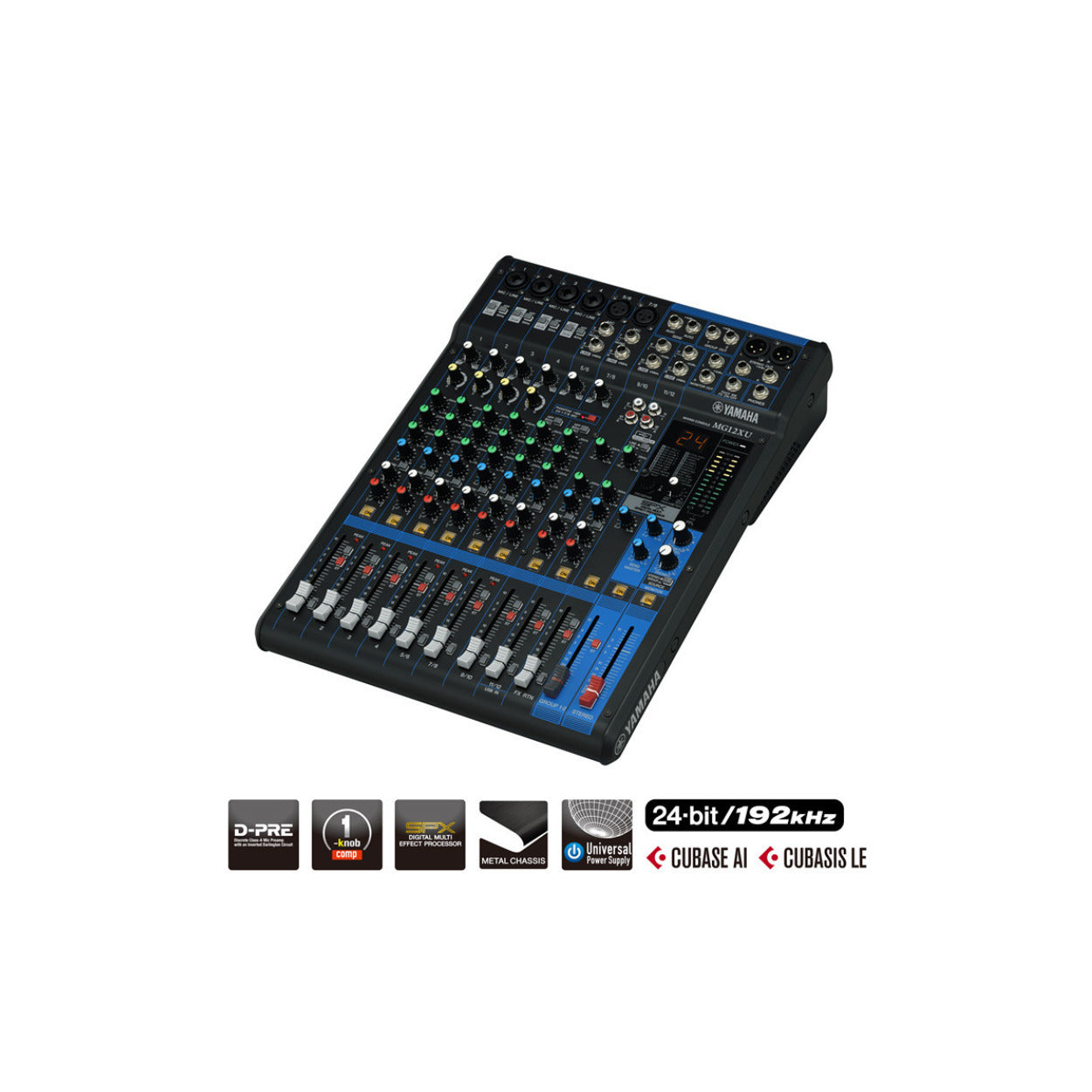

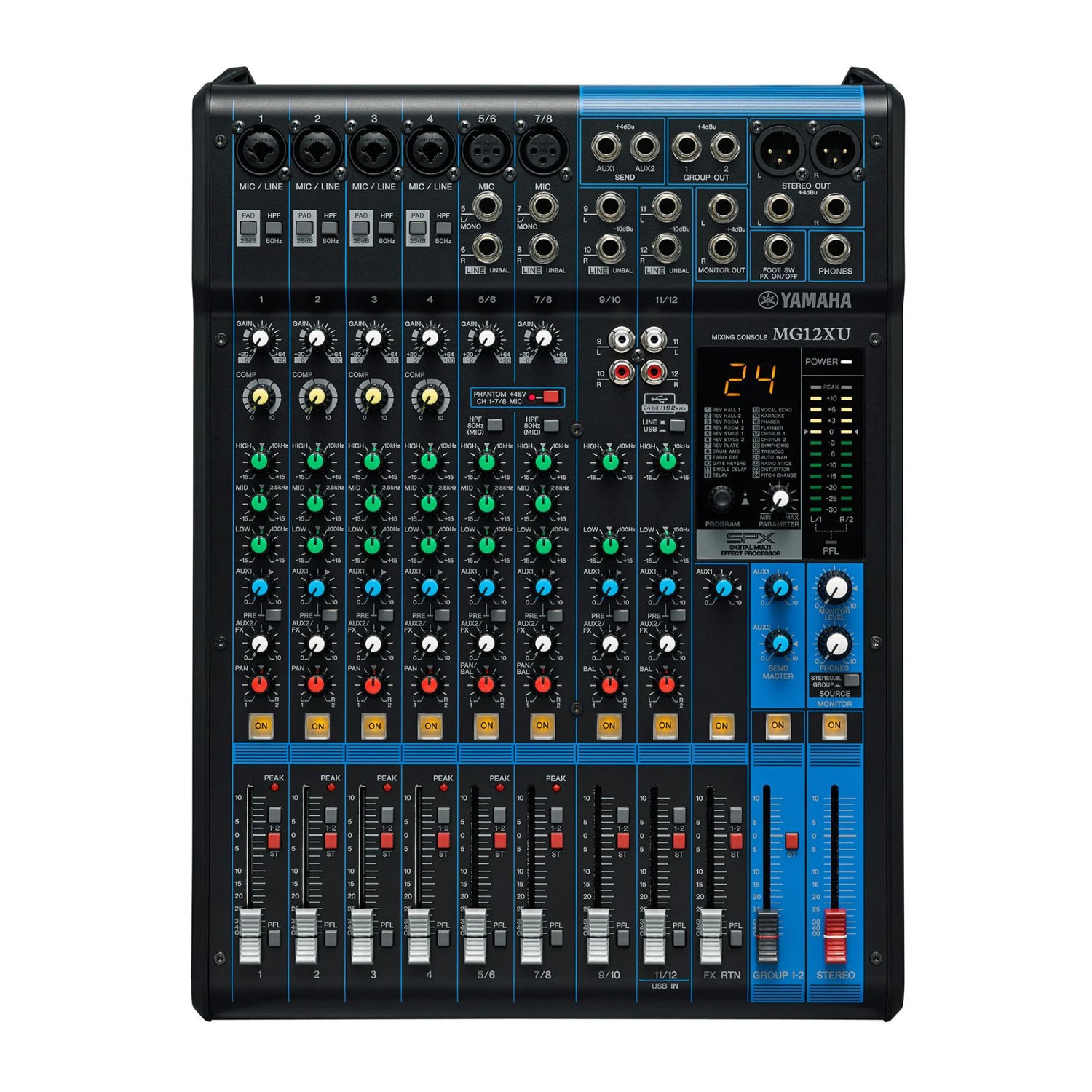

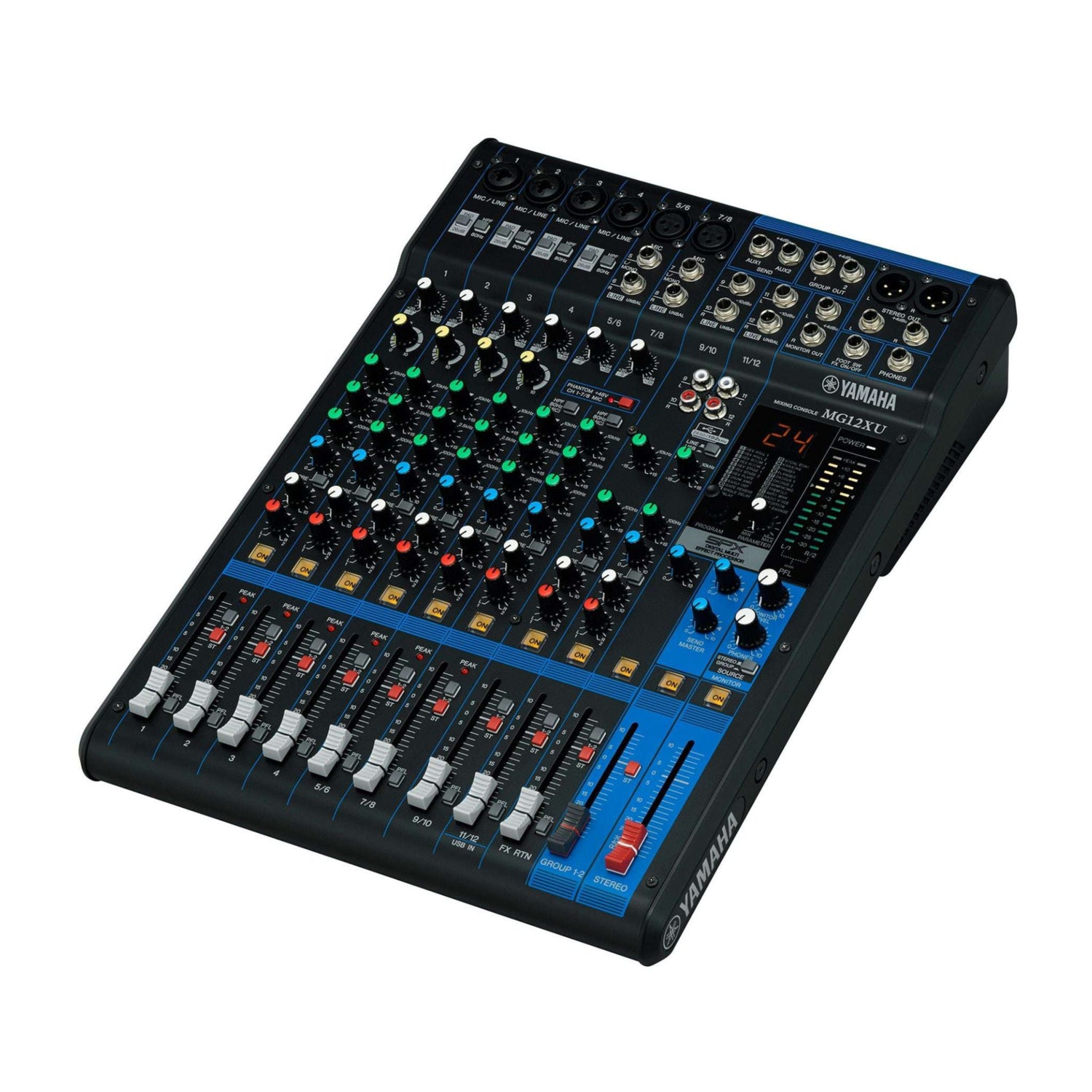

Yamaha MG Series MG12XU 12-Input Stereo Mixer
With an intuitive, easy-to-use interface, the Yamaha MG Series MG12XU 12-Input Stereo Mixer boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class. This mixer incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.
12-Channel Mixer Console
12-channel mixer with USB and SPX digital effects. Featuring studio-grade discrete class-A D-PRE preamps with inverted Darlington circuit - providing fat, natural sounding bass and smooth, soaring highs.
3-Band EQ and High-Pass Filters
3-band EQ and high-pass filters give you maximum control and eliminate unwanted noise, resulting in a cleaner mix.
1-Knob Compressors
1-Knob compressors allow easy control - resulting in livelier guitars, punchier bass lines, a tighter snare and a cleaner vocal sound.
Rugged Metal Chassis
MG Series mixer features a rugged, shock-resistant, powder-coated metal chassis; Crosstalk:-78 dB.
Cubase AI Software Included
This mixer comes bundled with Downloadable Steinberg’s Cubase AI software. As one of the most advanced, comprehensive DAW suites available, Steinberg's Cubase has led the charge, providing users with a powerful and flexible platform for music production.

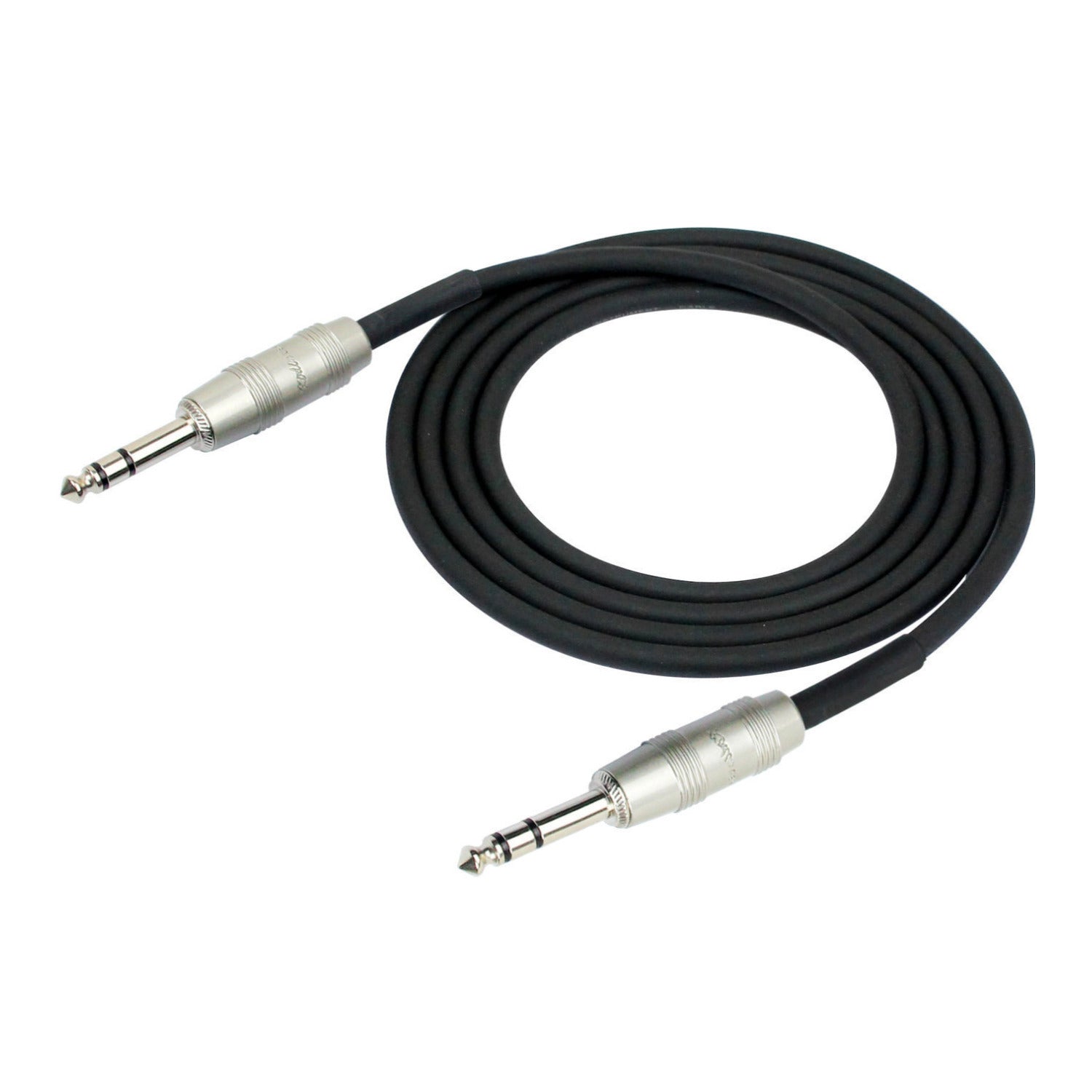

6-Ft TRS Cable
At 6 feet long, this cable is perfect for touring or live sound applications. This male-to-male cable can be attached to any standard amplifier from a guitar, bass, electric keyboard or other compatible instrument.

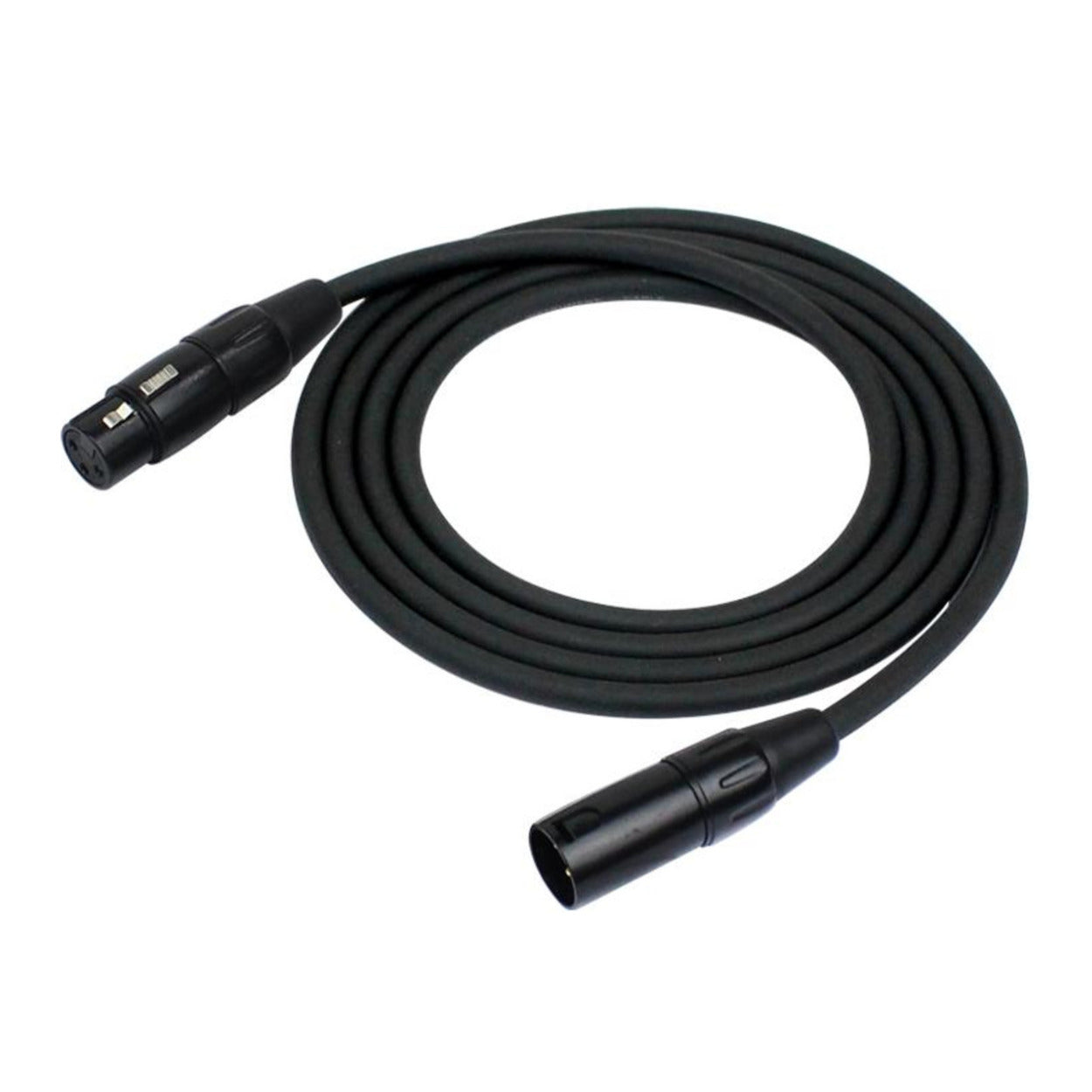

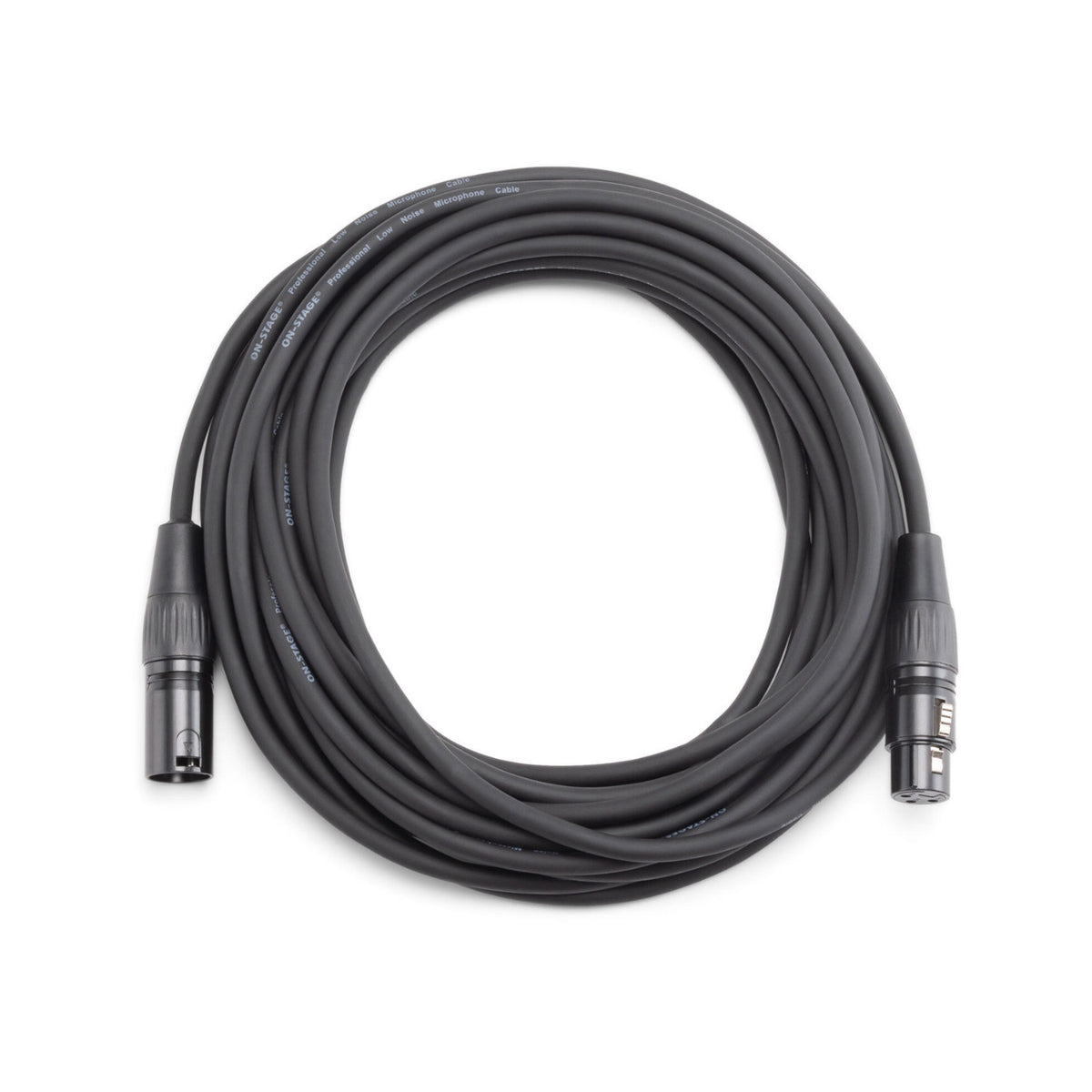

25-Ft XLR Microphone Cable
Professionally designed to prevent external interference and ensure signals travel rapidly and smoothly with minimum distortion, delay, or loss. These cables feature two 20-gauge CCAM conductors, which are twisted pair with cotton yarn fillers, conductive PVC shield with 100% coverage, and CCAM spiral shielding with 90% coverage.

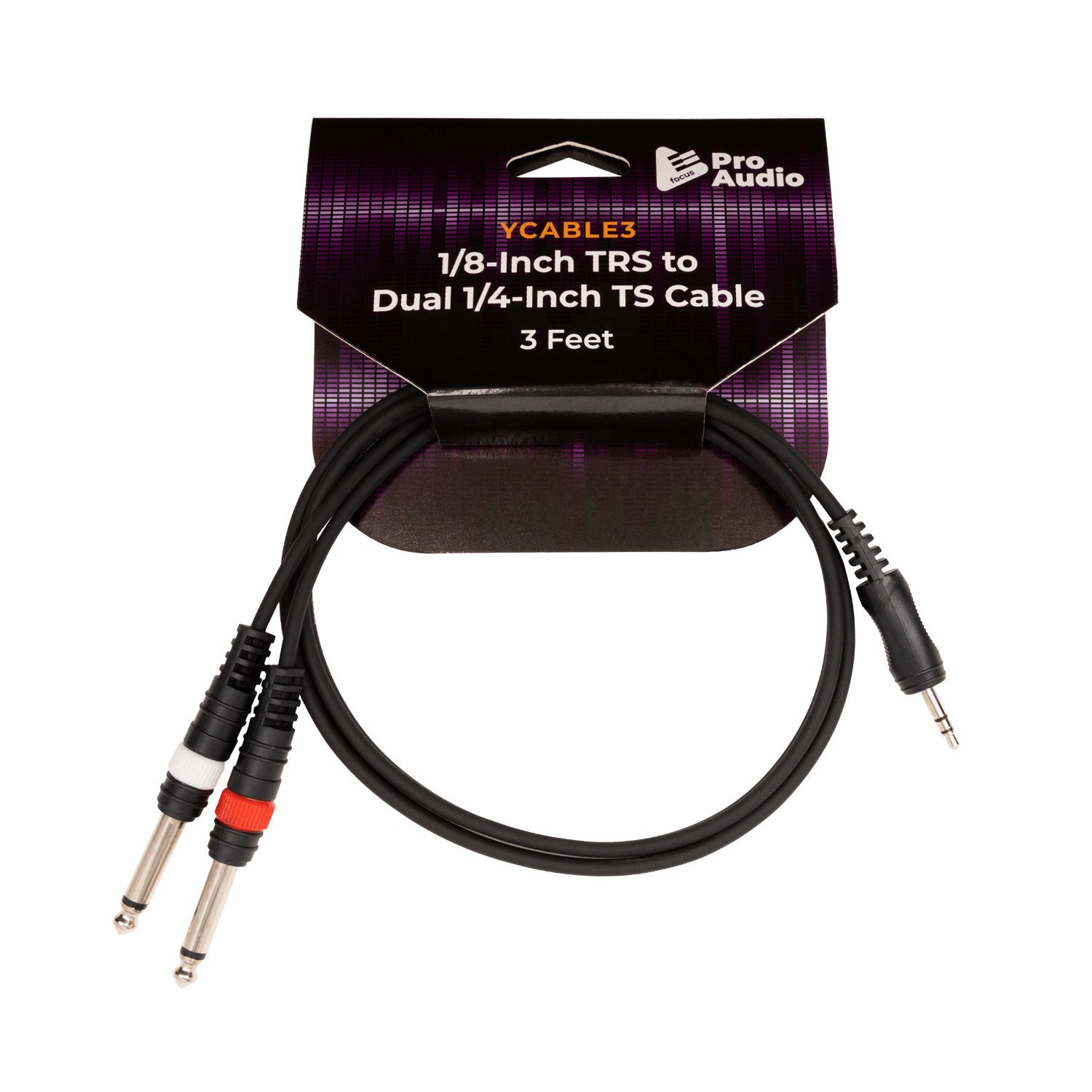

3-Ft Stereo Breakout Cable
Elevate your audio experience with the FPA-YCABLE3 3-Foot Stereo Breakout Cable. This premium cable is meticulously designed to bridge devices featuring a 3.5mm TRS stereo output to those equipped with dual 1/4-inch TS inputs, delivering impeccable audio quality without any disruptions. The 3-foot length provides flexibility in setting up your audio equipment, allowing for convenient placement in any environment. Ideal for connecting a variety of devices such as smartphones, tablets, and laptops to speakers, mixers, amplifiers, and more, this versatile cable is a must-have for any audio enthusiast. The sturdy connectors offer a secure and stable link, eliminating any worries about signal loss or disconnection.

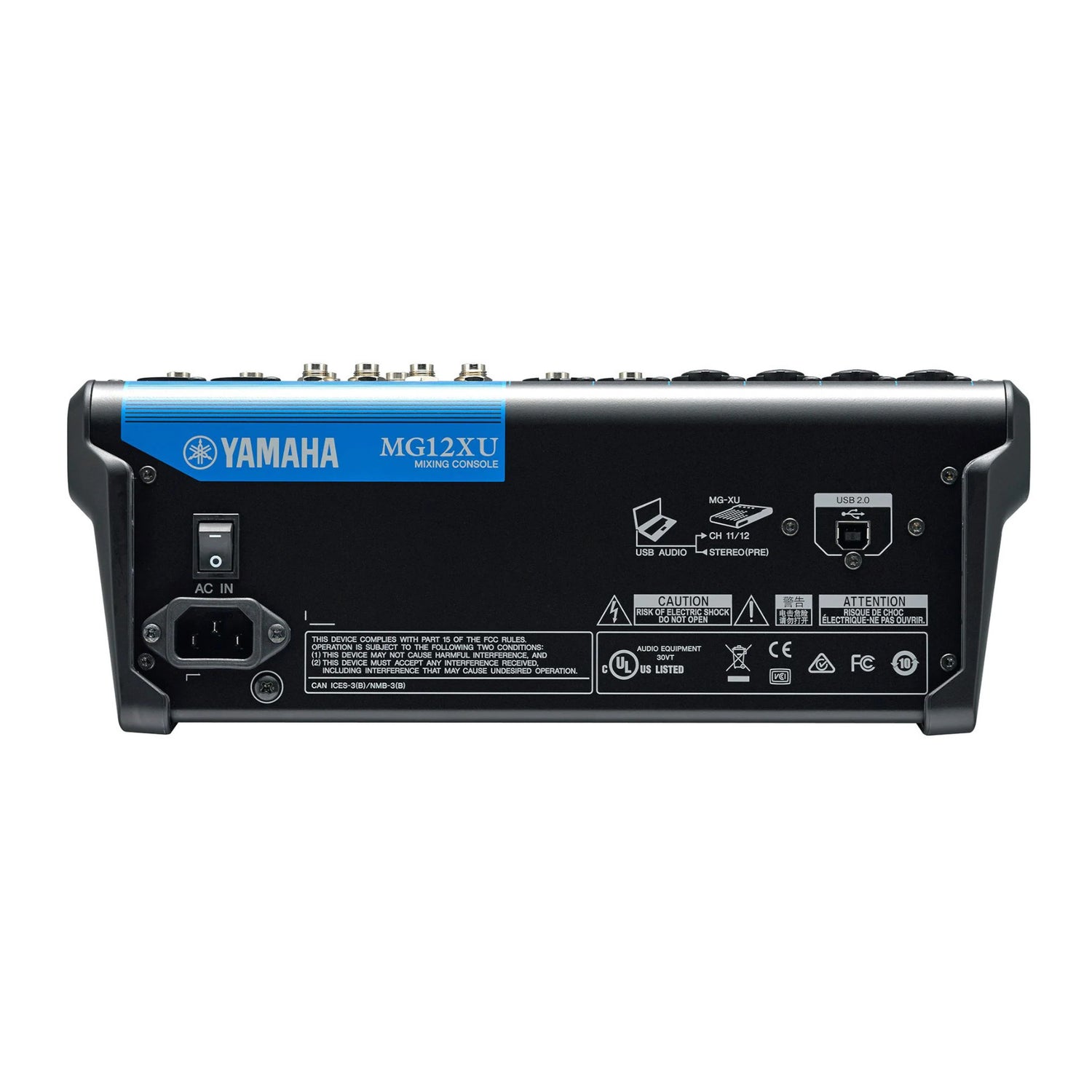

Yamaha MG12XU 12-Input 4-Bus Mixer
Outline
| Mixing capability (on-board processors) | SPX algorithm: 24 programs |
| Phantom Power | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
Input Channels
| Mono (mic/line) | 4 |
| Mono/stereo (mic/line) | 2 |
| Stereo (line) | 2 |
Output Channels
| Stereo out | 2 |
| Monitor out | 1 |
| Phones | 1 |
| Aux Send | 2 |
| Group out | 2 |
| Bus | Stereo: 1, Group: 2, AUX: 2 (including FX) |
Input Channel Function
| Pad | 26 dB (mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/stereo: mic only) |
| Comp | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ high | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ mid | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
| EQ low | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| Peak LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General Specifications
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150 Ohm, GAIN knob: Max) |
| Residual output noise | -102 dBu (Stereo Out, Stereo master fader: Min) |
| Crosstalk | -78 dB |
| Power requirements | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption | 22 W |
| Hum and noise level |
Dimensions
| Weight | 12.1 inch (308 mm) |
| Height | 4.6 inch (118 mm) |
| Depth | 16.6 inch (422 mm) |
| Weight | 9.3 lb (4.2 kg) |
1/4in TRS to 1/4inTRS Cable (6-Feet)
| Connectors | 1/4-inch TRS |
| Length | 6 ft |
| Warranty | 1-year limited warranty |
25-Ft XLR Male to XLR Female Microphone Cable
| Wire gauge | 20 x 2 |
| Conductor material | CCAM |
| Shielding | 90% |
| Shielding material | CCAM |
| Jacket OD (mm) | 6.5 |
| Jacket material | PVC |
| Length | 25 ft. |
Stereo Breakout Cable
| Model | FPA-YCABLE3 |
| Cable Type | Stereo Breakout Cable |
| Length | 3 Feet |
| Connector 1 | 3.5mm TRS Stereo Male |
| Connector 2 | Dual 1/4-Inch TS Male |
| Signal Type | Stereo to Dual Mono Breakout |
| Compatibility | Smartphones, tablets, laptops, speakers, mixers, amplifiers, and other audio devices |
| Audio Transmission | Balanced and clear signal transfer with minimal interference |
| Build Material | Durable, high-quality cable construction |
| Connector Design | Sturdy connectors for secure and stable connections |
| Use Case | Audio signal splitting from 3.5mm stereo output to dual 1/4-inch inputs |
| Application | Home audio setups, studio recording, live sound, and multimedia systems |
