Yamaha CBR12 Portable 2-Way 12-Inch 700W Passive Loudspeaker
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Audio engineers in need of a portable, passive loudspeaker should check out the Yamaha CBR12, a high-power, high-definition speaker in a portable and versatile package for applications such as front-of-house, floor monitoring, and rigged configurations. The speaker uses custom-designed transducers with a wide-dispersion constant directivity horn to deliver a frequency response of 48 Hz to 20 kHz.
The speaker offers a balance of size and performance for a wide range of applications.

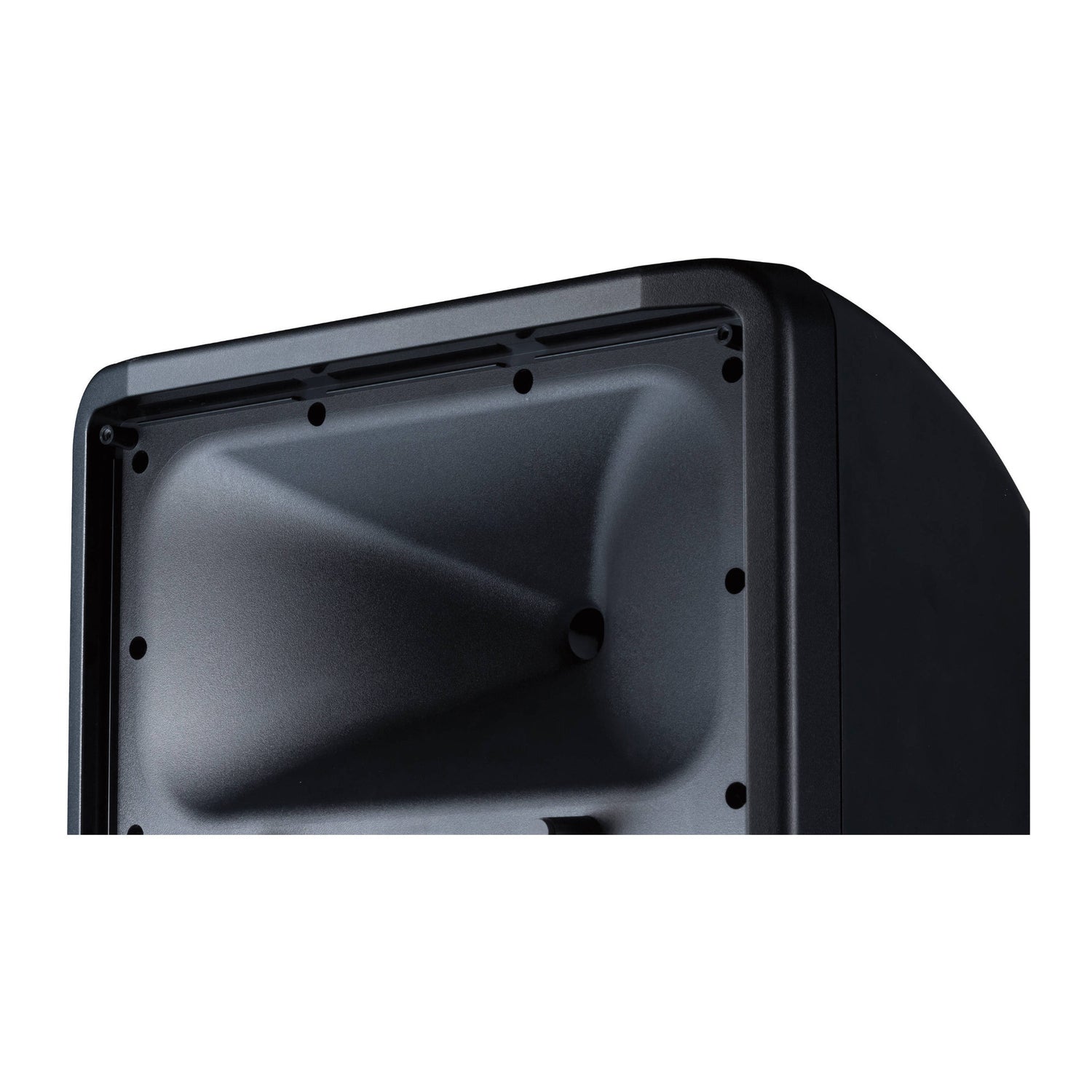

Custom Transducers and Wide-Dispersion Horn
Leverages carefully selected materials with a horn design that minimizes radiation pattern deterioration in oblique directions
HF Protection Circuit
Limits excessive input that might otherwise damage the speaker
Rugged, Portable Enclosure Design
Uses a lightweight plastic cabinet with ergonomic handle(s)

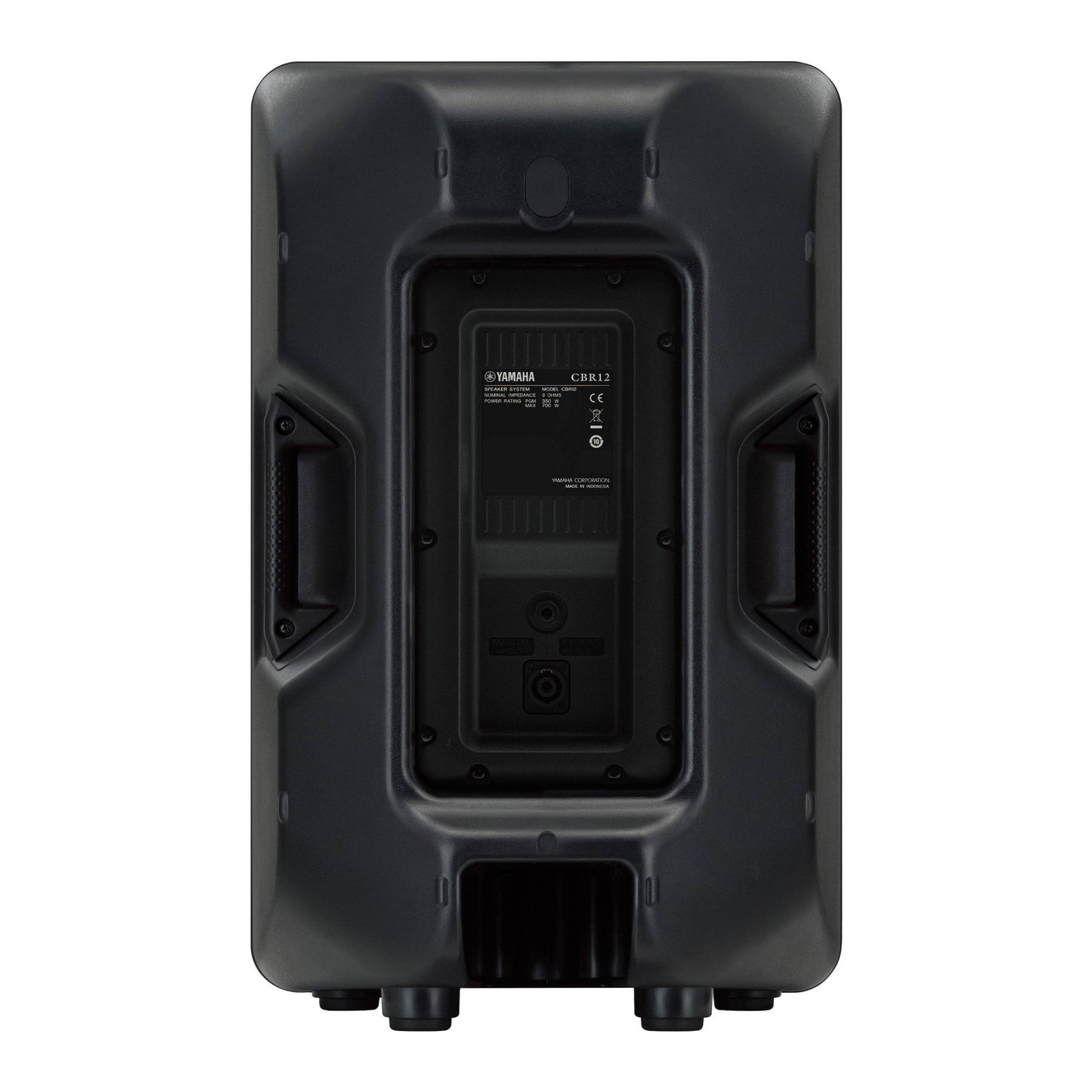

Connectivity
Features one speakON jack and one 1/4-inch phone jack for fast connectivity
Enclosure Design for Floor Monitoring
Features a 50-degree wedge angle for floor monitoring
Rigging Points for Installation
Features M8 rigging points for rigged applications with optional speaker brackets and standardized eye-bolts
Functional Speaker Cover
Protects speaker from unfavorable weather during outdoor performances
- 175 W RMS / 700 W Peak
- 350 W Program
- 1x speakON NL4 Input
- 1x 1/4 in TS Input
Speaker
| Speaker Type | Passive Loudspeaker |
| Configuration | 2-Way |
| Enclosure Type | Bass-Reflex |
| Total Passive Power Handling | |
| Constant Voltage / Transformer Taps | No |
| Nominal Impedance | 8 Ohms |
Drivers
| LF Driver | 1x 12 in / 30.5 cm Woofer |
| Voice Coil | 2 in / 5.1 cm |
| HF Driver | 1x 2 in / 50.8 mm Compression Driver |
| Voice Coil | 1.4 in / 36 mm |
| Magnet | Ferrite |
Performance
| Frequency Range/Response | 48 Hz to 20 kHz (-10 dB) |
| Maximum SPL | 125 dB SPL (Peak) |
| Speaker Sensitivity | 96 dB SPL |
| Coverage Angle | 90° H x 60° V |
Signal Processing
| Crossover Frequency | 2100 Hz |
| EQ & Filters | No |
Connectivity
| Audio I/O | |
Physical
| Color | Black |
| Handles | 2x Side |
| Construction Material | Plastic |
| Environmental Resistance | No |
| Dimensions | 14.8 x 23.7 x 13.7 in / 37.6 x 60.1 x 34.8 cm |
| Weight | 30.6 lb / 13.9 kg |
Packaging Info
| Package Weight | 38.6 lb |
| Box Dimensions (LxWxH) | 26 x 18 x 17 in |
