Yamaha DBR15 15-Inch 2-Way Powered Loudspeaker
The Yamaha DBR15 15-Inch 2-Way Powered Loudspeaker achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.
High-Efficiency 1000W Class-D Amplifier
The DBR's lightweight, high-performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.
Custom Designed Transducer
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4-inch precision compression driver produces accurate mid-range and high frequencies.
Highly Portable Cabinet
It feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet offers durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

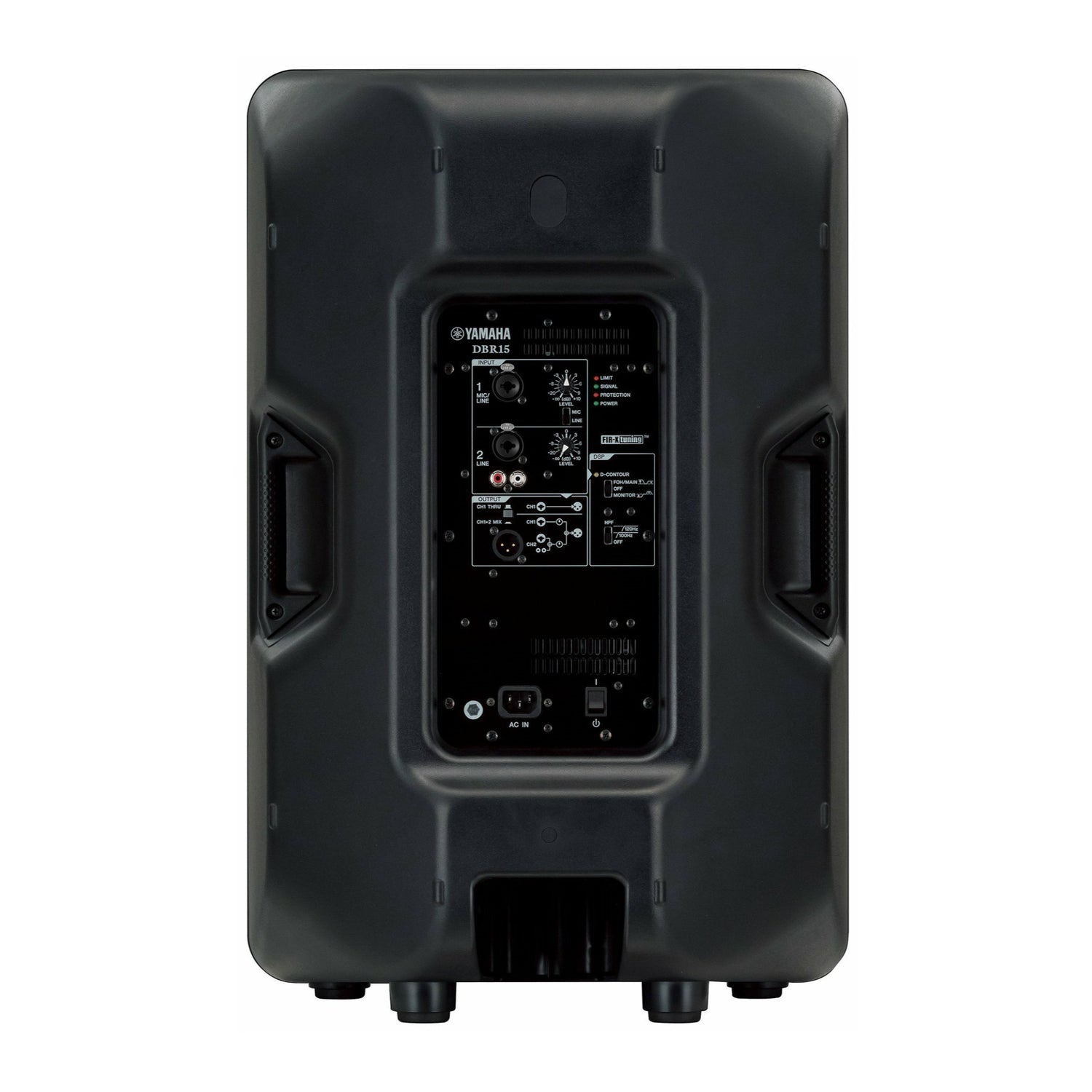

Easy-to-Use Onboard 2-Channel Mixer
This speaker has two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. The CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
Smart Enclosure Design for Floor Monitoring
It features an optimized 50-degree wedge angle for floor monitoring. The DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.
Rigging Points for Installation Applications
It comes equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.
System
| Frequency Range | 50 - 20kHz |
| Channels | 2 |
| Speaker Configuration | 2-Way |
| Amplifiers | 2 x Class-D |
Power
| Power Consumption | 18 W |
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz |
| Power Source | AC Power Adapter |
Physical
| Mount Type | 1 x 1.4" / 35 mm Pole Socket |
| Material | Plastic |
| Weight | 42.6 lb |
| Color | Black |
Connectivity
| Audio Output | 1 x XLR 3-Pin |
| Audio Input | 2 x Combo XLR-1/4" TRS |
Yamaha DBR15 15-Inch 2-Way Powered Loudspeaker
| Speaker type | 2-Way, bi-amp powered speaker, bass-reflex type |
| Frequency range (-10dB) | 50Hz-20 kHz |
Nominal Coverage
| H | 90-degree |
| V | 60-degree |
Components
| LF | Diameter: 15 inch cone, Voice loop: 2.5-inch, magnet: ferrite |
| HF | Diaphragm: 1.4 inch, Type: 1 inch throat compression driver, magnet: ferrite |
| Crossover | 2.1 kHz: FIR-X tuning (linear phase FIR filter) |
| Output power | Dynamic: 1000W (LF: 800W, HF: 200W)/continuous: 465W (LF: 400 W, HF: 65W) |
| Maximum output level | 132dB SPL |
I/O connectors
| Input1 | Combo x1, input 2: combo x 1 + RCA pin x 2 (unbalanced), output: XLR3-32 x 1 (CH1 parallel through or CH1+CH2 mix) |
| Processors | D-contour: FOH/main, monitor, off |
| Heat dissipation | Fan cooling, 4 speeds |
| Power requirements | 100V, 100-120V, 220-240V, 110/127/220V (Brazil), 50/60Hz |
| Power consumption | 74W (1/8 power consumption), 18W (idle) |
| Cabinet material | Plastic |
| Finish | Black |
| Handle | Side x 2 |
| Flying and mounting hardware | Bottom x 2, rear x 1 (fit for M8 x 15 mm eyebolts) |
| Polo socket | 35 mm (bottom x 1) |
Dimension
| W | (17.9 inch) 455 mm |
| H | (27.6 inch) 700 mm |
| D | (14.9 inch) 378 mm |
| Weight | (42.6 lb) 19.3 kg |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (optional speaker bracket) |
