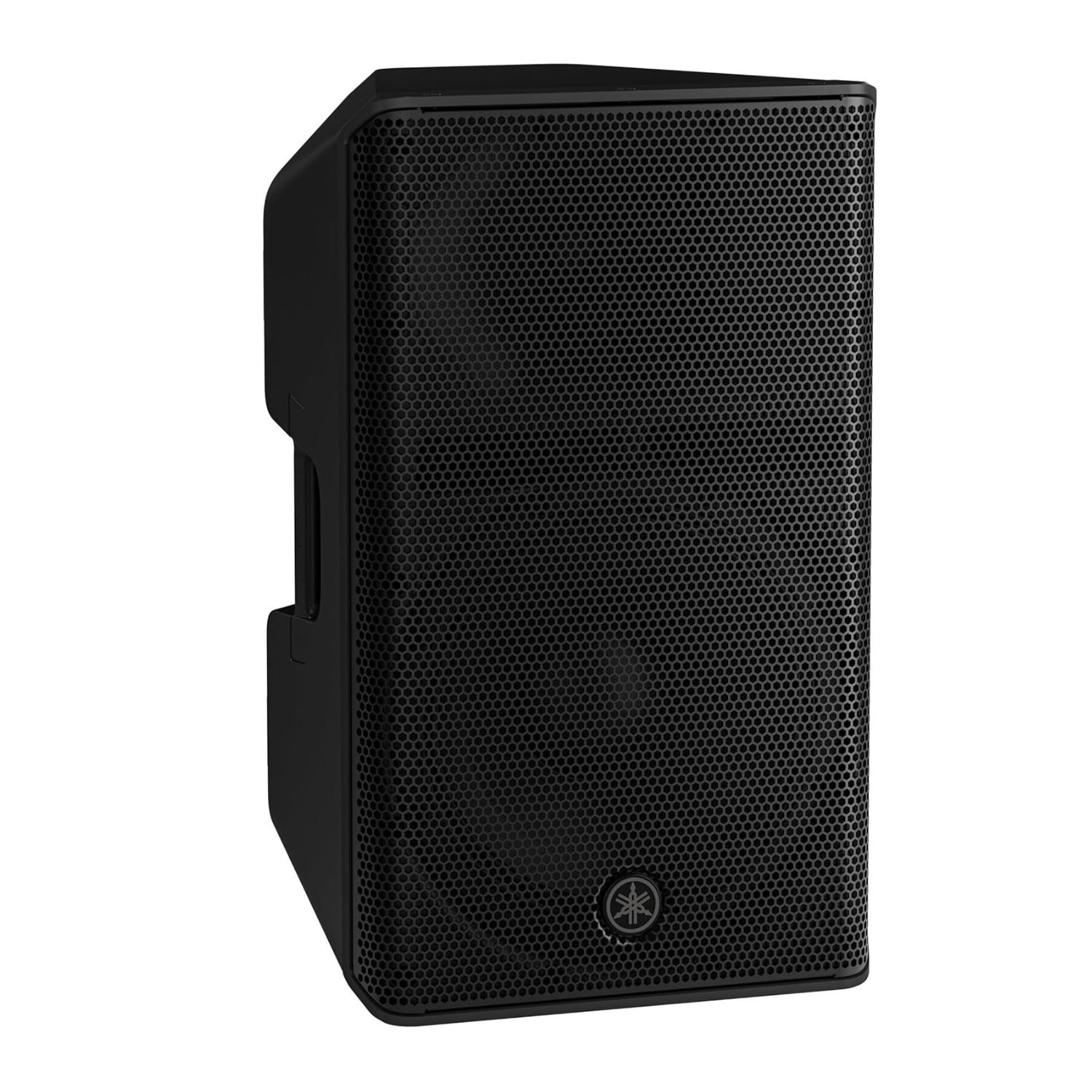

Yamaha DXR12MKIII 12-Inch Full Range Powered Loudspeaker with Bluetooth
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

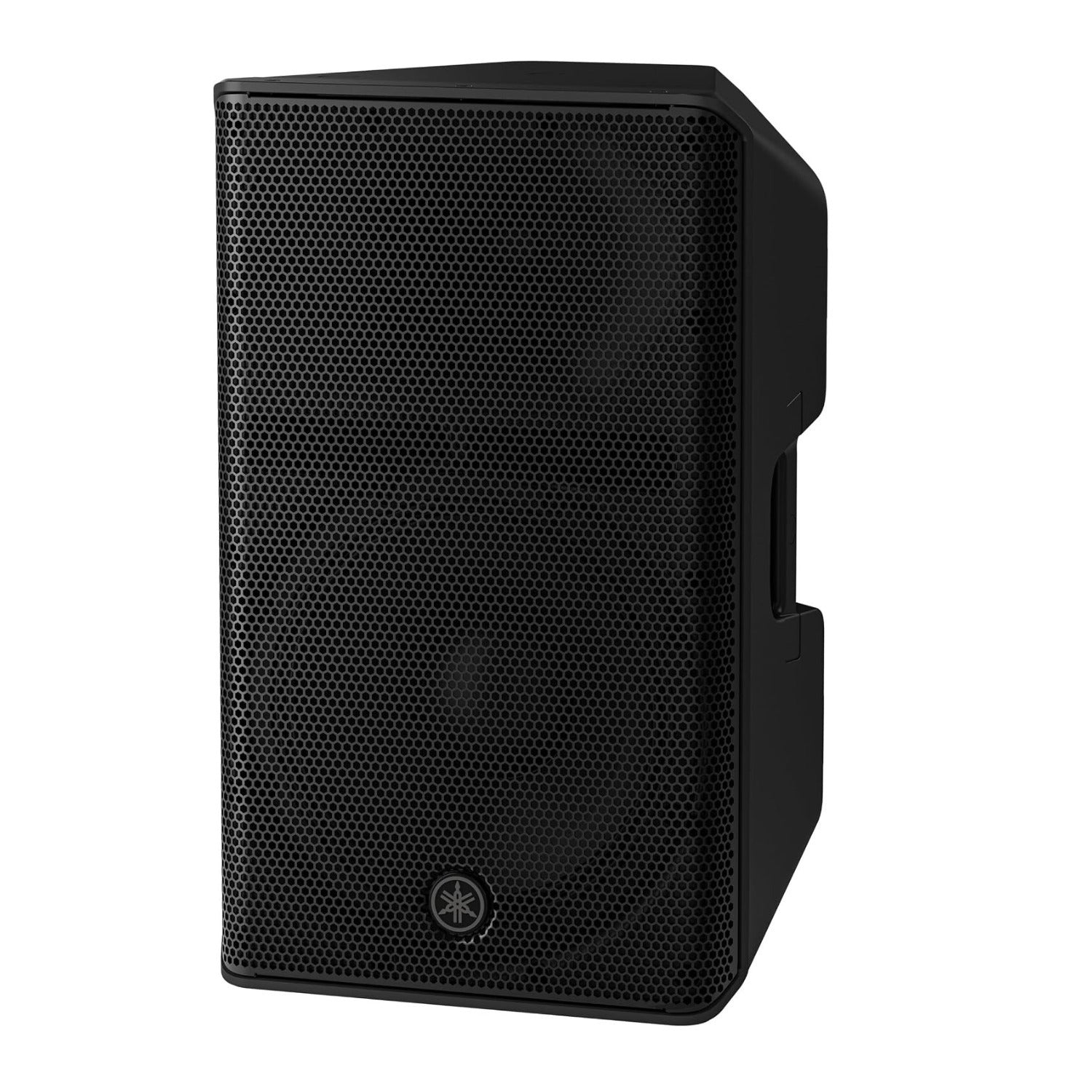

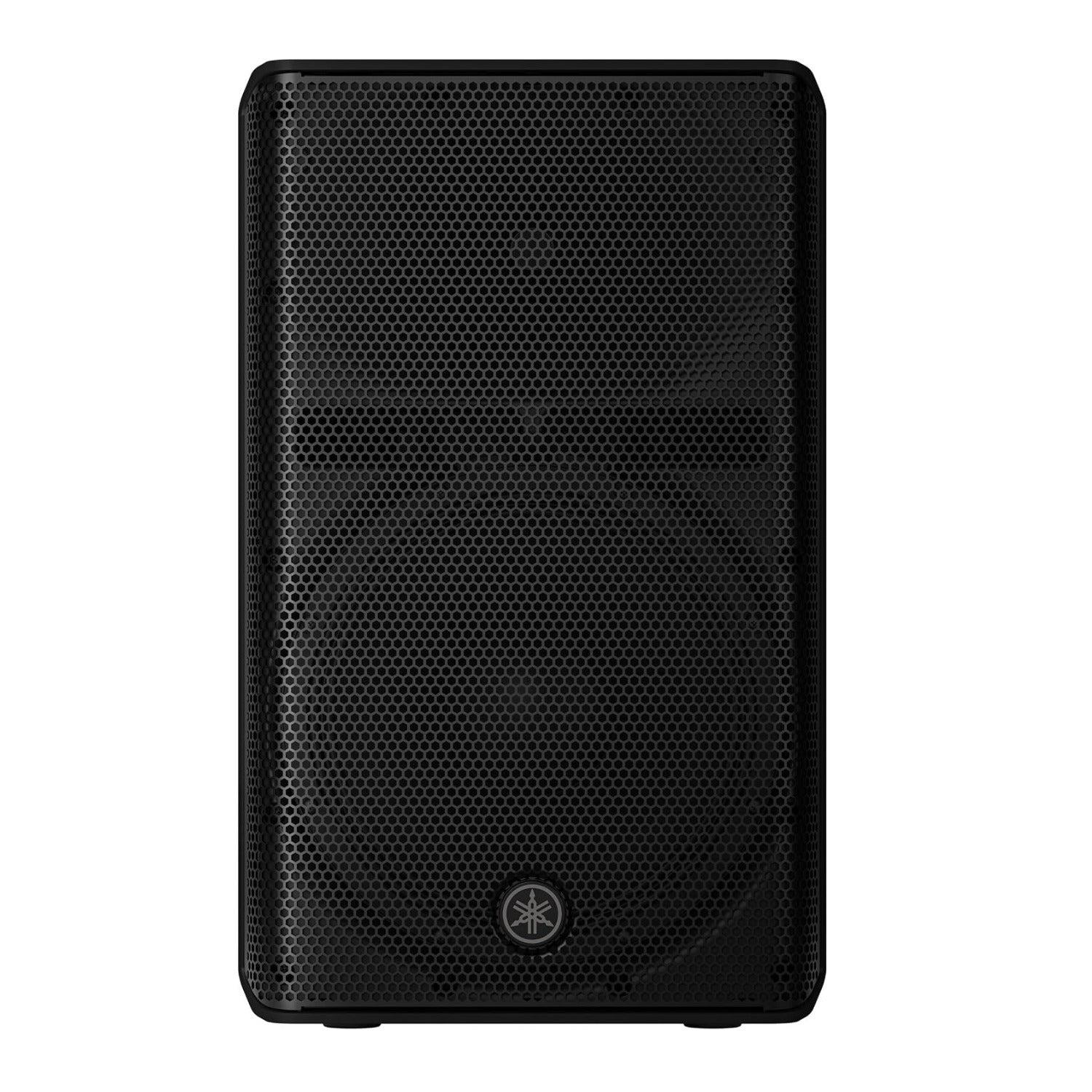

The Yamaha DXR12MKIII active loudspeaker delivers substantial low-frequency output, clear vocal reproduction, and flexible system control for live performances, DJ events, corporate presentations, rental systems, and fixed installations. Its 12-inch low-frequency driver and 1.75-inch compression driver are powered by a 2000W peak Class D amplifier, producing up to 134 dB SPL while covering a frequency range of 46 Hz to 20 kHz.
Detailed Sound with Advanced DSP

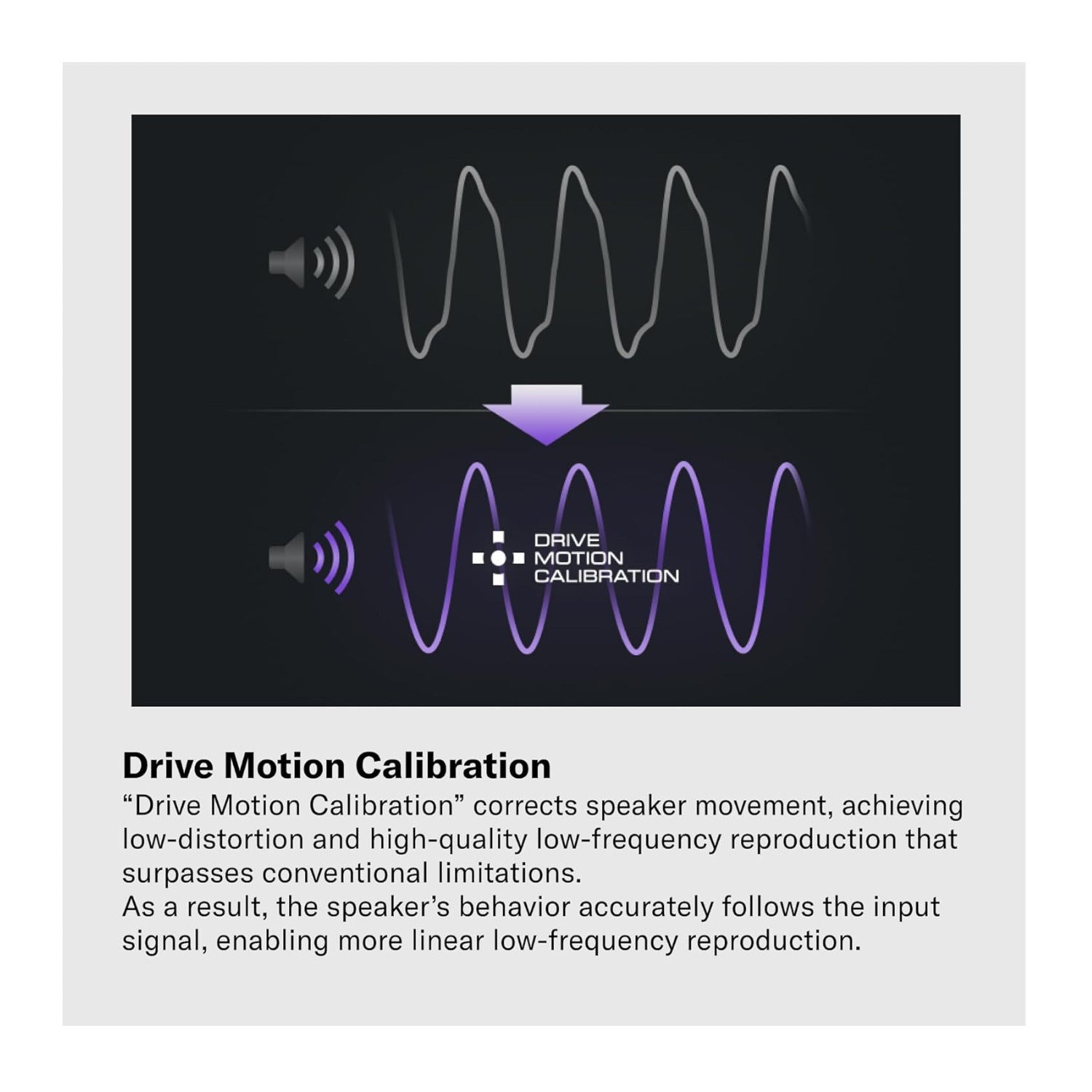

A 96 kHz internal DSP processor supports detailed signal management with low latency. Advanced FIR X Tuning combines linear phase filtering and corrective equalization to promote smooth crossover response. Drive Motion Calibration corrects low-frequency driver movement for more linear bass reproduction. Six DSP modes provide settings for main speaker use, floor monitoring, DJ playback, live music, speech, and systems that require manual configuration.
Fast Control and Feedback Management

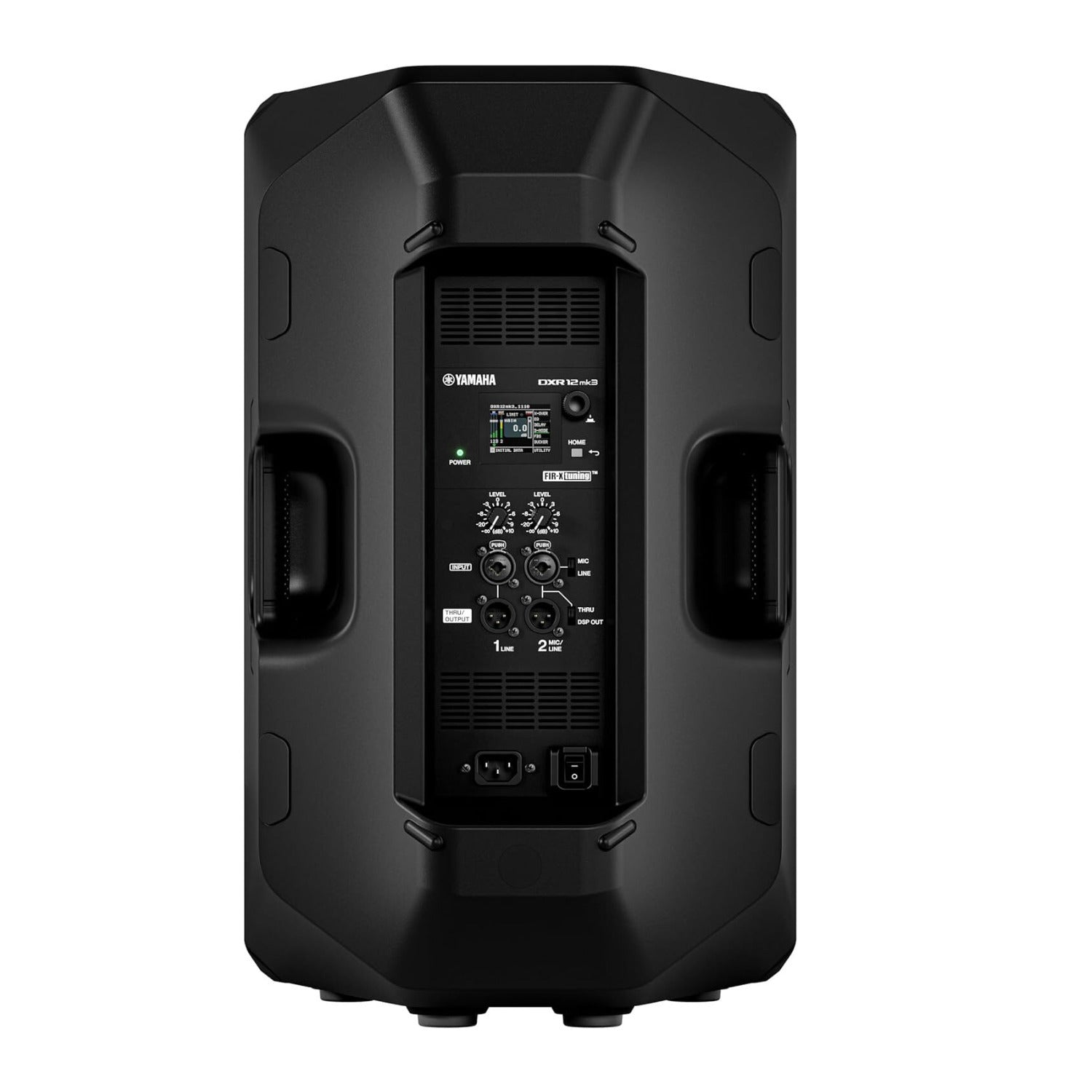

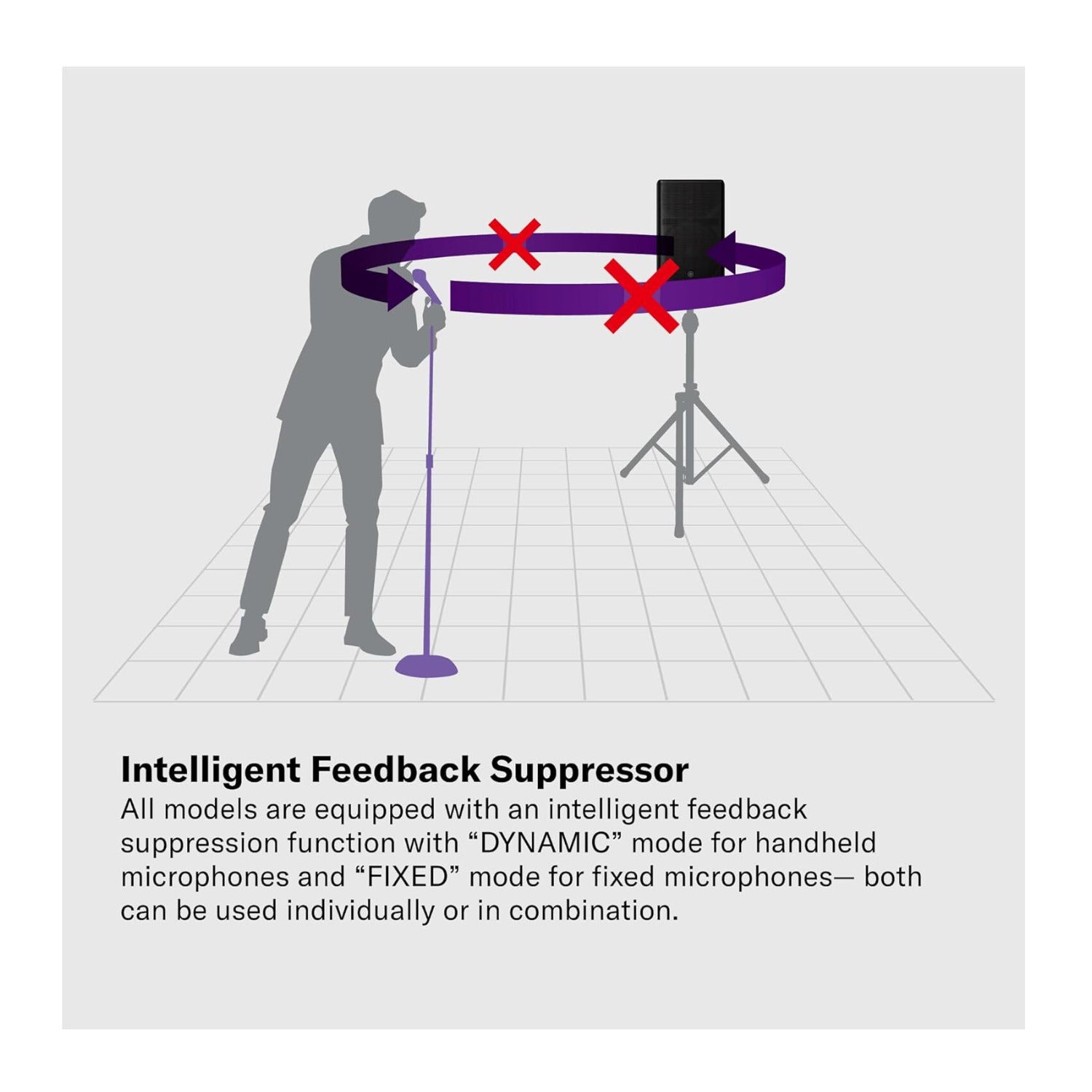

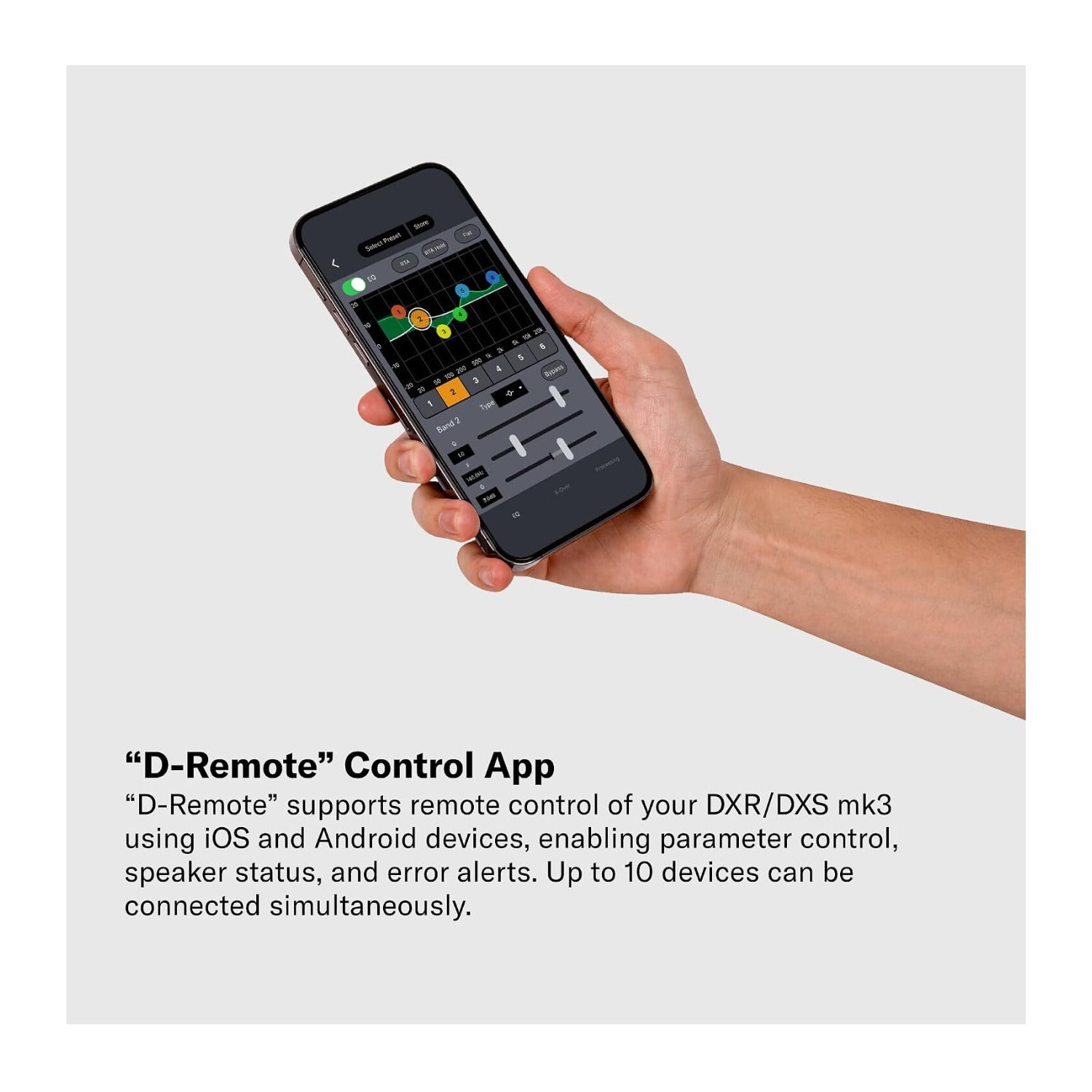

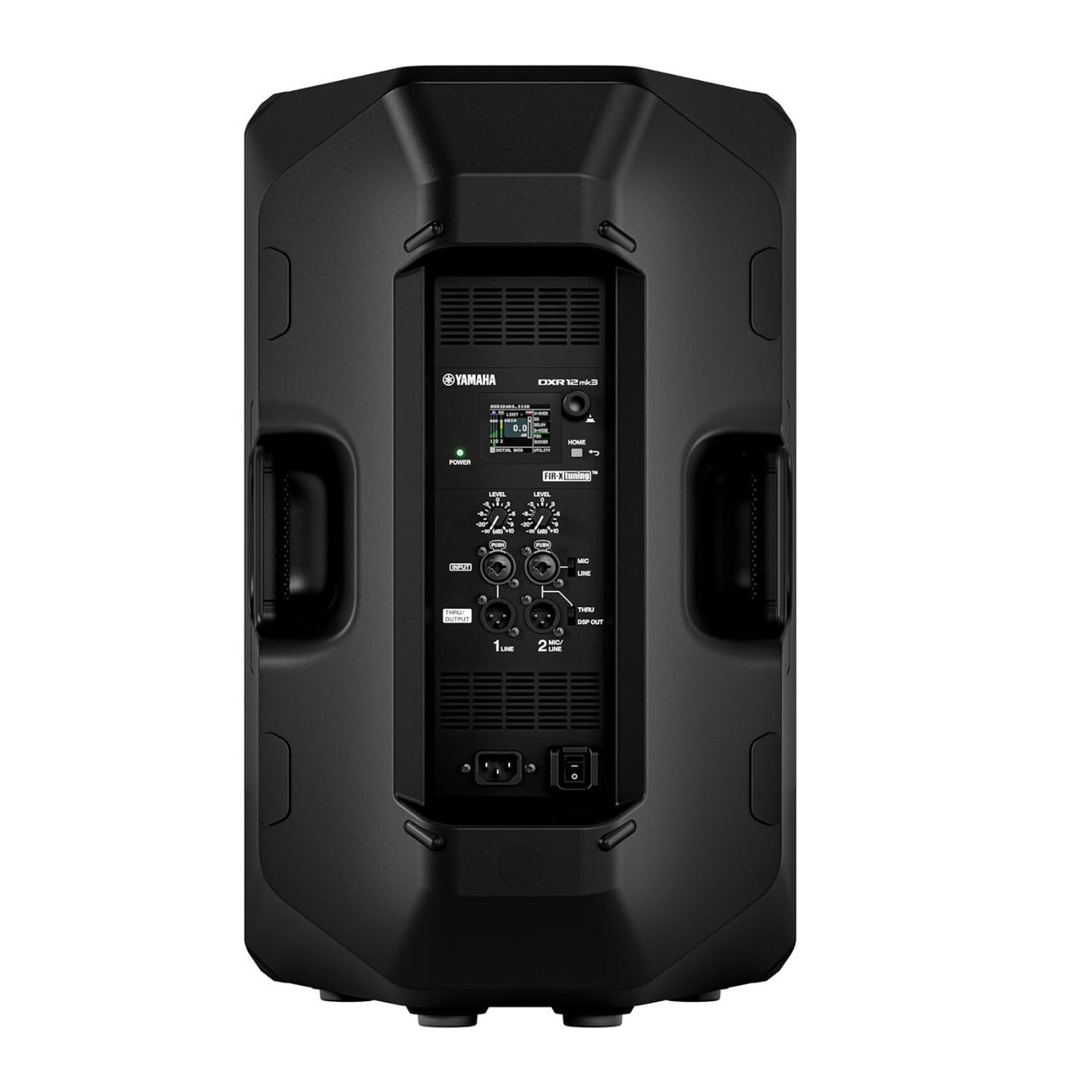

The rear LCD and encoder provide direct access to levels, equalization, delay, routing, presets, and system functions. Eight user presets can be stored for recurring venues and applications. Intelligent feedback suppression provides dynamic processing for handheld microphones and fixed processing for installed microphones. Bluetooth 5.0 supports wireless audio streaming, while the D Remote app provides control from compatible iOS and Android devices.
Flexible Placement for Live Sound

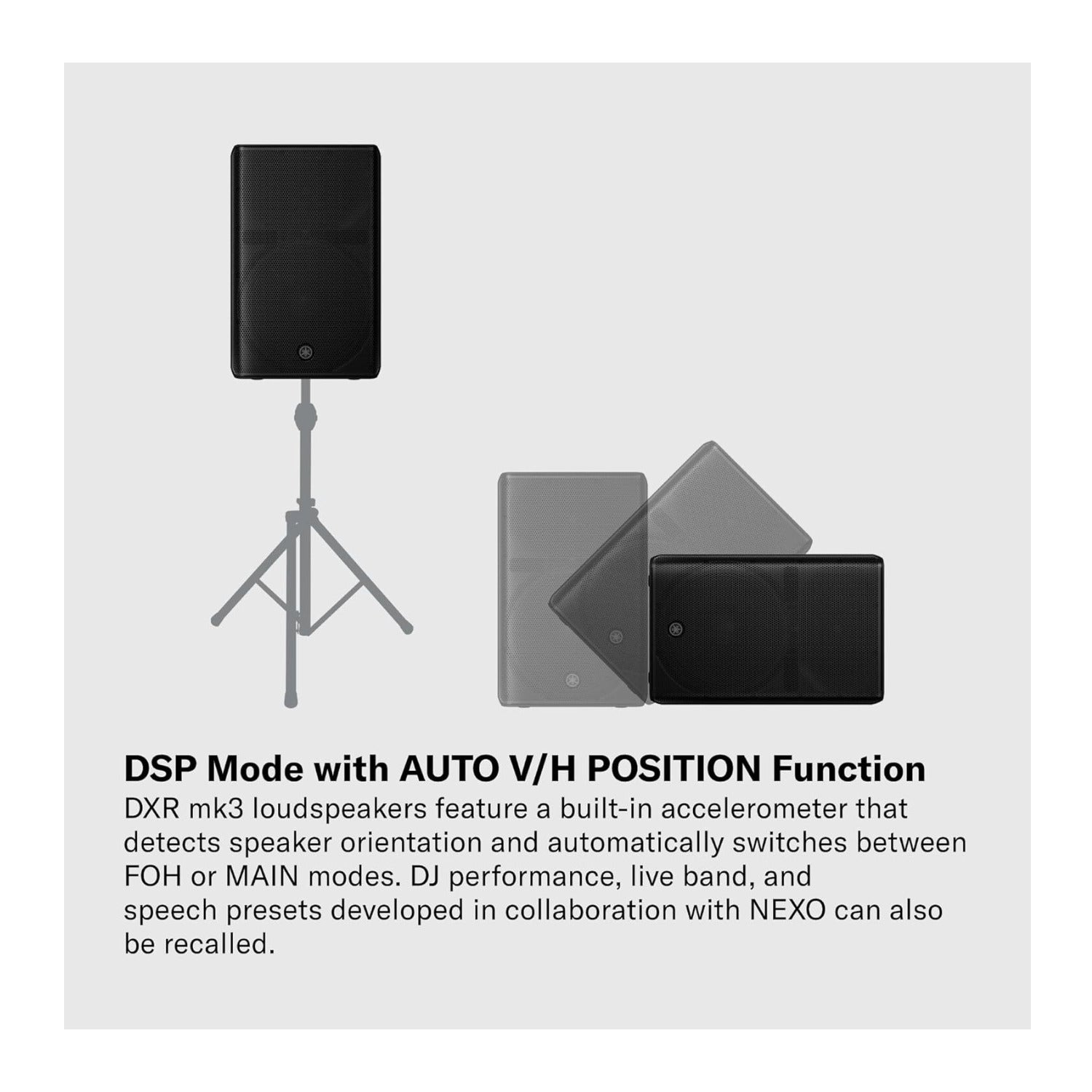

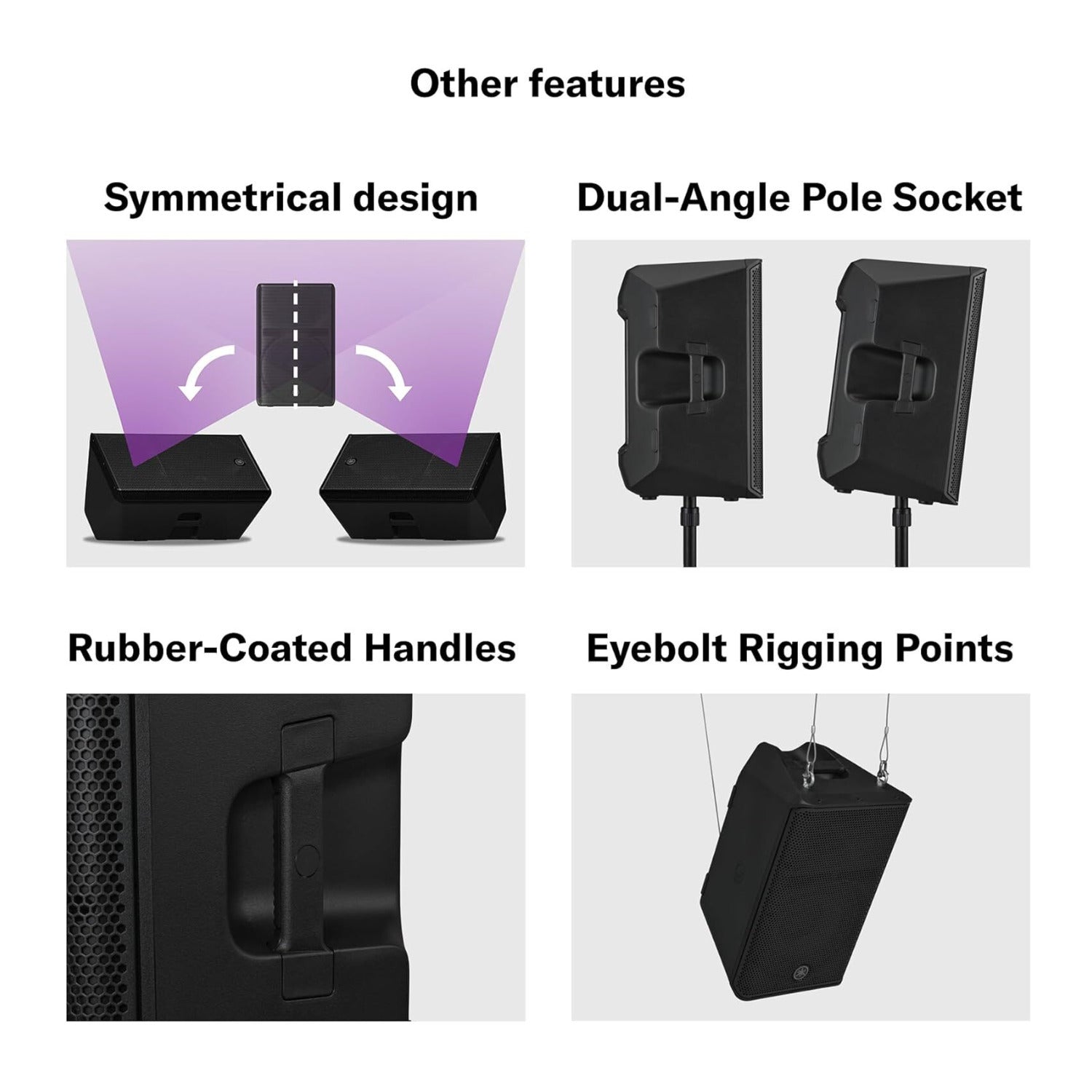

An internal accelerometer can detect vertical or horizontal placement and automatically select the appropriate main or monitor processing mode. Dual 35 mm pole sockets offer a level position or 7-degree downward angle for audience coverage. The symmetrical polypropylene enclosure supports mirrored floor placement, and two rubber-coated side handles simplify transport and setup.
Speaker System
| Speaker Type | 2-Way Bi-amped Powered Bass Reflex Loudspeaker |
| Frequency Range | 46 Hz to 20 kHz at minus 10 dB |
| Horizontal Coverage | 90 Degrees |
| Vertical Coverage | 60 Degrees |
| Crossover Frequency | 1.8 kHz |
| Maximum Output Level | 134 dB SPL measured peak with IEC noise at 1 meter |
Drivers
| Low Frequency Driver | 12 Inch Cone |
| Low Frequency Voice Coil | 3 Inch |
| High Frequency Driver | 1.75 Inch Diaphragm |
| High Frequency Driver Type | 1 Inch Throat Compression Driver |
Amplification
| Amplifier Class | Class D |
| Peak Power | 2000W Total |
| Peak Low Frequency Power | 1700W |
| Peak High Frequency Power | 300W |
| RMS Power | 1000W Total |
| RMS Low Frequency Power | 850W |
| RMS High Frequency Power | 150W |
| Cooling | 5 Speed Fan Cooling |
Digital Processing
| Converters | 32 Bit, 96 kHz Sampling |
| High Pass Filter | Off or 50 Hz to 118 Hz |
| High Pass Filter Slope | 12 dB to 48 dB per Octave |
| DSP Modes | FOH MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF |
| User Presets | Up to 8 |
| Processing Features | Advanced FIR X Tuning, Drive Motion Calibration, Feedback Suppression, Equalization, Delay, Routing, and Ducker |
Connections
| Analog Input 1 | 1 x Combo Connector |
| Analog Input 1 Impedance | 20 Kilohms Balanced, 10 Kilohms Unbalanced |
| Analog Input 1 Maximum Level | Plus 24 dBu |
| Analog Input 2 | 1 x Combo Connector |
| Analog Input 2 Impedance | 6 Kilohms Balanced, 3 Kilohms Unbalanced |
| Analog Input 2 Maximum Line Level | Plus 24 dBu |
| Analog Input 2 Maximum Microphone Level | Minus 6 dBu |
| Analog Output 1 | XLR3 32 Thru |
| Analog Output 2 | XLR3 32 Thru or DSP Output |
Wireless Features
| Bluetooth Version | 5.0 |
| Bluetooth Profiles | A2DP |
| Bluetooth Codecs | SBC and AAC |
| Bluetooth Class | Class 1 |
| Remote Control | D Remote App for Compatible iOS and Android Devices |
Power
| Power Requirements | 100V to 240V, 50 Hz or 60 Hz |
| Power Consumption | 120W at One Eighth Power |
| Idle Power Consumption | 35W |
Enclosure
| Cabinet Material | Polypropylene Plastic |
| Finish | Black |
| Handles | 2 Side Handles |
| Floor Monitor Angle | 52 Degrees |
| Pole Sockets | 2 x 35 mm Bottom Sockets |
| Pole Positions | 0 Degrees or Minus 7 Degrees |
Rigging
| Top Rigging Points | 2 |
| Rear Rigging Points | 1 |
| Eyebolt Compatibility | M10 x 18 mm |
| Bottom Bracket Points | 2 |
| Side Bracket Points | 2 |
| Bracket Fastener Compatibility | M8 x 25 mm |
Dimensions and Weight
| Width | 447 mm, 17.6 Inches |
| Height | 699 mm, 27.5 Inches |
| Depth | 304.8 mm, 12 Inches |
| Net Weight | 21 kg, 46.3 Pounds |
