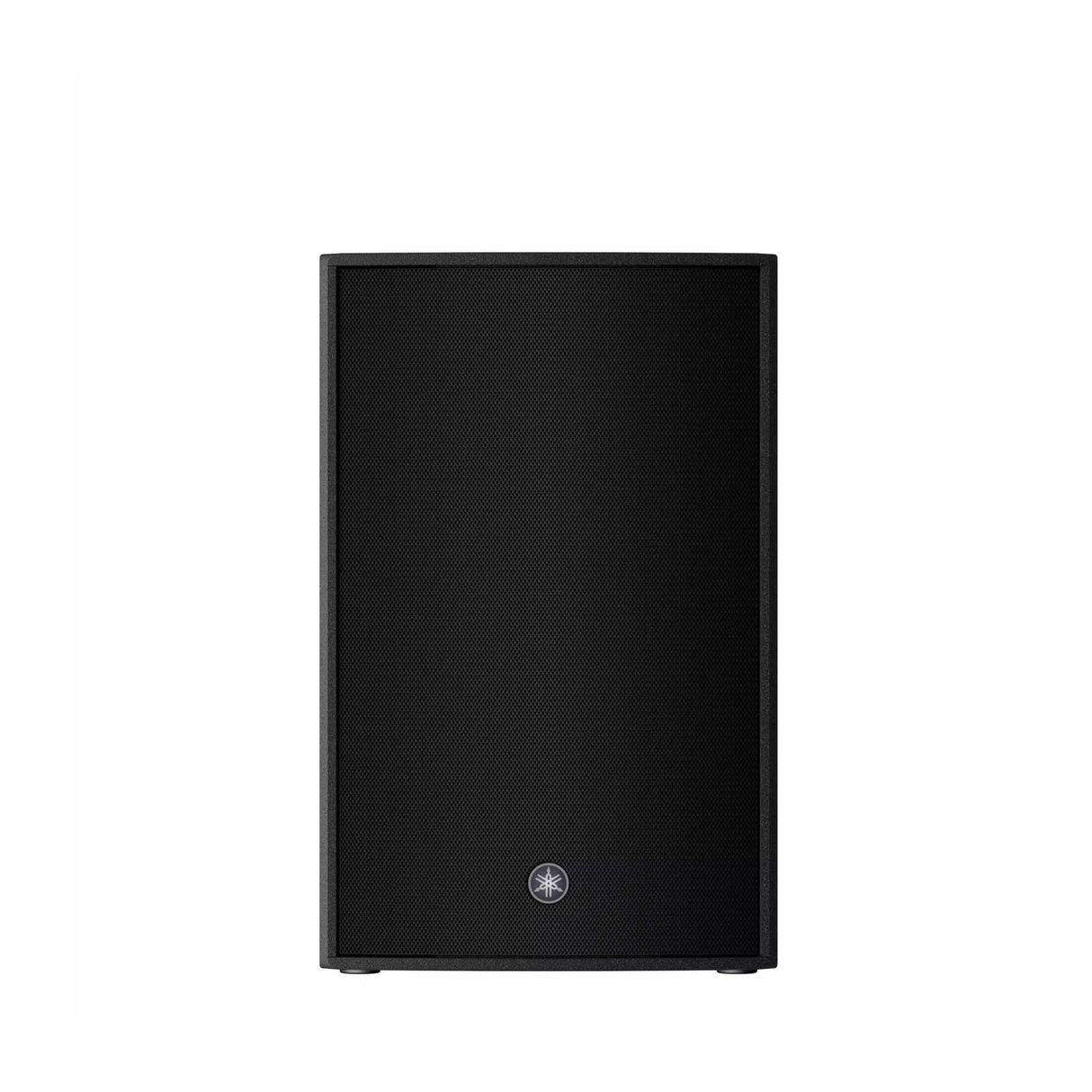

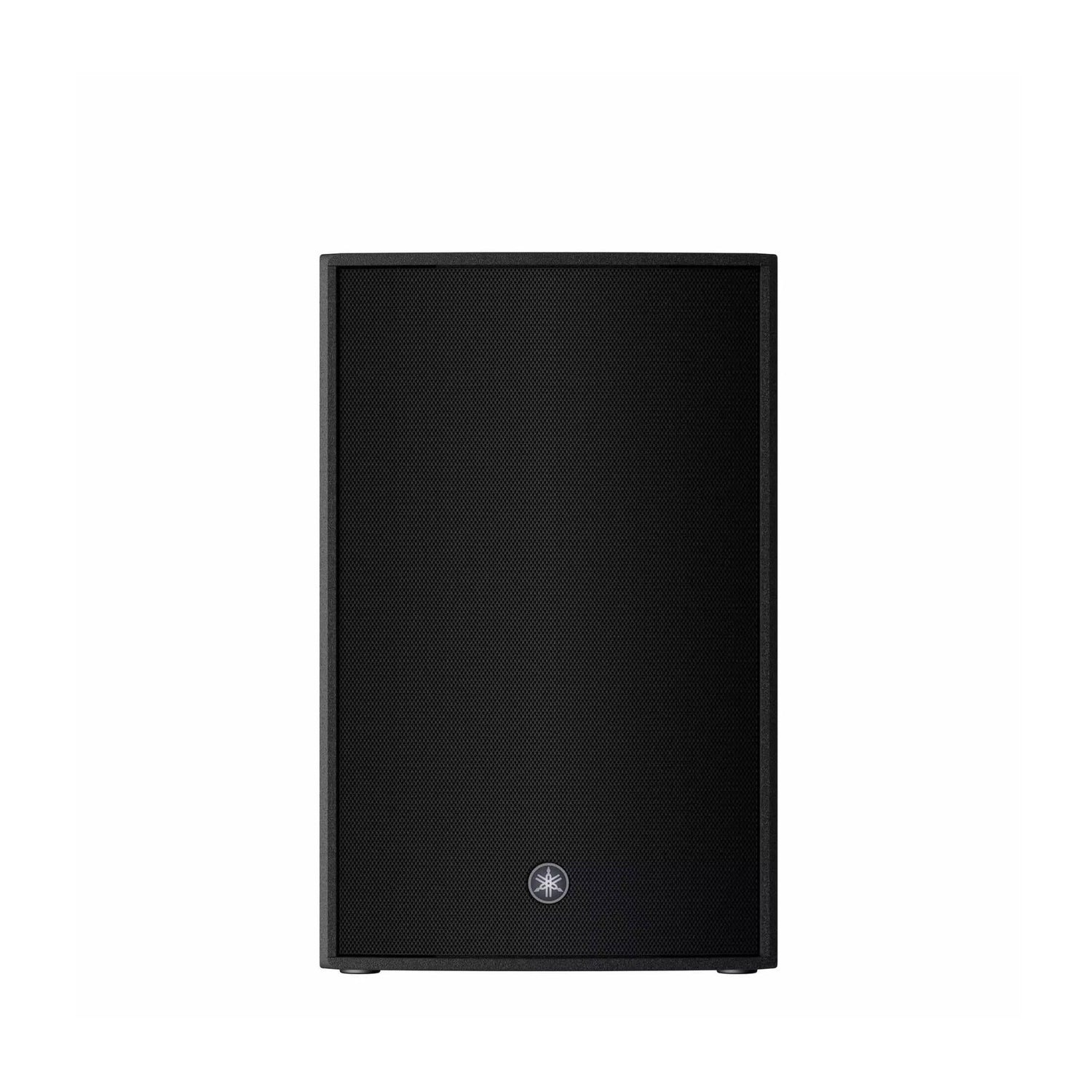

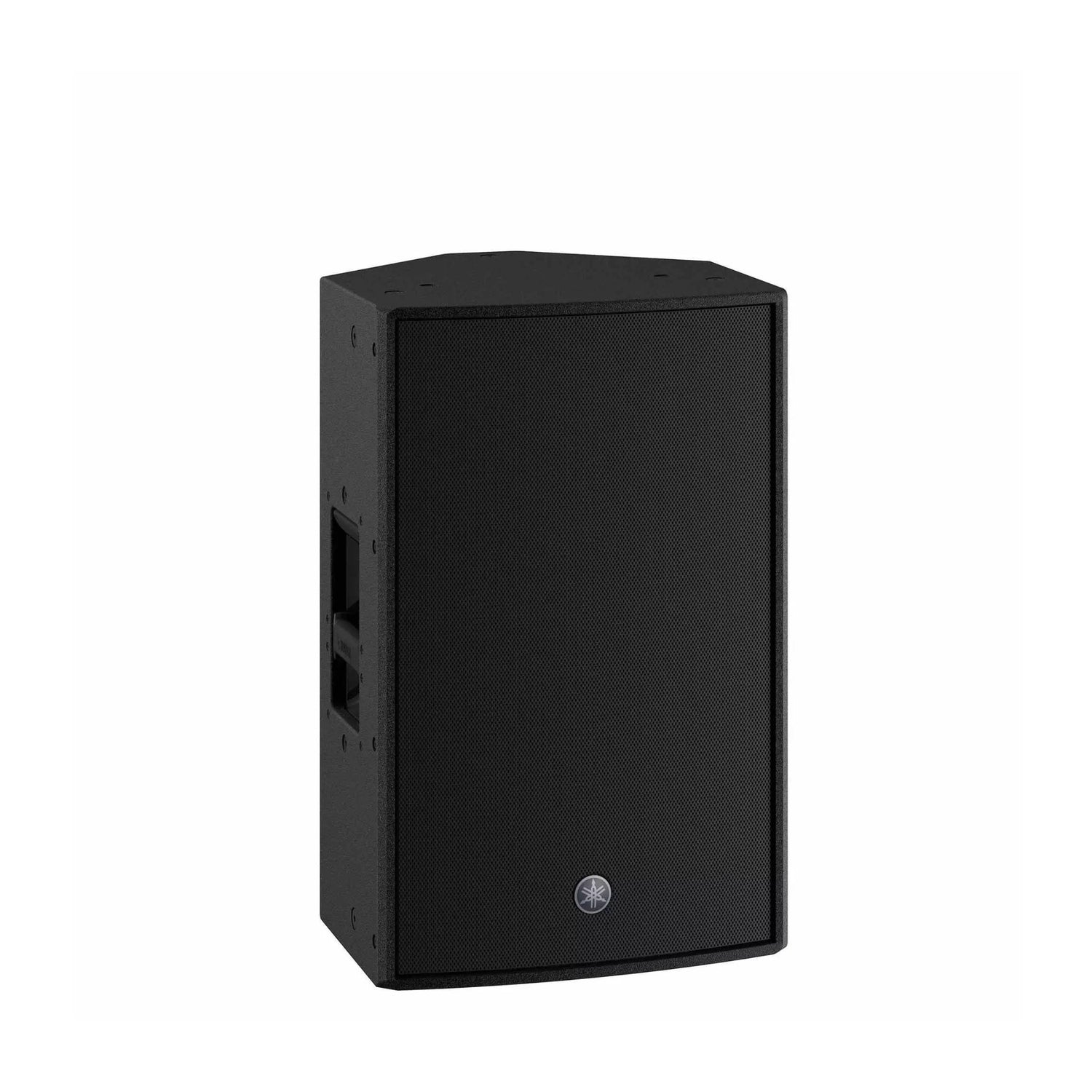

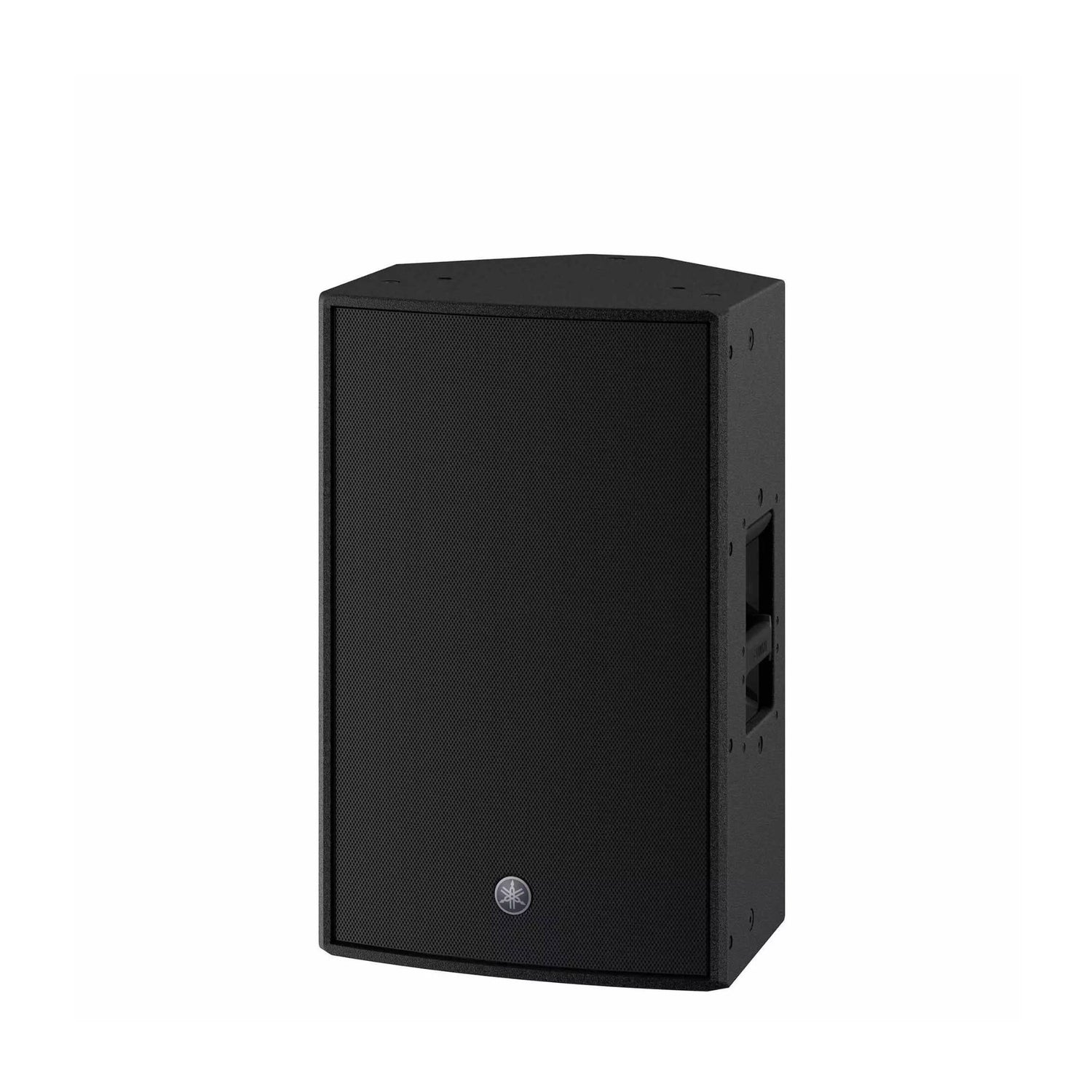

Yamaha DZR12-D 2000W 12-Inch 2-Way Powered Loudspeaker with Dante (...
The DZR12-D is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
High-Power 2-Way Bi-Amped Design

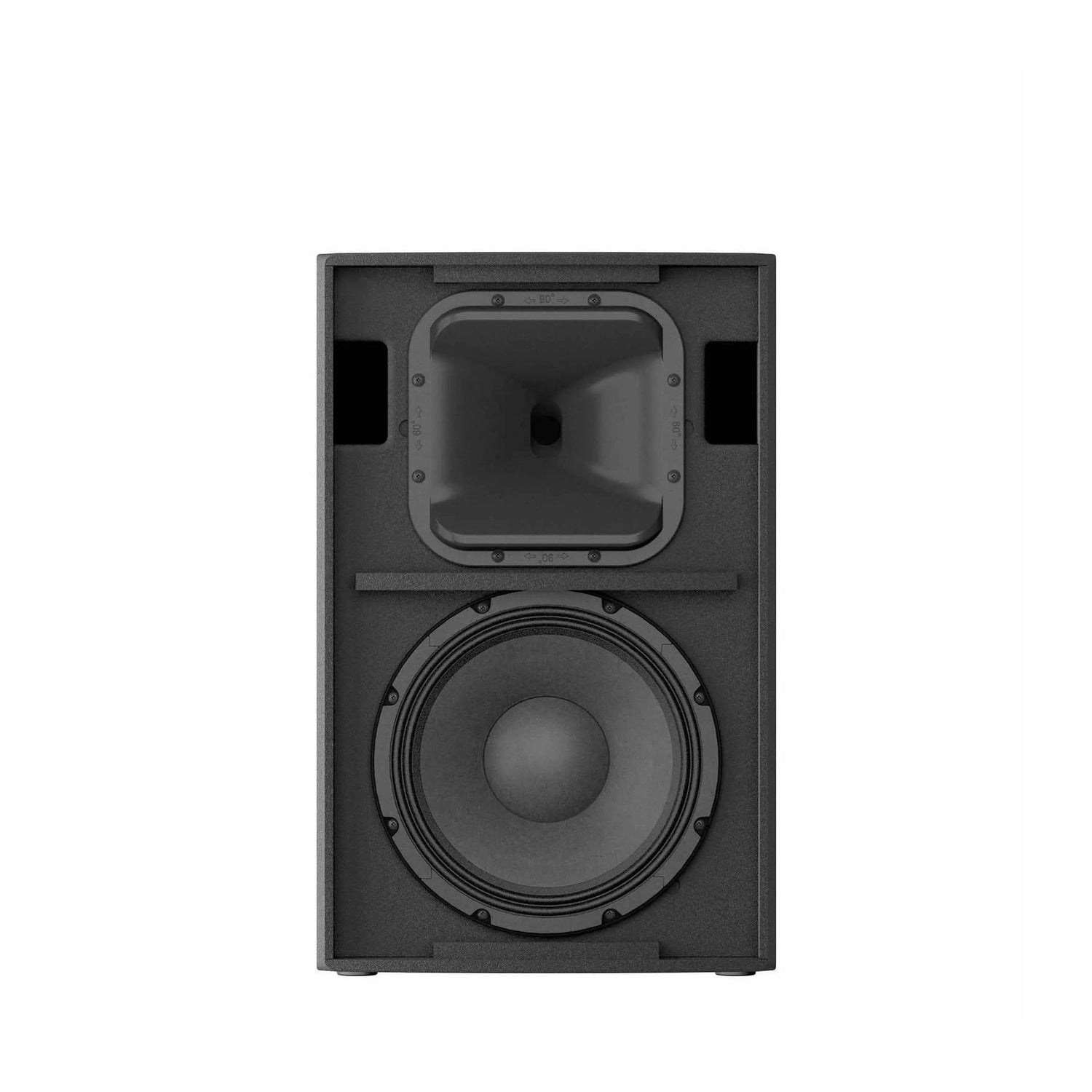

Features a 12-inch low-frequency driver with a 3-inch voice coil and a 2-inch high-frequency compression driver with titanium diaphragm. The 2000 W Class-D amplifier delivers up to 139 dB SPL with a wide 39 Hz–20 kHz frequency range, providing powerful, precise sound for professional audio applications.
Advanced DSP and FIR-X Tuning
Equipped with 96 kHz DSP and FIR filtering, including Advanced FIR-X tuning that combines FIR filtering with precise EQ to minimize phase distortion. Easily access DSP functions, load presets, and adjust PEQ, delay, and routing via the intuitive LCD display for fully customizable sound shaping.
Dante Digital Networking with SRC
Integrated Dante I/O (2 In / 2 Out) supports high-quality digital audio distribution and remote control. Includes SRC (Sample Rate Conversion) for 48 kHz device compatibility, making it easy to integrate into modern networked audio systems.
Versatile Configuration and Monitoring
Includes D-Contour protection circuits and a floor monitoring mode with mirrored configuration. The rotatable horn and multiple U-bracket options (UB-DZR) allow flexible placement and rigging in any venue or stage setup. Optional speaker cover (SPCVR-DZR12) protects your investment while traveling or storing.
Durable, Lightweight Cabinet
Constructed with high-quality plywood and finished with premium-grade Polyurea coating, this speaker is lightweight for portability but rugged enough for professional touring. Side-mounted aluminum die-cast handles and a dual Φ35 mm pole socket ensure easy transport and stable installation.
Speaker Type
| 2-way, Bi-amped Powered Speaker, Bass-reflex |
Frequency Range (-10dB)
| 39Hz - 20kHz |
Coverage Area
| H90ﾟ x V60ﾟ (Rotatable) |

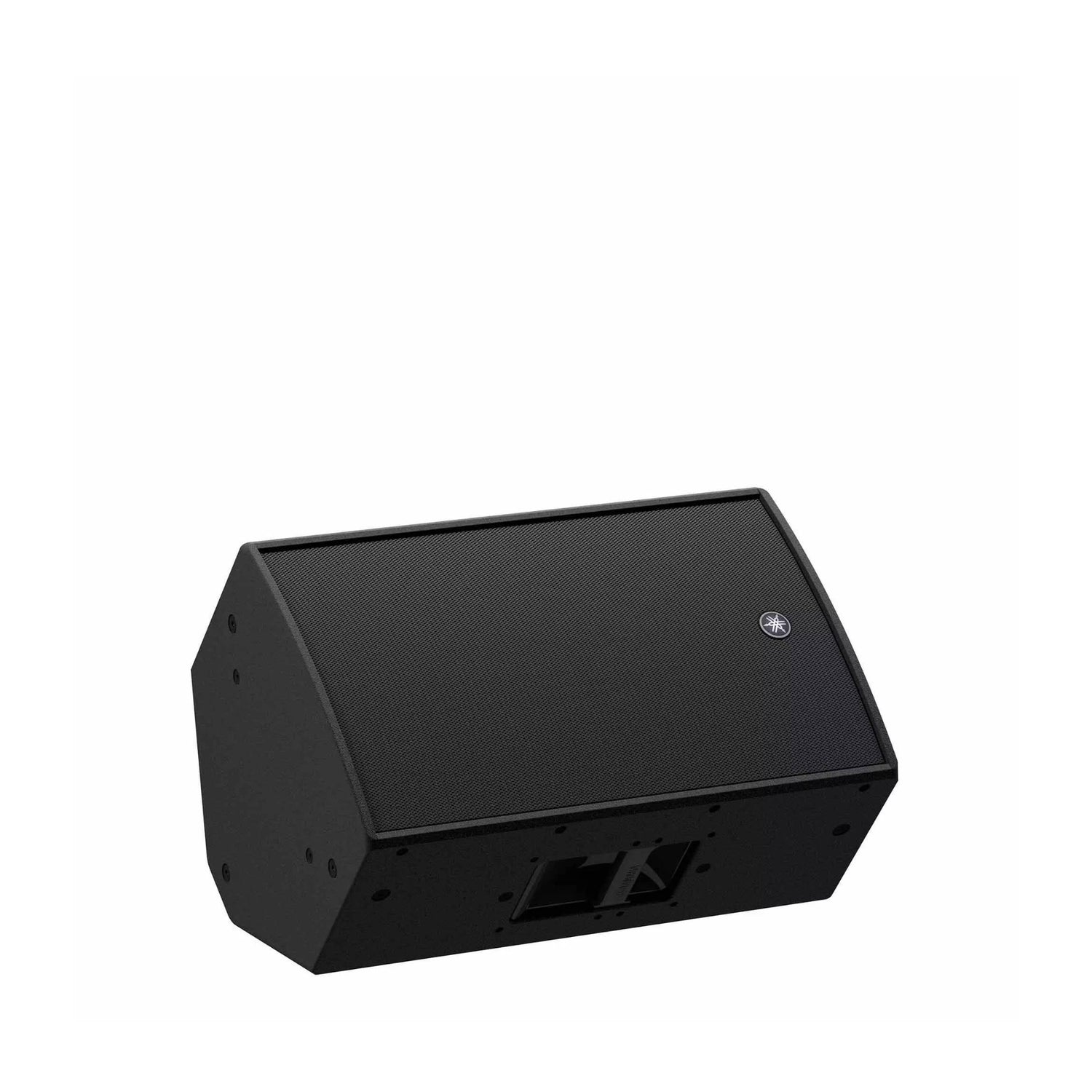

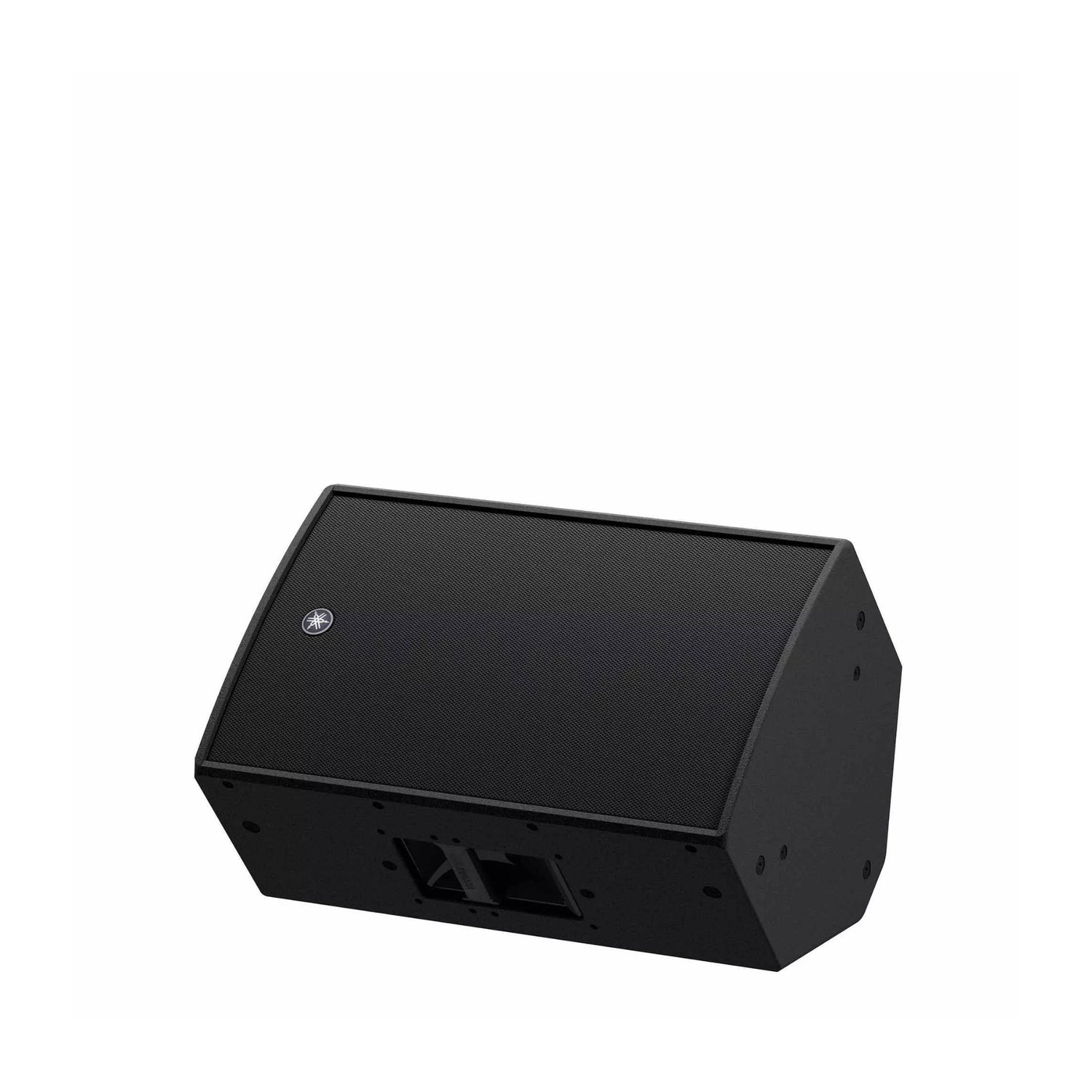

Floor Monitor Angle
| 50° Symmetrical |
Components
| LF | 12 inch Cone, 3 inch Voice Coil, Neodymium magnet |
| HF | 2 inch Voice Coil, 1 inch Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
Crossover
| 1.8kHz (FIR-X) |
Sampling Frequency Rate
| Internal | 96kHz and FIR Filter |
A/D D/A Converters
| 96kHz AD/DA |
Maximum output level (1m; on axis)
| 139dB SPL *1 |
SRC
| Yes |
Power Rating
| Dynamic | 2000W (LF: 1000W, MF/HF: 1000W) *2 |
| Burst (20ms) | 1100W (LF: 1000W, MF/HF: 100W) |
| Continuous | 950W (LF: 850W, MF/HF: 100W) |

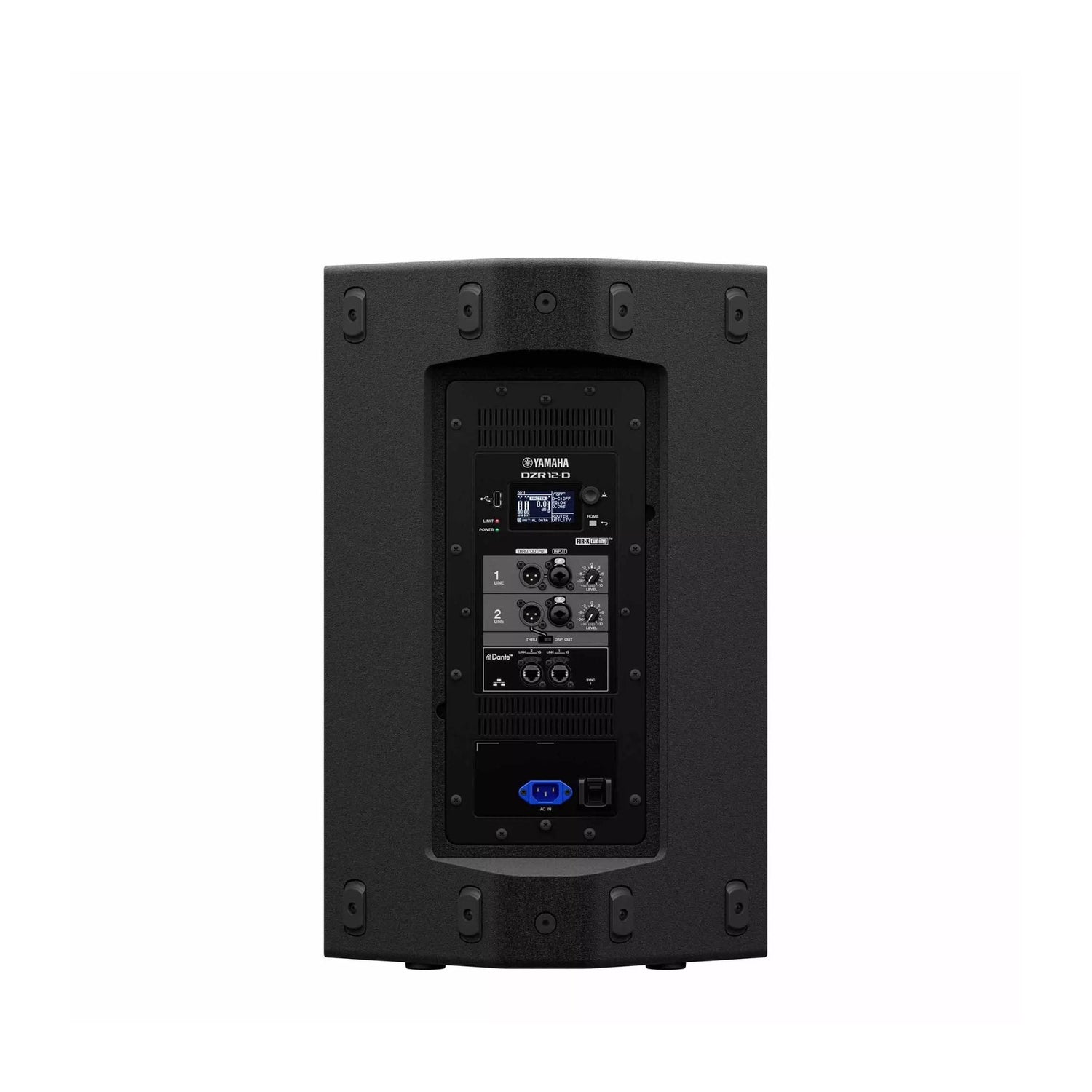

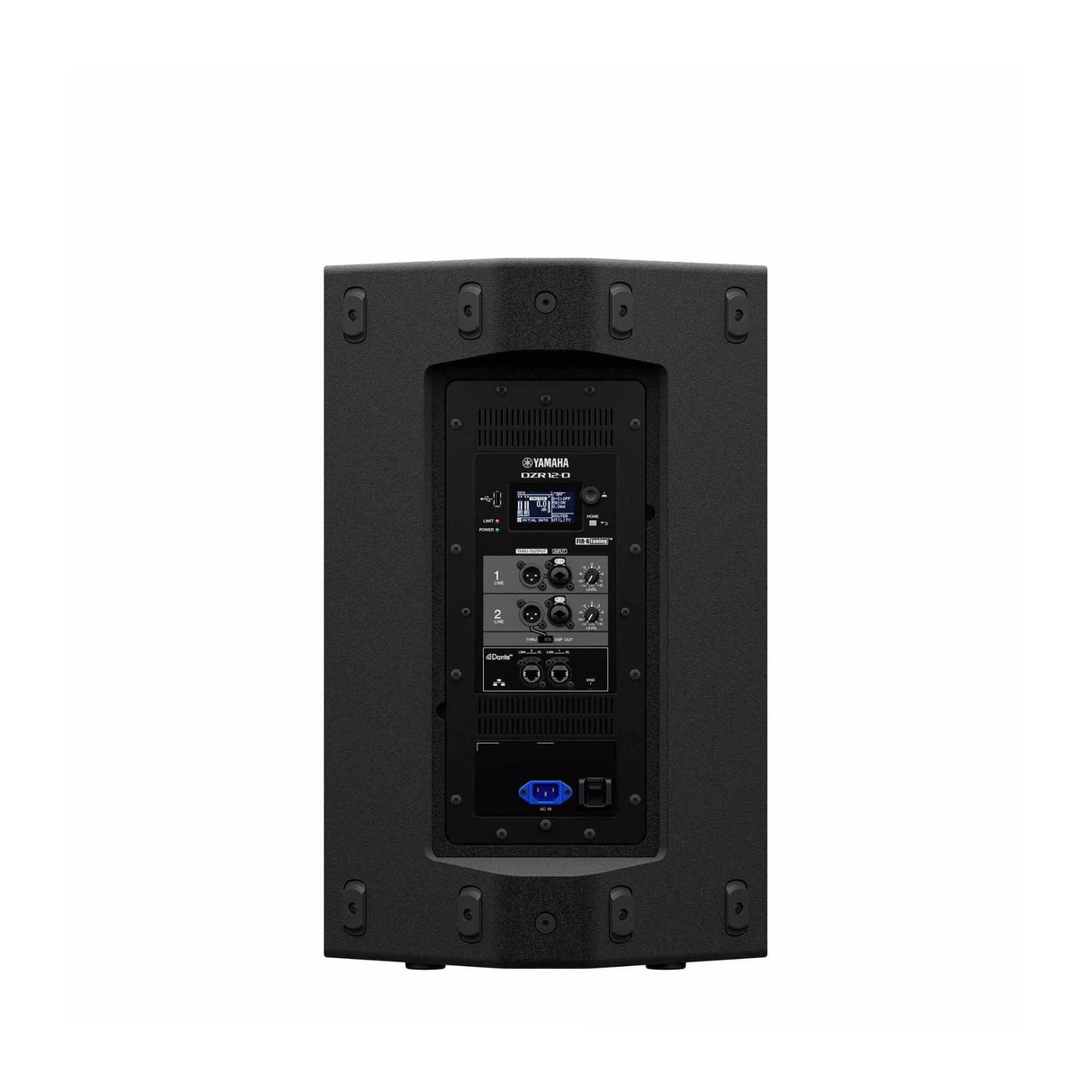

I/O Connectors
| Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Digital I/O | Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load |
| AC | IEC AC inlet x1 (V-Lock) |
Amplifier Class
| Class-D |
Cooling
| Fan cooling, Variable speeds |
Power Consumption
| 45W (Idle), 150W (1/8) |
Handle
| Aluminium die-cast, Side x2 |
Pole Socket
| Φ35 mm x2 (0° or -7°) |
Rigging
| M10 x12 |
Dimensions
| W | 410 mm (16.1 inch) |
| H | 646 mm (25.4 inch) (with rubber feet) |
| D | 394 mm (15.5 inch) |
Net Weight
| 21.4kg (47.2lbs) |
