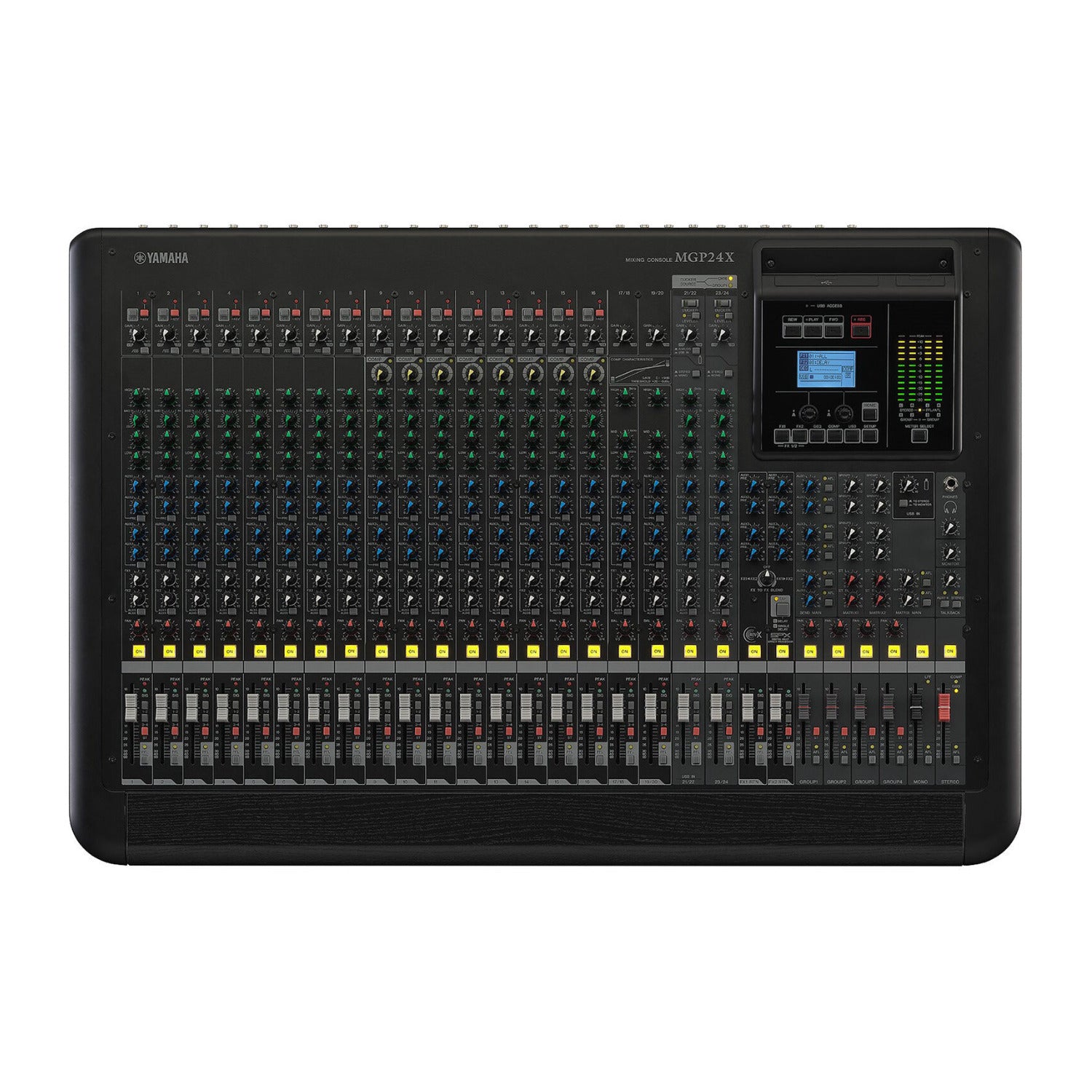

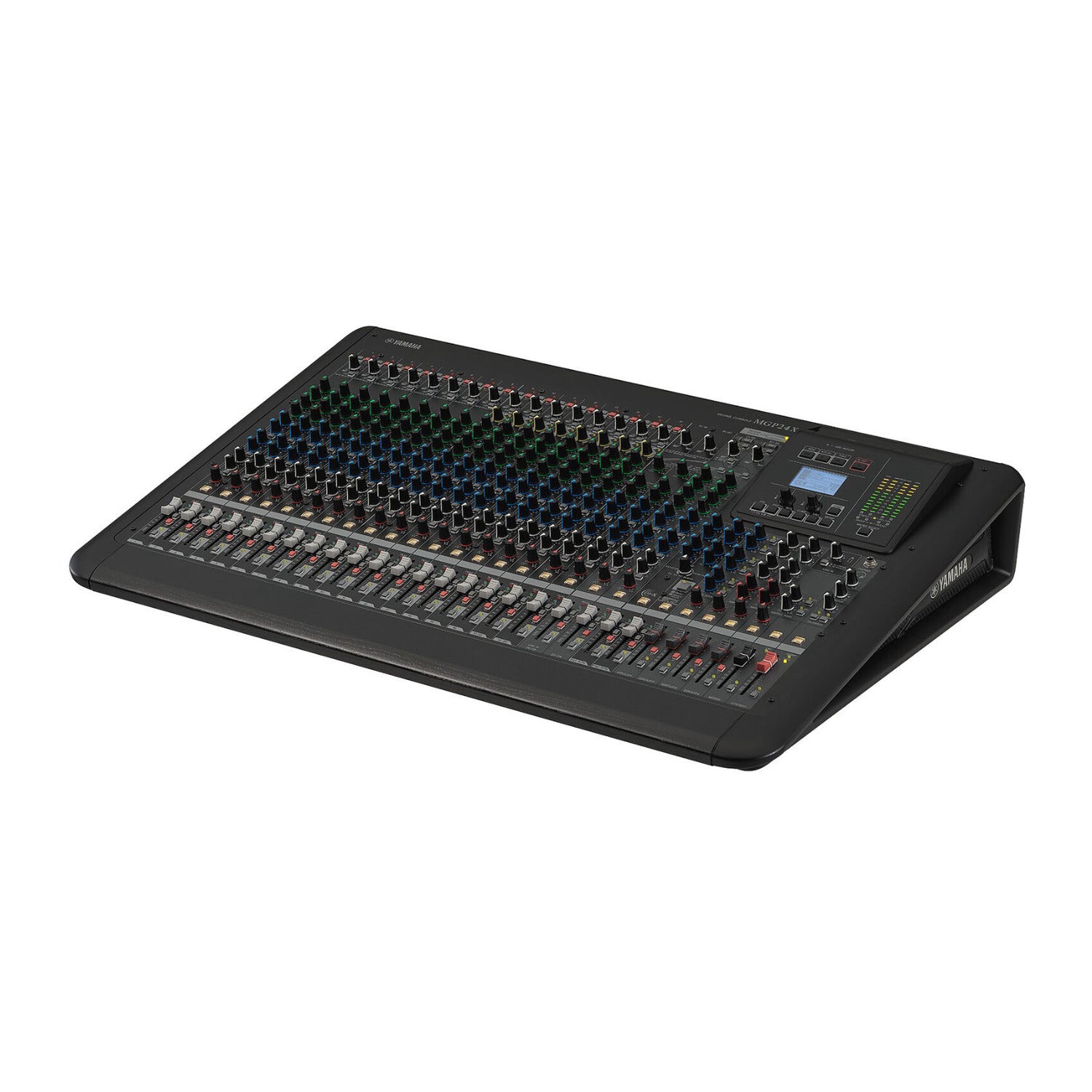

Yamaha MGP24X A 24 Channel Mixing Console with USB Recording and Effects
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 3 PM EST Mon - Friday will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Yamaha MGP24X A combines 24 line inputs with hands on analog mixing and onboard digital processing for live sound, installed systems, and recording workflows. It provides 16 mono line inputs, 4 stereo line inputs, and 16 microphone inputs, giving engineers room for microphones, instruments, playback sources, and other connected audio equipment. Six AUX sends and 2 FX sends expand routing options for monitor mixes and effects.
Discrete Class A Preamps and Channel Control
Sixteen microphone inputs use Yamaha D-PRE discrete Class A preamps with 48V phantom power per channel. A 100 hertz high pass filter helps manage low frequency content before it reaches the mix. Yamaha X-pressive EQ provides channel tone shaping, while channel compression on channels 9 through 16 gives direct dynamics control from the surface.
Routing and Digital Processing
The console provides 4 GROUP buses with the stereo bus, 2 matrix outputs, and 1 mono output for flexible signal distribution. Dual processors combine REV-X reverb with 16 SPX effects, and both processors can operate at the same time. The Stereo Hybrid Channel adds Priority Ducker and Leveler functions. A graphic EQ and stereo bus master compressor add further control for system tuning and overall dynamics.
USB Recording and Universal Power
Record Stereo Out or Matrix Out 1 and 2 directly to a compatible USB storage device in WAV or MP3 format, and play supported audio files from USB storage. The internal universal power supply accepts 100 to 240 volts at 50 hertz or 60 hertz. The mixer measures 819 millimeters wide, 169 millimeters high, and 565 millimeters deep, with a net weight of 15.5 kilograms.
General
Mixing Capacity:
| Mixing Channels | 24 Line Inputs, 16 Mono and 4 Stereo |
| Microphone Inputs | 16 |
| GROUP Buses | 4 GROUP Buses and ST Bus |
| AUX Sends | 6 |
| FX Sends | 2 |
| Matrix Outputs | 2 |
| Mono Output | 1 |
Onboard Processing:
| FX1 Processor | REV-X, 8 Programs with Parameter Control |
| FX2 Processor | SPX, 16 Programs with Parameter Control |
| Channel Compressor | Channels 9 through 16 |
| High Pass Filter | 100 hertz, 12 dB per octave |
| Mono Channel EQ | ±15 dB Maximum, High 8 kilohertz Shelving, Mid 250 hertz to 5 kilohertz Peaking, Low 125 hertz Shelving |
| Stereo Channel EQ | ±15 dB Maximum, High 8 kilohertz Shelving, Mid 2.5 kilohertz Peaking, Low 125 hertz Shelving |
| Graphic EQ | 14 Band and Flex 9 Band Modes |
| Stereo Bus Master Compressor | Standard and 3 Band Modes |
| Master Compressor Memory | 8 Scenes, 3 Read Only and 5 User Defined |
| Stereo Hybrid Channel Functions | Priority Ducker and Leveler |
Inputs and Digital I/O:
| Microphone Inputs | 16 |
| Phantom Power | 48V Per Channel |
| Line Inputs | 24 Total, 16 Mono and 4 Stereo |
| Channel Inserts | 16 |
| Return | 1 Stereo |
| Digital I/O | USB Device |
General Audio Performance:
| Total Harmonic Distortion | 0.02 percent from 20 hertz to 20 kilohertz at +14 dBu |
| Frequency Response | +0.5 dB and −1.0 dB from 20 hertz to 20 kilohertz, referenced to nominal output level at 1 kilohertz |
| Equivalent Input Noise | −128 dBu |
| Residual Output Noise | −92 dBu |
| Crosstalk | −74 dB at 1 kilohertz |
Power:
| Power Requirements | 100 to 240 volts, 50 hertz or 60 hertz |
| Power Consumption | 86 watts Maximum |
Physical:
| Width | 819 millimeters |
| Height | 169 millimeters |
| Depth | 565 millimeters |
| Net Weight | 15.5 kilograms |
Mono Channel Inputs 1 Through 16:
| Actual Source Impedance | 3 kilohms |
| Nominal Microphone Source Impedance | 50 to 600 ohms |
| PAD 0, Gain −60 dB | Sensitivity −80 dBu, Nominal −60 dBu, Maximum Before Clip −40 dBu |
| PAD 0, Gain −16 dB | Sensitivity −36 dBu, Nominal −16 dBu, Maximum Before Clip +4 dBu |
| PAD 26 dB, Gain −34 dB | Sensitivity −54 dBu, Nominal −34 dBu, Maximum Before Clip −14 dBu |
| PAD 26 dB, Gain +10 dB | Sensitivity −10 dBu, Nominal +10 dBu, Maximum Before Clip +30 dBu |
| Connectors | XLR-3-31 Type and Phone Jack |
Stereo Channel Inputs 17 Through 24:
| Actual Source Impedance | 10 kilohms |
| Nominal Source Impedance | 600 ohms Lines |
| Gain −34 dB | Sensitivity −54 dBu, Nominal −34 dBu, Maximum Before Clip −14 dBu |
| Gain +10 dB | Sensitivity −10 dBu, Nominal +10 dBu, Maximum Before Clip +30 dBu |
| Connectors | Phone Jack and RCA Pin Jack |
Insert and Talkback Inputs:
| Mono Channel Insert Input 1 Through 16 | 10 kilohms Source Impedance, −20 dBu Sensitivity, 0 dBu Nominal, +20 dBu Maximum Before Clip |
| Stereo Channel Insert Input L and R | 10 kilohms Source Impedance, −20 dBu Sensitivity, 0 dBu Nominal, +20 dBu Maximum Before Clip |
| Talkback Input | 10 kilohms Source Impedance, 50 to 600 ohms Nominal Microphone Source, −66 dBu Sensitivity, −50 dBu Nominal, −30 dBu Maximum Before Clip |
Analog Outputs:
| ST OUT L and R | 75 ohms Source Impedance, +4 dBu Nominal, +24 dBu Maximum Before Clip |
| MONO OUT | 75 ohms Source Impedance, +4 dBu Nominal, +24 dBu Maximum Before Clip |
| GROUP OUT 1 Through 4 | 150 ohms Source Impedance, +4 dBu Nominal, +20 dBu Maximum Before Clip |
| AUX SEND 1 Through 6 | 75 ohms Source Impedance, +4 dBu Nominal, +24 dBu Maximum Before Clip |
| MATRIX OUT 1 and 2 | 150 ohms Source Impedance, +4 dBu Nominal, +20 dBu Maximum Before Clip |
| Mono Channel Insert Out 1 Through 16 | 75 ohms Source Impedance, 0 dBu Nominal, +20 dBu Maximum Before Clip |
| Stereo Channel Insert Out L and R | 75 ohms Source Impedance, 0 dBu Nominal, +20 dBu Maximum Before Clip |
| Monitor Out L and R | 150 ohms Source Impedance, +4 dBu Nominal, +20 dBu Maximum Before Clip |
| Phones Out | 150 ohms Source Impedance, 40 ohms Nominal Load, 3 milliwatts Nominal, 75 milliwatts Maximum |
Level Reference:
| 0 dBu Reference | 0.775 Vrms |
| 0 dBV Reference | 1 Vrms |
