Yamaha 22-Channel Digital Mixing Console with 4K HDMI Video and Dua...

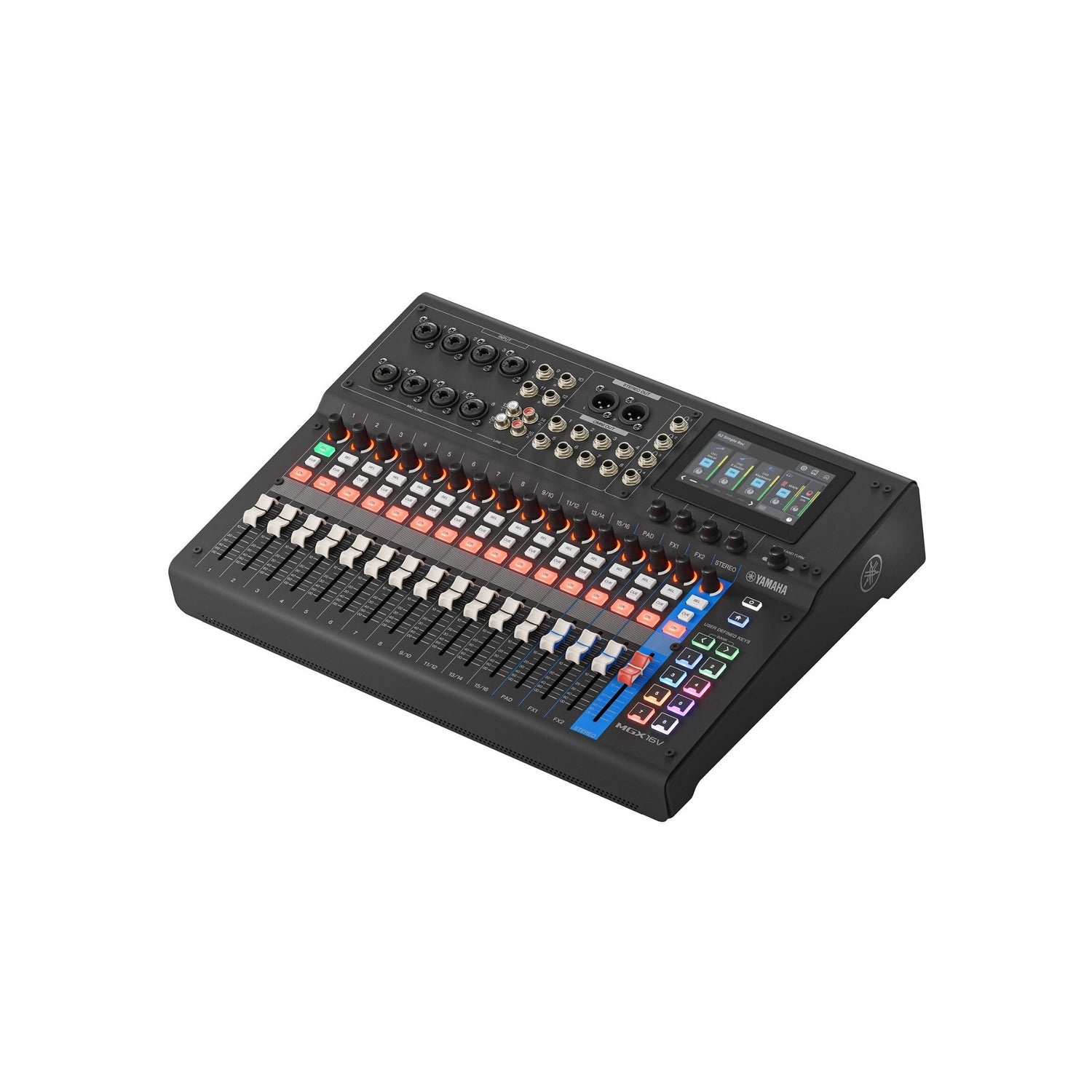

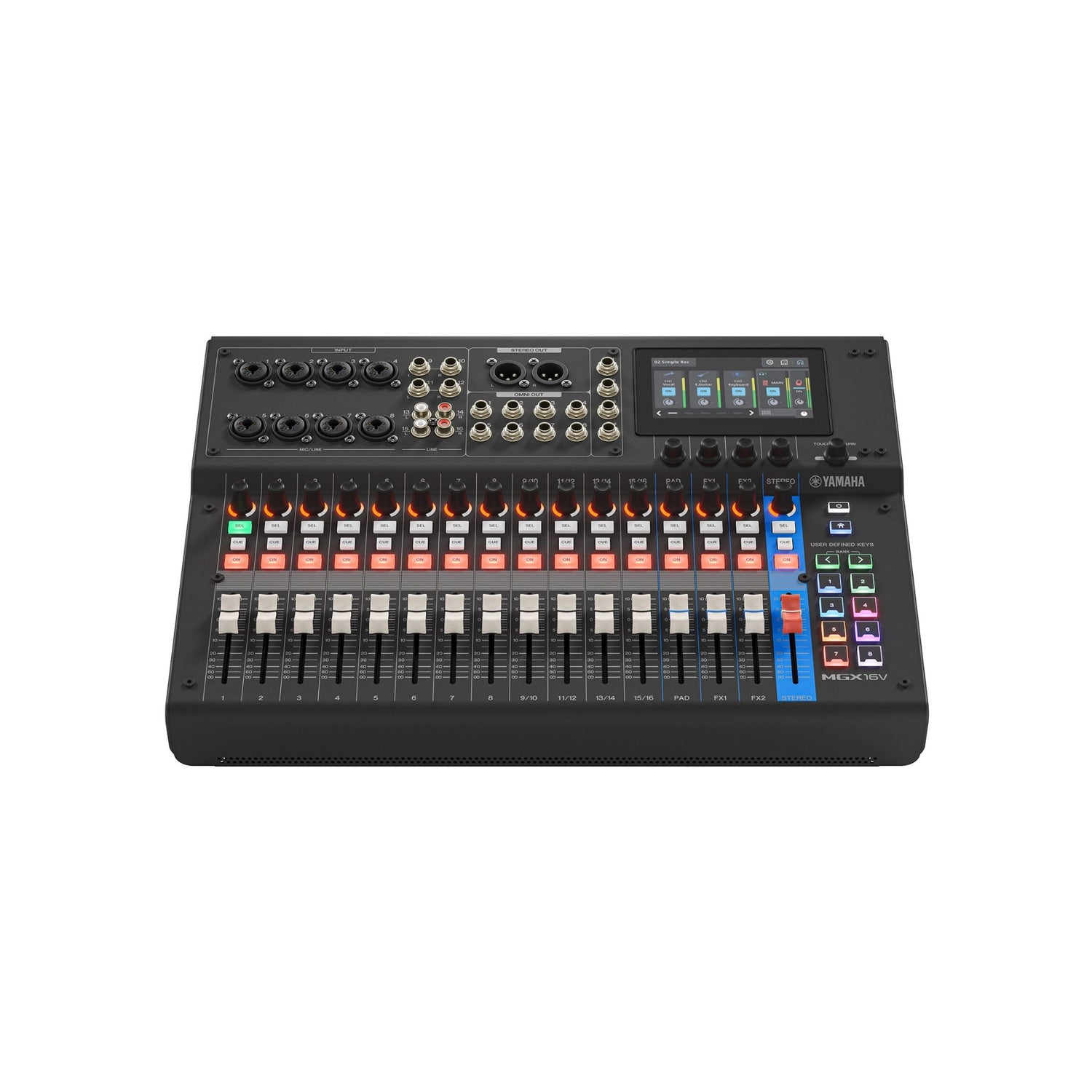

The MGX16V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX16V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.
22-Channel Professional Mixing Power with Flexible Routing
8 mono + 4 stereo channels + 1 Sound Pad + 2 FX return; 8 premium MGX mic preamps (86 dB gain), 8 MIX buses + 1 STEREO bus; 8 Combo (Mic/Line), 4 TRS, 4 RCA inputs; 2 XLR outs, 8 TRS OMNI outs, 4 headphone outputs for professional collaboration and monitoring.
Advanced 15+1 Fader Control with Touchscreen Precision

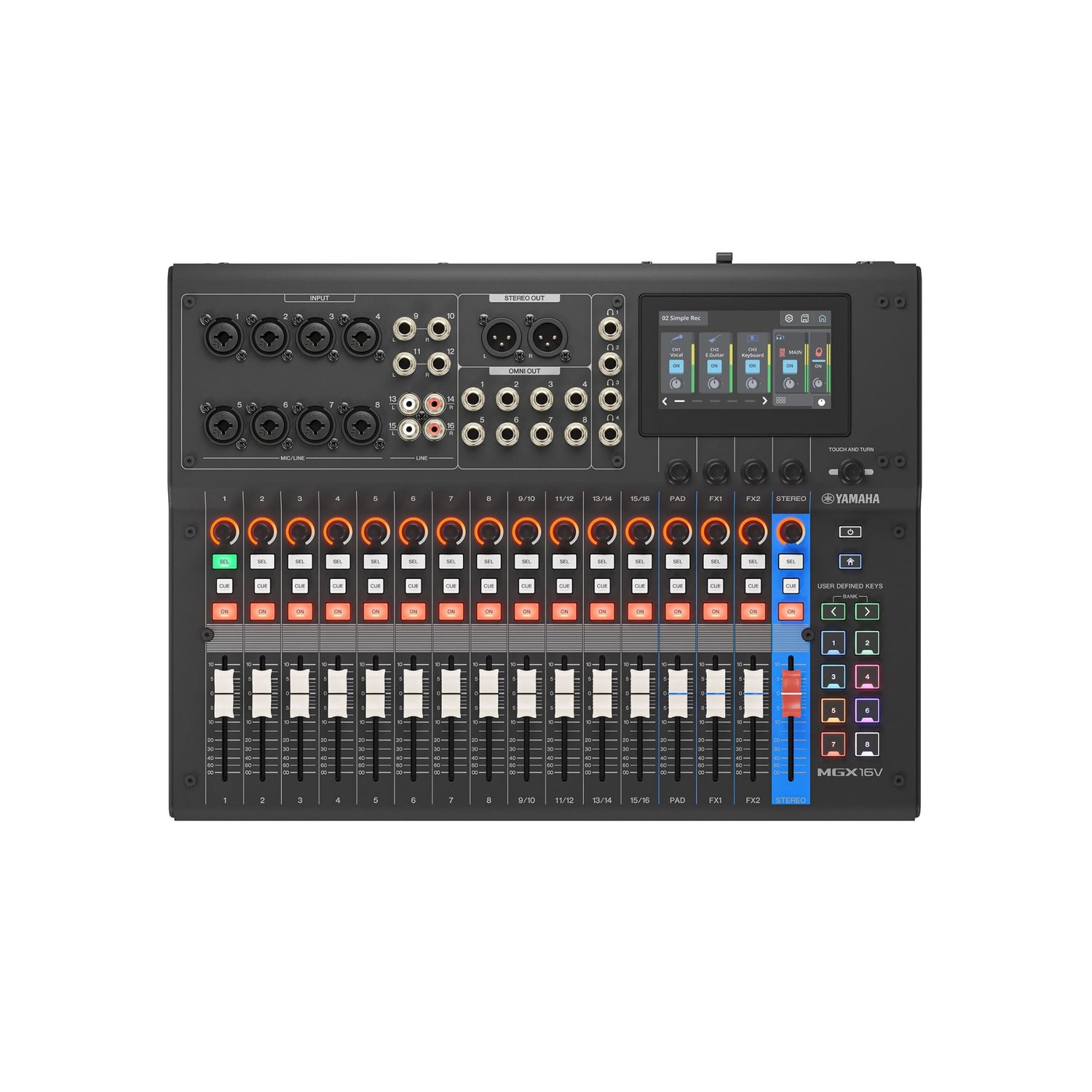

15 + 1 non-motorized 60 mm fader configuration, 4.3 inch touchscreen LCD, five control knobs, TOUCH & TURN control, intuitive GUI, oscillator test tone, customizable user keys, and fast workflow operation with Simple/Standard modes and Scene Recall.
True Sound Audio Performance with Pro DSP
High-performance AD/DA converters delivering ultra-low distortion and 125 dB stereo dynamic range; built-in DSP with Gate, Compressor, EQ, Reverb, Amp Simulator, Voice Changer, Ducker, Multi-Band Compressor, Delay (lip-sync), Auto Gain, Clip Safe, and latency-free monitoring.
Professional Multi-Track Recording & USB Integration
USB MAIN 22x22 (32-bit / 96 kHz), USB SUB 2x2 (16-bit / 48 kHz), microSD 16-track recording / 2-track playback (24-bit / up to 96 kHz), dual USB routing, seamless DAW control via Steinberg MixKey software.
All-in-One Audio & 4K Video Hub
HDMI IN/THRU with HDMI-to-USB capture and real-time passthrough (4K/60fps, 1080p/240fps), Bluetooth 5.0 (A2DP) 2-channel audio input, 8 customizable sound pads (4 banks), ideal for hybrid events, streaming, podcasting, gaming, and video production.
Portable, Durable & Stream-Ready Design

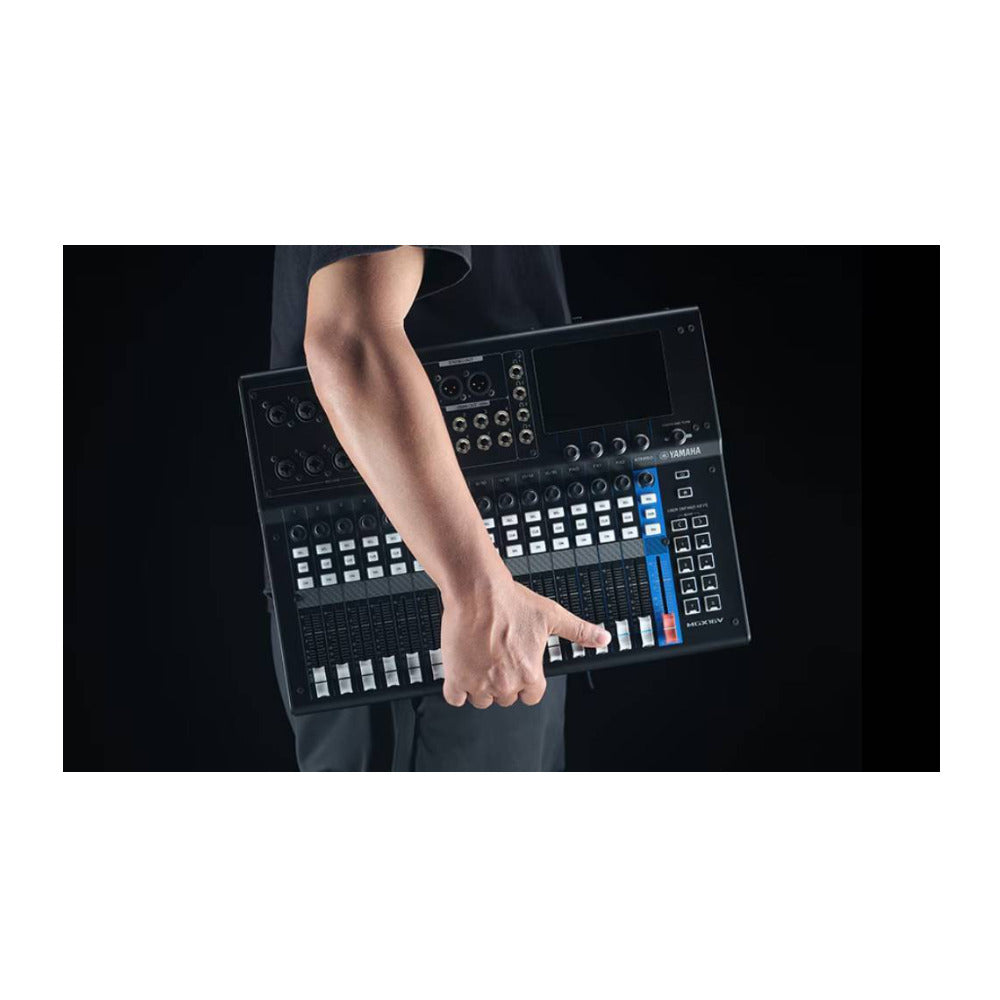

Lightweight 10.8 lbs rugged construction for live sound, installed systems, studio recording, and streaming; integrates with OBS Studio, Elgato Stream Deck, Yamaha CC1 (planned support), and includes Steinberg production software suite for a complete recording and streaming solution.
General
| Dimensions (W×H×D) | 419 × 96 × 319 mm (16.5 in × 3.8 in × 12.6 in) |
| Net Weight | 4.9 kg (10.8 lb) |
| Power Requirements | DC 16 V / 2.4 A (PA-300C AC adapter, 100–240 V, 50/60 Hz) |
| Power Consumption | 38.4 W |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |

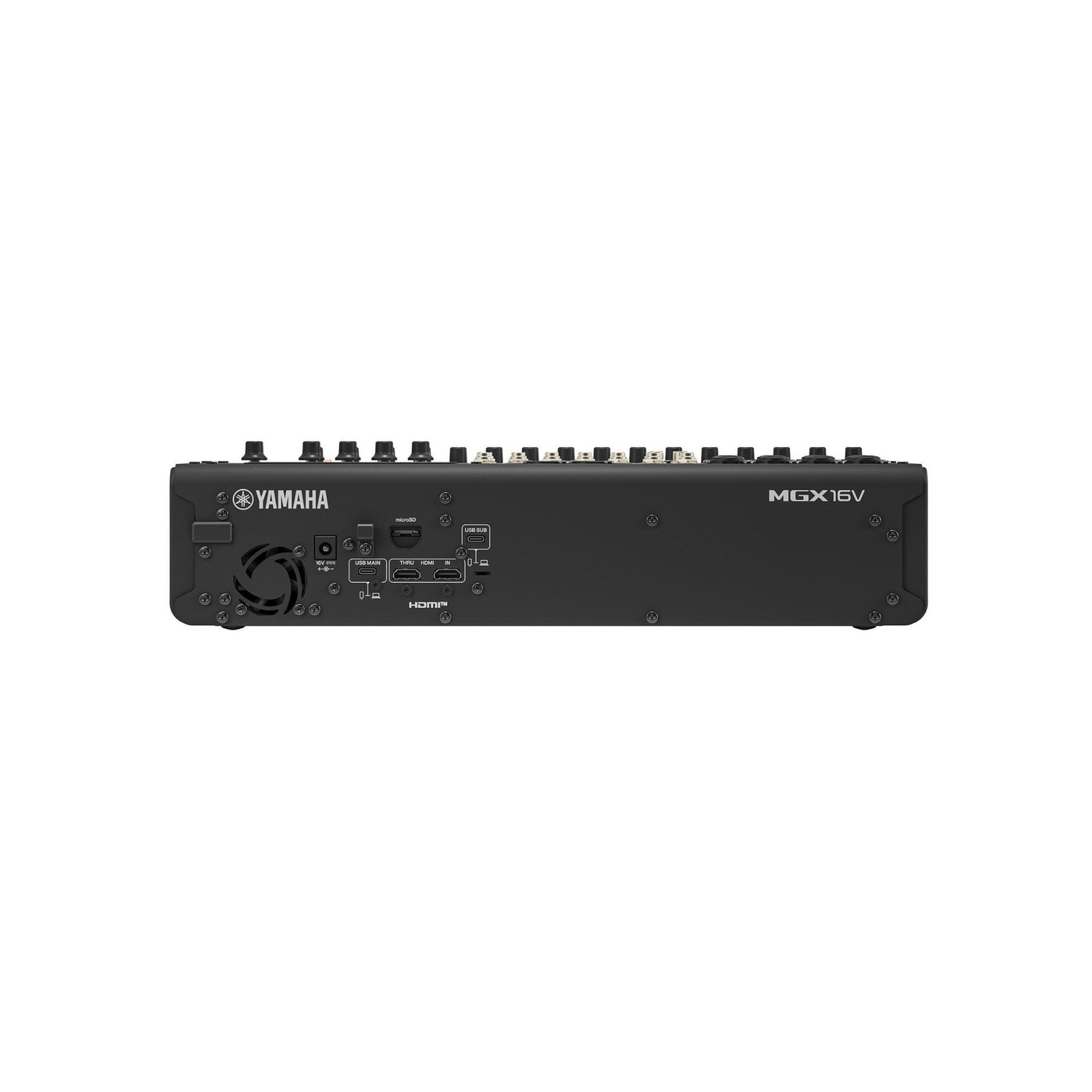

I/O Connectors
| Analog Input | 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line) |
| Analog Output | 2 XLR, 8 TRS |
| USB to Host | 2 × USB Type-C (MAIN: 32-bit / SUB: 16-bit) |
| Headphones | 4 × TRS (100 mW + 100 mW @ 40 Ω) |
| DC Input | 1 × Barrel-type |
| microSD Card Slot | 1 (16-track recording / 2-track playback, up to 24-bit/96 kHz) |
| Bluetooth | 1 input (Bluetooth 5.0, A2DP) |
| HDMI | 1 IN / 1 THRU (Audio/Video input, capture, pass-through) |
User Interface
| 4.3-inch touch screen | |
| 16 × 60 mm faders + 16 × SEND knobs | |
| 5 rotary encoders (4 × screen knobs + 1 × TOUCH AND TURN knob) | |
| Recording & Playback | |
| USB MAIN | 22-track recording / 22-track playback (32-bit / 96 kHz) |
| USB SUB | 2-track recording / 2-track playback (16-bit / 48 kHz) |
| microSD Card | 16-track recording / 2-track playback (24-bit / up to 96 kHz) |
Audio Performance
| Sampling Frequency | 96 kHz - 44.1 kHz |
| Signal Delay | <0.4 ms (Input - Stereo Out @ Fs = 96 kHz) |
| Frequency Response | +0 / -0.5 dB, 20 Hz – 20 kHz |
| Dynamic Range | 125 dB DAC - Stereo Out, 115 dB Input - Main Out |
| Total Harmonic Distortion | <0.002% (20 Hz – 20 kHz @ +4 dBu, MIC Input - Stereo Out) |
| Equivalent Input Noise | -128 dBu typ. (Input Gain = Max) |
| Residual Output Noise | -108 dBu, ST Main off |
| Crosstalk | -120 dB, adjacent Input / Stereo Out channels @1 kHz |
| Gain Range | 86 dB |
Mixing Capacity
| Input Channels | 8 Mono + 4 Stereo + 1 Sound Pad + 2 FX return |
| Mix Buses | 8 |
| Stereo Buses | 1 |
| FX Buses | 2 |
| Cue Buses | 1 |
On-Board DSP Processors
| Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ) | |
| Guitar Amp Classics (Amp Simulator) | |
| Pitch Fix (Voice Changer) | |
| Ducker, Multi-Band Compressor, Compander, Delay, REV-X Reverb |
Video Capture Specifications
| HDMI Input | 4K/60fps, 1440p/120fps, 1440p/60fps, 1080p/240fps, 1080p/120fps, 1080p/60fps |
| USB Output | 4K/60fps SDR, 1080p/240fps SDR, 1080p/60fps SDR or HDR |
