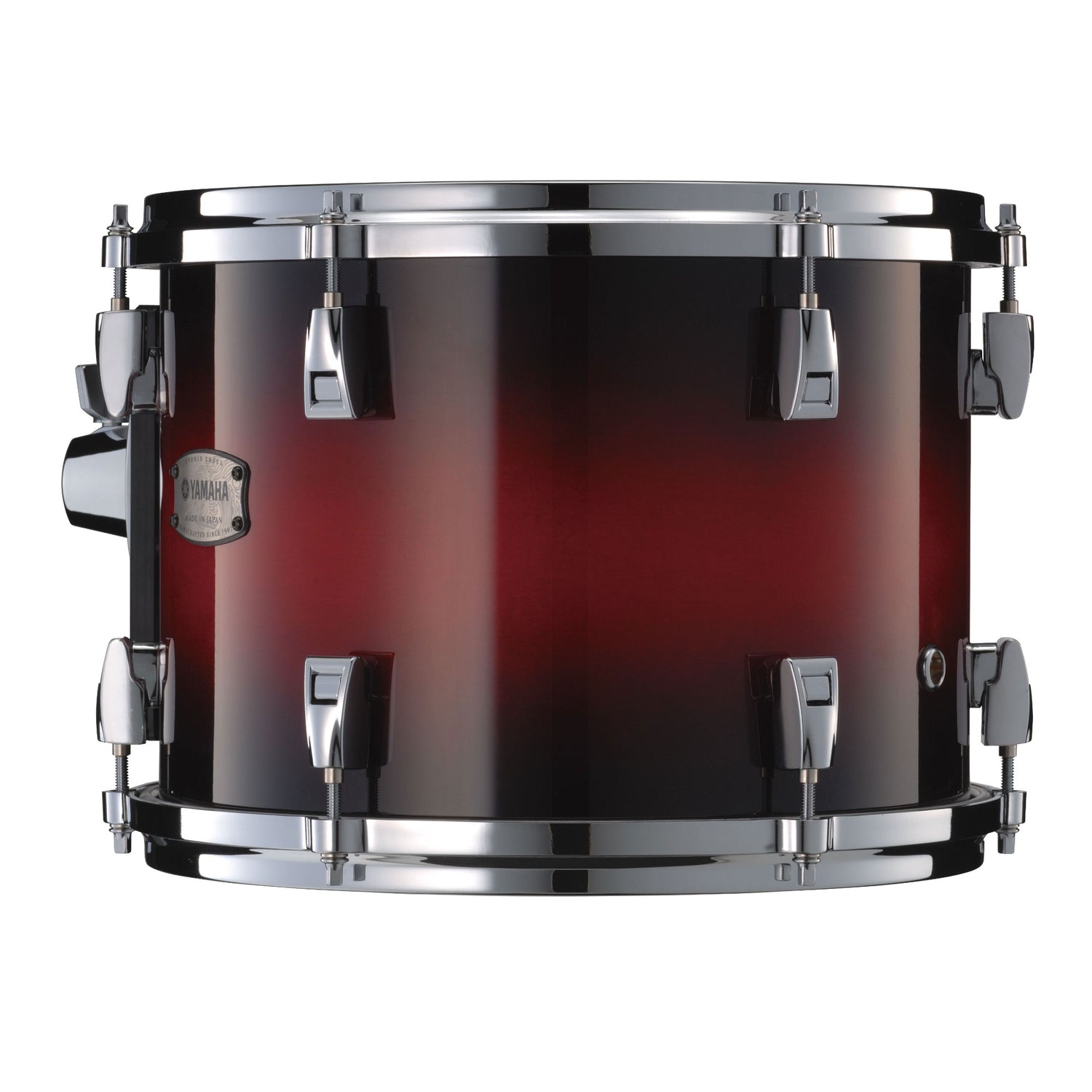

The Yamaha PHX Series 4-piece acoustic drum set in Black Cherry Sunburst brings together Yamaha's hybrid shell construction, drum-specific bearing edges, and resonance-focused hardware. Each shell uses 11 plies at 10.3 mm, combining maple, kapur, jatoba, kapur, and maple. Jatoba forms the dense center layer, kapur surrounds the core, and maple completes the inner and outer surfaces. This structure supports a strong fundamental note, broad dynamics, and a rich mid-low response.

Hybrid Shell Voice

PHX shell construction uses different woods for distinct acoustic roles. The jatoba core contributes a focused fundamental, while the surrounding kapur layers and maple surfaces support shell vibration and tonal complexity. Yamaha developed this layered structure through repeated prototyping and artist sound checks, giving the PHX platform a responsive voice across a wide playing range.

Edges Shaped for Each Drum Type

Every PHX bearing edge is cut to 30 degrees, with the radius matched to the drum type. Toms use an R4 radius, floor toms use R2, and bass drums use R1.5. These profiles help toms produce a rounder response, while the bass drum emphasizes a clearer attack. Craftspeople finish the edges with specialized wood knowledge to support accurate drumhead contact and tuning.

Hardware That Supports Resonance

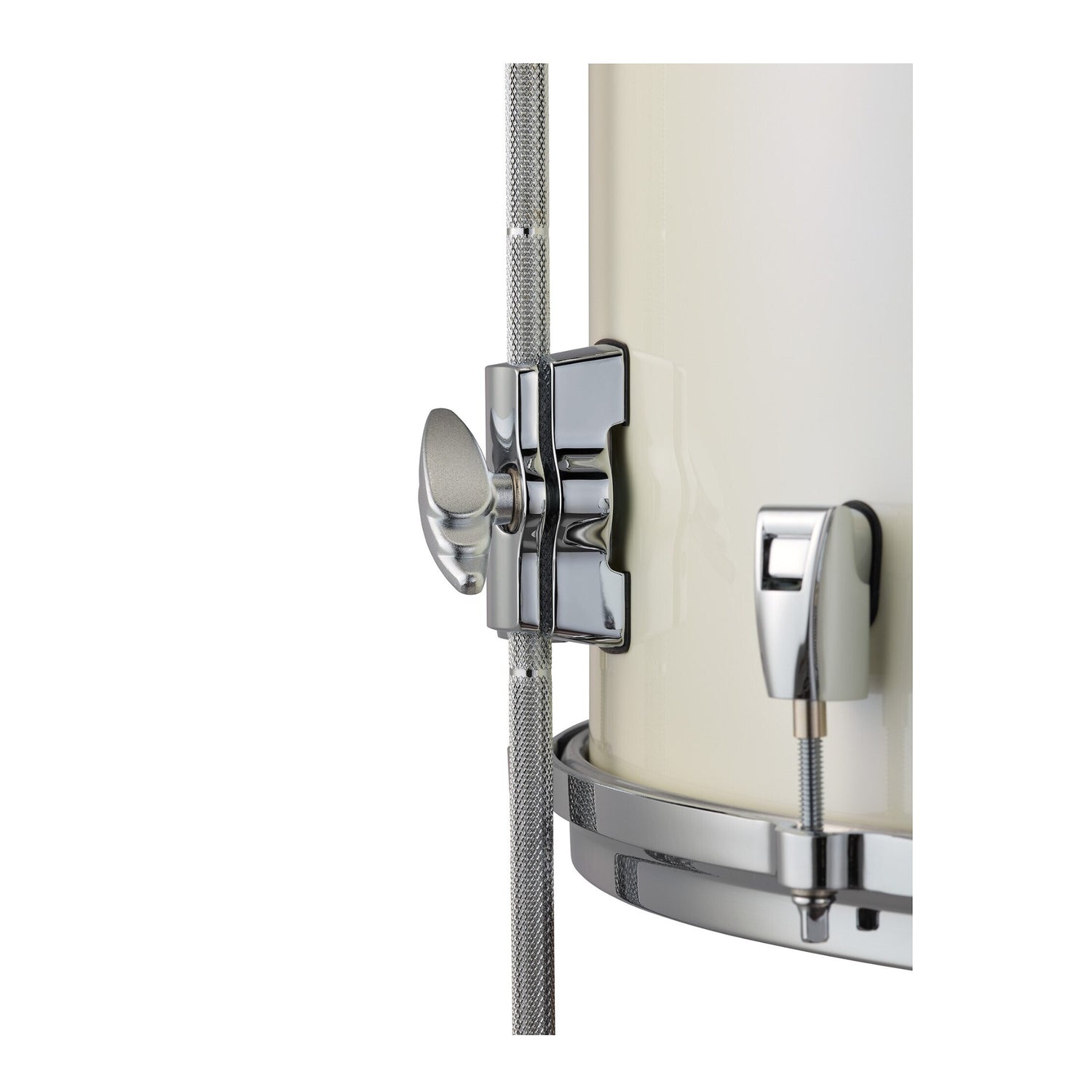

Y.E.S.S. II tom mounting uses rubber inserts and a maple mounting plate at shell nodal points to reduce unwanted transfer into the hardware. Toms and floor toms use rigid, lightweight 3.0 mm aluminum die cast hoops, while bass drums use wood hoops. Hook Lugs use an internal lug lock mechanism with a compact footprint. PHX shells also use 1 to 10 vent holes depending on drum dimensions, helping Yamaha tailor decay, projection, and playing feel. The Black Cherry Sunburst finish completes the set with a deep gloss appearance.
