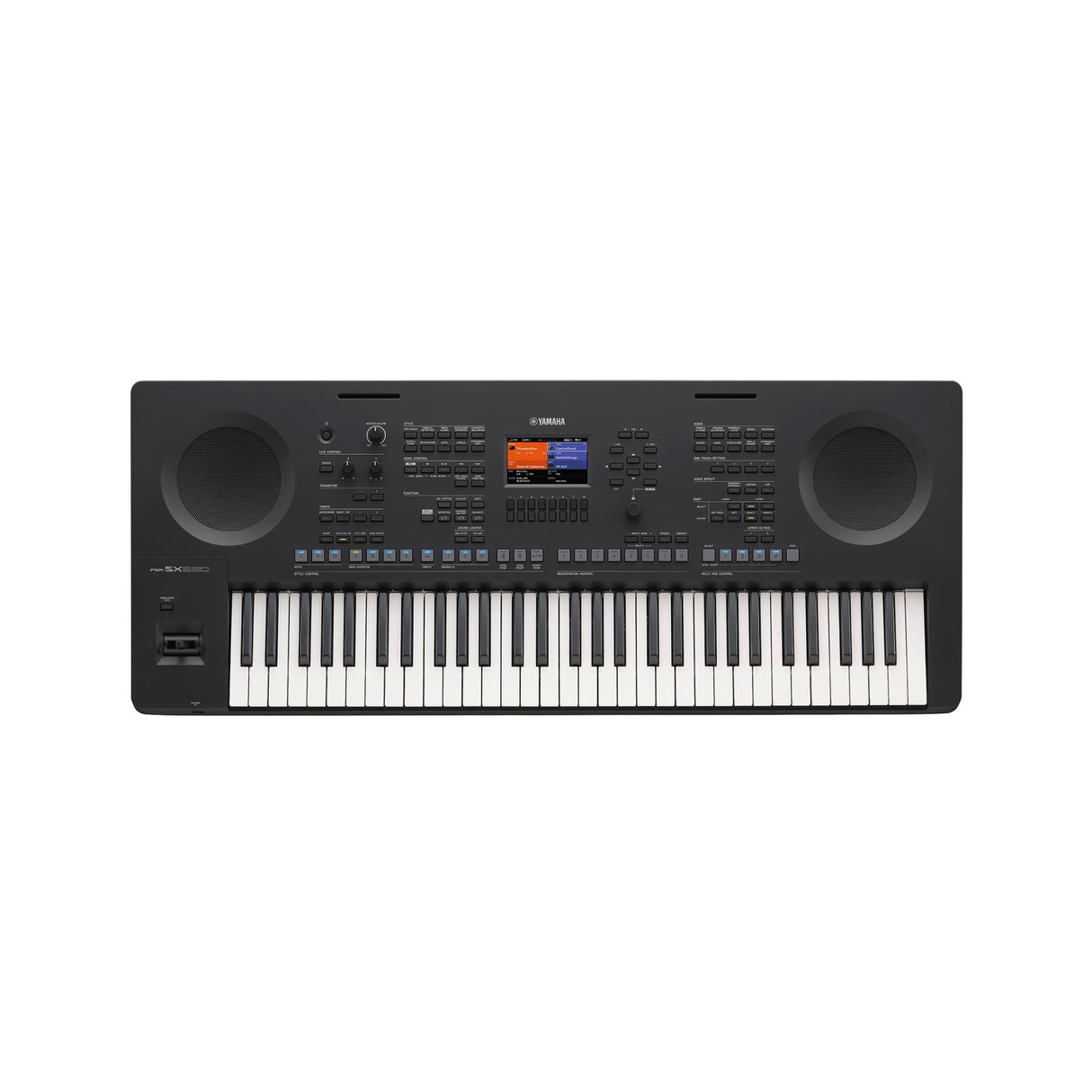

Yamaha PSR-SX620 (Black) 61 Key Arranger Keyboard with PA-300C Power Adapter
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 3 PM EST Mon - Friday will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Yamaha PSR-SX620 brings arranger performance tools into an approachable 61-key format for developing players, home musicians, and solo performers. Its AWM Stereo Sampling engine provides 1,002 preset Voices, 51 Drum and SFX Kits, and 480 XG Voices, while 450 preset Styles add rhythm, bass, and harmonic accompaniment that responds to your chords.
Expressive Control for Live Playing
Initial Touch response offers five settings to match your playing feel, while two assignable control knobs and a joystick place real-time sound shaping within easy reach. Chord Looper can record repeating chord progressions so both hands can focus on melody, voicing, or improvisation. Style Section Reset helps bring accompaniment back to the downbeat when needed.
Built-In Sound and Practical Connectivity
Two 15-watt amplifiers and two 12-centimeter speakers provide an integrated monitoring and practice system. Bluetooth audio supports wireless playback from a compatible source device, while microphone, auxiliary input, line output, headphone, USB to device, USB to host, and assignable foot pedal connections support a range of home and stage setups.
A 4.3-inch color LCD keeps key information visible during use, and the supplied PA-300C power adapter provides the Yamaha-recommended power source. With arranger tools, song recording, style creation, score display, lyrics display, and expansion support, the PSR-SX620 gives growing players room to build more complete performances from one keyboard.
General
Body:
| Color | Black |
Dimensions:
| Width | 993 millimeters, 39 1/8 inches |
| Height | 143 millimeters, 5 5/8 inches |
| Depth | 404 millimeters, 15 7/8 inches |
| Weight | 8.1 kilograms, 17 pounds 14 ounces |
Packing Box:
| Width | 1,054 millimeters |
| Height | 221 millimeters |
| Depth | 500 millimeters |
Keyboard:
| Number of Keys | 61 |
| Type | Organ, Initial Touch |
| Touch Response | Normal, Soft 1, Soft 2, Hard 1, Hard 2 |
Controllers:
| Joystick | Yes |
| Control Knobs | 2, assignable |
| Assignable Buttons | None |
| Dedicated Pitch Bend Control | None |
| Dedicated Modulation Control | None |
Display:
| Type | TFT Color WQVGA LCD |
| Size | 4.3 inches, 480 x 272 dots |
| Touch Screen | No |
| Color Display | Yes |
| Display Languages | English, German, French, Spanish, Italian, Chinese |
| Panel Languages | English, Chinese |
Tone Generation:
| Tone Generating Technology | AWM Stereo Sampling |
| Maximum Polyphony | 128 |
Voices:
| Preset Voices | 1,002 Voices + 51 Drum/SFX Kits + 480 XG Voices |
| Featured Voices | 137 S.Articulation!, 34 MegaVoice, 31 Sweet!, 74 Cool!, 89 Live! |
| Expansion Voice Capacity | Approximately 380 megabytes |
| Voice Editing | Voice Set |
| Compatibility | XG, GM, GM2 for Song Playback |
| Parts | Right 1, Right 2, Left |
Effects:
| Reverb | 59 Preset + 30 User |
| Chorus | 106 Preset + 30 User |
| DSP | 322 Preset + 30 User |
| Insertion Effect | Block 1 to 9, 322 Preset + 30 User |
| Master Compressor | 5 Preset + 30 User |
| Master EQ | 5 Preset + 30 User |
| Part EQ | 27 Parts |
| Microphone Effects | Noise Gate, Compressor, 3 Band EQ |
| Arpeggio | Yes |
| Vocal Harmony Presets | None |
| Vocal Harmony User Settings | None |
Accompaniment Styles:
| Preset Styles | 450 |
| Featured Styles | 416 Pro Styles, 33 Session Styles, 1 Free Play Style |
| Fingering | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard, Smart Chord |
| Style Control | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 |
| Style Compatibility | Style File Format, Style File Format GE |
| Expansion Style | Yes, Internal Memory |
| Expansion Audio Style | No |
| Chord Looper | Yes |
| Style Section Reset | Yes |
| Style Section Change Timing | No |
| Style Section Time Signature | No |
| Style Dynamics Control | No |
| One Touch Setting | 4 for each Style |
Songs:
| Preset Songs | 1 Demo Song, 2 Preset Songs |
| Recorded Songs | Unlimited, dependent on drive capacity |
| Recording Tracks | 16 |
| Song Data Capacity | Approximately 1 megabyte per song |
| Recording Functions | Quick Recording, Multi Track Recording |
| Playback Format | SMF Format 0 and 1, XF |
| Recording Format | SMF Format 0 |
Multi Pads:
| Preset Multi Pad Banks | 226 Banks x 4 Pads |
| Audio Link | Yes |
| Multi Pad Creator | Yes |
Voice Functions:
| Harmony/Echo | Yes, with Arpeggio |
| Panel Sustain | Yes |
| Mono/Poly | Yes |
| Voice Information | Yes |
Style Functions:
| Style Creator | Yes |
| One Touch Setting Information | Yes |
Song Functions:
| Song Creator | Yes |
| Score Display Function | Yes |
| Lyrics Display Function | Yes |
Registration:
| Registration Buttons | 8 |
| Registration Control | Registration Sequence, Freeze |
| Playlist Capacity | 500 records maximum per Playlist file |
| Registration Bank Search | Yes |
Lesson and Guide:
| Lesson Functions | Follow Lights, Any Key, Karao-Key, Your Tempo |
Audio Recorder and Player:
| Maximum Recording Time | 80 minutes per song |
| Recording | USB .wav, 44.1 kilohertz, 16 bit, stereo |
| Playback | USB .wav, 44.1 kilohertz, 16 bit, stereo |
| Time Stretch | Yes |
| Pitch Shift | Yes |
| Vocal Cancel | Yes |
Overall Controls:
| Demonstration | Yes |
| Metronome | Yes |
| Tempo Range | 5 to 500, Tap Tempo |
| Transpose | 12 semitones down to 12 semitones up |
| Tuning Range | 414.8 to 466.8 hertz, standard 440.0 hertz |
| Octave Button | Yes |
| Scale Types | 9 |
| Sub Scale Setting | No |
| Direct Access | Yes |
| Text Display Function | Yes |
| Wallpaper Customization | No |
Storage:
| Internal Memory | Approximately 20 megabytes maximum |
| External Drive | USB flash drive |
Connectivity:
| Headphones | Standard stereo phone jack |
| Microphone | 1 microphone input |
| Dedicated MIDI IN/OUT Ports | None |
| Auxiliary Input | Stereo mini jack |
| Line Output | MAIN OUTPUT L/L+R, R |
| Display Out | No |
| Foot Pedal 1 | SUSTAIN |
| Foot Pedal 2 | UNISON |
| Foot Pedal Function | Assignable |
| USB TO DEVICE | Yes |
| USB TO HOST | Yes |
| Bluetooth | Yes |
Amplifiers and Speakers:
| Amplifiers | 2 x 15 watts |
| Speakers | 2 x 12 centimeters |
Power:
| Power Supply | PA-300C or equivalent recommended by Yamaha |
| Power Consumption | 18 watts |
| Auto Power Off Function | Yes |
Included Accessories:
| Owner's Manual | |
| Online Member Product Registration | |
| Music Rest | |
| PA-300C AC Power Adapter |
